ASTM A182 F5 Flanges

The ASTM A182 F5 grade covers forged flange that are designated to work in high-temperature services. ASTM A182 F5 Flanges connect piping grades efficiently and can be easily assembled or disassembled. These flange provide stability and strength to the module as there is a vigorous movement of flow in the system. The A182 F5 material is designed with a chemical content of carbon, manganese, phosphorous, sulfur, silicon, nickel, chromium, and molybdenum. This allows them to be used across harsh conditions. ASTM A182 Gr F5 Forged Flange is processed at extreme pressures and temperatures, giving the flange outstanding tensile and fatigue strength. These flange are designated into different pressure classes and schedules. The SA182 F5 Class 150 Flange is designed to operate at 75 PSI at 800 degrees F.

The SA 182 F5 Slip On Flange is very common gradeused by engineers in the oil and gas industry. The low-profile head in these flange are easy to install and are very reliable. ASTM A182 F5 Weld Neck Flange is designed with a long tapered hub or lip. This gives the flange good stability and strength in different applications. They are butt-welded in place, allowing them to work in harsh conditions. The A182 F5 Blind Flange, on the contrary, doesn’t possess any face type or a lip. These flange are utilized to terminate the flow of media in the system. A182 Gr F5 Spectacle Blinds are similar to blind flange, but they have a spade end and an open end. These blinds are commonly seen in applications where repair and maintenance is taking place. The SA 182 Gr F5 Socket Weld Flange is a pressurized grade that has a recessed socket area, allowing the flange to be welded in place using a single fillet weld. An F5 Alloy Steel Lap Joint Flange has a stub end with a lap-joint ring-type placed on the module. These flange are employed to align the mating flange and are seen in large flange that are difficult to adjust. The ASTM A182 F5 Plate Flange is a flat circular disc that has grooves on the face of the flange. These flange are quality-assured and can be customized as per requirements.

Leading Supplier and Exporter of SA182 F5 Lap Joint Flange and A182 Gr F5 Spectacle Blind Flange

ASTM A182 GR F5 Flange Specification

Specification ASME/ ASTM SA182/ A182
Size inch From 1/2" upto 36"
Standard Flanges EN, DIN, BS, ASME, ANSI
Class / Pressure Rating PN10, PN40, 300#, PN16, PN64, 150#, 1500#, PN6, 2500#, 600#, 900#, PN25
Dimensions BS 10, DIN, ASME/ ANSI B16.5, B16.48, BS4504, B 16.47 Series A/ B, EN-1092
Type of Face Flange Ring Type Joint/ Flate/ Raised Face

Alloy Steel F5 Flanges Price List

10-12% price difference if you buy directly from Alloy Steel F5 Flanges and Alloy Steel ASTM A182 F5 Blind Flanges manufacturers

Description Price Per Kg In Singapore Price Per Kg In UAE Price Per Kg In USD Price Per Kg In Malaysia
NPS 2 (DN 50) X 19.5 MM THK X CLASS 600 FLANGE LWNRF SA182 GR. F5 ASME B16.5 HUB OD 84 MM X ID 45 SGD 320.42 UAE Dirham 836.65 US $231.41 MYR 1,014.66
3/4 SCH 80 X 300# FLANGE A 182 F5 SGD 54.36 UAE Dirham 141.94 US $39.26 MYR 172.14
12 X 300# X SCH STD ALLOY STEEL WNRF FLANGE TO ASTM A182 F-5, DIMN B16.5. SGD 856.44 UAE Dirham 2,236.26 US $618.54 MYR 2,712.06
8 X 300# X SCH 40 ALLOY STEEL BLND FLANGE TO ASTM A182 F-5, DIMN B16.5. SGD 310.79 UAE Dirham 811.50 US $224.46 MYR 984.16
3-300 RF SCH 40 ALLOY STEEL FLANGE, WELD NECK SA182 F5 SGD 81.00 UAE Dirham 211.50 US $58.50 MYR 256.50
1 1/2-600 RF SCH 80 FLANGE WELD NECK ASME SA182 F5 SGD 68.29 UAE Dirham 178.32 US $49.32 MYR 216.26

ASTM A182 F5 Flanges Types

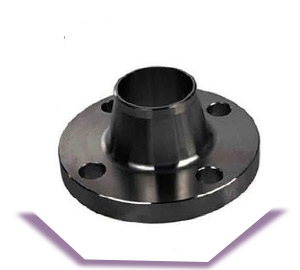

ASTM A182 GR F5 Weld Neck Flange (WNRF)

ASTM A182 GR F5 Weld Neck Flange (WNRF)

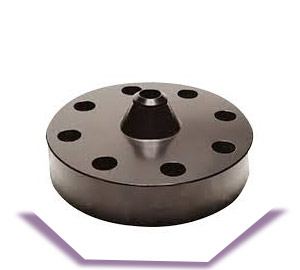

Alloy Steel F5 Reducing Flanges

Alloy Steel F5 Reducing Flanges

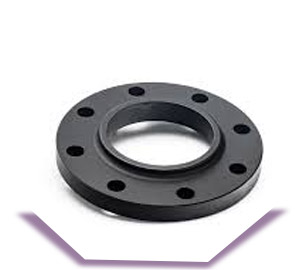

ASTM A182 F5 Lap Joint Flanges

ASTM A182 F5 Lap Joint Flanges

Alloy Steel ASTM A182 F5 Forged Flange

Alloy Steel ASTM A182 F5 Forged Flange

SA 182 Gr F5 Steel Nipo flange

SA 182 Gr F5 Steel Nipo flange

A182 F5 Cl1 Puddle Flanges

A182 F5 Cl1 Puddle Flanges

4340 Alloy Steel A182 Grade F5 Ring Type Joint Flanges (RTJ)

4340 Alloy Steel A182 Grade F5 Ring Type Joint Flanges (RTJ)

A182 F5 Cl.2 Orifice Flanges

A182 F5 Cl.2 Orifice Flanges

SA 182 Gr F5 Ring Spacer

SA 182 Gr F5 Ring Spacer

SA182 F5 Cl2 Square Flanges

SA182 F5 Cl2 Square Flanges

ASTM A182 Gr F5 Tongue & Groove Flanges

ASTM A182 Gr F5 Tongue & Groove Flanges

Alloy Steel F5 Spade Flange

Alloy Steel F5 Spade Flange

ASME SA182M Alloy Steel F5 Male & Female Flanges

ASME SA182M Alloy Steel F5 Male & Female Flanges

Alloy Steel Grade F5 Long Weld Neck Flanges

Alloy Steel Grade F5 Long Weld Neck Flanges

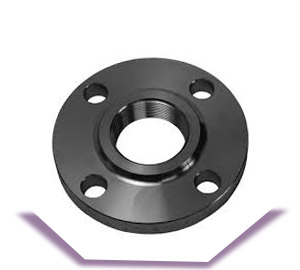

A182 F5 Alloy Steel Threaded / Screwed Flanges

A182 F5 Alloy Steel Threaded / Screwed Flanges

F5 Alloy Steel Weldo Flange

F5 Alloy Steel Weldo Flange

A182 F5 Cl2 High Hub Blind Flanges

A182 F5 Cl2 High Hub Blind Flanges

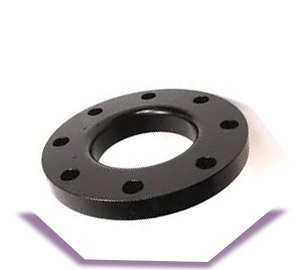

A182 F5 Class 2 Slip On Flanges (SORF)

A182 F5 Class 2 Slip On Flanges (SORF)

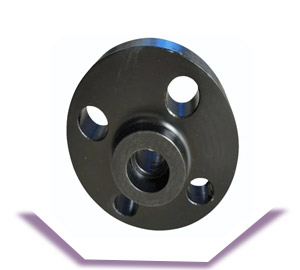

ASTM A182 Grade F5 Socket Weld Flanges (SWRF)

ASTM A182 Grade F5 Socket Weld Flanges (SWRF)

A182 Gr F5 Spectacle Blind Flanges

A182 Gr F5 Spectacle Blind Flanges

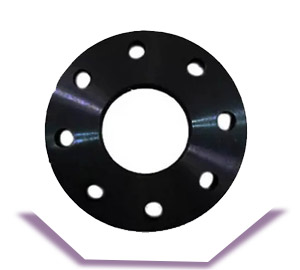

A182 Grade F5 Plate Flanges

A182 Grade F5 Plate Flanges

ASME SA 182 Gr F5 Bleed Ring Flange

ASME SA 182 Gr F5 Bleed Ring Flange

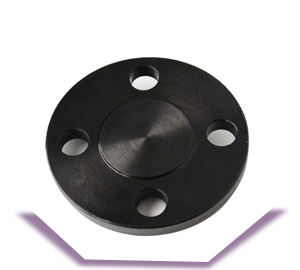

SA182 F5 Cl1 Blind Flanges (BLRF)

SA182 F5 Cl1 Blind Flanges (BLRF)

ASTM A182 F5 Cl.2 Raised Face Flanges

ASTM A182 F5 Cl.2 Raised Face Flanges

Alloy Steel ASTM A182 F5 Slip On Flanges Weight Chart

Slip On FLanges

Class 300 LB

Pipe Weight Flange Data Hub Face Drilling Data
Nominal Outside A B C F D G H J I
Diameter Overall Inside Flange Hub Overall Face Number Diameter Bolt Hole
Pipe Diameter Diameter Thickness min Diameter Length Diameter of Holes of Circle Diameter
Size in
mm
kg/ piece in
mm
in
mm
in
mm
in
mm
in
mm
in
mm
in
mm
in
mm
2 0.840 0.64 3.750 0.880 0.560 1.500 0.880 1.380 4 2.620 0.620
21.30 95.20 22.40 14.20 38.10 22.40 35.10 66.55 15.70
w 1.050 1.12 4.620 1.090 0.620 1.880 1.000 1.690 4 3.250 0.750
26.70 117.3 27.70 15.70 47.70 25.40 42.90 82.50 19.10
1 1.315 1.36 4.880 1.360 0.690 2.120 1.060 2.000 4 3.500 0.750
33.40 123.9 34.50 17.50 53.80 26.90 50.80 88.90 19.10
14 1.660 1.68 5.250 1.700 0.750 2.500 1.060 2.500 4 3.880 0.750
42.20 133.3 43.20 19.00 63.50 26.90 63.50 98.60 19.10
12 1.900 2.49 6.120 1.950 0.810 2.750 1.190 2.880 4 4.500 0.880
48.30 155.4 49.50 20.60 69.85 30.20 73.15 114.3 22.40
2 2.375 2.87 6.500 2.440 0.880 3.310 1.310 3.620 8 5.000 0.750
60.30 165.1 62.00 22.30 84.00 33.20 91.90 127.0 19.10
22 2.875 4.32 7.500 2.940 1.000 3.940 1.500 4.120 8 5.880 0.880
73.00 190.5 74.70 25.40 100.0 38.10 104.6 149.4 22.40
3 3.500 5.85 8.250 3.570 1.120 4.620 1.690 5.000 8 6.620 0.880
88.90 209.5 90.70 28.40 117.3 42.90 127.0 168.1 22.40
32 4.000 7.34 9.000 4.070 1.190 5.250 1.750 5.500 8 7.250 0.880
101.6 228.6 103.4 30.20 133.3 44.40 139.7 4.2 22.40
4 4.500 9.61 10.00 4.570 1.250 5.750 1.880 6.190 8 7.880 0.880
114.3 254.0 116.1 31.70 146.0 47.70 157.2 200.1 22.40
5 5.563 12.3 11.00 5.660 1.380 7.000 2.000 7.310 8 9.250 0.880
141.3 279.4 143.8 35.00 177.8 50.80 5.7 234.9 22.40
6 6.625 15.6 12.50 6.720 1.440 8.120 2.060 8.500 12 10.62 0.880
168.3 317.5 170.7 36.50 206.2 52.30 215.9 269.7 22.40
8 8.625 24.2 15.00 8.720 1.620 10.25 2.440 10.62 12 13.00 1.000
219.1 381.0 221.5 41.10 260.3 61.90 269.7 330.2 25.40
10 10.75 34.1 17.50 10.88 1.880 12.62 2.620 12.75 16 15.25 1.120
273.0 444.5 276.3 47.70 320.5 66.55 323.9 387.3 28.40
12 12.75 49.8 20.50 12.88 2.000 14.75 2.880 15.00 16 17.75 1.250
323.8 520.7 327.1 50.80 374.6 73.15 381.0 450.8 31.70
14 14.00 69.9 23.00 14.14 2.120 16.75 3.000 16.25 20 20.25 1.250
355.6 584.2 359.1 53.80 425.4 76.20 412.8 514.4 31.70
16 16.00 88.1 25.50 16.16 2.250 19.00 3.250 .50 20 22.50 1.380
406.4 647.7 410.5 57.15 482.6 82.50 469.9 571.5 35.00
.00 109 28.00 65.21 2.380 21.00 3.500 21.00 24 24.75 1.380
457.2 711.2 461.8 60.45 533.4 88.90 533.4 628.7 35.00
20 20.00 134 30.50 20.20 2.500 23.12 3.750 23.00 24 27.00 1.380
508.0 774.7 513.1 63.50 587.2 95.20 584.2 685.8 35.00
24 24.00 201 36.00 24.25 2.750 27.62 4.190 27.25 24 32.00 1.620
609.6 914.4 616.0 69.85 701.5 106.4 692.2 812.8 41.00

Biggest SA182 F5 Class 150 Flange Manufacturer in India, Check Sizes and Dimensions of F5 Alloy Steel Lap Joint Flange

SA 182 Gr F5 Steel Flanges Chemical Composition

A182 F5 Cl1 Forged Flanges and 4340 Alloy Steel A182 Grade F5 slip on Flanges manufacturer in India, we use European/ German & Korean raw material to produce A182 F5 Cl.2 RTJ Flange

Cr Mn Si C P S Mo
4 - 6 0.3 - 0.6 0.5 0.15 0.03 0.03 0.044 - 0.65

ASTM A182 Gr F5 Flanges Mechanical Properties

Elongation % Yield Properties Tensile Properties
20 485 275

Alloy Steel ASTM A182 F5 Flanges Equivalent

most trusted and reliable SA 182 Gr F5 Socket Weld Flanges, SA182 F5 Cl2 Blind Flange suppliers in India

DIN WERKSTOFF NR. UNS DIN
1.7362 K41545 12CRMO195

ASME SA 182 Gr F5 Plate Flanges

Plate FLanges
PN DN B A C
mm mm mm
10&16 10 14 90 .0
10&16 15 14 95 22.0
10&16 20 16 105 27.5
10&16 25 16 115 34.5
10&16 32 140 43.5
10&16 40 150 49.5
10&16 50 20 165 61.5
10&16 65 20 5 77.5
10&16 80 20 200 90.5
10&16 100 22 220 116.0
10&16 125 22 250 141.5
10&16 150 24 285 170.5
10&16 200 24 340 221.5
10 250 26 395 276.5
16 29 405
We keep Ready Stock of ASTM A182 F5 Orifice Flange and SA 182 F5 Reducing Flange in Wide Range of Sizes and Pressure Rating

ASTM A182 F5 Alloy Steel Applications

  • Pulp and Paper Industry

  • Petrochemicals

  • Sea Water Equipment

  • Specialty Chemicals

  • Heat Exchangers

  • Pharmaceuticals

  • Condensers

  • Pharmaceutical Equipment

  • Gas Processing

  • Chemical Equipment

  • Off-Shore Oil Drilling Companies

  • Power Generation

ASME SA182M Alloy Steel F5 Flange Pressure Rating

Buy SA 182 Gr F5 Slip On Flange from trusted manufacturers, ADNOC certified supplier of ASTM A182 F5 WNRF Flanges

Temperature °F 900# 300# 1500# 400# 150# 2500# 600#
-20 to 100 2160 720 3600 960 275 6000 1440
200 00 600 3000 800 230 5000 1200
300 1620 540 2700 720 205 4500 1080
400 1490 495 2485 660 190 4140 995
500 1395 465 2330 620 170 3880 930
600 1310 435 25 580 140 3640 875
650 1290 430 2150 575 125 3580 860
700 1275 425 2125 565 110 3540 850
750 1245 415 2075 555 95 3460 830
800 1210 405 2015 540 80 3360 805
850 1190 395 1980 530 65 3300 790
900 1165 390 1945 520 50 3240 780
950 1145 380 1910 510 35 30 765
1000 965 320 1605 430 20 2675 640
1050 925 310 1545 410 20 2570 615
1100 770 255 1285 345 20 2145 515
1150 595 200 995 265 20 1655 400
1200 465 155 770 205 20 1285 310
1250 340 115 565 150 20 945 225
1300 255 85 430 115 20 715 170
1350 5 60 310 80 20 515 125
1400 145 50 240 65 20 400 95
1450 105 35 170 45 15 285 70
1500 80 25 135 35 10 230 55
Directly Buy from SA 182 Gr F5 Socket Weld Flange Manufacturers to save cost, Stockholder of A182 F5 material in Mumbai

Alloy Steel F5 Flanges Schedule Chart

SORF (Slip On) NPS (Nominal Pipe Size) WRNR (Weld Neck) NPT (Threaded) Loose (Lap Joint) SWRF (Socket Weld) BLRF (Blind)
1 ½ 2 1 1 2 2
2 ¾ 2 2 2 2 2
2 1 3 2 2 2 2
3 3 3 3 3 3
3 4 3 3 3 4
5 2 6 5 5 5 5
8 10 8 8 8 7
9 3 11.5 9 9 9 9
11 12 12 11 11 13
13 4 16.5 13 13 13 17
15 5 21 15 15 15 20
19 6 26 19 19 19 27
30 8 42 30 30 30 47
43 10 54 43 43 43 70
64 12 88 64 64 64 123
90 14 114 90 105 90 140
106 16 140 98 140 98 180
130 18 165 130 160 130 220
165 20 197 165 195 165 285
185 22 225 185 245 185 355
220 24 268 220 275 220 430

ASTM A182 F5 Flanges Dimensions

Contact directly a Alloy Steel F5 Industrial Flanges and Alloy Steel F5 RTJ Flange manufacturer in India for lowest price and fast delivery

Standard Bolt Size Dia. of Bolt Hole Class Dia. Bolt Circle Dia. No. of Bolts
ISO 7005 (DIN) Flange M10 11 PN6 Flange 80 55 4
M12 14 PN10 Flange 95 65 4
M12 14 PN16 Flange 95 65 4
M14 16 PN20 Flange 90 60.5 4
M12 14 PN25 Flange 95 65 4
M12 14 PN40 Flange 95 65 4
Alloy 2129 Flange 13 14 Table C Flange 95 67 4
13 14 Table D Flange 95 67 4
13 14 Table E Flange 95 67 4
13 14 Table F Flange 95 67 4
16 17 Table H Flange 114 83 4
16 17 Table J Flange 114 83 4
Alloy 4087 Flange M12 14 PN14 Flange 95 67 4
ANSI B16.5 Flange 13 16 ANSI 150 Flange 89 60 4
13 16 ANSI 300 Flange 95 67 4
13 16 ANSI 600 Flange 95 67 4
19 22 ANSI 900 Flange 121 83 4
19 22 ANSI 1500 Flange 121 83 4
