Are you looking for SA516 Gr 70 Spectacle Blind Flanges Manufacturer in India, Check latest price list of A516 Grade 70 Steel Flange

A516 Gr 70 Flange

A flange connects valves, tubes, pumps, and other piping equipment to produce a good piping structure. The A516 Gr 70 Flange is efficient in connecting the pipes that allow it to inspect and easily modify the system. These flanges are designed with chromium, nickel, and molybdenum content. SA 516 Gr 70 Flange is a pressurized grade that work well in elevated temperature conditions. These flange are preferred in the oil and gas industry as they possess excellent corrosion resistance properties. The ASTM A516 Grade 70 Flange possesses superior strength and good notch toughness. These flanges are very durable and are easy to install and maintain for long periods. A516 Grade 70 Steel Flange provides stability and strength to the piping equipment as there is the movement of fluids and gases at extreme speeds. These flange are available in standard face types and schedules.

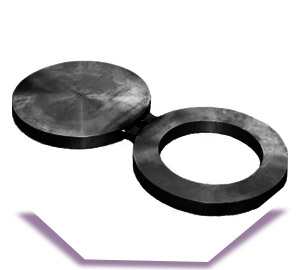

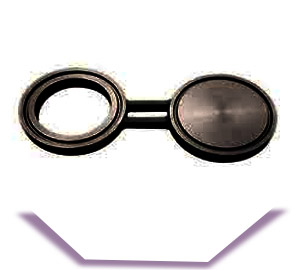

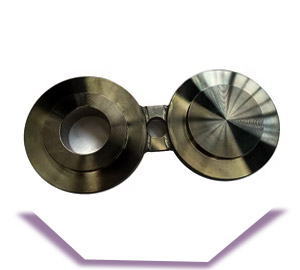

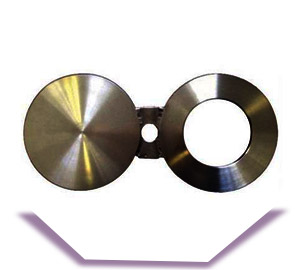

The Spectacle Blind A516 Gr 70 are safety devices that are installed between two piping flange. During normal operation, the open end of the spacer is inserted, ensuring a smooth flow, while to stop the flow the blind is inserted in the system. A516 Gr70n Spectacle Blind Flange is supplied in nominal conditions. These flange are permanent grade in applications where repair and maintenance of the system are necessary. The SA 516 Gr 70 Spade Flange can weigh different for different applications as per the size of the pipe. The flange are produced with the best technology and are available at reasonable prices across all our outlets.

Exporter & supplier of ASTM A516 Grade 70 Flange in India, View Spectacle Blind A516 Gr 70 dimensions, sizes and weight chart

ASTM A516 Grade 70 Flange Specification

More than 30 years experience as a ASTM A516 Grade 70 Flange manufacturer in India

Dimensions ANSI B16.47 Series A & B, Custom Drawings, ANSI B16.5, MSS SP44, API-605, ASA, AWWA
Size 1/2" up to 48" (15 - 1200NB)
Class 150 LBS upto 2500 LBS and DIN Standard ND-10, 16, 40, 6, 25
Flange Face Type Raised Face, Flate Face, Ring Type Joint
DIN DIN2637, DIN2633, DIN2635, DIN2638, DIN2628, DIN2629, DIN2636, DIN2634, DIN2627, DIN2566, DIN2573, DIN2632, DIN2576, DIN2656, DIN2641, DIN2673, DIN2655, DIN2527, DIN2642, DIN2631
BS BS1560, BS4504, BS4504, BS10

A516 Grade 70 Carbon Steel Flange Price List

A leading supplier of industrial A516 Grade 70 Carbon Steel Spade Flange, we offer a wide range of cost effective SA 516 Gr 70 Spectacle Blind Flange

Description Price Per Kg In Singapore Price Per Kg In UAE Price Per Kg In USD Price Per Kg In Malaysia
25 MM CL 300 125-250 AARH RF ASTM A516 GR 70 ASME B16.48 FLANGE SGD 476.10 UAE Dirham 1,243.15 US $343.85 MYR 1,507.65
50 MM CL 600 125-250 AARH RF ASTM A516 GR 70 FLANGE MANUFACTURER SGD 48.44 UAE Dirham 126.48 US $34.98 MYR 153.39
#150 80NB ANSI FLANGE AS PER ASME B16.5 WITH ASTM 516 GR 70 SORF FLANGES SGD 59.31 UAE Dirham 154.87 US $42.84 MYR 187.82
# 150 CS ASTM A516 GR.70 WITH UNS 33205 LINER ASME B16.5150 TYPE BLRF FLANGES SGD 63.86 UAE Dirham 166.76 US $46.12 MYR 202.24
#150 200NB ANSI MATING FLANGE AS PER ASME B16.5 WITH ASTM A516 GR. 70 FLANGES SGD 77.58 UAE Dirham 202.57 US $56.03 MYR 245.67
6 IN, CARBON STEEL BLIND 900 LB RJ ASTM A 515 GR. 70 FLANGES SGD 113.27 UAE Dirham 295.77 US $81.81 MYR 358.70

ASTM A516 GR 70 Flanges Types

ASTM A516 Grade 70 Ring Type Joint Flanges (RTJ)

ASTM A516 Grade 70 Ring Type Joint Flanges (RTJ)

A516 Grade 70 Carbon Steel Long Weld Neck Flanges

A516 Grade 70 Carbon Steel Long Weld Neck Flanges

SA516 Grade 70 Orifice Flanges

SA516 Grade 70 Orifice Flanges

SA 516 Gr 70 Tongue & Groove Flanges

SA 516 Gr 70 Tongue & Groove Flanges

Carbon Steel SA 516 Gr 70 Slip On Flanges (SORF)

Carbon Steel SA 516 Gr 70 Slip On Flanges (SORF)

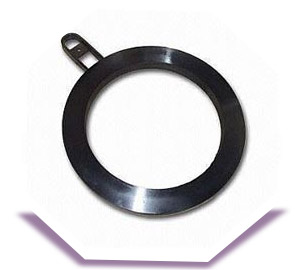

SA516 GR 70 Carbon Steel Ring Spacer

SA516 GR 70 Carbon Steel Ring Spacer

SA 516 Gr 70 Nipo flange

SA 516 Gr 70 Nipo flange

ASME SA516 Gr 70 Bleed Ring Flange

ASME SA516 Gr 70 Bleed Ring Flange

SA516 Gr.70 Raised Face Flanges

SA516 Gr.70 Raised Face Flanges

ASTM A516 GR 70 Weldo Flange

ASTM A516 GR 70 Weldo Flange

Carbon Steel A516 Grade 70 Forged Flanges

Carbon Steel A516 Grade 70 Forged Flanges

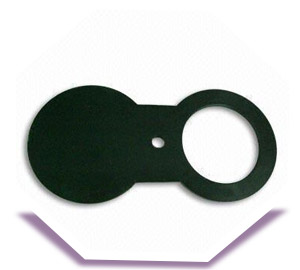

ASME SA516 GR 70 Spectacle Blind Flanges

ASME SA516 GR 70 Spectacle Blind Flanges

SA 516 Gr 70 Carbon Steel Puddle Flanges

SA 516 Gr 70 Carbon Steel Puddle Flanges

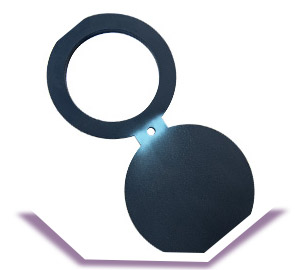

Carbon Steel SA516 Grade 70 Spade Flange

Carbon Steel SA516 Grade 70 Spade Flange

ASTM SA516 Grade 70 High Hub Blind Flanges

ASTM SA516 Grade 70 High Hub Blind Flanges

SA516 GR 70 Plate Flanges

SA516 GR 70 Plate Flanges

Steel SA516 GR 70 Blind Flanges (BLRF)

Steel SA516 GR 70 Blind Flanges (BLRF)

SA516 Grade 70 Socket Weld Flanges (SWRF)

SA516 Grade 70 Socket Weld Flanges (SWRF)

CS SA516 GR 70 Reducing Flanges

CS SA516 GR 70 Reducing Flanges

SA516 CS GR 70 Male & Female Flanges

SA516 CS GR 70 Male & Female Flanges

ASME 16.47 Series B A516 GR.70 Threaded / Screwed Flanges

ASME 16.47 Series B A516 GR.70 Threaded / Screwed Flanges

A516 Gr 70 Lap Joint Flanges

A516 Gr 70 Lap Joint Flanges

SA516 Gr.70 Weld Neck Flanges (WNRF)

SA516 Gr.70 Weld Neck Flanges (WNRF)

ASME SA516 Gr 70 Square Flanges

ASME SA516 Gr 70 Square Flanges

Carbon Steel SA 516 Gr 70 Flange Pressure Rating

Temperature °F 900# 300# 1500# 400# 150# 2500# 600#
-20 to 100 2160 720 3600 960 275 6000 1440
200 00 600 3000 800 230 5000 1200
300 1620 540 2700 720 205 4500 1080
400 1490 495 2485 660 190 4140 995
500 1395 465 2330 620 170 3880 930
600 1310 435 25 580 140 3640 875
650 1290 430 2150 575 125 3580 860
700 1275 425 2125 565 110 3540 850
750 1245 415 2075 555 95 3460 830
800 1210 405 2015 540 80 3360 805
850 1190 395 1980 530 65 3300 790
900 1165 390 1945 520 50 3240 780
950 1145 380 1910 510 35 30 765
1000 965 320 1605 430 20 2675 640
1050 925 310 1545 410 20 2570 615
1100 770 255 1285 345 20 2145 515
1150 595 200 995 265 20 1655 400
1200 465 155 770 205 20 1285 310
1250 340 115 565 150 20 945 225
1300 255 85 430 115 20 715 170
1350 5 60 310 80 20 515 125
1400 145 50 240 65 20 400 95
1450 105 35 170 45 15 285 70
1500 80 25 135 35 10 230 55

SA 516 Gr 70 Weld Neck Flanges Weight Chart

Weld Neck FLanges

Class 150 LB

Pipe Weight Flange Data Hub Data Face Drilling Data
C B D F E G I H J
Outside Diameter Nominal Pipe Flange Thickness min Inside Diameter Overall Length Hub Diameter Diameter at Weld Bevel Face Diameter Bolt Hole Diameter Number of Holes Diameter of Circle of Holes
in
mm
Size kg/ piece in
mm
in
mm
in
mm
in
mm
in
mm
in
mm
in
mm
in
mm
0.840 2 0.48 0.440 0.620 1.880 1.190 0.840 1.380 0.620 4 2.380
21.30 11.20 15.70 47.80 30.20 21.30 35.00 15.70 60.45
1.050 w 0.71 0.500 0.820 2.060 1.500 1.050 1.690 0.620 4 2.750
26.70 12.70 20.80 52.30 38.10 26.70 42.90 15.70 69.85
1.315 1 1.01 0.560 1.050 2.190 1.940 1.320 2.000 0.620 4 3.120
33.40 14.20 26.70 55.60 49.30 33.50 50.80 15.70 79.25
1.660 14 1.33 0.620 1.380 2.250 2.310 1.660 2.500 0.620 4 3.500
42.20 15.70 35.10 57.15 58.70 42.20 63.50 15.70 88.90
1.900 12 1.72 0.690 1.610 2.440 2.560 1.900 2.880 0.620 4 3.880
48.30 17.50 40.90 62.00 65.00 48.30 73.15 15.70 98.60
2.375 2 2.58 0.750 2.070 2.500 3.060 2.380 3.620 0.750 4 4.750
60.30 19.10 52.60 63.50 77.70 60.45 91.90 19.10 120.7
2.875 22 4.11 0.880 2.470 2.750 3.560 2.880 4.120 0.750 4 5.500
3.500 3 4.92 0.940 3.070 2.750 4.250 3.500 5.000 0.750 4 6.000
88.90 23.90 78.00 69.85 108.0 88.90 127.0 19.10 152.4
4.000 32 6.08 0.940 3.550 2.810 4.810 4.000 5.500 0.750 8 7.000
101.6 23.90 90.20 71.40 122.2 101.6 139.7 19.10 177.8
4.500 4 6.84 0.940 4.030 3.000 5.310 4.500 6.190 0.750 8 7.500
114.3 23.90 102.4 76.20 134.9 114.3 157.2 19.10 190.5
5.563 5 8.56 0.940 5.050 3.500 6.440 5.560 7.310 0.880 8 8.500
141.3 23.90 128.3 88.90 163.6 141.2 5.7 22.40 215.9
6.625 6 10.6 1.000 6.070 3.500 7.560 6.630 8.500 0.880 8 9.500
168.3 25.40 154.2 88.90 192.0 168.4 215.9 22.40 241.3
8.625 1.120 7.980 4.000 9.690 8.630 10.62 0.880 11.75
8 17.6 8
219.1 28.40 202.7 101.6 246.1 219.2 269.7 22.40 298.5
10.75 10 24.0 1.190 10.02 4.000 12.00 10.75 12.75 1.000 12 14.25
273.0 30.20 254.5 101.6 304.8 273.0 323.8 25.40 362.0
12.75 12 36.5 1.250 12.00 4.500 14.38 12.75 15.00 1.000 12 17.00
323.8 31.75 304.8 114.3 365.3 323.8 381.0 25.40 431.8
14.00 14 48.4 1.380 To be specified by Purchaser 5.000 15.75 14.00 16.25 1.120 12 .75
355.6 35.10 127.0 400.1 355.6 412.7 28.40 476.3
16.00 16 60.6 1.440 5.000 .00 16.00 .50 1.120 16 21.25
406.4 36.60 127.0 475.2 406.4 469.9 28.40 539.8
.00 18 68.3 1.560 5.500 19.88 14.00 21.00 1.250 16 22.75
457.2 39.60 139.7 505.0 457.2 533.4 31.75 577.9
20.00 20 84.5 1.690 5.690 22.00 20.00 23.00 1.250 20 25.00
508.0 42.90 144.5 558.8 508.0 584.2 31.75 635.0
24.00 24 115 1.880 6.000 26.12 24.00 27.25 1.380 20 29.50
609.6 47.80 152.4 663.4 609.6 692.1 35.10 749.3

Stocking distributor of SA 516 Gr 70 Spade Flange accordance to ASME B16.5, Check ASTM A516 Grade 70 Blind Flange standard & pressure class

ASME SA516 Gr 70 Flanges Chemical Composition

We are a specialist distributor & supplier of Carbon Steel SA 516 Gr 70 Flange and SA516 Gr.70 Ring Type Joint Flanges

Cu Ni Si Mn Al Cr Cr C Mo S Nb
0.3 0.3 0.6 1/ 1.7 0.03 0.3 0.02 0.10/ 0.22 0.08 0.03 0.01

SA516 GR 70 Flanges Mechanical Properties

(0.2% Offset) Yield Properties Tensile Properties
335 510/ 650

Carbon Steel SA516 Grade 70 Flanges Equivalent

Standard Description
European (EN) Norm EN 10028 P355GH
DIN -
ASME/ ASTM SA516 / A516 Gr 70
British (BS) BS1501-224-490A/B
Get A516 Gr70n Spectacle Blind Flange Suppliers for specific design, We offer custom size of SA516 Grade 70 Weld Neck Flange for leak-free connections.

ASME 16.47 Series B A516 GR.70 Flanges Applications

  • Condensers

  • Petrochemicals

  • Heat Exchangers

  • Off-Shore Oil Drilling Companies

  • Gas Processing

  • Pharmaceuticals

  • Pulp and Paper Industry

  • Specialty Chemicals

  • Power Generation

  • Pharmaceutical Equipment

  • Chemical Equipment

  • Sea Water Equipment

Carbon SA516 GR 70 Blind Flanges Sizes

Manufacturer of SA516 Grade 70 Weld Neck Flanges and SA516 CS GR 70 Socket Weld Flanges in Mumbai, browse our range of ASTM SA516 Grade 70 Weld Neck Flanges and ASME 16.47 Series B A516 GR.70 Flanges online

Spectacle Blind Flanges
Outside Ø
A
NPS Inside Ø
B
THK
t
Center Line
C
Web Width
W
45 1/2 16 3 60 38
54 3/4 21 3 70 38
64 1 27 3 80 38
73 1.1/4 42 6.4 90 38
83 1.1/2 48 6.4 100 38
102 2 61 6.4 120 51
107 2.1/2 73 6.4 140 51
133 3 89 6.4 150 64
159 3.1/2 102 9.7 175 64
172 4 114 9.7 190 64
194 5 141 9.7 215 76
219 6 168 12.7 240 76
276 8 219 12.7 300 76
337 10 273 15.7 360 102
406 12 324 19.1 430 102
448 14 356 19.1 475 108
511 16 406 22.4 460 108
546 18 457 25.4 580 114
603 20 508 28.4 635 121
714 24 610 31.8 750 140
Why don't you directly buy from A516 Gr 70 Flange manufacturer in India? We supply a SA 516 Gr 70 Slip on Flange in Various Pressure Rating and Sizes

CS SA516 GR 70 Flanges Wall Thickness

Contact directly a SA516 GR 70 Carbon Steel Forged Flanges and SA516 Grade 70 Slip On Flanges manufacturer in India for factory price and custom sizes

Widths Thickness (Inches) Lbs/Sft Lengths
60, 48, 72, 96, 84 3/16 7.660 120, 240, 96, 124,144, 133, 156
48, 96, 72, 60, 84 1/4 10.210 110, 96, 120, 240, 144
60, 48, 96, 72 5/16 12.760 120, 96, 240
60, 48, 72, 96, 84 3/8 15.320 120, 240, 144, 96, 169, 260
96 7/16 17.870 240
60, 96, 72, 48, 84 1/2 20.420 120, 240, 96, 144
96, 48 5/8 25.530 240, 120, 480
72, 48, 96, 84 3/4 30.630 120, 480, 96, 240
96 7/8 35.740 240
72, 48, 96 1 40.840 120, 480, 96, 240
96 1 1/8 45.950 240
48, 96 1 1/4 51.050 120, 96, 240
96 1 3/8 56.160 240
96 1 1/2 61.260 240, 120
96 1 5/8 66.370 240
96 1 3/4 71.470 240
96 2 81.680 240, 120
96 2 1/4 91.890 240
96 2 1/2 102.100 240
96 2 3/4 112.310 240
96 3 122.520 240
96 3 1/4 132.730 144
96 3 1/2 142.940 120
96 3 3/4 153.150 120
96 4 163.360 180, 144
96 4 1/4 173.570 120
96 4 1/2 183.780 120
96 5 204.200 144
96 6 245.040 120
96 7 285.880 160

Finding the right A516 Gr 70 Flange supplier for your project? Contact us for available sizes and price list.
