ASME B16.5 Flanges Manufacturers in India

ANSI B16.5 Class 150 Flange Suppliers in India

Buy ASME B16.5 Class 300 Flange, ANSI B16.5 Class 150 Slip-On Flange and ANSI B16.5 Class 600 Forged Flange at best price in Mumbai, India


ASME B16.5 Flange manufacturer India

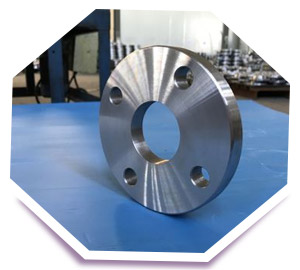

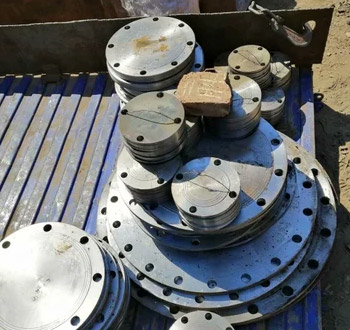

ASME B16.5 Flange
ASME B16.5 Class 150 Flange manufacturer India

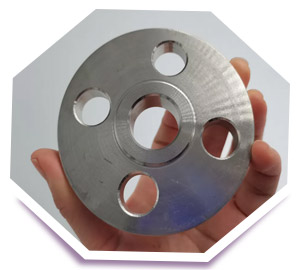

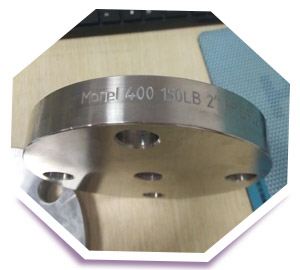

ASME B16.5 Class 150 Flange

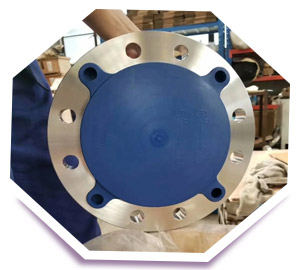

ASME B16.5 Class 300 Flange manufacturer India
ASME B16.5 Class 300 Flange

Rishab Steel Indutsries is distingushied ASME B16.5 Flanges manufacturers in India. We have more years of experience in supplying ASME B16.5 Class 150 Flanges are stocked or available in the following range of sizes and materials for the petrochemical, oil, gas and allied industries. ANSI B16.5 Class 300 flange can be assembled and disassembled easily with Pipes. ASME B16.5 standard covers size NPS ½” to 24” Pipe Flanges and Flanged Fittings. Each ASME B16.5 specification further delineates flanges into pressure classes: ASME b16.5 150, ASME b16.5 300, ASME b16.5 400, ASME b16.5 600, ASME b16.5 900, ASME b16.5 1500 and ASME b16.5 2500. Our offrered ASME B16.5 300 Flange is accessible to our valuable customers in different range of wall thicknesses (w), diameters (d) and sizes (nom. Pipe Size) in customized formas per customer requirment and also at quite affordable price in India.

As a reputed ASME B16.5 Class 600 Flange manufacturer in India we offer these Copper ASME B16.5 Flange, Copper Nickel ASME B16.5 Flange, Brass ASME B16.5 Flange,Hastelloy ASME B16.5 Flange, Inconel ASME B16.5 Flange, Monel ASME B16.5 Flange, Alloy 20 ASME B16.5 Flange, Aluminium ASME B16.5 Flange, Nickel ASME B16.5 Flange, Duplex ASME B16.5 Flange, Super Duplex ASME B16.5 Flange, Incoloy ASME B16.5 Flange, 254 Smo ASME B16.5 Flangeand Titanium ASME B16.5 Flangein all standard in which the common world standards include ASA/ ANSI/ ASME (USA), BS10 (British/ Australian), PN/ DIN (European) and JIS/ KS (Japanese/ Korean). Many Alloy Steel ASME B16.5 Flange manufacturer in India produce these Carbon Steel ASME B16.5 Flange from forged materials and have machined surfaces. Compare our price from ANSI B16.5 Flange manufacturers in India or China you will find best rate from our company.



ANSI B16.5 Flange Manufacturers in India


Buy at best price from ANSI B16.5 Flange manufacturers in Australia, UAE, Qatar, India, Singapore, Dubai, UK and South Africa.


Visit ANSI B16.5 Class 150 Blind Flange manufacturers factory in India, Contact us for ASME B16.5 Class 150 Slip On Flange free sample.Save up to 40% on Flange ANSI B16.5.


ASME B16.5 Flange Price List

Material Size Price / pcs
ASME B16.5 Class 150 Flange DN50 £ 50.60
ASME B16.5 Class 300 Flanges DN65 £ 50.10
ASME B16.5 Class 600 Flange DN80 £ 65.30
ASME B16.5 Class 400 Flange DN65 £ 55.20
ASME B16.5 Class 900 Flange DN100 £ 70.20

Please note this is an approx Price of ASME B16.5 Class 300 Flange in India. For final ANSI B16.5 Class 1500 Flange price in India please contact us.



ASME / ANSI B16.5 Flanges Manufacturers in India Specification

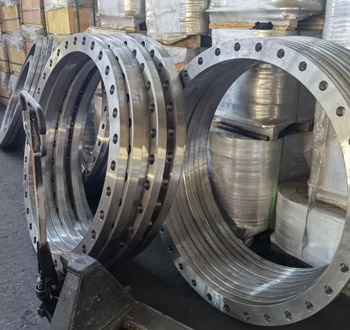

ASME B16.5 Flange Size Chart 1/2" (15 NB) to 48" (1200NB)
ASME B16.5 Flange Pressure Rating Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
ASME B16.5 Flange Pressure Calculation in DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
ASME Flange Standards ANSI/ASME B16.5
JIS 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
UNI 6Bar 10Bar 16Bar 25Bar 40Bar
EN 6Bar 10Bar 16Bar 25Bar 40Bar
Coating Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized

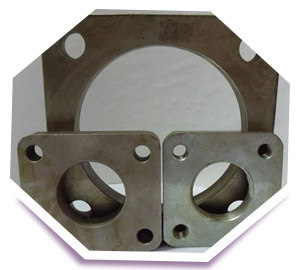

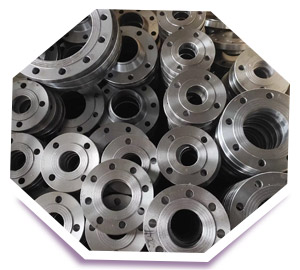

Most common types of ANSI B16.5 Flange Forged / Threaded / Screwed / Plate
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Production technique

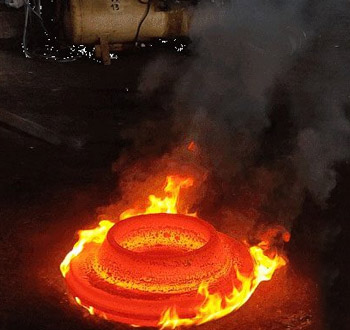

  • Forged, Heat treated and machined

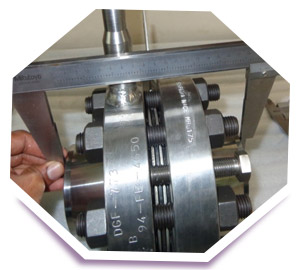

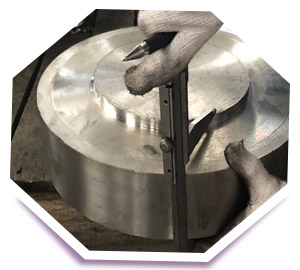

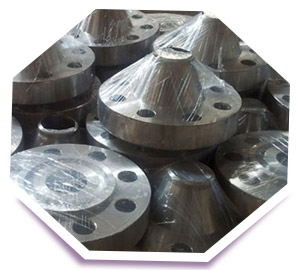

Connect Type/ Flange Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, , Groove
Special design

As per your drawing

AS, ANSI, BS, DIN and JIS
15 NB (1/2") to 200 NB (8")

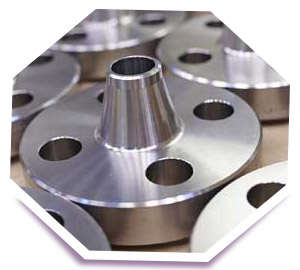

Equal and Reducing Configurations

Test Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Origin Indian / West Europe / Japan / USA / Korean
ANSI B16.5 Flange Uses & application
  • Heavy oil refineries.
  • Bitumen upgraders.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Export to Singapore,Dubai, Saudi Arabia, Spain,Peru, Brazil, USA, Ireland, Iran, India, Indonesia, Ukraine, Canada, Thailand, Korea,Egypt, Oman etc.
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175



ASME B16.5 Flange Material

High quality ASME B16.5 Flange manufacturers in India offer these Carbon Steel ASME B16.5 Flange in DIN, EN, BS, ISO, JIS or ANSI standard.

Stainless Steel ASME B16.5 Flange ASTM/ASME A/SA182 F304, F304L, F316, F316L, ASTM/ASME A/SA351 CF8, CF3, CF8M, CF3M, DIN 1.4301, DIN 1.4306, DIN 1.4401, DIN 1.4404, DIN 1.4308, DIN 1.4408, DIN 1.4306, DIN 1.4409
Carbon Steel ASME B16.5 Flanges ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, DIN 1.0402, DIN 1.0460, DIN 1.0619, Die Steel, ASTM A105 / ASME SA105, A105N, ASTM A350 LF2 / ASME SA350, High Yield CS ASTM A694 / A694 (F52 F56 F60 F65 F70 F80)
Alloy Steel ASME B16.5 Flanges ASTM A182 / ASME SA182 F5, F9, F11, F12, F22, F91
Copper ASME B16.5 Flanges T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Titanium ASME B16.5 Flanges ASTM B381 / ASME SB381, Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7
ASTM  R50250/GR.1 | R50400/GR.2 | R50550/GR.3 | R50700/GR.4 | GR.6 |R52400/GR.7 | R53400/GR.12 | R56320/GR.9 |R56400/GR.5
Copper Nickel ASME B16.5 Flanges ASTM / ASME SB 61 / 62 / 151 / 152, Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
Brass ASME B16.5 Flanges 3602 / 2604 / H59 / H62 / etc.
Nickel ASME B16.5 Flanges ASTM B564 / ASME SB564, Nickel 200, Nickel 201, Nickel 205, Nickel 205LC
Inconel ASME B16.5 Flanges ASTM B564 / ASME SB564, Inconel 600, 601, 625, 718, 783, 690, x750 ASME B16.5 Flanges
Hastelloy ASME B16.5 Flanges ASTM B564 / ASME SB564, Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X Flanges
Monel ASME B16.5 Flanges ASTM B564 / ASME SB564, Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
Alloy 20 ASME B16.5 Flanges ASTM B462 / ASME SB462, Carpenter® 20 Alloy, Alloy 20Cb-3
Aluminium ASME B16.5 Flanges 5052 /6061/ 6063 / 2017 / 7075 / etc.
Duplex ASME B16.5 Flanges S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex ASME B16.5 Flanges S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy ASME B16.5 Flanges ASTM B564 / ASME SB564, Incoloy 800, 800H, 800HT (UNS N08800), 825 (UNS N08825), 925 Flanges
254 Smo ASME B16.5 Flanges ASTM A182 / ASME SA182, SMO 254/6Mo, UNS S31254, DIN 1.4547
Nimonic ASME B16.5 Flanges Nimonic 75, Nimonic 80A, Nimonic 90
Other ASME B16.5 Flanges material Tin bronze, Alumunum bronze, Lead bronze

Rishabh Steel Industries is an PED approved ASME B16.5 Class 600 Flanges manufacturer, supplier & distributor in India

Rishabh Steel Industries is a exporter, manufacturer and supplier of ASME B16.5 Clas 1500 Flange offering in all Ratings up to 850°F, built a distribution network with more then 50 countries worldwide.



PIPE FLANGES LATEST PRICE : ASME Flanges SS Blind Flanges FOB Price PIPE FLANGES LATEST PRICE : ASME Flanges SS Socket Weld Flanges FOB Price

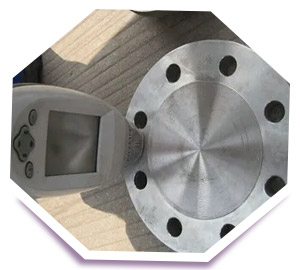

  • 150 ASME Flanges SS Blind Flanges
  • 300 ASME Flanges SS Blind Flanges
  • 600 ASME Flanges SS Blind Flanges
  • 150 ASME Flanges SS Threaded Flanges
  • 300 ASME Flanges SS Threaded Flanges
  • 600 ASME Flanges SS Threaded Flanges
PIPE FLANGES LATEST PRICE : ASME Flanges SS Lap Joint Flanges FOB Price PIPE FLANGES LATEST PRICE : ASME Flanges SS Weld Neck Flanges FOB Price

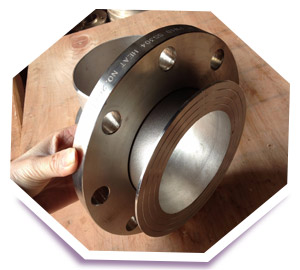

  • 150 ASME Flanges SS Lap Joint Flanges
  • 300 ASME Flanges SS Lap Joint Flanges
  • 600 ASME Flanges SS Lap Joint Flanges

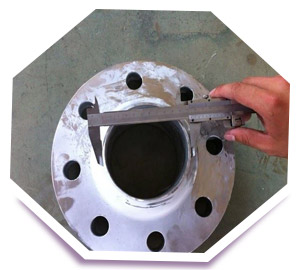

  • 150 ASME Flanges SS Weld Neck Flanges
  • 300 ASME Flanges SS Weld Neck Flanges
  • 600 ASME Flanges SS Weld Neck Flanges
PIPE FLANGES LATEST PRICE : ASME Flanges SS Slip on SO Flanges FOB Price PIPE FLANGES LATEST PRICE : ASME Flanges SS Socket Weld Flanges FOB Price
  • 150 ASME Flanges SS Slip On Flanges
  • 300 ASME Flanges SS Slip On Flanges
  • 600 ASME Flanges SS Slip On Flanges

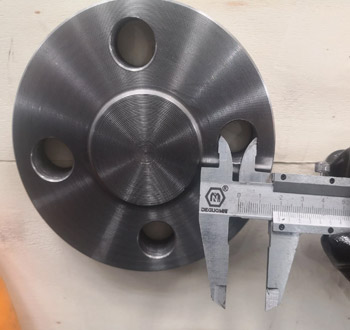

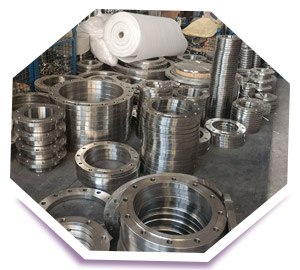

  • 150 ASME Flanges SS Socket Weld Flanges
  • 300 ASME Flanges SS Socket Weld Flanges
  • 600 ASME Flanges SS Socket Weld Flanges



ANSI B16.5 Flanges Dimensions

ASME B16.5 Class 150 Dimensions in MM

ASME B16.5 Class 150 Flange Dimensions

Nominal Size Outside Diameter
(OD)
Min. Thickness
(T)
RF Dia.
(R)
No. of Bolt Holes Diameter of Holes Bolt Circle
(BC)
SO Bore ID
(SB)
WN Bore ID
(WB)
Dia. Hub Base
(HB)
Dia. of Hub Top
(HT)
SO LTH
(SL)
WN LTH
(WL)
12 3.50 0.38 1.38 4 0.62 2.38 0.88 0.62 1.19 0.84 0.56 1.81
34 3.88 0.44 1.69 4 0.62 2.75 1.09 0.82 1.50 1.05 0.56 2.00
1 4.25 0.50 2.00 4 0.62 3.12 1.36 1.05 1.94 1.32 0.62 2.12
114 4.62 0.56 2.50 4 0.62 3.50 1.70 1.38 2.31 1.66 0.75 2.19
112 5.00 0.62 2.88 4 0.62 3.88 1.95 1.61 2.56 1.90 0.81 2.38
2 6.00 0.69 3.62 4 0.75 4.75 2.44 2.07 3.06 2.38 0.94 2.44
212 7.00 0.81 4.12 4 0.75 5.50 2.94 2.47 3.56 2.88 1.06 2.69
3 7.50 0.88 5.00 4 0.75 6.00 3.57 3.07 4.25 3.50 1.12 2.69
312 8.50 0.88 5.50 8 0.75 7.00 4.07 3.55 4.81 4.00 1.19 2.75
4 9.00 0.88 6.19 8 0.75 7.50 4.57 4.03 5.31 4.50 1.25 2.94
5 10.00 0.88 7.31 8 0.88 8.50 5.66 5.05 6.44 5.56 1.38 3.44
6 11.00 0.94 8.50 8 0.88 9.50 6.72 6.07 7.56 6.63 1.50 3.44
8 13.50 1.06 10.62 8 0.88 11.75 8.72 7.98 9.69 8.63 1.69 3.94
10 16.00 1.12 12.75 12 1.00 14.25 10.88 10.02 12.00 10.75 1.88 3.94
12 19.00 1.19 15.00 12 1.00 17.00 12.88 12.00 14.38 12.75 2.12 4.44
14 21.00 1.31 16.25 12 1.12 18.75 14.14 13.25 15.75 14.00 2.19 4.94
16 23.50 1.38 18.50 16 1.12 21.25 16.16 15.25 18.00 16.00 2.44 4.94
18 25.00 1.50 21.00 16 1.25 22.75 18.18 17.25 19.88 18.00 2.62 5.44
20 27.50 1.62 23.00 20 1.25 25.00 20.20 19.25 22.00 20.00 2.81 5.62
22 29.50 1.75 25.25 20 1.38 27.25 22.22 21.25 24.25 22.00 3.07 5.82
24 32.00 1.81 27.25 20 1.38 29.50 24.25 23.25 26.12 24.00 3.19 5.94

DIMENSIONS ARE IN INCHES
Bolt hole diameter 1/8" larger than bolt diameter



ANSI B16.5 Class 300 Flange Dimensions, ASME B16.5 Class 300 Flange Dimensions in mm

ASME B16.5 Class 300 Flange Dimensions

Nominal Size Outside Diameter
(OD)
Min. Thickness
(T)
RF Dia.
(R)
No. of Bolt Holes Diameter of Holes Bolt Circle
(BC)
SO Bore ID
(SB)
WN Bore ID
(WB)
Dia. Hub Base
(HB)
Dia. Hub Top
(HT)
SO LTH
(SL)
WN LTH
(WL)
12 3.75 0.50 1.38 4 0.63 2.62 0.88 0.62 1.50 0.84 0.81 2.00
34 4.62 0.56 1.69 4 0.75 3.25 1.09 0.82 1.88 1.05 0.94 2.19
1 4.88 0.62 2.00 4 0.75 3.50 1.36 1.05 2.12 1.32 1.00 2.38
114 5.25 0.69 2.50 4 0.75 3.88 1.70 1.38 2.50 1.66 1.00 2.50
112 6.12 0.75 2.88 4 0.88 4.50 1.95 1.61 2.75 1.90 1.13 2.63
2 6.50 0.81 3.62 8 0.75 5.00 2.44 2.07 3.31 2.38 1.25 2.69
212 7.50 0.94 4.12 8 0.88 5.88 2.94 2.47 3.94 2.88 1.44 2.94
3 8.25 1.06 5.00 8 0.88 6.62 3.57 3.07 4.62 3.50 1.63 3.06
312 9.00 1.12 5.50 8 0.88 7.25 4.07 3.55 5.25 4.00 1.69 3.13
4 10.00 1.19 6.19 8 0.88 7.88 4.57 4.03 5.75 4.50 1.82 3.32
5 11.00 1.31 7.31 8 0.88 9.25 5.66 5.05 7.00 5.56 1.94 3.82
6 12.50 1.38 8.50 12 0.88 10.62 6.72 6.07 8.12 6.63 2.00 3.82
8 15.00 1.56 10.62 12 1.00 13.00 8.72 7.98 10.25 8.63 2.38 4.32
10 17.50 1.81 12.75 16 1.12 15.25 10.88 10.02 12.62 10.75 2.56 4.56
12 20.50 1.94 15.00 16 1.25 17.75 12.88 12.00 14.75 12.75 2.82 5.06
14 23.00 2.06 16.25 20 1.25 20.25 14.14 13.25 16.75 14.00 2.94 5.56
16 25.50 2.19 18.50 20 1.38 22.50 16.16 15.25 19.00 16.00 3.19 5.69
18 28.00 2.31 21.00 24 1.38 24.75 18.18 17.25 21.00 18.00 3.44 6.19
20 30.50 2.44 23.12 24 1.38 27.00 20.20 19.25 23.12 20.00 3.69 6.32
22 33.00 2.57 25.25 24 1.63 29.25 22.22 21.25 25.25 22.00 3.93 6.43
24 36.00 2.69 27.62 24 1.63 32.00 24.25 23.25 27.62 24.00 4.13 6.56

* For flanges type 21 the outside hub diameter approximately corresponds to the outside pipe diameter.
Note : The p/t rating from ASME B16.5 apply only for flange type 05, 11, 12, 13 and 21 having nominal sizes up to and including DN 600. The p/t rating of all other flanges shall be agreed between the manufacturer and the purchaser.



ANSI B16.5 Class 400 Flange Dimensions

ANSI B16.5 Class 400 Flange Dimensions

Nominal Size Outside Diameter
(OD)
Min. Thickness
(T)
RF Dia.
(R)
No. of Bolt Holes Diameter of Holes Bolt Circle
(BC)
SO Bore ID
(SB)
Dia. Hub Base
(HB)
Dia. Hub Top
(HT)
SO LTH
(SL)
WN LTH
(WL)
* WN Bore ID
(WB)
12 3.75 0.56 1.38 4 0.63 2.62 0.88 1.5 0.84 0.88 2.06 *
34 4.62 0.62 1.69 4 0.75 3.25 1.09 1.88 1.05 1.00 2.25 *
1 4.88 0.69 2.00 4 0.75 3.50 1.36 2.12 1.32 1.06 2.44 *
114 5.25 0.81 2.50 4 0.75 3.88 1.70 2.50 1.66 1.12 2.62 *
112 6.12 0.88 2.88 4 0.88 4.50 1.95 2.75 1.90 1.25 2.75 *
2 6.50 1.00 3.62 8 0.75 5.00 2.44 3.31 2.38 1.44 2.88 *
212 7.50 1.12 4.12 8 0.88 5.88 2.94 3.94 2.88 1.62 3.12 *
3 8.25 1.25 5.00 8 0.88 6.62 3.57 4.62 3.50 1.81 3.25 *
312 9.00 1.38 5.50 8 1.00 7.25 4.07 5.25 4.00 1.94 3.38 *
4 10.00 1.38 6.19 8 1.00 7.88 4.57 5.75 4.50 2.00 3.50 *
5 11.00 1.50 7.31 8 1.00 9.25 5.66 7.00 5.56 2.12 4.00 *
6 12.50 1.62 8.50 12 1.00 10.62 6.72 8.12 6.63 2.25 4.06 *
8 15.00 1.88 10.62 12 1.12 13.00 8.72 10.25 8.63 2.69 4.62 *
10 17.50 2.12 12.75 16 1.25 15.25 10.88 12.62 10.75 2.88 4.88 *
12 20.50 2.25 15.00 16 1.38 17.75 12.88 14.75 12.75 3.12 5.38 *
14 23.00 2.38 16.25 20 1.38 20.25 14.14 16.75 14.00 3.31 5.88 *
16 25.50 2.50 18.50 20 1.50 22.50 16.16 19.00 16.00 3.69 6.00 *
18 28.00 2.62 21.00 24 1.50 24.75 18.18 21.00 18.00 3.88 6.50 *
20 30.50 2.75 23.12 24 1.62 27.00 20.20 23.12 20.00 4.00 6.62 *
22 33.00 2.88 25.25 24 1.75 29.25 22.22 25.25 22.00 4.25 6.75 *
24 36.00 3.00 27.25 24 1.88 32.00 24.25 27.62 24.00 4.50 6.88 *

Bolt hole diameter 1/8" larger than bolt diameter



ANSI B16.5 Class 600 Flange Dimensions, ASME B16.5 Class 600 Blind Flange Dimensions

ANSI B16.5 Class 600 Flange Dimensions

Nominal Size Outside Diameter
(OD)
Min. Thickness
(T)
RF Dia.
(R)
No. of Bolt Holes Diameter of Holes Bolt Circle
(BC)
SO Bore ID
(SB)
Dia. Hub Base
(HB)
Dia. Hub Top
(HT)
SO LTH
(SL)
WN LTH
(WL)
* WN Bore ID
(WB)
12 3.75 0.56 1.38 4 0.63 2.62 0.88 1.50 0.84 0.88 2.06 *
34 4.62 0.62 1.69 4 0.75 3.25 1.09 1.88 1.05 1.00 2.25 *
1 4.88 0.69 2.00 4 0.75 3.50 1.36 2.12 1.32 1.06 2.44 *
114 5.25 0.81 2.50 4 0.75 3.88 1.70 2.50 1.66 1.12 2.62 *
112 6.12 0.88 2.88 4 0.88 4.50 1.95 2.75 1.90 1.25 2.75 *
2 6.50 1.00 3.62 8 0.75 5.00 2.44 3.31 2.38 1.44 2.88 *
212 7.50 1.12 4.12 8 0.88 5.88 2.94 3.94 2.88 1.62 3.12 *
3 8.25 1.25 5.00 8 0.88 6.62 3.57 4.62 3.50 1.81 3.25 *
312 9.00 1.38 5.50 8 1.00 7.25 4.07 5.25 4.00 1.94 3.38 *
4 10.75 1.50 6.19 8 1.00 8.50 4.57 6.00 4.50 2.12 4.00 *
5 13.00 1.75 7.31 8 1.12 10.50 5.66 7.44 5.56 2.38 4.50 *
6 14.00 1.88 8.50 12 1.12 11.50 6.72 8.75 6.63 2.62 4.62 *
8 16.50 2.19 10.62 12 1.25 13.75 8.72 10.75 8.63 3.00 5.25 *
10 20.00 2.50 12.75 16 1.38 17.00 10.88 13.50 10.75 3.38 6.00 *
12 22.00 2.62 15.00 20 1.38 19.25 12.88 15.75 12.75 3.62 6.12 *
14 23.75 2.75 16.25 20 1.50 20.75 14.14 17.00 14.00 3.69 6.50 *
16 27.00 3.00 18.50 20 1.63 23.75 16.16 19.50 16.00 4.19 7.00 *
18 29.25 3.25 21.00 20 1.75 25.75 18.18 21.50 18.00 4.62 7.25 *
20 32.00 3.50 23.00 24 1.75 28.50 20.20 24.00 20.00 5.00 7.50 *
22 34.25 3.75 25.25 24 1.88 30.63 22.22 26.25 22.00 5.25 7.75 *
24 37.00 4.00 27.25 24 2.00 33.00 24.25 28.25 24.00 5.50 8.00 *



ANSI B16.5 Class 900 Flange Dimenisons

ANSI B16.5 Class 900 Flange Dimensions

Nominal Size Outside Diameter
(OD)
Min. Thickness
(T)
RF Dia.
(R)
No. of Bolt Holes Diameter of Holes Bolt Circle
(BC)
SO Bore ID
(SB)
* WN Bore ID
(WB)
Dia. Hub Base
(HB)
Dia. Hub Top
(HT)
SO LTH
(SL)
WN LTH
(WL)
3 9.50 1.50 5.00 8 1.00 7.50 3.57 * 5.00 3.50 2.12 4.00
4 11.50 1.75 6.19 8 1.25 9.25 4.57 * 6.25 4.50 2.75 4.50
5 13.75 2.00 7.31 8 1.38 11.00 5.66 * 7.50 5.56 3.12 5.00
6 15.00 2.19 8.50 12 1.25 12.50 6.72 * 9.25 6.63 3.38 5.50
8 18.50 2.50 10.63 12 1.50 15.50 8.72 * 11.75 8.63 4.00 6.38
10 21.50 2.75 12.75 16 1.50 18.50 10.88 * 14.50 10.75 4.25 7.25
12 24.00 3.12 15.00 20 1.50 21.00 12.88 * 16.50 12.75 4.63 7.88
14 25.25 3.38 16.25 20 1.63 22.00 14.14 * 17.75 14.00 5.12 8.38
16 27.75 3.50 18.50 20 1.75 24.25 16.16 * 20.00 16.00 5.25 8.50
18 31.00 4.00 21.00 20 2.00 27.00 18.18 * 22.25 18.00 6.00 9.00
20 33.75 4.25 23.00 20 2.13 29.50 20.20 * 24.50 20.00 6.25 9.75
24 41.00 5.50 27.25 20 2.63 35.50 24.25 * 29.50 24.00 8.00 11.50



ANSI B16.5 Class 1500 Flange Dimenisons

ANSI B16.5 Class 1500 Flange Dimensions

Nominal Size Outside Diameter
(OD)
Min. Thickness
(T)
RF Dia.
(R)
No. of Bolt Holes Diameter of Holes Bolt Circle
(BC)
So Bore ID
(SB)
Dia. Hub Base
(HB)
Dia. Hub Top
(HT)
SO LTH
(SL)
WN LTH
(WL)
* WN Bore ID
(WB)
12 4.75 0.88 1.38 4 0.88 3.25 0.88 1.50 0.84 1.25 2.38 *
34 5.12 1.00 1.69 4 0.88 3.50 1.09 1.75 1.05 1.38 2.75 *
1 5.88 1.12 2.00 4 1.00 4.00 1.36 2.06 1.32 1.62 2.88 *
114 6.25 1.12 2.50 4 1.00 4.38 1.70 2.50 1.66 1.62 2.88 *
112 7.00 1.25 2.88 4 1.12 4.88 1.95 2.75 1.90 1.75 3.25 *
2 8.50 1.50 3.63 8 1.00 6.50 2.44 4.12 2.38 2.25 4.00 *
212 9.62 1.62 4.13 8 1.12 7.50 2.94 4.88 2.88 2.50 4.12 *
3 10.50 1.88 5.00 8 1.25 8.00 - 5.25 3.50 - 4.62 *
4 12.25 2.12 6.19 8 1.38 9.50 - 6.38 4.50 - 4.88 *
5 14.75 2.88 7.31 8 1.63 11.50 - 7.75 5.56 - 6.12 *
6 15.50 3.25 8.50 12 1.50 12.50 - 9.00 6.63 - 6.75 *
8 19.00 3.62 10.63 12 1.75 15.50 - 11.50 8.63 - 8.38 *
10 23.00 4.25 12.75 12 2.00 19.00 - 14.50 10.75 - 10.00 *
12 26.50 4.88 15.00 16 2.12 22.50 - 17.75 12.75 - 11.12 *
14 29.50 5.25 16.25 16 2.38 25.00 - 19.50 14.00 - 11.75 *
16 32.50 5.75 18.50 16 2.63 27.75 - 21.75 16.00 - 12.25 *
18 36.00 6.38 21.00 16 2.88 30.50 - 23.50 18.00 - 12.88 *
20 38.75 7.00 23.00 16 3.12 32.75 - 25.25 20.00 - 14.00 *
24 46.00 8.00 27.25 16 3.63 39.00 - 30.00 24.00 - 16.00 *



ASME B16.5 Class 2500 Flange Dimenisons

ANSI B16.5 Class 2500 Flange Dimensions

Nominal Size Outside Diameter
(OD)
Min. Thickness
(T)
RF Dia.
(R)
No. of Bolt Holes Diameter of Holes Bolt Circle
(BC)
Dia. Hub Base
(HB)
Dia. Hub Top
(HT)
SO LTH
(SL)
WN LTH
(WL)
* WN Bore ID
(WB)
12 5.25 1.19 1.38 4 0.88 3.50 1.69 0.84 1.56 2.88 *
34 5.50 1.25 1.69 4 0.88 3.75 2.00 1.05 1.69 3.12 *
1 6.25 1.38 2.00 4 1.00 4.25 2.25 1.32 1.88 3.50 *
114 7.25 1.50 2.50 4 1.12 5.13 2.88 1.66 2.06 3.75 *
112 8.00 1.75 2.88 4 1.25 5.75 3.12 1.90 2.38 4.38 *
2 9.25 2.00 3.63 8 1.12 6.75 3.75 2.38 2.75 5.00 *
212 10.50 2.25 4.13 8 1.25 7.75 4.50 2.88 3.12 5.62 *
3 12.00 2.62 5.00 8 1.38 9.00 5.25 3.50 - 6.62 *
4 14.00 3.00 6.19 8 1.63 10.75 6.50 4.50 - 7.50 *
5 16.50 3.62 7.31 8 1.88 12.75 8.00 5.56 - 9.00 *
6 19.00 4.25 8.50 8 2.12 14.50 9.25 6.63 - 10.75 *
8 21.75 5.00 10.63 12 2.12 17.25 12.00 8.63 - 12.50 *
10 26.50 6.50 12.75 12 2.63 21.25 14.75 10.75 - 16.50 *
12 30.00 7.25 15.00 12 2.88 24.38 17.38 12.75 - 18.25 *



Manufacturing ASME B16.5 Flange in India, Rishabh Steel Industries holds a wide array of ASME B16.5 Standard Flange in all Sizes and Thickness, stock for immediate despatch throughout India & globally.

ASME B16.5 Flange Pressure Ratings








Temperature







FLANGE TABLE

-10°C to 200°C

250°C

300°C

350°C

400°C

425°C

450°C

475°C

6

6

5.5

5

10

10

9

8

7

6

16

16

15

13

11

9

25

25

24

21

17

14

12

9

6

40

40

38

33

28

23

20

15

10

64

64

61

53

44

36

32

24

16

100

100

95

83

70

57

50

37

25

160

160

152

132

112

92

80

60

40





Type of ANSI B16.5 Flange we produce:

ASME B16.5 Class 150 Flange ASME B16.5 Class 125 Flanges Manufacturers in India
ASME B16.5 Class 600 Flange ASME B16.5 Flange Dimensions
ASME B16.5 Class 300 Flanges ASME B16.5 Class 150 Slip-On Flanges
ASME B16.5 Class 150 Blind Flanges ASME B16.5 Class 900 Flanges
ASME B16.5 Class 150 Flanges ASME B16.5 Class 1500 Flanges Manufacturers in India
ASME B16.5 Class 300 Flanges ASME B16.5 Class 2500 Flanges
ASME B16.5 Flanges Face Finish ASME B16.5 Flat Face Flanges
ASME B16.5 Blind Flanges ASME B16.5 Forged Flanges
Flanges as per ASME B-16.5 Flanges ASME B16.5
ASME B16.5 150# Flanges ASME B16.5 Slip-on Flanges Manufacturers in India
ASME B16 5 class 150 rf Flanges ASME B16.5 Class 150 blind Flanges
Stainless Steel ASME B16.5 Flanges SS ASME B16.5 Flanges
Carbon Steel ASME B16.5 Flanges High Quality ASME B16.5 Flanges
ASME B16.5 PN 10 Flanges Duplex Steel ASME B16.5 Flanges
Super Duplex Steel ASME B16.5 Flanges Copper Nickel ASME B16.5 Pipe Flanges
High Nickel Alloy ASME B16.5 Flanges Hastelloy ASME B16.5 Flanges



Supplying ASME B16.5 Flange to our worldwide clients:

Rishabh Steel Industries is a Govt. approved Carbon Steel ASME B16.5 Flanges exporter in India. Our offered Stainless Steel ASME B16.5 Flanges are manufactured and tested tonational and international standards, and specifications as per ASTM, EN,DIN, JIS etc. Rishabh Steel Industries has reputed name as a trusted vendor of Alloy Steel ASME B16.5 Flanges distributor & dealer in your country. We have largest independent inventory in Middle East, UK, Asia, GCC, Gulf to supply with over 30 countries, we provide after sales service and fast delivery.

AFRICA

  • South Africa
  • Nigeria
  • Algeria
  • Angola
  • Libya
  • Egypt
  • Gabon
  • Sudan
  • Equatorial Guinea
  • The Republic Of Congo
NORTH AMERICA
  • USA
  • Canada
  • Mexico
  • Panama
  • Costa Rica
  • Puerto Rica
  • Trinidad And Tobago
  • Jamaica
  • Bahamas
  • Denmark

ASIA

  • Malaysia
  • India
  • Taiwan
  • Cambodia
  • Singapore
  • Indonesia
  • Thailand
  • Vietnam
  • South Korea
  • Japan
  • Sri Lanka
  • Maldives
  • Bangladesh
  • Mayanmar
SOUTH AMERICA
  • Venezuela
  • Argentina
  • Bolivia
  • Colombia
  • Ecuador
  • Guyana
  • Paraguay
  • Uruguay
  • Brazil
  • Chile

EUROPE

  • UK
  • Netherland
  • Russia
  • Norway
  • Germany
  • France
  • Italy
  • Spain
  • Ukraine
  • Belgium
  • Greece
  • Hungary
  • Albania
  • Austria
  • Finland
  • Ireland
  • Croatia
  • Slovenia
  • Malta
  • Switzerland
  • Slovakia
  • Czech Republic
  • Portugal

MIDDLE EAST

  • Saudi Arabia (KSA)
  • UAE
  • Iran
  • Iraq
  • Jordan
  • Qatar
  • Bahrain
  • Oman
  • Kuwait
  • Turkey
  • Yemen
  • Syria
  • Cyprus

Stock an extensive range of ANSI B16.5 Flange, Carbon Steel ANSI B16.5 Flange manufacturer in Mumbai, India


Producing high-strength Alloy Steel ANSI B16.5 Flange in India, contact Stainless Steel ANSI B16.5 Flange manufacturers in India, Philippines, Malaysia, UAE & UK
