High-Temp Chrome-Moly
Why Trust Our ASTM A182 F11 Flanges?
Precision-forged connections for high temperature pipelines.

ASTM A182 F11 flanges is best for severe heat. We deliver fully certified, dimensionally perfect forged flanges that bolt up tight and prevent leaks in refinery plant. No delays, no defects.

🌡️

Extreme Heat Ready

Maintains pressure ratings even at highly elevated temperatures.

🎯

Precision Machined Faces

RTJ (Ring Type Joint) and RF (Raised Face) finishes guarantee a zero-leak seal.

🔨

Heavy-Duty Forging

Closed-die forging ensures dense, continuous grain flow for maximum mechanical strength.

🛡️

Creep Resistant

The Chromium and Molybdenum blend actively prevents the steel from stretching over time.

📋

Fully Certified

Every F11 flange arrives with full EN 10204 3.1 Mill Test for easy inspection.

🚢

Rapid Global Dispatch

We stock a massive range of pressure class and sizes ready for immediate air or sea freight.

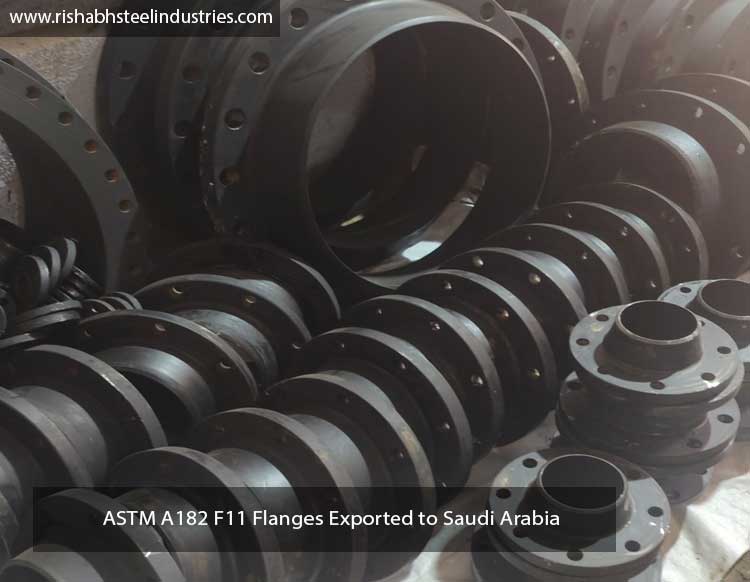

ASTM A182 F11 Flanges Exported to Saudi Arabia
ASTM A182 F11 Flanges Overview
Available Class Class 1, Class 2, Class 3
Material Alloy Steel
ASTM A182 F11 Heat Treatment 1000 °F
Mostly Used With Class 300 and Class 600
Suitable For Pressure Systems
Made From Forging Process
Working Temperature Limit 590°C (maximum)
Coating Epoxy and FBE Coating
UNS Designation UNS K11572
How can suppliers in Azerbaijan import ASTM A182 F11 Flanges from India and get a price benefit?

Many suppliers lose their margins by buying through Turkish or European stockists and distributors. By sourcing factory direct from India, you cut out the middlemen completely. You secure wholesale pricing on fully MTC EN 10204/3.1B certified ASTM A182 F11 flanges.

Worldwide Export Destinations for ASTM A182 F11 Flanges
Middle East
UAE UAE Saudi Arabia Saudi Arabia Qatar Qatar Oman Oman Kuwait Kuwait Bahrain Bahrain
Europe & CIS
UK UK Germany Germany Azerbaijan Azerbaijan Italy Italy Spain Spain Netherlands Netherlands
Asia
Malaysia Malaysia Singapore Singapore Indonesia Indonesia Vietnam Vietnam Thailand Thailand Japan Japan
Africa
South Africa South Africa Nigeria Nigeria Kenya Kenya Algeria Algeria Angola Angola
The Americas
USA USA Canada Canada Brazil Brazil Mexico Mexico Argentina Argentina Colombia Colombia

Manufacturer of Custom Size SA182 Grade F11 Class 2 WNRF Flanges in India for Pressure Systems


ASTM A182 F11 Flanges
ASTM A182 F11 Flanges Specification

Most Trusted ASTM A182 F11 Flanges Manufacturer In India Offer Custom Specification

Popular Size
  • DN15 To DN1500
  • PN2.5 To PN400
  • NPS: ½" to 24"
  • Contact ASTM A182 F11 flanges manufacturer in India for above 48 Inch
Pressure Rating
  • 150# and 300#
  • 600# and 900#
  • 1500# and 2500#
Manufacturing Standard
  • ASME B16.47
  • ASME B16.48
  • ASME B16.36
  • ASME B16.5
Maximum Size
  • 26" To 60" As Per ASME B16.47
Manufacturing Process
  • Plate
  • Forged
  • Cast
Number of Bolts Hole
  • 4 To 48
Forging Temperature
  • 850℃- 1100℃
Advantages
  • Excellent Corrosion Resistance
Temperature
  • Up to 1010°C
Types Of Coating
  • PTFE coating
  • Zinc coatings
  • FBE coating
  • PE coating
  • Back painting
  • Anti rust
Sealing Face
  • Male & Female Face
  • RF Face
  • FF Face
  • Tongue & Groove Face
  • RTJ Face
Threads Method
  • FPT Threads
  • NPT Threads
  • BSPT Threads
  • MPT & MNPT Threads
  • BSP Threads
Wall Thickness
  • SCH 10/ 20/ 40
  • SCH 60/ 80/ 100
  • SCH 120/ 140/ 180
Uses
  • Power Generation
  • Nuclear Energy
  • Oil & gas plants
  • Petrochemicals
Testing
  • Impact test
  • PMI test
  • Tensile test
  • Material inspection
  • Hardness test
Melting Point
  • 1460 °C
End Types
  • Threaded
  • Welding
Marking Info
  • Manufacturers Name
  • Grade & Material
  • Size & Schedule
  • Standard & Heat No.
UNS
  • UNS K11572
DIN Standards
  • DIN 2527
  • DIN 2501
  • DIN 2632
  • DIN 2633
  • DIN 2576
  • DIN 2561
EN Standards
  • EN 1092-1
  • EN 1092-2
  • EN 1092-1 TYPE 01
  • EN 1092-1 TYPE 02
  • EN 1092-1 TYPE 05
  • EN 1092-1 TYPE 11
  • EN 1092-1 TYPE 13
JIS Standard
  • JIS B2220
AWWA Standard
  • AWWA c207
BS Standard
  • BS4504
Value Added Services
  • Minor Fabrication
  • Casting
  • Polishing
  • Beveling end
  • Threading
Logistics
  • By Sea
  • By Air
  • UAE = 5 day
  • South Africa = 25-30 day
  • Saudi Arabia = 7 days
  • Qatar = 7 days
  • USA = 40-60 days
  • Uk = 30 day
  • Malaysia = 10 day
  • Philippines = 14 day
Available Packaging
  • Wooden Pallet
  • Carton Box
  • Wooden Cases

Supplier of Alloy Steel F11 Slip On Flanges in Class 1 With Pressure Class 150 and 300

A182 F11 Flanges Pressure Ratings

We are ASTM A182 F11 Flanges Manufacturer In India Supply Flange With Various Pressure Rating

SA 182 F11 Material Temperature Class 150 Class 300
100°F 290 PSI 750 PSI
200°F 260 PSI 750 PSI
300°F 230 PSI 720 PSI
400°F 200 PSI 695 PSI
500°F 170 PSI 665 PSI
600°F 140 PSI 605 PSI
700°F 110 PSI 570 PSI
800°F 80 PSI 510 PSI
900°F 50 PSI 450 PSI
1000°F 20 PSI 215 PSI
1100°F - 95 PSI
1200°F - 40 PSI

A182 F11 Material At Our Stockyard

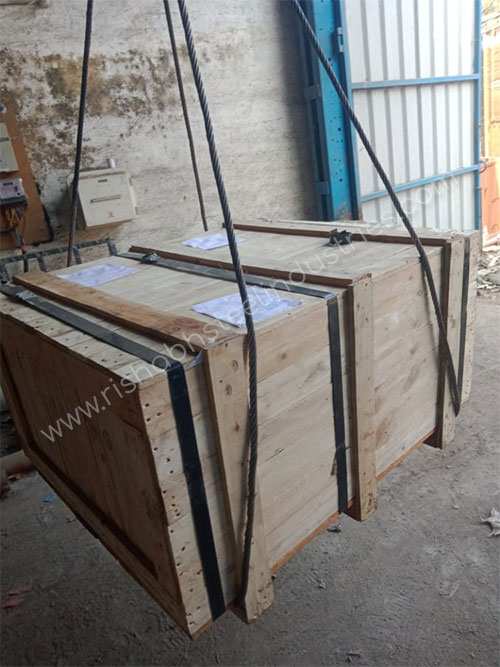

A182 F11 Material Packaging

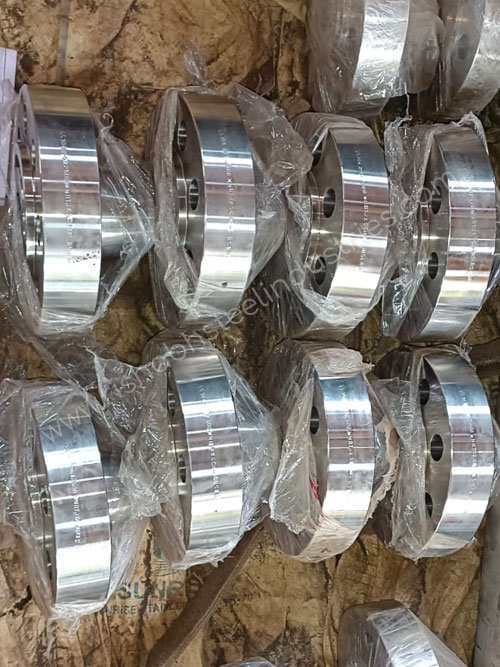

A182 Grade F11 Weld Flange



Discover the Benefits of Using UNS K11572 Blind Flanges in Oil and Gas Transportation




Benefits of A182 F11 Material

Benefits of A182 F11 Material

Top 5 Applications of A182 F11 Weld Neck Flanges

  • Power Generation Plants

  • Petrochemical and Chemical Processing

  • Oil and Gas Industry

  • Marine and Shipbuilding

  • Cryogenic and Aerospace Systems

Buy PMI% Tested Material ASME SA182 F11 Class 1 Plate Flanges, View Heat Treatment and Temperature Wise Hardness

ASTM A182 F11 Alloy Steel Flanges Heat Treatment

ASTM A182 F11 Class 2 Grade ASTM A182 F11 Flanges
Treatment Anneal and Normalize
Tempering Temperature 1150℉
Solutioning Temperature 1650℉
Cooling Media Furnace cool and Air

A182 F11 Forged Flange Hardness

F11 Material Hardness in HB Temperature
149 760℃
156 815℃
179 870℃
187 900℃
229 955℃

ASTM A182 F11 Flanges Working Temperature

  • 590°C

  • 1100°F

Yield Strength of F11 Flanges

ASTM A182 F11 Class 1 60 KSI
ASTM A182 F11 Class 2 70 KSI
ASTM A182 F11 Class 3 75 KSI

Class Wise PN Numbers of Alloy Steel F11 Flanges

F11 Material Type P# UNS G#
F11 Class 2 4 k11572 1
F11 Class 1 4 K11597 1
F11, Class 3 4 k11572 1

Check A182 F11 Material Tensile Strength and Class Wise Chemical Composition

ASTM A182 F11 Material Tensile Strength

F11 Material Grade Tensile Strength
(min.)
A182 F11 Class 1 60 KSI [415 MPa]
A182 F11 Class 2 70 KSI [485 MPa]
A182 F11 Class 3 75 KSI [515 MPa]


ASTM A182 F11 Class 1 Chemical Composition

Carbon [C] :

Carbon [C] :

  • 0.05 To 0.15%
Manganese [Mn] :

Manganese [Mn] :

  • 0.30-0.60%
Phosphorus [P] :

Phosphorus [P] :

  • ≤0.030%
Sulfur [S] :

Sulfur [S] :

  • ≤0.030%
Silicon [Si] :

Silicon [Si] :

  • 0.50 – 1.00%
Chromium [Cr] :

Chromium [Cr] :

  • 1.00 To 1.50%
Molybdenum [Mo] :

Molybdenum [Mo] :

  • 0.44 To 0.65%
Nickel [Ni] :

Nickel [Ni] :

  • -

ASTM A182 F11 Class 2 Chemical Composition

Carbon [C] :

Carbon [C] :

  • 0.10 To 0.20%
Manganese [Mn] :

Manganese [Mn] :

  • 0.30 To 0.80%
Phosphorus [P] :

Phosphorus [P] :

  • 0.040%
Sulfur [S] :

Sulfur [S] :

  • 0.040%
Silicon [Si] :

Silicon [Si] :

  • 0.50 – 1.00%
Chromium [Cr] :

Chromium [Cr] :

  • 1.00 To 1.50%
Molybdenum [Mo] :

Molybdenum [Mo] :

  • 0.44 To 0.65%
Nickel [Ni] :

Nickel [Ni] :

  • -

ASTM A182 F11 Class 3 Chemical Composition

Carbon [C] :

Carbon [C] :

  • 0.10 To 0.20%
Manganese [Mn] :

Manganese [Mn] :

  • 0.30 To 0.80%
Phosphorus [P] :

Phosphorus [P] :

  • 0.040%
Sulfur [S] :

Sulfur [S] :

  • 0.040%
Silicon [Si] :

Silicon [Si] :

  • 0.50 – 1.00%
Chromium [Cr] :

Chromium [Cr] :

  • 1.00 To 1.50%
Molybdenum [Mo] :

Molybdenum [Mo] :

  • 0.44 To 0.65%
Nickel [Ni] :

Nickel [Ni] :

  • -

ASTM A182 F11 Flanges Mechanical Properties

SA182 F11 Properties A182 F11 Class 1 A182 F11 Class 2 A182 F11 Class 3
Hardness in Brinell 121 To 174 HBW 143 To 207 HBW 156 To 207 HBW
Elongation, (minimum) 20% 20% 20%
Reduction of Area, (minimum) 45% 30% 30%

A182 Gr F11 Material Equivalent

Grade :

  • ASTM A182 F11

Steel Name :

  • 1.1/4Cr

UNS Number:

  • UNS K11572

WNR :

  • 1.7335

Casting :

  • ASTM A217 WC6

EN :

  • 13CRM044

Types Of ASTM A182 F11 Flanges for Petrochemical

Meet Genuine ASTM A182 F11 Flanges Manufacturer In India Who Offer Ready Stock in Various Types

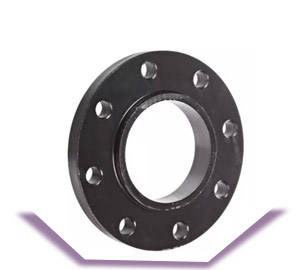

 ASTM A182 F11 Slip On Flange

ASTM A182 F11 Slip On Flange

ASTM A182 Gr F11 Weld Neck Flange

ASTM A182 Gr F11 Weld Neck Flange

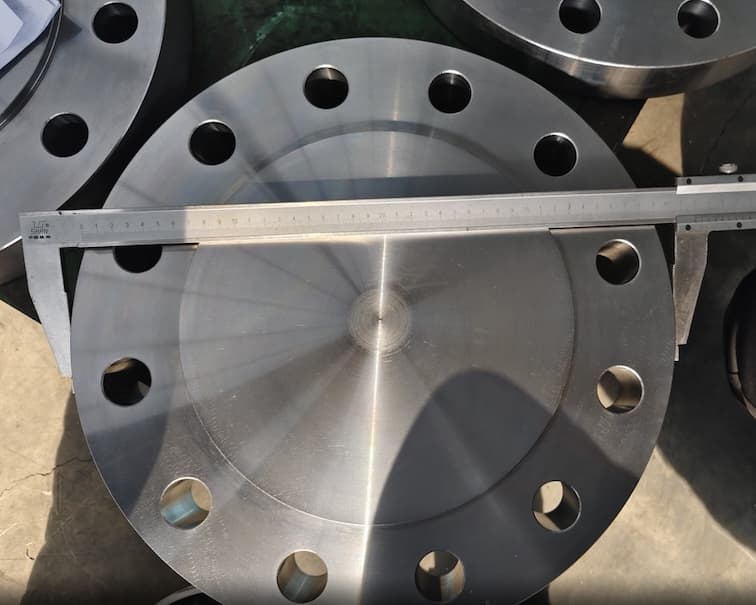

ASTM A182 Grade F11 Blind Flange

ASTM A182 Grade F11 Blind Flange

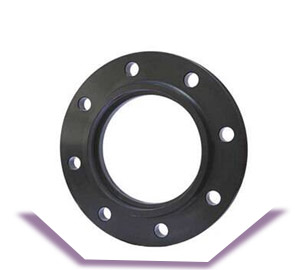

A182 F11 Plate Flange

A182 F11 Plate Flange

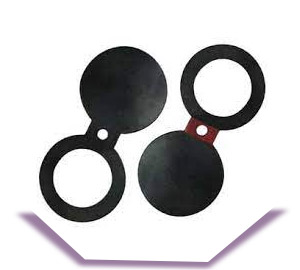

ASTM A182 F11 CL2 Spectacle Blind Flanges

ASTM A182 F11 CL2 Spectacle Blind Flanges

A182 Gr F11 Threaded Flange

A182 Gr F11 Threaded Flange

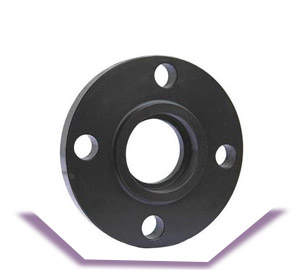

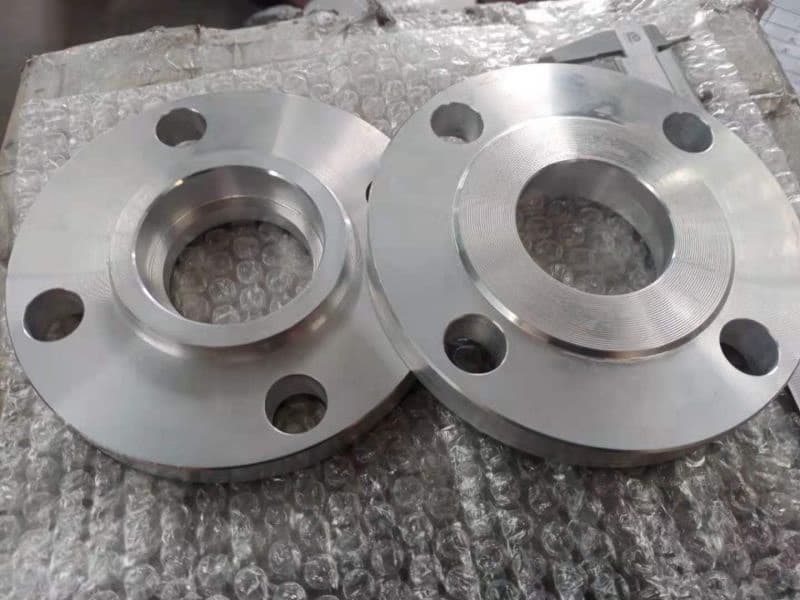

SA 182 Gr F11 Socket Weld Flange

SA 182 Gr F11 Socket Weld Flange

UNS K11572 Long Weld Neck Flange

UNS K11572 Long Weld Neck Flange

F11 Alloy Steel Lap Joint Flange

F11 Alloy Steel Lap Joint Flange

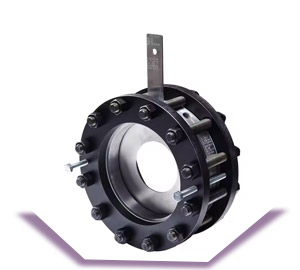

ASTM A182 F11 Class 2 Orifice Flanges

ASTM A182 F11 Class 2 Orifice Flanges

F11 Class 3 Reducing Flange

F11 Class 3 Reducing Flange

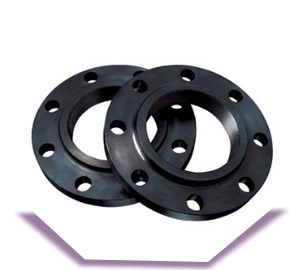

ASME SA182 F11 Flat Face Flange

ASME SA182 F11 Flat Face Flange


Physical Properties Of A182 F11 Class 2 High Hub Blind Flange

Flange ASME SA182 F11 Property Value
Specific Heat Capacity 460 J/kg·K
Hardness 20-30 HRC
Electrical Resistivity 0.75 × 10⁻⁶ Ω·m
Poisson’s Ratio 0.27 – 0.30
Thermal Conductivity 30.0 W/m·K
Modulus of Elasticity 200 GPa

UNS K11572 Pipe Flanges Thickness Chart

Pipe Normal Diam. O.D. Flange Thk. Of Flange Min Diam.of Hub Diameter of Raised Face Length Hub.Y Thread Length Diam.of Bolt Circle No.of Bolts Diam.of Bolt Holes Diam.of Bolts (inch) KG LB
inch dn O C X G Y T BC BN BH BD
1-1/4″ 32 117.5 15.7 58.7 63.5 20.6 20.6 88.9 4 15.8 1/2″ 1.2 2.6
3/4″ 20 98.5 12.7 38.1 42.9 15.7 15.7 69.9 4 15.8 1/2″ 0.7 1.5
2″ 50 152.5 19.1 77.7 91.9 25.4 25.4 120.7 4 19.1 5/8″ 2.3 5.1
4″ 100 228.5 23.9 134.9 157.2 33.3 33.3 190.5 8 19.1 5/8″ 5.9 13
3″ 80 190.5 23.9 108 127 30.2 30.2 152.4 4 19.1 5/8″ 4.1 9
6″ 150 279.5 25.4 192 215.9 39.6 39.6 241.3 8 22.4 3/4″ 8.4 18.5
14″ 350 533.5 35.1 400.1 412.8 57.2 57.2 476.3 12 28.5 1″ 39 86
10″ 250 406.5 30.2 304.8 323.9 49.3 49.3 362 12 25.4 7/8″ 18 39.5
24″ 600 813 47.8 663.4 692.2 82.6 82.6 749.3 20 35.1 1 1/4″ 97 214
18″ 450 635 39.6 505 533.4 68.3 68.3 577.9 16 31.8 1 1/8″ 57 126
1/2″ 15 89 11.2 30.2 35.1 15.7 15.7 60.5 4 15.8 1/2″ 0.4 0.9
1-1/2″ 40 127 17.5 65 73.2 22.4 22.4 98.6 4 15.8 1/2″ 1.5 3.3
1″ 25 108 14.2 49.3 50.8 17.5 17.5 79.3 4 15.8 1/2″ 0.8 1.8
2-1/2″ 65 178 22.4 90.4 104.6 28.4 28.4 139.7 4 19.1 5/8″ 3.7 8.1
5″ 125 254 23.9 163.6 185.7 36.6 36.6 215.9 8 22.4 3/4″ 7 15.4
3-1/2″ 90 216 23.9 122.2 139.7 31.8 31.8 177.8 8 19.1 5/8″ 5.1 11.2
8″ 200 343 28.4 246.1 269.7 44.5 44.5 298.5 8 22.4 3/4″ 13 28.6
16″ 400 597 36.6 457.2 469.9 63.5 63.5 539.8 16 28.5 1″ 47 103
12″ 300 482.5 31.8 365.3 381 55.6 55.6 431.8 12 25.4 7/8″ 29 64
20″ 500 698.5 42.9 558.8 584.2 73.2 73.2 635 20 31.8 1 1/8″ 76 167

SA182 F11 Slip On Flange Size Chart

Normal Sizes In inch Dimension ASTM A182 F11 Flanges Sizes
Class 150 Class 300 Class 400 Class 600 Class 900 Class 1500 Class 2500
inch. mm inch. millimeter inch. mm inch. mm inch. mm inch. mm inch mm
3/4 D2 1 11/16 42.9 1 11/16 42.9 1 11/16 42.9 1 11/16 42.9 1 11/16 42.9 1 11/16 42.9 1 11/16 42.9
b 1/2 12.7 5/8 15.9 5/8 15.9 5/8 15.9 1 25.4 1 25.4 1 1/4 31.8
A 3 7/8 98.4 4 5/8 117.5 4 5/8 117.5 4 5/8 117.5 5 1/8 130 5 1/8 130 5 1/2 139.7
n 4 4 4 4 4 4 4 4 4 4 4 4 44
D1 2 3/4 69.8 3 1/4 82.5 3 1/4 82.5 3 1/4 82.5 3 1/2 88.9 3 1/2 88.9 3 3/4 95.2
d 5/8 15.9 3/4 19 3/4 19 3/4 19 7/8 22.2 7/8 22.2 7/8 22.2
1/2 D1 2 3/8 60.3 2 5/8 66.7 2 5/8 66.7 2 5/8 66.7 3 1/4 82.6 3 1/4 82.6 3 1/2 88.9
b 7/16 11.1 9/16 14.3 9/16 14.3 9/16 14.3 7/8 22.2 7/8 22.2 1 3/16 30.2
A 3 1/2 88.9 3 3/4 95.2 3 3/4 95.2 3 3/4 95.2 4 3/4 121 4 3/4 121 5 1/4 133.4
D2 1 3/8 34.9 1 3/8 34.9 1 3/8 34.9 1 3/8 34.9 1 3/8 34.9 1 3/8 34.9 1 3/8 34.9
d 5/8 15.9 5/8 15.9 5/8 15.9 5/8 15.9 7/8 22.2 7/8 22.2 7/8 22.2
n 4 4 4 4 4 4 4 4 4 4 4 4 44
1 1/4 n 4 4 4 4 4 4 4 4 4 4 4 4 4 4
b 5/8 15.9 3/4 19 13/16 20.6 13/16 20.6 1 1/8 28.6 1 1/8 28.6 1 1/2 38.1
A 4 5/8 117.5 5 1/4 133.4 5 1/4 133.4 5 1/4 133.4 6 1/4 159 6 1/4 159 7 1/4 184.2
D2 2 1/2 63.5 2 1/2 63.5 2 1/2 63.5 2 1/2 63.5 2 1/2 63.5 2 1/2 63.5 2 1/2 63.5
d 5/8 15.9 3/4 19 3/4 19 3/4 19 1 25.4 1 25.4 1 1/8 28.6
D1 3 1/2 88.9 3 7/8 98.4 3 7/8 98.4 3 7/8 98.4 4 3/8 111 4 3/8 111 5 1/8 130
1 D1 3 1/8 79.4 3 1/2 88.9 3 1/2 88.9 3 1/2 88.9 4 102 4 102 4 1/4 108
b 9/16 14.3 11/16 17.5 11/16 17.5 11/16 17.5 1 1/8 28.6 1 1/8 28.6 1 3/8 34.9
A 4 1/4 108 4 7/8 123.8 4 7/8 123.8 4 7/8 123.8 5 7/8 149.2 5 7/8 149.2 6 1/4 159
D2 2 50.8 2 50.8 2 50.8 2 50.8 2 50.8 2 50.8 2 50.8
d 5/8 15.9 3/4 19 3/4 19 3/4 19 1 25.4 1 25.4 1 25.4
n 4 4 4 4 4 4 4 4 4 4 4 4 4 4
2 D1 4 3/4 121 5 127 5 127 5 127 6 1/2 165.1 6 1/2 165.1 6 3/4 171
b 3/4 19 7/8 22.2 1 25.4 1 25.4 1 1/2 38.1 1 1/2 38.1 2 50.8
A 6 152.4 6 1/2 165.1 6 1/2 165.1 6 1/2 165.1 8 1/2 215.9 8 1/2 215.9 9 1/4 234.9
D2 3 5/8 92.1 3 5/8 92.1 3 5/8 92.1 3 5/8 92.1 3 5/8 92.1 3 5/8 92.1 3 5/8 92.1
d 3/4 19 3/4 19 3/4 19 3/4 19 1 25.4 1 25.4 1 1/8 28.6
n 4 4 8 8 8 8 8 8 8 8 8 8 8 8
1 1/2 D1 3 7/8 4 2/3 4 1/2 114 4 1/2 114 4 1/2 114 4 7/8 124 4 7/8 124 5 3/4 146
b 11/16 17.5 13/16 20.6 7/8 22.2 7/8 22.2 1 1/4 31.8 1 1/4 31.8 1 3/4 44.5
A 5 127 6 1/8 155.6 6 1/8 155.6 6 1/8 155.6 7 177.8 7 177.8 8 203
D2 2 7/8 73 98 2 7/8 73 2 7/8 73 2 7/8 73 2 7/8 73 2 7/8 73 2 7/8 73
d 5/8 . 15.9 7/8 22.2 7/8 22.2 7/8 22.2 1 1/8 28.6 1 1/8 28.6 1 1/4 31.8
n 4 4 4 4 4 4 4 4 4 4 4 4 4 4
2 1/2 D1 5 1/2 139.7 5 7/8 149.2 5 7/8 149.2 5 7/8 149.2 7 1/2 190.5 7 1/2 190.5 7 3/4 197
b 7/8 22.2 1 25.4 1 1/8 28.6 1 1/8 28.6 1 5/8 41.3 1 5/8 41.3 2 1/4 57.2
A 7 177.8 7 1/2 190.5 7 1/2 190.5 7 1/2 190.5 9 5/8 244 9 5/8 244 10 1/2 266.7
D2 4 1/8 104.8 4 1/8 104.8 4 1/8 104.8 4 1/8 104.8 4 1/8 105 4 1/8 105 4 1/8 105
d 3/4 19 7/8 22.2 7/8 22.2 7/8 22.2 1 1/8 28.6 1 1/8 28.6 1 1/4 31.8
n 4 4 8 8 8 8 8 8 8 8 8 8 8 8

Testing Perform On A182 Gr F11 Socket Weld Flange

  • Dye Penetrant Testing

  • Ultrasonic Testing

  • Creep Testing

  • Visual Inspection

Tolerance Of A182 F11 CL2 Weld Neck Flange

ASTM A182 F11 Flanges SA-182-F11 LWNRF Flange Tolerance Table
Outside Diameter O.D. is over 24″: ±1/8″
O.D. is 24″ or less: ±1/16″
Diameter of contact face 1/4″ RF, T/G : ±1/64″
1/16″ raised face: ±1/32″
Inside Diameter 12″ thru 18″: +1/8″
10″ and smaller: ±1/32″
20″ and larger: -1/16″
Diameter of hub at point of welding 6″ and larger: +5/32″ , -1/32
5″ and smaller: +3/32″ , -1/32″
Diameter of hub at base hub base is 24″ or smaller: ±1/16″
hub base over 24″: ±1/8″
Length of hub 12″ and larger: ±1/8″
10″ and smaller: ±1/16″
Thickness 20″ and larger: ±3/16″, -0″
18″ and smaller: ±1/8″, -0″

SA 182 F11 Cl2 RTJ Flange Sizes in MM

Pipe Size Flange Connection Type ASTM A182 F11 material Max. Pressure
3/4″ FNPT 150 psi
1/2″ Socket Weld 275 psi
1-1/4″ Socket Weld 275 psi
2-1/2″ Socket Weld 275 psi
4″ FNPT 150 psi
2″ FNPT 150 psi
1-1/4″ FNPT 720 psi
1/2″ Welded 150 psi
1/2″ FNPT 150 psi
3/4″ Socket Weld 275 psi
2″ Socket Weld 275 psi
4″ Slip On 720 psi
1-1/2″ Socket Weld 275 psi
3″ Socket Weld 275 psi
1/2″ Slip On 720 psi
4″ Socket Weld 275 psi
1-1/2″ Slip On 720 psi
1-1/4″ Slip On 720 psi
2-1/2″ Slip On 720 psi
2″ Slip On 720 psi
3″ Slip On 720 psi
Types Of Coating For ASTM A182 F11 Material
  • Anti-rust Paint

  • Zinc Plated

  • Yellow Transparent

  • Oil Black Paint

  • Cold and Hot Dip Galvanized

Dimensions Of SA 182 F11 Plate Flange

ASTM A182 F11 Flanges Standard Class Bolt Circle Diameter Number of Bolts Diameter Bolt Size Diameter of Bolt Hole
AS 2129 Flange Table F 67 4 95 13 14
Table E 67 4 95 13 14
Table C 67 4 95 13 14
Table J 83 4 114 16 17
Table H 83 4 114 16 17
Table D 67 4 95 13 14
AS4087 PN14 67 4 95 M12 14
ISO 7005 Flange PN6 55 4 80 M10 11
PN10 65 4 95 M12 14
PN25 65 4 95 M12 14
PN40 65 4 95 M12 14
PN20 60.5 4 90 M14 16
PN16 65 4 95 M12 14
ANSI B16.5 Flanges ANSI 1500 83 4 121 19 22
ANSI 150 60 4 89 13 16
ANSI 300 67 4 95 13 16
ANSI 600 67 4 95 13 16
ANSI 900 83 4 121 19 22

Equipment For ASTM A182 F11 Lap Joint Flange

  • Press machine

  • Pushing Machine

  • Sand-blasting machine

  • Bending machine

  • Electric bevelling machine

A182 F11 Forged Flanges Weight Chart

UNS K11572 Pipe Flanges Nominal Pipe Size Slip On Threaded Lap Joint Weld Neck Socket Weld Blind
½ 1 1 1 2 2 2
¾ 2 2 2 2 2 2
3 3 3 3 3 3
2 5 5 5 6 5 5
1 2 2 2 3 2 2
3 3 3 4 3 4
8 8 8 10 8 7
3 9 9 9 11.5 9 9
4 13 13 13 16.5 13 17
6 19 19 19 26 19 27
11 12 11 12 11 13
5 15 15 15 21 15 20
8 30 30 30 42 30 47
10 43 43 43 54 43 70
14 90 90 105 114 90 140
18 130 130 160 165 130 220
12 64 64 64 88 64 123
16 106 98 140 140 98 180
20 165 165 195 197 165 285
22 185 185 245 225 185 355
24 220 220 275 268 220 430

Reduction Area of Alloy Steel F11 Pipe Flange

Sa182f11 Groove & Tongue Flange Reduction of Area >= 30 %

Size Chart Of Sa 182 F11 Cl2 Screwed Flange Bolt

ASTM A182 F11 Cl2 Loose Flange Normal Pipe Size 150# Flange 300# Flange 600# Flange
Studs And Bolts Diam.of Studs And Bolts Studs And Bolts Diam.of Studs And Bolts Studs And Bolts Diam.of Studs And Bolts
1 4 0.5 4 0.63 4 0.63
4 8 0.63 8 0.75 8 0.88
2 4 0.63 8 0.63 8 0.63
6 8 0.75 12 0.75 12 1
20 20 1.13 24 1.25 24 1.63
18 16 1.13 24 1.25 20 1.63
3 4 0.63 8 0.75 8 0.75
5 8 0.75 8 0.75 8 1
8 8 0.75 12 0.88 12 1.13
14 12 1 20 1.13 20 1.38
10 12 0.88 16 1 16 1.25
12 12 0.88 16 1.13 20 1.25
16 16 1 20 1.25 20 1.5
24 20 1.25 24 1.5 24 1.88

Forging Method Of SA 182 Gr F11 Expander Flange

  • Impression Die Forging

  • Closed Die Forging

  • Upset Forging

  • Open Die Forging

  • Hot Forging

Gasket Chart Of F11 Alloy Steel Blind Flange

Normal Pipe Size Gasket Inside Daimeter Gasket Outside Daimeter
300 LB 400 LB 150 LB 900 LB 600 LB
1 1.31 2.875 2.875 2.625 3.125 2.875
1 1/4 1.66 3.25 3.25 3 3.5 3.25
2 2.38 4.375 4.375 4.125 5.625 4.375
1 1/2 1.91 3.75 3.75 3.375 3.875 3.75
2 1/2 2.88 5.125 5.125 4.875 6.5 5.125
3 3.5 5.875 5.875 5.375 6.625 5.875
6 6.62 9.875 9.75 8.75 11.375 10.5
5 5.56 8.5 8.375 7.75 9.75 9.5
8 8.62 12.125 12 11 14.125 12.625
12 12.75 16.625 16.5 16.125 19.625 18
4 4.5 7.125 7 6.875 8.125 7.625
10 10.75 14.25 14.125 13.375 17.125 15.75

HS Code For SA 182 Gr F11 Cl 2 Orifice Flange

Sa 182 Gr F11 Square Flange HSN Code Description
73071190 ASTM A182 F11 Flange

Pressure Calculation Of ASTM A182 F11 Class 2 Reducing Flange

JIS 20 K, 40 K, 10 K, 5K, 30 K, 63 K, 16 K
DIN PN 10, PN 64, PN 25, PN 16, PN 40, PN 6
EN 6 Bar, 25 Bar, 40 Bar, 10 Bar, 16 Bar

SA182 F11 Material Density

Astm A182 Gr F11 Threaded Flange Density 7.80 g/cc

Here is a List of Countries Where We Have Regular Deliveries.

Region City Country
Western Europe Leuven Belgium
Middle East Dammam Saudi Arabia
Western Europe The Hague Netherlands
Africa Abuja Nigeria
Middle East Abu Dhabi United Arab Emirates
Western Europe Brussels Belgium
Middle East Riyadh Saudi Arabia
Western Europe Meeuwen-Gruitrode Belgium
Middle East Dubai United Arab Emirates
Western Europe Haarlem Netherlands
Middle East Jeddah Saudi Arabia
Western Europe Ghent Belgium
Western Europe Antwerp Belgium
Middle East Kuwait City Kuwait
MENA Casablanca Morocco
Western Europe Eindhoven Netherlands
Middle East Doha Qatar
Western Europe Seraing Belgium
MENA Cairo Egypt
Western Europe Amsterdam Netherlands
Africa Johannesburg South Africa
Western Europe Rotterdam Netherlands
Africa Cape Town South Africa
Western Europe Westerlo Belgium
Africa Lagos Nigeria

whatsapp chat
