Stainless steel flanges manufacturer in India

Top notch supplier of ASTM A182 Flange in more than 25 countries, Refer Price list of SS Pipe Flange

A flange is a device that is employed to connect pipes, pumps, valves, and other equipment in the piping industry. Stainless Steel Flanges possess a protruded lip or rim that helps in providing strength and stability to different piping grade. The flanges provide an easy attachment detail and can be welded or bolted in place. The SS Flange has good corrosion resistance properties and work well in cryogenic as well as high pressure and temperature applications. A Stainless Steel Pipe Flange is employed to connect piping grades efficiently. These flanges are easy to access, allowing room for the inspection, modification, and repair. The Forged Stainless Steel Flanges are produced at extreme pressures giving them higher tensile and fatigue strength. These flanges have excellent surface porosity and possess a finer grain structure. Stainless Steel Forged Flanges are very reliable due to their uniform structure and composition. These flanges have enhanced wear resistance allowing them to withstand extreme conditions. We are the Stainless Steel Flanges manufacturer in India who produce quality-assured products utilizing the best raw materials and latest technology.

The ASTM A182 Flanges are forged and rolled alloy stainless steel grades that are very durable. These flanges are designed in threaded or welded configurations. ASTM SA182 Flange is a pressurized vessel grade that has different face types allowing them to securely seal the grade in place. The PN16 Stainless Steel Flanges are moderate pressure class flanges that showcase good working pressure. These flanges are quality-assured and can be customized to suit different requirements. A DN80 Stainless Steel Flange denotes the diameter nominal for the size of the pipe grade. These flanges have an inside diameter of 58.42mm with an outer diameter of 88.9m, and a wall thickness of 15.24mm. Our company is a SS Flange manufacturer who have good connections with logistical supply chains, thereby delivering products to your doorstep within a short period.

Searching for Stainless Steel Puddle Flange Exporter in India? A complete range of Forged SS Threaded Flanges in Asia

Specifications	ASTM / ASME A182 / SA182
American Standard	BS, ANSI, EN, ASME, DIN
Standards	B 16.47 Series A & B, ANSI/ASME B16.5, BS4504, B16.48, BS 10, DIN, EN-1092.
Sizes	From 1/2″ to 48″ (15 - 1200NB)
Class / Pressure rating	PN6, PN64, 300#, PN40, 150#, 600#, PN25, PN16, 2500#, 900#, PN10, 1500#

Description	Price Per Kg In Singapore	Price Per Kg In UAE	Price Per Kg In USD	Price Per Kg In Malaysia
DN100,150# FLANGES STAINLESS STEEL SA 182 ANSI B16.5 BLRF	SGD 7.78	UAE Dirham 20.30	US $5.62	MYR 24.62
DN100,150# FLANGES STAINLESS STEEL SA 182 ANSI B16.5 SORF	SGD 8.93	UAE Dirham 23.31	US $6.45	MYR 28.27
DN150,150# SCH10S FLANGES STAINLESS STEEL SA 182 ANSI B16.5 WNRF	SGD 19.71	UAE Dirham 51.47	US $14.24	MYR 62.42
SW RF, 300#, SA/A182 FLANGES STAINLESS STEEL SS 40S BORE	SGD 1.13	UAE Dirham 2.96	US $0.82	MYR 3.59
1.1/2 150# STAINLESS STEEL FLANGES SLIP-ON RF	SGD 5.35	UAE Dirham 13.96	US $3.86	MYR 16.93

Stainless Steel Raised Face Flanges

SS Male & Female Flanges

B16.47 SS Weldo Flange

ASME B16.48 Stainless Steel Puddle Flanges

ANSI B16.5 SS Plate Flanges

BS4504 SS Ring Type Joint Flanges (RTJ)

Stainless Steel Tongue & Groove Flanges

ASTM A182 Reducing Flanges

EN 1092-1 Stainless Steel Ring Spacer

SS Socket Weld Flange High Hub Blind Flanges

ASME B16.5 Stainless Steel Forged Flanges

Stainless Steel Bleed Ring Flange

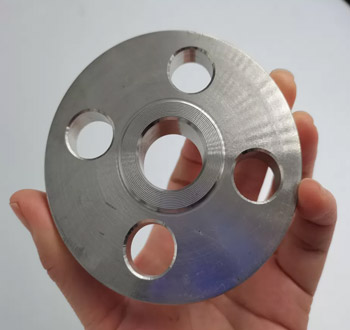

ASTM A182 SS Slip On Flanges (SORF)

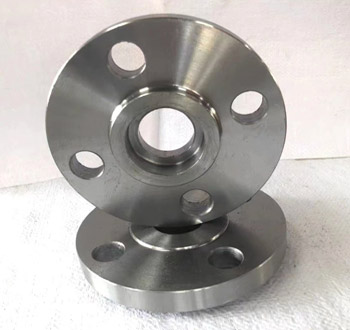

ANSI B16.5 SS Socket Weld Flanges (SWRF)

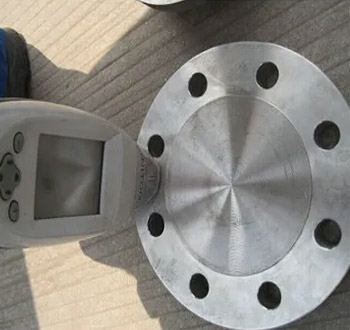

ASME B16.5 Stainless Steel Blind Flanges (BLRF)

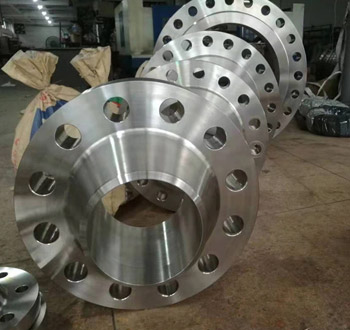

EN 1092-1 Stainless Steel Weld Neck Flanges (WNRF)

Stainless Steel Threaded / Screwed Flanges

ASTM A182 Lap Joint Flanges

Austenitic Stainless Steel Long Weld Neck Flanges

SS Spectacle Blind Flanges

EN 1092-2 Stainless Steel Orifice Flanges

Ferritic Stainless Steel Square Flanges

SS ASTM A182 Nipo flange

Martensitic Stainless Steel Spade Flange

Class 150 LB

O	Nom.	T1	H	X	B	L	No.2/Dia. of Holes	r	R	Bolt	L21	B23	B3	L34	D
	Pipe									Circle
	Size									Dia.
3.50	1/2	0.44	0.84	1.19	0.88	0.62	4-0.62	0.12	1.38	2.38	1.88	0.62	0.90	0.62	0.38
3.88	3/4	0.50	1.05	1.50	1.09	0.62	4-0.62	0.12	1.69	2.75	2.06	0.82	1.11	0.62	0.44
4.25	1	0.56	1.32	1.94	1.36	0.69	4-0.62	0.12	2.00	3.12	2.19	1.05	1.38	0.69	0.50
4.62	1-1/4	0.62	1.66	2.31	1.70	0.81	4-0.62	0.19	2.50	3.50	2.25	1.38	1.72	0.81	0.56
5.00	1-1/2	0.68	1.90	2.56	1.95	0.88	4-0.62	0.25	2.88	3.88	2.44	1.61	1.97	0.88	0.62
6.00	2	0.75	2.38	3.06	2.44	1.00	4-0.75	0.31	3.62	4.75	2.50	2.07	2.46	1.00	0.69
7.00	2-1/2	0.88	2.88	3.56	2.94	1.12	4-0.75	0.31	4.12	5.50	2.75	2.47	2.97	1.12	0.75
7.50	3	0.94	3.50	4.25	3.57	1.19	4-0.75	0.38	5.00	6.00	2.75	3.07	3.60	1.19	0.81
8.50	3-1/2	0.94	4.00	4.81	4.07	1.25	8-0.75	0.38	5.50	7.00	2.81	3.55	4.10	1.25	0.88
9.00	4	0.94	4.50	5.31	4.57	1.31	8-0.75	0.44	6.19	7.50	3.00	4.03	4.60	1.31	0.94
10.00	5	0.94	5.56	6.44	5.66	1.44	8-0.88	0.44	7.31	8.50	3.50	5.05	5.69	1.44	0.94
11.00	6	1.00	6.63	7.56	6.72	1.56	8-0.88	0.50	8.50	9.50	3.50	6.07	6.75	1.56	1.06
13.50	8	1.12	8.63	9.69	8.72	1.75	8-0.88	0.50	10.62	11.75	4.00	7.98	8.75	1.75	1.25
16.00	10	1.19	10.75	12.00	10.88	1.94	12-1.00	0.50	12.75	14.25	4.00	10.02	10.92	1.94	1.31
19.00	12	1.25	12.75	14.38	12.88	2.19	12-1.00	0.50	15.00	17.00	4.50	12.00	12.92	2.19	1.56
21.00	14	1.38	14.00	15.75	14.14	2.25	12-1.12	0.50	16.25	18.75	5.00	13.25	14.18	3.12	1.63
23.50	16	1.44	16.00	18.00	16.16	2.50	16-1.12	0.50	18.50	21.25	5.00	15.25	16.19	3.44	1.75
25.00	18	1.56	18.00	19.88	18.18	2.69	16-1.25	0.50	21.00	22.75	5.50	17.25	18.20	3.81	1.94
27.50	20	1.69	20.00	22.00	20.20	2.88	20-1.25	0.50	23.00	25.00	5.69	19.25	20.25	4.06	2.13
29.50	22	1.81	22.00	24.25	22.22	3.13	20-1.38	0.50	25.25	27.25	5.88	21.25	22.25	4.25	2.38
32.00	24	1.88	24.00	26.12	24.25	3.25	20-1.38	0.50	27.25	29.50	6.00	23.25	24.25	4.38	2.50

Class 300 LB

H	L34	Nom.	T1	R	B	X	C	No.2&	Bolt	D	L21	B23	L	O	THr	r	B3
		Pipe						Dia. of	Circle
		Size						Holes	Dia.
0.84	0.88	1/2	0.56	1.38	0.88	1.5.	0.93	4-0.62	2.62	0.38	2.06	0.62	0.88	3.75	0.62	0.12	0.90
1.05	1.00	3/4	0.62	1.69	1.09	1.88	1.14	4-0.75	3.25	0.44	2.25	0.82	1.00	4.62	0.62	0.12	1.11
1.32	1.06	1	0.69	2.00	1.36	2.12	1.41	4-0.75	3.50	0.50	2.44	1.05	1.06	4.88	0.69	0.12	1.38
1.66	1.06	1-1/4	0.75	2.50	1.70	2.50	1.75	4-0.75	3.88	0.56	2.56	1.38	1.06	5.25	0.81	0.19	1.72
1.90	1.19	1-1/2	0.81	2.88	1.95	2.75	1.99	4-0.88	4.50	0.62	2.69	1.61	1.19	6.12	0.88	0.25	1.97
2.38	1.31	2	0.88	3.62	2.44	3.31	2.50	8-0.75	5.00	0.69	2.75	2.07	1.31	6.50	1.12	0.31	2.46
2.88	1.50	2-1/2	1.00	4.12	2.94	3.94	3.00	8-0.88	5.88	0.75	3.00	2.47	1.50	7.50	1.25	0.31	2.97
3.50	1.69	3	1.12	5.00	3.57	4.62	3.63	8-0.88	6.62	0.81	3.12	3.07	1.69	8.25	1.25	0.38	3.60
4.00	1.75	3-1/2	1.19	5.50	4.07	5.25	4.13	8-0.88	7.25		3.19	3.55	1.75	9.00	1.44	0.38	4.10
4.50	1.88	4	1.25	6.19	4.57	5.75	4.63	8-0.88	7.88		3.38	4.03	1.88	10.00	1.44	0.44	4.60
5.56	2.00	5	1.38	7.31	5.66	7.00	5.69	8-0.88	9.25		3.88	5.05	2.00	11.00	1.69	0.44	5.69
6.63	2.06	6	1.44	8.50	6.72	8.12	6.75	12-0.88	10.62		3.88	6.07	2.06	12.50	1.81	0.50	6.75
8.63	2.44	8	1.62	10.62	8.72	10.25	8.75	12-1.00	13.00		4.38	7.98	2.44	15.00	2.00	0.50	8.75
10.75	3.75	10	1.88	12.75	10.88	12.62	10.88	16-1.12	15.25		4.62	10.02	2.62	17.50	2.19	0.50	10.92
12.75	4.00	12	2.00	15.00	12.88	14.75	12.94	16-1.25	17.75		5.12	12.00	2.88	20.50	2.38	0.50	12.92
14.00	4.38	14	2.12	16.25	14.14	16.75	14.19	20-1.25	20.25		5.62	13.25	3.00	23.00	2.50	0.50	14.18
16.00	4.75	16	2.25	18.50	16.16	19.00	16.19	20-1.38	22.50		5.75	15.25	3.25	25.50	2.69	0.50	16.19
18.00	5.12	18	2.38	21.00	18.18	21.00	18.19	24-1.38	24.75		6.25	17.25	3.50	28.00	2.75	0.50	18.20
20.00	5.50	20	2.50	23.00	20.20	23.12	20.19	24-1.38	27.00		6.38	19.25	3.75	30.50	2.88	0.50	20.25
22.00	5.75	22	2.63	25.25	22.22	25.25	22.19	24-1.63	29.25		6.50	21.25	4.00	33.00	3.13	0.50	22.25
24.00	6.00	24	2.75	27.25	24.25	27.62	24.19	24-1.62	32.00		6.62	23.25	4.19	36.00	3.25	0.50	24.25

ANSI B16.47	Flange Type	ASME B16.47	ANSI B16.5	BS EN 1092/
Series A		Series B
MSS SP-44		API 605		(BS4504)
lbs*		lbs*	lbs	Bar
150-900	Weld Neck	150-300	150-2500	2.5-40
300-900	Weld Neck Ring Type Joint	150-300	300-2500	N/A
-	Slip On	-	150-1500	2.5-40
-	Slip On Ring Type Joint	-	300-1500	N/A
-	Threaded	-	150-2500	6-40
-	Lap Joint	-	150-2500	6-40
-	Blind	-	150-2500	2.5-40
-	Socket Weld	-	150-1500	N/A

	PN 10 PN 16								Face Dimensions
E	A		c	B	DN	C	e	D	a	b	∂	d
mm	mm	mm	mm	mm		mm	mm	mm	mm	mm	mm	mm
23	40	40	3	34	10	35	5	24	2	4	-	2
28	45	45	3	39	15	40	5	29	2	4	-	2
35	58	58	3	50	20	51	5	36	2	4	41°16´	2
42	68	68	3	57	25	58	5	43	2	4	41°16´	2
50	78	78	3	65	32	66	5	51	2	4	41°16´	2
60	88	88	3	75	40	76	5	61	3	4	41°16´	2
72	102	102	3	87	50	88	5	73	3	4	41°16´	2
94	122	122	3	109	65	110	5	95	3	4	41°16´	2
105	138	138	3	120	80	121	5	106	3	4	41°16´	2
128	158	158	3.5	149	100	150	6	129	3	4.5	32°15´	2.5
154	8	8	3.5	175	125	176	6	155	3	4.5	32°15´	2.5
2	212	212	3.5	203	150	204	6	3	3	4.5	32°15´	2.5
238	268	268	3.5	259	200	260	6	239	3	4.5	32°15´	2.5
291	320	320	3.5	312	250	313	6	292	3	4.5	32°15´	2.5
342	370	378	3.5	363	300	364	6	343	4	4.5	32°15´	2.5
394	430	438	4	421	350	422	7	395	4	5	27°24´	3
446	482	490	4	473	400	474	7	447	4	5	27°24´	3
496	532	550	4	523	450	524	7	497	4	5	27°24´	3
548	585	610	4	575	500	576	7	549	4	5	27°24´	3
648	685	725	4	675	600	676	7	649	5	5	27°24´	3
750	800	795	4	777	700	778	7	751	5	5	27°24´	3
855	905	900	4	882	800	883	7	856	5	5	27°24´	3
960	1005	1000	4	987	900	988	7	961	5	5	27°24´	3
1060	1110	1115	5	1092	1000	1094	8	1062	5	6	28°39´	4
1260	1330	1330	5	1292	1200	1294	8	1262	5	6	28°39´	4
1460	1535	1530	5	1492	1400	1494	8	1462	5	6	28°39´	4
1660	1760	1750	5	1692	1600	1694	8	1662	5	6	28°39´	4
60	1960	1950	5	1982	00	94	8	62	5	6	28°39´	4
2060	2170	2150	5	2092	2000	2094	8		5	6	28°39´	4

Check PN16 Stainless Steel Forged Flanges dimensions, sizes and weight chart, a PED approved SS Slip on/ Blind Flanges Stockist

Type	Mn	C	Si	P	Mb	Cr	S	Ni
302	2.00	0.15	1.00	0.045	–	17.00/19.00	0.030	8.00/10.00
304	2.00	0.08	1.00	0.045	–	18.00/20.00	0.030	8.00/10.50
304L	2.00	0.03	1.00	0.045	–	18.00/20.00	0.030	8.00/12.00
309	2.00	0.20	1.00	0.045	–	22.00/24.00	0.030	12.00/15.00
309S	2.00	0.08	1.00	0.045	–	22.00/24.00	–	–
310	2.00	0.25	1.5	0.045	–	24.00/26.00	0.030	19.00/22.00
310S	2.00	0.08	1.5	0.045	–	24.00/26.00	0.030	19.00/22.00
316	2.00	0.08	1.00	0.045	2.00/3.00	16.00/18.00	0.030	10.00/14.00
316L	2.00	0.03	1.00	0.045	2.00/3.00	16.00/18.00	0.030	10.00/14.00
317	2.00	0.08	1.00/1.00	0.045	3.00/4.00	18.00/20.00	0.030	11.00/15.00
317L	2.00	0.03	0.75	0.045	3.00/4.00	18.00/20.00	0.030	11.00/15.00
321	2.00	0.08	1.00	0.040	0.75/0.75	17.00/19.00	0.030	9.00/12.00
347	2.00	0.08	0.5/1.00	0.040	0.5/0.75	17.00/19.00	0.030	9.00/12.00

Elongation min	UNS	Hardness (Brinell) max	(ksi) , Tensile min	Type	(ksi) , Yield min	Hardness (Rockwell B) max
40% in 2″	S30200	183	75	302	30	88
40% in 2″	S30400	183	75	304	30	88
40% in 2″	S30403	183	70	304L	30	88
40% in 2″	S30900	217	75	309	30	95
40% in 2″	S30908	217	75	309S	30	95
40% in 2″	S31000	217	75	310	30	95
40% in 2″	S31008	217	75	310S	30	95
40% in 2″	S31600	217	75	316	30	95
35% in 2″	S31603	217	70	316L	25	95
35% in 2″	S31700	217	75	317	30	95
35% in 2″	S31703	217	75	317L	30	95
40% in 2″	S32100	183	75	321	30	88
40% in 2″	S34700	183	75	347	30	88

WERKSTOFF NR.	STANDARD	UNS	BS	GOST	EN	JIS	AFNOR
1.4301	SS 304	S30400	304S31	08Х18Н10	X5CrNi18-10	SUS 304	Z7CN18‐09
1.4306 / 1.4307	SS 304L	S30403	3304S11	03Х18Н11	X2CrNi18-9 / X2CrNi19-11	SUS 304L	Z3CN18‐10
1.4301	SS 304H	S30409	–	–	–	–	–
1.4841	SS 310	S31000	310S24	20Ch25N20S2	X15CrNi25-20	SUS 310	–
1.4845	SS 310S	S31008	310S16	20Ch23N18	X8CrNi25-21	SUS 310S	–
1.4401 / 1.4436	SS 316	S31600	316S31 / 316S33	–	X5CrNiMo17-12-2 / X3CrNiMo17-13-3	SUS 316	Z7CND17‐11‐02
1.4404 / 1.4435	SS 316L	S31603	316S11 / 316S13	03Ch17N14M3 / 03Ch17N14M2	X2CrNiMo17-12-2 / X2CrNiMo18-14-3	SUS 316L	Z3CND17‐11‐02 / Z3CND18‐14‐03
1.4571	SS 316Ti	S31635	320S31	08Ch17N13M2T	X6CrNiMoTi17-12-2	SUS 316Ti	Z6CNDT17‐123
1.4449	SS 317	S31700	–	–	–	SUS 317	–
1.4438	SS 317L	S31703	–	–	X2CrNiMo18-15-4	SUS 317L	–
1.4541	SS 321	S32100	–	–	X6CrNiTi18-10	SUS 321	–
1.4878	SS 321H	S32109	–	–	X12CrNiTi18-9	SUS 321H	–
1.4550	SS 347	S34700	–	08Ch18N12B	X6CrNiNb18-10	SUS 347	–
1.4006	SS 410	S41000	410S21	–	X12Cr13	SUS 410	–
1.4762	SS 446	S44600	–	–	–	–	–
1.4539	SS 904L	N08904	904S13	STS 317J5	X1NiCrMoCu25-20-5	SUS 904L	Z2 NCDU 25-20

Biggest Class 150 DN80 SS Flange Stockholder, Get Best Price & Fast Delivery For ASME SA182 Orifice Flange.

150LB Class

Pipe		Weight	Flange Data			Hub Data		Face	Drilling Data
			C	B	D	F	E	G	I	H	J
Outside Diameter	Nominal Pipe		Flange Thickness min	Inside Diameter	Overall Length	Hub Diameter	Diameter at Weld Bevel	Face Diameter	Bolt Hole Diameter	Number of Holes	Diameter of Circle of Holes
in mm	Size	kg/ piece	in mm	in mm	in mm	in mm	in mm	in mm	in mm		in mm
0.840	2	0.48	0.440	0.620	1.880	1.190	0.840	1.380	0.620	4	2.380
21.30			11.20	15.70	47.80	30.20	21.30	35.00	15.70		60.45
1.050	w	0.71	0.500	0.820	2.060	1.500	1.050	1.690	0.620	4	2.750
26.70			12.70	20.80	52.30	38.10	26.70	42.90	15.70		69.85
1.315	1	1.01	0.560	1.050	2.190	1.940	1.320	2.000	0.620	4	3.120
33.40			14.20	26.70	55.60	49.30	33.50	50.80	15.70		79.25
1.660	14	1.33	0.620	1.380	2.250	2.310	1.660	2.500	0.620	4	3.500
42.20			15.70	35.10	57.15	58.70	42.20	63.50	15.70		88.90
1.900	12	1.72	0.690	1.610	2.440	2.560	1.900	2.880	0.620	4	3.880
48.30			17.50	40.90	62.00	65.00	48.30	73.15	15.70		98.60
2.375	2	2.58	0.750	2.070	2.500	3.060	2.380	3.620	0.750	4	4.750
60.30			19.10	52.60	63.50	77.70	60.45	91.90	19.10		120.7
2.875	22	4.11	0.880	2.470	2.750	3.560	2.880	4.120	0.750	4	5.500
3.500	3	4.92	0.940	3.070	2.750	4.250	3.500	5.000	0.750	4	6.000
88.90			23.90	78.00	69.85	108.0	88.90	127.0	19.10		152.4
4.000	32	6.08	0.940	3.550	2.810	4.810	4.000	5.500	0.750	8	7.000
101.6			23.90	90.20	71.40	122.2	101.6	139.7	19.10		177.8
4.500	4	6.84	0.940	4.030	3.000	5.310	4.500	6.190	0.750	8	7.500
114.3			23.90	102.4	76.20	134.9	114.3	157.2	19.10		190.5
5.563	5	8.56	0.940	5.050	3.500	6.440	5.560	7.310	0.880	8	8.500
141.3			23.90	128.3	88.90	163.6	141.2	5.7	22.40		215.9
6.625	6	10.6	1.000	6.070	3.500	7.560	6.630	8.500	0.880	8	9.500
168.3			25.40	154.2	88.90	192.0	168.4	215.9	22.40		241.3
8.625			1.120	7.980	4.000	9.690	8.630	10.62	0.880		11.75
	8	17.6								8
219.1			28.40	202.7	101.6	246.1	219.2	269.7	22.40		298.5
10.75	10	24.0	1.190	10.02	4.000	12.00	10.75	12.75	1.000	12	14.25
273.0			30.20	254.5	101.6	304.8	273.0	323.8	25.40		362.0
12.75	12	36.5	1.250	12.00	4.500	14.38	12.75	15.00	1.000	12	17.00
323.8			31.75	304.8	114.3	365.3	323.8	381.0	25.40		431.8
14.00	14	48.4	1.380	To be specified by Purchaser	5.000	15.75	14.00	16.25	1.120	12	.75
355.6			35.10		127.0	400.1	355.6	412.7	28.40		476.3
16.00	16	60.6	1.440		5.000	.00	16.00	.50	1.120	16	21.25
406.4			36.60		127.0	475.2	406.4	469.9	28.40		539.8
.00		68.3	1.560		5.500	19.88	.00	21.00	1.250	16	22.75
457.2			39.60		139.7	505.0	457.2	533.4	31.75		577.9
20.00	20	84.5	1.690		5.690	22.00	20.00	23.00	1.250	20	25.00
508.0			42.90		144.5	558.8	508.0	584.2	31.75		635.0
24.00	24	115	1.880		6.000	26.12	24.00	27.25	1.380	20	29.50
609.6			47.80		152.4	663.4	609.6	692.1	35.10		749.3

NDT test done for Stainless Steel Pipe Flange and Large Diameter SS Flanges to ensure leak free connection

Class 300LB

Outside Diameter	No. of Bolt Holes	Raised Face Thickness (T)	Bolt Circle (BC)	FLANGE NPS	Raised Face (RF)	Flat Face Thickness (T2)	Raised Face (R)	Bolt Hole (B)
3.75″	4	0.56″	2.62″	1/2″	.063″	0.50″	1.38″	0.62″
4.62″	4	0.62″	3.25″	3/4″	.063″	.056″	1.69″	0.75″
4.88″	4	0.69″	3.50″	1″	.063″	0.63″	2.00″	0.75″
5.25″	4	0.75″	3.88″	1-1/4″	.063″	0.69″	2.50″	0.75″
6.12″	4	0.81″	4.50″	1-1/2″	.063″	0.75″	2.88″	0.88″
6.50″	8	0.88″	5.00″	2″	.063″	0.82″	3.62″	0.75″
7.50″	8	1.00″	5.88″	2-1/2″	.063″	0.94″	4.12″	0.88″
8.25″	8	1.12″	6.62″	3″	.063″	1.06″	5.00″	0.88″
9.00″	8	1.19″	7.25″	3-1/2″	.063″	1.13″	5.50″	0.88″
10.00″	8	1.25″	7.88″	4″	.063″	1.19″	6.19″	0.88″
11.00″	8	1.38″	9.25″	5″	.063″	1.32″	7.31″	0.88″
12.50″	12	1.44″	10.62″	6″	.063″	1.38″	8.50″	0.88″
15.00″	12	1.62″	13.00″	8″	.063″	1.56″	10.62″	1.00″
17.50″	16	1.88″	15.25″	10″	.063″	1.82″	12.75″	1.12″
20.50″	16	2.00″	17.75″	12″	.063″	1.94″	15.00″	1.25″
23.00″	20	2.12″	20.25″	14″	.063″	2.06″	16.25″	1.25″
25.50″	20	2.25″	22.50″	16″	.063″	2.19″	18.50″	1.38″
28.00″	24	2.38″	24.75″	18″	.063″	2.32″	21.00″	1.38″
30.50″	24	2.50″	27.00″	20″	.063″	2.44″	23.00″	1.38″
33.00″	24	2.63″	29.25″	22″	.063″	2.57″	25.25″	1.63″
36.00″	24	2.75″	32.00″	24″	.063″	2.69″	27.25″	1.62″

Glaxosmithkline South Africa (Pty) Ltd Bryanston, Gauteng, South Africa

Rumaila Oil Field-UAE

Fadhili Gas Plant, Jubail, Saudi Arabia

RasGas RL(3) Common Offplot Projects Ras Laffan, Qatar

Sriracha Refinery Expansion-Thailand

Weatherford - Cielo Abu Dhabi
