The WPHY 52 components cover high-yield carbon steel grade fittings that influence the characteristics of the media. WPHY 52 Fittings are manufactured with a chemical content of carbon, phosphorous, silicon, sulfur, manganese, copper, chromium, nickel, molybdenum, titanium, cobalt, and vanadium. The high-quality ASTM A860 WPHY 52 fittings have enhanced corrosion resistance properties in harsh conditions. The grade works in elevated pressure and temperature setups. The WPHY-52 Specification covers the ASTMA860MSS SP-75 grade that can cover seamless, welded, and fabricated configurations. These modules have different wall thicknesses and possess a wide spectrum of bending radii. WPHY 52 Material is designed using the best material by our renowned technicians. The material possesses a minimum tensile strength of 62Ksi with a minimum yield strength of 52Ksi and can be easily elongated. The A860 WPHY 52 Buttweld Fittings possess superior strength and play an important role to efficiently route, branch and join dissimilar piping components across harsh conditions. Our company is a WPHY 52 Fittings manufacturer in India who keep stock of products of different sizes and shapes to fullfill all requirements.

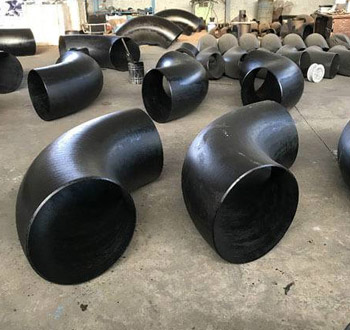

The WPHY 52 Elbow is a common fitting in the oil and gas industry that are used to change the direction of pressurized media efficiently. These elbows are available in short or long radius specifications. The flow of media in the WPHY Grade 52 Tee doesn’t possess a smooth flow as elbows, but they have a three-sided specification that allows them to securely seal the module efficiently across treacherous conditions. The MSS SP75 WPHY 52 Pipe Cap possesses super strength and are very reliable allowing them to protect the pipe for long periods as they are transported or stored. A WPHY 52 Reducer is utilized to join piping grades of dissimilar sizes efficiently. These reducers are designed with eccentric and concentric specifications.
Grade | WPHY 52 Fittings |
---|---|
Uses | Chemical, Petroleum, Metallurgy, Gas, Shipbuilding, Power, etc |
Dimensions | ANSI/ASME B16.28, B16.9, MSS-SP-43, MSS-SP-75. |
Bending Radius | R=5D, 8D, 6D, 2D, 1D, 3D, 10D |
Type | Welded / Fabricated / Seamless WPHY 52 fittings |
Wall thickness | Schedule 10 to XXS according to NACE MR 01-75 |
Size Range | Seamless ½” to 24”, ½" upto 120" NB, Welded ½” to 120”, Two Halve/ Two Joint Fittings 6” upto 48” |
Material | Elbows, Fittings, Reducers, Pipe fittings, Tees, Caps |
Surface treatment | Sand Rolling and Blasting |
Color | Black |
Applicable Standards |
|
WPHY 52 Fittings Types | Barrel Nipple, End Cap, 3D Elbow, Cap, 1D Elbow, 90 Deg Elbow, Reducing Tee, Concentric Reducer, Short Radius Elbow, Stubend, Long Radius Bend, Reducing Nipple, Eccentric Reducer, 45 Deg Elbows, Tee, Equal Tee, Elbows, Bend, 180 Deg Elbow, Reducer, Nipple, Piggable Bend, Long Stubend, Swage Nipple, 5D Elbow, Long Radius Elbow, Short Stubend |
Seamless/ Welded WPHY 52 Elbow 100% Radiography Tested |
Description | Price Per Kg In Singapore | Price Per Kg In UAE | Price Per Kg In USD | Price Per Kg In Malaysia |
---|---|---|---|---|
4X2SCH 40/STDXSCH CARBON STEEL GR A860 WPHY-52 REDUCING CS SMLS | SGD 1.81 | Dirham 4.83 | US $ 1.31 | MYR 5.77 |
14 INCH 11.9MM TEE EQUAL, B16.9 MSS SP75 WPHY52 FITTINGS BUTTWELD | SGD 290.90 | Dirham 775.07 | US $ 211.02 | MYR 926.07 |
14 INCH 17.5 MM THK CAP, B16.9, MSS SP75 WPHY52 FITTINGS BUTTWELD | SGD 106.19 | Dirham 282.94 | US $ 77.03 | MYR 338.06 |
14 INCH 17.5MM THK,8 INCH 15.9M T.RED,B16.9 MSS SP75 WPHY52 FITTINGS BUTTWELD | SGD 480.20 | Dirham 1279.45 | US $ 348.34 | MYR 1528.72 |
14 INCH, 1.5D, 11.9MM THK ELBOW 90, B16.9, MSS SP75 WPHY52 FITTINGS BUTTWELD | SGD 232.50 | Dirham 619.48 | US $ 168.66 | MYR 740.17 |
THK 7.92MM, WPHY-52 PIPES FITTING CARBON STEEL DN600, 45 DEGREE ELBOW | SGD 4.51 | Dirham 12.02 | US $ 3.27 | MYR 14.36 |
4 X 2 SCH 40/STD X SCH PIPE FITTING CARBON STEEL GR A860 WPHY-52 REDUCING CS | SGD 1.83 | Dirham 4.92 | US $ 1.35 | MYR 6.05 |
Carbon Steel WPHY 52 Laterals
WPHY Grade 52 Carbon Steel Stub End
CS WPHY 52 High Yield 90 Degree Elbows
Carbon Steel WPHY Gr 52 Cross Fitting
WPHY 52 Fittings
WPHY Grade 52 CS Return Bends
API 5L WPHY 52 180 Degree Elbows
WPHY Gr 52 Carbon Steel 45 Degree Elbows

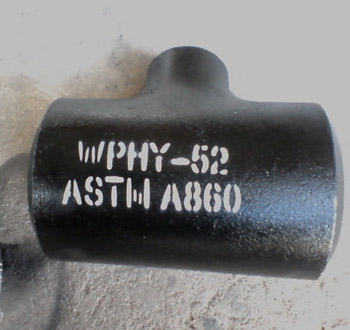

Carbon Steel WPHY Grade 52 Equal Tee
API 5LWPHY Gr 52 Cross Tee

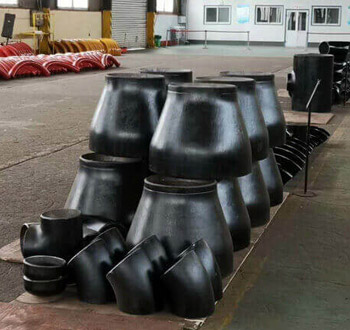

ASTM A860 WPHY Gr 52 Reducer
CS WPHY Gr 52 Concentric Reducer
CS Grade 52 High Yield Elbow
CS WPHY Grade 52 Lap Joint Stub Ends

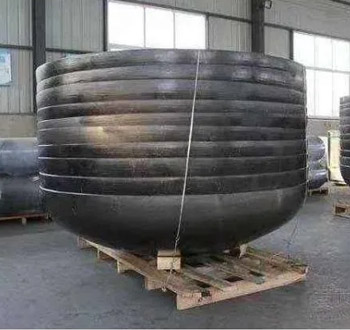

MSS SP75 WPHY Grade 52 End Cap
API 5L WPHY Grade 52 Weld Elbows
ASTM A860 WPHY Grade 52 Reducing Tee
WPHY Grade 52 High Yield Eccentric Reducer
DN | Schedule 10S | Schedule 40S | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
45° Elbow | 90° Elbow | Equal tee | Stub end type (B) | End cap | 45° Elbow | 90° Elbow | Equal tee | End cap | Stub end type (B) | |
15 | 0.03 | 0.06 | 0.09 | 0.07 | 0.03 | 0.04 | 0.08 | 0.10 | 0.04 | 0.08 |
20 | 0.03 | 0.07 | 0.13 | 0.09 | 0.05 | 0.04 | 0.08 | 0.17 | 0.07 | 0.11 |
25 | 0.08 | 0.14 | 0.28 | 0.16 | 0.08 | 0.11 | 0.15 | 0.29 | 0.10 | 0.17 |
32 | 0.11 | 0.23 | 0.49 | 0.22 | 0.10 | 0.17 | 0.26 | 0.59 | 0.18 | 0.25 |
40 | 0.17 | 0.30 | 0.68 | 0.25 | 0.11 | 0.23 | 0.40 | 0.86 | 0.20 | 0.31 |
50 | 0.25 | 0.50 | 0.85 | 0.43 | 0.13 | 0.40 | 0.70 | 1.28 | 0.23 | 0.61 |
65 | 0.48 | 0.85 | 1.41 | 0.57 | 0.19 | 0.77 | 1.40 | 2.19 | 0.27 | 0.80 |
80 | 0.63 | 1.25 | 1.77 | 0.72 | 0.25 | 1.08 | 2.20 | 3.31 | 0.42 | 1.13 |
100 | 1.08 | 2.10 | 3.46 | 1.09 | 0.68 | 1.47 | 4.47 | 5.27 | 1.14 | 1.87 |
125 | 1.82 | 3.65 | 5.44 | 1.47 | 1.11 | 2.84 | 6.80 | 9.63 | 2.13 | 2.79 |
150 | 2.72 | 5.45 | 8.03 | 2.15 | 1.42 | 5.44 | 10.89 | 10.99 | 3.23 | 3.57 |
200 | 5.33 | 10.20 | 15.65 | 3.22 | 2.38 | 10.77 | 21.54 | 20.91 | 5.19 | 6.07 |
250 | 9.75 | 18.15 | 26.76 | 5.13 | 4.45 | 19.27 | 38.56 | 35.38 | 9.00 | 10.07 |
300 | 13.62 | 25.80 | 39.46 | 8.16 | 7.50 | 29.71 | 59.42 | 62.14 | 15.00 | 14.29 |
350 | 18.37 | 36.29 | 48.53 | 10.88 | 8.17 | 35.15 | 79.38 | 79.31 | 16.00 | 17.14 |
400 | 23.81 | 47.63 | 58.97 | 12.70 | 10.67 | 45.81 | 99.79 | 99.79 | 21.00 | 20.41 |
450 | 29.94 | 59.87 | 79.65 | 17.23 | 13.00 | 59.40 | 129.73 | 129.73 | 26.00 | 27.21 |
500 | 49.90 | 99.80 | 103.42 | 21.77 | 17.00 | 74.84 | 162.38 | 162.39 | 34.00 | 29.94 |
600 | 70.31 | 140.61 | 155.58 | 27.21 | 26.00 | 105.23 | 225.89 | 225.90 | 52.00 | 38.55 |
45° Long Radius Center to End B |
90° Long Radius Center to End A |
NPS | 45° 3D Center to End B |
90° 3D Center to End A |
O.D. D |
---|---|---|---|---|---|
57 | 133 | 3.1/2 | 111 | 267 | 101.6 |
64 | 152 | 4 | 127 | 305 | 114.3 |
79 | 190 | 5 | 157 | 381 | 141.3 |
95 | 229 | 6 | 189 | 457 | 168.3 |
127 | 305 | 8 | 252 | 610 | 219.1 |
16 | 38 | 1/2 | 21.3 | ||
19 | 38 | 3/4 | 24 | 57 | 26.7 |
22 | 38 | 1 | 31 | 76 | 33.4 |
25 | 48 | 1.1/4 | 39 | 95 | 42.2 |
29 | 57 | 1.1/2 | 47 | 114 | 48.3 |
35 | 76 | 2 | 63 | 152 | 60.3 |
44 | 95 | 2.1/2 | 79 | 190 | 73 |
51 | 114 | 3 | 95 | 229 | 88.9 |
159 | 381 | 10 | 316 | 762 | 273 |
190 | 457 | 12 | 378 | 914 | 323.8 |
222 | 533 | 14 | 441 | 1067 | 355.6 |
254 | 610 | 16 | 505 | 1219 | 406.4 |
Nominal size | OD | Elbows | Reducer | Caps | Returns | Stubs Ends | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Short | Long | Long | Short | Long | Short | Radius of fillet | Diam. of Lap | ||||||||
90 deg | 90 deg | 45 deg | |||||||||||||
DN | NPS | D | A | A | B | H | E | O | K | O | K | F | F | R | G |
20 | ¾ | 26.7 | 38 | 19 | 38 | 25 | 76 | 51 | 76 | 51 | 3 | 43 | |||
32 | 11/4 | 42.2 | 32 | 48 | 25 | 51 | 38 | 95 | 70 | 64 | 52 | 102 | 51 | 5 | 64 |
40 | 11/2 | 48.3 | 38 | 57 | 29 | 64 | 38 | 114 | 83 | 76 | 62 | 102 | 51 | 6 | 73 |
50 | 2 | 60.3 | 51 | 76 | 35 | 76 | 38 | 152 | 106 | 102 | 81 | 152 | 64 | 8 | 92 |
65 | 21/2 | 73.0 | 64 | 95 | 44 | 89 | 38 | 190 | 132 | 127 | 100 | 152 | 64 | 8 | 106 |
80 | 3 | 88.9 | 76 | 114 | 51 | 89 | 51 | 229 | 159 | 152 | 121 | 152 | 64 | 10 | 127 |
90 | 31/2 | 101.6 | 89 | 133 | 57 | 102 | 64 | 267 | 184 | 178 | 140 | 152 | 76 | 10 | 140 |
15 | ½ | 21.3 | 38 | 16 | 25 | 76 | 48 | 76 | 51 | 3 | 35 | ||||
100 | 4 | 114.3 | 102 | 152 | 64 | 102 | 64 | 305 | 210 | 203 | 159 | 152 | 76 | 11 | 157 |
200 | 8 | 219.1 | 203 | 305 | 127 | 152 | 102 | 610 | 414 | 406 | 313 | 203 | 102 | 13 | 270 |
250 | 10 | 273.0 | 254 | 381 | 159 | 178 | 127 | 762 | 518 | 508 | 391 | 254 | 127 | 13 | 324 |
300 | 12 | 323.8 | 305 | 457 | 190 | 203 | 152 | 914 | 619 | 610 | 467 | 254 | 152 | 13 | 381 |
350 | 14 | 355.6 | 356 | 533 | 222 | 330 | 165 | 1067 | 711 | 711 | 533 | 305 | 152 | 13 | 413 |
125 | 5 | 141.3 | 127 | 190 | 79 | 127 | 76 | 381 | 262 | 254 | 197 | 203 | 76 | 11 | 185 |
400 | 16 | 406.4 | 406 | 610 | 254 | 356 | 178 | 1219 | 813 | 813 | 610 | 305 | 152 | 13 | 470 |
25 | 1 | 33.4 | 25 | 38 | 22 | 51 | 38 | 76 | 56 | 51 | 41 | 102 | 51 | 3 | 51 |
450 | 18 | 457 | 457 | 686 | 286 | 381 | 203 | 1372 | 914 | 914 | 686 | 305 | 152 | 13 | 533 |
500 | 20 | 508 | 508 | 762 | 318 | 508 | 229 | 1524 | 1016 | 1016 | 762 | 305 | 152 | 13 | 584 |
1050 | 42 | 1067 | 1600 | 660 | 610 | 305 | |||||||||
550 | 22 | 559 | 559 | 838 | 343 | 508 | 254 | 1676 | 1118 | 1118 | 838 | 305 | 152 | 13 | 641 |
150 | 6 | 168.3 | 152 | 229 | 95 | 140 | 89 | 457 | 313 | 305 | 237 | 203 | 89 | 13 | 218 |
600 | 24 | 610 | 610 | 914 | 381 | 508 | 267 | 1829 | 1219 | 1219 | 914 | 305 | 152 | 13 | 692 |
650 | 26 | 660 | 991 | 405 | 610 | 267 | |||||||||
700 | 28 | 711 | 1067 | 438 | 610 | 267 | |||||||||
750 | 30 | 762 | 1143 | 470 | 610 | 267 | |||||||||
1100 | 44 | 1118 | 1676 | 695 | 610 | 343 | |||||||||
800 | 32 | 813 | 1219 | 502 | 610 | 267 | |||||||||
850 | 34 | 864 | 1295 | 533 | 610 | 267 | |||||||||
900 | 36 | 914 | 1372 | 565 | 610 | 267 | |||||||||
950 | 38 | 965 | 1448 | 600 | 610 | 305 | |||||||||
1200 | 48 | 1219 | 1829 | 759 | 711 | 343 | |||||||||
1000 | 40 | 1016 | 1524 | 632 | 610 | 305 | |||||||||
1150 | 46 | 1168 | 1753 | 727 | 711 | 343 |
W.T. (in) (mm) |
Pipe SCH | Pipe Size (inches) |
Temperature (oF) (deg C) | O.D. (in) (mm) |
||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
100 | 200 | 300 | 400 | 500 | 600 | 650 | 700 | 750 | ||||
Allowable Stress (psi) (kPa) | ||||||||||||
16700 | 16700 | 16700 | 15500 | 14400 | 13500 | 13200 | 12900 | 12600 | ||||
0.145 | 40 | 1 1/2" | 1629 | 1629 | 1629 | 1512 | 1404 | 1317 | 1287 | 1258 | 1229 | 1.900 |
0.200 | 80 | 2303 | 2303 | 2303 | 2138 | 1986 | 1862 | 1821 | 1779 | 1738 | 1.900 | |
0.281 | 160 | 3362 | 3362 | 3362 | 3120 | 2899 | 2717 | 2657 | 2597 | 2536 | 1.900 | |
0.133 | 40 | 1" | 2205 | 2205 | 2205 | 2047 | 1902 | 1783 | 1743 | 1703 | 1664 | 1.315 |
0.179 | 80 | 3061 | 3061 | 3061 | 2841 | 2640 | 2475 | 2420 | 2365 | 2310 | 1.315 | |
0.250 | 160 | 4493 | 4493 | 4493 | 4170 | 3874 | 3632 | 3552 | 3471 | 3390 | 1.315 | |
0.154 | 40 | 2" | 1371 | 1371 | 1371 | 1272 | 1182 | 1108 | 1083 | 1059 | 1034 | 2.375 |
0.218 | 80 | 1985 | 1985 | 1985 | 1843 | 1712 | 1605 | 1569 | 1534 | 1498 | 2.375 | |
0.344 | 160 | 3283 | 3283 | 3283 | 3047 | 2831 | 2654 | 2595 | 2536 | 2477 | 2.375 | |
0.237 | 40 | 4" | 1102 | 1102 | 1102 | 1023 | 950 | 891 | 871 | 851 | 831 | 4.500 |
0.337 | 80 | 1596 | 1596 | 1596 | 1482 | 1377 | 1291 | 1262 | 1233 | 1204 | 4.500 | |
0.531 | 160 | 2611 | 2611 | 2611 | 2424 | 2552 | 2111 | 2064 | 2017 | 1970 | 4.500 | |
0.216 | 40 | 3" | 1301 | 1301 | 1301 | 1208 | 1122 | 1052 | 1028 | 1005 | 982 | 3.500 |
0.300 | 80 | 1844 | 1844 | 1844 | 1712 | 1590 | 1491 | 1458 | 1425 | 1391 | 3.500 | |
0.438 | 160 | 2787 | 2787 | 2787 | 2587 | 2403 | 2253 | 2203 | 2153 | 2103 | 3.500 | |
0.258 | 40 | 5" | 965 | 965 | 965 | 896 | 832 | 780 | 763 | 746 | 728 | 5.563 |
0.375 | 80 | 1428 | 1428 | 1428 | 1325 | 1231 | 1154 | 1129 | 1103 | 1077 | 5.563 | |
0.625 | 160 | 2474 | 2474 | 2474 | 2296 | 2133 | 2000 | 1955 | 1911 | 1866 | 5.563 | |
0.322 | 40 | 8" | 771 | 771 | 771 | 716 | 665 | 623 | 610 | 596 | 582 | 8.625 |
0.500 | 80 | 1218 | 1218 | 1218 | 1131 | 1050 | 985 | 963 | 941 | 919 | 8.625 | |
0.906 | 160 | 2298 | 2298 | 2298 | 2133 | 1982 | 1858 | 1817 | 1775 | 1734 | 8.625 | |
0.280 | 40 | 6" | 877 | 877 | 877 | 814 | 756 | 709 | 693 | 677 | 661 | 6.625 |
0.432 | 80 | 1379 | 1379 | 1379 | 1280 | 1189 | 1115 | 1090 | 1065 | 1040 | 6.625 | |
0.719 | 160 | 2382 | 2382 | 2382 | 2211 | 2054 | 1925 | 1883 | 1840 | 1797 | 6.625 | |
0.365 | 40 | 10" | 699 | 699 | 699 | 649 | 603 | 565 | 553 | 540 | 528 | 10.750 |
0.594 | 80 | 1159 | 1159 | 1159 | 1075 | 999 | 937 | 916 | 895 | 874 | 10.750 | |
1.125 | 160 | 2289 | 2289 | 2289 | 2124 | 1974 | 1850 | 1809 | 1768 | 1727 | 10.750 |
Cu | Si | Mn | C | Cb | S | Ni | P | Ti | Mo | Cr | V |
---|---|---|---|---|---|---|---|---|---|---|---|
0.35 | 0.15-0.40 | 1.00-1.45 | 0.20 | 0.06 | 0.03 | 0.50 | 0.01 | 0.05 | 0.25 | 0.30 | 0.10 |
Elongation | Tensile Strength | (0.2%Offset) Yield Strength |
---|---|---|
28 % | 515-690 | 66 |
Weight | Nominal pipe size | Schedule | Dimensions in mm | ||
---|---|---|---|---|---|
kg/pce | in.0 | t | D | C/M | |
0.0092 0.0115 0.0200 0.0300 |
3/4 | 10s 40s 80s 160 |
2.011 2.087 3.091 5.056 |
26.07 26.07 26.07 26.07 |
28.06 28.06 28.06 28.06 |
0.0065 0.0085 0.0140 0.0150 |
1/2 | 10s 40s 80s 160 |
2.011 2.077 3.073 4.078 |
21.03 21.03 21.03 21.03 |
25.04 25.04 25.04 25.04 |
0.0200 0.0245 0.0390 0.0470 |
1 | 10s 40s 80s 160 |
2.077 3.038 4.055 6.035 |
33.04 33.04 33.04 33.04 |
38.01 38.01 38.01 38.01 |
0.0460 0.0595 1.0020 1.0430 |
1½ | 10s 40s 80s 160 |
2.077 3.068 5.008 7.014 |
48.03 48.03 48.03 48.03 |
57.02 57.02 57.02 57.02 |
0.0330 0.0420 0.0548 0.0890 |
1¼ | 10s 40s 80s 160 |
2.077 3.056 4.085 6.035 |
42.02 42.02 42.02 42.02 |
47.06 47.06 47.06 47.06 |
0.0630 0.0872 1.0590 3.0180 |
2 | 10s 40s 80s 160 |
2.077 3.091 5.054 8.074 |
60.03 60.03 60.03 60.03 |
63.05 63.05 63.05 63.05 |
76.0660 | 18 | 10s | 4.078 | 457.02 | 342.09 |
1.0370 1.0900 4.0450 5.0870 |
3 | 10s 40s 80s 160 |
3.005 5.049 7.062 11.013 |
88.09 88.09 88.09 88.09 |
85.07 85.07 85.07 85.07 |
155.0580 | 24 | 10s | 6.035 | 609.06 | 431.08 |
1.0100 1.0700 3.0630 |
2½ | 10s 40s 160 |
3.005 5.016 9.052 |
73.00 73.00 73.00 |
76.02 76.02 76.02 |
1.0740 3.0190 |
3½ | 10s 40s |
3.005 5.074 |
101.06 101.06 |
95.03 95.03 |
3.0480 6.0550 11.0340 |
5 | 10s 40s 80s |
3.040 6.055 9.053 |
141.03 141.03 141.03 |
123.08 123.08 123.08 |
2.0150 4.0130 7.0710 9.0760 |
4 | 10s 40s 80s 160 |
3.005 6.002 8.056 13.049 |
114.03 114.03 114.03 114.03 |
104.08 104.08 104.08 104.08 |
4.0760 9.0730 13.0610 |
6 | 10s 40s 80s |
3.040 7.011 10.092 |
168.03 168.03 168.03 |
142.09 142.09 142.09 |
14.0200 30.0800 |
10 | 10s 40s |
4.019 9.027 |
273.01 273.01 |
215.09 215.09 |
8.0460 18.0000 |
8 | 10s 40s |
3.076 8.018 |
219.01 219.01 |
177.08 177.08 |
21.0600 44.0300 |
12 | 10s 40s |
4.057 9.053 |
323.09 323.09 |
254.00 254.00 |
58.0970 99.0790 |
16 | 10s STD |
4.078 9.053 |
406.04 406.04 |
304.08 304.08 |
48.0530 79.0380 |
14 | 10s STD |
4.078 9.053 |
355.06 355.06 |
279.04 279.04 |
103.0420 | 20 | 10s | 5.054 | 508.00 | 381.00 |
Check our material dispatch in the following countries
Upper Zakum - Production Capacity Enhancement -UAE
International Maritime Industries Saudi Arabia
Abu Dhabi North West Development - Hail And Ghasha Sour Gas -Uae
EGAT Floating Storage Regasification Unit Gulf Of Thailand
Water Mega Reservoirs Package A WMRA-Qatar
Ruwais Refinery Complex - Refinery Expansion- Abu Dhabi
