One of the leading EIL Stainless Steel Fittings Manufacturer In India, Stockist of EIL Carbon Steel Flanges

EIL Approved flanges

Engineers India Limited (EIL) provides engineers and technical regulations for petroleum refineries similar to pipe fittings, flanges, technical specifications, etc. The EIL approved pipe fittings are used to route, change the direction, and branch piping equipment. These fittings are produced in the alloy, stainless steel, carbon, duplex, nickel, Inconel, and Hastelloy alloys. They possess enhanced resistance to corrosive and reducing media. The EIL Approved Carbon Steel Fittings possess a higher content of carbon and possess moderate strength and corrosion resistance properties. These fittings are easy to install and very durable for long periods. They are available in different schedules and sizes. An EIL Approved Elbow is a fitting that is utilized to change the direction of the flow between two piping components. These elbows are seen in 45, 90, and 22.5 degree bend.

The EIL Approved flanges are efficiently used to connect pipes, tubes, valve pumps, and other equipment. These flanges provide strength to the pipes during the movement of media. Different types of flanges are available and are used in the different piping systems across the oil and gas industry. The EIL Approved Weld Neck Flanges are easily recognized by their long hub that allows them to support the piping equipment. These flanges are butt-welded and are suited for applications across repeated bending conditions. Stainless Steel EIL Approved Flanges possess superior strength and have excellent resistance to corrosive affluents. These flanges are employed to work in different pressure and temperature conditions. They are available in different schedules and standard specifications. Our company is EIL Approved Flanges Manufacturers who are quality-certified as we follow all national and international standards while manufacturing all our products.

Supplier of EIL Approved Slip on flanges in Mumbai

EIL Approved Fittings Specification

Why to buy from stockist? Buy directly through EIL Approved Fittings manufacturers and save cost

Dimensions

ANSI/ ASME B16.48, B16.5, BS4504, B16.47 Series A/B, BS 10, EN-1092, DIN, etc.

Standard

AWWA Flanges, Table E Flanges, ASME Flanges, ANSI Flanges, BS 10 Table D Flanges, BS Flanges, EN Flanges, DIN Flanges, GOST Flanges.

Size Range

From 1/2″ upto 48″ (15 NB to 1200NB) DN10~DN5000

Pressure Class / Rating

Class 150 LBS, 600#, 300#, 900#, 2500#, 1500#, PN10, PN6, PN16, PN40, PN25, PN64

Flange Face Type

Lap-Joint Face, Flat Face, Large Tongue & Groove, Small Male-Female, Large Male-Female, Raised Face, RTJ, Small Tongue

Types

Forged, Weld Neck Ring Flanges, Threaded, Orifice Flanges, Blind Ring Flanges, Screwed, Socket Weld Ring Flanges, Lap Joint Ring Flanges, Slip-On Ring Flanges, Ring Type Joint Flanges, Plate, Large Diameter Flanges

Price List of EIL Approved BW Fittings

Save 10-12% if you buy directly from EIL Approved Flange manufacturers

Description Price Per Kg In Singapore Price Per Kg In UAE Price Per Kg In USD Price Per Kg In Malaysia
3/4 X 4 CLS 3000 PIPE FITTING EIL APPROVED CARBON STEEL GR SA350 LF2 THREADOLET CS MSSSP97/ASME B31.1/B31.3 SGD 76.72 UAE Dirham 200.31 US $55.41 MYR 242.93
9000 LB 1.5 INCH EIL APPROVED ELBOW 90 B-16.11 ASTM A 105 SW NACE PIPE FITTINGS SGD 20.59 UAE Dirham 53.77 US $14.87 MYR 65.21
10 X 6 SCH 40/STD X SCH 40/STD EIL APPROVED PIPE FITTINGS - TEE REDUCING CS A234 WPBSMLS BW ASME B16.9 SGD 2.38 UAE Dirham 6.20 US $1.72 MYR 7.52
DN 250 X 100 EIL APPROVED PIPE FITTINGS ALLOY STEEL ECCENTRIC REDUCER, SCH 40/STD, SA182 GR.WP22 SGD 6.55 UAE Dirham 17.11 US $4.73 MYR 20.75
8 X 150# STD EIL APPROVED PIPE FITTING COUPLINGS,ELBOWS,SLEEVES, OF IRON OR STEEL SS304 WNRF FLANGE, RF SGD 103.54 UAE Dirham 270.34 US $74.78 MYR 327.86
DN 400 X 350, SCH XS, EIL APPROVED PIPE FITTING CARBON STEEL SA 420 GR.WPL6 CONCENTRIC REDUCER, BUTT WELD SGD 10.35 UAE Dirham 27.03 US $7.48 MYR 32.78

Stainless Steel EIL Approved Fittings Types

EIL Approved Carbon Steel Flanges

EIL Approved Carbon Steel Flanges

EIL Approved Pipe Flanges

EIL Approved Pipe Flanges

BS 4504 Inconel EIL Approved Flanges

BS 4504 Inconel EIL Approved Flanges

EIL Approved Flange

EIL Approved Flange

EIL Approved BW Fittings

EIL Approved BW Fittings

Monel Alloy EIL Approved Pipe Flanges

Monel Alloy EIL Approved Pipe Flanges

Stainless Steel EIL Approved Fittings

Stainless Steel EIL Approved Fittings

EIL Approved Slip On Flange

EIL Approved Slip On Flange

EIL Approved Buttweld Elbow

EIL Approved Buttweld Elbow

EIL Approved Fittings

EIL Approved Fittings

Alloy Steel EIL Approved Fittings

Alloy Steel EIL Approved Fittings

MS EIL Approved Flanges

MS EIL Approved Flanges

Steel EIL Approved Pipe Flanges

Steel EIL Approved Pipe Flanges

EIL Approved Pipe Fittings

EIL Approved Pipe Fittings

Approved EIL Flanges

Approved EIL Flanges

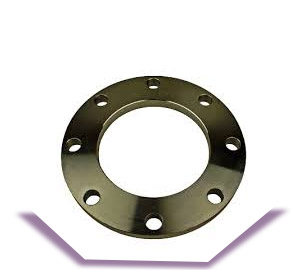

EIL Plate Flanges

EIL Plate Flanges

EIL Approved Socket Weld Fittings

EIL Approved Socket Weld Fittings

Carbon Steel EIL Approved Flanges

Carbon Steel EIL Approved Flanges

EIL Approved Pipe BW Fittings Dimension

We are a specialist distributor & supplier of Eil Approved Pipe Fittings and Eil Approved BW Fittings

NSP Outer Daimeter 90° Elbow 45° Elbow 180° Returns
(inch.) LR SR LR LR
(mm) (in.) Center to Face
(in)
Center to Face
(in)
Radius
(in)
Center to Face
(in)
Back to face
(in)
Center to Center
(in)
3/4 26.7 1.050 1 1/8 7/16 1 11/16 2 1/4
1/2 21.3 0.840 1 1/2 5/8 1 7/8 2
1 33.4 1.315 1 1/2 1 7/8 2 3/16 3
1 1/2 48.3 1.900 2 1/4 1 1/2 3 1 1/8 3 1/4 4 1/2
1 1/4 42.2 1.660 1 7/8 1 1/4 1 2 3/4 3 3/4
2 60.3 2.375 3 2 4 1 3/8 4 3/16 6
3 88.9 3.500 4 1/2 3 6 2 6 1/4 9
2 1/2 73.0 2.875 3 3/4 2 1/2 5 1 3/4 5 3/16 7 1/2
3 1/2 101.6 4.000 5 1/4 3 1/2 7 2 1/4 7 1/4 10 1/2
5 141.3 5.563 7 1/2 5 10 3 1/8 10 5/16 15
4 114.3 4.500 6 4 8 2 1/2 8 1/4 12
6 168.3 6.625 9 6 12 3 3/4 12 5/16 18
10 273.1 10.750 15 10 15 6 1/4 20 3/8 30
8 219.1 8.625 12 8 12 5 16 5/16 24
12 323.9 12.750 18 12 18 7 1/2 24 3/8 36

Biggest Stockist of EIL Approved Reducer, Cap and Tee

Alloy Steel EIL Fittings Size Chart

Forms of Fttings Dimension Fitting Size Range Sch. of BW fittings
Welded Fittings SMLS Pipe Fittings
EIL Approved Return Bends ANSI B16.9, ANSI B16.25, ASME B16.28, ASME B16.9, ANSI B16.28, MS SP 75 1/8” NB to 8" NB SCH XS, SCH 10, SCH 160, SCH 60, SCH 30, SCH 120, SCH 10S, SCH XXS, SCH 5S, SCH 5, SCH 20, SCH 40, SCH 100, SCH STD, SCH 40S, SCH 80s, upto 50mm in case of Welded Fittings
EIL Approved Elbows — 45, 90 & 180 Degree Upto 42" NB 1/8” NB to 24" NB
EIL Approved Cross 1/8” NB to 8" NB
EIL Approved Tees Upto 42" NB 1/8” NB to 24" NB
EIL Approved Reducers Upto 42" NB 1/8” NB to 24" NB
EIL Approved End Caps Upto 42" NB 1/8” NB to 24" NB
EIL Approved Swage Nipple 2 1/16” to 30”
View Weight Chart and Specification of EIL Socket Weld and Reducing Flanges

EIL Approved Pipe Flanges Applications

Why don't you directly contact a Eil Approved Carbon Steel Flanges manufacturer in India? We offer an extensive range of Eil Approved Socket Weld Fittings and Stainless Steel Eil Approved Fittings in Mumbai, free sample before dispatch of complete order.

  • Heat Exchangers

  • Refineries

  • Oil & Gas Industry

  • Condensers

  • Paper & Pulp

  • Marine Applications

  • Ship Building

  • Nuclear Plants

Approved EIL Flange Dimension

CLASS WN Flanges NPS Loose Flanges NPT Flanges SORF Flanges SW Flanges BLRF Flanges
150# 2 ½ 1 1 1 2 2
2 ¾ 2 2 2 2 2
3 1 2 2 2 2 2
3 3 3 3 3 3
4 3 3 3 3 4
6 2 5 5 5 5 5
10 8 8 8 8 7
11.5 3 9 9 9 9 9
12 11 12 11 11 13
16.5 4 13 13 13 13 17
21 5 15 15 15 15 20
26 6 19 19 19 19 27
42 8 30 30 30 30 47
54 10 43 43 43 43 70
88 12 64 64 64 64 123
114 14 105 90 90 90 140
140 16 140 98 106 98 180
165 18 160 130 130 130 220
197 20 195 165 165 165 285
225 22 245 185 185 185 355
268 24 275 220 220 220 430
CLASS WN NPS Loose NPT Flanges SORF SW BLRF
300# 2 ½ 2 2 2 3 2
3 ¾ 3 3 3 3 3
4 1 3 3 3 3 4
5 4.5 4.5 4.5 4 6
7 6.5 6.5 6.5 6 7
9 2 7 7 7 7 8
12 10 10 10 10 12
18 3 14.5 14 13 13 16
20 17 17 17 17 21
26.5 4 24 24 23.5 22 28
36 5 28 31 29 28 37
45 6 39 39 39 39 50
69 8 58 58 58 58 81
100 10 91 81 81 81 124
142 12 140 115 115 115 185
206 14 190 165 165 165 250
250 16 234 220 210 190 315
320 18 305 280 253 250 414
400 20 375 325 315 315 515
465 22 435 370 370 370 640
580 24 550 490 490 475 800
CLASS WN NPS Loose NPT Flanges SORF SW BLRF
600# 3 ½ 2 2 2 2 3
4 ¾ 3 3 3 3 4
4 1 4 4 4 4 4
6 5 5 5 5 6
8 7 7 7 7 8
12 2 9 9 9 9 10
18 12 13 13 13 15
23 3 15 16 16 16 20
26 20 21 21 21 29
42 4 36 37 37 37 41
68 5 63 63 63 63 68
81 6 78 80 80 80 86
120 8 112 15 115 15 140
190 10 195 177 177 177 231
226 12 240 215 215 215 295
347 14 290 259 259 259 378
481 16 400 366 366 366 527
555 18 469 476 476 476 665
690 20 604 612 612 612 855
720 22 670 590 590 590 1000
977 24 866 876 876 876 1250
Get EIL Approved Weld Neck Flange At Low Price, Various Types Of Eil Approved Fittings And Flanges.

Steel EIL Approved Fittings Pressure Rating

Buy Alloy Steel Eil Approved Fittings and EIL approved Forged Threaded Fittings at wholesale rate directly from manufacturers in India

EIL APPROVED FITTINGS PRESSURE RATING
NPS
(IN)
OD
(IN)
SCH PIPE WALL
THICK.
(IN)
TEMP (F)
200 100 500 300 600 400
16700 16700 14400 16700 13500 15500
1″ 1.315 80 0.179 3061 3061 2640 3061 2475 2841
1.315 40 0.133 2205 2205 1902 2205 1783 2047
1.315 160 0.250 4493 4493 3874 4493 3632 4170
1 1/2″ 1.900 40 0.145 1629 1629 1404 1629 1317 1512
1.900 80 0.200 2303 2303 1986 2303 1862 2138
1.900 160 0.281 3362 3362 2899 3362 2717 3120
2″ 2.375 80 0.218 1985 1985 1712 1985 1605 1843
2.375 40 0.154 1371 1371 1182 1371 1108 1272
2.375 160 0.344 3283 3283 2831 3283 2654 3047
3″ 3.500 80 0.300 1844 1844 1590 1844 1491 1712
3.500 40 0.216 1301 1301 1122 1301 1052 1208
3.500 160 0.438 2787 2787 2403 2787 2253 2587
4″ 4.500 80 0.337 1596 1596 1377 1596 1291 1482
4.500 40 0.237 1102 1102 950 1102 891 1023
4.500 160 0.531 2611 2611 2552 2611 2111 2424
5″ 5.563 80 0.375 1428 1428 1231 1428 1154 1325
5.563 40 0.258 965 965 832 965 780 896
5.563 160 0.625 2474 2474 2133 2474 2000 2296
6″ 6.625 80 0.432 1379 1379 1189 1379 1115 1280
6.625 40 0.280 877 877 756 877 709 814
6.625 160 0.719 2382 2382 2054 2382 1925 2211
8″ 8.625 80 0.500 1218 1218 1050 1218 985 1131
8.625 40 0.322 771 771 665 771 623 716
8.625 160 0.906 2298 2298 1982 2298 1858 2133
10″ 10.750 80 0.594 1159 1159 999 1159 937 1075
10.750 40 0.365 699 699 603 699 565 649
10.750 160 1.125 2289 2289 1974 2289 1850 2124

EIL Approved Flanges Materials

Why pay extra? Buying from Duplex Steel EIL Approved Flanges manufacturers saves your cost, wide selection of Carbon Steel EIL Approved Flanges and BS 4504 Inconel EIL Approved Flanges in India

  • Duplex Steel : ASTM / ASME SA 790 UNS NO S 32205, S 31803, S 32750, S 32550, S 32760
  • Carbon Steel : A234 WPB, X52, X60, WPL6
  • Stainless Steel : A403 WP 304H, 316L, 316TI, 304, 309, 316, 304L, 347, 904L, 321, 310, 316H
  • Alloy Steel : A234 WP11, WP9, WP22, WP91, WP5, WP1, WP12
