Leading ASME SA105 Slip On Flange Manufacturer in India, Refer Weight Chart and Sizes of A105N Normalized Socket Weld Flanges

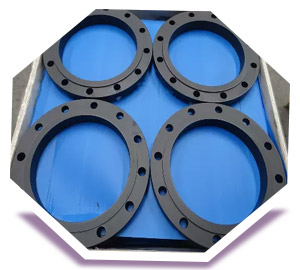

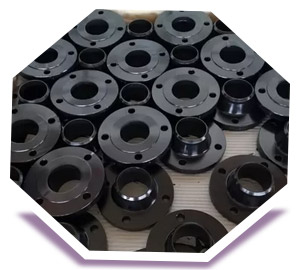

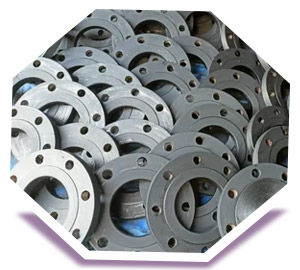

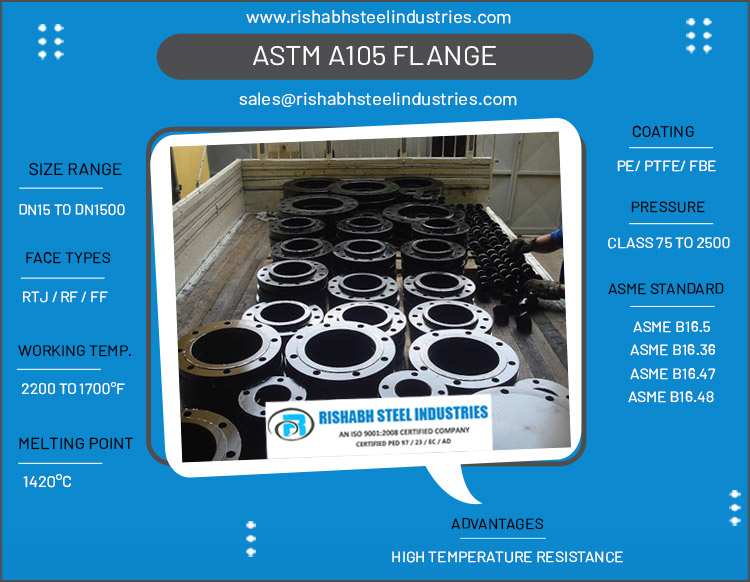

ASTM A105 Flange

The ASTM A105 grade flange covers a seamless forged carbon component across the oil and gas industry. ASTM A105 Flange is a device employed in connecting valves, pipes, pumps, and other equipment in the piping industry. The ASTM A105 forged steel flanges help in combining two machinery parts. The extension in these flanges gives them good strength. They possess enhanced porosity and are very reliable. An SA 105 Pipe Flange is a pressurized vessel grade that provides stability to different applications across treacherous conditions. The SA 105 Flange can be welded or threaded following standard procedures. These flanges can be shaped in different configurations. A SA 105 material has a minimum tensile strength of 70ksi with a minimum yield strength of 30ksi. They have a hardness of 187 HBW max and can be elongated by 30%. Our company is an ASTM A105 Flange manufacturer in India who ensures that quality products are supplied to your doorstep. The quality assurance of our firm propels us to subject these flanges to vigorous testing before they are dispatched.

 The A105N Normalized Flange is a high-strength grade that possesses superior hardness. These flanges have a uniform grain structure with enhanced ductility. The ASTM A105 Blind Flange is designed to terminate the flow in the hydraulic system. These flanges don’t possess a hip or lip and are seen in repair and general assembly systems. ASTM A105 Weld Neck Flange is designed with a protruded lip that acts as a boring section to provide stability to piping grades as there is a vigorous movement of pressurized fluids and gases. The ASTM A105n Slip On Flange is a normalized grade that is preferred in applications where the stress on them is less. These flanges are very reliable and are very common due to their lower costs. ASTM A105 Socket Weld Flange has recessed sockets wherein it is installed and welded in place using a singular fillet weld. We are the A105 Flange manufacturers who keep stock of flanges of different sizes and shapes, thereby giving you a choice to selectthe flange to best suit your project

Supplier of ASTM A105n Slip On Flange and SA 105 Flange with Metallographic examination and MTR

ASTM A105 Pipe Flanges Specification

10-12% price difference if you buy directly from ASTM A105 Flange, ASME SA105N Blind Flange and ASTM A105 N Screwed Flanges manufacturers

Specifications ASTM/ ASME A182/ SA182
Flange Face Type Raised Face, Flate Face, Ring Type Joint
Standards Custom Drawings, MSS SP44, ANSI B16.47 Series A & B, AWWA, ANSI B16.5, ASA, API-605.
Sizes From 1/2″upto 48″
Pressure Ratings Class 150 upto Class 2500

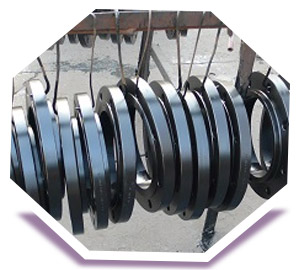

Coating/Surface Treatment Cold and Hot Dip Galvanized, Oil Black Paint, Yellow Transparent, Anti-rust Paint, Zinc Plated.

ASME SA105N Flanges Price List

More than 30 years experience as a ASTM A105 Pipe Flanges, ASME SA105 Nippo Flanges manufacturer in India

Description Price Per Kg In Singapore Price Per Kg In UAE Price Per Kg In USD Price Per Kg In Malaysia
SCH 30 150 CL 10 WN RF FLANGE A105 RAISED FACE, CARBON STEEL ASTM A105 ASME B16.5 NACE MR-01-75 SGD 144.58 UAE Dirham 377.50 US $104.42 MYR 457.82
10NB X 150# CARBON STEEL SLIP-ON FLAT FACE FLANGE TO ASTM 105 DIMN B 16.5 SGD 236.05 UAE Dirham 616.36 US $170.48 MYR 747.50
300LB SCH XS 1.1/2NB WELD NECK FLANGE ASTM/ASME SA 105N ASME B16.5 NACE MR.01.75 SGD 41.98 UAE Dirham 109.60 US $30.32 MYR 132.92
1 1/2 X 3/4 X CL600 FLANGE REDUCING, RF, ASME B16.5, CL 600 SLIP ON CS, ASTM A105 SGD 36.56 UAE Dirham 95.46 US $26.40 MYR 115.77
150LB R/F 3IN CARBON STEEL FORGED FLANGES ASTM A105N WELD NECK SCH40 FLANGE SGD 6.88 UAE Dirham 17.95 US $4.97 MYR 21.77
12NB X 150# CARBON STEEL LAP JOINT FLANGE TO ASTM A105 DIMN B 16.5, NACE MR-0175 SGD 445.90 UAE Dirham 1,164.28 US $322.04 MYR 1,412.00
300 LB SCH 80 FLANGE PIPE TYPE RAISED FACE ORIFICE 1-1/2 IN MATERIAL CS ASTM A105 RATTING CONNECTION TYPE WELD NECK SGD 43.99 UAE Dirham 114.87 US $31.77 MYR 139.31

ASTM A105 Flange Types

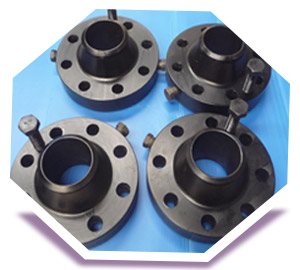

ASTM A105 Orifice Flanges

ASTM A105 Orifice Flanges

ASME SA105N Tongue & Groove Flanges

ASME SA105N Tongue & Groove Flanges

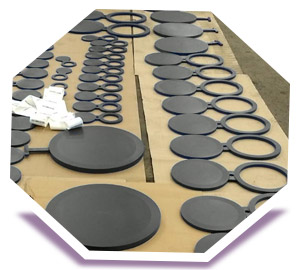

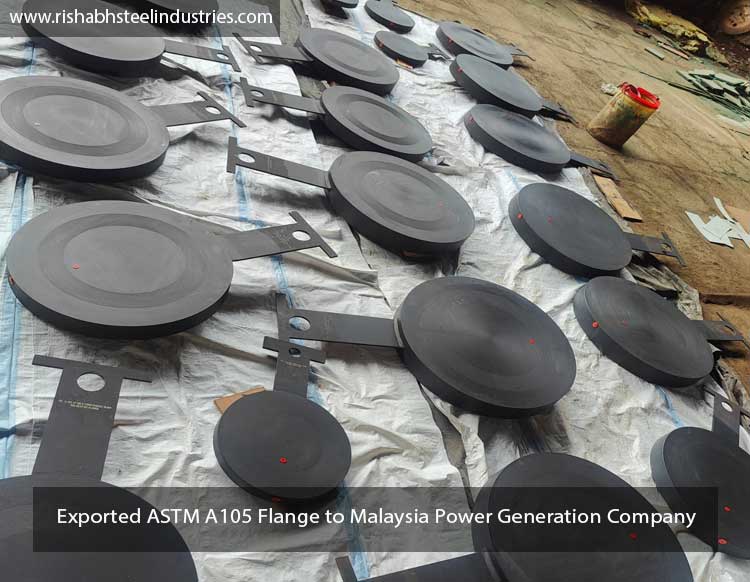

Carbon Steel A105 Spectacle Blind Flanges

Carbon Steel A105 Spectacle Blind Flanges

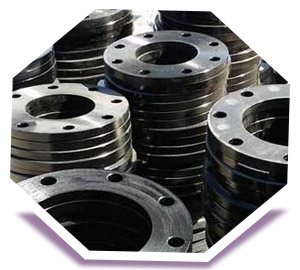

ASTM A105 N Plate Flanges

ASTM A105 N Plate Flanges

Carbon Steel A105 Nipo flange

Carbon Steel A105 Nipo flange

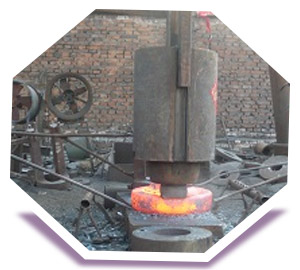

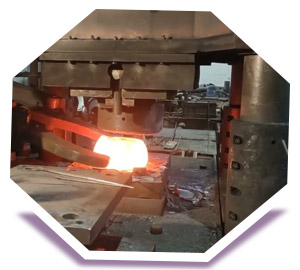

ASTM A105 Forged Flanges

ASTM A105 Forged Flanges

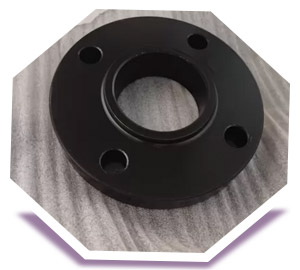

ASME SA105 Threaded / Screwed Flanges

ASME SA105 Threaded / Screwed Flanges

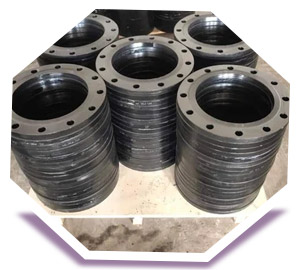

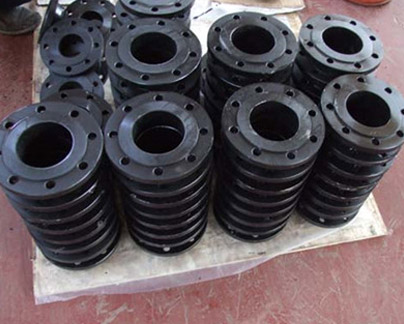

A105 Carbon Steel Slip On Flanges (SORF)

A105 Carbon Steel Slip On Flanges (SORF)

ASTM A105 Ring Spacer

ASTM A105 Ring Spacer

ASTM A105 Carbon Steel Bleed Ring Flange

ASTM A105 Carbon Steel Bleed Ring Flange

ASTM A105N Male & Female Flanges

ASTM A105N Male & Female Flanges

Carbon Steel ASTM A105 Raised Face Flanges

Carbon Steel ASTM A105 Raised Face Flanges

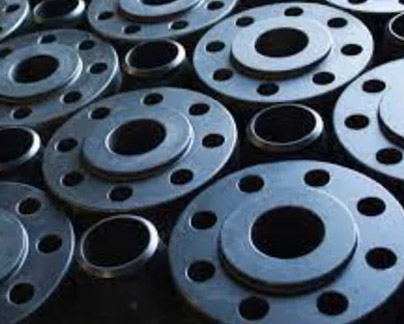

ASTM A105 Socket Weld Flanges (SWRF)

ASTM A105 Socket Weld Flanges (SWRF)

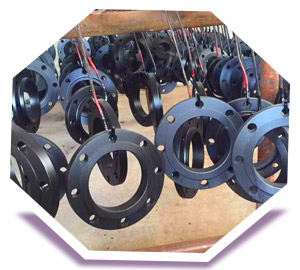

ASTM A105 Steel Lap Joint Flanges

ASTM A105 Steel Lap Joint Flanges

A105 Carbon Steel Reducing Flanges

A105 Carbon Steel Reducing Flanges

Carbon Steel A105 Puddle Flanges

Carbon Steel A105 Puddle Flanges

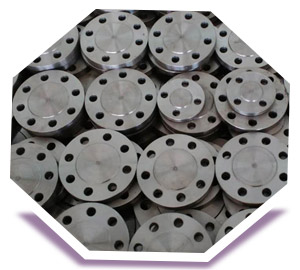

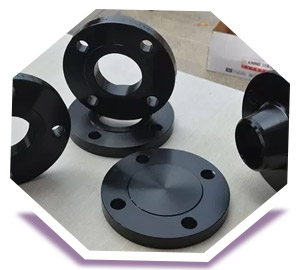

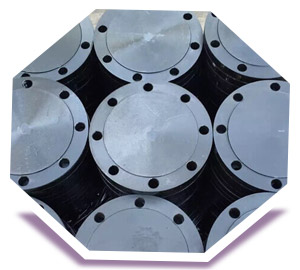

ASTM A105 WNRF Blind Flanges (BLRF)

ASTM A105 WNRF Blind Flanges (BLRF)

Carbon Steel A105N Spade Flange

Carbon Steel A105N Spade Flange

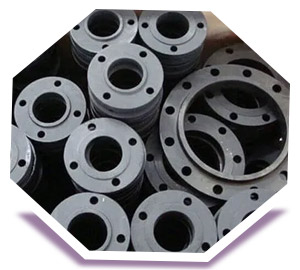

ASME SA105n High Hub Blind Flanges

ASME SA105n High Hub Blind Flanges

Carbon Steel ASTM A105N Weldo Flange

Carbon Steel ASTM A105N Weldo Flange

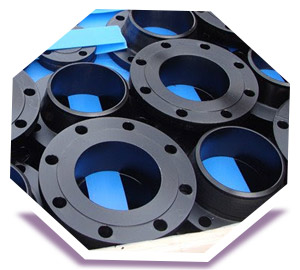

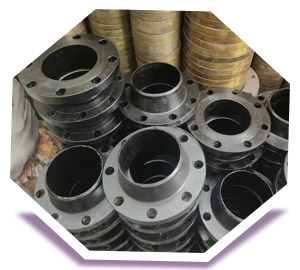

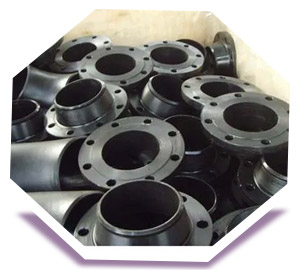

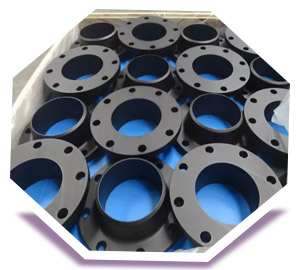

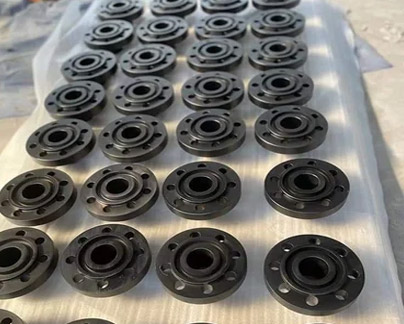

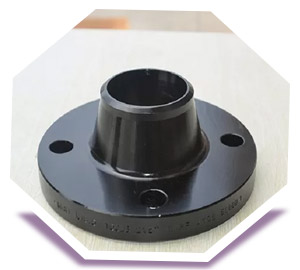

ASTM A105 Weld Neck Flanges (WNRF)

ASTM A105 Weld Neck Flanges (WNRF)

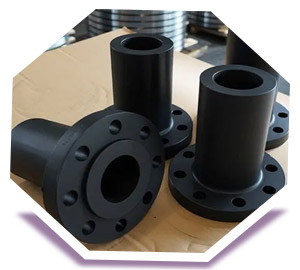

ASTM A105 Carbon Steel Long Weld Neck Flanges

ASTM A105 Carbon Steel Long Weld Neck Flanges

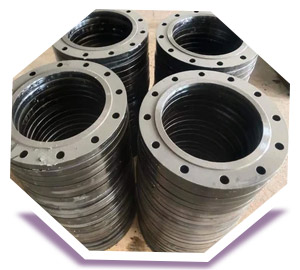

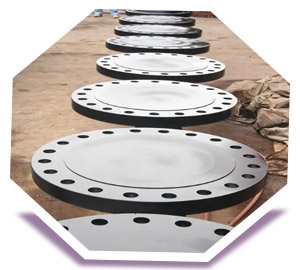

A105 Carbon Steel Ring Type Joint Flanges (RTJ)

A105 Carbon Steel Ring Type Joint Flanges (RTJ)

Carbon Steel A105 Square Flanges

Carbon Steel A105 Square Flanges

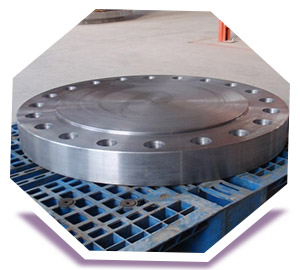

ASME SA105N Blind Flanges Sizes

Blind FLanges

Class 300 LBS

Outside
Diameter
No. of
Bolt Holes
Raised Face
Thickness (T)
Bolt Circle (BC) FLANGE
NPS
Raised Face (RF) Flat Face
Thickness (T2)
Raised Face (R) Bolt Hole (B)
3.75″ 4 0.56″ 2.62″ 1/2″ .063″ 0.50″ 1.38″ 0.62″
4.62″ 4 0.62″ 3.25″ 3/4″ .063″ .056″ 1.69″ 0.75″
4.88″ 4 0.69″ 3.50″ 1″ .063″ 0.63″ 2.00″ 0.75″
5.25″ 4 0.75″ 3.88″ 1-1/4″ .063″ 0.69″ 2.50″ 0.75″
6.12″ 4 0.81″ 4.50″ 1-1/2″ .063″ 0.75″ 2.88″ 0.88″
6.50″ 8 0.88″ 5.00″ 2″ .063″ 0.82″ 3.62″ 0.75″
7.50″ 8 1.00″ 5.88″ 2-1/2″ .063″ 0.94″ 4.12″ 0.88″
8.25″ 8 1.12″ 6.62″ 3″ .063″ 1.06″ 5.00″ 0.88″
9.00″ 8 1.19″ 7.25″ 3-1/2″ .063″ 1.13″ 5.50″ 0.88″
10.00″ 8 1.25″ 7.88″ 4″ .063″ 1.19″ 6.19″ 0.88″
11.00″ 8 1.38″ 9.25″ 5″ .063″ 1.32″ 7.31″ 0.88″
12.50″ 12 1.44″ 10.62″ 6″ .063″ 1.38″ 8.50″ 0.88″
15.00″ 12 1.62″ 13.00″ 8″ .063″ 1.56″ 10.62″ 1.00″
17.50″ 16 1.88″ 15.25″ 10″ .063″ 1.82″ 12.75″ 1.12″
20.50″ 16 2.00″ 17.75″ 12″ .063″ 1.94″ 15.00″ 1.25″
23.00″ 20 2.12″ 20.25″ 14″ .063″ 2.06″ 16.25″ 1.25″
25.50″ 20 2.25″ 22.50″ 16″ .063″ 2.19″ 18.50″ 1.38″
28.00″ 24 2.38″ 24.75″ 18″ .063″ 2.32″ 21.00″ 1.38″
30.50″ 24 2.50″ 27.00″ 20″ .063″ 2.44″ 23.00″ 1.38″
33.00″ 24 2.63″ 29.25″ 22″ .063″ 2.57″ 25.25″ 1.63″
36.00″ 24 2.75″ 32.00″ 24″ .063″ 2.69″ 27.25″ 1.62″

Check ASTM A105 Forged Steel Flanges Material Bolting Torque Tables, we accept small/ large orders of UNS K03504 Threaded Flange

Carbon Steel ASTM A105N Flanges Wall Thickness

most trusted and reliable ASME SA105n Socket Weld Flanges, ASTM A105N Galvanized Flange stockholders and suppliers in India

S 120 Outer Diam. S 20 Sizes of Normal Pipe S 10 S 30 S 40 STD Wall XX Hvy S 100 S 60 S 140 EXT Hvy S 80 S 160
0.84 ½ inch 0.083 0.109 0.109 0.294 0.147 0.147 0.188
1.05 ¾ inch 0.083 0.113 0.113 0.308 0.154 0.154 0.219
1.315 1 inch 0.109 0.133 0.133 0.358 0.179 0.179 0.25
1.66 1 ¼ inch 0.109 0.14 0.14 0.382 0.191 0.191 0.25
1.9 1 ½ inch 0.109 0.145 0.145 0.4 0.2 0.2 0.281
2.375 2 inch 0.109 0.154 0.154 0.436 0.218 0.218 0.344
2.875 2 ½ inch 0.12 0.203 0.203 0.552 0.276 0.276 0.375
3.5 3 inch 0.12 0.216 0.216 0.6 0.3 0.3 0.438
4 3 ½ inch 0.12 0.226 0.226 0.636 0.318 0.318
0.438 4.5 4 inch 0.12 0.237 0.237 0.674 0.337 0.337 0.531
0.5 5.563 5 inch 0.134 0.258 0.258 0.75 0.375 0.375 0.625
0.562 6.625 6 inch 0.134 0.28 0.28 0.864 0.432 0.432 0.719
0.719 8.625 0.25 8 inch 0.148 0.277 0.322 0.322 0.875 0.594 0.406 0.812 0.5 0.5 0.906
0.844 10.75 0.25 10 inch 0.165 0.307 0.365 0.365 1 0.719 0.5 1 0.5 0.594 1.125
1 12.75 0.25 12 inch 0.18 0.33 0.406 0.375 1 0.844 0.562 1.125 0.5 0.688 1.312
1.094 14 0.312 14 inch 0.25 0.375 0.438 0.375 0.938 0.594 1.25 0.5 0.75 1.406
1.219 16 0.312 16 inch 0.25 0.375 0.5 0.375 1.031 0.656 1.438 0.5 0.844 1.594
1.375 18 0.312 18 inch 0.25 0.438 0.562 0.375 1.156 0.75 1.562 0.5 0.938 1.781
1.5 20 0.375 20 inch 0.25 0.5 0.594 0.375 1.281 0.812 1.75 0.5 1.031 1.969
22 22 inch 0.25 0.375 0.5
1.812 24 0.375 24 inch 0.25 0.562 0.688 0.375 1.531 0.969 2.062 0.5 1.219 2.344
26 26 inch 0.375 0.5
30 0.5 30 inch 0.312 0.625 0.375 0.5
36 0.5 36 inch 0.312 0.625 0.75 0.375 0.5
40 40 inch 0.375 0.5
42 42 inch 0.375 0.5
48 48 inch 0.375 0.5

ASTM A105 Carbon Steel Flanges Chemical Composition

ELEMENT COMPOSITION, %
Copper 0.40 max (1)
Manganese 0.60-1.05
Chromium 0.30 max (1-2)
Molybdenum 0.12 max (1-2)
Sulfur 0.040 max
Vanadium 0.08 max
Carbon 0.35 max
Silicon 0.10-0.35
Phosphorus 0.035 max
Nickel 0.40 max (1)

Carbon Steel A105 Flanges Mechanical Properties

MECHANICAL PROPERTIES REQUIREMENTS
Elongation, min, % 30
psi [MPa], Yield properties,min [250] 36000
Reduction of area,min,% 30
psi [MPa], Tensile properties,min [485] 70000
HB, Hardness, max 187

ASTM A105 Steel Flanges Equivalent

Compare our quality and price with other A105 Carbon Steel Threaded Flanges manufacturers and suppliers in India

MECHANICAL PROPERTIES REQUIREMENTS
psi [MPa], Yield properties,min 36000 [250]
psi [MPa], Tensile properties,min 70000 [485]
Elongation, min, % 30
HB, Hardness, max 187
Reduction of area,min,% 30
Exporter of ASTM A105 Weld Neck Flange and Carbon Steel A105 Blind Flange with UT, MT or PT Non-destructive testing or as required

A105 Carbon Steel Flanges Pressure Rating

Temperature °F 900# 300# 1500# 400# 150# 2500# 600#
-20 to 100 2160 720 3600 960 275 6000 1440
200 00 600 3000 800 230 5000 1200
300 1620 540 2700 720 205 4500 1080
400 1490 495 2485 660 190 4140 995
500 1395 465 2330 620 170 3880 930
600 1310 435 25 580 140 3640 875
650 1290 430 2150 575 125 3580 860
700 1275 425 2125 565 110 3540 850
750 1245 415 2075 555 95 3460 830
800 1210 405 2015 540 80 3360 805
850 1190 395 1980 530 65 3300 790
900 1165 390 1945 520 50 3240 780
950 1145 380 1910 510 35 30 765
1000 965 320 1605 430 20 2675 640
1050 925 310 1545 410 20 2570 615
1100 770 255 1285 345 20 2145 515
1150 595 200 995 265 20 1655 400
1200 465 155 770 205 20 1285 310
1250 340 115 565 150 20 945 225
1300 255 85 430 115 20 715 170
1350 5 60 310 80 20 515 125
1400 145 50 240 65 20 400 95
1450 105 35 170 45 15 285 70
1500 80 25 135 35 10 230 55

Carbon Steel A105N Flange Applications

  • Refineries

  • Nuclear Power

  • Ship Building

  • Industrial Boilers

  • Nuclear Plants

  • Heat Exchangers

  • Power Plants

  • Marine Applications

  • Fossil Fuel Power Plants

  • Paper & Pulp

  • Condensers

  • Oil & Gas Industry

ASTM A105 Flange Physical Properties

Elasticity Torsion Modulus 11
Specific Gravity 7.9
Specific Heat (lb/Btu/Deg F – [32-212 Deg F]) 0.107
(lb / cu. in.) Density 0.284
(Deg F) Melting Point 2740
Mean Coeff Thermal Expansion 6.7
Thermal Conductivity 360
Elasticity Tension Modulus 30

A105 Carbon Steel Flanges Facing Dimensions

Contact directly a Carbon Steel A105 Socket Weld Neck Reducing Flange and Carbon Steel ASTM A105 Threaded Flanges manufacturer in India for factory price and custom sizes

Facing FLanges
PN 10 PN 16 Face Dimensions
E A c B DN C e D a b d
mm mm mm mm mm mm mm mm mm mm mm mm
23 40 40 3 34 10 35 5 24 2 4 - 2
28 45 45 3 39 15 40 5 29 2 4 - 2
35 58 58 3 50 20 51 5 36 2 4 41°16´ 2
42 68 68 3 57 25 58 5 43 2 4 41°16´ 2
50 78 78 3 65 32 66 5 51 2 4 41°16´ 2
60 88 88 3 75 40 76 5 61 3 4 41°16´ 2
72 102 102 3 87 50 88 5 73 3 4 41°16´ 2
94 122 122 3 109 65 110 5 95 3 4 41°16´ 2
105 138 138 3 120 80 121 5 106 3 4 41°16´ 2
128 158 158 3.5 149 100 150 6 129 3 4.5 32°15´ 2.5
154 8 8 3.5 175 125 176 6 155 3 4.5 32°15´ 2.5
2 212 212 3.5 203 150 204 6 3 3 4.5 32°15´ 2.5
238 268 268 3.5 259 200 260 6 239 3 4.5 32°15´ 2.5
291 320 320 3.5 312 250 313 6 292 3 4.5 32°15´ 2.5
342 370 378 3.5 363 300 364 6 343 4 4.5 32°15´ 2.5
394 430 438 4 421 350 422 7 395 4 5 27°24´ 3
446 482 490 4 473 400 474 7 447 4 5 27°24´ 3
496 532 550 4 523 450 524 7 497 4 5 27°24´ 3
548 585 610 4 575 500 576 7 549 4 5 27°24´ 3
648 685 725 4 675 600 676 7 649 5 5 27°24´ 3
750 800 795 4 777 700 778 7 751 5 5 27°24´ 3
855 905 900 4 882 800 883 7 856 5 5 27°24´ 3
960 1005 1000 4 987 900 988 7 961 5 5 27°24´ 3
1060 1110 1115 5 1092 1000 1094 8 1062 5 6 28°39´ 4
1260 1330 1330 5 1292 1200 1294 8 1262 5 6 28°39´ 4
1460 1535 1530 5 1492 1400 1494 8 1462 5 6 28°39´ 4
1660 1760 1750 5 1692 1600 1694 8 1662 5 6 28°39´ 4
60 1960 1950 5 1982 00 94 8 62 5 6 28°39´ 4
2060 2170 2150 5 2092 2000 2094 8 5 6 28°39´ 4
India's leading manufacturer of ASTM A105 Carbon Steel Plate Flange and SA105 Steel Orifice Flanges offers own Pressure Test Facility

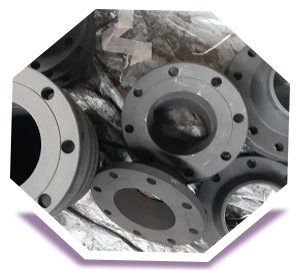

Carbon Steel A105 Slip On Flanges Weight Chart

Slip On FLanges

Class 300 LBS

Pipe Weight Flange Data Hub Face Drilling Data
Nominal Outside A B C F D G H J I
Diameter Overall Inside Flange Hub Overall Face Number Diameter Bolt Hole
Pipe Diameter Diameter Thickness min Diameter Length Diameter of Holes of Circle Diameter
Size in
mm
kg/ piece in
mm
in
mm
in
mm
in
mm
in
mm
in
mm
in
mm
in
mm
2 0.840 0.64 3.750 0.880 0.560 1.500 0.880 1.380 4 2.620 0.620
21.30 95.20 22.40 14.20 38.10 22.40 35.10 66.55 15.70
w 1.050 1.12 4.620 1.090 0.620 1.880 1.000 1.690 4 3.250 0.750
26.70 117.3 27.70 15.70 47.70 25.40 42.90 82.50 19.10
1 1.315 1.36 4.880 1.360 0.690 2.120 1.060 2.000 4 3.500 0.750
33.40 123.9 34.50 17.50 53.80 26.90 50.80 88.90 19.10
14 1.660 1.68 5.250 1.700 0.750 2.500 1.060 2.500 4 3.880 0.750
42.20 133.3 43.20 19.00 63.50 26.90 63.50 98.60 19.10
12 1.900 2.49 6.120 1.950 0.810 2.750 1.190 2.880 4 4.500 0.880
48.30 155.4 49.50 20.60 69.85 30.20 73.15 114.3 22.40
2 2.375 2.87 6.500 2.440 0.880 3.310 1.310 3.620 8 5.000 0.750
60.30 165.1 62.00 22.30 84.00 33.20 91.90 127.0 19.10
22 2.875 4.32 7.500 2.940 1.000 3.940 1.500 4.120 8 5.880 0.880
73.00 190.5 74.70 25.40 100.0 38.10 104.6 149.4 22.40
3 3.500 5.85 8.250 3.570 1.120 4.620 1.690 5.000 8 6.620 0.880
88.90 209.5 90.70 28.40 117.3 42.90 127.0 168.1 22.40
32 4.000 7.34 9.000 4.070 1.190 5.250 1.750 5.500 8 7.250 0.880
101.6 228.6 103.4 30.20 133.3 44.40 139.7 4.2 22.40
4 4.500 9.61 10.00 4.570 1.250 5.750 1.880 6.190 8 7.880 0.880
114.3 254.0 116.1 31.70 146.0 47.70 157.2 200.1 22.40
5 5.563 12.3 11.00 5.660 1.380 7.000 2.000 7.310 8 9.250 0.880
141.3 279.4 143.8 35.00 177.8 50.80 5.7 234.9 22.40
6 6.625 15.6 12.50 6.720 1.440 8.120 2.060 8.500 12 10.62 0.880
168.3 317.5 170.7 36.50 206.2 52.30 215.9 269.7 22.40
8 8.625 24.2 15.00 8.720 1.620 10.25 2.440 10.62 12 13.00 1.000
219.1 381.0 221.5 41.10 260.3 61.90 269.7 330.2 25.40
10 10.75 34.1 17.50 10.88 1.880 12.62 2.620 12.75 16 15.25 1.120
273.0 444.5 276.3 47.70 320.5 66.55 323.9 387.3 28.40
12 12.75 49.8 20.50 12.88 2.000 14.75 2.880 15.00 16 17.75 1.250
323.8 520.7 327.1 50.80 374.6 73.15 381.0 450.8 31.70
14 14.00 69.9 23.00 14.14 2.120 16.75 3.000 16.25 20 20.25 1.250
355.6 584.2 359.1 53.80 425.4 76.20 412.8 514.4 31.70
16 16.00 88.1 25.50 16.16 2.250 19.00 3.250 .50 20 22.50 1.380
406.4 647.7 410.5 57.15 482.6 82.50 469.9 571.5 35.00
.00 109 28.00 65.21 2.380 21.00 3.500 21.00 24 24.75 1.380
457.2 711.2 461.8 60.45 533.4 88.90 533.4 628.7 35.00
20 20.00 134 30.50 20.20 2.500 23.12 3.750 23.00 24 27.00 1.380
508.0 774.7 513.1 63.50 587.2 95.20 584.2 685.8 35.00
24 24.00 201 36.00 24.25 2.750 27.62 4.190 27.25 24 32.00 1.620
609.6 914.4 616.0 69.85 701.5 106.4 692.2 812.8 41.00

Before choosing your supplier check our deliveries of last 2 years

Bass Strait Additional Oil Drilling Facilities Bass Strait, Australia

Bass Strait Additional Oil Drilling Facilities Bass Strait, Australia

Driftwood Lng (Calcasieu Parish Lng Liquefaction Plant)-USA

Driftwood Lng (Calcasieu Parish Lng Liquefaction Plant)-USA

Kuwait National Petroleum Company (KNPC)-Kuwait

Kuwait National Petroleum Company (KNPC)-Kuwait

ADMA-OPCO - Umm Shaif Gas Injection Facilities (USGIF) Abu Dhabi

ADMA-OPCO - Umm Shaif Gas Injection Facilities (USGIF) Abu Dhabi

Hormoz New Oil Refinery- Iran

Hormoz New Oil Refinery- Iran

Corpus Christi Lng Liquefaction Plant Usa

Corpus Christi Lng Liquefaction Plant Usa
