Leading Manufacturer of ASTM B381 Gr F5 Weld Neck Flange in India, Check Dimensions and Sizes of Titanium Gr 5 Flanges

Titanium Grade 5 Flanges

Titanium grade 5 is an alloyed titanium alpha-beta alloy whose flange help in effectively connecting piping equipement. The Titanium Grade 5 Flanges have a 50% content of titanium with small additions of aluminum, vanadium, and small traces of other alloys. Titanium Gr 5 Flanges showcase superior strength and are utilized to connect piping components efficiently. These flange provide stability to different applications in stress-induced conditions. They have excellent thermal properties and are ideal for use across treacherous conditions.

The ASTM B381 Grade F5 Blind Flange is produced without any boring center or lip. These flange help in terminating the flow of media and allow room for cleaning or replacement as they are bolted in place. A Titanium UNS R56400 Weld Neck Flange, on the contrary, is designed with a long protruding hub or a face. These flange work well in elevated pressure and temperature setups. The SB 381 Gr 5 Slip On flange is commonly used by engineers in the oil and gas industry as it is available at reasonable prices and can be easily is slid on a pipe and welded in place. These flange can be welded using one or more fillet welds. A Gr. 5 Titanium Socket Weld Flange is designed with a recessed socket, wherein a flange is attached to the piping grade using a singular fillet weld. These flange are seen in low-pressure conditions for pipes having small bore sizes. The DIN 3.7165 Grade 5 Forged Flange is a high-strength component that has a lower surface porosity and has enhanced surface finish. These flange have a finer grain structure and can be availed across all our outlets. They are seen in different pressure classes. A Class 150 Titanium Gr 5 Flange work well in moderate conditions and are available in sizes of NPS ½ to NPS 26 inches.

We supply SB 381 Gr 5 Threaded flange in Raised, RTJ and Flat Face, Refer Ti Alloy Grade 5 Reducing Flange dimensions as per ASME B16.5 in Class 150 to 2500

Titanium Gr 5 Flanges Specification

Specifications ASME / ASTM SB381 / B381
Size From 1/2″upto 60″NB
Standards EN-1092, ANSI/ASME B16.48, DIN, BS4504, B 16.47 Series A & B, B16.5, BS 10
Class / Pressure PN10, PN16, PN64, 2500#, 600#, PN25, 300#, PN6, 1500#, 150#, 900#, PN40
Standard ASME Flange, EN Flange, BS Flange, ANSI Flange, DIN Flange

ASTM B381 Titanium Gr 5 Flanges Price List

Why to buy from stockist? Buy directly through ASTM B381 Titanium Gr 5 Threaded Flanges, Titanium Grade 5 Flanges manufacturers and save cost

Description Price Per Kg In Singapore Price Per Kg In UAE Price Per Kg In USD Price Per Kg In Malaysia
737 MM OD X 511MM ID X 6MM THK TITANIUM GR5 CIRCULAR FLANGE SGD 23.76 UAE Dirham 62.04 US $17.16 MYR 75.24
OD 700 X ID 385 X 25MM THICK TITANIUM GR5 FLANGE SGD 57.58 UAE Dirham 150.35 US $41.59 MYR 182.34
1/2 NPT 1NPS X 150# TITANIUM GRADE 5 BLIND RF FLANGE SGD 80.01 UAE Dirham 208.92 US $57.79 MYR 253.37
50 NB X 150# TITANIUM FLANGE Grade 5 FLANGE SGD 59.45 UAE Dirham 155.24 US $42.94 MYR 188.27

Titanium Grade 5 Flanges Types

Titanium Gr 5 Weld Neck Flanges (WNRF)

Titanium Gr 5 Weld Neck Flanges (WNRF)

ASTM B381 Titanium Gr 5 Ring Type Joint Flanges (RTJ)

ASTM B381 Titanium Gr 5 Ring Type Joint Flanges (RTJ)

Titanium Grade 5 Lap Joint Flanges

Titanium Grade 5 Lap Joint Flanges

Titanium Gr5 Raised Face Flanges

Titanium Gr5 Raised Face Flanges

Titanium Gr 5 Threaded / Screwed Flanges

Titanium Gr 5 Threaded / Screwed Flanges

Titanium UNS N56400 Square Flanges

Titanium UNS N56400 Square Flanges

ASME B16.5 Titanium Gr 5 Spade Flange

ASME B16.5 Titanium Gr 5 Spade Flange

ANSI B16.5 Ti Alloy Gr 5 Puddle Flanges

ANSI B16.5 Ti Alloy Gr 5 Puddle Flanges

Ti Gr 5 Plate Flanges

Ti Gr 5 Plate Flanges

Gr5 Ti. Alloy Slip On Flanges (SORF)

Gr5 Ti. Alloy Slip On Flanges (SORF)

Titanium Gr 5 Nipo flange

Titanium Gr 5 Nipo flange

ASTM B363 Titanium Gr 5 Long Weld Neck Flanges

ASTM B363 Titanium Gr 5 Long Weld Neck Flanges

Titanium Gr 5 Blind Flanges (BLRF)

Titanium Gr 5 Blind Flanges (BLRF)

ASTM B363 Titanium Gr 5 Bleed Ring Flange

ASTM B363 Titanium Gr 5 Bleed Ring Flange

Gr 5 Titanium Socket Weld Flanges (SWRF)

Gr 5 Titanium Socket Weld Flanges (SWRF)

ASME SB363 Titanium Gr 5 Tongue & Groove Flanges

ASME SB363 Titanium Gr 5 Tongue & Groove Flanges

Titanium Grade 5 Ring Spacer

Titanium Grade 5 Ring Spacer

Titanium DIN 3.7165 High Hub Blind Flanges

Titanium DIN 3.7165 High Hub Blind Flanges

Titanium Gr 5 Forged Flanges

Titanium Gr 5 Forged Flanges

ASME SB381 Titanium Gr 5 Male & Female Flanges

ASME SB381 Titanium Gr 5 Male & Female Flanges

Titanium Gr5 Reducing Flanges

Titanium Gr5 Reducing Flanges

Titanium Grade 5 Weldo Flange

Titanium Grade 5 Weldo Flange

Gr 5 Ti. Alloy Orifice Flanges

Gr 5 Ti. Alloy Orifice Flanges

Titanium Alloy Gr 5 Spectacle Blind Flanges

Titanium Alloy Gr 5 Spectacle Blind Flanges

ASME B16.5 Titanium Gr 5 Flanges Wall Thickness

In-house manufacturing facilities to produce ASTM B363 Titanium Gr 5 SORF Flanges and Titanium Gr5 WNRF Flanges, manufacturer of Titanium Gr 5 Spectacle Blind Flanges since 2001

S 120 Outer Diam. S 20 Sizes of Normal Pipe S 10 S 30 S 40 STD Wall XX Hvy S 100 S 60 S 140 EXT Hvy S 80 S 160
0.84 ½ inch 0.083 0.109 0.109 0.294 0.147 0.147 0.188
1.05 ¾ inch 0.083 0.113 0.113 0.308 0.154 0.154 0.219
1.315 1 inch 0.109 0.133 0.133 0.358 0.179 0.179 0.25
1.66 1 ¼ inch 0.109 0.14 0.14 0.382 0.191 0.191 0.25
1.9 1 ½ inch 0.109 0.145 0.145 0.4 0.2 0.2 0.281
2.375 2 inch 0.109 0.154 0.154 0.436 0.218 0.218 0.344
2.875 2 ½ inch 0.12 0.203 0.203 0.552 0.276 0.276 0.375
3.5 3 inch 0.12 0.216 0.216 0.6 0.3 0.3 0.438
4 3 ½ inch 0.12 0.226 0.226 0.636 0.318 0.318
0.438 4.5 4 inch 0.12 0.237 0.237 0.674 0.337 0.337 0.531
0.5 5.563 5 inch 0.134 0.258 0.258 0.75 0.375 0.375 0.625
0.562 6.625 6 inch 0.134 0.28 0.28 0.864 0.432 0.432 0.719
0.719 8.625 0.25 8 inch 0.148 0.277 0.322 0.322 0.875 0.594 0.406 0.812 0.5 0.5 0.906
0.844 10.75 0.25 10 inch 0.165 0.307 0.365 0.365 1 0.719 0.5 1 0.5 0.594 1.125
1 12.75 0.25 12 inch 0.18 0.33 0.406 0.375 1 0.844 0.562 1.125 0.5 0.688 1.312
1.094 14 0.312 14 inch 0.25 0.375 0.438 0.375 0.938 0.594 1.25 0.5 0.75 1.406
1.219 16 0.312 16 inch 0.25 0.375 0.5 0.375 1.031 0.656 1.438 0.5 0.844 1.594
1.375 18 0.312 18 inch 0.25 0.438 0.562 0.375 1.156 0.75 1.562 0.5 0.938 1.781
1.5 20 0.375 20 inch 0.25 0.5 0.594 0.375 1.281 0.812 1.75 0.5 1.031 1.969
22 22 inch 0.25 0.375 0.5
1.812 24 0.375 24 inch 0.25 0.562 0.688 0.375 1.531 0.969 2.062 0.5 1.219 2.344
26 26 inch 0.375 0.5
30 0.5 30 inch 0.312 0.625 0.375 0.5
36 0.5 36 inch 0.312 0.625 0.75 0.375 0.5
40 40 inch 0.375 0.5
42 42 inch 0.375 0.5
48 48 inch 0.375 0.5

Titanium Gr 5 Pipe Flanges Facing Dimensions

Diameter Nominal Pipe Size Bore Bolt Diameter Bolt Holes Flange Thickness Bolt Circle Diameter Weight in lbs./kg.
Slip-On Blind
mm in in mm mm in in mm # mm in in mm lb kg kg lb
88.90 3.50 1/2″ 15 22.35 0.88 0.50 12.70 4 9.53 0.38 2.38 60.33 0.48 0.22 0.23 0.51
98.43 3.88 3/4″ 20 27.69 1.09 0.50 12.70 4 9.53 0.38 2.75 69.85 0.59 0.27 0.29 0.65
107.95 4.25 1″ 25 34.54 1.36 0.50 12.70 4 9.53 0.38 3.13 79.38 0.70 0.32 0.36 0.79
117.48 4.63 1-1/4″ 32 43.18 1.70 0.50 12.70 4 9.53 0.38 3.50 88.90 0.81 0.37 0.43 0.95
127.00 5.00 1-1/2″ 40 49.53 1.95 0.50 12.70 4 9.53 0.38 3.88 98.43 0.94 0.43 0.51 1.12
152.40 6.00 2″ 50 61.98 2.44 0.63 15.88 4 9.53 0.38 4.75 120.65 1.33 0.60 0.73 1.62
177.80 7.00 2-1/2″ 65 74.68 2.94 0.63 15.88 4 12.70 0.50 5.50 139.70 2.44 1.11 1.36 2.99
190.50 7.50 3″ 80 90.68 3.57 0.63 15.88 4 12.70 0.50 6.00 152.40 2.64 1.20 1.57 3.46
228.60 9.00 3-1/2″ 90 116.08 4.57 0.63 15.88 8 12.70 0.50 7.50 190.50 3.70 1.68 2.22 4.90
254.00 10.00 4″ 100 143.76 5.66 0.75 19.05 8 15.88 0.63 8.50 215.90 4.95 2.24 3.40 7.50
279.40 11.00 5″ 125 170.69 6.72 0.75 19.05 8 15.88 0.63 9.50 241.30 5.58 2.53 4.17 9.20
342.90 13.50 6″ 150 221.49 8.72 0.75 19.05 8 15.88 0.63 11.75 298.45 8.01 3.63 6.35 14.00
406.40 16.00 8″ 200 276.35 10.88 0.88 22.23 12 19.05 0.75 14.25 361.95 12.00 5.44 11.11 24.50
482.60 19.00 10″ 250 327.15 12.88 0.88 22.23 12 19.05 0.75 17.00 431.80 17.50 7.94 15.19 33.50

Manufacturer of UNS R56400 Slip on Flange in Mumbai, view pressure rating and Gr. 5 Titanium Socket Weld Flange price in India

Gr5 Ti. Alloy Weld Neck Flanges Size Chart

Weld Neck FLanges

Class 150 LB

Pipe Weight Flange Data Hub Data Face Drilling Data
C B D F E G I H J
Outside Diameter Nominal Pipe Flange Thickness min Inside Diameter Overall Length Hub Diameter Diameter at Weld Bevel Face Diameter Bolt Hole Diameter Number of Holes Diameter of Circle of Holes
in
mm
Size kg/ piece in
mm
in
mm
in
mm
in
mm
in
mm
in
mm
in
mm
in
mm
0.840 2 0.48 0.440 0.620 1.880 1.190 0.840 1.380 0.620 4 2.380
21.30 11.20 15.70 47.80 30.20 21.30 35.00 15.70 60.45
1.050 w 0.71 0.500 0.820 2.060 1.500 1.050 1.690 0.620 4 2.750
26.70 12.70 20.80 52.30 38.10 26.70 42.90 15.70 69.85
1.315 1 1.01 0.560 1.050 2.190 1.940 1.320 2.000 0.620 4 3.120
33.40 14.20 26.70 55.60 49.30 33.50 50.80 15.70 79.25
1.660 14 1.33 0.620 1.380 2.250 2.310 1.660 2.500 0.620 4 3.500
42.20 15.70 35.10 57.15 58.70 42.20 63.50 15.70 88.90
1.900 12 1.72 0.690 1.610 2.440 2.560 1.900 2.880 0.620 4 3.880
48.30 17.50 40.90 62.00 65.00 48.30 73.15 15.70 98.60
2.375 2 2.58 0.750 2.070 2.500 3.060 2.380 3.620 0.750 4 4.750
60.30 19.10 52.60 63.50 77.70 60.45 91.90 19.10 120.7
2.875 22 4.11 0.880 2.470 2.750 3.560 2.880 4.120 0.750 4 5.500
3.500 3 4.92 0.940 3.070 2.750 4.250 3.500 5.000 0.750 4 6.000
88.90 23.90 78.00 69.85 108.0 88.90 127.0 19.10 152.4
4.000 32 6.08 0.940 3.550 2.810 4.810 4.000 5.500 0.750 8 7.000
101.6 23.90 90.20 71.40 122.2 101.6 139.7 19.10 177.8
4.500 4 6.84 0.940 4.030 3.000 5.310 4.500 6.190 0.750 8 7.500
114.3 23.90 102.4 76.20 134.9 114.3 157.2 19.10 190.5
5.563 5 8.56 0.940 5.050 3.500 6.440 5.560 7.310 0.880 8 8.500
141.3 23.90 128.3 88.90 163.6 141.2 5.7 22.40 215.9
6.625 6 10.6 1.000 6.070 3.500 7.560 6.630 8.500 0.880 8 9.500
168.3 25.40 154.2 88.90 192.0 168.4 215.9 22.40 241.3
8.625 1.120 7.980 4.000 9.690 8.630 10.62 0.880 11.75
8 17.6 8
219.1 28.40 202.7 101.6 246.1 219.2 269.7 22.40 298.5
10.75 10 24.0 1.190 10.02 4.000 12.00 10.75 12.75 1.000 12 14.25
273.0 30.20 254.5 101.6 304.8 273.0 323.8 25.40 362.0
12.75 12 36.5 1.250 12.00 4.500 14.38 12.75 15.00 1.000 12 17.00
323.8 31.75 304.8 114.3 365.3 323.8 381.0 25.40 431.8
14.00 14 48.4 1.380 To be specified by Purchaser 5.000 15.75 14.00 16.25 1.120 12 .75
355.6 35.10 127.0 400.1 355.6 412.7 28.40 476.3
16.00 16 60.6 1.440 5.000 .00 16.00 .50 1.120 16 21.25
406.4 36.60 127.0 475.2 406.4 469.9 28.40 539.8
.00 18 68.3 1.560 5.500 19.88 14.00 21.00 1.250 16 22.75
457.2 39.60 139.7 505.0 457.2 533.4 31.75 577.9
20.00 20 84.5 1.690 5.690 22.00 20.00 23.00 1.250 20 25.00
508.0 42.90 144.5 558.8 508.0 584.2 31.75 635.0
24.00 24 115 1.880 6.000 26.12 24.00 27.25 1.380 20 29.50
609.6 47.80 152.4 663.4 609.6 692.1 35.10 749.3

ANSI B16.5 Ti Alloy Gr 5 Flange Chemical Composition

We are a specialist supplier & distributor of Titanium Gr 5 Slip On Flanges and Titanium Gr5 RTJ Flange

O C Fe Ti H V N Al
0.2 max 0.25 max 90 min 4 min 6 min

Ti Gr 5 Flanges Mechanical Properties

Tensile Properties Density Elongation Melting Point Yield Properties
Psi – 138000 , MPa – 950 4.43 g/cm3 14 % 1632 °C (2970 °F) Psi – 128000 , MPa – 880

Titanium UNS N56400 Pipe Flanges Equivalent

UNS WERKSTOFF NR.
N56400 3.7165
Looking for DIN 3.7165 Grade 5 Forged Flange Distributor and Supplier in India? Check Latest price list and stock of ASTM B381 Grade F5 Blind Flange

ASTM B363 Titanium Grade 5 Flanges Pressure Ratings

Why don't you directly contact a ASME B16.5 Titanium Gr 5 Ring Type Joint Flanges manufacturer in India? We offer an extensive range of Titanium Gr 5 Nippo Flanges and ANSI B16.5 Ti Alloy Gr 5 Orifice Flange in Mumbai, free sample before dispatch of complete order.

Temperature °F 900# 300# 1500# 400# 150# 2500# 600#
-20 to 100 2160 720 3600 960 275 6000 1440
200 00 600 3000 800 230 5000 1200
300 1620 540 2700 720 205 4500 1080
400 1490 495 2485 660 190 4140 995
500 1395 465 2330 620 170 3880 930
600 1310 435 25 580 140 3640 875
650 1290 430 2150 575 125 3580 860
700 1275 425 2125 565 110 3540 850
750 1245 415 2075 555 95 3460 830
800 1210 405 2015 540 80 3360 805
850 1190 395 1980 530 65 3300 790
900 1165 390 1945 520 50 3240 780
950 1145 380 1910 510 35 30 765
1000 965 320 1605 430 20 2675 640
1050 925 310 1545 410 20 2570 615
1100 770 255 1285 345 20 2145 515
1150 595 200 995 265 20 1655 400
1200 465 155 770 205 20 1285 310
1250 340 115 565 150 20 945 225
1300 255 85 430 115 20 715 170
1350 5 60 310 80 20 515 125
1400 145 50 240 65 20 400 95
1450 105 35 170 45 15 285 70
1500 80 25 135 35 10 230 55

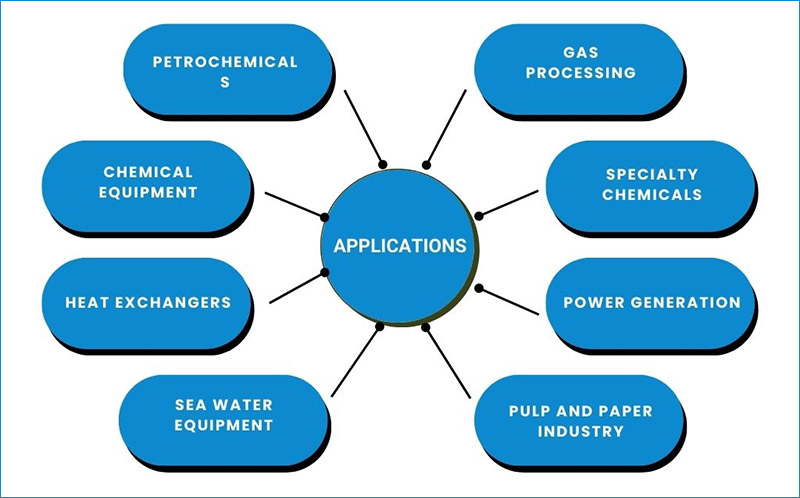

Titanium DIN 3.7165 Flanges Applications

  • Petrochemicals

  • Pharmaceutical Equipment

  • Gas Processing

  • Pharmaceuticals

  • Chemical Equipment

  • Heat Exchangers

  • Sea Water Equipment

  • Pulp and Paper Industry

  • Off-Shore Oil Drilling Companies

  • Power Generation

  • Specialty Chemicals

  • Condensers

Manufacturing Sb 381 Gr 5 Pipe Flanges for petrochemical industry in USA, Europe, UAE and Malaysia, 100% PMI Titanium Gr 5 Orfifice Flange with MTC/ MTR reports

Gr 5 Titanium Flange Weight Chart

Why pay extra? Buying from Ti Gr 5 Blind Flanges manufacturers saves your cost, wide selection of Gr5 Ti. Alloy Weld Neck Flange and ASTM B363 Titanium Gr 5 Blind Flanges in India

Titanium Flanges
Outside Diameter
(OD)
Nominal Size Min. Thickness
(T)
Diameter of Holes No. of Bolt Holes Bolt Circle
(BC)
Dia. of Hub Top
(HT)
SO Bore ID
(SB)
WN LTH
(WL)
RF Dia.
(R)
WN Bore ID
(WB)
Dia. Hub Base
(HB)
SO LTH
(SL)
3.50 1⁄2 0.38 0.62 4 2.38 0.84 0.88 1.81 1.38 0.62 1.19 0.56
3.88 3⁄4 0.44 0.62 4 2.75 1.05 1.09 2.00 1.69 0.82 1.50 0.56
4.25 1 0.50 0.62 4 3.12 1.32 1.36 2.12 2.00 1.05 1.94 0.62
4.62 11⁄4 0.56 0.62 4 3.50 1.66 1.70 2.19 2.50 1.38 2.31 0.75
5.00 11⁄2 0.62 0.62 4 3.88 1.90 1.95 2.38 2.88 1.61 2.56 0.81
6.00 2 0.69 0.75 4 4.75 2.38 2.44 2.44 3.62 2.07 3.06 0.94
7.00 21⁄2 0.81 0.75 4 5.50 2.88 2.94 2.69 4.12 2.47 3.56 1.06
7.50 3 0.88 0.75 4 6.00 3.50 3.57 2.69 5.00 3.07 4.25 1.12
8.50 31⁄2 0.88 0.75 8 7.00 4.00 4.07 2.75 5.50 3.55 4.81 1.19
9.00 4 0.88 0.75 8 7.50 4.50 4.57 2.94 6.19 4.03 5.31 1.25
10.00 5 0.88 0.88 8 8.50 5.56 5.66 3.44 7.31 5.05 6.44 1.38
11.00 6 0.94 0.88 8 9.50 6.63 6.72 3.44 8.50 6.07 7.56 1.50
13.50 8 1.06 0.88 8 11.75 8.63 8.72 3.94 10.62 7.98 9.69 1.69
16.00 10 1.12 1.00 12 14.25 10.75 10.88 3.94 12.75 10.02 12.00 1.88
19.00 12 1.19 1.00 12 17.00 12.75 12.88 4.44 15.00 12.00 14.38 2.12
21.00 14 1.31 1.12 12 18.75 14.00 14.14 4.94 16.25 13.25 15.75 2.19
23.50 16 1.38 1.12 16 21.25 16.00 16.16 4.94 18.50 15.25 18.00 2.44
25.00 18 1.50 1.25 16 22.75 18.00 18.18 5.44 21.00 17.25 19.88 2.62
27.50 20 1.62 1.25 20 25.00 20.00 20.20 5.62 23.00 19.25 22.00 2.81
29.50 22 1.75 1.38 20 27.25 22.00 22.22 5.82 25.25 21.25 24.25 3.07
32.00 24 1.81 1.38 20 29.50 24.00 24.25 5.94 27.25 23.25 26.12 3.19

Check our reference of material in these countries

HABSHAN 5 IGD (GAS PROCESSING PLANT)-United Arab Emirates

HABSHAN 5 IGD (GAS PROCESSING PLANT)-United Arab Emirates

Bass Strait Additional Oil Drilling Facilities Bass Strait, Australia

Bass Strait Additional Oil Drilling Facilities Bass Strait, Australia

Driftwood Lng (Calcasieu Parish Lng Liquefaction Plant)-USA

Driftwood Lng (Calcasieu Parish Lng Liquefaction Plant)-USA

Kuwait National Petroleum Company (KNPC)-Kuwait

Kuwait National Petroleum Company (KNPC)-Kuwait

ADMA-OPCO - Umm Shaif Gas Injection Facilities (USGIF) Abu Dhabi

ADMA-OPCO - Umm Shaif Gas Injection Facilities (USGIF) Abu Dhabi

Hormoz New Oil Refinery- Iran

Hormoz New Oil Refinery- Iran
