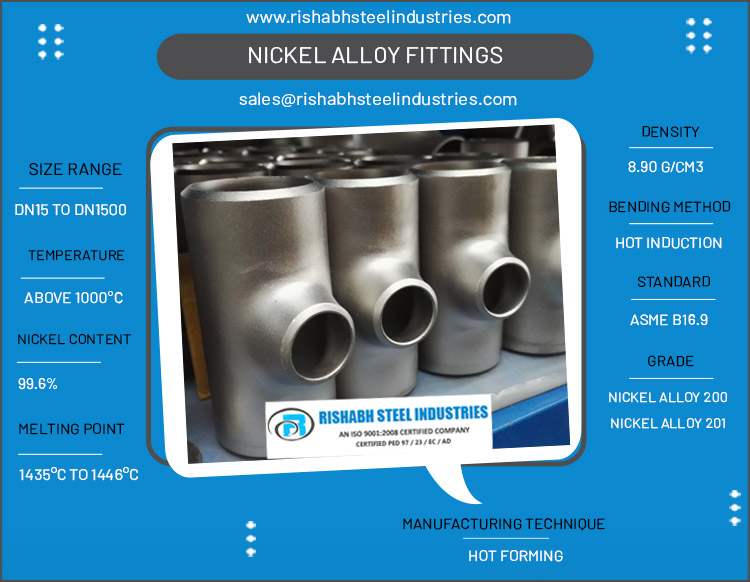

What Is Nickel Alloy Fittings?
Nickel alloy fittings are high-strength grades designed with nickel as their primary constituent. The nickel alloy fittings have superior resistance to reducing media and corrosive affluents. These fittings have good magnetic properties and possess enhanced toughness. Nickel fittings have good electronic properties and work well in high and low temperatures. These fittings have good workability, ductility, and weldability. The nickel alloy pipe fittings play a pivotal role in influencing the characteristics of the flow in the system. These fittings are designed in the shape of tees, elbows, cross, stub end, reducers, etc.
Table of Content
- Nickel Alloy Fittings Specification
- Grade of Nickel Alloy Pipe Fittings
- What Are A 7 Common Application of ASTM B366 Elbow?
- Nickel Alloy Tee Manufacturing Method
- High Nickel Buttweld Fittings Equivalent Standard
- What Is A Temperature Range of Brushed Nickel Weld Fittings?
- Types Of Nickel Alloy Fittings
- Heat Treatment of Nickel Fittings
- Nickel Seamless Fittings Chemical Composition
- Ni Fittings Mechanical Properties
- ASTM B366 Fittings Physical Properties
Check Accurate ASTM B366 Elbow Specification as per ASME B16.9
A nickel alloy elbow is a device that is utilized to change the direction of the flow in the system. These elbows are designed in 45 and 90-degree turns and can be also availed in short or long radius elbows.
Nickel Alloy Fittings Specification
Available Sizes :
- Buttweld : 1/2" To 36"
- Welded : 24" To 96"
- Seamless : 1/2" To 24"
- Contact nickel alloy fittings manufacturer in India for above 48″
Machines Types :
- Conventional Machine
- CNC
- Beveling Machine
Available Documentation :
- Fumigation certificates
- Raw material test reports
- Material traceability records
Common Thickness :
- Schedule : 80 To 120
- Schedule 20 & 40
- Schedule : 160 To 180
International Standard :
- ASME B16.9
- DIN/ JIS/ EN/ ISO
Packaging :
- Wooden Cases
- Carton Box
- Wooden Pallet
Advantages :
- Superior Corrosion Resistance
Density :
- 8.90 g/cm3
Raw Material :
- Round Bar
- Seamless Pipe
- Welded Pipe
Applicable Fluids :
- Water and Air
- Steam
- Oil and Gas
Forming :
- Hot formed
- Cold formed
Curie Temperature :
- 253°C
ISO Standard :
- ISO 5251
Heat Treatment :
- Normalizing
- Tempering
Method :
- SMLS (Seamless)
- Weld (Welded)
- BW (Buttweld)
Grade :
- Nickel Alloy 200
- Nickel Alloy 201
Thickness Tolerance :
- +/-12.5%
- Custom
Marking Details :
- Grade & Material
- Manufacturers Name
- Size & Schedule
- Standard & Heat No.
Material Life :
- 60 Years
Manufacturing Process :
- Forged
- Machined
- Heat Treated
End Connection :
- Butt Welding
- Bevelled
- Plain Bevel
Process :
- Bending
- Welding
- Cutting
Certificates :
- EN 10204 3.1
- EN 10204 3.2
Surface :
- Mechanical Polishing
- Bright Annealing
Uses :
- Oil and Gas
- Pharmaceuticals
- Chemical Equipment
- Power Generation
- Petrochemicals
Method:
- Welding
- Casting
- Forged
- Pushing
- Butt Weld
Testing :
- Hyrdrostatic Test
- Chemical Analysis
- PMI Test
- Hardness Test
- Mechanical Testing
Bend Radius Types :
- 1.5D/ 2D/ 3D
- 4D/ 5D/ 6D
- 8D/ 10D/ 22D
Angle of Pipe Bend :
- 15 Deg, 22.5 Deg, 30 Deg
- 45 Deg, 60 Deg, 90 Deg
- 135 Deg, 180 Deg
Bending Method :
- Roll bending
- Hot induction bending
- Rotary draw bending
Logistics :
- By Air
- By Sea
- Philippines = 14
- Saudi Arabia = 8 day
- Netherland = 30 days
- Belgium = 40 day
- UAE = 5 day
- Qatar = 6 To 7 day
- Uk = 30 day
- Malaysia = 10 Day
- Bahrain = 21 days
Tensile Strength :
- 67000 PSI
Yield Strength :
- 21500 PSI
Grade of Nickel Alloy Pipe Fittings
Buy Corrosion Resistance High Nickel Buttweld Fittings for Marine Environments
The nickel alloy pipe fittings are designed to connect piping grades of different configurations. These fittings are quality-assured and are very reliable for long periods. The nickel alloy buttweld fittings are common weld fittings that are designed with metal-to-metal sealing. These fittings can withstand different pressures and temperatures across harsh conditions. We are the nickel alloy fittings manufacturer in India who believe in quality over anything. Our products are produced by our esteemed technicians using the best raw materials and the latest technology.
What Are A 7 Common Application of ASTM B366 Elbow?
Brushed Nickel Tee Available in Brushed and Polished Finishes
The Nickel alloy tee Fitting possesses three female openings and is shaped in the form of a T. These fittings can be availed in equal and unequal specifications.
Nickel Alloy Tee Manufacturing Method
High Nickel Buttweld Fittings Equivalent Standard
| Standard | Nickel 200 Pipe Fittings | Nickel 201 Pipe Fittings |
|---|---|---|
| UNS Number | UNS N02200 | UNS N02201 |
| Werkstoff Nr. | WNR 2.4066 | WNR 2.4068 |
| BS | NA 11 | NA 12 |
| JIS | NW 2200 | NW 2201 |
| EN | Ni 99.2 | LC-Ni 99 |
Supplier of Nickel Alloy Reducer in Size Range From 1/2 to 24 inch, Check Temperature Range
A Nickel reducer can join piping equipment of different specifications. These fittings can be availed in eccentric and concentric configurations.
What Is A Temperature Range of Brushed Nickel Weld Fittings?
-
Up to 315°C (599°F)
Types Of Nickel Alloy Fittings
Nickel Alloy Elbow
Ni Tee
High Nickel Reducer
Brushed Nickel End Cap
ASTM B366 Nickel Stub End
Nickel Pipe Bend
Also Refer Nickel Alloy Pipe Fittings Heat Treatment and Chemical Composition
Heat Treatment of Nickel Fittings
| Heat Treatment | Temperature Range |
|---|---|
| Solution Annealing | 900°C and 1100°C |
| Stress Relieving | 300°C and 400°C |
| Tempering | 400°C and 600°C |
Nickel Seamless Fittings Chemical Composition
| Composition | Nickel 200 Pipe Fittings | Nickel 201 Pipe Fittings |
|---|---|---|
| Nickel (Ni) | 99.0 (minimum) | Balance |
| Silicon (Si) | 0.1 (maximum) | 0.35 (maximum) |
| Carbon (C) | 0.15 (max) | 0.15 (max) |
| Manganese (Mn) | 0.35 (max) | 0.35 (max) |
| Copper (Cu) | 0.25 (max) | 0.25 (max) |
| Sulphur (S) | 0.01 (max) | 0.01 (max) |
Ni Fittings Mechanical Properties
Tensile Strength :
- 67000 PSI
Yield Strength (0.2%Offset) :
- 21500 PSI
Elongation :
- 45%
ASTM B366 Fittings Physical Properties
Melting Point :
- 2635°F (1446°C)
Density :
- 8.9 g/cm3
