Incoloy 825 is an austenitic alloy steel grade fittings. The Incoloy 825 Pipe Fittings is made with a chemical content of nickel, iron, and chromium content with additional content of molybdenum, copper, and titanium. This allows the Incoloy 825 Fittings to work well in reducing corrosive environments. These fittings are resistant to chloride stress corrosion cracking and pitting by acids. The Alloy 825 Fittings are stabilized against sensitization and are tolerant to intergranular attack after it is exposed to different stress-induced media. The Alloy 825 Pipe Fittings are utilized in connecting piping grades of different specifications. These fittings work well across high pressures and temperature applications. Incoloy 825 Fittings help in influencing the characteristics of the flow of media in the system. These fittings can change the direction or terminating the flow. They can also be used to join dissimilar pipes together. The ASME SB 366 UNS N08825 is a pressurized vessel grade that allows them to be used across harsh environments.

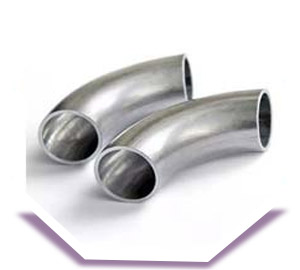

The Alloy 825 Elbow is a versatile piping grade that is employed in changing the direction of the flow. These elbows are produced in 45, 90, or 180-degree turns and are available in long or short radius specifications. ASTM B366 UNS N08825 Buttweld Elbow has the simplest weld joints resulting in a metal-to-metal end. These elbows can withstand high pressures and temperatures across harsh conditions. The Inconel 825 Tee has three openings shaped in the form of a T. These tees can be produced in equal and unequal sizes. A Nickel Alloy 825 Reducer is employed in connecting piping equipment of dissimilar sizes. These reducers are designed in concentric and eccentric configurations. The DIN 2.4858 Incoloy Cap is a robust grade that terminates the flow in the system. These caps protect the pipe components during storage and movement.
Here are many benefits if you buy from Alloy 825 Fittings manufacturers, like high quality, best price and wide range of Nickel Alloy 825 Buttweld Fittings
Specifications | ASTM / ASME B366 / SB366 |
---|---|
Type | Welded / Seamless / Fabricated |
Standards | MSS-SP-43, ASME/ANSI B16.9, B16.28 |
Size | Welded Butt Weld Fittings: 1/2″upto 48″and Seamless Butt Weld Fittings: 1/2″upto 10″ |
Thickness | Schedule 5s to XXS available with NACE MR 01-75 |
Price of reseller is always higher compared to Inconel 825 Buttweld Fittings manufacturers
Description | Price Per Kg In Singapore | Price Per Kg In UAE | Price Per Kg In USD | Price Per Kg In Malaysia |
---|---|---|---|---|
1 X SCH 80X 45 DEG INCONEL PIPE FITTINGS BW ELBOW UNS N08825 FITTINGS | SGD 13.23 | UAE Dirham 34.55 | US $9.56 | MYR 41.90 |
1 SCH 80 3000# FITTINGS SOCKOLET INCONEL 825 FITTINGS | SGD 115.74 | UAE Dirham 302.21 | US $83.59 | MYR 366.51 |
8 NB X 6 NB SCH 80 INCONEL ALLOY 825 SEAMLESS BW FITTING ASTM B366 GRADE 2 UNS N08825 ANSI B16.9 NACE MR0103, CONCENTR FITTINGS | SGD 3,494.00 | UAE Dirham 9,123.22 | US $2,523.44 | MYR 11,064.33 |
NPT3/4IN 3000 NICKEL ALLOY FITTINGS HALF COUPLING INCONEL 825 ANSI B 16.11 | SGD 50.62 | UAE Dirham 132.16 | US $36.56 | MYR 160.28 |
33.4 MM OD X 3 MM THK INCONEL 825 SMLS LR ELBOW 90 DEG TO ASTM B 366 GR. UNS NO. 8825 GR 2, DIMN B 16.9 BW FITTINGS | SGD 130.19 | UAE Dirham 339.95 | US $94.03 | MYR 412.28 |
NPTM 3/4 IN 3000-6000 NICKEL ALLOY FITTINGS:PLUG HEX HEAD INCONEL 825 ANSI B16.11 FITTINGS | SGD 26.64 | UAE Dirham 69.56 | US $19.24 | MYR 84.36 |
6 X 4 SCH-120 PIPE FITTINGS TEE, CON.REDUCER, SEAMLESS INCONEL 825 FITTINGS | SGD 1,132.88 | UAE Dirham 2,958.09 | US $818.19 | MYR 3,587.47 |
Incoloy 825 End Cap
Alloy 825 180 Degree Elbows
Incoloy UNS N08825 Weld Elbows
ASTM B366 UNS N08825 Lap Joint Stub Ends
Inconel 825 Cross Fitting
DIN 2.4858 Incoloy Reducing Tee
Incoloy 825 45 Degree Elbows
Nickel Alloy 825 Cross Tee
Incoloy 825 UNS N08825 Reducer
Incoloy 825 Concentric Reducer
Alloy 825 Laterals
UNS N08825 Elbow
825 Incoloy Stub End

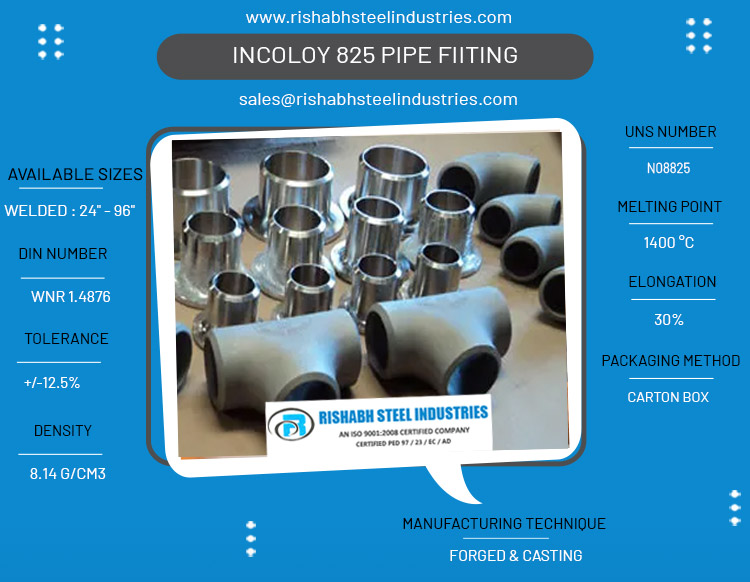

Incoloy 825 Pipe Fittings
Alloy 825 Equal Tee
ASME SB 366 UNS N08825 Eccentric Reducer
Incoloy Alloy 825 90 Degree Elbows
Incoloy 825 Return Bends
ASME B16.9 Incoloy 825 Threaded Tee
ASTM B564 825 Threaded Elbow
Incoloy WERKSTOFF NR. 2.4858 Socket Weld Elbow
Incoloy 825 Socket Weld Tee
Alloy 825 Threaded Caps
Incoloy UNS N08825 Hexagon Bushing
ASTM B366 UNS N08825 Socket Weld Lateral Tee
Inconel 825 Threaded Coupling
DIN 2.4858 Incoloy Socket Weld Caps
Incoloy 825 Socket Weld Cross
Nickel Alloy 825 Threaded Union
Incoloy 825 UNS N08825 Threaded Cross
Incoloy 825 Threaded Bends
Alloy 825 Socket Weld Union
UNS N08825 Hexagon Plugs
825 Incoloy Square Plugs
Incoloy Alloy 825 Socket Weld Coupling
Alloy 825 Nipple Outlets
ASME SB 366 UNS N08825 Socket Weld Outlets
Incoloy Alloy 825 Welding Outlets
Incoloy 825 Threaded Outlets
ASME B16.9 Incoloy 825 Swept Outlets
ASTM B564 825 Elbow Outlets
Incoloy WERKSTOFF NR. 2.4858 Lateral Outlets
In-house manufacturing facilities to produce Nickel Alloy 825 Forged Fittings, manufacturer of ANSI B16.9 Welded Pipe Fittings since 2001
DN | Schedule 10S | Schedule 40S | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
45° Elbow | 90° Elbow | Equal tee | Stub end type (B) | End cap | 45° Elbow | 90° Elbow | Equal tee | End cap | Stub end type (B) | |
15 | 0.03 | 0.06 | 0.09 | 0.07 | 0.03 | 0.04 | 0.08 | 0.10 | 0.04 | 0.08 |
20 | 0.03 | 0.07 | 0.13 | 0.09 | 0.05 | 0.04 | 0.08 | 0.17 | 0.07 | 0.11 |
25 | 0.08 | 0.14 | 0.28 | 0.16 | 0.08 | 0.11 | 0.15 | 0.29 | 0.10 | 0.17 |
32 | 0.11 | 0.23 | 0.49 | 0.22 | 0.10 | 0.17 | 0.26 | 0.59 | 0.18 | 0.25 |
40 | 0.17 | 0.30 | 0.68 | 0.25 | 0.11 | 0.23 | 0.40 | 0.86 | 0.20 | 0.31 |
50 | 0.25 | 0.50 | 0.85 | 0.43 | 0.13 | 0.40 | 0.70 | 1.28 | 0.23 | 0.61 |
65 | 0.48 | 0.85 | 1.41 | 0.57 | 0.19 | 0.77 | 1.40 | 2.19 | 0.27 | 0.80 |
80 | 0.63 | 1.25 | 1.77 | 0.72 | 0.25 | 1.08 | 2.20 | 3.31 | 0.42 | 1.13 |
100 | 1.08 | 2.10 | 3.46 | 1.09 | 0.68 | 1.47 | 4.47 | 5.27 | 1.14 | 1.87 |
125 | 1.82 | 3.65 | 5.44 | 1.47 | 1.11 | 2.84 | 6.80 | 9.63 | 2.13 | 2.79 |
150 | 2.72 | 5.45 | 8.03 | 2.15 | 1.42 | 5.44 | 10.89 | 10.99 | 3.23 | 3.57 |
200 | 5.33 | 10.20 | 15.65 | 3.22 | 2.38 | 10.77 | 21.54 | 20.91 | 5.19 | 6.07 |
250 | 9.75 | 18.15 | 26.76 | 5.13 | 4.45 | 19.27 | 38.56 | 35.38 | 9.00 | 10.07 |
300 | 13.62 | 25.80 | 39.46 | 8.16 | 7.50 | 29.71 | 59.42 | 62.14 | 15.00 | 14.29 |
350 | 18.37 | 36.29 | 48.53 | 10.88 | 8.17 | 35.15 | 79.38 | 79.31 | 16.00 | 17.14 |
400 | 23.81 | 47.63 | 58.97 | 12.70 | 10.67 | 45.81 | 99.79 | 99.79 | 21.00 | 20.41 |
450 | 29.94 | 59.87 | 79.65 | 17.23 | 13.00 | 59.40 | 129.73 | 129.73 | 26.00 | 27.21 |
500 | 49.90 | 99.80 | 103.42 | 21.77 | 17.00 | 74.84 | 162.38 | 162.39 | 34.00 | 29.94 |
600 | 70.31 | 140.61 | 155.58 | 27.21 | 26.00 | 105.23 | 225.89 | 225.90 | 52.00 | 38.55 |
Length | Shank Dia. SD | Type | Socket | Laying Length A | Bore D | Wall Min. C | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SL | RL (Min) | Dia. B | Depth Min. K | |||||||||||
3000 | 6000 | |||||||||||||
3000 | 6000 | 3000 | 6000 | 3000 | 6000 | 6000 | 3000 | 3000 | 6000 | |||||
32 | 45 | 88.90 | 1 | 1 | 74.07 | 16 | 38 | 57 | 54.0 | 62.5 | 8.76 | |||
48 | 54 | 88.90 | 2 | 2 | 61.37 | 16 | 25 | 32 | 43.0 | 52.5 | 6.93 | |||
48 | 54 | 88.90 | 2 | 2 | 48.90 | 13 | 29 | 32 | 34.0 | 41.0 | 6.35 | |||
48 | 54 | 88.90 | 2 | 2 | 42.80 | 13 | 30 | 32 | 29.5 | 35.0 | 6.07 | |||
48 | 54 | 88.90 | 2 | 2 | 34.04 | 13 | 32 | 32 | 21.0 | 26.5 | 5.69 | |||
60 | 114.30 | 2 | 90.04 | 16 | 33 | 78.0 | 9.50 | |||||||
60 | 114.30 | 2 | 74.07 | 16 | 38 | 62.5 | 8.76 | |||||||
60 | 114.30 | 2 | 61.37 | 16 | 38 | 52.5 | 6.93 | |||||||
60 | 114.30 | 2 | 48.90 | 13 | 42 | 41.0 | 6.35 | |||||||
60 | 114.30 | 2 | 42.80 | 13 | 43 | 35.0 | 6.07 |
Dimensional Tolerance of Reducer Insert
Size | 1/4” 2-1/2” | Socket Diameter B | through through | 2” 3” | ± + | 0.25mm 0.40mm / -0.25mm |
---|---|---|---|---|---|---|
Size | 3/8” 1” 2-1/2” | Laying Length A | through through through | 3/4” 2” 4” | + + + | 1.50mm / -0.00mm 2.00mm / -0.00mm 2.50mm / -0.00mm |
Size | 1/4” 2-1/2” | Bore D | through through | 2” 3” | ± ± | 0.80mm 1.50mm |
Size | 3/8” 1” 2-1/2” | Shank Length SL | through through through | 3/4” 2” 4” | ± ± ± | 0.00mm / -1.50mm 0.00mm / -2.00mm 0.00mm / -2.50mm |
Size | 3/8” 2” 4” | Shank Diameter SD | through through | 1-1/2” 3” | ± ± ± | 0.25mm 0.50mm 0.75mm |
Buy Incoloy WERKSTOFF NR. 2.4858 Buttweld Fittings from trusted manufacturers, ADNOC certified supplier of Incoloy 825 Pipe Fittings
Nominal size | OD | Elbows | Reducer | Caps | Returns | Stubs Ends | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Short | Long | Long | Short | Long | Short | Radius of fillet | Diam. of Lap | ||||||||
90 deg | 90 deg | 45 deg | |||||||||||||
DN | NPS | D | A | A | B | H | E | O | K | O | K | F | F | R | G |
20 | ¾ | 26.7 | 38 | 19 | 38 | 25 | 76 | 51 | 76 | 51 | 3 | 43 | |||
32 | 11/4 | 42.2 | 32 | 48 | 25 | 51 | 38 | 95 | 70 | 64 | 52 | 102 | 51 | 5 | 64 |
40 | 11/2 | 48.3 | 38 | 57 | 29 | 64 | 38 | 114 | 83 | 76 | 62 | 102 | 51 | 6 | 73 |
50 | 2 | 60.3 | 51 | 76 | 35 | 76 | 38 | 152 | 106 | 102 | 81 | 152 | 64 | 8 | 92 |
65 | 21/2 | 73.0 | 64 | 95 | 44 | 89 | 38 | 190 | 132 | 127 | 100 | 152 | 64 | 8 | 106 |
80 | 3 | 88.9 | 76 | 114 | 51 | 89 | 51 | 229 | 159 | 152 | 121 | 152 | 64 | 10 | 127 |
90 | 31/2 | 101.6 | 89 | 133 | 57 | 102 | 64 | 267 | 184 | 178 | 140 | 152 | 76 | 10 | 140 |
15 | ½ | 21.3 | 38 | 16 | 25 | 76 | 48 | 76 | 51 | 3 | 35 | ||||
100 | 4 | 114.3 | 102 | 152 | 64 | 102 | 64 | 305 | 210 | 203 | 159 | 152 | 76 | 11 | 157 |
200 | 8 | 219.1 | 203 | 305 | 127 | 152 | 102 | 610 | 414 | 406 | 313 | 203 | 102 | 13 | 270 |
250 | 10 | 273.0 | 254 | 381 | 159 | 178 | 127 | 762 | 518 | 508 | 391 | 254 | 127 | 13 | 324 |
300 | 12 | 323.8 | 305 | 457 | 190 | 203 | 152 | 914 | 619 | 610 | 467 | 254 | 152 | 13 | 381 |
350 | 14 | 355.6 | 356 | 533 | 222 | 330 | 165 | 1067 | 711 | 711 | 533 | 305 | 152 | 13 | 413 |
125 | 5 | 141.3 | 127 | 190 | 79 | 127 | 76 | 381 | 262 | 254 | 197 | 203 | 76 | 11 | 185 |
400 | 16 | 406.4 | 406 | 610 | 254 | 356 | 178 | 1219 | 813 | 813 | 610 | 305 | 152 | 13 | 470 |
25 | 1 | 33.4 | 25 | 38 | 22 | 51 | 38 | 76 | 56 | 51 | 41 | 102 | 51 | 3 | 51 |
450 | 18 | 457 | 457 | 686 | 286 | 381 | 203 | 1372 | 914 | 914 | 686 | 305 | 152 | 13 | 533 |
500 | 20 | 508 | 508 | 762 | 318 | 508 | 229 | 1524 | 1016 | 1016 | 762 | 305 | 152 | 13 | 584 |
1050 | 42 | 1067 | 1600 | 660 | 610 | 305 | |||||||||
550 | 22 | 559 | 559 | 838 | 343 | 508 | 254 | 1676 | 1118 | 1118 | 838 | 305 | 152 | 13 | 641 |
150 | 6 | 168.3 | 152 | 229 | 95 | 140 | 89 | 457 | 313 | 305 | 237 | 203 | 89 | 13 | 218 |
600 | 24 | 610 | 610 | 914 | 381 | 508 | 267 | 1829 | 1219 | 1219 | 914 | 305 | 152 | 13 | 692 |
650 | 26 | 660 | 991 | 405 | 610 | 267 | |||||||||
700 | 28 | 711 | 1067 | 438 | 610 | 267 | |||||||||
750 | 30 | 762 | 1143 | 470 | 610 | 267 | |||||||||
1100 | 44 | 1118 | 1676 | 695 | 610 | 343 | |||||||||
800 | 32 | 813 | 1219 | 502 | 610 | 267 | |||||||||
850 | 34 | 864 | 1295 | 533 | 610 | 267 | |||||||||
900 | 36 | 914 | 1372 | 565 | 610 | 267 | |||||||||
950 | 38 | 965 | 1448 | 600 | 610 | 305 | |||||||||
1200 | 48 | 1219 | 1829 | 759 | 711 | 343 | |||||||||
1000 | 40 | 1016 | 1524 | 632 | 610 | 305 | |||||||||
1150 | 46 | 1168 | 1753 | 727 | 711 | 343 |
C | Cr | Mn | S | Ti | Cu | Fe | Ni | Si | Al |
---|---|---|---|---|---|---|---|---|---|
0.05 max | 19.50 – 23.50 | 1.00 max | 0.03 max | 0.06 – 1.20 | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 0.5 max | 0.02 max |
(0.2%Offset) Yield Properties | Melting Point | Elongation | Density | Tensile Properties |
---|---|---|---|---|
MPa – 220, Psi – 32,000 | (2550 °F)1400 °C | 30 % | 8.14 g/cm3 | MPa – 550, Psi – 80,000 |
Buy Alloy 825 Tube Fittings and Inconel 825 Socket weld Pipe Fittings at competitive price directly from manufacturers
BS | OR | EN | UNS | JIS | WERKSTOFF NR. | AFNOR | GOST |
---|---|---|---|---|---|---|---|
NA 16 | XH38BT | NiCr21Mo | N08825 | NCF 825 | 2.4858 | NFE30C20DUM | ЭП703 |
Heat Exchangers
Pharmaceuticals
Gas Processing
Condensers
Off-Shore Oil Drilling Companies
Petrochemicals
Pulp and Paper Industry
Sea Water Equipment
Chemical Equipment
Power Generation
Pharmaceutical Equipment
Specialty Chemicals
Center to End Elbow, Tee, Cross A | DN | Band O.D. H | Center to End 45° Elbow C | Minimum W.T. G | Nom. Pipe Size | Thread Length Min. (1) | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | B | L2 | ||
21 | 21 | 25 | 6 | 22 | 22 | 25 | 17 | 17 | 19 | 3.18 | 3.18 | 6.35 | 1/8” | 6.4 | 6.7 |
21 | 25 | 28 | 8 | 22 | 25 | 33 | 17 | 19 | 22 | 3.18 | 3.30 | 6.60 | 1/4” | 8.1 | 10.2 |
25 | 28 | 33 | 10 | 25 | 33 | 38 | 19 | 22 | 25 | 3.18 | 3.51 | 6.98 | 3/8” | 9.1 | 10.4 |
28 | 33 | 38 | 15 | 33 | 38 | 46 | 22 | 25 | 28 | 3.18 | 4.09 | 8.15 | 1/2” | 10.9 | 13.6 |
33 | 38 | 44 | 20 | 38 | 46 | 56 | 25 | 28 | 33 | 3.18 | 4.32 | 8.53 | 3/4” | 12.7 | 13.9 |
38 | 44 | 51 | 25 | 46 | 56 | 62 | 28 | 33 | 35 | 3.68 | 4.98 | 9.93 | 1” | 14.7 | 17.3 |
44 | 51 | 60 | 32 | 56 | 62 | 75 | 33 | 35 | 43 | 3.89 | 5.28 | 10.59 | 1-1/4” | 17.0 | 18.0 |
51 | 60 | 64 | 40 | 62 | 75 | 84 | 35 | 43 | 44 | 4.01 | 5.56 | 11.07 | 1-1/2” | 17.8 | 18.4 |
60 | 64 | 83 | 50 | 75 | 84 | 102 | 43 | 44 | 52 | 4.27 | 7.14 | 12.09 | 2” | 19.0 | 19.2 |
76 | 83 | 95 | 65 | 92 | 102 | 121 | 52 | 52 | 64 | 5.61 | 7.65 | 15.29 | 2-1/2” | 23.6 | 28.9 |
86 | 95 | 106 | 80 | 109 | 121 | 146 | 64 | 64 | 79 | 5.99 | 8.84 | 16.64 | 3” | 25.9 | 30.5 |
106 | 114 | 114 | 100 | 146 | 152 | 152 | 79 | 79 | 79 | 6.55 | 11.18 | 18.67 | 4” | 27.7 | 33.0 |
O.D. (mm) | Nominal Pipe Size | W.T. (mm) | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
Sch 5S | Sch 10S | Sch 40S | Sch 80S | |||||||
NPS | DN | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | |
10.3 | ⅛ | 6 | 0.28 | 1.24 | 0.37 | 1.73 | 0.47 | 2.41 | ||
13.7 | ¼ | 8 | 0.49 | 1.65 | 0.63 | 2.24 | 0.80 | 3.02 | ||
17.1 | ⅜ | 10 | 0.63 | 1.65 | 0.84 | 2.31 | 1.10 | 3.20 | ||
21.3 | ½ | 15 | 0.80 | 1.65 | 1.00 | 2.11 | 1.27 | 2.77 | 1.62 | 3.73 |
26.7 | ¾ | 20 | 1.02 | 1.65 | 1.28 | 2.11 | 1.69 | 2.87 | 2.20 | 3.91 |
33.4 | 1 | 25 | 1.29 | 1.65 | 2.09 | 2.77 | 2.50 | 3.38 | 3.24 | 4.55 |
42.2 | 1¼ | 32 | 1.65 | 1.65 | 2.69 | 2.77 | 3.39 | 3.56 | 4.47 | 4.85 |
48.3 | 1½ | 40 | 1.90 | 1.65 | 3.11 | 2.77 | 4.05 | 3.68 | 5.41 | 5.08 |
60.3 | 2 | 50 | 2.39 | 1.65 | 3.93 | 2.77 | 5.44 | 3.91 | 7.48 | 5.54 |
73.0 | 2½ | 65 | 3.69 | 2.11 | 5.26 | 3.05 | 8.63 | 5.16 | 11.41 | 7.01 |
88.9 | 3 | 80 | 4.52 | 2.11 | 6.46 | 3.05 | 11.29 | 5.49 | 15.27 | 7.62 |
101.6 | 3½ | 90 | 5.18 | 2.11 | 7.41 | 3.05 | 13.57 | 5.74 | 18.64 | 8.08 |
114.3 | 4 | 100 | 5.84 | 2.11 | 8.37 | 3.05 | 16.08 | 6.02 | 22.32 | 8.56 |
141.3 | 5 | 125 | 9.46 | 2.77 | 11.56 | 3.40 | 21.77 | 6.55 | 30.97 | 9.53 |
168.3 | 6 | 150 | 11.31 | 2.77 | 13.83 | 3.40 | 28.26 | 7.11 | 42.56 | 10.97 |
219.1 | 8 | 200 | 14.78 | 2.77 | 19.97 | 3.76 | 42.55 | 8.18 | 64.64 | 12.70 |
273.1 | 10 | 250 | 22.61 | 3.40 | 27.79 | 4.19 | 60.31 | 9.27 | 81.56 | 12.70 |
323.9 | 12 | 300 | 31.25 | 3.96 | 35.99 | 4.57 | 73.88 | 9.53 | 97.47 | 12.70 |
355.6 | 14 | 350 | 34.34 | 3.96 | 41.36 | 4.78 | 81.33 | 9.53 | 107.40 | 12.70 |
406.4 | 16 | 400 | 41.56 | 4.19 | 47.34 | 4.78 | 93.27 | 9.53 | 123.31 | 12.70 |
457 | 18 | 450 | 46.79 | 4.19 | 53.31 | 4.78 | 105.17 | 9.53 | 139.16 | 12.70 |
508 | 20 | 500 | 59.32 | 4.78 | 68.65 | 5.54 | 117.15 | 9.53 | 155.13 | 12.70 |
559 | 22 | 550 | 65.33 | 4.78 | 75.62 | 5.54 | ||||
610 | 24 | 600 | 82.58 | 5.54 | 94.53 | 6.35 | 141.12 | 9.53 | 187.07 | 12.70 |
660 | 26 | 650 | ||||||||
711 | 28 | 700 | ||||||||
762 | 30 | 750 | 118.34 | 6.35 | 147.29 | 7.92 |
Clear Assem. Nut | Nut | Nom. Pipe Size | Wall | Length Assem. Nom. | Water Way Bore | Pipe End | Male Flange | Threads Per 25.4mm | Bearing |
---|---|---|---|---|---|---|---|---|---|
N | Min. G | Min. C | L | D | Min. A | Min. F | Max. H | Min. J | |
50.8 | 3.18 | 1/8” | 2.41 | 41.4 | 8.43 6.43 | 14.7 | 3.18 | 16 | 1.24 |
50.8 | 3.18 | 1/4” | 3.02 | 41.4 | 11.13 9.45 | 19.0 | 3.18 | 16 | 1.24 |
55.9 | 3.43 | 3/8” | 3.20 | 46.0 | 14.27 13.51 | 22.9 | 3.43 | 14 | 1.37 |
58.4 | 3.68 | 1/2” | 3.73 | 49.0 | 17.86 17.07 | 27.7 | 3.68 | 14 | 1.50 |
66.0 | 4.06 | 3/4” | 3.91 | 56.9 | 23.01 21.39 | 33.5 | 4.06 | 11 | 1.68 |
78.7 | 4.45 | 1” | 4.55 | 62.0 | 28.98 27.74 | 41.4 | 4.57 | 11 | 1.85 |
94.0 | 5.21 | 1-1/4” | 4.85 | 71.1 | 37.69 35.36 | 50.5 | 5.33 | 11 | 2.13 |
111.8 | 5.59 | 1-1/2” | 5.08 | 76.5 | 43.54 41.20 | 57.2 | 5.84 | 10 | 2.31 |
132.1 | 6.35 | 2” | 5.54 | 86.1 | 55.58 52.12 | 70.1 | 6.60 | 10 | 2.69 |
149.9 | 7.11 | 2-1/2” | 7.01 | 102.4 | 66.27 64.31 | 85.3 | 7.49 | 8 | 3.07 |
175.3 | 8.00 | 3” | 7.62 | 109.0 | 88.25 77.27 | 102.4 | 8.26 | 8 | 3.53 |
The benefit of purchasing Incoloy 825 Butt Weld Fittings and UNS N08825 Forged Fittings directly from manufacturers is the low cost and large selection of 825 Alloy High Pressure Forged Fittings which save your time
Temperature Ratings | Pressure Class | ||||
---|---|---|---|---|---|
150 | 300 | ||||
1 1/4 - 2 Inches | 1/4 - 1 Inches | 2 1/2 - 3 Inches | |||
(oC) | (oF) | ||||
-29 to 66 | -20 to 150 | 300 | 1500 | 2000 | 1000 |
93 | 200 | 265 | 1350 | 1785 | 910 |
121 | 250 | 225 | 1200 | 1575 | 825 |
149 | 300 | 185 | 1050 | 1360 | 735 |
177 | 350 | 150 | 900 | 1150 | 650 |
204 | 400 | - | 750 | 935 | 560 |
232 | 450 | - | 600 | 725 | 475 |
260 | 500 | - | 450 | 510 | 385 |
288 | 550 | - | 300 | 300 | 300 |
Threaded Fittings
Size Product | 3/4” | 1/4” | 1/8” | 3/8” | 1/2” | 1” | 2-1/2” | 1-1/2” | 3” | 1-1/4” | 2” | 4” | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
90 Elbow | 2000 | 0.35 | 0.08 | 0.10 | 0.13 | 0.25 | 0.53 | 3.14 | 1.06 | 4.81 | 0.82 | 1.70 | 10.21 |
3000 | 0.69 | 0.14 | 0.10 | 0.29 | 0.43 | 1.14 | 5.99 | 2.63 | 8.88 | 1.42 | 2.92 | 14.85 | |
6000 | 1.31 | 0.33 | 0.17 | 0.45 | 0.80 | 1.61 | 9.88 | 3.79 | 17.73 | 2.93 | 7.31 | 15.76 | |
45 Elbow | 2000 | 0.27 | 0.08 | 0.09 | 0.10 | 0.20 | 0.41 | 3.46 | 0.82 | 5.44 | 0.68 | 1.41 | 8.96 |
3000 | 0.56 | 0.12 | 0.09 | 0.24 | 0.34 | 0.94 | 3.71 | 2.05 | 5.97 | 1.03 | 2.23 | 8.96 | |
6000 | 1.07 | 0.27 | 0.11 | 0.39 | 0.63 | 1.27 | 7.01 | 2.54 | 14.16 | 2.24 | 4.37 | 11.36 | |
Tee | 2000 | 0.43 | 0.12 | 0.13 | 0.17 | 0.31 | 0.69 | 4.11 | 1.39 | 6.12 | 1.07 | 2.16 | 14.74 |
3000 | 0.92 | 0.20 | 0.13 | 0.38 | 0.56 | 1.49 | 6.99 | 3.27 | 10.19 | 1.76 | 3.53 | 19.13 | |
6000 | 1.65 | 0.45 | 0.20 | 0.63 | 0.98 | 2.17 | 13.11 | 4.71 | 21.70 | 3.74 | 7.88 | 18.53 | |
Cross | 2000 | 0.54 | 0.14 | 0.17 | 0.21 | 0.39 | 0.83 | 5.26 | 1.75 | 7.58 | 1.26 | 2.65 | 16.35 |
3000 | 1.06 | 0.26 | 0.17 | 0.44 | 0.72 | 1.79 | 8.51 | 3.93 | 12.45 | 2.13 | 4.27 | 21.93 | |
Full Coupling | 3000 | 0.19 | 0.04 | 0.05 | 0.06 | 0.13 | 0.45 | 2.29 | 1.07 | 3.38 | 0.81 | 1.40 | 6.28 |
6000 | 0.50 | 0.13 | 0.08 | 0.20 | 0.34 | 0.87 | 4.20 | 1.94 | 6.10 | 1.09 | 2.87 | 10.04 | |
Half Coupling | 3000 | 0.10 | 0.02 | 0.02 | 0.03 | 0.06 | 0.23 | 1.13 | 0.54 | 1.68 | 0.34 | 0.70 | 3.11 |
Socket Weld Fittings
Size Product | 1-1/2” | 3/8” | 1/4” | 1/2” | 3” | 1” | 2-1/2” | 1/8” | 1-1/4” | 2” | 3/4” | 4” | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
90 Elbow | 3000 | 1.08 | 0.12 | 0.08 | 0.22 | 5.38 | 0.53 | 3.20 | 0.09 | 0.84 | 1.68 | 0.33 | 10.95 |
6000 | 2.79 | 0.29 | 0.15 | 0.40 | 1.17 | 0.10 | 1.48 | 3.28 | 0.73 | ||||
45 Elbow | 3000 | 0.80 | 0.11 | 0.07 | 0.20 | 5.10 | 0.42 | 2.53 | 0.08 | 0.69 | 1.35 | 0.28 | 9.41 |
6000 | 2.01 | 0.26 | 0.14 | 0.36 | 0.92 | 0.09 | 1.11 | 2.09 | 0.57 | ||||
Tee | 3000 | 1.35 | 0.15 | 0.09 | 0.29 | 5.90 | 0.65 | 3.98 | 0.13 | 1.04 | 2.04 | 0.42 | 13.92 |
6000 | 3.37 | 0.43 | 0.20 | 0.56 | 1.49 | 0.14 | 1.93 | 3.95 | 0.94 | ||||
Cross | 3000 | 1.58 | 0.20 | 0.13 | 0.35 | 6.69 | 0.73 | 4.37 | 0.16 | 1.12 | 2.25 | 0.47 | 14.58 |
6000 | 3.96 | 0.45 | 0.26 | 0.67 | 1.75 | 0.17 | 2.26 | 4.42 | 1.07 | ||||
Full Coupling | 3000 | 0.59 | 0.07 | 0.05 | 0.13 | 1.78 | 0.29 | 1.40 | 0.04 | 0.45 | 0.86 | 0.17 | 2.85 |
6000 | 1.11 | 0.114 | 0.07 | 0.204 | 0.44 | 0.05 | 0.60 | 1.62 | 0.27 | ||||
Half Coupling | 3000 | 0.66 | 0.07 | 0.05 | 0.13 | 2.10 | 0.30 | 1.63 | 0.04 | 0.34 | 1.09 | 0.21 | 3.71 |
6000 | 1.25 | 0.12 | 0.09 | 0.21 | 0.51 | 0.06 | 0.75 | 1.92 | 0.31 | ||||
Red Coupling | 3000 | 0.59 | 0.07 | 0.05 | 0.13 | 1.88 | 0.27 | 1.42 | 0.04 | 0.49 | 0.97 | 0.19 | 3.31 |
6000 | 1.20 | 0.24 | 0.65 | 0.75 | 2.12 | 0.33 | |||||||
Cap | 3000 | 0.59 | 0.07 | 0.04 | 0.10 | 2.74 | 0.25 | 1.43 | 0.03 | 0.45 | 0.96 | 0.16 | 4.24 |
6000 | 0.94 | 0.10 | 0.08 | 0.16 | 0.36 | 0.05 | 0.64 | 1.41 | 0.23 | ||||
Union | 3000 | 1.61 | 0.25 | 0.28 | 0.35 | 5.15 | 0.81 | 3.50 | 0.28 | 1.10 | 2.16 | 0.49 | 11.59 |
Body Wall Thickness G | DN | Depth of Socket Min. J | Center to Bottom of Socket-A | Socket Bore Dia. B | Bore Dia. Of Fitting D | Nom. Pipe Size | Socket Wall Thickness (2) C | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Class Designation | 90° Elbows Tees, Crosses | 45° Elbows | Class Designation | ||||||||||||||||||
6000 | 3000 | 9000 | Class Designation | Class Designation | Class Designation | 3000 | 6000 | 9000 | |||||||||||||
Min. | Min. | Min. | 6000 | 3000 | 9000 | 9000 | 3000 | 6000 | 3000 | 9000 | 6000 | Min | Ave. | Min | Ave. | Ave. | Min | ||||
3.15 | 2.41 | 6 | 9.5 | 11.0 | 11.0 | 8.0 | 8.0 | 10.8 | 6.9 | 4.0 | 1/8” | 3.18 | 3.18 | 3.43 | 3.96 | ||||||
3.68 | 3.02 | 8 | 9.5 | 13.5 | 11.0 | 8.0 | 8.0 | 14.2 | 9.3 | 6.4 | 1/4” | 3.30 | 3.78 | 4.01 | 4.60 | ||||||
4.01 | 3.20 | 10 | 9.5 | 15.5 | 13.5 | 8.0 | 11.0 | 17.6 | 12.6 | 9.2 | 3/8” | 3.50 | 4.01 | 4.37 | 5.03 | ||||||
4.78 | 3.73 | 7.47 | 15 | 9.5 | 19.0 | 15.5 | 25.5 | 15.5 | 11.0 | 12.5 | 21.8 | 15.8 | 6.4 | 11.8 | 1/2” | 4.09 | 4.67 | 5.18 | 5.97 | 9.35 | 8.18 |
5.56 | 3.91 | 7.82 | 20 | 12.5 | 22.5 | 19.0 | 28.5 | 19.0 | 13.0 | 14.0 | 27.2 | 21.0 | 11.1 | 15.6 | 3/4” | 4.27 | 4.90 | 6.04 | 6.96 | 9.78 | 8.56 |
6.35 | 4.55 | 9.09 | 25 | 12.5 | 27.0 | 22.5 | 32.0 | 20.5 | 14.0 | 17.5 | 33.9 | 26.7 | 15.2 | 20.7 | 1” | 4.98 | 5.69 | 6.93 | 7.92 | 11.38 | 9.96 |
6.35 | 4.85 | 9.70 | 32 | 12.5 | 32.0 | 27.0 | 35.0 | 22.5 | 17.5 | 20.5 | 42.7 | 35.1 | 22.8 | 29.5 | 1-1/4” | 5.28 | 6.07 | 6.93 | 7.92 | 12.14 | 10.62 |
7.14 | 5.08 | 10.15 | 40 | 12.5 | 38.0 | 32.0 | 38.0 | 25.5 | 20.5 | 25.5 | 48.8 | 40.9 | 28.0 | 34.0 | 1-1/2” | 5.54 | 6.35 | 7.80 | 8.92 | 12.70 | 11.12 |
8.74 | 5.54 | 11.07 | 50 | 16.0 | 41.0 | 38.0 | 54.0 | 28.5 | 25.5 | 28.5 | 61.2 | 52.5 | 38.2 | 42.9 | 2” | 6.04 | 6.93 | 9.50 | 10.92 | 13.84 | 12.12 |
7.01 | 65 | 16.0 | 41.0 | 28.5 | 73.9 | 62.7 | 2-1/2” | 7.67 | 8.76 | ||||||||||||
7.62 | 80 | 16.0 | 57.0 | 32.0 | 89.8 | 78.0 | 3” | 8.30 | 9.52 | ||||||||||||
8.56 | 100 | 19.0 | 66.5 | 41.0 | 115.2 | 102.3 | 4” | 9.35 | 10.69 |
DN | Schedule 10S | Schedule 40S | ||||
---|---|---|---|---|---|---|
Ecc reducer | Con reducer | Reducing tee | Con reducer | Reducing tee | Ecc reducer | |
400x300 | 18.35 | 18.35 | 51.71 | 36.70 | 87.54 | 36.70 |
25x15 | 0.12 | 0.12 | 0.25 | 0.15 | 0.26 | 0.15 |
20x15 | 0.10 | 0.10 | 0.11 | 0.14 | 0.15 | 0.14 |
25x20 | 0.13 | 0.13 | 0.25 | 0.16 | 0.27 | 0.16 |
32x25 | 0.18 | 0.18 | 0.45 | 0.22 | 0.53 | 0.22 |
32x20 | 0.18 | 0.18 | 0.44 | 0.22 | 0.52 | 0.22 |
40x20 | 0.18 | 0.18 | 0.58 | 0.24 | 0.74 | 0.24 |
40x32 | 0.24 | 0.21 | 0.61 | 0.28 | 0.77 | 0.28 |
40x25 | 0.19 | 0.19 | 0.60 | 0.26 | 0.76 | 0.26 |
50x25 | 0.28 | 0.28 | 0.73 | 0.40 | 1.10 | 0.40 |
50x40 | 0.31 | 0.31 | 0.76 | 0.45 | 1.15 | 0.45 |
50x32 | 0.30 | 0.30 | 0.74 | 0.44 | 1.13 | 0.44 |
65x40 | 0.44 | 0.44 | 1.24 | 0.76 | 1.94 | 0.76 |
80x40 | 0.51 | 0.51 | 1.52 | 0.94 | 2.85 | 0.94 |
65x50 | 0.47 | 0.47 | 1.25 | 0.80 | 1.98 | 0.80 |
80x50 | 0.55 | 0.55 | 1.56 | 1.00 | 2.91 | 1.00 |
100x40 | 0.68 | 0.68 | 2.90 | 1.36 | 4.53 | 1.36 |
80x65 | 0.59 | 0.59 | 1.59 | 1.08 | 2.98 | 1.08 |
100x50 | 0.78 | 0.78 | 2.94 | 1.57 | 4.48 | 1.57 |
100x80 | 0.87 | 0.87 | 3.04 | 1.74 | 4.64 | 1.74 |
100x65 | 0.83 | 0.83 | 2.97 | 1.66 | 4.54 | 1.66 |
125x100 | 1.49 | 1.49 | 5.49 | 2.98 | 8.47 | 2.98 |
150x100 | 1.96 | 1.96 | 7.10 | 4.07 | 9.68 | 4.07 |
150x80 | 1.82 | 1.82 | 6.86 | 3.98 | 11.94 | 3.98 |
150x125 | 2.00 | 2.00 | 7.27 | 4.07 | 9.99 | 4.07 |
200x150 | 3.19 | 3.19 | 14.08 | 6.94 | 18.82 | 6.94 |
250x100 | 4.73 | 4.73 | 22.75 | 10.52 | 30.07 | 10.52 |
200x100 | 3.01 | 3.01 | 13.46 | 6.55 | 17.98 | 6.55 |
250x150 | 5.00 | 5.00 | 23.55 | 11.12 | 31.13 | 11.12 |
300x200 | 7.67 | 7.67 | 34.73 | 15.98 | 54.43 | 15.98 |
250x200 | 5.20 | 5.20 | 24.08 | 11.56 | 31.84 | 11.56 |
300x250 | 7.98 | 7.98 | 35.52 | 16.63 | 55.79 | 16.63 |
400x200 | 16.70 | 16.70 | 49.90 | 33.40 | 84.82 | 33.40 |
350x300 | 15.29 | 15.29 | 43.96 | 30.58 | 71.21 | 30.58 |
400x250 | 17.22 | 17.22 | 50.80 | 35.43 | 85.73 | 35.43 |
If you searching a supplier from these places check our supplies below
Markmore Energy (Labuan) Ltd-Malaysia
Petrovietnam Vietnam
Brunei Darussalam-Thailand
ADCO - Onshore Gas Gathering & Injection For OGD3-Dubai
Northern Luzon Offshore Wind Power Project-Philippines
Millennium Water Treatment & Engineering Sdn. Bhd Malaysia
