What Is Nickel 200 Pipe Fittings?
Nickel 200 fittings is a commercially pure nickel solution-strengthened grade fitting. The Nickel 200 pipe fittings are wrought material having nickel as their primary constituent. These fittings possess resistance to caustic alkalis and general corrosion. ASTM B366 UNS N02200 fittings has a density of 8.89 g/cm3 and a melting point between 1435 and 1446 degrees C. They have good strength with enhanced mechanical properties.
Table of Content
- Nickel 200 Pipe Fittings Specifications
- Finish Types of ASTM B366 UNS N02200 Elbow
- Nickel 200 Buttweld Fittings Corrosion Resistance

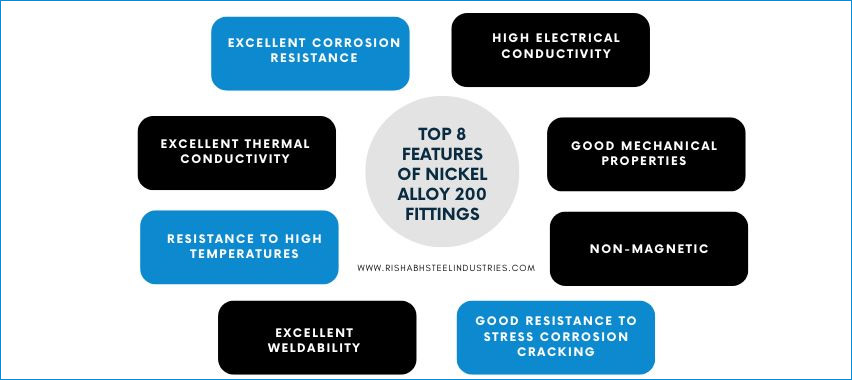

- Top 8 Features of Nickel Alloy 200 Fittings
- 201 Nickel Welded Fittings Chemical Composition
- Pure Nickel 200 Weld Fittings Mechanical properties
- Ni 200 Fittings Thermal Properties
- Nickel 200 Fittings Equivalent Grades
- Types Of Nickel 200 Pipe Fittings
ASTM B366 UNS N02200 Elbow Manufacturer in India
The ASTM B366 WPN elbow is a device that is utilized to change the direction of flow in the system. These elbows are seen in acidic and seawater systems. They are produced in 45 and 90-degree turns. The Nickel 200 45 degree elbow is manufactured to change the direction of the media by 45 degrees. These elbows can be manufactured in long and short radius elbows. A pure nickel long radius elbow is designed with a radius of curvature that is 1.5 times its outer diameter. These elbows cause less frictional resistance, creating lower pressure drops.
Manufacturing Size Range :
- Buttweld : 1/2" To 36"
- Welded : 24" To 96"
- Seamless : 1/2" To 24"
- Contact nickel 200 pipe fittings manufacturer in India for above 48″
Machines :
- CNC
- Beveling Machine
- Conventional Machine
Documentation :
- Fumigation certificates
- Raw material test reports
- Material traceability records
Wall Thickness :
- SCH 20 & 40
- SCH : 80 To 120
- SCH : 160 To 180
Standard :
- ASME B16.9
Packaging :
- Carton Box
- Wooden Pallet
- Wooden Cases
Melting Point :
- 1435°C To 1446°C
Density :
- 8.89 g/cm³
Raw Material :
- Round Bar
- Seamless Pipe
- Welded Pipe
Applicable Fluids :
- Oil and Gas
- Water and Air
- Steam
Forming :
- Hot forming
- Cold forming
Advantages :
- High-Temperature Stability
ISO Standard :
- ISO 5251
Heat Treatment :
- Annealing = 1300°F to 1800°F
Method :
- Welded (Weld)
- Seamless (SMLS)
- Buttweld (BW)
UNS Number :
- UNS N02200
Thickness Tolerance :
- +/-12.5%
- Custom
Marking Details :
- Manufacturers Name
- Standard & Heat No.
- Grade & Material
- Size & Schedule
Material Life :
- 35 Years
Manufacturing Process :
- Forged
- Machined
- Heat Treated
Connection :
- Welding
Process :
- Welding
- Cutting
- Bending
Testing Certificates :
- EN 10204 3.1
- EN 10204 3.2
Surface Treatment :
- Sand Rolling
- Sand Blasting
Uses :
- Power Generation
- Oil and Gas
- Petrochemicals
- Pharmaceuticals
- Chemical Equipment
Method:
- Welding
- Casting
- Forged
- Pushing
- Butt Weld
Testing & Inspection :
- Hardness Test
- Mechanical Testing
- Hyrdrostatic Test
- Chemical Analysis
- PMI Test
Radius of Pipe Bend :
- 1.5D/ 2D/ 3D
- 4D/ 5D/ 6D
- 8D/ 10D/ 22D
Angle of Pipe Bend :
- 15 Deg, 22.5 Deg, 30 Deg
- 45 Deg, 60 Deg, 90 Deg
- 135 Deg, 180 Deg
Logistics :
- By Air
- By Sea
- Kuwait = 10 day
- Poland = 45 day
- Australia = 21 day
- Netherland = 30 days
- Indonesia = 5 days
- UAE = 5 day
- Belgium = 40 days
Supplier of High Performance Pure Nickel 200 Tee in Polished and Smooth Finish
The SB 366 UNS N02200 tee has two outlets that are at an angle of 90 degrees with the main connection line. Designed in the shape of a T, they are seen in commercial and industrial applications. ASME SB 366 alloy 200 flanged tee is preferred for use in high pressure and temperature systems. These tees have a smaller turning radius when compared to an elbow.
-
Mill Finish
-
Polished Finish
-
Brushed Finish
-
Mirror Finish
-
Electropolished Finish
-
Coated Finish
Get The High Quality Nickel Grade 200 Welded Reducer Used in High Corrosion Resistance Environments
Alloy 200 Reducer acts as an adapter and is used to connect dissimilar pipes. The Nickel Alloy UNS N02200 Stub End is a small piece of pipe that has one flared end and the other being a square-cut end. These ends are used as alternative to a standard flange. The ASTM B366 Nickel 200 Cap is a versatile piping equipment that protects piping grades as piping grade are stored or transported from one place to the other.
| Nitric Acid | Not Recommended |
|---|---|
| Sulfuric Acid | Good |
| Organic Acids | Excellent |
| Phosphoric Acid | Good |
| Hydrofluoric Acid | Excellent |
| Oxidizing Salts | Good |
![Carbon [C] :](imginfo/carbon.jpg "Carbon [C] :")
Carbon [C] :
- 0.15% (max)
![Manganese [Mn] :](imginfo/manganese.jpg "Manganese [Mn] :")
Manganese [Mn] :
- 0.35% (max.)
![Copper [CU] :](imginfo/copper.jpg "Copper [CU] :")
Copper [CU] :
- 0.25% (max.)
![Sulfur [S] :](imginfo/sulfur.jpg "Sulfur [S] :")
Sulfur [S] :
- 0.01% (max.)
![Silicon [Si] :](imginfo/silicon.jpg "Silicon [Si] :")
Silicon [Si] :
- 0.1% (max.)
![Titanium [Ti] :](imginfo/titanium.jpg "Titanium [Ti] :")
Titanium [Ti] :
- -
Nickel (Ni) :
- 99.0% (Min.)
Iron (Fe) :
- 0.4% (max.)
Yield strength (Annealed) :
- 148 MPa
Tensile strength (Annealed) :
- 462 MPa
Density :
- 8.9g/cm3
Melting Point :
- 1446°C
Elongation :
- 45%
Thermal Conductivity :
- 487 BTU.in/hrft².°F
Specific Heat Capacity :
- 0.44 J/g·K
Coefficient of Thermal Expansion :
- 13.4 × 10⁻⁶ /°C
Thermal Stability :
- Up to 1,000°C in oxidizing environments
Heat Transfer Efficiency :
- High
UNS :
- N02200
Werkstoff Nr. :
- WNR 2.4066
BS :
- NA 11
GOST :
- НП-2
JIS :
- NW 2200
ASTM B366 UNS N02200 Elbow
Ni 200 Tee
Pure Nickel 200 Reducer
Nickel Grade 200 End Cap
DIN 2.4066 Stub End
Alloy 200 Pipe Bend
