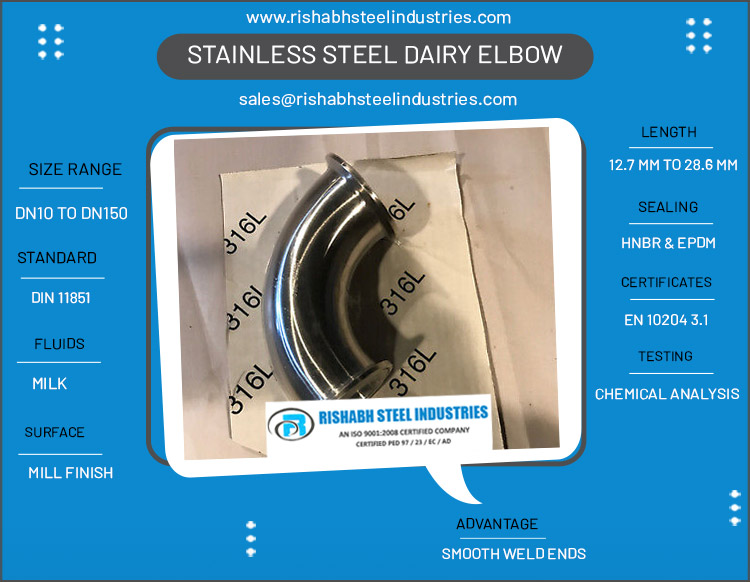

Stainless Steel Dairy Elbow

Stainless steel sanitary elbow is an fitting designed for food and beverage processing industries. Stainless steel dairy elbow change the direction of fluid flow in dairy pipelines. SS dairy elbow are generally used in the dairy application for piping systems that dairy products, and handle milk. Stainless steel pharma elbow are primarily measured by the OD (Outside Diameter) and ID (Inside Diameter) of the tube end. SS sanitary 90 deg elbow are also classified by length. These SS dairy short radius elbow are seen in applications where corrosion and reducing media are of the highest degree.

SS Sanitary Elbow Specifications as per DIN 1185

Manufacturing Size Range :

• 1/2" To 12"
• DN 10 to DN 150
• Contact stainless steel dairy elbow manufacturer in India for above 14"

Grade :

• AISI 316L
• AISI 304L
• AISI 316LMo
• AISI 304
• AISI 316

American Standard :

• SMS
• DIN
• ASME-BPE
• ISO
• ISO 2037
• EN 10357-A
• EN 10272
• BS 4825
• BS 4825
• ISO 2037
• DIN 11850

Length in MM :

• 12.7 mm To 28.6 mm

DIN Standard :

• DIN 11851

Types of Packaging :

• Carton Box
• Wooden Cases
• Wooden Pallet

Applicable Fluids :

• Milk

Forming Process :

• Cold formed
• Hot formed

Sealing :

• FKM
• EPDM
• HNBR

Electropolishing Specification :

• SF1 : 20 µ-in 0.51 µm
• SF4 : 15 µ-in 0.38 µm
• SF3 : 30 µ-in 0.76 µm
• SF2 : 25 µ-in 0.64 µm
• SF5 20 µ-in 0.51 µm
• SF6 : 25 µ-in 0.64 µm

Other Name :

• Sanitary elbow
• Pharma elbow
• Hygienic elbow
• Milk Tank elbow

Ends :

• Bevelled
• Plain Bevel

Service :

• NACE TM-0284
• NACE MR0103
• NACE MR0175

Surface Treatment :

• Biotech Finish
• Fine Satin Finish
• Semi-Bright Finish
• Mirror Finish
• Mill Finish
• Dairy Finish

Marking :

• Grade & Material
• Manufacturers Name
• Standard & Heat No.
• Size & Schedule

Welding :

• Fusion Welding

Certificates :

• EN 10204 3.1
• EN 10204 3.2

Uses :

• Biotech
• Pharmaceutical
• Breweries
• Dairies
• Food Processing
• Beverage

Testing :

• Hardness Test
• Mechanical Testing
• Hyrdrostatic Test
• Chemical Analysis
• PMI Test

Logistics Types :

• By Sea
• By Air
• UAE = 5 day
• Saudi Arabia = 8 day
• South Africa = 25-30 days
• Qatar = 7 days
• USA = 40-60 day
• Uk = 30 day
• Vietnam = 10 day
• Sudan = 30 day

Max. Size :

• 14"

Compare the Price List With the Different Stainless Steel Sanitary 90 Deg Elbow Manufacturer in India

• Type: Elbow 90°

• Grade : SS 316

• Standard : DIN 11851

• Connection : Male x Male

Buy Stainless Steel Pharma Elbow With Hydrostatic Testing Report

• Hyrdrostatic Test

• Chemical Analysis

• PMI Test

• Hardness Test

Buy From Professional Stainless Steel Hygienic Elbow Supplier in Mumbai, View Features and Surface Finish

• Mechanical Polish

• Electro Polished

• Non Electro Polished

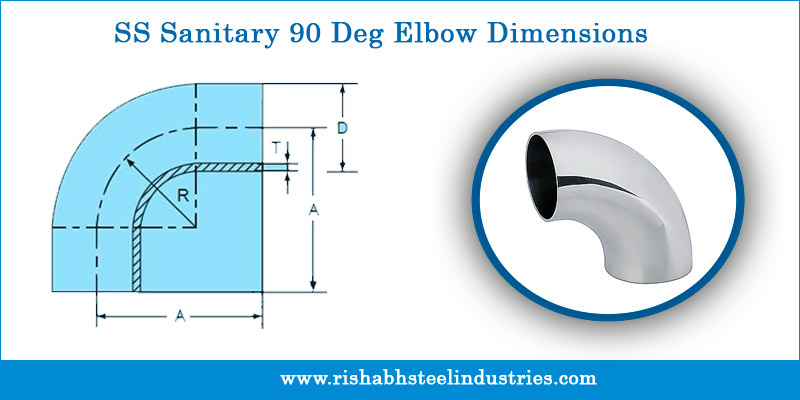

Also Check Stainless Steel Dairy 45 Deg Elbow Dimensions and Weight Chart
