What Is Stainless Steel Dairy Bends?
Stainless steel sanitary bend is a 45/ 90 and 180 degree elbow to change the fluid direction in the process system. Stainless steel dairy bends is made in SS 304/304L and 316/316L or specified material, with the advantage of good corrosion resistance. Rishabh Steel Industries offers SS dairy bend fittings through 1/2" To 8", with standard SMS, ISO, DIN, BS etc. Our Stainless Steel Dairy Bends are made from premium quality raw materials. Stainless steel dairy bends manufacturer in India that follows all set standards and makes use of the best raw materials and technology to produce quality-assured products across all our outlets.
Table of Content
- Sanitary 90 Deg Bend Price List
- Sanitary U Bend Price List
- Stainless Steel Dairy Bends Specification
- SS Dairy 180 Deg Return Bend Dimensions
- Stainless Steel Sanitary 45 Deg Bend Dimensions
- Sanitary 180 Deg Welding Bend Dimensions
- Stainless Steel Sanitary U Bend Weight Chart
- Sanitary 90 Deg Bend Weight Chart
- Documentation Requirements of Sanitary Return Bends
- Testing for SS Dairy Bend Fittings
- Types of Stainless Steel Dairy Bends
Check SS Sanitary U Bend and 90 Deg Bend Price List
-
Type: 90 Deg Bend
-
Grade : SS 316L
-
Machined : CNC
-
Radius : Long Radius
| Size | Price In US (Dollar) Per Piece | Price In Dirham (UAE) Per Piece |
|---|---|---|
| 1/2" | US $5.86 | AED 21.52 |
| 3/4" | US $6.40 | AED 23.51 |
| 1" | US $8.10 | AED 29.75 |
| 1.25" | US $10.28 | AED 37.76 |
| 1.5" | US $13.91 | AED 51.09 |
| 2" | US $17.28 | AED 63.47 |
| 2.5" | US $19.60 | AED 71.99 |
| 3" | US $21.70 | AED 79.70 |
| 4" | US $37.59 | AED 138.07 |
-
Type: 180° Bend
-
Grade : SS 316L
-
Ends : Both Ends
-
Radius : Long Radius
| Size | Price In US (Dollar) Per Piece | Price In Kuwaiti Dinar (Kuwait) Per Piece |
|---|---|---|
| 1/2" | US $8.46 | KWD 2.60 |
| 3/4" | US $12.64 | KWD 3.89 |
| 1" | US $15.04 | KWD 4.63 |
| 2" | US $28.30 | KWD 8.71 |
| 3" | US $36.94 | KWD 11.37 |
| 4" | US $49.20 | KWD 15.14 |
| 6" | US $64.59 | KWD 19.88 |
View Stainless Steel Sanitary Bend Specifications As Per DIN 11851
Most Selling Size :
- 1/2" To 12"
- DN10 to DN150
- Contact stainless steel dairy bends manufacturer in india for above 14"
Grade:
- ASTM A270 304
- ASTM A270 304L
- ASTM A270 316
- ASTM A270 316L
- ASTM A270 316LMo
International Standard :
- ISO
- ISO 2037
- EN 10272
- BS 4825
- BS 4825
- ISO 2037
- DIN 11850
- SMS
- DIN
- ASME-BPE
- EN 10357-A
Length :
- 12.7 mm To 28.6 mm
DIN Standard :
- DIN 11851
Packaging Method :
- Wooden Pallet
- Carton Box
- Wooden Cases
Applicable Fluids :
- Milk
Method Of Forming :
- Hot formed
- Cold formed
Sealing Material :
- HNBR
- FKM
- EPDM
Electropolishing :
- SF1 : 20 µ-in 0.51 µm
- SF4 : 15 µ-in 0.38 µm
- SF3 : 30 µ-in 0.76 µm
- SF2 : 25 µ-in 0.64 µm
- SF5 20 µ-in 0.51 µm
- SF6 : 25 µ-in 0.64 µm
Other Name :
- Sanitary bend
- Pharma bend
- Hygienic bend
- Milk tank bend
Ends Method :
- Bevelled
- Plain Bevel
Service :
- NACE TM-0284
- NACE MR0103
- NACE MR0175
Surface :
- Dairy Finish
- Semi-Bright Finish
- Mirror Finish
- Fine Satin Finish
- Mill Finish
- Biotech Finish
Marking :
- Size & Schedule
- Grade & Material
- Manufacturers Name
- Standard & Heat No.
Welding :
- Fusion Welding
EN Certificates :
- EN 10204 3.2
- EN 10204 3.1
Application :
- Food Processing
- Beverage
- Breweries
- Dairies
- Biotech
- Pharmaceutical
Testing Checklist :
- Mechanical Testing
- Hyrdrostatic Test
- Chemical Analysis
- PMI Test
- Hardness Test
Logistics :
- By Air
- By Sea
- UAE = 5 day
- Denmark = 35 days
- Uk = 30 day
- Netherland = 30 day
- South Africa = 25-30 day
- Thailand = 7 day
- Russia = 20 day
- Australia = 21 days
Max. Size :
- 14"

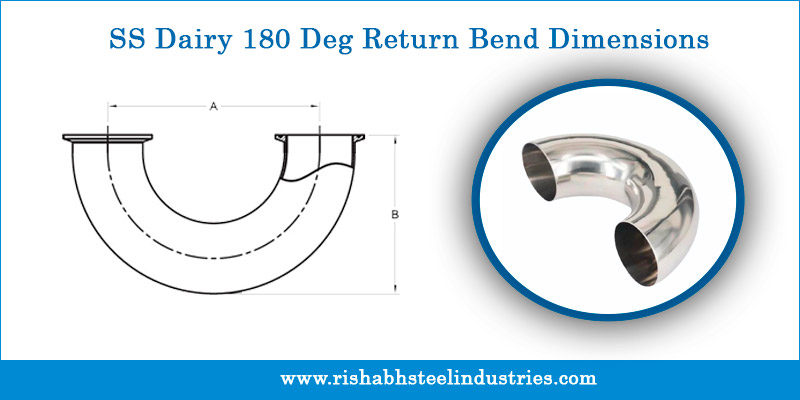

Leading Sanitary 180 Deg Bend Supplier in Mumbai with Sizes Ranging From DN10 To DN100
| Size | B | A |
|---|---|---|
| 1" | 2.500 | 3.000 |
| 2" | 4.500 | 6.000 |
| 3" | 6.500 | 9.000 |
| 4" | 8.625 | 12.000 |
| 6" | 12.875 | 18.000 |

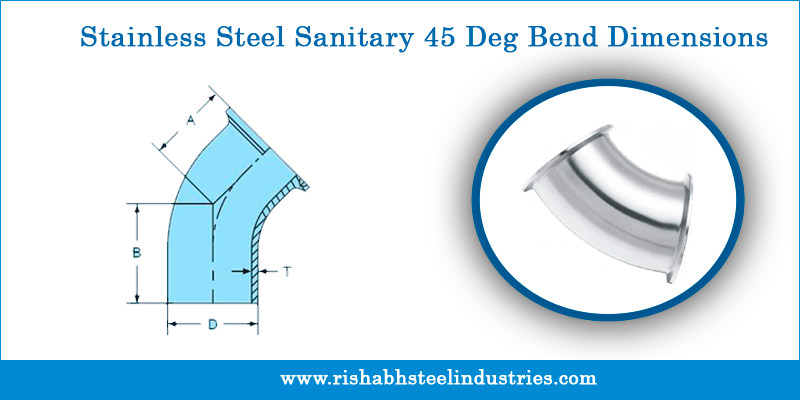

Refer Stainless Steel Pharma Bend Weight Chart And Sanitary 45 Deg Bend Dimensions
| Size | R | A | T | D |
|---|---|---|---|---|
| Inches | (inch) | (inch) | (mm) | (mm) |
| 1″ | 1 1/2 | 1 3/16 | 1.65 | 25.4 |
| 1 1/2″ | 2 1/4 | 1 5/8 | 1.65 | 38.1 |
| 2″ | 3 | 2 15/16 | 1.65 | 50.8 |
| 2 1/2″ | 3 3/4 | 3 | 1.65 | 63.5 |
| 3″ | 4 1/2 | 3 11/16 | 1.65 | 76.2 |
| 4″ | 6 | 4 13/16 | 2.11 | 101.6 |

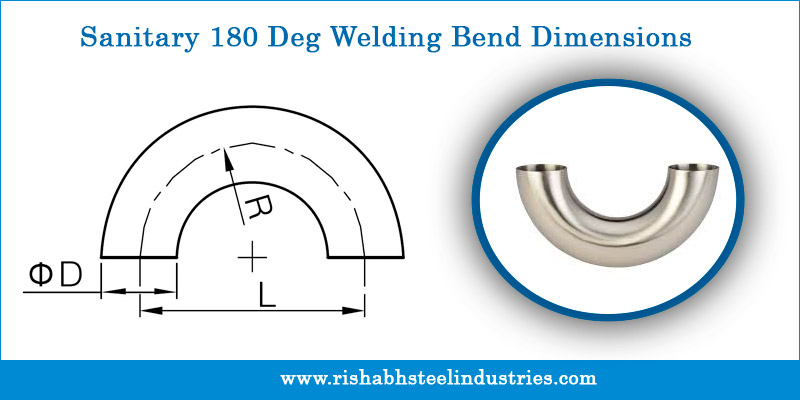

| Size | R | D | L |
|---|---|---|---|
| DN15 | 35 | 18 | 70 |
| DN20 | 40 | 22 | 80 |
| DN25 | 50 | 28 | 100 |
| DN32 | 55 | 34 | 110 |
| DN40 | 60 | 40 | 120 |
| DN50 | 70 | 52 | 140 |
| DN65 | 80 | 70 | 160 |
| DN80 | 90 | 85 | 180 |
| DN100 | 100 | 104 | 200 |
| Size | Weight (KG) |
|---|---|
| 1/2" | 1.16 |
| 3/4" | 1.65 |
| 1" | 2.05 |
| 1 1/4" | 2.54 |
| 1 1/2" | 3.03 |
| 2" | 4.08 |
| 2 1/2" | 6.02 |
| 3" | 7.35 |
| 4" | 9.56 |
| 6" | 13.68 |
| Size | Weight (KG) |
|---|---|
| 1/2" | 0.6 |
| 3/4" | 0.8 |
| 1" | 1.1 |
| 1 1/4" | 1.4 |
| 1 1/2" | 1.7 |
| 2" | 2.3 |
| 2 1/2" | 3.4 |
| 3" | 4.0 |
| 4" | 5.6 |
| 6" | 8.3 |
Also Check Sanitary 180 Deg Welding Bend Testing Requirements and Testing For Food and Beverage Applications
-
Raw material test report
-
Material traceability report
-
Heat treatment chart
-
Fumigation certification
-
Hardness test
-
Pitting resistance test
-
Chemical test
-
Macro test
Stainless Steel Sanitary Bend
Sanitary U Bend
SS Sanitary 45 Deg Bend
Sanitary 90 Deg Bend
Sanitary 180 Deg Bend
Sanitary Return Bends
