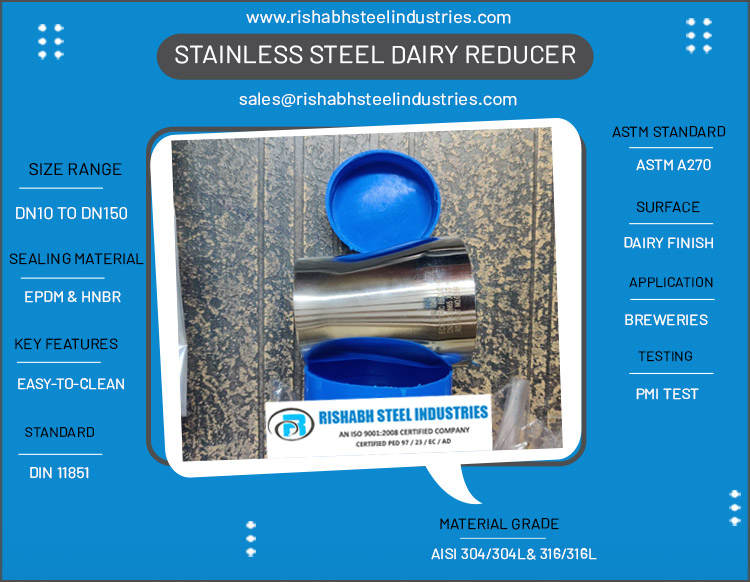

What Is Stainless Steel Dairy Reducer?
SS dairy reducer in dairy fittings are used to connect pipe of different diameters. Stainless steel sanitary reducer are machined from 3.1B Certified 304/316 strong bar. The SS sanitary reducer offer better connection and the continuous metal structure gives them higher strength in the piping industry. These stainless steel sanitary eccentric reducer allow for a flow in the system. We are the stainless steel dairy reducer manufacturer in India who are top of the industry due to our use of the best raw materials and cutting-edge technology to produce versatile products for our customers. SS dairy reducer are provided ferrule-ended. Stainless sanitary reducer are fabricated to BS4825 and ISO1127. Stainless steel sanitary concentric reducer offers exceptional durability, corrosion resistance.
Table of Content
- Stainless Steel Dairy Reducer Specification
- SS Dairy Reducer Price List
- Stainless Steel Sanitary Concentric Reducer Price List
- SS Eccentric Reducer Price List
- Application of SS Pharma Reducer
- Stainless Steel Dairy Eccentric Reducer Weight Chart
- SS Sanitary Concentric Reducer Dimensions
- Types of Stainless Steel Dairy Reducer
SS Sanitary Reducer Manufacturer in India
Manufacturing Size Range :
- 1/2" To 12"
- DN10 to DN150
- Contact stainless steel dairy reducer manufacturer in India for above 14"
Grade of SS Dairy Reducer :
- ASTM A270 304
- ASTM A270 304L
- ASTM A270 316
- ASTM A270 316L
- ASTM A270 316LMo
Standard :
- DIN 11850
- SMS
- DIN
- ASME-BPE
- ISO
- ISO 2037
- EN 10272
- BS 4825
- BS 4825
- ISO 2037
- EN 10357-A
Length :
- 12.7 mm To 28.6 mm
DIN Standard :
- DIN 11851
Packaging :
- Wooden Cases
- Wooden Pallet
- Carton Box
Applicable Fluids :
- Milk
Type Of Forming :
- Cold formed
- Hot formed
Sealing Material :
- HNBR
- FKM
- EPDM
Electropolishing :
- SF1 : 20 µ-in 0.51 µm
- SF4 : 15 µ-in 0.38 µm
- SF3 : 30 µ-in 0.76 µm
- SF2 : 25 µ-in 0.64 µm
- SF5 20 µ-in 0.51 µm
- SF6 : 25 µ-in 0.64 µm
Other Name :
- Sanitary reducer
- Pharma reducer
- Hygienic reducer
- Milk Tank reducer
Ends :
- Bevelled
- Plain Bevel
Service :
- NACE MR0175
- NACE TM-0284
- NACE MR0103
Surface Treatment :
- Mill Finish
- Biotech Finish
- Dairy Finish
- Semi-Bright Finish
- Mirror Finish
- Fine Satin Finish
Marking Info :
- Standard & Heat No.
- Size & Schedule
- Grade & Material
- Manufacturers Name
Welding Type :
- Fusion Welding
Certificates :
- EN 10204 3.1
- EN 10204 3.2
Uses :
- Biotech
- Pharmaceutical
- Food Processing
- Beverage
- Breweries
- Dairies
Testing :
- PMI Test
- Hardness Test
- Mechanical Testing
- Hyrdrostatic Test
- Chemical Analysis
Logistics :
- By Air
- By Sea
- Thailand = 7 day
- Russia = 20 day
- Australia = 21 days
- Denmark = 35 days
- Uk = 30 day
- Netherland = 30 day
- UAE = 5 day
- South Africa = 25-30 day
Max. Size :
- 14"
Before Ordering, Check Stainless Steel Dairy Concentric Reducer Price List
-
Type: Dairy Reducer
-
Grade : SS 304
-
Machined : CNC
-
Standard : DIN 11850
| Size | Price In US (Dollar) Per Piece | Price In Dirham (UAE) Per Piece |
|---|---|---|
| DN35 x DN25 | US $90.92 | AED 333.95 |
| DN40 x DN25 | US $96.42 | AED 354.15 |
| DN40 x DN32 | US $99.78 | AED 366.49 |
| DN50 x DN32 | US $107.34 | AED 394.26 |
| DN50 x DN40 | US $112.44 | AED 412.99 |
| DN65 x DN40 | US $128.50 | AED 471.98 |
| DN65 x DN50 | US $134.44 | AED 493.79 |
| DN80 x DN50 | US $168.16 | AED 617.65 |
| DN80 x DN65 | US $189.17 | AED 694.82 |
| DN100 x DN65 | US $244.35 | AED 897.49 |
| DN100 x DN80 | US $269 | AED 988.03 |
Supplier Of SS Sanitary Eccentric Reducer Available in DN10 to DN150 at Lowest Price in Mumbai
-
Type: Con Reducer
-
Grade : SS 304
-
Machined : CNC
-
Finish : Mirror Finish
| Size | Price In US (Dollar) Per Piece | Price In South African Rand (South Africa) Per Piece |
|---|---|---|
| 1.5" x 1/2" | US $14.11 | ZAR 252.22 |
| 1.5" x 3/4" | US $14.11 | ZAR 252.22 |
| 1.5" x 1" | US $16.65 | ZAR 297.63 |
| 2" x 1" | US $21.93 | ZAR 392.01 |
| 2" x 1.5" | US $23.07 | ZAR 412.39 |
| 2.5" x 1.5" | US $29.78 | ZAR 532.33 |
| 2.5" x 2" | US $34.00 | ZAR 607.77 |
| 3" x 1.5" | US $37.47 | ZAR 669.79 |
| 3" x 2" | US $42.59 | ZAR 761.32 |
| 3" x 2.5" | US $48.00 | ZAR 858.02 |
| 4" x 2" | US $57.95 | ZAR 1035.89 |
| 4" x 3" | US $64.67 | ZAR 1156.01 |
-
Type: Ecc Reducer
-
Grade : SS 304
-
Machined : CNC
-
Finish : Mirror Finish
| Size | Price In US (Dollar) Per Piece | Price In Saudi Riyal (Saudi Arabia) Per Piece |
|---|---|---|
| 2" x 1.5" | US $25.35 | SAR 95.23 |
| 2.5" x 1.5" | US $27.28 | SAR 102.48 |
| 3" x 1.5" | US $30.19 | SAR 113.41 |
| 3" x 2" | US $32.54 | SAR 122.24 |
| 4" x 1.5" | US $34.61 | SAR 130.02 |
| 4" x 2" | US $37.63 | SAR 141.36 |
| 4" x 3" | US $44.62 | SAR 167.62 |
| 1.5" x 1" | US $48.75 | SAR 183.14 |
| 2" x 1" | US $54.14 | SAR 203.38 |
| 2" x 1.5" | US $58.02 | SAR 217.96 |
| 3" x 1.5" | US $62.82 | SAR 235.99 |
| 3" x 2" | US $67.30 | SAR 252.82 |
| 4" x 1.5" | US $75.86 | SAR 284.98 |
| 4" x 2" | US $79.85 | SAR 299.97 |
| 4" x 3" | US $108.81 | SAR 408.76 |
| 6" x 1.5" | US $115.36 | SAR 433.37 |
| 6" x 2" | US $182.68 | SAR 686.26 |
Buy 100% Tested Material Stainless Steel Pharma Reducer for Food and Beverage Industry
Also Refer SS Dairy Eccentric Reducer Weight Chart and Stainless Sanitary Concentric Reducer Dimensions
| Size | Weight (KG) |
|---|---|
| 25 × 19 | 0.10 |
| 38 × 25 | 0.20 |
| 51 × 38 | 0.35 |
| 63 × 51 | 0.50 |
| 76 × 63 | 0.75 |
| 89 × 76 | 1.10 |
| 102 × 89 | 1.50 |
| 114 × 102 | 1.80 |
| 133 × 114 | 2.50 |
| 159 × 133 | 3.20 |
| 219 × 159 | 5.50 |
| 273 × 219 | 8.50 |
| 324 × 273 | 12.50 |
| Size (inches) | A |
|---|---|
| 3/4" X 1/2" | 2.000 |
| 1" X 1/2" | 3.000 |
| 2" X 1/2" | 7.000 |
| 2" X 1" | 5.000 |
| 2" X 1-1/2" | 3.000 |
| 2-1/2" X 1" | 6.000 |
| 2-1/2" X 2" | 3.000 |
| 3" X 1" | 9.000 |
| 3" X 2" | 5.000 |
| 3" X 2-1/2" | 3.000 |
| 4" X 1-1/2" | 11.125 |
| 4" X 2" | 9.125 |
| 4" X 2-1/2" | 7.125 |
| 6" X 3" | 6.875 |
| 8" X 4" | 7.500 |
| 8" X 6" | 7.750 |
