A carbon steel elbow is one of the common fitting in this grade that allows it to change the direction of the flow in different directions. These elbows are generally available in 45 and 90-degree bends. The carbon steel 90 degree elbow helps in effectively changing the direction of the flow by 90 degrees. These elbows are produced in long and short radius configurations. A carbon steel pipe bend has a larger radius of curvature than elbows. These bends allow for smooth flow as there is no irregular surface finish on their interior.
The carbon steel tee is a three-sided grade that is employed in connecting pipe equipment across three separate outlets. A Carbon steel cross has 4 openings with one inlet and three outlets. The cross can have female threads or possess a welded socket. carbon steel stub end is a short piece of pipe that is flared across one of its sides and has a square cut on the other which can be welded or threaded in place. A carbon steel reducer helps in connecting piping grades of different specifications. These fittings act as adapters and ensure a leak-proof connection. The carbon steel pipe cap is a device that helps close the flow and protect the pipe during the transportation and storage of these pipe grades from corrosion and damage. Carbon steel buttweld caps and CS Fittings are quality-assured and can be custom designed to suit all your piping requirements.

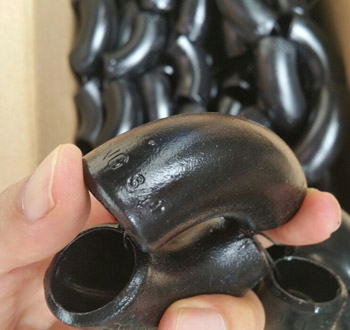

Carbon Steel Elbow

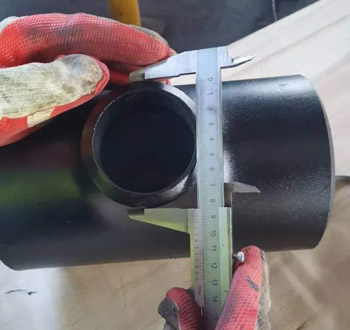

Carbon Steel Tee

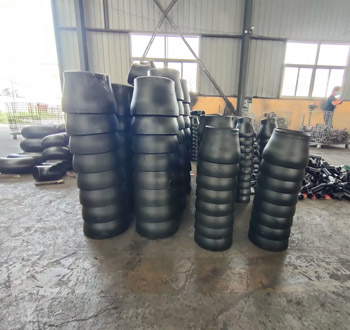

Carbon Steel Reducer
Carbon Steel End Cap
Table of Content
- Why Stockists in Singapore Should Buy CS Buttweld Fittings from Rishabh Steel?
- What Are The Different Coatings Types of CS Pipe Elbow?
- Which 4 Test Reports African Buyers should Ask Before Finalising the Carbon Steel Fittings Material from India
- Carbon Steel Pipe Fittings Specifications
- Carbon Steel Fittings Price List
- CS Fittings Grade
- Production Range Of CS Fittings
- End Connection Of Carbon Steel Tee
- Carbon Steel Fittings Weight Chart
- Manufacturing Standard Of CS Pipe Fittings
- Coating Temperature Of Carbon Steel Pipe Fittings
- Welding Details Of Schedule 10 Carbon Steel Weld Fittings
- Testing & Inspection of SCH 80 Carbon Steel Pipe Fittings
- Pros and Cons of Carbon Steel Buttweld Fittings
- Types of Carbon Steel Fittings
- Carbon Steel Olets Fittings Types
- Carbon Steel Pipe Fittings Forging Machines
- Wall Thickness Of Carbon Steel Elbow
- Carbon Steel Fittings Pressure Rating
- Corrosion Allowance of Carbon Steel Weld Fittings
- DIN Standards Of Carbon Steel Reducer
- Heat Treatment Of Seamless Carbon Steel Fittings
- Melting Point Of Weldbend Carbon Steel Fittings
We keep ready stock of CS Tee in size range of 1/2 inch to 24 inch, Schedule 10 Carbon Steel Elbow Supplier in Mumbai

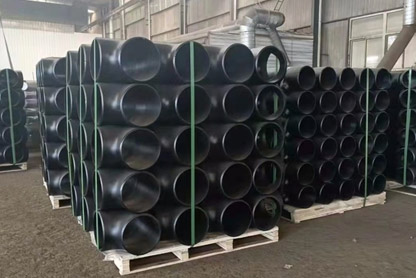

Epoxy Coatings

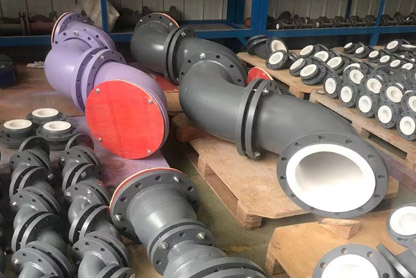

PTFE Coatings

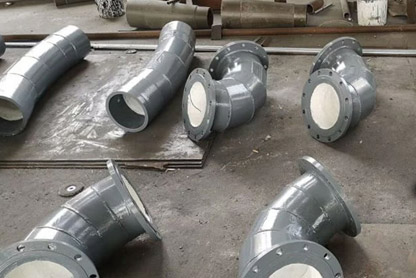

Ceramic Coatings

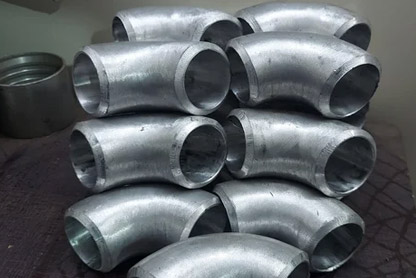

Galvanized Coatings

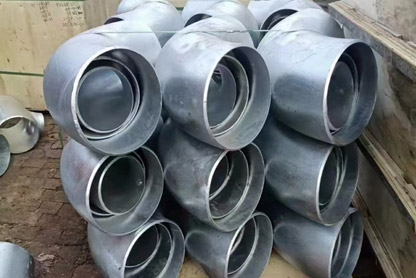

Back Painting Coatings
FBE Coating
Which 4 Test Reports African Buyers should Ask Before Finalising the Carbon Steel Fittings Material from India
-
Mill Test Certificate
-
Dimensional Inspection Report
-
Hydrostatic Test Report
-
Chemical Composition Analysis Report
Manufacturing Size Range :
- Seamless : 1/2" To 24"
- Buttweld : 1/2" To 36"
- Welded : 24" To 96"
- Contact carbon steel pipe fittings manufacturers in India for above 48″
Machines :
- Beveling Machine
- Conventional Machine
- CNC
Documentation :
- Raw material test reports
- Material traceability records
- Fumigation certificates
Wall Thickness :
- Schedule 20 & 40
- Schedule : 80 To 120
- Schedule : 160 To 180
Standard :
- ASME B16.9
- ASME B16.28
- DIN/ JIS/ EN/ ISO
Packaging Types :
- Wooden Cases
- Wooden Pallet
- Carton Box
Melting Point :
- Low carbon = 1410°C
- High carbon = 1425-1540°C
Hardness :
- Rockwell = 60 to 99 HRC
Density :
- 7.84 g/cm3
Applicable Fluids :
- Steam
- Oil and Gas
- Water and Air
Forming Technique :
- Cold formed
- Hot formed
Coating :
- Back painting
- Anti rust
- Zinc coatings
- PE/ PTFE/ FBE coating
ISO Standard :
- ISO 5251
Types :
- Elbow/ Tee/ Reducer
- End Cap/ Stub End
- Pipe Bend/ Pipe Cross
Method :
- Seamless (SMLS)
- Buttweld (BW)
- Welded (Weld)
Service :
- NACE TM-0284
- NACE MR0103
- NACE MR0175
Tolerance :
- +/-12.5%
- Custom
Marking Info :
- Grade & Material
- Manufacturers Name
- Standard & Heat No.
- Size & Schedule
Life :
- Carbon Steel = 5 To 6 Years
Manufacturing Process :
- Machined
- Heat Treated
- Forged
Connection :
- Welding
Process :
- Cutting
- Bending
- Welding
Certificates :
- EN 10204 3.1
- EN 10204 3.2
Surface :
- Sand Rolling
- Sand Blasting
Application :
- Chemical Equipment
- Power Generation
- Petrochemicals
- Oil and Gas
- Pharmaceuticals
Manufacturing Way :
- Butt Weld
- Welding
- Forged
- Casting
- Pushing
Common Testing :
- Mechanical Testing
- Chemical Analysis
- Hyrdrostatic Test
- PMI Test
- Hardness Test
Radius Of Bend :
- 1.5D/ 2D/ 3D
- 4D/ 5D/ 6D
- 8D/ 10D/ 22D
Angle Of Pipe Bend :
- 15 Deg, 22.5 Deg, 30 Deg
- 45 Deg, 60 Deg, 90 Deg
- 135 Deg, 180 Deg
Bending Method :
- Roll bending
- Rotary draw bending
- Hot induction bending
Logistics Types :
- By Sea
- By Air
- Qatar = 6 To 7 day
- Saudi Arabia = 8 to 9 day
- South Africa = 25-30 days
- Qatar = 7 days
- UAE = 7 to 8 day
- Uk = 30 day
Max. Size :
- DN2000
- 120 Inch
Value Added Services :
- Minor Fabrication
- Threading
- Beveling End
- Polishing
- Cutting
Get a Best Price for Carbon Steel Seamless Fittings from leading manufacturers, We have Global sales network for SCH 10 CS Long / Short Radius Elbow
-
Types = 45 Degree Elbow
-
Material = ASTM A234 WPB
-
Method = Seamless
-
Radius = 1.5D
| Size | Schedule 40 (Price in USD) | Schedule 40 Price in UAE (Dirham) | Schedule 40 (Price in Qatari Riyal) |
|---|---|---|---|
| 1/2" | US$ 0.19 | AED 0.70 | QAR 0.69 |
| 3/4" | US$ 0.21 | AED 0.77 | QAR 0.77 |
| 1" | US$ 0.310 | AED 1.14 | QAR 1.13 |
| 1-1/4" | US$ 0.38 | AED 1.40 | QAR 1.39 |
| 1-1/2" | US$ 0.52 | AED 1.91 | QAR 1.90 |
| 2" | US$ 0.77 | AED 2.83 | QAR 2.81 |
| 2-1/2" | US$ 1.52 | AED 5.58 | QAR 5.55 |
| 3" | US$ 2.15 | AED 7.90 | QAR 7.86 |
| 4" | US$ 4.20 | AED 15.43 | QAR 15.35 |
| 5" | US$ 6.70 | AED 24.61 | QAR 24.48 |
| 6" | US$ 10.00 | AED 36.73 | QAR 36.54 |
| 8" | US$ 18.50 | AED 67.95 | QAR 67.60 |
| 10" | US$ 35.00 | AED 128.56 | QAR 127.89 |
| 12" | US$ 55.00 | AED 202.02 | QAR 200.97 |
| 14" | US$ 72.000 | AED 264.46 | QAR 263.08 |
| 16" | US$ 110.00 | AED 404.03 | QAR 401.94 |
| 18" | US$ 150.00 | AED 550.95 | QAR 548.09 |
| 20" | US$ 180.00 | AED 661.15 | QAR 657.71 |
| 24" | US$ 385.00 | AED 1414.12 | QAR 1406.77 |
-
Types = 90 Degree Elbow
-
Material = ASTM A234 WPB
-
Method = Seamless
-
Radius = 1.5D
| Size | Schedule 80 (Price in USD) | Schedule 80 (Price in Saudi Riyal) | Schedule 80 (Price in South African Rand) |
|---|---|---|---|
| 1/2" | US$ 0.25 | SAR 0.71 | ZAR 3.47 |
| 3/4" | US$ 0.32 | SAR 0.79 | ZAR 3.84 |
| 1" | US$ 0.48 | SAR 1.16 | ZAR 5.66 |
| 1-1/4" | US$ 0.60 | SAR 1.43 | ZAR 6.94 |
| 1-1/2" | US$ 0.68 | SAR 1.95 | ZAR 9.50 |
| 2" | US$ 1.02 | SAR 2.89 | ZAR 14.07 |
| 2-1/2" | US$ 2.05 | SAR 5.70 | ZAR 27.77 |
| 3" | US$ 2.75 | SAR 8.07 | ZAR 39.28 |
| 4" | US$ 5.50 | SAR 15.76 | ZAR 76.74 |
| 5" | US$ 9.40 | SAR 25.14 | ZAR 122.42 |
| 6" | US$ 15.00 | SAR 37.52 | ZAR 182.71 |
| 8" | US$ 29.00 | SAR 69.40 | ZAR 338.02 |
| 10" | US$ 56.50 | SAR 131.30 | ZAR 639.49 |
| 12" | US$ 91.00 | SAR 206.33 | ZAR 1004.91 |
| 14" | US$ 137.00 | SAR 270.11 | ZAR 1315.52 |
| 16" | US$ 198.00 | SAR 412.67 | ZAR 2009.82 |
| 18" | US$ 300.00 | SAR 562.73 | ZAR 2740.66 |
| 20" | US$ 400.00 | SAR 675.28 | ZAR 3288.80 |
| 24" | US$ 650.00 | SAR 1444.34 | ZAR 7034.37 |
Rishabh Steel Industries is an IBR Certified Carbon Steel Pipe Fittings Manufacturers in India.
Leading Carbon Steel Split Tee / Stub End Exporter & Stockist in Mumbai, Check CS Buttweld Caps Available Sizes & Weight Chart
Are you looking Genuine Carbon Steel Pipe Fittings Manufacturers in India?, Check Our Production Range
| Types Of Pipe Fittings | Method | Meterial |
|---|---|---|
| ASTM A234 WPB Fittings | ||
| ASME B16.9 Elbow | Buttweld | 1/2" - 24″ |
| 80″ (max.) | ||
| Seamless | 1/2″ To 26″ | |
| 1/2″ To 48″ | ||
| Welded | 12″ To 72″ | |
| 80″ (max.) | ||
| ASME B16.9 Tee | Buttweld | 1/2" - 24″ |
| 80″ (max.) | ||
| Seamless | 12″ To 52″ | |
| 80″ (max.) | ||
| Welded | 36″ To 72″ | |
| 80″ (max.) | ||
| ASME B16.9 Reducer | Buttweld | 1/2" - 24″ |
| 80″ (max.) | ||
| Seamless | 12″ To 72″ | |
| 80″ (maximum) |
-
Beveled End (BE)
-
Butt Welding (BW)
-
Plain End (PE)
| Schedule 40S | DN | Schedule 10S | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 90° Elbow | End cap | 45° Elbow | Stub end type B | Equal tee | Stub end type B | 90° Elbow | End cap | 45° Elbow | Equal tee | |
| 0.08 | 0.04 | 0.04 | 0.08 | 0.10 | 15 | 0.07 | 0.06 | 0.03 | 0.03 | 0.09 |
| 0.08 | 0.07 | 0.04 | 0.11 | 0.17 | 20 | 0.09 | 0.07 | 0.05 | 0.03 | 0.13 |
| 0.15 | 0.10 | 0.11 | 0.17 | 0.29 | 25 | 0.16 | 0.14 | 0.08 | 0.08 | 0.28 |
| 0.26 | 0.18 | 0.17 | 0.25 | 0.59 | 32 | 0.22 | 0.23 | 0.10 | 0.11 | 0.49 |
| 0.40 | 0.20 | 0.23 | 0.31 | 0.86 | 40 | 0.25 | 0.30 | 0.11 | 0.17 | 0.68 |
| 0.70 | 0.23 | 0.40 | 0.61 | 1.28 | 50 | 0.43 | 0.50 | 0.13 | 0.25 | 0.85 |
| 1.40 | 0.27 | 0.77 | 0.80 | 2.19 | 65 | 0.57 | 0.85 | 0.19 | 0.48 | 1.41 |
| 2.20 | 0.42 | 1.08 | 1.13 | 3.31 | 80 | 0.72 | 1.25 | 0.25 | 0.63 | 1.77 |
| 4.47 | 1.14 | 1.47 | 1.87 | 5.27 | 100 | 1.09 | 2.10 | 0.68 | 1.08 | 3.46 |
| 6.80 | 2.13 | 2.84 | 2.79 | 9.63 | 125 | 1.47 | 3.65 | 1.11 | 1.82 | 5.44 |
| 10.89 | 3.23 | 5.44 | 3.57 | 10.99 | 150 | 2.15 | 5.45 | 1.42 | 2.72 | 8.03 |
| 21.54 | 5.19 | 10.77 | 6.07 | 20.91 | 200 | 3.22 | 10.20 | 2.38 | 5.33 | 15.65 |
| 38.56 | 9.00 | 19.27 | 10.07 | 35.38 | 250 | 5.13 | 18.15 | 4.45 | 9.75 | 26.76 |
| 59.42 | 15.00 | 29.71 | 14.29 | 62.14 | 300 | 8.16 | 25.80 | 7.50 | 13.62 | 39.46 |
| 79.38 | 16.00 | 35.15 | 17.14 | 79.31 | 350 | 10.88 | 36.29 | 8.17 | 18.37 | 48.53 |
| 99.79 | 21.00 | 45.81 | 20.41 | 99.79 | 400 | 12.70 | 47.63 | 10.67 | 23.81 | 58.97 |
| 129.73 | 26.00 | 59.40 | 27.21 | 129.73 | 450 | 17.23 | 59.87 | 13.00 | 29.94 | 79.65 |
| 162.38 | 34.00 | 74.84 | 29.94 | 162.39 | 500 | 21.77 | 99.80 | 17.00 | 49.90 | 103.42 |
| 225.89 | 52.00 | 105.23 | 38.55 | 225.90 | 600 | 27.21 | 140.61 | 26.00 | 70.31 | 155.58 |
| Schedule 40S | DN | Schedule 10S | Schedule 80S | ||||||
|---|---|---|---|---|---|---|---|---|---|
| 90° Elbow | 45° Elbow | Equal tee | 45° Elbow | 90° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | |
| 0.03 | 0.02 | 0.06 | 8 | 0.01 | 0.02 | 0.03 | 0.04 | 0.03 | 0.07 |
| 0.03 | 0.02 | 0.03 | 10 | 0.02 | 0.03 | 0.05 | 0.06 | 0.04 | 0.09 |
| 0.08 | 0.04 | 0.10 | 15 | 0.03 | 0.06 | 0.09 | 0.10 | 0.05 | 0.14 |
| 0.08 | 0.04 | 0.17 | 20 | 0.03 | 0.07 | 0.13 | 0.11 | 0.05 | 0.20 |
| 0.15 | 0.11 | 0.29 | 25 | 0.08 | 0.14 | 0.28 | 0.22 | 0.14 | 0.38 |
| 0.26 | 0.17 | 0.59 | 32 | 0.11 | 0.23 | 0.49 | 0.40 | 0.23 | 0.68 |
| 0.40 | 0.23 | 0.86 | 40 | 0.17 | 0.30 | 0.68 | 0.51 | 0.29 | 1.02 |
| 0.70 | 0.4 | 1.28 | 50 | 0.25 | 0.50 | 0.85 | 0.91 | 0.59 | 1.59 |
| 1.40 | 0.77 | 2.19 | 65 | 0.48 | 0.85 | 1.41 | 1.81 | 0.99 | 3.13 |
| 2.20 | 1.08 | 3.31 | 80 | 0.63 | 1.25 | 1.77 | 2.97 | 1.50 | 4.45 |
| 2.83 | 1.42 | 4.08 | 90 | 0.75 | 1.70 | 2.67 | 4.00 | 2.00 | 5.44 |
| 4.47 | 2.09 | 5.27 | 100 | 1.08 | 2.10 | 3.46 | 6.18 | 2.81 | 7.71 |
| 10.89 | 5.44 | 10.99 | 150 | 2.72 | 5.45 | 8.07 | 16.32 | 8.16 | 13.61 |
| 21.54 | 10.77 | 20.91 | 200 | 5.33 | 10.20 | 15.65 | 33.11 | 16.56 | 28.12 |
| 38.56 | 19.27 | 35.38 | 250 | 9.75 | 18.15 | 26.46 | 51.71 | 25.86 | 49.90 |
| 59.42 | 29.71 | 62.14 | 300 | 13.62 | 25.80 | 39.46 | 79.38 | 39.69 | 83.91 |
Rishabh Steel Industries manufacturer of carbon steel elbow in Mumbai and Gujarat since year 2001.
| Standard | Method | Size | Schedule |
|---|---|---|---|
| ASME B16.9 | BW/ SMLS/ Welded | 1/2″ to 24″ | SCH 10 To 180 |
| ASME B16.28 | SMLS/ Welded | 1/2” to 24″ | SCH 40 To 120 |
| ASME B16.25 | SMLS/ Welded | 12″ to 48″ | SCH 80 |
| DIN | BW/ SMLS | DN15 To DN600 | SCH 20 To 120 |
| EN | BW/ SMLS | DN15 To DN400 | SCH 20 |
| JIS | BW/ SMLS | DN15 To DN200 | - |
Buy High Pressure Carbon Steel Buttweld Fittings at factotry Price and Fastest Delivery for CS Stub End / Pipe Bend, View Coating Temperature and Welding Details
| Coating Types | Temperature |
|---|---|
| PTFE coating | +260°C |
| Zinc coating | 420°C to 650°C |
| Anti rust coating | 10°C – 30°C |
| PE coating | Up to 80 °C |
| FBE coating | 225° to 245°C |
-
GMAW (Gas metal arc welding)
-
FCAW (Flux cored arc welding)
-
TIG (Tungsten inert gas welding)
-
SMAW (Shielded metal arc welding)
Impact Test

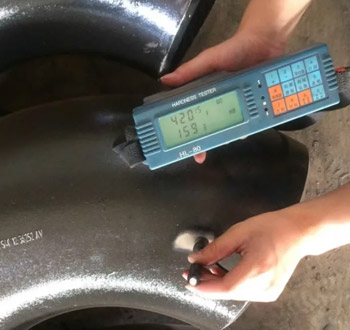

Hardness Test

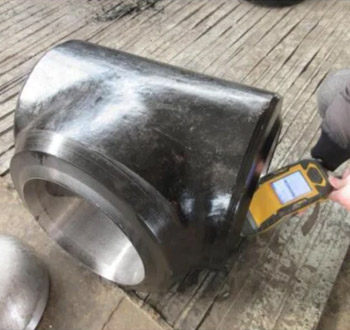

PMI Testing
Hydrostatic Testing
| Pros | Cons |
|---|---|
| Highly durable | High Cost |
| High temperature resistant | Not easily bent |
| Easily cleaned | Poor hot hardness |
| Recyclable | Very low hardenability |
| Higher strength | Limitation to heat treatment |
Low Temperature Carbon Steel Reducing Tee
Killed Carbon Steel 180 Degree Elbows
MS Stub End
Carbon steel 45 Degree Elbows
SCH 10 Carbon Steel Cross Fitting
Mild Steel 90 Degree Elbows
Schedule 10 Carbon Steel Laterals
Black Steel Elbow
Mild Steel Cross Tee
Plain Carbon Steel Pipe Fittings
Black Carbon Steel Concentric Reducer
CS Equal Tee
Low Temp Carbon Steel End Cap
Killed Carbon Steel Eccentric Reducer
MS Lap Joint Stub Ends
Carbon steel Reducer
Mild Steel Weld Elbows
CS Return Bends
Carbon Steel Threaded Outlets
Killed Carbon Steel Lateral Outlets
MS Nipple Outlets
Black Steel Welding Outlets
CS Elbow Outlets
Low Temp Carbon Steel Socket Weld Outlets
Carbon Steel Swept Outlets
Carbon Steel Pipe Fittings Forging Machines
- Hydraulic Press 300 Tons Capacity
- Radial Driling Machine
- Conventional Machine
- Elbow Cold Forming Machines
- CNC Lath
- Heat Treatment For Forged Fitting
- Elbow Beveling Machine
- Oil Fired Heat Treatment Furnace
- Hydraulic Press 150 Tons Capacity
- Tee Beveling Machine
- Portable Temperature Indicator
- Tee Cold Forming Machines
-
Schedule 10
-
SCH 20
-
Schedule 30
-
SCH STD
-
Schedule 40
-
SCH 60
-
Schedule 80
-
SCH 100
-
Schedule 120
-
SCH 140
-
Schedule 160
-
SCH 180
Our ASME B16.9 Carbon Steel Concentric Reducer are very cost-effective, Specialise in distributing CS Weld Fittings, Refer Pressure Rating and Heat Treatment.
| NPS | Working Pressure in LBS (-20 to 650 °F) |
|---|---|
| 1/2 | 1695 |
| 3/4 | 1455 |
| 1 | 1575 |
| 1 1/4 | 1065 |
| 1 1/2 | 1005 |
| 2 | 900 |
| 2 1/2 | 1215 |
| 3 | 1095 |
| 3 1/2 | 1020 |
| 4 | 975 |
| 5 | 885 |
| 6 | 840 |
| 8 | 765 |
| 10 | 720 |
| 12 | 630 |
| 14 | 570 |
| 16 | 495 |
| 18 | 450 |
| 20 | 405 |
| 24 | 330 |
| 30 | 265 |
| 36 | 220 |
| 42 | 189 |
| 48 | 165 |
| NPS | Working Pressure in LBS (700 °F) |
|---|---|
| 1/2 | 1621 |
| 3/4 | 1392 |
| 1 | 1506 |
| 1 1/4 | 1019 |
| 1 1/2 | 960 |
| 2 | 861 |
| 2 1/2 | 1162 |
| 3 | 1047 |
| 3 1/2 | 975 |
| 4 | 932 |
| 5 | 846 |
| 6 | 803 |
| 8 | 731 |
| 10 | 688 |
| 12 | 602 |
| 14 | 545 |
| 16 | 473 |
| 18 | 430 |
| 20 | 387 |
| 24 | 315 |
| 30 | 254 |
| 36 | 198 |
| 42 | 181 |
| 48 | 158 |
| NPS | Working Pressure in LBS (750 °F) |
|---|---|
| 1/2 | 1463 |
| 3/4 | 1256 |
| 1 | 1359 |
| 1 1/4 | 919 |
| 1 1/2 | 867 |
| 2 | 777 |
| 2 1/2 | 1048 |
| 3 | 945 |
| 3 1/2 | 880 |
| 4 | 841 |
| 5 | 764 |
| 6 | 725 |
| 8 | 660 |
| 10 | 621 |
| 12 | 543 |
| 14 | 492 |
| 16 | 427 |
| 18 | 388 |
| 20 | 349 |
| 24 | 284 |
| 30 | 229 |
| 36 | 178 |
| 42 | 163 |
| 48 | 143 |
| NPS | Working Pressure in LBS (800 °F) |
|---|---|
| 1/2 | 1220 |
| 3/4 | 1046 |
| 1 | 1134 |
| 1 1/4 | 766 |
| 1 1/2 | 723 |
| 2 | 648 |
| 2 1/2 | 874 |
| 3 | 788 |
| 3 1/2 | 734 |
| 4 | 702 |
| 5 | 637 |
| 6 | 604 |
| 8 | 550 |
| 10 | 518 |
| 12 | 453 |
| 14 | 410 |
| 16 | 356 |
| 18 | 354 |
| 20 | 291 |
| 24 | 237 |
| 30 | 190 |
| 36 | 148 |
| 42 | 136 |
| 48 | 118 |
-
1.5 MM
-
DIN 2616-2 Concentric Reducer
-
DIN 28011 Torispherical heads
-
DIN 2605 Elbow
-
DIN 2615 Tee
-
DIN 2616-1 Eccentric Reducer
-
DIN 2618 Saddle
-
550°C for 1 hour
-
Cooling rate = 38°C per minute
-
1410°C for low carbon
-
1425-1540°C for high carbon
2", SCH 40, SMLS, ASTM A234 WPB, 1.5D, 45 Deg Elbow for A Project in Singapore
3", SCH 80, ASTM A420 WPL6, Reducing Tee, for A Project in Oman
1 1/2", End Cap, SCH XS, WPHY 60, for Malaysia Project
12", SCH 20, WHPY 52, 90 Deg Elbow, 1.5D, specially made for Indonesia Client
