The WPHY 42 grade covers wrought carbon pressurized component that is employed to route, branch and change the direction of flow. WPHY 42 Fittings are designed with a chemical content of nickel, chromium, molybdenum, copper, and titanium with other constituting alloys. These fittings showcase enhanced resistance to corrosive and reducing media. The versatile WPHY-42 Specification covers seamless, welded, and fabricated fittings that are available in sizes of ½ NB to 48 NB. These specifications are schedules of SCH 10 to SCH 160 or XXS. The A860 WPHY 42 grade is designed in dimensions of ANSI/ASME B16.9, B16.28, and MSS-SP-43 configurations. The components possess a bending radius of 1D, 2D, 3D, 5D, 6D, 8D, 10D, or customized sizes. ASTM A860 WPHY 42 grade has excellent toughness with outstanding resistance to chloride crack cracking. The items have enhanced weldability and possess good durability. An MSS SP75 WPHY 42 grade covers wrought butt-weld fittings that can work well in high pressure and temperature setups. The components are designed with the best raw materials and latest technology. The WPHY 42 Material is designed with superior mechanical performance. They have a tensile strength between 515 to 690mpa with a minimum yield strength of 415mpa and can be elongated by 28% in the system. Our company is a WPHY 42 Fittings manufacturer in India who have a large stock of components of different sizes that can fullfill different requirements.

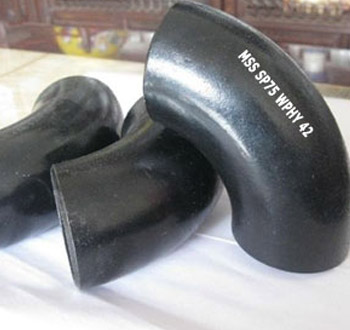

The WPHY 42 Elbow is one of the most common fittings in this range that is utilized to change the direction of pressurized flow in the system. These elbows possess a good design geometry and can be availed in different specifications and sizes. The versatile WPHY 42 Buttweld Reducer is a high-strength adapter that is used to join piping grades of dissimilar sizes. They are quality-assured and can be availed at reasonable prices.
Grade | WPHY 42 Fittings |
---|---|
Type | Welded / Fabricated / Seamless WPHY 42 fittings |
Dimensions | ANSI/ASME B16.28, B16.9, MSS-SP-43, MSS-SP-75. |
Bending Radius | R=2D, 6D, 3D, 1D, 5D, 10D, 8D |
Wall thickness | Schedule 10 to XXS according to NACE MR 01-75 |
Size Range | Seamless ½” to 24”, ½" upto 120" NB, Welded ½” to 120”, Two Halve/ Two Joint Fittings 6” upto 48” |
Color | Black |
Material | Elbows, Fittings, Reducers, Pipe fittings, Tees, Caps |
Surface treatment | Sand Rolling and Blasting |
Applicable Standards |
|
WPHY 42 Fittings Types | Long Radius Bends, Bend, Elbows, Short Radius Elbow, Equal Tee, Piggable Bends, Long Radius Elbow, Tee, Cross, Reducer, Reducing Tee, Concentric Reducer, Eccentric Reducer, Con Reducer, Pipe End Caps, Ecc Reducer fittings |
Uses | Gas, chemical, metallurgy, power, shipbuilding, Petroleum, etc |
Seamless/ Welded WPHY 42 Elbow 100% Radiography Tested |
Description | Price Per Piece In Singapore | Price Per Piece In UAE | Price Per Piece In USD | Price Per Piece In Malaysia |
---|---|---|---|---|
4 inch Alloy Steel Fittings ASTM A860 Wphy 42 Lr 90 Degree Elbow | SGD 1.38 | Dirham 3.67 | US $ 1.00 | MYR 4.39 |
1/2" NB X 48" ASTM A860 WPHY 42 High Yield Carbon Steel Fittings | SGD 55.13 | Dirham 146.92 | US $ 40.00 | MYR 175.80 |
5D ASTM A860 Wphy 42 Pipe Fitting Bend Steel Carbon | SGD 1.30 | Dirham 3.45 | US $ 0.94 | MYR 4.13 |
1/2" NB X 48" Buttweld ASTM A860 WPHY 42 Pipe Fittings | SGD 3.20 | Dirham 8.52 | US $ 2.32 | MYR 10.20 |
2 inch ASTM A860 WPHY 42 Pipe Fitting | SGD 3.02 | Dirham 11.02 | US $ 2.19 | MYR 9.63 |
3 inch Steel ASTM A860 WPHY 42 Pipe Fittings | SGD 1.34 | Dirham 3.56 | US $ 0.97 | MYR 4.26 |
ASTM A860 WPHY 42 45 Degree Elbows
Carbon Steel Grade 42 90 Degree Elbows
MSS SP 75 WPHY 42 Return Bends
A860 MSS SP 75 WPHY 42 Weld Elbows
ASTM A860 Gr WPHY 42 Reducer
Carbon Steel API 5L X42 Elbows
A860 Grade WPHY 42 Eccentric Reducer
MSS SP-75 Gr WPHY 42 180 Degree Elbows
Carbon Steel X42 Lap Joint Stub Ends
Grade WPHY 42 Stub Ends
WPHY 42 Fittings

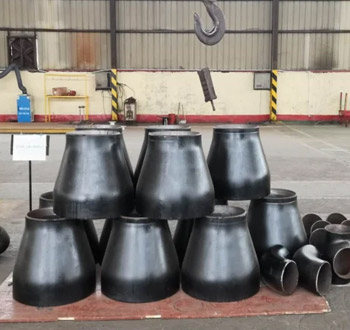

MSS SP75 WPHY 42 Concentric Reducer
High-Yield 42000 PSI Laterals

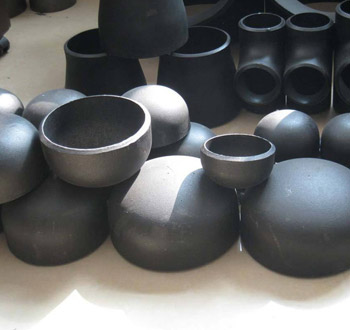

A860 WPHY 42 End Cap
API 5L X42 Reducing Tee
ASTM A860 MSS SP 75 WPHY 42 Cross Tee
ASTM A860 Grade WPHY 42 Cross fitting

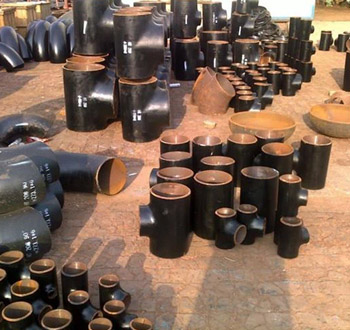

A860 Gr WPHY 42 Equal Tee
Nominal size | OD | Elbows | Reducer | Caps | Returns | Stubs Ends | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Short | Long | Long | Short | Long | Short | Radius of fillet | Diam. of Lap | ||||||||
90 deg | 90 deg | 45 deg | |||||||||||||
DN | NPS | D | A | A | B | H | E | O | K | O | K | F | F | R | G |
20 | ¾ | 26.7 | 38 | 19 | 38 | 25 | 76 | 51 | 76 | 51 | 3 | 43 | |||
32 | 11/4 | 42.2 | 32 | 48 | 25 | 51 | 38 | 95 | 70 | 64 | 52 | 102 | 51 | 5 | 64 |
40 | 11/2 | 48.3 | 38 | 57 | 29 | 64 | 38 | 114 | 83 | 76 | 62 | 102 | 51 | 6 | 73 |
50 | 2 | 60.3 | 51 | 76 | 35 | 76 | 38 | 152 | 106 | 102 | 81 | 152 | 64 | 8 | 92 |
65 | 21/2 | 73.0 | 64 | 95 | 44 | 89 | 38 | 190 | 132 | 127 | 100 | 152 | 64 | 8 | 106 |
80 | 3 | 88.9 | 76 | 114 | 51 | 89 | 51 | 229 | 159 | 152 | 121 | 152 | 64 | 10 | 127 |
90 | 31/2 | 101.6 | 89 | 133 | 57 | 102 | 64 | 267 | 184 | 178 | 140 | 152 | 76 | 10 | 140 |
15 | ½ | 21.3 | 38 | 16 | 25 | 76 | 48 | 76 | 51 | 3 | 35 | ||||
100 | 4 | 114.3 | 102 | 152 | 64 | 102 | 64 | 305 | 210 | 203 | 159 | 152 | 76 | 11 | 157 |
200 | 8 | 219.1 | 203 | 305 | 127 | 152 | 102 | 610 | 414 | 406 | 313 | 203 | 102 | 13 | 270 |
250 | 10 | 273.0 | 254 | 381 | 159 | 178 | 127 | 762 | 518 | 508 | 391 | 254 | 127 | 13 | 324 |
300 | 12 | 323.8 | 305 | 457 | 190 | 203 | 152 | 914 | 619 | 610 | 467 | 254 | 152 | 13 | 381 |
350 | 14 | 355.6 | 356 | 533 | 222 | 330 | 165 | 1067 | 711 | 711 | 533 | 305 | 152 | 13 | 413 |
125 | 5 | 141.3 | 127 | 190 | 79 | 127 | 76 | 381 | 262 | 254 | 197 | 203 | 76 | 11 | 185 |
400 | 16 | 406.4 | 406 | 610 | 254 | 356 | 178 | 1219 | 813 | 813 | 610 | 305 | 152 | 13 | 470 |
25 | 1 | 33.4 | 25 | 38 | 22 | 51 | 38 | 76 | 56 | 51 | 41 | 102 | 51 | 3 | 51 |
450 | 18 | 457 | 457 | 686 | 286 | 381 | 203 | 1372 | 914 | 914 | 686 | 305 | 152 | 13 | 533 |
500 | 20 | 508 | 508 | 762 | 318 | 508 | 229 | 1524 | 1016 | 1016 | 762 | 305 | 152 | 13 | 584 |
1050 | 42 | 1067 | 1600 | 660 | 610 | 305 | |||||||||
550 | 22 | 559 | 559 | 838 | 343 | 508 | 254 | 1676 | 1118 | 1118 | 838 | 305 | 152 | 13 | 641 |
150 | 6 | 168.3 | 152 | 229 | 95 | 140 | 89 | 457 | 313 | 305 | 237 | 203 | 89 | 13 | 218 |
600 | 24 | 610 | 610 | 914 | 381 | 508 | 267 | 1829 | 1219 | 1219 | 914 | 305 | 152 | 13 | 692 |
650 | 26 | 660 | 991 | 405 | 610 | 267 | |||||||||
700 | 28 | 711 | 1067 | 438 | 610 | 267 | |||||||||
750 | 30 | 762 | 1143 | 470 | 610 | 267 | |||||||||
1100 | 44 | 1118 | 1676 | 695 | 610 | 343 | |||||||||
800 | 32 | 813 | 1219 | 502 | 610 | 267 | |||||||||
850 | 34 | 864 | 1295 | 533 | 610 | 267 | |||||||||
900 | 36 | 914 | 1372 | 565 | 610 | 267 | |||||||||
950 | 38 | 965 | 1448 | 600 | 610 | 305 | |||||||||
1200 | 48 | 1219 | 1829 | 759 | 711 | 343 | |||||||||
1000 | 40 | 1016 | 1524 | 632 | 610 | 305 | |||||||||
1150 | 46 | 1168 | 1753 | 727 | 711 | 343 |
DN | Schedule 10S | Schedule 40S | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
45° Elbow | 90° Elbow | Equal tee | Stub end type (B) | End cap | 45° Elbow | 90° Elbow | Equal tee | End cap | Stub end type (B) | |
15 | 0.03 | 0.06 | 0.09 | 0.07 | 0.03 | 0.04 | 0.08 | 0.10 | 0.04 | 0.08 |
20 | 0.03 | 0.07 | 0.13 | 0.09 | 0.05 | 0.04 | 0.08 | 0.17 | 0.07 | 0.11 |
25 | 0.08 | 0.14 | 0.28 | 0.16 | 0.08 | 0.11 | 0.15 | 0.29 | 0.10 | 0.17 |
32 | 0.11 | 0.23 | 0.49 | 0.22 | 0.10 | 0.17 | 0.26 | 0.59 | 0.18 | 0.25 |
40 | 0.17 | 0.30 | 0.68 | 0.25 | 0.11 | 0.23 | 0.40 | 0.86 | 0.20 | 0.31 |
50 | 0.25 | 0.50 | 0.85 | 0.43 | 0.13 | 0.40 | 0.70 | 1.28 | 0.23 | 0.61 |
65 | 0.48 | 0.85 | 1.41 | 0.57 | 0.19 | 0.77 | 1.40 | 2.19 | 0.27 | 0.80 |
80 | 0.63 | 1.25 | 1.77 | 0.72 | 0.25 | 1.08 | 2.20 | 3.31 | 0.42 | 1.13 |
100 | 1.08 | 2.10 | 3.46 | 1.09 | 0.68 | 1.47 | 4.47 | 5.27 | 1.14 | 1.87 |
125 | 1.82 | 3.65 | 5.44 | 1.47 | 1.11 | 2.84 | 6.80 | 9.63 | 2.13 | 2.79 |
150 | 2.72 | 5.45 | 8.03 | 2.15 | 1.42 | 5.44 | 10.89 | 10.99 | 3.23 | 3.57 |
200 | 5.33 | 10.20 | 15.65 | 3.22 | 2.38 | 10.77 | 21.54 | 20.91 | 5.19 | 6.07 |
250 | 9.75 | 18.15 | 26.76 | 5.13 | 4.45 | 19.27 | 38.56 | 35.38 | 9.00 | 10.07 |
300 | 13.62 | 25.80 | 39.46 | 8.16 | 7.50 | 29.71 | 59.42 | 62.14 | 15.00 | 14.29 |
350 | 18.37 | 36.29 | 48.53 | 10.88 | 8.17 | 35.15 | 79.38 | 79.31 | 16.00 | 17.14 |
400 | 23.81 | 47.63 | 58.97 | 12.70 | 10.67 | 45.81 | 99.79 | 99.79 | 21.00 | 20.41 |
450 | 29.94 | 59.87 | 79.65 | 17.23 | 13.00 | 59.40 | 129.73 | 129.73 | 26.00 | 27.21 |
500 | 49.90 | 99.80 | 103.42 | 21.77 | 17.00 | 74.84 | 162.38 | 162.39 | 34.00 | 29.94 |
600 | 70.31 | 140.61 | 155.58 | 27.21 | 26.00 | 105.23 | 225.89 | 225.90 | 52.00 | 38.55 |
PIPE NOMINAL SIZE | OUTSIDE DIAM. | 90° ELBOW | 45° ELBOW | 180° RETURNS | ||||
---|---|---|---|---|---|---|---|---|
(inches) | Short Radius | Long Radius | Long Radius | Long Radius | ||||
(mm) | (inches) | Center to Face (inches) |
Center to Face (inches) |
Radius (inches) |
Center to Face (inches) |
Back to face (inches) |
Center to Center (inches) |
|
3/4 | 26.7 | 1.050 | – | 1 1/8 | 7/16 | 1 11/16 | 2 1/4 | |
1/2 | 21.3 | 0.840 | – | 1 1/2 | 5/8 | 1 7/8 | 2 | |
1 | 33.4 | 1.315 | 1 | 1 1/2 | 7/8 | 2 3/16 | 3 | |
1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 3 | 1 1/8 | 3 1/4 | 4 1/2 |
1 1/4 | 42.2 | 1.660 | 1 1/4 | 1 7/8 | 1 | 2 3/4 | 3 3/4 | |
2 | 60.3 | 2.375 | 2 | 3 | 4 | 1 3/8 | 4 3/16 | 6 |
3 | 88.9 | 3.500 | 3 | 4 1/2 | 6 | 2 | 6 1/4 | 9 |
2 1/2 | 73.0 | 2.875 | 2 1/2 | 3 3/4 | 5 | 1 3/4 | 5 3/16 | 7 1/2 |
3 1/2 | 101.6 | 4.000 | 3 1/2 | 5 1/4 | 7 | 2 1/4 | 7 1/4 | 10 1/2 |
5 | 141.3 | 5.563 | 5 | 7 1/2 | 10 | 3 1/8 | 10 5/16 | 15 |
4 | 114.3 | 4.500 | 4 | 6 | 8 | 2 1/2 | 8 1/4 | 12 |
6 | 168.3 | 6.625 | 6 | 9 | 12 | 3 3/4 | 12 5/16 | 18 |
10 | 273.1 | 10.750 | 10 | 15 | 15 | 6 1/4 | 20 3/8 | 30 |
8 | 219.1 | 8.625 | 8 | 12 | 12 | 5 | 16 5/16 | 24 |
12 | 323.9 | 12.750 | 12 | 18 | 18 | 7 1/2 | 24 3/8 | 36 |
45° Long Radius Center to End B |
90° Long Radius Center to End A |
NPS | 45° 3D Center to End B |
90° 3D Center to End A |
O.D. D |
---|---|---|---|---|---|
57 | 133 | 3.1/2 | 111 | 267 | 101.6 |
64 | 152 | 4 | 127 | 305 | 114.3 |
79 | 190 | 5 | 157 | 381 | 141.3 |
95 | 229 | 6 | 189 | 457 | 168.3 |
127 | 305 | 8 | 252 | 610 | 219.1 |
16 | 38 | 1/2 | 21.3 | ||
19 | 38 | 3/4 | 24 | 57 | 26.7 |
22 | 38 | 1 | 31 | 76 | 33.4 |
25 | 48 | 1.1/4 | 39 | 95 | 42.2 |
29 | 57 | 1.1/2 | 47 | 114 | 48.3 |
35 | 76 | 2 | 63 | 152 | 60.3 |
44 | 95 | 2.1/2 | 79 | 190 | 73 |
51 | 114 | 3 | 95 | 229 | 88.9 |
159 | 381 | 10 | 316 | 762 | 273 |
190 | 457 | 12 | 378 | 914 | 323.8 |
222 | 533 | 14 | 441 | 1067 | 355.6 |
254 | 610 | 16 | 505 | 1219 | 406.4 |
O.D. (mm) | Nominal Pipe Size | W.T. (mm) | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
Sch 5S | Sch 10S | Sch 40S | Sch 80S | |||||||
NPS | DN | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | |
10.3 | ⅛ | 6 | 0.28 | 1.24 | 0.37 | 1.73 | 0.47 | 2.41 | ||
13.7 | ¼ | 8 | 0.49 | 1.65 | 0.63 | 2.24 | 0.80 | 3.02 | ||
17.1 | ⅜ | 10 | 0.63 | 1.65 | 0.84 | 2.31 | 1.10 | 3.20 | ||
21.3 | ½ | 15 | 0.80 | 1.65 | 1.00 | 2.11 | 1.27 | 2.77 | 1.62 | 3.73 |
26.7 | ¾ | 20 | 1.02 | 1.65 | 1.28 | 2.11 | 1.69 | 2.87 | 2.20 | 3.91 |
33.4 | 1 | 25 | 1.29 | 1.65 | 2.09 | 2.77 | 2.50 | 3.38 | 3.24 | 4.55 |
42.2 | 1¼ | 32 | 1.65 | 1.65 | 2.69 | 2.77 | 3.39 | 3.56 | 4.47 | 4.85 |
48.3 | 1½ | 40 | 1.90 | 1.65 | 3.11 | 2.77 | 4.05 | 3.68 | 5.41 | 5.08 |
60.3 | 2 | 50 | 2.39 | 1.65 | 3.93 | 2.77 | 5.44 | 3.91 | 7.48 | 5.54 |
73.0 | 2½ | 65 | 3.69 | 2.11 | 5.26 | 3.05 | 8.63 | 5.16 | 11.41 | 7.01 |
88.9 | 3 | 80 | 4.52 | 2.11 | 6.46 | 3.05 | 11.29 | 5.49 | 15.27 | 7.62 |
101.6 | 3½ | 90 | 5.18 | 2.11 | 7.41 | 3.05 | 13.57 | 5.74 | 18.64 | 8.08 |
114.3 | 4 | 100 | 5.84 | 2.11 | 8.37 | 3.05 | 16.08 | 6.02 | 22.32 | 8.56 |
141.3 | 5 | 125 | 9.46 | 2.77 | 11.56 | 3.40 | 21.77 | 6.55 | 30.97 | 9.53 |
168.3 | 6 | 150 | 11.31 | 2.77 | 13.83 | 3.40 | 28.26 | 7.11 | 42.56 | 10.97 |
219.1 | 8 | 200 | 14.78 | 2.77 | 19.97 | 3.76 | 42.55 | 8.18 | 64.64 | 12.70 |
273.1 | 10 | 250 | 22.61 | 3.40 | 27.79 | 4.19 | 60.31 | 9.27 | 81.56 | 12.70 |
323.9 | 12 | 300 | 31.25 | 3.96 | 35.99 | 4.57 | 73.88 | 9.53 | 97.47 | 12.70 |
355.6 | 14 | 350 | 34.34 | 3.96 | 41.36 | 4.78 | 81.33 | 9.53 | 107.40 | 12.70 |
406.4 | 16 | 400 | 41.56 | 4.19 | 47.34 | 4.78 | 93.27 | 9.53 | 123.31 | 12.70 |
457 | 18 | 450 | 46.79 | 4.19 | 53.31 | 4.78 | 105.17 | 9.53 | 139.16 | 12.70 |
508 | 20 | 500 | 59.32 | 4.78 | 68.65 | 5.54 | 117.15 | 9.53 | 155.13 | 12.70 |
559 | 22 | 550 | 65.33 | 4.78 | 75.62 | 5.54 | ||||
610 | 24 | 600 | 82.58 | 5.54 | 94.53 | 6.35 | 141.12 | 9.53 | 187.07 | 12.70 |
660 | 26 | 650 | ||||||||
711 | 28 | 700 | ||||||||
762 | 30 | 750 | 118.34 | 6.35 | 147.29 | 7.92 |
Al | P | Mn | S | Ni | Si | Cr | Cu | Mo | Ti | V | Cb |
---|---|---|---|---|---|---|---|---|---|---|---|
0.04 | 1.00-1.45 | 0.20 | 0.03 | 0.15-0.40 | 0.01 | 0.50 | 0.25 | 0.30 | 0.35 | 0.05 | 0.10 |
Yield Properties (0.2%Offset) | Tensile Properties | Elongational |
---|---|---|
415 | 515-690 | 28 % |
