ASTM A234 WP11 Fittings

The ASTM A234 covers standard specifications for steel pipe fittings that are suitable for moderate to high temperatures. ASTM A234 WP11 Fittings are versatile devices that are designed to characterize the flow in the system. These fittings are a chrome-moly grade that gives it enhanced resistance to reducing and corrosive media. The WP11 Fittings are designed to work in oil and gas industries. These fittings help in impacting the movement of gaseous and fluid media. The A234 WP11 Material can be designated into three classes. The material has a tensile strength between 415 to 585mpa and possesses a minimum yield strength of 205mpa. They can be easily elongated by 20% in the system.

The A234 Gr WP11 Elbow is a device that is designed to change the direction of media. These elbows help ensure a smooth flow of gaseous and fluid media. They can be produced in 45, 90, 180 and 22.5 degree turns. ASTM A234 WP11 Cap is a versatile module that is designed to cut the flow in the system. These caps ensure that the pipe stays protected from corrosion and damage. The ASTM A234 Gr WP11 Stub End is a short length of a pipe grade that has one flared end with a square cut on the other end. They are utilized as an alternative to standard flanges. An A234 WP11 Buttweld Tee is a strong module that is shaped in the form of a T. These components have two outlets at 90 degrees connected to one main connection line. The SA 234 WP11 Reducer is a pressurized grade that is employed in connecting dissimilar piping grades together. These reducers can be customized to meet all customer requirements.

We Supply ASTM A234 Gr WP11 Reducer with MTC and NDT Test Certificates, Leading Exporter of A234 WP11 Cl2 Buttweld Fittings

ASME SA 234 WP11 Seamless Fittings Specification

Specification ASTM/ ASME A/SA234
Dimensions ANSI/ASME B16.28, B16.9, MSS-SP-43.
Type Welded / Seamless / Fabricated / Forged
Bending Radius R= 6D, 5D, 2D, 1D, 3D, 10D, 8D
Range ½” NB upto 48″ NB in Sch 10s to XXS ASTM A234 WP11 Fittings
End Prep
  • Squared Ends
  • Beveled Ends
  • Cut Grooves
  • Flanged Ends
  • Threaded Ends (Male & Female)
  • Victaulic Grooves
ASTM A234 WP11 Fittings Applicable Standards ASME B 16.9 for large Bore
ASME B 16.25 for butt weld ends
ASME B 16.11 for small Bore (socket welded)
ASME B 16.28 for small radius elbow

Price List ASTM A234 Grade WP11 Fittings

Why to buy from stockist? Buy directly through ASTM A234 Wp11 Fittings manufacturers and save cost

Description Price Per Kg In Singapore Price Per Kg In UAE Price Per Kg In USD Price Per Kg In Malaysia
28 THK 25.14MM ASME B16.9 SEAMLESS PIPE FITTINGS-90 DEG LR ELBOW ASTM A234 GR WP11 BEVELLED END SGD 8.86 UAE Dirham 23.12 US $6.40 MYR 28.04
SIZE 2X1 SCH80 ASTM A234 WP11 B16.9SMLS CARBON STEEL SEAMLESS PIPE FITTING TEE SGD 0.79 UAE Dirham 2.07 US $0.57 MYR 2.51
SIZE 1.1/4 SCH40 CARBON STEEL SEAMLESS PIPE FITTING ASTM A234 WP11 B16.9 SMLS 90 ELBOW SGD 0.63 UAE Dirham 1.65 US $0.46 MYR 2.00
32 24 THK 28.74MM X SCH 60 ASME B16.9 SMLS ECCENTRIC REDUCER ASTM A234 GR WP11 BEVELLED END SGD 7.81 UAE Dirham 20.40 US $5.64 MYR 24.74
26 THK 23.34 MM ASME B16.9 SEAMLESS 45 DEG LR ELBOW ASTM A234 GR WP11 BEVELLED END SGD 7.87 UAE Dirham 20.54 US $5.68 MYR 24.91
38 36 THK 32.95MM X THK 31.21MM ASME B16.9 SMLS ECCENTRIC REDUCER ASTM A234 GR WP11 BEVELLED END SGD 8.60 UAE Dirham 22.47 US $6.21 MYR 27.25
32 THK 27.75MM ASME B16.9 SEAMLESS PIPE FITTINGS-90 DEG LR ELBOW ASTM A234 GR WP11 BEVELLED END SGD 7.79 UAE Dirham 20.35 US $5.63 MYR 24.68

ASTM A234 WP11 Fittings Types

A234 WP11 Cross Tee

A234 WP11 Cross Tee

ASTM A234 WP11 Fittings

ASTM A234 WP11 Fittings

ASTM A234 Gr WP11 Cl2 End Cap

ASTM A234 Gr WP11 Cl2 End Cap

A234 WP11 Cl.2 90 Degree Elbows

A234 WP11 Cl.2 90 Degree Elbows

AS A234 WP11 Cl1 Lap Joint Stub Ends

AS A234 WP11 Cl1 Lap Joint Stub Ends

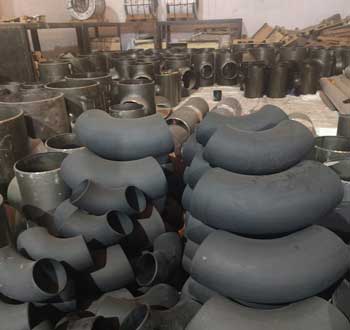

ASME SA 234 WP11 Elbow

ASME SA 234 WP11 Elbow

Alloy Steel WP11 Return Bends

Alloy Steel WP11 Return Bends

ASTM A234 WP11 Stub End

ASTM A234 WP11 Stub End

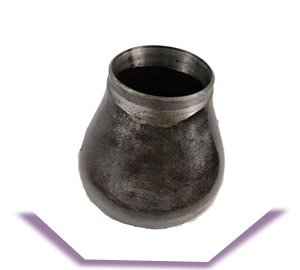

CrMo ASTM A234 WP11 Reducer

CrMo ASTM A234 WP11 Reducer

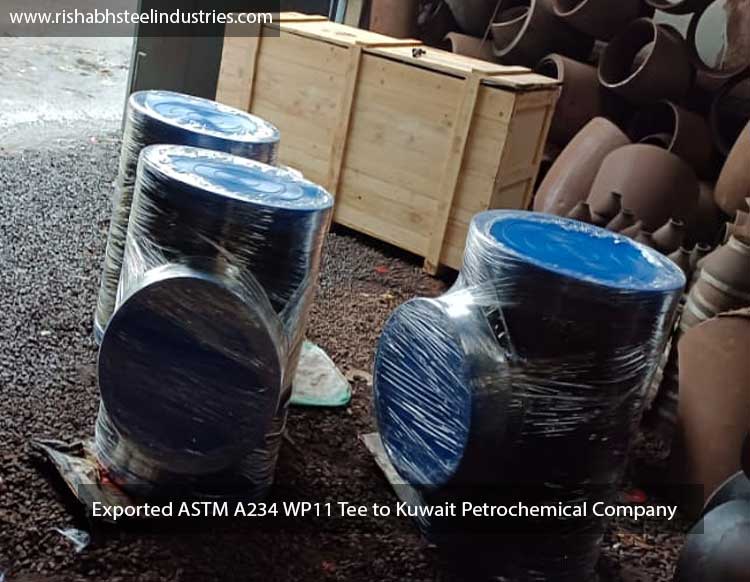

ASTM A234 Grade WP11 Reducing Tee

ASTM A234 Grade WP11 Reducing Tee

A234 WP11 Cl2 45 Degree Elbows

A234 WP11 Cl2 45 Degree Elbows

A234-WP11 Cl.1 Cross Fitting

A234-WP11 Cl.1 Cross Fitting

ASTM A234 Gr WP11 Laterals

ASTM A234 Gr WP11 Laterals

ASTM A234 Gr.WP11 Cl.1 Equal Tee

ASTM A234 Gr.WP11 Cl.1 Equal Tee

A234 Gr WP11 Weld Elbows

A234 Gr WP11 Weld Elbows

A234 WP11 Eccentric Reducer

A234 WP11 Eccentric Reducer

Alloy Steel A234 WP11 180 Degree Elbows

Alloy Steel A234 WP11 180 Degree Elbows

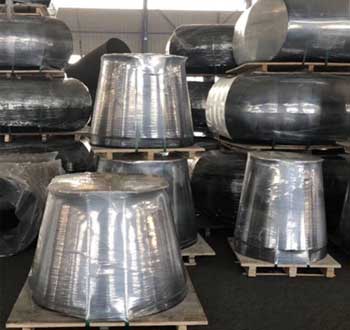

ASTM A234 Grade WP11 Class 2 Concentric Reducer

ASTM A234 Grade WP11 Class 2 Concentric Reducer

ASTM A234 Gr WP11 Fittings Schedule Chart

Buy from PED approved SA 234 Wp11 Fittings manufacturer for quality products & ASTM A234 WP11 Steel Pipe Fittings accurate dimensions

Buttweld Fittings
DN Schedule 10S Schedule 40S
45° Elbow 90° Elbow Equal tee Stub end type (B) End cap 45° Elbow 90° Elbow Equal tee End cap Stub end type (B)
15 0.03 0.06 0.09 0.07 0.03 0.04 0.08 0.10 0.04 0.08
20 0.03 0.07 0.13 0.09 0.05 0.04 0.08 0.17 0.07 0.11
25 0.08 0.14 0.28 0.16 0.08 0.11 0.15 0.29 0.10 0.17
32 0.11 0.23 0.49 0.22 0.10 0.17 0.26 0.59 0.18 0.25
40 0.17 0.30 0.68 0.25 0.11 0.23 0.40 0.86 0.20 0.31
50 0.25 0.50 0.85 0.43 0.13 0.40 0.70 1.28 0.23 0.61
65 0.48 0.85 1.41 0.57 0.19 0.77 1.40 2.19 0.27 0.80
80 0.63 1.25 1.77 0.72 0.25 1.08 2.20 3.31 0.42 1.13
100 1.08 2.10 3.46 1.09 0.68 1.47 4.47 5.27 1.14 1.87
125 1.82 3.65 5.44 1.47 1.11 2.84 6.80 9.63 2.13 2.79
150 2.72 5.45 8.03 2.15 1.42 5.44 10.89 10.99 3.23 3.57
200 5.33 10.20 15.65 3.22 2.38 10.77 21.54 20.91 5.19 6.07
250 9.75 18.15 26.76 5.13 4.45 19.27 38.56 35.38 9.00 10.07
300 13.62 25.80 39.46 8.16 7.50 29.71 59.42 62.14 15.00 14.29
350 18.37 36.29 48.53 10.88 8.17 35.15 79.38 79.31 16.00 17.14
400 23.81 47.63 58.97 12.70 10.67 45.81 99.79 99.79 21.00 20.41
450 29.94 59.87 79.65 17.23 13.00 59.40 129.73 129.73 26.00 27.21
500 49.90 99.80 103.42 21.77 17.00 74.84 162.38 162.39 34.00 29.94
600 70.31 140.61 155.58 27.21 26.00 105.23 225.89 225.90 52.00 38.55

Pressure Rating of ASTM A234 WP11 Pipe Fittings

W.T.
(in) (mm)
Pipe SCH Pipe Size
(inches)
Temperature (oF) (deg C) O.D.
(in) (mm)
100 200 300 400 500 600 650 700 750
Allowable Stress (psi) (kPa)
16700 16700 16700 15500 14400 13500 13200 12900 12600
0.145 40 1 1/2" 1629 1629 1629 1512 1404 1317 1287 1258 1229 1.900
0.200 80 2303 2303 2303 2138 1986 1862 1821 1779 1738 1.900
0.281 160 3362 3362 3362 3120 2899 2717 2657 2597 2536 1.900
0.133 40 1" 2205 2205 2205 2047 1902 1783 1743 1703 1664 1.315
0.179 80 3061 3061 3061 2841 2640 2475 2420 2365 2310 1.315
0.250 160 4493 4493 4493 4170 3874 3632 3552 3471 3390 1.315
0.154 40 2" 1371 1371 1371 1272 1182 1108 1083 1059 1034 2.375
0.218 80 1985 1985 1985 1843 1712 1605 1569 1534 1498 2.375
0.344 160 3283 3283 3283 3047 2831 2654 2595 2536 2477 2.375
0.237 40 4" 1102 1102 1102 1023 950 891 871 851 831 4.500
0.337 80 1596 1596 1596 1482 1377 1291 1262 1233 1204 4.500
0.531 160 2611 2611 2611 2424 2552 2111 2064 2017 1970 4.500
0.216 40 3" 1301 1301 1301 1208 1122 1052 1028 1005 982 3.500
0.300 80 1844 1844 1844 1712 1590 1491 1458 1425 1391 3.500
0.438 160 2787 2787 2787 2587 2403 2253 2203 2153 2103 3.500
0.258 40 5" 965 965 965 896 832 780 763 746 728 5.563
0.375 80 1428 1428 1428 1325 1231 1154 1129 1103 1077 5.563
0.625 160 2474 2474 2474 2296 2133 2000 1955 1911 1866 5.563
0.322 40 8" 771 771 771 716 665 623 610 596 582 8.625
0.500 80 1218 1218 1218 1131 1050 985 963 941 919 8.625
0.906 160 2298 2298 2298 2133 1982 1858 1817 1775 1734 8.625
0.280 40 6" 877 877 877 814 756 709 693 677 661 6.625
0.432 80 1379 1379 1379 1280 1189 1115 1090 1065 1040 6.625
0.719 160 2382 2382 2382 2211 2054 1925 1883 1840 1797 6.625
0.365 40 10" 699 699 699 649 603 565 553 540 528 10.750
0.594 80 1159 1159 1159 1075 999 937 916 895 874 10.750
1.125 160 2289 2289 2289 2124 1974 1850 1809 1768 1727 10.750

The benefit of purchasing ASME SA 234 WP11 End Cap directly from Alloy Steel WP11 Pipe Fittings manufacturers is the less cost and wide range size selection which saves your time

Alloy Steel A234 WP11 Reducer Weight Chart

Reducer Fittings
DN Schedule 10S Schedule 40S
Ecc reducer Con reducer Reducing tee Con reducer Reducing tee Ecc reducer
400x300 18.35 18.35 51.71 36.70 87.54 36.70
25x15 0.12 0.12 0.25 0.15 0.26 0.15
20x15 0.10 0.10 0.11 0.14 0.15 0.14
25x20 0.13 0.13 0.25 0.16 0.27 0.16
32x25 0.18 0.18 0.45 0.22 0.53 0.22
32x20 0.18 0.18 0.44 0.22 0.52 0.22
40x20 0.18 0.18 0.58 0.24 0.74 0.24
40x32 0.24 0.21 0.61 0.28 0.77 0.28
40x25 0.19 0.19 0.60 0.26 0.76 0.26
50x25 0.28 0.28 0.73 0.40 1.10 0.40
50x40 0.31 0.31 0.76 0.45 1.15 0.45
50x32 0.30 0.30 0.74 0.44 1.13 0.44
65x40 0.44 0.44 1.24 0.76 1.94 0.76
80x40 0.51 0.51 1.52 0.94 2.85 0.94
65x50 0.47 0.47 1.25 0.80 1.98 0.80
80x50 0.55 0.55 1.56 1.00 2.91 1.00
100x40 0.68 0.68 2.90 1.36 4.53 1.36
80x65 0.59 0.59 1.59 1.08 2.98 1.08
100x50 0.78 0.78 2.94 1.57 4.48 1.57
100x80 0.87 0.87 3.04 1.74 4.64 1.74
100x65 0.83 0.83 2.97 1.66 4.54 1.66
125x100 1.49 1.49 5.49 2.98 8.47 2.98
150x100 1.96 1.96 7.10 4.07 9.68 4.07
150x80 1.82 1.82 6.86 3.98 11.94 3.98
150x125 2.00 2.00 7.27 4.07 9.99 4.07
200x150 3.19 3.19 14.08 6.94 18.82 6.94
250x100 4.73 4.73 22.75 10.52 30.07 10.52
200x100 3.01 3.01 13.46 6.55 17.98 6.55
250x150 5.00 5.00 23.55 11.12 31.13 11.12
300x200 7.67 7.67 34.73 15.98 54.43 15.98
250x200 5.20 5.20 24.08 11.56 31.84 11.56
300x250 7.98 7.98 35.52 16.63 55.79 16.63
400x200 16.70 16.70 49.90 33.40 84.82 33.40
350x300 15.29 15.29 43.96 30.58 71.21 30.58
400x250 17.22 17.22 50.80 35.43 85.73 35.43

ASTM A234 WP11 Fittings Applications

We are a specialist distributor & supplier of A234 Gr Wp11 Fittings and ASTM A234 Gr Wp11 Fittings

  • Gas Processing

  • Power Generation

  • Chemical Equipment

  • Pharmaceuticals

  • Pharmaceutical Equipment

  • Sea Water Equipment

  • Petrochemicals

  • Pulp and Paper Industry

  • Off-Shore Oil Drilling Companies

  • Specialty Chemicals

  • Condensers

  • Heat Exchangers

Chemical Composition for ASTM A234 WP11 Alloy Steel Pipe Fitttings

Grade S Mn C P Si Mo Cr
Class3 _ _ _ _ _ _ _
Class2 ≤0.04 0.3-0.8 0.05-0.2 ≤0.04 0.5-1 0.44-0.65 1-1.5
Class1 ≤0.03 0.3-0.6 0.05-0.15 ≤0.03 0.5-1 0.44-0.65 1-1.5
Supplier of ASTM A234 Grade WP11 Reducing/ Equal Tee, Check latest price list of A234 WP11 Cl1 Welded Fittings

ASTM A234 WP11 Welded Pipe Fittings Mechanical Properties

Why don't you directly contact a Alloy Steel A234 WP11 Buttweld Fittings manufacturer? Get a free sample before dispatch of complete order of ASTM A234 WP11 Butt Weld Fittings, ASME SA234 WP11 Pipe Fittings

Item KSI(MPa), Yield Properties KSI(MPa), Tensile Properties
Class2 ≥40(275) 70-95(485-655)
Class1 ≥30(205) 60-85(415-585)
Class3 ≥45(310) 75-100(520-690)

ASME SA 234 WP11 Fittings Wall Thickness

O.D. (mm) Nominal Pipe Size W.T. (mm)
Sch 5S Sch 10S Sch 40S Sch 80S
NPS DN Weight (kg/m) WT (mm) Weight (kg/m) WT (mm) Weight (kg/m) WT (mm) Weight (kg/m) WT (mm)
10.3 6 0.28 1.24 0.37 1.73 0.47 2.41
13.7 ¼ 8 0.49 1.65 0.63 2.24 0.80 3.02
17.1 10 0.63 1.65 0.84 2.31 1.10 3.20
21.3 ½ 15 0.80 1.65 1.00 2.11 1.27 2.77 1.62 3.73
26.7 ¾ 20 1.02 1.65 1.28 2.11 1.69 2.87 2.20 3.91
33.4 1 25 1.29 1.65 2.09 2.77 2.50 3.38 3.24 4.55
42.2 32 1.65 1.65 2.69 2.77 3.39 3.56 4.47 4.85
48.3 40 1.90 1.65 3.11 2.77 4.05 3.68 5.41 5.08
60.3 2 50 2.39 1.65 3.93 2.77 5.44 3.91 7.48 5.54
73.0 65 3.69 2.11 5.26 3.05 8.63 5.16 11.41 7.01
88.9 3 80 4.52 2.11 6.46 3.05 11.29 5.49 15.27 7.62
101.6 90 5.18 2.11 7.41 3.05 13.57 5.74 18.64 8.08
114.3 4 100 5.84 2.11 8.37 3.05 16.08 6.02 22.32 8.56
141.3 5 125 9.46 2.77 11.56 3.40 21.77 6.55 30.97 9.53
168.3 6 150 11.31 2.77 13.83 3.40 28.26 7.11 42.56 10.97
219.1 8 200 14.78 2.77 19.97 3.76 42.55 8.18 64.64 12.70
273.1 10 250 22.61 3.40 27.79 4.19 60.31 9.27 81.56 12.70
323.9 12 300 31.25 3.96 35.99 4.57 73.88 9.53 97.47 12.70
355.6 14 350 34.34 3.96 41.36 4.78 81.33 9.53 107.40 12.70
406.4 16 400 41.56 4.19 47.34 4.78 93.27 9.53 123.31 12.70
457 18 450 46.79 4.19 53.31 4.78 105.17 9.53 139.16 12.70
508 20 500 59.32 4.78 68.65 5.54 117.15 9.53 155.13 12.70
559 22 550 65.33 4.78 75.62 5.54
610 24 600 82.58 5.54 94.53 6.35 141.12 9.53 187.07 12.70
660 26 650
711 28 700
762 30 750 118.34 6.35 147.29 7.92

SA234 Gr WP11 Fittings Dimensions

The advantage of purchasing ASTM A234 WP11 Pipe Fittings and A234 Wp11 Material directly from manufacturers is the reduced cost and wide selection which saves your time

AS 45 Deg Elbows AS 90 Deg Elbows NPS AS 180 Deg Return Long Radius
Long Radius 3R Long Radius Short Radius 3R XS STD
STD XS XS STD STD SCH. 160 XS XXS XS STD STD XS
.09 .19 * * .18 * .25 * * * * * ½ * .35
.09 .19 * * .19 * .25 * * * * * ¾ .65 .40
0.25 .31 * * .40 .60 .50 .75 * .25 * * 1 1.00 .75
0.38 .50 * * .60 1.00 .90 1.38 * .4 * * 1.75 1.25
.40 .69 * * .90 1.80 1.15 1.50 .75 .56 * * 2.39 1.88
.81 1.19 2.1 1.5 1.60 3.25 2.20 3.50 1.50 1.00 3.00 4.00 2 4.40 3.23
1.75 2.13 4.00 3.00 3.25 5.13 4.00 7.00 2.80 2.13 6.00 8.00 8.00 6.50
2.63 3.50 7.00 5.00 5.00 8.50 6.50 11.0 4.25 3.00 10.0 13.0 3 13.00 10.25
3.50 4.50 9.00 7.00 6.75 * 8.35 16.0 6.00 4.50 13.0 18.0 16.75 13.00
4.50 6.10 13.0 9.00 9.00 18.0 13.5 20.0 8.50 6.25 18.0 25.0 4 25.0 18.5
7.50 10.7 22.0 15.0 15.0 32.0 22.0 36.0 14.0 9.60 29.0 43.0 5 44.0 30.0
12.0 17.5 35.0 23.0 24.5 57.0 35.0 65.0 23.0 18.0 45.0 70.0 6 70.0 50.0
23.0 35.0 70.0 45.0 50.0 120 71.0 118 47.5 34.0 90.0 140 8 142 95.0
43.0 53.0 109 80.0 88.0 260 107 * 70.0 58.0 159 218 10 215 117
62.0 84.0 155 117 125 450 160 * 104 80.0 233 310 12 320 230
80.0 100 200 149 160 572 205 * 140 105 298 400 14 400 325
100 135 260 195 206 * 276 * 174 132 390 520 16 550 412
126 167 330 248 260 * 340 * 219 167 495 660 18 690 510
160 206 405 305 320 * 420 * 275 210 610 810 20 830 640
197 260 490 368 394 * 520 * * * 735 980 22 1040 787
238 300 585 438 460 * 600 * 392 298 875 1170 24 1200 890
275 365 685 515 550 * 729 1030 1370 26
367 488 915 685 734 975 1370 1830 30
531 706 1315 985 1062 1412 1970 2630 36
Check Alloy Steel WP11 90 Degree Elbow Dimensions and Weight Chart, Dealer and Distributor of ASTM A234 Gr WP11 Stub End

ASTM A234 Grade WP11 Elbow Sizes

Elbow Pipe Fittings
PIPE NOMINAL SIZE OUTSIDE DIAM. 90° ELBOW 45° ELBOW 180° RETURNS
(inches) Short Radius Long Radius Long Radius Long Radius
(mm) (inches) Center to Face
(inches)
Center to Face
(inches)
Radius
(inches)
Center to Face
(inches)
Back to face
(inches)
Center to Center
(inches)
3/4 26.7 1.050 1 1/8 7/16 1 11/16 2 1/4
1/2 21.3 0.840 1 1/2 5/8 1 7/8 2
1 33.4 1.315 1 1 1/2 7/8 2 3/16 3
1 1/2 48.3 1.900 1 1/2 2 1/4 3 1 1/8 3 1/4 4 1/2
1 1/4 42.2 1.660 1 1/4 1 7/8 1 2 3/4 3 3/4
2 60.3 2.375 2 3 4 1 3/8 4 3/16 6
3 88.9 3.500 3 4 1/2 6 2 6 1/4 9
2 1/2 73.0 2.875 2 1/2 3 3/4 5 1 3/4 5 3/16 7 1/2
3 1/2 101.6 4.000 3 1/2 5 1/4 7 2 1/4 7 1/4 10 1/2
5 141.3 5.563 5 7 1/2 10 3 1/8 10 5/16 15
4 114.3 4.500 4 6 8 2 1/2 8 1/4 12
6 168.3 6.625 6 9 12 3 3/4 12 5/16 18
10 273.1 10.750 10 15 15 6 1/4 20 3/8 30
8 219.1 8.625 8 12 12 5 16 5/16 24
12 323.9 12.750 12 18 18 7 1/2 24 3/8 36

20 years of Experience as a supplier of these materials in below mentioned locations

ADCO - Onshore Gas Gathering & Injection For OGD3-Dubai

ADCO - Onshore Gas Gathering & Injection For OGD3-Dubai

Northern Luzon Offshore Wind Power Project-Philippines

Northern Luzon Offshore Wind Power Project-Philippines

Millennium Water Treatment & Engineering Sdn. Bhd Malaysia

Millennium Water Treatment & Engineering Sdn. Bhd Malaysia

Laban And Diluted Laban- UAE

Laban And Diluted Laban- UAE

Binh Dai 1 - Phase 3-Vietnam

Binh Dai 1 - Phase 3-Vietnam

Northern Mindoro Offshore Wind Power Project-Philippines

Northern Mindoro Offshore Wind Power Project-Philippines
