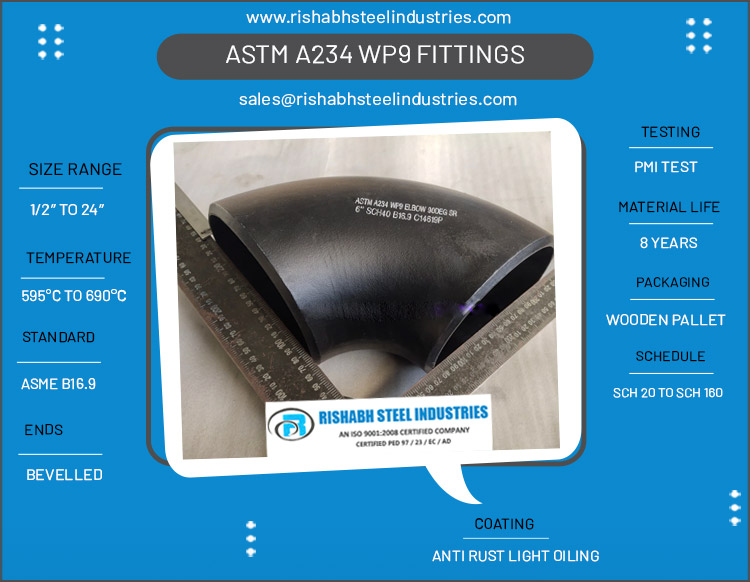

ASTM A234 WP9 Fittings

Pipe fittings help in connecting piping grades that allow it to route, directional change, and branch the connections.ASTM A234 WP9 Fittings have excellent content of chromium and molybdenum with other constituting alloys. This allows them to possess good resistance to reducing and corrosive media. These fittings work well across moderate and elevated temperature systems. The A234 WP9 Material has excellent mechanical properties and is available in 2 classes. The material possesses a tensile strength between 415 to 585mpa with a minimum yield strength of 205mpa. They can be elongated by 30% in the system.

The ASTM A234 Gr WP9 End Cap is a device that is designed to shut the end of the grade. These caps ensure that the modules are protected against damage that is caused during transportation and storage. A234 Gr WP9 45 Deg Elbow is utilized to change the direction of the flow by 45 degrees in the system. These elbows ensure a smooth flow of media and can be produced in short or long radiuses. The ASTM A234 WP9 Short Radius Elbow has a slightly higher pressure drop and possesses a radius of curvature which is equal to the outer diameter of the grade. A SA 234 WP9 3D Bend is similar to an elbow but has a larger radius than elbows. The 3D bends have a radius of curvature, which is equal to 3 times the diameter of the grade. The A234 WP9 Tee Fittings has three openings shaping them in a form of a T. These tees have 2 outlets with one main flow line. These tees are efficient and can be customized as per customer needs. A WP9 Buttweld Reducer helps in combining two piping grades of unequal sizes. These reducers are designed in concentric and eccentric configurations.

Biggest Supplier of ASTM A234 Grade WP9 Equal/ Reducing Tee, Check Weight Chart of SA234 Gr WP9 End Cap

ASTM A234 WP9 Pipe Fittings Specification

Here are many benefits if you buy from Alloy Steel WP9 pipe Fittings manufacturers, like high quality, best price and wide range of ASTM A234 WP9 Butt Weld Fittings

Specifications ANSI/ASME B16.9, B16.28, MSS-SP-43
Size ½”NB upto 48″NB in Schedule 10s upto XXS
Type Seamless and Welded
Standard ASTM / ASME A234 / SA234
Schedules Schedule 40 upto Schedule XXs

Alloy Steel ASTM A234 WP9 Buttweld Fittings Price List

Save 10-12% if you buy directly from Alloy Steel ASTM A234 Gr. WP9 Buttweld Elbow manufacturers

Description Price Per Kg In Singapore Price Per Kg In UAE Price Per Kg In USD Price Per Kg In Malaysia
26 THK 23.34 MM ASME B16.9 SEAMLESS 45 DEG LR ELBOW ASTM A234 GR WP9 BEVELLED END SGD 7.87 UAE Dirham 20.54 US $5.68 MYR 24.91
28 THK 25.14MM ASME B16.9 SEAMLESS PIPE FITTINGS-90 DEG LR ELBOW ASTM A234 GR WP9 BEVELLED END SGD 8.86 UAE Dirham 23.12 US $6.40 MYR 28.04
32 THK 27.75MM ASME B16.9 SEAMLESS PIPE FITTINGS-90 DEG LR ELBOW ASTM A234 GR WP9 BEVELLED END SGD 7.79 UAE Dirham 20.35 US $5.63 MYR 24.68
SIZE 1.1/4 SCH40 CARBON STEEL SEAMLESS PIPE FITTING ASTM A234 WP9 B16.9 SMLS 90 ELBOW SGD 0.63 UAE Dirham 1.65 US $0.46 MYR 2.00
32 24 THK 28.74MM X SCH 60 ASME B16.9 SMLS ECCENTRIC REDUCER ASTM A234 GR WP9 BEVELLED END SGD 7.81 UAE Dirham 20.40 US $5.64 MYR 24.74
SIZE 2X1 SCH80 ASTM A234 WP9 B16.9SMLS CARBON STEEL SEAMLESS PIPE FITTING TEE SGD 0.79 UAE Dirham 2.07 US $0.57 MYR 2.51
38 36 THK 32.95MM X THK 31.21MM ASME B16.9 SMLS ECCENTRIC REDUCER ASTM A234 GR WP9 BEVELLED END SGD 8.60 UAE Dirham 22.47 US $6.21 MYR 27.25

ASTM A234 WP9 Fittings Types

Alloy Steel A234 WP9 180 Degree Elbows

Alloy Steel A234 WP9 180 Degree Elbows

A234 Gr WP9 Reducing Tee

A234 Gr WP9 Reducing Tee

WP9 Fittings Return Bends

WP9 Fittings Return Bends

CrMo ASTM A234 WP9 Reducer

CrMo ASTM A234 WP9 Reducer

CrMo ASTM A234 WP9 Eccentric Reducer

CrMo ASTM A234 WP9 Eccentric Reducer

A234 WP9 Concentric Reducer

A234 WP9 Concentric Reducer

A234 Gr WP9 Equal Tee

A234 Gr WP9 Equal Tee

ASTM A234 WP9 Weld Elbows

ASTM A234 WP9 Weld Elbows

ASTM A234 WP9 Cross Fitting

ASTM A234 WP9 Cross Fitting

ASME SA 234 WP9 Cross Tee

ASME SA 234 WP9 Cross Tee

ASME SA 234 WP9 Lap Joint Stub Ends

ASME SA 234 WP9 Lap Joint Stub Ends

ASTM A234 Gr WP9 90 Degree Elbows

ASTM A234 Gr WP9 90 Degree Elbows

Alloy Steel A234 WP9 Stub End

Alloy Steel A234 WP9 Stub End

ASTM A234 WP9 Fittings

ASTM A234 WP9 Fittings

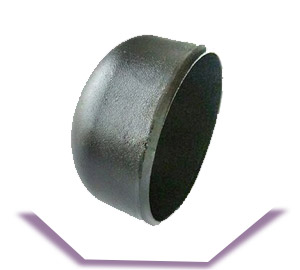

ASTM A234 Gr WP9 End Cap

ASTM A234 Gr WP9 End Cap

A234 Gr WP9 45 Degree Elbows

A234 Gr WP9 45 Degree Elbows

A234 WP9 Elbow

A234 WP9 Elbow

Alloy Steel A234 WP9 Laterals

Alloy Steel A234 WP9 Laterals

Alloy Steel A234 Gr. WP9 Buttweld Pipe Fittings Dimensions

Alloy Steel 5Cr-1/2Mo Welded Fittings manufacturer in India, we use only high quality & tested material to produce Chrome Moly Alloy Steel Grade WP9 Seamless Pipe Fitting

AS 45 Deg Elbows AS 90 Deg Elbows NPS AS 180 Deg Return Long Radius
Long Radius 3R Long Radius Short Radius 3R XS STD
STD XS XS STD STD SCH. 160 XS XXS XS STD STD XS
.09 .19 * * .18 * .25 * * * * * ½ * .35
.09 .19 * * .19 * .25 * * * * * ¾ .65 .40
0.25 .31 * * .40 .60 .50 .75 * .25 * * 1 1.00 .75
0.38 .50 * * .60 1.00 .90 1.38 * .4 * * 1.75 1.25
.40 .69 * * .90 1.80 1.15 1.50 .75 .56 * * 2.39 1.88
.81 1.19 2.1 1.5 1.60 3.25 2.20 3.50 1.50 1.00 3.00 4.00 2 4.40 3.23
1.75 2.13 4.00 3.00 3.25 5.13 4.00 7.00 2.80 2.13 6.00 8.00 8.00 6.50
2.63 3.50 7.00 5.00 5.00 8.50 6.50 11.0 4.25 3.00 10.0 13.0 3 13.00 10.25
3.50 4.50 9.00 7.00 6.75 * 8.35 16.0 6.00 4.50 13.0 18.0 16.75 13.00
4.50 6.10 13.0 9.00 9.00 18.0 13.5 20.0 8.50 6.25 18.0 25.0 4 25.0 18.5
7.50 10.7 22.0 15.0 15.0 32.0 22.0 36.0 14.0 9.60 29.0 43.0 5 44.0 30.0
12.0 17.5 35.0 23.0 24.5 57.0 35.0 65.0 23.0 18.0 45.0 70.0 6 70.0 50.0
23.0 35.0 70.0 45.0 50.0 120 71.0 118 47.5 34.0 90.0 140 8 142 95.0
43.0 53.0 109 80.0 88.0 260 107 * 70.0 58.0 159 218 10 215 117
62.0 84.0 155 117 125 450 160 * 104 80.0 233 310 12 320 230
80.0 100 200 149 160 572 205 * 140 105 298 400 14 400 325
100 135 260 195 206 * 276 * 174 132 390 520 16 550 412
126 167 330 248 260 * 340 * 219 167 495 660 18 690 510
160 206 405 305 320 * 420 * 275 210 610 810 20 830 640
197 260 490 368 394 * 520 * * * 735 980 22 1040 787
238 300 585 438 460 * 600 * 392 298 875 1170 24 1200 890
275 365 685 515 550 * 729 1030 1370 26
367 488 915 685 734 975 1370 1830 30
531 706 1315 985 1062 1412 1970 2630 36

AS ASTM A234 WP9 Pipe Fittings Schedule Chart

Pipe Fittings
DN Schedule 10S Schedule 40S
45° Elbow 90° Elbow Equal tee Stub end type (B) End cap 45° Elbow 90° Elbow Equal tee End cap Stub end type (B)
15 0.03 0.06 0.09 0.07 0.03 0.04 0.08 0.10 0.04 0.08
20 0.03 0.07 0.13 0.09 0.05 0.04 0.08 0.17 0.07 0.11
25 0.08 0.14 0.28 0.16 0.08 0.11 0.15 0.29 0.10 0.17
32 0.11 0.23 0.49 0.22 0.10 0.17 0.26 0.59 0.18 0.25
40 0.17 0.30 0.68 0.25 0.11 0.23 0.40 0.86 0.20 0.31
50 0.25 0.50 0.85 0.43 0.13 0.40 0.70 1.28 0.23 0.61
65 0.48 0.85 1.41 0.57 0.19 0.77 1.40 2.19 0.27 0.80
80 0.63 1.25 1.77 0.72 0.25 1.08 2.20 3.31 0.42 1.13
100 1.08 2.10 3.46 1.09 0.68 1.47 4.47 5.27 1.14 1.87
125 1.82 3.65 5.44 1.47 1.11 2.84 6.80 9.63 2.13 2.79
150 2.72 5.45 8.03 2.15 1.42 5.44 10.89 10.99 3.23 3.57
200 5.33 10.20 15.65 3.22 2.38 10.77 21.54 20.91 5.19 6.07
250 9.75 18.15 26.76 5.13 4.45 19.27 38.56 35.38 9.00 10.07
300 13.62 25.80 39.46 8.16 7.50 29.71 59.42 62.14 15.00 14.29
350 18.37 36.29 48.53 10.88 8.17 35.15 79.38 79.31 16.00 17.14
400 23.81 47.63 58.97 12.70 10.67 45.81 99.79 99.79 21.00 20.41
450 29.94 59.87 79.65 17.23 13.00 59.40 129.73 129.73 26.00 27.21
500 49.90 99.80 103.42 21.77 17.00 74.84 162.38 162.39 34.00 29.94
600 70.31 140.61 155.58 27.21 26.00 105.23 225.89 225.90 52.00 38.55

Ask for latest price list of A234 Gr WP9 45 Deg Elbow, We keep ready stock of Alloy Steel WP9 Buttweld Fittings in Wide range of sizes

ASTM A234 WP9 Alloy Steel Seamless Butt Weld Fittings Testing

ASTM A234 WP9 Alloy Steel Seamless Butt Weld Fittings Testing

Carbon Steel Pipe Fittings


  • IGC/PMI test
  • Flattening/flaring test
  • Hydrostatic/ radiography test
  • Hardness test
  • Macro/micro test
  • Mechanical/chemical test

Alloy Steel WP9 Seamless Pipe Fittings Wall Thickness

Why don't you directly contact a Alloy Steel A234 WP9 Pipe Fittings manufacturer in India? We offer an extensive range of ASTM A234 WP9 steel pipe fittings in Mumbai, free sample before dispatch of complete order.

O.D. (mm) Nominal Pipe Size W.T. (mm)
Sch 5S Sch 10S Sch 40S Sch 80S
NPS DN Weight (kg/m) WT (mm) Weight (kg/m) WT (mm) Weight (kg/m) WT (mm) Weight (kg/m) WT (mm)
10.3 6 0.28 1.24 0.37 1.73 0.47 2.41
13.7 ¼ 8 0.49 1.65 0.63 2.24 0.80 3.02
17.1 10 0.63 1.65 0.84 2.31 1.10 3.20
21.3 ½ 15 0.80 1.65 1.00 2.11 1.27 2.77 1.62 3.73
26.7 ¾ 20 1.02 1.65 1.28 2.11 1.69 2.87 2.20 3.91
33.4 1 25 1.29 1.65 2.09 2.77 2.50 3.38 3.24 4.55
42.2 32 1.65 1.65 2.69 2.77 3.39 3.56 4.47 4.85
48.3 40 1.90 1.65 3.11 2.77 4.05 3.68 5.41 5.08
60.3 2 50 2.39 1.65 3.93 2.77 5.44 3.91 7.48 5.54
73.0 65 3.69 2.11 5.26 3.05 8.63 5.16 11.41 7.01
88.9 3 80 4.52 2.11 6.46 3.05 11.29 5.49 15.27 7.62
101.6 90 5.18 2.11 7.41 3.05 13.57 5.74 18.64 8.08
114.3 4 100 5.84 2.11 8.37 3.05 16.08 6.02 22.32 8.56
141.3 5 125 9.46 2.77 11.56 3.40 21.77 6.55 30.97 9.53
168.3 6 150 11.31 2.77 13.83 3.40 28.26 7.11 42.56 10.97
219.1 8 200 14.78 2.77 19.97 3.76 42.55 8.18 64.64 12.70
273.1 10 250 22.61 3.40 27.79 4.19 60.31 9.27 81.56 12.70
323.9 12 300 31.25 3.96 35.99 4.57 73.88 9.53 97.47 12.70
355.6 14 350 34.34 3.96 41.36 4.78 81.33 9.53 107.40 12.70
406.4 16 400 41.56 4.19 47.34 4.78 93.27 9.53 123.31 12.70
457 18 450 46.79 4.19 53.31 4.78 105.17 9.53 139.16 12.70
508 20 500 59.32 4.78 68.65 5.54 117.15 9.53 155.13 12.70
559 22 550 65.33 4.78 75.62 5.54
610 24 600 82.58 5.54 94.53 6.35 141.12 9.53 187.07 12.70
660 26 650
711 28 700
762 30 750 118.34 6.35 147.29 7.92

ASTM A234 WP9 Steel Pipe Fittings Chemical Composition

Cr Mn Mo C S P Si
8-10 0.3-0.6 0.9-1.1 ≤0.15 ≤0.03 ≤0.03 ≤1

AS WP9 Pipe Fittings Mechanical Properties

Item Yield Properties KSI(MPa) Tensile Properties KSI(MPa)
WP9 Class3 ≥45(310) 75-100(520-690)
WP9 Class1 ≥30(205) 60-85(415-585)
Check available sizes and thickness of A234 WP9 Eccentric Reducer and ASME SA234 WP9 Seamless Fittings in our online inventory

ASTM A234 WP9 Welded Pipe Fittings Applications

  • Power Generation

  • Gas Processing

  • Pulp and Paper Industry

  • Heat Exchangers

  • Off-Shore Oil Drilling Companies

  • Condensers

  • Chemical Equipment

  • Petrochemicals

  • Pharmaceuticals

  • Specialty Chemicals

  • Sea Water Equipment

  • Pharmaceutical Equipment

Contact us if you are looking for Alloy Steel WP9 Pipe Fittings Manufacturer in India, Leading Distributor and Dealer of A234 WP9 Material

Chrome Moly ASTM A234 WP9 Fittings Pressure Rating

Why pay extra? Buying from Alloy Steel ASTM A234 WP9 Buttweld Fittings manufacturers saves your cost, wide selection of Alloy Steel A234 Gr. WP9 Buttweld Pipe Fittings in India

Temperature Ratings Pressure Class
150 300
1 1/4 - 2 Inches 1/4 - 1 Inches 2 1/2 - 3 Inches
(oC) (oF)
-29 to 66 -20 to 150 300 1500 2000 1000
93 200 265 1350 1785 910
121 250 225 1200 1575 825
149 300 185 1050 1360 735
177 350 150 900 1150 650
204 400 - 750 935 560
232 450 - 600 725 475
260 500 - 450 510 385
288 550 - 300 300 300
