ASTM A234 WP5 Fittings

The ASTM A234 covers standard carbon and alloy grade that is seen in moderate to high-temperature services. The ASTM A234 WP5 Fittings are designed with a chemical composition of carbon, manganese, silicon, sulfur, phosphorous, chromium, and molybdenum. These fittings can be availed in seamless and welded configurations. WP5 Fittings have good corrosion resistance properties and work well across harsh oil and gas systems. These fittings are efficient and can influence the characteristics of the flow and are available in different schedules. The A234 WP5 Material is designed possessing superior mechanical properties. They have a tensile strength of 415 to 585mpa with a minimum yield strength of 205mpa and can be elongated by 20% in the system. The material can be customized as per customer needs.

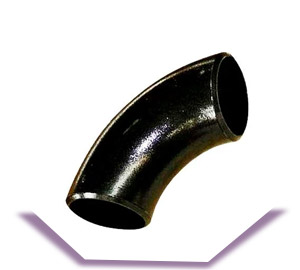

The A234 Gr WP5 Elbow is one of the common fitting that is utilized to change the direction of the flow. These elbows help in ensuring a smooth transition of flow. They are designed in short or long radius specifications. The versatile A234 WP5 Return Bends allow the fitting to make a 180-degree directional change in flow. Returns bends are U-shaped and are considered as L-bends. These bends can be cast, and molded by heating or bending existing pipes. A SA 234 WP5 Lateral Tee is a 3-sided grade that has a 45-degree branch from the pipeline. These tees can be produced in equal and reducing specifications. The ASTM A234 WP5 Reducer is used to connect piping grades of dissimilar sizes. These reducers are produced in eccentric and concentric specifications. The ASTM A234 Gr WP5 End Cap is utilized to cut the flow of media. These end caps are fitted on the grade as they are transported and stored protecting them against damage from natural or artificial affluents.

Supplier of ASTM A234 WP5 Reducer, best price of SA 234 WP5 Buttweld Fittings in Mumbai

Alloy Steel WP5 Pipe Fittings Specification

Specification ASTM A234 WP5 Pipe Fittings
Size 1⁄₂ Inch upto 48 Inch
Connection Flange/ Threaded/ Clamp End / End Bell
Thickness Schedule 20S upto Schedule 180S.
Dimension MSS-SP-43 Type B, ASME B16.9, JIS B2312, MSS-SP-43 Type A, ASME B16.28, JIS B2313
Standard ISO, EN, NPT, JIS, DIN
High Temperature Class 150 LBS upto Class 2500 LBS.
Different Types Stub End, Cap, Bend, Adapter, Wye, Reducer, Cross, Elbow, Tee

Price List of Alloy Steel ASTM A234 WP5 Pipe Fittings

10-12% price difference if you buy directly from Alloy Steel A234 WP5 Pipe Fittings manufacturers

Description Price Per Kg In Singapore Price Per Kg In UAE Price Per Kg In USD Price Per Kg In Malaysia
32 THK 27.75MM ASME B16.9 SEAMLESS PIPE FITTINGS-90 DEG LR ELBOW ASTM A234 GR WP5 BEVELLED END SGD 7.79 UAE Dirham 20.35 US $5.63 MYR 24.68
32 24 THK 28.74MM X SCH 60 ASME B16.9 SMLS ECCENTRIC REDUCER ASTM A234 GR WP5 BEVELLED END SGD 7.81 UAE Dirham 20.40 US $5.64 MYR 24.74
SIZE 1.1/4 SCH40 CARBON STEEL SEAMLESS PIPE FITTING ASTM A234 WP5 B16.9 SMLS 90 ELBOW SGD 0.63 UAE Dirham 1.65 US $0.46 MYR 2.00
28 THK 25.14MM ASME B16.9 SEAMLESS PIPE FITTINGS-90 DEG LR ELBOW ASTM A234 GR WP5 BEVELLED END SGD 8.86 UAE Dirham 23.12 US $6.40 MYR 28.04
26 THK 23.34 MM ASME B16.9 SEAMLESS 45 DEG LR ELBOW ASTM A234 GR WP5 BEVELLED END SGD 7.87 UAE Dirham 20.54 US $5.68 MYR 24.91
38 36 THK 32.95MM X THK 31.21MM ASME B16.9 SMLS ECCENTRIC REDUCER ASTM A234 GR WP5 BEVELLED END SGD 8.60 UAE Dirham 22.47 US $6.21 MYR 27.25
SIZE 2X1 SCH80 ASTM A234 WP5 B16.9SMLS CARBON STEEL SEAMLESS PIPE FITTING TEE SGD 0.79 UAE Dirham 2.07 US $0.57 MYR 2.51

ASTM A234 WP5 Fittings Types

ASTM A234 WP5 Fittings

ASTM A234 WP5 Fittings

Alloy Steel A234 WP5 Elbow

Alloy Steel A234 WP5 Elbow

A234 Gr WP5 Return Bends

A234 Gr WP5 Return Bends

ASTM A234 WP5 Weld Elbows

ASTM A234 WP5 Weld Elbows

Alloy Steel A234 WP5 45 Degree Elbows

Alloy Steel A234 WP5 45 Degree Elbows

CrMo ASTM A234 WP5 End Cap

CrMo ASTM A234 WP5 End Cap

A234 Gr WP5 Lap Joint Stub Ends

A234 Gr WP5 Lap Joint Stub Ends

A234 Gr WP5 Reducing Tee

A234 Gr WP5 Reducing Tee

ASME SA 234 WP5 Stub End

ASME SA 234 WP5 Stub End

ASTM A234 Gr WP5 180 Degree Elbows

ASTM A234 Gr WP5 180 Degree Elbows

ASTM A234 Gr WP5 Reducer

ASTM A234 Gr WP5 Reducer

A234 WP5 Concentric Reducer

A234 WP5 Concentric Reducer

WP5 Fittings Eccentric Reducer

WP5 Fittings Eccentric Reducer

ASME SA 234 WP5 Cross Fitting

ASME SA 234 WP5 Cross Fitting

Alloy Steel A234 WP5 Equal Tee

Alloy Steel A234 WP5 Equal Tee

CrMo ASTM A234 WP5 Laterals

CrMo ASTM A234 WP5 Laterals

ASTM A234 WP5 90 Degree Elbows

ASTM A234 WP5 90 Degree Elbows

A234 WP5 Cross Tee

A234 WP5 Cross Tee

Alloy Steel ASTM A234 WP5 Fittings Testing

Buy from PED approved ASTM A234 Gr. WP5 Buttweld Elbow manufacturer for quality products & accurate dimensions

Alloy Steel ASTM A234 WP5 Fittings Testing
Carbon Steel Pipe Fittings

  • Mechanical/chemical test
  • Flattening/flaring test
  • Hardness test
  • Macro/micro test
  • Pitting resistance test
  • Radiography/hydrostatic test
  • Intergranular corrosion test

ASTM A234 WP5 Alloy Steel Buttweld Fittings Dimensions

AS 45 Deg Elbows AS 90 Deg Elbows NPS AS 180 Deg Return Long Radius
Long Radius 3R Long Radius Short Radius 3R XS STD
STD XS XS STD STD SCH. 160 XS XXS XS STD STD XS
.09 .19 * * .18 * .25 * * * * * ½ * .35
.09 .19 * * .19 * .25 * * * * * ¾ .65 .40
0.25 .31 * * .40 .60 .50 .75 * .25 * * 1 1.00 .75
0.38 .50 * * .60 1.00 .90 1.38 * .4 * * 1.75 1.25
.40 .69 * * .90 1.80 1.15 1.50 .75 .56 * * 2.39 1.88
.81 1.19 2.1 1.5 1.60 3.25 2.20 3.50 1.50 1.00 3.00 4.00 2 4.40 3.23
1.75 2.13 4.00 3.00 3.25 5.13 4.00 7.00 2.80 2.13 6.00 8.00 8.00 6.50
2.63 3.50 7.00 5.00 5.00 8.50 6.50 11.0 4.25 3.00 10.0 13.0 3 13.00 10.25
3.50 4.50 9.00 7.00 6.75 * 8.35 16.0 6.00 4.50 13.0 18.0 16.75 13.00
4.50 6.10 13.0 9.00 9.00 18.0 13.5 20.0 8.50 6.25 18.0 25.0 4 25.0 18.5
7.50 10.7 22.0 15.0 15.0 32.0 22.0 36.0 14.0 9.60 29.0 43.0 5 44.0 30.0
12.0 17.5 35.0 23.0 24.5 57.0 35.0 65.0 23.0 18.0 45.0 70.0 6 70.0 50.0
23.0 35.0 70.0 45.0 50.0 120 71.0 118 47.5 34.0 90.0 140 8 142 95.0
43.0 53.0 109 80.0 88.0 260 107 * 70.0 58.0 159 218 10 215 117
62.0 84.0 155 117 125 450 160 * 104 80.0 233 310 12 320 230
80.0 100 200 149 160 572 205 * 140 105 298 400 14 400 325
100 135 260 195 206 * 276 * 174 132 390 520 16 550 412
126 167 330 248 260 * 340 * 219 167 495 660 18 690 510
160 206 405 305 320 * 420 * 275 210 610 810 20 830 640
197 260 490 368 394 * 520 * * * 735 980 22 1040 787
238 300 585 438 460 * 600 * 392 298 875 1170 24 1200 890
275 365 685 515 550 * 729 1030 1370 26
367 488 915 685 734 975 1370 1830 30
531 706 1315 985 1062 1412 1970 2630 36

Manufacturer of ASTM A234 Grade WP5 Seamless Fittings and SA 234 WP5 End Cap in accordance to ASME B16.9 Standard

ASTM A234 WP5 Alloy Steel Pipe Fittings Pressure Rating

Rishabhsteel is a industrial Alloy Steel WP5 Butt Weld Fittings supplier in India since 2001, Quality Assurance, and Reliable Delivery globally

Temperature Ratings Pressure Class
150 300
1 1/4 - 2 Inches 1/4 - 1 Inches 2 1/2 - 3 Inches
(oC) (oF)
-29 to 66 -20 to 150 300 1500 2000 1000
93 200 265 1350 1785 910
121 250 225 1200 1575 825
149 300 185 1050 1360 735
177 350 150 900 1150 650
204 400 - 750 935 560
232 450 - 600 725 475
260 500 - 450 510 385
288 550 - 300 300 300

Alloy Steel ASTM A234 WP5 Wedled Pipe Fittings Schedule Chart

Buttweld Fittings
DN Schedule 10S Schedule 40S
45° Elbow 90° Elbow Equal tee Stub end type (B) End cap 45° Elbow 90° Elbow Equal tee End cap Stub end type (B)
15 0.03 0.06 0.09 0.07 0.03 0.04 0.08 0.10 0.04 0.08
20 0.03 0.07 0.13 0.09 0.05 0.04 0.08 0.17 0.07 0.11
25 0.08 0.14 0.28 0.16 0.08 0.11 0.15 0.29 0.10 0.17
32 0.11 0.23 0.49 0.22 0.10 0.17 0.26 0.59 0.18 0.25
40 0.17 0.30 0.68 0.25 0.11 0.23 0.40 0.86 0.20 0.31
50 0.25 0.50 0.85 0.43 0.13 0.40 0.70 1.28 0.23 0.61
65 0.48 0.85 1.41 0.57 0.19 0.77 1.40 2.19 0.27 0.80
80 0.63 1.25 1.77 0.72 0.25 1.08 2.20 3.31 0.42 1.13
100 1.08 2.10 3.46 1.09 0.68 1.47 4.47 5.27 1.14 1.87
125 1.82 3.65 5.44 1.47 1.11 2.84 6.80 9.63 2.13 2.79
150 2.72 5.45 8.03 2.15 1.42 5.44 10.89 10.99 3.23 3.57
200 5.33 10.20 15.65 3.22 2.38 10.77 21.54 20.91 5.19 6.07
250 9.75 18.15 26.76 5.13 4.45 19.27 38.56 35.38 9.00 10.07
300 13.62 25.80 39.46 8.16 7.50 29.71 59.42 62.14 15.00 14.29
350 18.37 36.29 48.53 10.88 8.17 35.15 79.38 79.31 16.00 17.14
400 23.81 47.63 58.97 12.70 10.67 45.81 99.79 99.79 21.00 20.41
450 29.94 59.87 79.65 17.23 13.00 59.40 129.73 129.73 26.00 27.21
500 49.90 99.80 103.42 21.77 17.00 74.84 162.38 162.39 34.00 29.94
600 70.31 140.61 155.58 27.21 26.00 105.23 225.89 225.90 52.00 38.55

Chrome Moly Alloy Steel WP5 Fittings Chemical Composition

Why don't you directly contact a Chrome Moly Alloy Steel Grade WP5 Seamless Pipe Fitting manufacturer in Mumbai? We offer Non chinese Alloy Steel 5Cr-1/2Mo Welded Fittings in India

Mo Mn C P Si S Cr
0.44-0.65 ≤0.6 ≤0.15 ≤0.03 ≤0.5 ≤0.04 4-6

Mechanical Properties of Alloy Steel WP5 Butt weld Pipe Fittings

(0.2%Offset)Yield Properties Tensile Properties Elongation
≥205 415 - 585 ≥20
We stock Complete range of A234 Gr WP5 Concentric/ Eccentric Reducer and Alloy Steel WP5 Stub End in Mumbai

ASTM A234 WP5 Pipe Fittings Applications

  • Heat Exchangers

  • Pharmaceuticals

  • Gas Processing

  • Condensers

  • Off-Shore Oil Drilling Companies

  • Petrochemicals

  • Pulp and Paper Industry

  • Sea Water Equipment

  • Chemical Equipment

  • Power Generation

  • Pharmaceutical Equipment

  • Specialty Chemicals

Alloy Steel ASTM A234 WP5 Fittings Reducer Sizes

Why pay extra? Buying from ASTM A234 WP5 Fittings manufacturers saves your cost, wide selection of Alloy Steel WP5 Buttweld Fittings and ANSI B16.9 Alloy Steel WP5 Butt weld Fittings in India

Reducer Fittings
DN Schedule 10S Schedule 40S
Ecc reducer Con reducer Reducing tee Con reducer Reducing tee Ecc reducer
400x300 18.35 18.35 51.71 36.70 87.54 36.70
25x15 0.12 0.12 0.25 0.15 0.26 0.15
20x15 0.10 0.10 0.11 0.14 0.15 0.14
25x20 0.13 0.13 0.25 0.16 0.27 0.16
32x25 0.18 0.18 0.45 0.22 0.53 0.22
32x20 0.18 0.18 0.44 0.22 0.52 0.22
40x20 0.18 0.18 0.58 0.24 0.74 0.24
40x32 0.24 0.21 0.61 0.28 0.77 0.28
40x25 0.19 0.19 0.60 0.26 0.76 0.26
50x25 0.28 0.28 0.73 0.40 1.10 0.40
50x40 0.31 0.31 0.76 0.45 1.15 0.45
50x32 0.30 0.30 0.74 0.44 1.13 0.44
65x40 0.44 0.44 1.24 0.76 1.94 0.76
80x40 0.51 0.51 1.52 0.94 2.85 0.94
65x50 0.47 0.47 1.25 0.80 1.98 0.80
80x50 0.55 0.55 1.56 1.00 2.91 1.00
100x40 0.68 0.68 2.90 1.36 4.53 1.36
80x65 0.59 0.59 1.59 1.08 2.98 1.08
100x50 0.78 0.78 2.94 1.57 4.48 1.57
100x80 0.87 0.87 3.04 1.74 4.64 1.74
100x65 0.83 0.83 2.97 1.66 4.54 1.66
125x100 1.49 1.49 5.49 2.98 8.47 2.98
150x100 1.96 1.96 7.10 4.07 9.68 4.07
150x80 1.82 1.82 6.86 3.98 11.94 3.98
150x125 2.00 2.00 7.27 4.07 9.99 4.07
200x150 3.19 3.19 14.08 6.94 18.82 6.94
250x100 4.73 4.73 22.75 10.52 30.07 10.52
200x100 3.01 3.01 13.46 6.55 17.98 6.55
250x150 5.00 5.00 23.55 11.12 31.13 11.12
300x200 7.67 7.67 34.73 15.98 54.43 15.98
250x200 5.20 5.20 24.08 11.56 31.84 11.56
300x250 7.98 7.98 35.52 16.63 55.79 16.63
400x200 16.70 16.70 49.90 33.40 84.82 33.40
350x300 15.29 15.29 43.96 30.58 71.21 30.58
400x250 17.22 17.22 50.80 35.43 85.73 35.43

ASME SA 234 WP5 Eblow Weight Chart

Elbow Pipe Fittings
PIPE NOMINAL SIZE OUTSIDE DIAM. 90° ELBOW 45° ELBOW 180° RETURNS
(inches) Short Radius Long Radius Long Radius Long Radius
(mm) (inches) Center to Face
(inches)
Center to Face
(inches)
Radius
(inches)
Center to Face
(inches)
Back to face
(inches)
Center to Center
(inches)
3/4 26.7 1.050 1 1/8 7/16 1 11/16 2 1/4
1/2 21.3 0.840 1 1/2 5/8 1 7/8 2
1 33.4 1.315 1 1 1/2 7/8 2 3/16 3
1 1/2 48.3 1.900 1 1/2 2 1/4 3 1 1/8 3 1/4 4 1/2
1 1/4 42.2 1.660 1 1/4 1 7/8 1 2 3/4 3 3/4
2 60.3 2.375 2 3 4 1 3/8 4 3/16 6
3 88.9 3.500 3 4 1/2 6 2 6 1/4 9
2 1/2 73.0 2.875 2 1/2 3 3/4 5 1 3/4 5 3/16 7 1/2
3 1/2 101.6 4.000 3 1/2 5 1/4 7 2 1/4 7 1/4 10 1/2
5 141.3 5.563 5 7 1/2 10 3 1/8 10 5/16 15
4 114.3 4.500 4 6 8 2 1/2 8 1/4 12
6 168.3 6.625 6 9 12 3 3/4 12 5/16 18
10 273.1 10.750 10 15 15 6 1/4 20 3/8 30
8 219.1 8.625 8 12 12 5 16 5/16 24
12 323.9 12.750 12 18 18 7 1/2 24 3/8 36
