| Nominal Bore | Outside Diameter | Light (A-Class) | Medium (B-Class) | Heavy (C-Class) |
|---|---|---|---|---|
| Size | O.D. | Light | Medium | Heavy |
| - | Outer Diameter | MS Class A Pipe | MS Class B Pipe | MS Class C Pipe |
| - | - | Kilogram (KG) | Kilogram (KG) | Kilogram (KG) |
| 1/8 | 0.40" | 0.36 | - | 0.49 |
| 1/4 | 0.53" | 0.51 | 0.40 | 0.76 |
| 3/8 | 0.87" | 0.67 | 0.85 | 1.02 |
| 1/2 | 0.84" | 0.95 | 1.12 | 1.45 |
| 3/4 | 1.09" | 1.41 | 1.58 | 1.90 |
| 1 | 1.31" | 2.01 | 2.44 | 2.97 |
| 1.1/4 | 1.65" | 2.58 | 3.14 | 3.84 |
| 1.1/2 | 1.90" | 3.25 | 3.61 | 4.43 |
| 2 | 2.37" | 4.11 | 5.10 | 6.17 |
| 2.1/2 | 3.00" | 5.84 | 6.61 | 7.90 |
| 3 | 3.50" | 6.81 | 8.47 | 10.1 |
| 4 | 4.50" | 9.89 | 12.1 | 14.4 |
| 5 | 5.50" | - | 16.2 | 17.8 |
| 6 | 6.50" | - | 19.2 | 21.2 |
Check Mild Steel Circular Pipe Weight Chart
Generally, two method to calculate MS circular pipe weight per foot or per meter.
1.) Calculate according to the MS pipe weight formula
2.) Search website for the information from the mild steel pipe weight chart
Refer MS Round Pipe Weight Calculate Formula
| Material | Roughness (mm) |
|---|---|
| Mild Steel | 0.02-0.05 |
| Concrete – Very Smooth | 0.025-0.2 |
| Sheet Metal Ducts (smooth joints) | 0.02-0.1 |
| Slightly Corroded (Carbon Steel) | 0.05-0.15 |
| Badly Corroded (CS) | 01/3 |
| Cement lined (Carbon Steel Material ) | 1.5 |
| Water Mains with Tuberculations | 1.2 |
| Galvanized Iron | 0.025-0.15 |
| Smooth Cement | 0.5 |
| Moderately Corroded (CS Material) | 0.15-1 |
| Concrete – Rough, Form Marks | 0.8-3 |
| Concrete – Fine (Brushed) | 0.2-0.8 |
The formula to compute the weight of a MS pipe per unit length is:
Weight (kg/m) = 4π × (D2−d2) × Density
| Size | Weight (Foot) | OD | Thickness |
|---|---|---|---|
| 1/8 | 0.24 | 10.3 mm | 1.73 mm |
| 1/4 | 0.42 | 13.7 mm | 2.24 mm |
| 1/2 | 0.85 | 21.3 mm | 2.77 mm |
| 3/4 | 1.13 | 26.7 mm | 2.87 mm |
| 1 | 1.68 | 33.4 mm | 3.38 mm |
| 1 1/4 | 2.27 | 42.2 mm | 3.56 mm |
| 1 1/2 | 2.72 | 48.3 mm | 3.68 mm |
| 2 | 3.65 | 60.3 mm | 3.91 mm |
| 2 1/2 | 5.79 | 73 mm | 5.16 mm |
| 3 | 7.58 | 88.9 mm | 5.49 mm |
| 3 1/2 | 9.11 | 101.6 mm | 5.74 mm |
| 4 | 10.79 | 114.3 mm | 6.02 mm |
| Thickness | 4.85 MM | 5.2 MM | 5.6 MM | 6 MM | 6.35 MM | 7.01 MM | 7.94 MM |
|---|---|---|---|---|---|---|---|
| DN7 | 22.59 kg | 24.17 kg | 26 kg | 27.88 kg | 29.34 kg | 32.77 kg | - |
| DN8 | 25.62 kg | 27.43 kg | 29.28 kg | 31.53 kg | 33.28 kg | 36.76 kg | 41 kg |
| DN10 | 32.07 kg | 34.34 kg | 36.93 kg | 39.5 kg | 41.73 kg | 46.43 kg | 50.95 kg |
| DN12 | 38.13 kg | 40.85 kg | 43.93 kg | 47.02 kg | 49.67 kg | 55.45 kg | 61.85 kg |
| DN14 | - | - | 48.11 kg | 51.49 kg | 54.43 kg | 61.82 kg | 67.98 kg |
| DN16 | - | - | - | 61 kg | 62.35 kg | 69.04 kg | 77.94 kg |
| DN18 | - | - | - | 69 kg | 70.5 kg | - | 87.8 kg |
| DN20 | - | - | - | - | 78.5 kg | - | - |
Before Ordering View Mild Steel Hollow Pipe Sizes and Thickness
| Size | SCH20 | SCH40 | SCH80 | SCH160 |
|---|---|---|---|---|
| DN20 | - | 2.87 | 3.91 | 5.56 |
| DN15 | - | 2.77 | 3.73 | 4.78 |
| DN25 | - | 3.38 | 4.55 | 6.35 |
| DN40 | - | 3.68 | 5.08 | 7.14 |
| DN32 | - | 3.56 | 4.85 | 6.35 |
| DN50 | - | 3.91 | 5.54 | 8.74 |
| DN80 | - | 5.49 | 7.62 | 11.13 |
| DN65 | - | 5.16 | 7.01 | 9.53 |
| DN90 | - | 5.74 | 8.08 | - |
| DN125 | - | 6.55 | 9.53 | 15.88 |
| DN100 | - | 6.02 | 8.56 | 13.49 |
| DN150 | - | 7.11 | 10.97 | 18.26 |
| DN250 | 6.35 | 9.27 | 15.09 | 28.58 |
| DN200 | 6.35 | 8.18 | 12.7 | 23.01 |
| DN350 | 7.92 | 11.13 | 19.05 | 35.71 |
| DN300 | 6.35 | 10.31 | 17.48 | 33.32 |
| DN450 | 7.92 | 14.27 | 23.83 | 45.24 |
| DN400 | 7.92 | 12.7 | 21.44 | 40.19 |
| DN500 | 9.53 | 15.09 | 26.19 | 50.01 |
| DN600 | 9.53 | 17.48 | 30.96 | 59.54 |
| DN550 | 9.53 | - | 28.58 | 53.98 |
| DN650 | 12.7 | - | - | - |
| DN750 | 12.7 | - | - | - |
| DN700 | 12.7 | - | - | - |
| DN800 | 12.7 | 17.48 | - | - |
| DN900 | 12.7 | 19.05 | - | - |
| DN850 | 12.7 | 17.48 | - | - |
- O.D = MS pipes outer diameter plays an important role in their weight
- Thickness = Thicker pipes tend to contain more material and more weigh
- Material Density
-
Corrosion Resistance
-
Excellent Weldability
-
Low Cost
-
Machinable
-
Recyclable
-
Excellent Conductivity
Trusted Source Of Mild Steel Tubing Which is Required for Heat Exchanger Application
| Standards | Wall Thickness | OD | Weight |
|---|---|---|---|
| IS:1239 | Heavy and Med : ± 10% | - | Heavy and Med : ± 10% |
| IS: 3589 |
|
Up to 508 mm | ± 7.5% |
Also Check Mild Steel Seamless Pipe Pressure Rating and Coating Types
| Pipe Size | Schedule | Temperature | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Inch | - | 200°F | 100°F | 300°F | 500°F | 400°F | 600°F | 700°F | 650°F | 750°F |
| 12 | SCH 40 | 855 | 855 | 855 | 855 | 855 | 855 | 819 | 855 | 741 |
| 3/4 | SCH 40 | 3059 | 2447 | 3059 | 3059 | 3059 | 3059 | 2937 | 3059 | 2651 |
| 1/2 | SCH 40 | 3730 | 3730 | 3730 | 3730 | 3730 | 3730 | 3581 | 3730 | 3233 |
| 1 1/2 | SCH 40 | 2116 | 2116 | 2116 | 2116 | 2116 | 2116 | 2032 | 2116 | 1834 |
| 1 | SCH 40 | 2857 | 2857 | 2857 | 2857 | 2857 | 2857 | 2743 | 2857 | 2476 |
| 2 | SCH 40 | 1783 | 1783 | 1783 | 1783 | 1783 | 1783 | 1712 | 1783 | 1545 |
| 3 | SCH 40 | 1258 | 1258 | 1258 | 1258 | 1258 | 1258 | 1208 | 1258 | 1090 |
| 4 | SCH 40 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1378 | 1435 | 1244 |
| 5 | SCH 40 | 1006 | 1006 | 1006 | 1006 | 1006 | 1006 | 966 | 1006 | 872 |
| 6 | SCH 40 | 913 | 913 | 913 | 913 | 913 | 913 | 876 | 913 | 791 |
| 8 | SCH 40 | 1143 | 1143 | 1143 | 1143 | 1143 | 1143 | 1098 | 1143 | 991 |
The following MS tubing calculation formula is applied:
Weight (lb/ft) = 4π × (OD^2−(OD − 2 × Thickness)^2) × Density × 0.0624
2 x 1 MS pipe weight
- Weight = 2.55 Kg
- Length X Thickness = 1M X 5MM
2 x 2 MS pipe weight
- Weight = 7.2 Kg
- Length X Thickness = 1M X 5MM
4 x 2 MS pipe weight
- Weight = 11 kg
- Length X Thickness = 1M X 5MM
4 x 4 MS pipe weight
- Weight = 15.1 Kg
- Length X Thickness = 1M X 5MM
3 x 1.5 MS pipe weight
- Weight = 5.39 Kg
- Length X Thickness = 1M X 5MM
100 x 50 MS pipe weight
- Weight = 11 Kg
- Length X Thickness = 1M X 5MM
| Size | 8 Inch | 12 Inch | 10 Inch | 14 Inch | 18 Inch | 16 Inch | 20 Inch |
|---|---|---|---|---|---|---|---|
| Outer Diameter in MM | 219.1 | 323.9 | 273.1 | 355.6 | 457 | 406.04 | 508 |
| 5.00 | 26.4 | 39.32 | 33.06 | 43.23 | - | - | - |
| 4.85 | 25.62 | 38.16 | 32.08 | - | - | - | - |
| Size | 8" | 12" | 10" | 14" | 18" | 16" | 20" |
|---|---|---|---|---|---|---|---|
| O.D. in MM | 219.1 | 323.9 | 273.1 | 355.6 | 457 | 406.04 | 508 |
| 6.35 | 33.31 | 49.73 | 41.77 | 54.69 | - | 54.69 | - |
| 6.00 | 31.53 | 47.04 | 39.52 | 51.73 | 66.73 | 51.73 | 74.27 |
| Size in Inch | 8 | 12 | 10 | 14 | 18 | 16 | 20 |
|---|---|---|---|---|---|---|---|
| O.D | 219.1 | 323.9 | 273.1 | 355.6 | 457 | 406.04 | 508 |
| 7.00 | 36.61 | 54.7 | 45.93 | 60.18 | 77.68 | 60.18 | 86.48 |
| 9.50 | 49.1 | 73.65 | 61.75 | 81.08 | 104.84 | 81.08 | 116.78 |
-
IS 1239 Standard
-
ASTM A53 Standard
-
ASTM A500 Standard

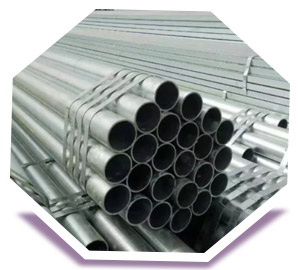

Galvanizing Mild Steel Circular Pipe Coating

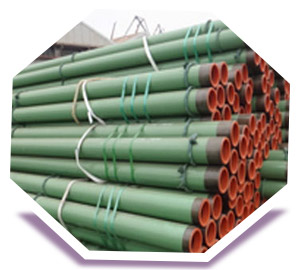

Epoxy MS Hollow Pipe Coating

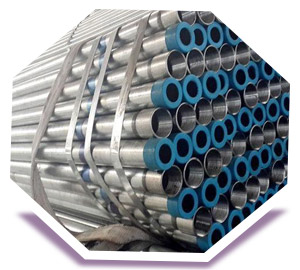

Zinc MS Rectangular Pipe Coating

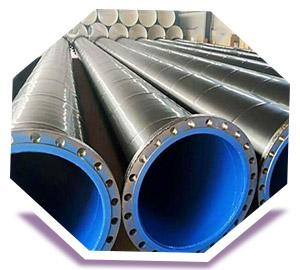

Polyethylene Mild Steel Round Pipe Coating

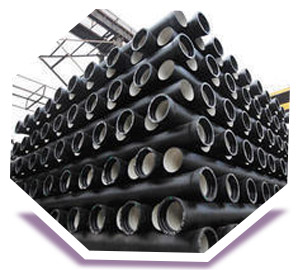

Bituminous MS Seamless Pipe Coating
Paint Mild Steel ERW Pipe Coating
