What Is Carbon Steel Threaded Fittings?
Carbon steel threaded fittings are seen in less critical applications. They are one of the oldest methods of joining pipes in the system. CS screwed fittings can be produced in NPT, BSPP, BSPT, PF, PT, and MPT threads. Carbon steel NPT fittings are generally seen in the U.S and Canada. Carbon steel BSP fittings are primarily seen in the UK, Europe, Asia, Australia, and other countries. The carbon steel threaded pipe fittings possess superior corrosion resistance properties and are recommended in low pressure and temperature setups. We carbon steel threaded fittings manufacturer in India. CS threaded coupling come in 1/2" to 4" in pressure class of 3000# and 6000#.
Table of Content
- Carbon Steel Threaded Fittings Specification
- Carbon Steel Threaded Coupling Price List
- CS Threaded Bushing Price List
- Carbon Steel Threaded Elbow Price List
- CS Threaded Plug Price List
- Applications for CS Threaded Fittings
- Carbon Steel Screwed Fittings Size Chart
- CS Threaded Pipe Fittings Working Pressure
- NPT vs BSP : Which is Better for CS Threaded Fittings?
- Carbon Steel Threaded Fittings Dimensions
- Pitch Size for CS Screwed Fittings
- Carbon Steel Threaded Pipe Fittings Pressure Rating
- Top 10 Advantages of Carbon Steel Thread End Fittings
- CS Threaded Pipe Fittings Wall Thickness
- Thread Connections for Carbon Threaded Fittings
- Tensile Strength for Low Pressure Carbon Steel Threaded Fittings
- Carbon Steel Threaded Fittings Temperature Range
- Types Of CS Threaded Elbow
- Types Of Carbon Steel Screwed Tee
- Types Of CS Threaded Reducer
- Types Of Carbon Steel Threaded Coupling
- Types Of CS Screwed Bushings
- Types Of Carbon Steel Threaded Plug
- Types Of Carbon Steel Threaded Nipple
Supplier of CS Threaded Coupling in Mumbai as per ASME B16.11
Size In Ready Stock :
- 1/2" To 6"
- Contact carbon steel threaded fittings manufacturer in India for above 12″
Available Machines :
- Beveling Machine
- Conventional Machine
- CNC
Test & Reports :
- Fumigation certificates
- Raw material test reports
- Material traceability records
Thickness :
- SCH 80 & XS For Class 2000
- SCH 160 For Class 3000
- SCH XXS For Class 6000
American Standard :
- ANSI B16.11
- ASME B16.11
Packaging Method :
- Wooden Cases
- Wooden Pallet
- Carton Box
Threads Types :
- BSPP & BSPT Threads
- NPTF & NPT Threads
- UNF & UN Threads
Finish :
- Coated
Advantage :
- Corrosion resistant
- Leak proof
- High durability
Applicable Fluids :
- Steam
- Oil and Gas
- Water and Air
Forming :
- Hot formed
- Cold formed
NPT Tapered :
- Male thread
- Female thread
Available Pressure :
- 2000 PSI
- 3000 PSI
- 6000 PSI
Types :
- Pipe Nipple & Bushing
- Union & Branch outlet
- Cross & Reducer
- Elbow & Coupling
- Tee & Plug
End Connection :
- Threaded (TH)
Service :
- NACE TM-0284
- NACE MR0103
- NACE MR0175
Machinability :
- Good Machinability
Marking :
- Grade & Material
- Manufacturers Name
- Standard & Heat No.
- Size & Schedule
Melting Temperature :
- 1,425°C to 1,500°C
Manufacturing Process :
- Machined
- Heat Treated
- Forged
End Connection :
- Threading
Temperature :
- Up to 425°C
EN Certificates :
- EN 10204 3.1
- EN 10204 3.2
Forging Process :
- Closed Die Forging
- Open Die Forging
Application :
- Chemical Equipment
- Oil and Gas
- Power Generation
- Petrochemicals
- Pharmaceuticals
Testing :
- Hardness Test
- Mechanical Testing
- Chemical Analysis
- Hyrdrostatic Test
- PMI Test
Facility :
- Spring machines
- Molding machines
- Automatic lathe machines
Standard of Female Threads :
- BSPP (Parallel) ISO 228-1
Standard of Male Threads :
- BSPT (Taper) ISO 7-1
Corrosion Resistance :
- Excellent
Logistics :
- By Sea
- By Air
- UAE = 5 day
- UK = 30 day
- France = 30 day
- Italy = 30 day
- Malaysia = 10 day
- Saudi Arabia = 7 day
- South Africa = 25-30 days
- Qatar = 7 days
- USA = 40 to 60 day
Max. Size :
- 12" For Only Pipe Nipple
Value Added Services :
- Polishing
- Cutting
- Minor Fabrication
- Threading
- Beveling End
Providing High Quality Carbon Steel Threaded Elbow At Updated Price List
-
Types = Half Coupling
-
Class = 3000 PSI
| Size | Price in US (Dollar) | Price in Malaysian Ringgit (Malaysia) |
|---|---|---|
| 0.125" | US $1.21 | MYR 5.45 |
| 0.25" | US $1.21 | MYR 5.45 |
| 0.375" | US $1.32 | MYR 5.95 |
| 0.5" | US $1.46 | MYR 6.58 |
| 0.75" | US $2.06 | MYR 9.28 |
| 1" | US $2.78 | MYR 12.53 |
| 1.25" | US $4.14 | MYR 18.66 |
| 1.5" | US $6.05 | MYR 27.27 |
| 2" | US $7.03 | MYR 31.69 |
| 2.5" | US $13.25 | MYR 59.73 |
| 3" | US $28.37 | MYR 127.90 |
| 4" | US $33.11 | MYR 149.27 |
-
Types = Hex Bushing
-
Class = 3000 PSI
| Size | Price in US (Dollar) | Price in Dirham (UAE) |
|---|---|---|
| 0.25" | US $1.83 | AED 6.72 |
| 0.375" | US $1.86 | AED 6.83 |
| 0.5" | US $2.26 | AED 8.30 |
| 0.75" | US $2.78 | AED 10.21 |
| 1" | US $3.73 | AED 13.70 |
| 1.25" | US $5.32 | AED 19.54 |
| 1.5" | US $7.16 | AED 26.30 |
| 2" | US $10.18 | AED 37.39 |
| 2.5" | US $35.22 | AED 129.36 |
| 3" | US $52.35 | AED 192.28 |
| 4" | US $118.00 | AED 433.41 |
-
Types = 90 Elbow
-
Class = 3000 PSI
| Size | Price in US (Dollar) | Price in South African Rand (South Africa) |
|---|---|---|
| 0.25" | US $1.31 | ZAR 24.11 |
| 0.375" | US $2.73 | ZAR 50.25 |
| 0.5" | US $4.24 | ZAR 78.04 |
| 0.75" | US $6.39 | ZAR 117.62 |
| 1" | US $8.93 | ZAR 164.37 |
| 1.25" | US $13.10 | ZAR 241.13 |
| 1.5" | US $16.65 | ZAR 306.47 |
| 2" | US $19.47 | ZAR 358.38 |
| 2.5" | US $30.27 | ZAR 557.17 |
| 3" | US $43.20 | ZAR 795.17 |
| 4" | US $67.24 | ZAR 1237.67 |
-
Types = Square Head Plug
-
Class = 3000 PSI
| Size | Price in US (Dollar) | Price in Saudi Riyal (Saudi Arabia) |
|---|---|---|
| 0.125" | US $1.33 | SAR 5.00 |
| 0.25" | US $1.33 | SAR 5.00 |
| 0.375" | US $1.51 | SAR 5.67 |
| 0.5" | US $1.68 | SAR 6.31 |
| 0.75" | US $2.50 | SAR 9.39 |
| 1" | US $3.23 | SAR 12.13 |
| 1.25" | US $6.13 | SAR 23.03 |
| 1.5" | US $8.64 | SAR 32.46 |
| 2" | US $11.39 | SAR 42.79 |
| 2.5" | US $23.26 | SAR 87.38 |
| 3" | US $35.66 | SAR 133.96 |
| 4" | US $61.68 | SAR 231.71 |
Since 22 Years, Experts in Manufacturing Carbon Steel Threaded Bushing for Low Pressure Applications
Fast Shipping for CS Threaded Nipple in Size Range DN8 To DN150, Check Sizes Chart and Working Pressure
| Description | Class Designation | ||
|---|---|---|---|
| Class 6000 | Class 3000 | Class 9000 | |
| Pipe Size by Wall Thickness (WT) |
Schedule 160 | Schedule 80 / XS | XXS |
| 45 and 90 degree Elbow Tee/ Cross/ Couplings/ Half-Couplings/ End or Pipe Caps |
1/2 - 2 | 1/2 - 4 | 1/2 - 2 |
| 1/2 - 2 | 1/2 - 4 | 1/2 - 2 | |
| 1/2 - 2 | 1/2 - 4 | 1/2 - 2 | |
| Schedule | Pressure Rating |
|---|---|
| Schedule 40 | 103 Bar |
| Schedule 80 | 137 Bar |
| Schedule 160 | 172 Bar |
| Criteria | NPT | BSP |
|---|---|---|
| Full Name | National Pipe Tapered | British Standard Pipe |
| Threads | Tapered threads | Parallel threads |
| Standardization | United States and Canada. | UK, Australia |
| Sealing Mechanism | Threads are tapered | BSPT (tapered) seals |
| Pressure Handling | High pressure | High pressure |
| Use | Oil and gas | Hydraulic systems |
| Sealing Requirement | Does not require sealing tape | BSPT requires sealing compound |
| PIPE O.D. | NOM BORE | COMMON FACTORS | 3000 LBS | 6000 LBS | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | E | F | I | J | L | A | B | C | G | H | K | A | B | C | G | H | K | ||
| 10.3 | 1/8" | 11 | 10 | 40 | - | 6 | - | 21 | 22 | 17 | 32 | 16 | 19 | 25 | 25 | 19 | 32 | 22 | - |
| 13.7 | 1/4" | 16 | 11 | 43 | 3 | 6 | 32 | 25 | 25 | 19 | 35 | 19 | 25 | 29 | 33 | 22 | 35 | 25 | 27 |
| 17.2 | 3/8" | 17.5 | 13 | 48 | 4 | 8 | 38 | 29 | 33 | 22 | 38 | 22 | 25 | 33 | 38 | 25 | 38 | 32 | 27 |
| 21.3 | 1/2" | 22 | 15 | 51 | 5 | 8 | 46 | 33 | 38 | 25 | 48 | 29 | 32 | 38 | 46 | 29 | 48 | 38 | 33 |
| 26.7 | 3/4" | 27 | 16 | 57 | 6 | 10 | 51 | 38 | 46 | 29 | 51 | 35 | 37 | 44 | 56 | 33 | 51 | 44 | 38 |
| 33.4 | 1" | 35 | 19 | 64 | 6 | 10 | 60 | 44 | 56 | 33 | 60 | 44 | 41 | 51 | 62 | 35 | 60 | 57 | 43 |
| 42.2 | 1 1/4" | 44.5 | 21 | 70 | 7 | 14 | 72 | 51 | 62 | 35 | 67 | 57 | 44 | 60 | 75 | 43 | 67 | 64 | 46 |
| 48.3 | 1 1/2" | 51 | 21 | 79 | 8 | 16 | 80 | 60 | 75 | 43 | 79 | 64 | 44 | 64 | 84 | 44 | 79 | 76 | 48 |
| 60.3 | 2" | 63.5 | 22 | 88 | 9 | 17 | 94 | 64 | 84 | 45 | 86 | 76 | 48 | 83 | 102 | 52 | 86 | 92 | 51 |
| 73.02 | 2 1/2" | 76 | 27 | 118 | 10 | 21 | 122 | 83 | 102 | 52 | 92 | 92 | 60 | 95 | 121 | 64 | 92 | 108 | 64 |
| 89.0 | 3" | 89 | 29 | 121 | 10 | 65 | 140 | 95 | 121 | 64 | 108 | 108 | 65 | 106 | 146 | 79 | 108 | 127 | 68 |
| 114.5 | 4" | 117.5 | 32 | 150 | 13 | 25 | 180 | 114 | 152 | 79 | 121 | 140 | 68 | 114 | 152 | 79 | 121 | 159 | 75 |
-
NPT = 11 ½"/ 14"/ 18"/ 27"
-
BSPP = 11"/ 14"/ 19"/ 28"
-
BSPT = 11"/ 14"/ 19"/ 28"
Also View Carbon Steel Threaded Pipe Fittings Pressure Rating and Thread Connections in Class 2000, 3000 and 6000
| Class 3000 | ||
|---|---|---|
| 100°F | 200°F | 300°F |
| 2570 | 2280 | 2055 |
| 400°F | 500°F | 700°F |
| 1870 | 1715 | 1480 |
| 800°F | 900°F | 1000°F |
| 1370 | 1290 | 1250 |
-
Cost-Effective Solution
-
High Strength and Durability
-
Ease of Installation
-
Wide Range of Sizes
-
Corrosion Resistance
-
Good Thermal Conductivity
-
High Pressure and Temperature Resistance
-
Reusability and Maintenance
-
Ease of Inspection
-
Compatibility with Various Piping Systems
-
SCH 20, 40, 80 and XS = Class 2000
-
SCH 160 = Class 3000
-
SCH XXS = Class 6000
-
ASME B16.4 = Gray iron threaded fittings
-
ASME B16.3 = Malleable iron threaded fittings
-
MSS-SP-83 = Class 3000 union
| Grade | Tensile Strength | Application |
|---|---|---|
| ASTM A105 | 70,000 PSI | High pressure systems |
-
-20°F to 800°F
-
-29°C to 427°C
Carbon Steel BSP 45 Degree Elbow
Carbon Steel Threaded 90 Degree Elbow
Carbon NPT Reducing Elbow
Carbon Steel NPT Elbow

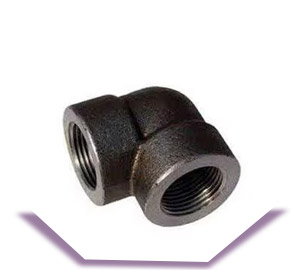

Carbon BSP Elbow
CS Street Elbow

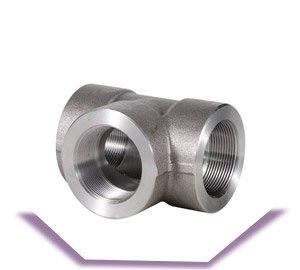

Carbon Steel Threaded Equal Tee
Carbon Threaded Reducing Tee
CS Screwed Mechanical Tee

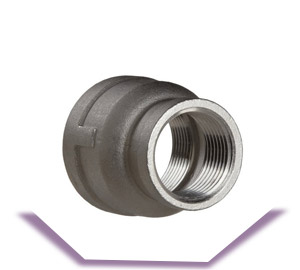

Carbon Steel Threaded Bushing Reducer
CS Threaded Concentric Reducer

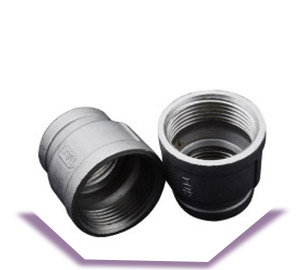

Carbon Steel Threaded Eccentric Reducer
Carbon Threaded Half Coupling
CS Threaded Full Coupling

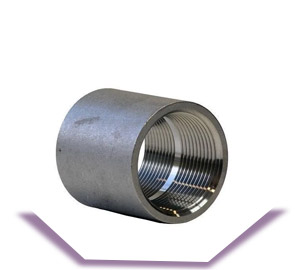

Carbon Steel Threaded Reducing Coupling
Carbon BSPP Threaded Hex Bushings

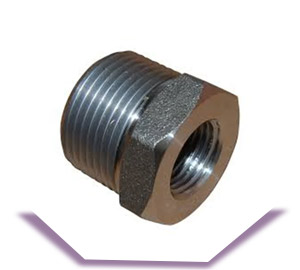

Carbon Steel NPT Reducer Bushings
CS Threaded Drill Bushing
Carbon Steel Threaded Hex Bull Plug
CS Threaded Bull Plug
Carbon Threaded Square Head Plug
Carbon Steel Threaded Hex Plug
CS BSP Threaded Round Plug
Carbon Steel Threaded Eccentric Swage Nipple
CS Threaded Concentric Swage Nipple
Carbon Steel Threaded Swage Nipple
CS Threaded Barrel Nipples
Carbon Steel Threaded Hexagon Nipple
