Duplex 2205 Forged Fittings

Melting Range :

• 1435°C to 1445°C

Standard :

• ASTM A182

Threads :

• NPT, NPTF, BSPT, BSP

Suitable For :

• Marine Applications

Method :

• CNC Machined

Forging Temperature :

• 1250°C to 1050°C

Heat Treatment :

• 1000 and 1200°C at Annealing

Hardness :

• 293 HB (Brinell)

Types Of Steel :

• Ferritic Austenitic

Size Range :

• TH : 1/2" To 6"
• SW : 1/2" To 4"
• Contact duplex forged fittings manufacturer in India for above 12″

Machines :

• Beveling Machine
• Conventional Machine
• CNC

Documentation :

• Fumigation certificates
• Raw material test reports
• Material traceability records

Thickness :

• SCH : 20
• SCH : 40
• SCH : 60
• SCH : 80

ASME Standard :

• ANSI B16.11
• ASME B16.11

Packaging Types :

• Carton Box
• Wooden Cases
• Wooden Pallet

Threads Types :

• NPT and NPTF Threads
• UN and UNF Threads
• BSPT and BSPP Threads

Finish :

• Polished Finish
• Smooth Finish

Advantage :

• Superior Corrosion Resistance
• High Strength
• Good Workability

Applicable Fluids :

• Water and Air
• Steam
• Oil and Gas

Forming Types :

• Hot formed
• Cold formed

NPT Tapered :

• Male thread
• Female thread

Pressure Class :

• Class 2000
• Class 3000
• Class 6000
• Class 9000

Types :

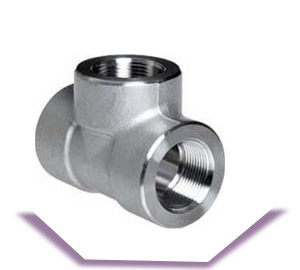

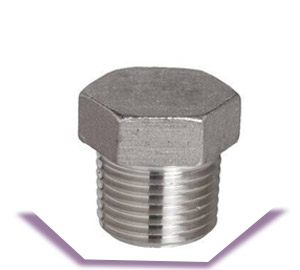

• Tee & Plug
• Union & Branch outlet
• Cross & Reducer

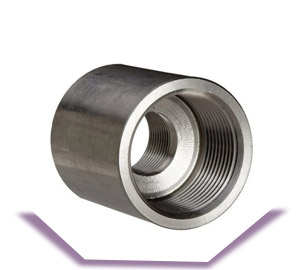

• Elbow & Coupling

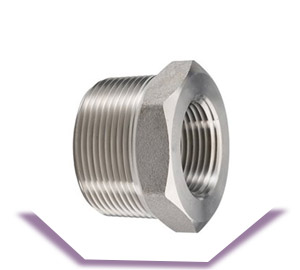

• Pipe Nipple & Bushing

End Connection :

• Socket Weld (SW)
• Threaded (TH)

Service :

• NACE MR0175
• NACE MR0103
• NACE TM-0284

Machinability :

• Good Machinability

Marking Info :

• Size & Schedule
• Grade & Material
• Manufacturers Name
• Standard & Heat No.

Life :

• Stainless Steel = 25 To 30 Years

Manufacturing Process :

• Forged
• Machined
• Heat Treated

Connection :

• Welding

Welding :

• Fusion Welding

Certificates :

• EN 10204 3.1
• EN 10204 3.2

Forging :

• Open Die Forging
• Closed Die Forging

Application :

• Chemical Equipment
• Power Generation
• Petrochemicals
• Oil and Gas
• Pharmaceuticals

Common Testing :

• Chemical Analysis
• Hyrdrostatic Test
• PMI Test
• Hardness Test
• Mechanical Testing

Facility :

• Automatic lathe machines
• Hardness Test
• Spring machines
• Molding machines

Logistics :

• By Sea, Air
• Qatar = 6 To 7 day
• Saudi Arabia = 8 to 9 day
• South Africa = 25-30 days
• Qatar = 7 days
• UAE = 7 to 8 day
• Malaysia = 10 day

Max. Size :

• 12" For Only Pipe Nipple

Value Added Services :

• Minor Fabrication
• Threading & Beveling End
• Polishing & Cutting

Phosphoric Acid :

• Good

Sulfuric Acid :

• Fair

Oxidizing Environments :

• Good

Chloride Environments :

• Excellent

Acidic Environments :

• Moderate

Seawater :

• Excellent

MMAW Welding :

GTAW Welding :

GMAW Welding :

Grade :

• ASTM A182 F60 Forged Flange

UNS :

• UNS S32205

WNR :

• 1.4462

Carbon [C] :

• 0 To 0.03%

Manganese [Mn] :

• ≤2.00%

Phosphorus [P] :

• 0 To 0.03%

Sulfur [S] :

• 0 To 0.02%

Silicon [Si] :

• ≤1.00%

Chromium [Cr] :

• 22.00 To 23.00%

Molybdenum [Mo] :

• 3 To 3.50%

Nickel [Ni] :

• 4.5% To 6.5%

Nitrogen [N] :

• 0.14% To 0.20%

Hardness :

• 200 to 250 HB

Density :

• 8.0 g/cm³

Tensile Strength :

• 655 MPa
