The ASTM A234 grade covers carbon alloy steel fittings that influence the characteristics of the flow. A234 WPB Fittings are designed with a chemical composition of carbon, manganese, phosphorous, sulfur, silicon, chromium, nickel, molybdenum, and copper. The WPB Pipe Fittings help change the direction, route the flow or branch connections efficiently in the oil and gas industry. The versatile ASTM A234 WPB Fittings showcase enhanced resistance to corrosive and reducing media across stress-induced conditions. ASTM A234 Fittings are designed in sizes between ½ inches to 48 inches. These fittings are produced in schedules of sch 5 to sch160 and XXS. The A234 Fittings work well in high-pressure and temperature setups. These fittings can be produced in seamless and welded configurations. ASTM A234 WPB Pipe Fittings can join fixtures of different sizes. These fittings have a superior surface finish and possess a bending radius of R=1D to 10D and can be customized as per requirements. The ASTM A234 Gr WPB grade also works well in cryogenic conditions. They are seen in petrochemical, oil, and gas applications. The A234 WPB Material is designed with superior mechanical properties. The material possesses a minimum tensile strength of 415mpa with a minimum yield strength of 240mpa. The robust A234 Material is rated at pressures of 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2000 LBS, 3000 LBS to 9000 LBS.
The ASTM A234 WPB Elbow is a device that is employed to change the flow of pressurized gaseous and fluid media in different conditions. As per movement of media, the SA234 WPB Elbow is produced in 45, 90, and 180-degree specifications. These elbows are designed with short or long radius specifications. The WPB Elbow can be produced utilizing threaded or welded configurations. These elbows are quality-assured and are very reliable and durable. ASTM A234 WPB Reducer is utilized to connect piping grades of dissimilar sizes. These fixtures are designed in concentric and eccentric specifications. The WPB Weld Fittings are reliable fixtures that are welded using standard welding procedures. These fittings are available in wide range of sizes and shapes. The SA 234 WPB is a pressurized grade that can be availed at our outlets at the most reasonable prices. The ASTM A234 WPB Fittings are quality-assured and are produced using the best raw materials and latest technology across all our outlets. The SA 234 Gr WPB grade can be customized with different specifications to meet all customer requirements.
ASTM A234/ ASME SA234
Size: 1/2" NB upto 24″NB
ASTM A234 WPB Weld Fittings Specifications | ASME / ASTM SA234/ A234 |
---|---|
Dimensions | ASME B16.28, ASME/ANSI B16.9, MSS-SP-43 |
Type | Fabricated/ Welded/ Seamless |
Size | 1/2" NB upto 24″NB |
Thicknesses | Schedule 5s to Sch XXS |
Radius | R=10D, 8D, 2D, 1D, 6D, 3D, 5D |

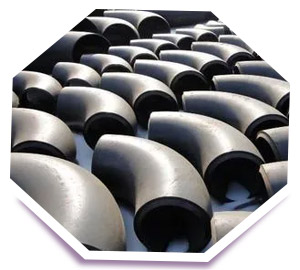

Types | Short Radius Elbow, Long Radius Elbow, 2D Elbow, 5D Elbow, 10D Elbow, 3D Elbow, Equal Cross, Reducing Nipple, Unequal Crosses, Butt Tee Fittings, Bend, ASTM A234 Pipe Nipple, Reducers, Swedge Nipple, Caps, Pipe / Piggable Bend, Stub End, Pipe Elbow |
Why to buy from stockist? Buy directly through ASTM A234 Gr WPB Fittings manufacturers and save cost
Description | Price Per Kg In Singapore | Price Per Kg In UAE | Price Per Kg In USD | Price Per Kg In Malaysia |
---|---|---|---|---|
DN 400X350,SCH XS, PIPE FITTING CARBON STEEL SA 234 WBP BUTT WELD CONCENTRIC REDUCER | SGD 10.35 | UAE Dirham 27.03 | US $7.48 | MYR 32.78 |
SIZE 18 STD CARBON STEEL SEAMLESS PIPE FITTING ASTM A234 WBP B16.9 SMLS 90 ELBOW | SGD 0.88 | UAE Dirham 2.30 | US $0.64 | MYR 2.79 |
SMLS SIZE 18X10 SCH40 CARBON STEEL SEAMLESS PIPE FITTING ASTM A234 WBP B16.9 ECC. REDUCER | SGD 0.70 | UAE Dirham 1.83 | US $0.51 | MYR 2.22 |
SCH.160 150 CL CARBON STEEL WBP PIPE FITTINGS | SGD 22.28 | UAE Dirham 58.19 | US $16.09 | MYR 70.57 |
SCH.40 CARBON STEEL PIPE FITTINGS-14 SA234 WBP WELDING CAP | SGD 205.16 | UAE Dirham A35.71 | US $148.17 | MYR 649.69 |
SIZE 1.1/4 SCH40 CARBON STEEL SEAMLESS PIPE FITTING ASTM A234 WBP B16.9 SMLS 90 ELBOW | SGD 0.63 | UAE Dirham 1.65 | US $0.46 | MYR 2.00 |
SCH XXS, CARBON STEEL DN 65, 90 DEGREE ELBOW (LR), SA234 WBP PIPE FITTINGS | SGD 4.03 | UAE Dirham 10.53 | US $2.91 | MYR 12.77 |

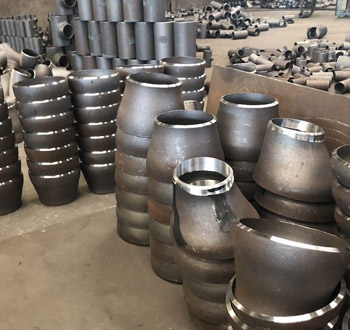

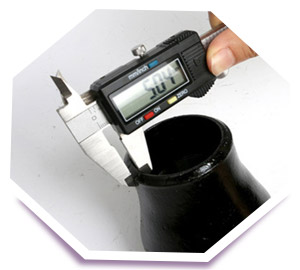

A234 WPB Reducer

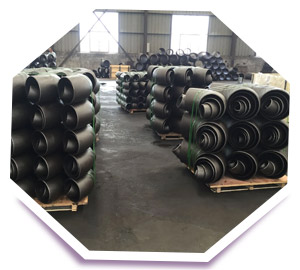

ASTM A234 WPB Weld Elbows

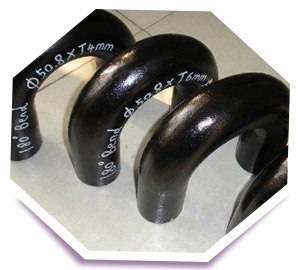

ASTM A 234 Return Bends

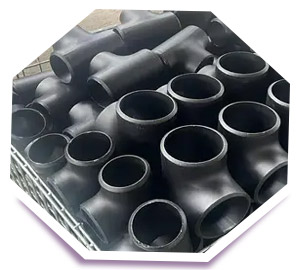

SA 234 WPB Reducing Tee

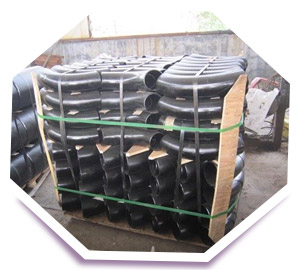

ASTM A234 Gr WPB 180 Degree Elbows

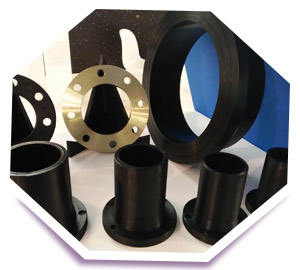

SA 234 Gr WPB Stub End
ASTM A234 WPB Pipe Fittings
A234 WP11 Concentric Reducer

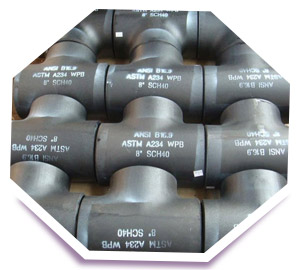

ASTM A 234 WPB Equal Tee

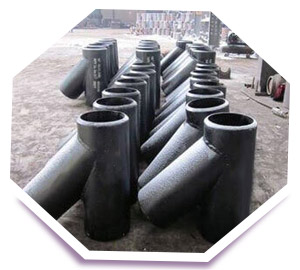

A 234 WPB Laterals
A234 WP22 Elbow
SA 234 WP11 Cross Tee

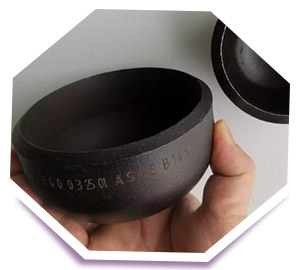

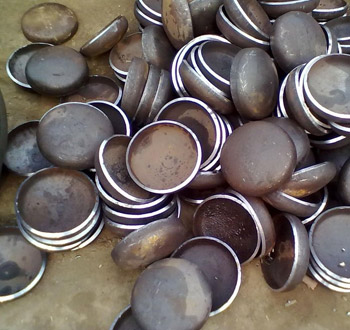

A 234 Gr WPB End Cap

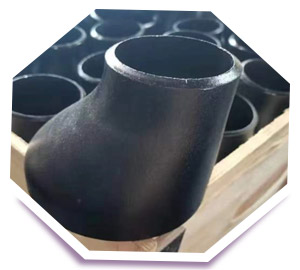

ASTM A234 Gr WP11 Eccentric Reducer
ASTM A234 WPB Lap Joint Stub Ends

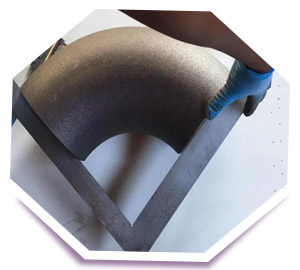

ASTM A234 Gr WPB 45 Degree Elbows
SA 234 Gr WPB Cross Fitting

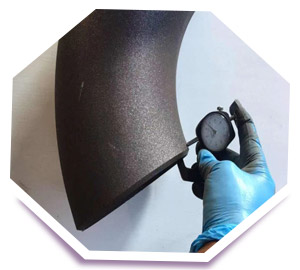

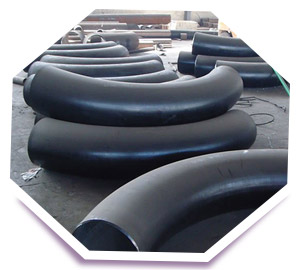

A 234 WPB 90 Degree Elbows
Carbon Steel A234 WPB Buttweld Pipe Fittings manufacturer in India, we use only high quality & tested material to produce Carbon Steel A234 WPB Fittings
O.D. (mm) | Nominal Pipe Size | W.T. (mm) | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
Sch 5S | Sch 10S | Sch 40S | Sch 80S | |||||||
NPS | DN | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | |
10.3 | ⅛ | 6 | 0.28 | 1.24 | 0.37 | 1.73 | 0.47 | 2.41 | ||
13.7 | ¼ | 8 | 0.49 | 1.65 | 0.63 | 2.24 | 0.80 | 3.02 | ||
17.1 | ⅜ | 10 | 0.63 | 1.65 | 0.84 | 2.31 | 1.10 | 3.20 | ||
21.3 | ½ | 15 | 0.80 | 1.65 | 1.00 | 2.11 | 1.27 | 2.77 | 1.62 | 3.73 |
26.7 | ¾ | 20 | 1.02 | 1.65 | 1.28 | 2.11 | 1.69 | 2.87 | 2.20 | 3.91 |
33.4 | 1 | 25 | 1.29 | 1.65 | 2.09 | 2.77 | 2.50 | 3.38 | 3.24 | 4.55 |
42.2 | 1¼ | 32 | 1.65 | 1.65 | 2.69 | 2.77 | 3.39 | 3.56 | 4.47 | 4.85 |
48.3 | 1½ | 40 | 1.90 | 1.65 | 3.11 | 2.77 | 4.05 | 3.68 | 5.41 | 5.08 |
60.3 | 2 | 50 | 2.39 | 1.65 | 3.93 | 2.77 | 5.44 | 3.91 | 7.48 | 5.54 |
73.0 | 2½ | 65 | 3.69 | 2.11 | 5.26 | 3.05 | 8.63 | 5.16 | 11.41 | 7.01 |
88.9 | 3 | 80 | 4.52 | 2.11 | 6.46 | 3.05 | 11.29 | 5.49 | 15.27 | 7.62 |
101.6 | 3½ | 90 | 5.18 | 2.11 | 7.41 | 3.05 | 13.57 | 5.74 | 18.64 | 8.08 |
114.3 | 4 | 100 | 5.84 | 2.11 | 8.37 | 3.05 | 16.08 | 6.02 | 22.32 | 8.56 |
141.3 | 5 | 125 | 9.46 | 2.77 | 11.56 | 3.40 | 21.77 | 6.55 | 30.97 | 9.53 |
168.3 | 6 | 150 | 11.31 | 2.77 | 13.83 | 3.40 | 28.26 | 7.11 | 42.56 | 10.97 |
219.1 | 8 | 200 | 14.78 | 2.77 | 19.97 | 3.76 | 42.55 | 8.18 | 64.64 | 12.70 |
273.1 | 10 | 250 | 22.61 | 3.40 | 27.79 | 4.19 | 60.31 | 9.27 | 81.56 | 12.70 |
323.9 | 12 | 300 | 31.25 | 3.96 | 35.99 | 4.57 | 73.88 | 9.53 | 97.47 | 12.70 |
355.6 | 14 | 350 | 34.34 | 3.96 | 41.36 | 4.78 | 81.33 | 9.53 | 107.40 | 12.70 |
406.4 | 16 | 400 | 41.56 | 4.19 | 47.34 | 4.78 | 93.27 | 9.53 | 123.31 | 12.70 |
457 | 18 | 450 | 46.79 | 4.19 | 53.31 | 4.78 | 105.17 | 9.53 | 139.16 | 12.70 |
508 | 20 | 500 | 59.32 | 4.78 | 68.65 | 5.54 | 117.15 | 9.53 | 155.13 | 12.70 |
559 | 22 | 550 | 65.33 | 4.78 | 75.62 | 5.54 | ||||
610 | 24 | 600 | 82.58 | 5.54 | 94.53 | 6.35 | 141.12 | 9.53 | 187.07 | 12.70 |
660 | 26 | 650 | ||||||||
711 | 28 | 700 | ||||||||
762 | 30 | 750 | 118.34 | 6.35 | 147.29 | 7.92 |
A leading supplier of industrial ASTM A234 Wpb Elbow, we offer a wide range of cost effective Carbon Steel A234 WPB Elbow
PIPE NOMINAL SIZE | OUTSIDE DIAM. | 90° ELBOW | 45° ELBOW | 180° RETURNS | ||||
---|---|---|---|---|---|---|---|---|
(inches) | Short Radius | Long Radius | Long Radius | Long Radius | ||||
(mm) | (inches) | Center to Face (inches) |
Center to Face (inches) |
Radius (inches) |
Center to Face (inches) |
Back to face (inches) |
Center to Center (inches) |
|
3/4 | 26.7 | 1.050 | – | 1 1/8 | 7/16 | 1 11/16 | 2 1/4 | |
1/2 | 21.3 | 0.840 | – | 1 1/2 | 5/8 | 1 7/8 | 2 | |
1 | 33.4 | 1.315 | 1 | 1 1/2 | 7/8 | 2 3/16 | 3 | |
1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 3 | 1 1/8 | 3 1/4 | 4 1/2 |
1 1/4 | 42.2 | 1.660 | 1 1/4 | 1 7/8 | 1 | 2 3/4 | 3 3/4 | |
2 | 60.3 | 2.375 | 2 | 3 | 4 | 1 3/8 | 4 3/16 | 6 |
3 | 88.9 | 3.500 | 3 | 4 1/2 | 6 | 2 | 6 1/4 | 9 |
2 1/2 | 73.0 | 2.875 | 2 1/2 | 3 3/4 | 5 | 1 3/4 | 5 3/16 | 7 1/2 |
3 1/2 | 101.6 | 4.000 | 3 1/2 | 5 1/4 | 7 | 2 1/4 | 7 1/4 | 10 1/2 |
5 | 141.3 | 5.563 | 5 | 7 1/2 | 10 | 3 1/8 | 10 5/16 | 15 |
4 | 114.3 | 4.500 | 4 | 6 | 8 | 2 1/2 | 8 1/4 | 12 |
6 | 168.3 | 6.625 | 6 | 9 | 12 | 3 3/4 | 12 5/16 | 18 |
10 | 273.1 | 10.750 | 10 | 15 | 15 | 6 1/4 | 20 3/8 | 30 |
8 | 219.1 | 8.625 | 8 | 12 | 12 | 5 | 16 5/16 | 24 |
12 | 323.9 | 12.750 | 12 | 18 | 18 | 7 1/2 | 24 3/8 | 36 |
Purchasing Carbon Steel ASTM A234 WPB Concentric Reducer and Carbon Steel A234 WPB Reducer from the manufacturer directly saves your cost and time
DN | Schedule 10S | Schedule 40S | ||||
---|---|---|---|---|---|---|
Ecc reducer | Con reducer | Reducing tee | Con reducer | Reducing tee | Ecc reducer | |
400x300 | 18.35 | 18.35 | 51.71 | 36.70 | 87.54 | 36.70 |
25x15 | 0.12 | 0.12 | 0.25 | 0.15 | 0.26 | 0.15 |
20x15 | 0.10 | 0.10 | 0.11 | 0.14 | 0.15 | 0.14 |
25x20 | 0.13 | 0.13 | 0.25 | 0.16 | 0.27 | 0.16 |
32x25 | 0.18 | 0.18 | 0.45 | 0.22 | 0.53 | 0.22 |
32x20 | 0.18 | 0.18 | 0.44 | 0.22 | 0.52 | 0.22 |
40x20 | 0.18 | 0.18 | 0.58 | 0.24 | 0.74 | 0.24 |
40x32 | 0.24 | 0.21 | 0.61 | 0.28 | 0.77 | 0.28 |
40x25 | 0.19 | 0.19 | 0.60 | 0.26 | 0.76 | 0.26 |
50x25 | 0.28 | 0.28 | 0.73 | 0.40 | 1.10 | 0.40 |
50x40 | 0.31 | 0.31 | 0.76 | 0.45 | 1.15 | 0.45 |
50x32 | 0.30 | 0.30 | 0.74 | 0.44 | 1.13 | 0.44 |
65x40 | 0.44 | 0.44 | 1.24 | 0.76 | 1.94 | 0.76 |
80x40 | 0.51 | 0.51 | 1.52 | 0.94 | 2.85 | 0.94 |
65x50 | 0.47 | 0.47 | 1.25 | 0.80 | 1.98 | 0.80 |
80x50 | 0.55 | 0.55 | 1.56 | 1.00 | 2.91 | 1.00 |
100x40 | 0.68 | 0.68 | 2.90 | 1.36 | 4.53 | 1.36 |
80x65 | 0.59 | 0.59 | 1.59 | 1.08 | 2.98 | 1.08 |
100x50 | 0.78 | 0.78 | 2.94 | 1.57 | 4.48 | 1.57 |
100x80 | 0.87 | 0.87 | 3.04 | 1.74 | 4.64 | 1.74 |
100x65 | 0.83 | 0.83 | 2.97 | 1.66 | 4.54 | 1.66 |
125x100 | 1.49 | 1.49 | 5.49 | 2.98 | 8.47 | 2.98 |
150x100 | 1.96 | 1.96 | 7.10 | 4.07 | 9.68 | 4.07 |
150x80 | 1.82 | 1.82 | 6.86 | 3.98 | 11.94 | 3.98 |
150x125 | 2.00 | 2.00 | 7.27 | 4.07 | 9.99 | 4.07 |
200x150 | 3.19 | 3.19 | 14.08 | 6.94 | 18.82 | 6.94 |
250x100 | 4.73 | 4.73 | 22.75 | 10.52 | 30.07 | 10.52 |
200x100 | 3.01 | 3.01 | 13.46 | 6.55 | 17.98 | 6.55 |
250x150 | 5.00 | 5.00 | 23.55 | 11.12 | 31.13 | 11.12 |
300x200 | 7.67 | 7.67 | 34.73 | 15.98 | 54.43 | 15.98 |
250x200 | 5.20 | 5.20 | 24.08 | 11.56 | 31.84 | 11.56 |
300x250 | 7.98 | 7.98 | 35.52 | 16.63 | 55.79 | 16.63 |
400x200 | 16.70 | 16.70 | 49.90 | 33.40 | 84.82 | 33.40 |
350x300 | 15.29 | 15.29 | 43.96 | 30.58 | 71.21 | 30.58 |
400x250 | 17.22 | 17.22 | 50.80 | 35.43 | 85.73 | 35.43 |
W.T. (in) (mm) |
Pipe SCH | Pipe Size (inches) |
Temperature (oF) (deg C) | O.D. (in) (mm) |
||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
100 | 200 | 300 | 400 | 500 | 600 | 650 | 700 | 750 | ||||
Allowable Stress (psi) (kPa) | ||||||||||||
16700 | 16700 | 16700 | 15500 | 14400 | 13500 | 13200 | 12900 | 12600 | ||||
0.145 | 40 | 1 1/2" | 1629 | 1629 | 1629 | 1512 | 1404 | 1317 | 1287 | 1258 | 1229 | 1.900 |
0.200 | 80 | 2303 | 2303 | 2303 | 2138 | 1986 | 1862 | 1821 | 1779 | 1738 | 1.900 | |
0.281 | 160 | 3362 | 3362 | 3362 | 3120 | 2899 | 2717 | 2657 | 2597 | 2536 | 1.900 | |
0.133 | 40 | 1" | 2205 | 2205 | 2205 | 2047 | 1902 | 1783 | 1743 | 1703 | 1664 | 1.315 |
0.179 | 80 | 3061 | 3061 | 3061 | 2841 | 2640 | 2475 | 2420 | 2365 | 2310 | 1.315 | |
0.250 | 160 | 4493 | 4493 | 4493 | 4170 | 3874 | 3632 | 3552 | 3471 | 3390 | 1.315 | |
0.154 | 40 | 2" | 1371 | 1371 | 1371 | 1272 | 1182 | 1108 | 1083 | 1059 | 1034 | 2.375 |
0.218 | 80 | 1985 | 1985 | 1985 | 1843 | 1712 | 1605 | 1569 | 1534 | 1498 | 2.375 | |
0.344 | 160 | 3283 | 3283 | 3283 | 3047 | 2831 | 2654 | 2595 | 2536 | 2477 | 2.375 | |
0.237 | 40 | 4" | 1102 | 1102 | 1102 | 1023 | 950 | 891 | 871 | 851 | 831 | 4.500 |
0.337 | 80 | 1596 | 1596 | 1596 | 1482 | 1377 | 1291 | 1262 | 1233 | 1204 | 4.500 | |
0.531 | 160 | 2611 | 2611 | 2611 | 2424 | 2552 | 2111 | 2064 | 2017 | 1970 | 4.500 | |
0.216 | 40 | 3" | 1301 | 1301 | 1301 | 1208 | 1122 | 1052 | 1028 | 1005 | 982 | 3.500 |
0.300 | 80 | 1844 | 1844 | 1844 | 1712 | 1590 | 1491 | 1458 | 1425 | 1391 | 3.500 | |
0.438 | 160 | 2787 | 2787 | 2787 | 2587 | 2403 | 2253 | 2203 | 2153 | 2103 | 3.500 | |
0.258 | 40 | 5" | 965 | 965 | 965 | 896 | 832 | 780 | 763 | 746 | 728 | 5.563 |
0.375 | 80 | 1428 | 1428 | 1428 | 1325 | 1231 | 1154 | 1129 | 1103 | 1077 | 5.563 | |
0.625 | 160 | 2474 | 2474 | 2474 | 2296 | 2133 | 2000 | 1955 | 1911 | 1866 | 5.563 | |
0.322 | 40 | 8" | 771 | 771 | 771 | 716 | 665 | 623 | 610 | 596 | 582 | 8.625 |
0.500 | 80 | 1218 | 1218 | 1218 | 1131 | 1050 | 985 | 963 | 941 | 919 | 8.625 | |
0.906 | 160 | 2298 | 2298 | 2298 | 2133 | 1982 | 1858 | 1817 | 1775 | 1734 | 8.625 | |
0.280 | 40 | 6" | 877 | 877 | 877 | 814 | 756 | 709 | 693 | 677 | 661 | 6.625 |
0.432 | 80 | 1379 | 1379 | 1379 | 1280 | 1189 | 1115 | 1090 | 1065 | 1040 | 6.625 | |
0.719 | 160 | 2382 | 2382 | 2382 | 2211 | 2054 | 1925 | 1883 | 1840 | 1797 | 6.625 | |
0.365 | 40 | 10" | 699 | 699 | 699 | 649 | 603 | 565 | 553 | 540 | 528 | 10.750 |
0.594 | 80 | 1159 | 1159 | 1159 | 1075 | 999 | 937 | 916 | 895 | 874 | 10.750 | |
1.125 | 160 | 2289 | 2289 | 2289 | 2124 | 1974 | 1850 | 1809 | 1768 | 1727 | 10.750 |
Weight | Nominal pipe size | Schedule | Dimensions in mm | ||
---|---|---|---|---|---|
kg/pce | in.0 | t | D | C/M | |
0.0092 0.0115 0.0200 0.0300 |
3/4 | 10s 40s 80s 160 |
2.011 2.087 3.091 5.056 |
26.07 26.07 26.07 26.07 |
28.06 28.06 28.06 28.06 |
0.0065 0.0085 0.0140 0.0150 |
1/2 | 10s 40s 80s 160 |
2.011 2.077 3.073 4.078 |
21.03 21.03 21.03 21.03 |
25.04 25.04 25.04 25.04 |
0.0200 0.0245 0.0390 0.0470 |
1 | 10s 40s 80s 160 |
2.077 3.038 4.055 6.035 |
33.04 33.04 33.04 33.04 |
38.01 38.01 38.01 38.01 |
0.0460 0.0595 1.0020 1.0430 |
1½ | 10s 40s 80s 160 |
2.077 3.068 5.008 7.014 |
48.03 48.03 48.03 48.03 |
57.02 57.02 57.02 57.02 |
0.0330 0.0420 0.0548 0.0890 |
1¼ | 10s 40s 80s 160 |
2.077 3.056 4.085 6.035 |
42.02 42.02 42.02 42.02 |
47.06 47.06 47.06 47.06 |
0.0630 0.0872 1.0590 3.0180 |
2 | 10s 40s 80s 160 |
2.077 3.091 5.054 8.074 |
60.03 60.03 60.03 60.03 |
63.05 63.05 63.05 63.05 |
76.0660 | 18 | 10s | 4.078 | 457.02 | 342.09 |
1.0370 1.0900 4.0450 5.0870 |
3 | 10s 40s 80s 160 |
3.005 5.049 7.062 11.013 |
88.09 88.09 88.09 88.09 |
85.07 85.07 85.07 85.07 |
155.0580 | 24 | 10s | 6.035 | 609.06 | 431.08 |
1.0100 1.0700 3.0630 |
2½ | 10s 40s 160 |
3.005 5.016 9.052 |
73.00 73.00 73.00 |
76.02 76.02 76.02 |
1.0740 3.0190 |
3½ | 10s 40s |
3.005 5.074 |
101.06 101.06 |
95.03 95.03 |
3.0480 6.0550 11.0340 |
5 | 10s 40s 80s |
3.040 6.055 9.053 |
141.03 141.03 141.03 |
123.08 123.08 123.08 |
2.0150 4.0130 7.0710 9.0760 |
4 | 10s 40s 80s 160 |
3.005 6.002 8.056 13.049 |
114.03 114.03 114.03 114.03 |
104.08 104.08 104.08 104.08 |
4.0760 9.0730 13.0610 |
6 | 10s 40s 80s |
3.040 7.011 10.092 |
168.03 168.03 168.03 |
142.09 142.09 142.09 |
14.0200 30.0800 |
10 | 10s 40s |
4.019 9.027 |
273.01 273.01 |
215.09 215.09 |
8.0460 18.0000 |
8 | 10s 40s |
3.076 8.018 |
219.01 219.01 |
177.08 177.08 |
21.0600 44.0300 |
12 | 10s 40s |
4.057 9.053 |
323.09 323.09 |
254.00 254.00 |
58.0970 99.0790 |
16 | 10s STD |
4.078 9.053 |
406.04 406.04 |
304.08 304.08 |
48.0530 79.0380 |
14 | 10s STD |
4.078 9.053 |
355.06 355.06 |
279.04 279.04 |
103.0420 | 20 | 10s | 5.054 | 508.00 | 381.00 |
Compare our quality and price with other ASTM A234 WPB Pipe Fittings manufacturers and suppliers in India
Grade | V | Mn | C | P | Si | S | Nb | Cr | Ni | Mo | Cu |
---|---|---|---|---|---|---|---|---|---|---|---|
WP11 CL2/3 | - | 0.30-.80 | .05-.20 | .04 | .50-01.00 | .04 | - | 1.00-1.050 | - | .44-.65 | - |
WPC | .08 | .29-01.06 | .35 | .05 | .1min | .058 | .02 | .4 | .4 | .15 | .4 |
WPB | .08 | .29-01.06 | .3 | .05 | .1min | .058 | .02 | .4 | .4 | .15 | .4 |
WP11 CL1 | - | .30-.60 | .05-.15 | .03 | .50-1.00 | .03 | - | 1.00-01.50 | - | .44-.65 | - |
Tensile Requirements | WP11CL3 | WPC, WP11CL2 | WPB | WP11CL1 |
---|---|---|---|---|
(0.5% or 0.2% offset) | [520-0690] | [485-0655] | [415-0585] | [415-0585] |
Tensile Properties, ksi[MPa], min | 075-100 | 070-095 | 060-085 | 060-085 |
Yield Properties, ksi[MPa], min | 45 | 40 | 32 | 30 |
[310] | [275] | [240] | [205] |
Fittings | Pipe | Valves | Flanges | Nuts and Bolts |
---|---|---|---|---|
A234 Gr WPA | A106 Gr A | A216 Gr WCB | A105 | A194 Gr 2H A193 Gr B7 |
A234 Gr WPB | A106 Gr B | A216 Gr WCB | A105 | |
A234 Gr WPC | A106 Gr C | A216 Gr WCB | A105 |
Sugar Industries
Gas Processing Industries
Petrochemical Industries
Food Processing Industries
Chemical Industries
Power Generation Industries
Fertilizers Industries
Oil & Gas Industries
Why don't you directly contact a Carbon Steel A234 WPB Pipe Fittings manufacturer? Rishabh Steel accept 1pc order to large quantity, a complete range of Sa 234 Gr WPB Fittings and ASTM A234 WPB Pipe Fittings Manufacturers India
Know our markets and metals we are supplying for 20 years
Neste Refinery Expansion-Singapore
Nigeria-Morocco Gas Pipeline South Africa
Chevron Philippines - Philippines
ADCO - Shah Field Compressor Unit-Dubai
Driftwood LNG (Calcasieu Parish LNG Liquefaction Plant)- USA
Petroliam Nasional Berhad (PETRONAS)-Malaysia
