Titanium Grade 2 Pipe Fittings

Titanium grade 2 covers commercially pure titanium components. The Titanium Grade 2 Pipe Fittings are designed with above 98% of titanium with iron, oxygen, carbon, nitrogen, and hydrogen composition. These fittings have good resistance to corrosive and reducing media across treacherous conditions. Titanium Grade 2 Fittings are produced with a density of 4.51 g/cm3 and possess a melting point of 1660 degrees C. The non-magnetic fittings work well across sour service conditions. The ASTM B363 grade WPT2 grade cover fittings of seamless and welded types. They possess a minimum tensile strength of 485mpa with a minimum yield strength of 345mpa and can be elongated by 28%.  ASTM B363 WPT2 buttweld fittings possess superior strength and ensure a leak-proof sealing. Designed with a hardness between 160 to 200HV they have an elastic modulus between 105 to 120Gpa. These fittings work well across high pressure and temperature conditions.

Contact us if you are looking for Titanium Gr. 2 Stub End Manufacturer in India, Leading Stockist of ASTM B363 grade WPT2 Seamless Fittings

Titanium Grade 2 Pipe Fittings Specification

Standards ASTM/ ASME B363/ SB363
Type Welded and Seamless
Dimension Standard MSS-SP-43, ASME/ANSI B16.9, B16.28
Two Joint / Two Halve 20 Size From 6" upto 48"
Thickness Schedule 5s to Schedule XXS
Sizes 1/2" upto 24"

ANSI B16.9 Titanium Gr-2 Butt weld Fittings Price List

Global supplier of Titanium Grade 2 Buttweld Elbow & Titanium Alloy Gr 2 Reducer in Mumbai

Description Price Per Kg In Singapore Price Per Kg In UAE Price Per Kg In USD Price Per Kg In Malaysia
5MMWT 10 TITANIUM GRADE 2 STUB END BW B862 GR2 SGD 93.96 UAE Dirham 245.34 US $67.86 MYR 297.54
6MMWT 12 TITANIUM GRADE 2 ELBOW BW B363 WPT2 90DEG LR SGD 93.02 UAE Dirham 242.90 US $67.18 MYR 294.58
6MM WT 14 X 12 TITANIUM GRADE 2 REDUCER BW WPT2 SGD 174.06 UAE Dirham 454.49 US $125.71 MYR 551.19
6MM 12 TITANIUM GRADE 2 STUB ENDS BW B862 GR2 SGD 130.00 UAE Dirham 339.43 US $93.89 MYR 411.65
6MMWT 12 TITANIUM GRADE 2 TEE EQ BW B363 WPT2 SGD 159.37 UAE Dirham 416.14 US $115.10 MYR 504.68
OD X 1/4 TUBE FITTING MALE CONNECTOR 8 MM BSP (M) TITANIUM GRADE-2 FITTING SGD 261.86 UAE Dirham 683.76 US $189.12 MYR 829.24

Different Types of Titanium Grade 2 Pipe Fittings

Titanium Grade 2 Return Bends

Titanium Grade 2 Return Bends

ANSI B16.9 Titanium Gr-2 180 Degree Elbows

ANSI B16.9 Titanium Gr-2 180 Degree Elbows

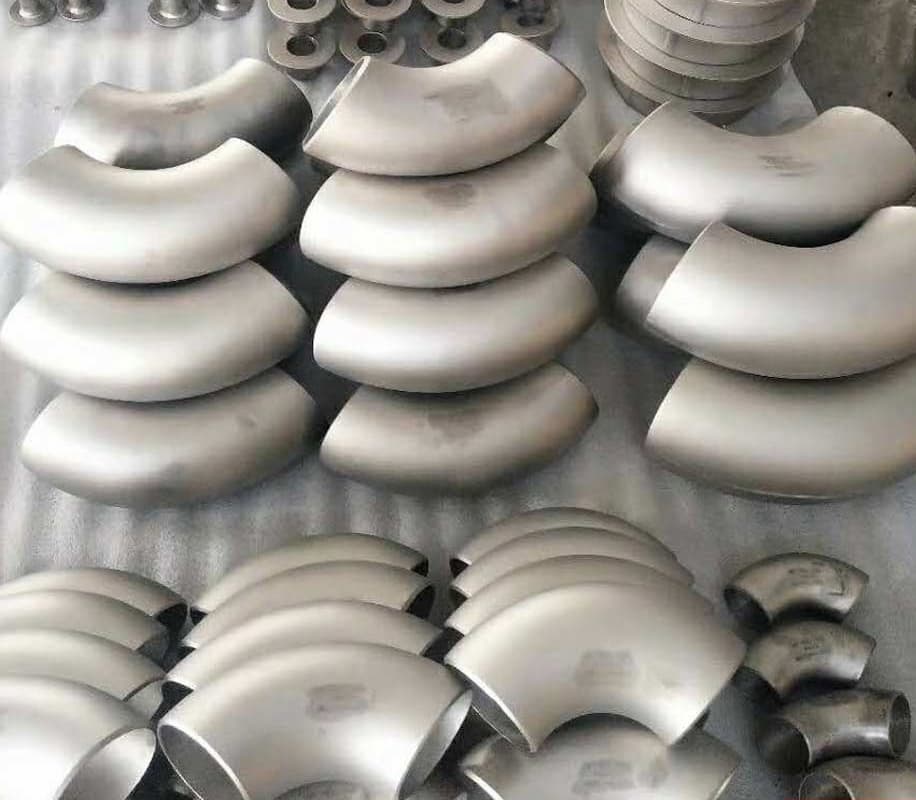

Titanium Grade 2 Elbow

Titanium Grade 2 Elbow

3.7035 Equal Tee

3.7035 Equal Tee

Titanium Gr 2 90 Degree Elbows

Titanium Gr 2 90 Degree Elbows

UNS R50400 Weld Elbows

UNS R50400 Weld Elbows

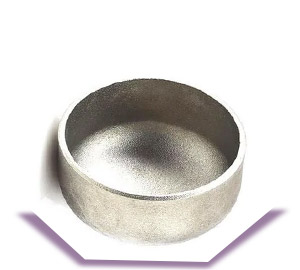

Titanium Grade 2 End Cap

Titanium Grade 2 End Cap

Ti. Alloy Grade 2 Stub End

Ti. Alloy Grade 2 Stub End

Titanium R50400 Eccentric Reducer

Titanium R50400 Eccentric Reducer

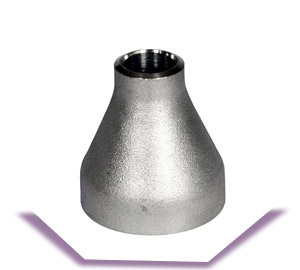

Titanium Gr 2 Reducer

Titanium Gr 2 Reducer

Titanium 3.7035 Laterals

Titanium 3.7035 Laterals

ASTM B363 Titanium Gr-2 Concentric Reducer

ASTM B363 Titanium Gr-2 Concentric Reducer

Titanium Gr-2 Cross Fitting

Titanium Gr-2 Cross Fitting

ASTM B363 Titanium Alloy Gr 2 Reducing Tee

ASTM B363 Titanium Alloy Gr 2 Reducing Tee

Titanium Gr 2 45 Degree Elbows

Titanium Gr 2 45 Degree Elbows

Titanium Grade 2 Pipe Fittings

Titanium Grade 2 Pipe Fittings

Ti. Alloy Grade 2 Cross Tee

Ti. Alloy Grade 2 Cross Tee

Titanium Gr-2 Lap Joint Stub Ends

Titanium Gr-2 Lap Joint Stub Ends

Titanium Grade 2 Butt weld Pipe Fittings Pressure Rating

W.T.
(in) (mm)
Pipe SCH Pipe Size
(inches)
Temperature (oF) (deg C) O.D.
(in) (mm)
100 200 300 400 500 600 650 700 750
Allowable Stress (psi) (kPa)
16700 16700 16700 15500 14400 13500 13200 12900 12600
0.145 40 1 1/2" 1629 1629 1629 1512 1404 1317 1287 1258 1229 1.900
0.200 80 2303 2303 2303 2138 1986 1862 1821 1779 1738 1.900
0.281 160 3362 3362 3362 3120 2899 2717 2657 2597 2536 1.900
0.133 40 1" 2205 2205 2205 2047 1902 1783 1743 1703 1664 1.315
0.179 80 3061 3061 3061 2841 2640 2475 2420 2365 2310 1.315
0.250 160 4493 4493 4493 4170 3874 3632 3552 3471 3390 1.315
0.154 40 2" 1371 1371 1371 1272 1182 1108 1083 1059 1034 2.375
0.218 80 1985 1985 1985 1843 1712 1605 1569 1534 1498 2.375
0.344 160 3283 3283 3283 3047 2831 2654 2595 2536 2477 2.375
0.237 40 4" 1102 1102 1102 1023 950 891 871 851 831 4.500
0.337 80 1596 1596 1596 1482 1377 1291 1262 1233 1204 4.500
0.531 160 2611 2611 2611 2424 2552 2111 2064 2017 1970 4.500
0.216 40 3" 1301 1301 1301 1208 1122 1052 1028 1005 982 3.500
0.300 80 1844 1844 1844 1712 1590 1491 1458 1425 1391 3.500
0.438 160 2787 2787 2787 2587 2403 2253 2203 2153 2103 3.500
0.258 40 5" 965 965 965 896 832 780 763 746 728 5.563
0.375 80 1428 1428 1428 1325 1231 1154 1129 1103 1077 5.563
0.625 160 2474 2474 2474 2296 2133 2000 1955 1911 1866 5.563
0.322 40 8" 771 771 771 716 665 623 610 596 582 8.625
0.500 80 1218 1218 1218 1131 1050 985 963 941 919 8.625
0.906 160 2298 2298 2298 2133 1982 1858 1817 1775 1734 8.625
0.280 40 6" 877 877 877 814 756 709 693 677 661 6.625
0.432 80 1379 1379 1379 1280 1189 1115 1090 1065 1040 6.625
0.719 160 2382 2382 2382 2211 2054 1925 1883 1840 1797 6.625
0.365 40 10" 699 699 699 649 603 565 553 540 528 10.750
0.594 80 1159 1159 1159 1075 999 937 916 895 874 10.750
1.125 160 2289 2289 2289 2124 1974 1850 1809 1768 1727 10.750

Supplier of DIN 3.7035 Equal/ Reducing Tee in Mumbai, Refer Price list of SB 363 WPT2 Titanium fittings

3.7035 Pipe Fittings Chemical Composition

Ti N Fe O C H
Bal 0.03 max 0.30 max 0.25 max 0.10 max 0.015 max

Titanium Gr 2 Seamless Pipe Fittings Mechanical Properties

Melting Point Elongation % Tensile Properties Density Yield Properties (0.2%Offset)
(3030 °F) 1665 °C 20 MPa – 344, Psi – 49900 4.5 g/cm3 MPa – 275, Psi – 39900

UNS R50400 Pipe Fittings Equivalent

WERKSTOFF NR. UNS
3.7035 R50400

ANSI B16.9 Titanium Gr-2 Elbow Size Chart

Stockist, exporter, supplier and trader of High Quality Titanium Grade 2 Butt weld Pipe Fitting for the oil and gas sectors

Elbow Pipe Fittings
PIPE NOMINAL SIZE OUTSIDE DIAM. 90° ELBOW 45° ELBOW 180° RETURNS
(inches) Short Radius Long Radius Long Radius Long Radius
(mm) (inches) Center to Face
(inches)
Center to Face
(inches)
Radius
(inches)
Center to Face
(inches)
Back to face
(inches)
Center to Center
(inches)
3/4 26.7 1.050 1 1/8 7/16 1 11/16 2 1/4
1/2 21.3 0.840 1 1/2 5/8 1 7/8 2
1 33.4 1.315 1 1 1/2 7/8 2 3/16 3
1 1/2 48.3 1.900 1 1/2 2 1/4 3 1 1/8 3 1/4 4 1/2
1 1/4 42.2 1.660 1 1/4 1 7/8 1 2 3/4 3 3/4
2 60.3 2.375 2 3 4 1 3/8 4 3/16 6
3 88.9 3.500 3 4 1/2 6 2 6 1/4 9
2 1/2 73.0 2.875 2 1/2 3 3/4 5 1 3/4 5 3/16 7 1/2
3 1/2 101.6 4.000 3 1/2 5 1/4 7 2 1/4 7 1/4 10 1/2
5 141.3 5.563 5 7 1/2 10 3 1/8 10 5/16 15
4 114.3 4.500 4 6 8 2 1/2 8 1/4 12
6 168.3 6.625 6 9 12 3 3/4 12 5/16 18
10 273.1 10.750 10 15 15 6 1/4 20 3/8 30
8 219.1 8.625 8 12 12 5 16 5/16 24
12 323.9 12.750 12 18 18 7 1/2 24 3/8 36

Chart of Titanium Gr 2 Equal Tee

Equal Tee Pipe Fittings
Weight Nominal pipe size Schedule Dimensions in mm
kg/pce in.0 t D C/M
0.0092
0.0115
0.0200
0.0300
3/4 10s
40s
80s
160
2.011
2.087
3.091
5.056
26.07
26.07
26.07
26.07
28.06
28.06
28.06
28.06
0.0065
0.0085
0.0140
0.0150
1/2 10s
40s
80s
160
2.011
2.077
3.073
4.078
21.03
21.03
21.03
21.03
25.04
25.04
25.04
25.04
0.0200
0.0245
0.0390
0.0470
1 10s
40s
80s
160
2.077
3.038
4.055
6.035
33.04
33.04
33.04
33.04
38.01
38.01
38.01
38.01
0.0460
0.0595
1.0020
1.0430
10s
40s
80s
160
2.077
3.068
5.008
7.014
48.03
48.03
48.03
48.03
57.02
57.02
57.02
57.02
0.0330
0.0420
0.0548
0.0890
10s
40s
80s
160
2.077
3.056
4.085
6.035
42.02
42.02
42.02
42.02
47.06
47.06
47.06
47.06
0.0630
0.0872
1.0590
3.0180
2 10s
40s
80s
160
2.077
3.091
5.054
8.074
60.03
60.03
60.03
60.03
63.05
63.05
63.05
63.05
76.0660 18 10s 4.078 457.02 342.09
1.0370
1.0900
4.0450
5.0870
3 10s
40s
80s
160
3.005
5.049
7.062
11.013
88.09
88.09
88.09
88.09
85.07
85.07
85.07
85.07
155.0580 24 10s 6.035 609.06 431.08
1.0100
1.0700
3.0630
10s
40s
160
3.005
5.016
9.052
73.00
73.00
73.00
76.02
76.02
76.02
1.0740
3.0190
10s
40s
3.005
5.074
101.06
101.06
95.03
95.03
3.0480
6.0550
11.0340
5 10s
40s
80s
3.040
6.055
9.053
141.03
141.03
141.03
123.08
123.08
123.08
2.0150
4.0130
7.0710
9.0760
4 10s
40s
80s
160
3.005
6.002
8.056
13.049
114.03
114.03
114.03
114.03
104.08
104.08
104.08
104.08
4.0760
9.0730
13.0610
6 10s
40s
80s
3.040
7.011
10.092
168.03
168.03
168.03
142.09
142.09
142.09
14.0200
30.0800
10 10s
40s
4.019
9.027
273.01
273.01
215.09
215.09
8.0460
18.0000
8 10s
40s
3.076
8.018
219.01
219.01
177.08
177.08
21.0600
44.0300
12 10s
40s
4.057
9.053
323.09
323.09
254.00
254.00
58.0970
99.0790
16 10s
STD
4.078
9.053
406.04
406.04
304.08
304.08
48.0530
79.0380
14 10s
STD
4.078
9.053
355.06
355.06
279.04
279.04
103.0420 20 10s 5.054 508.00 381.00
We keep ready stock of ASTM B363 WPT2 Buttweld Fittings and UNS R50400 End Cap in wide range of sizes and thickness

Titanium Grade 2 Pipe Fittings Weight Chart

Grades Standards Specifications (mm)
Gr2 (Pure Titanium)

Gr5 (Ti6Al4V)

GB
DIN
ASTM
ASME
ISO
JIS
M (3-64) *L (5-300)
or as your request
M (3-64) *L (5-300)
or as your request
M (3-64)
or as your request
M (3-64)
or as your request

Ti. Alloy Grade 2 Pipe Fittings Dimensions

Compare our products quality with other Titanium Grade 2 Pipe Fittings suppliers in India

Pipe Fittings
Nominal size OD Elbows Reducer Caps Returns Stubs Ends
Short Long Long Short Long Short Radius of fillet Diam. of Lap
90 deg 90 deg 45 deg
DN NPS D A A B H E O K O K F F R G
20 ¾ 26.7 38 19 38 25 76 51 76 51 3 43
32 11/4 42.2 32 48 25 51 38 95 70 64 52 102 51 5 64
40 11/2 48.3 38 57 29 64 38 114 83 76 62 102 51 6 73
900 36 914 1372 565 610 267
50 2 60.3 51 76 35 76 38 152 106 102 81 152 64 8 92
65 21/2 73.0 64 95 44 89 38 190 132 127 100 152 64 8 106
80 3 88.9 76 114 51 89 51 229 159 152 121 152 64 10 127
90 31/2 101.6 89 133 57 102 64 267 184 178 140 152 76 10 140
15 ½ 21.3 38 16 25 76 48 76 51 3 35
100 4 114.3 102 152 64 102 64 305 210 203 159 152 76 11 157
200 8 219.01 203 305 127 152 102 610 414 406 313 203 102 13 270
250 10 273.0 254 381 159 178 127 762 518 508 391 254 127 13 324
350 14 355.6 356 533 222 330 165 1067 711 711 533 305 152 13 413
125 5 141.3 127 190 79 127 76 381 262 254 197 203 76 11 185
400 16 406.4 406 610 254 356 178 1219 813 813 610 305 152 13 470
25 1 33.4 25 38 22 51 38 76 56 51 41 102 51 3 51
450 18 457 457 686 286 381 203 1372 914 914 686 305 152 13 533
300 12 323.8 305 457 190 203 152 914 619 610 467 254 152 13 381
700 28 711 1067 438 610 267
500 20 508 508 762 318 508 229 1524 1016 1016 762 305 152 13 584
1050 42 1067 1600 660 610 305
550 22 559 559 838 343 508 254 1676 1118 1118 838 305 152 13 641
150 6 168.3 152 229 95 140 89 457 313 305 237 203 89 13 218
600 24 610 610 914 381 508 267 1829 1219 1219 914 305 152 13 692
650 26 660 991 405 610 267
750 30 762 1143 470 610 267
1100 44 1118 1676 695 610 343
800 32 813 1219 502 610 267
950 38 965 1448 600 610 305
1200 48 1219 1829 759 711 343
1000 40 1016 1524 632 610 305
850 34 864 1295 533 610 267
1150 46 1168 1753 727 711 343

Titanium R50400 Buttweld Pipe Fittings Sizes

Welded Seamless
Tees Upto 36" Upto 24"
End Caps   Upto 24"
Elbows Upto 42" Upto 24"
Return Bends   Upto 8"
Cross Upto 36" Upto 8"
Reducers Upto 48" Upto 24"
Swage Nipple   Upto 4"
Thickness Sch 120, Sch 5, Sch 40s, Sch 5s, Sch 160, Sch 20, Sch 40, Sch 100, Sch XS, Sch STD, Sch 30, Sch 60, Sch XXS, Sch 80s, Sch 10, Sch 10s, upto 50mm in case of welded fittings
Special Fittings: Piggable Bends, 3D, 5D, 10D etc. Customized Bends, Miter Bends As per customer datasheets and drawings

Applications of Titanium 3.7035 Seamless Pipe Fittings

Why don't you directly contact a 3.7035 Pipe Fittings manufacturer? Get a free sample before dispatch of complete order of Titanium Gr-2 Pipe Fitting

  • Power plants

  • Heat exchanger

  • Furniture

  • Oil and gas industry

  • Pharmaceutical processing industry

  • Fluid piping

  • Dairy and food processing

  • Pulp and paper industry

  • Modern architecture

  • Water waste projects

  • Home appliances

  • Energy industries

  • Synthetic fiber

  • Textile machinery

Check Weight chart of Ti Alloy Gr 2 Eccentric/ Concentric Reducer and Titanium Grade 2 90 Degree Elbow online!

ASTM B363 Titanium Grade 2 Pipe Fittings Schedule Chart

Buttweld Fittings
DN Schedule 10S Schedule 40S
45° Elbow 90° Elbow Equal tee Stub end type (B) End cap 45° Elbow 90° Elbow Equal tee End cap Stub end type (B)
15 0.03 0.06 0.09 0.07 0.03 0.04 0.08 0.10 0.04 0.08
20 0.03 0.07 0.13 0.09 0.05 0.04 0.08 0.17 0.07 0.11
25 0.08 0.14 0.28 0.16 0.08 0.11 0.15 0.29 0.10 0.17
32 0.11 0.23 0.49 0.22 0.10 0.17 0.26 0.59 0.18 0.25
40 0.17 0.30 0.68 0.25 0.11 0.23 0.40 0.86 0.20 0.31
50 0.25 0.50 0.85 0.43 0.13 0.40 0.70 1.28 0.23 0.61
65 0.48 0.85 1.41 0.57 0.19 0.77 1.40 2.19 0.27 0.80
80 0.63 1.25 1.77 0.72 0.25 1.08 2.20 3.31 0.42 1.13
100 1.08 2.10 3.46 1.09 0.68 1.47 4.47 5.27 1.14 1.87
125 1.82 3.65 5.44 1.47 1.11 2.84 6.80 9.63 2.13 2.79
150 2.72 5.45 8.03 2.15 1.42 5.44 10.89 10.99 3.23 3.57
200 5.33 10.20 15.65 3.22 2.38 10.77 21.54 20.91 5.19 6.07
250 9.75 18.15 26.76 5.13 4.45 19.27 38.56 35.38 9.00 10.07
300 13.62 25.80 39.46 8.16 7.50 29.71 59.42 62.14 15.00 14.29
350 18.37 36.29 48.53 10.88 8.17 35.15 79.38 79.31 16.00 17.14
400 23.81 47.63 58.97 12.70 10.67 45.81 99.79 99.79 21.00 20.41
450 29.94 59.87 79.65 17.23 13.00 59.40 129.73 129.73 26.00 27.21
500 49.90 99.80 103.42 21.77 17.00 74.84 162.38 162.39 34.00 29.94
600 70.31 140.61 155.58 27.21 26.00 105.23 225.89 225.90 52.00 38.55

Titanium Gr-2 End Caps Chart

The advantage of purchasing Titanium Grade 2 Pipe Fittings and Ti. Alloy Grade 2 Pipe Fitting directly from manufacturers is the reduced cost and wide selection which saves your time

End Cap Fittings
Dimensions in mm Nominal pipe size Weight Schedule
D E in.0 kg/pce t
609.06 266.07 24 34.0470 10s 6.035
26.07
26.07
26.07
25.04
25.04
25.04
3/4 0.0050
0.0060
0.0060
10s
40s
80s
2.011
2.087
3.091
21.03
21.03
21.03
25.04
25.04
25.04
1/2 0.0040
0.0050
0.0050
10s
40s
80s
2.011
2.077
3.073
33.04
33.04
33.04
38.01
38.01
38.01
1 0.0090
0.0130
0.0130
10s
40s
80s
2.077
3.038
4.055
48.03
48.03
48.03
38.01
38.01
38.01
0.0140
0.0230
0.0240
10s
40s
80s
2.077
3.068
5.008
42.02
42.02
42.02
38.01
38.01
38.01
0.0130
0.0170
0.0180
10s
40s
80s
2.077
3.056
4.085
60.03
60.03
60.03
38.01
38.01
38.01
2 0.0170
0.0270
0.0340
10s
40s
80s
2.077
3.091
5.054
88.09
88.09
88.09
50.08
50.08
50.08
3 0.0400
0.0710
0.0850
10s
40s
80s
3.005
5.049
7.062
73.00
73.00
73.00
38.01
38.01
38.01
0.0250
0.0450
0.0510
10s
40s
80s
3.005
5.016
7.001
114.03
114.03
114.03
63.05
63.05
63.05
4 0.0650
1.0220
1.0610
10s
40s
80s
3.005
6.002
8.056
168.03
168.03
168.03
88.09
88.09
88.09
6 1.0360
3.0230
4.0540
10s
40s
80s
3.040
7.011
10.097
141.03
141.03
141.03
76.02
76.02
76.02
5 1.0020
1.0910
2.0550
10s
40s
80s
3.040
6.055
9.053
219.01
219.01
101.06
101.06
8 2.0490
5.0670
10s
40s
3.076
8.018
323.09
323.09
152.04
152.04
12 6.0530
13.0060
10s
40s
4.057
9.053
273.01
273.01
127.00
127.00
10 4.0900
9.0210
10s
40s
4.019
9.027
355.06
355.06
165.01
165.01
14 8.0160
15.0900
10s
STD
4.078
9.053
457.02 203.02 18 17.0960 10s 4.078
406.04
406.04
177.08
177.08
16 14.0510
20.0000
10s
STD
4.078
9.053
508.00 228.06 20 27.0220 10s 5.054

Before choosing your supplier check our deliveries of last 2 years

Singapore Lng Corporation Pte Ltd

Singapore Lng Corporation Pte Ltd

Ruwais Refinery Complex - Third Grassroot Refinery United Arab Emirates

Ruwais Refinery Complex - Third Grassroot Refinery United Arab Emirates

Al Bawani Water & Power (AWP)-Saudi Arabia

Al Bawani Water & Power (AWP)-Saudi Arabia

Al Zour Refinery Dubai

Al Zour Refinery Dubai

Ras Laffan - Qatargas - NFE-Abu Dhabi

Ras Laffan - Qatargas - NFE-Abu Dhabi

Basra Gas Gathering Project-UAE

Basra Gas Gathering Project-UAE
