We are leading supplier of Stainless Steel Buttweld Fittings, Refer Price list of ASTM A403 Elbow

Stainless Steel Pipe Fittings Manufacturer in India

Pipe fittings are devices that are utilized to impact the flow in the system. The SS Pipe Fittings can change the Buttweld Fittings Manufacturing Process flow, terminate the flow, or join piping grades efficiently of different sizes effectively. These fittings are seen in applications where corrosion and reducing media are of the highest degree. The Stainless Steel Seamless Pipe Fittings are designed with a single piece of metal that has no welds or seams. These fittings are produced via an extrusion process and showcase outstanding strength and superior load-bearing capacity. ASME B16.9 SS Welded Pipe Fittings allow for the assembly of different piping grades. These fittings don’t possess the same strength as seamless fittings; however, they are considerably cheaper compared to the latter.  Stainless Steel Buttweld Fittings are one of the most common types of welded fittings. These fittings are manufactured as metal is welded on top of each other and affixed. The Stainless Steel Butt Weld Pipe Fittings offer better connection and the continuous metal structure gives them higher strength in the piping industry. These fittings allow for a seamless flow in the system. We are the Stainless Steel Pipe Fittings manufacturer in India who are top of the industry due to our use of the best raw materials and cutting-edge technology to produce versatile products for our customers.

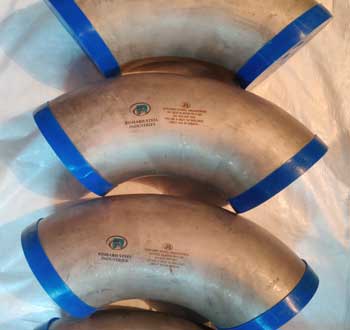

The Stainless Steel Buttweld Elbow is a versatile fitting that is manufactured in 45 and 90-degree bends. The primary function of these elbows is to change the direction of the flow in the system. These elbows are available across our outlets in long or short radius configurations. Our company is part of the top echelons of Stainless Steel Fittings Manufacturers In Indiawho produced products of different specifications that can be easily customizes as per customer needs.

Contact us if you are looking for SS Pipe Fittings Supplier in India, Check Dimensions and Weight Chart of ASME SA403 Stainless Steel Equal/ Reducing Tee

Stainless Steel Pipe Fittings Specifications

Why to buy from stockist? Buy directly through Stainless Steel Pipe Fittings Suppliers South Africa

Specification ASTM A182 / A403 and ASME SA182 / SA403
Type of Buttweld Fittings Manufacturer Welded / Seamless / Fabricated
Grades 321, 316L, 304, 904L, 310H, 347, 316TI, 309S, 309H, 317, 316LN, 321H, 316H, 316, 317L, 201, 304H, 304L, 202, 310S, 347H
Bending Radius R=5D, 10D, 3D, 1D, 8D, 2D, 6D
Dimensions ANSI/ASME B16.9, MSS-SP-43, B16.28.
Range ½” to 48″NB in Schedule 10s to XXS Stainless Steel Pipe Fittings Manufacturer In India

SS Pipe Fittings Price List

In-house manufacturing facilities to produce Stainless Steel Reducer Manufacturers since 2001

Description Price Per Kg In Singapore Price Per Kg In UAE Price Per Kg In USD Price Per Kg In Malaysia
1/16 INCH TEE SS TUBE OD SGD 92.86 Dirham 245.98 US $ 66.96 MYR 294.29
1 X3/4SCH SWAGE NIPPLE SGD 17.94 Dirham 47.52 US $ 12.94 MYR 56.85
SCH 40S, PIPE FITTING STAINLESS STEEL SA 403 DN150, 45 DEGREE ELBOW SGD 9.44 Dirham 25.01 US $ 6.81 MYR 29.93
L=15mm T:1.65mm SIZE 1.5 STAINLESS STEEL PIPE FITTING SGD 19.53 Dirham 51.74 US $ 14.08 MYR 61.90
8NB SCH40 90 DEG LR ELBOW OD X OD STAINLESS STEEL BUTTWELD FITTINGS SGD 4.97 Dirham 13.17 US $ 3.59 MYR 15.76
2-1/2 IN 90 DEG LONG SCH 40 RADIUS SS BUTTWELD ELBOW SGD 32.28 Dirham 85.52 US $ 23.28 MYR 102.31
2X2X1-1/2 NB SCH40 REDUCING TEE STAINLESS STEEL BUTTWELD FITTINGS SGD 6.56 Dirham 17.39 US $ 4.73 MYR 20.80

We perform tensile, impact, bending test before each dispatch of SS Concentric/ Eccentric Tee and Stainless Steel Seamless Pipe Fittings

Stainless Steel Buttweld Fittings Types

Stainless Steel Pipe Fittings

Stainless Steel Pipe Fittings

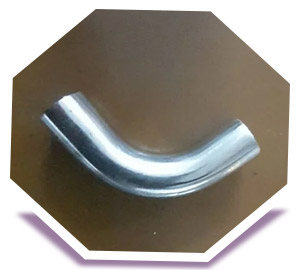

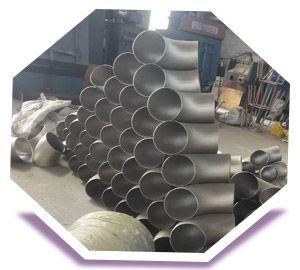

Stainless Steel 90° Long Radius Elbow

Stainless Steel 90° Long Radius Elbow

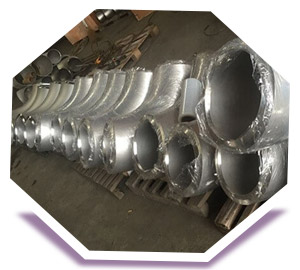

SS 90° Short Radius Elbow

SS 90° Short Radius Elbow

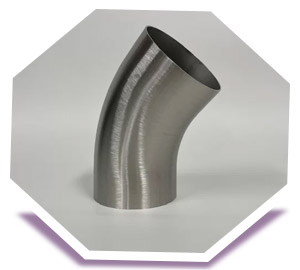

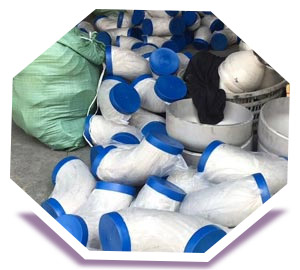

ANSI B16.9 SS 45° Long Radius Elbow

ANSI B16.9 SS 45° Long Radius Elbow

ASTM A403 SS 45° Short Radius Elbow

ASTM A403 SS 45° Short Radius Elbow

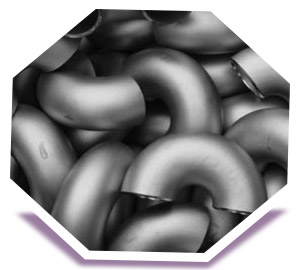

SS ASTM A403 180° Long Radius Elbow

SS ASTM A403 180° Long Radius Elbow

ASME SA403 SS 180° Short Radius Elbow

ASME SA403 SS 180° Short Radius Elbow

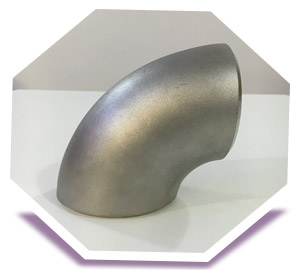

Stainless Steel 1D Elbow

Stainless Steel 1D Elbow

ASME B16.9 SS 1.5D Elbow

ASME B16.9 SS 1.5D Elbow

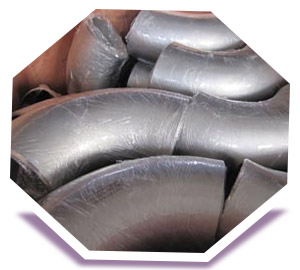

Stainless Steel 3D Elbow

Stainless Steel 3D Elbow

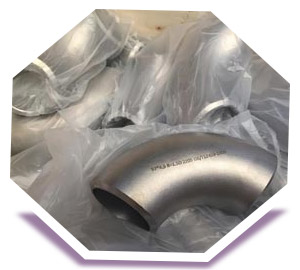

Austenitic SS 5D Elbow

Austenitic SS 5D Elbow

Stainless Steel 10D ELBOW

Stainless Steel 10D ELBOW

ASTM A403 Stainless Steel Seamless Buttwelding 45° and 90° Elbows

ASTM A403 Stainless Steel Seamless Buttwelding 45° and 90° Elbows

ASME SA403 SS Welded Elbows

ASME SA403 SS Welded Elbows

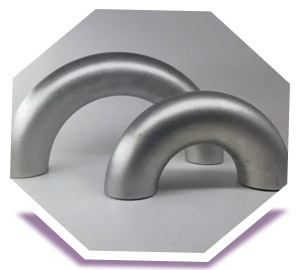

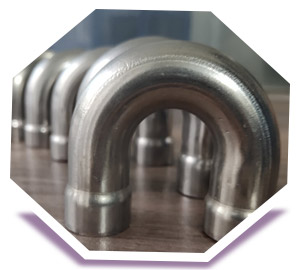

SS Seamless Buttwelding 180° Returns

SS Seamless Buttwelding 180° Returns

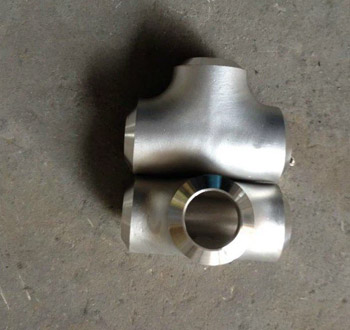

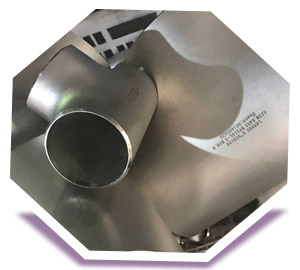

Stainless Steel Straight Tees

Stainless Steel Straight Tees

SS Reducing Outlet Tees

SS Reducing Outlet Tees

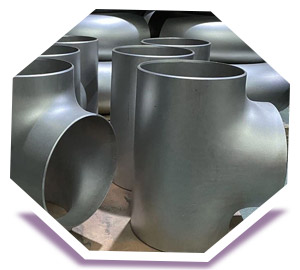

ANSI B16.9 SS Equal Tee

ANSI B16.9 SS Equal Tee

Stainless Steel Reducing Tee

Stainless Steel Reducing Tee

ASTM A403 SS Equal Cross

ASTM A403 SS Equal Cross

SS ASTM A403 Reducing Cross

SS ASTM A403 Reducing Cross

ASME SA403 SS Reducers

ASME SA403 SS Reducers

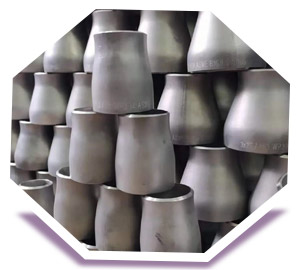

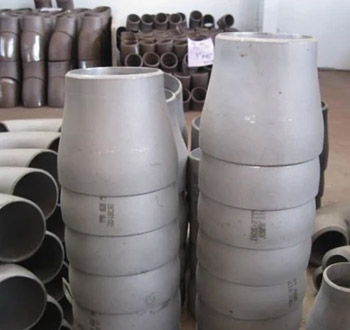

Stainless Steel Concentric Reducer

Stainless Steel Concentric Reducer

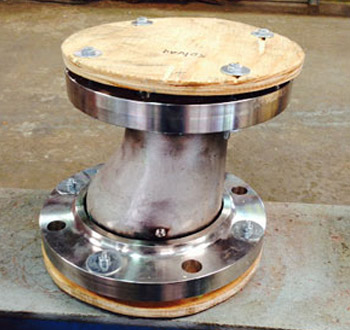

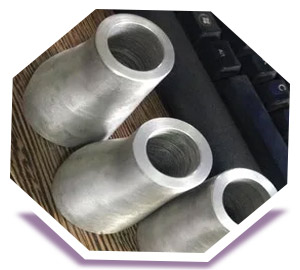

ASME B16.9 SS Eccentric Reducer

ASME B16.9 SS Eccentric Reducer

Stainless Steel Stub End

Stainless Steel Stub End

Austenitic SS Lap Joint Stub Ends

Austenitic SS Lap Joint Stub Ends

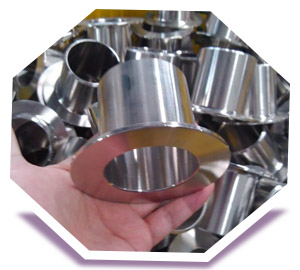

Stainless Steel Long Stubend

Stainless Steel Long Stubend

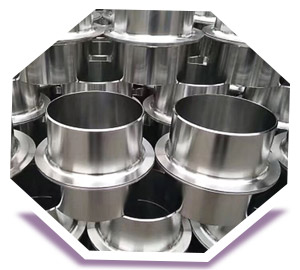

ASTM A403 Stainless Steel Short Stubend

ASTM A403 Stainless Steel Short Stubend

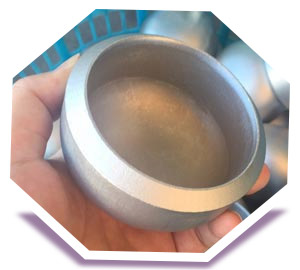

ASME SA403 SS Pipe Cap

ASME SA403 SS Pipe Cap

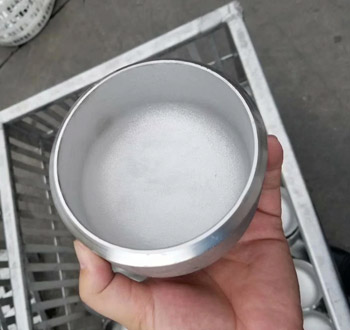

SS End Cap

SS End Cap

Schedule 10 Stainless Steel Pipe Fittings Dimensions

1/2 Inches

3/4 Inches

1 Inches

1 1/4 Inches

2 Inches

2 1/2 Inches

3 Inches

3 1/2 Inches

4 Inches

5 Inches

6 Inches

8 Inches

Stainless Steel Pipe Elbow Dimensions

Stainless Steel Pipe Elbow Dimensions
PIPE NOMINAL SIZE OUTSIDE DIAM. 90° ELBOW 45° ELBOW 180° RETURNS
(inches) Short Radius Long Radius Long Radius Long Radius
(mm) (inches) Face Center
(inches)
Face Center
(inches)
Radius
(inches)
Face Center
(inches)
Face Back
(inches)
Center to Center
(inches)
3/4 26.7 1.050 1 1/8 7/16 1 11/16 2 1/4
1/2 21.3 0.840 1 1/2 5/8 1 7/8 2
1 33.4 1.315 1 1 1/2 7/8 2 3/16 3
1 1/2 48.3 1.900 1 1/2 2 1/4 3 1 1/8 3 1/4 4 1/2
1 1/4 42.2 1.660 1 1/4 1 7/8 1 2 3/4 3 3/4
2 60.3 2.375 2 3 4 1 3/8 4 3/16 6
3 88.9 3.500 3 4 1/2 6 2 6 1/4 9
2 1/2 73.0 2.875 2 1/2 3 3/4 5 1 3/4 5 3/16 7 1/2
3 1/2 101.6 4.000 3 1/2 5 1/4 7 2 1/4 7 1/4 10 1/2
5 141.3 5.563 5 7 1/2 10 3 1/8 10 5/16 15
4 114.3 4.500 4 6 8 2 1/2 8 1/4 12
6 168.3 6.625 6 9 12 3 3/4 12 5/16 18
10 273.1 10.750 10 15 15 6 1/4 20 3/8 30
8 219.1 8.625 8 12 12 5 16 5/16 24
12 323.9 12.750 12 18 18 7 1/2 24 3/8 36

Stainless Steel Buttweld Pipe Fittings Capacity

We are a specialist supplier & distributor of Asme Buttweld Fittings Malaysia

Product Wall Thickness Size Welded Seamless
Cap SCH10S~SCH160 1/2″-80″
Tee SCH10S~XXS 1/2″-24″
SCH5S~80S/XS 8″-104″
Elbow SCH10S~XXS 1/2″-24″
SCH5S~80S/XS 8″-104″
Reducer SCH10S~XXS 1/2″-24″
SCH5S~80S/XS 8″-104″
Lap Joint Stub End SCH5S~80S/XS 1/2″-24″
SCH5S~80S/XS 8″-80″

ANSI B16.9 Buttweld Pipe Fittings Angularity Tolerance

Nominal Size DN 1300-1500 125-200 15-100 250-300 450-600 350-400 650-750 1100-1200 800-1050
NPS 52-60 5-8 1/2 – 4 10-12 18-24 14-16 26-30 44-48 32-42
Angularity
Tolerance
Off Plain P 20 4 2 5 10 6 10 19 13
Off Angle Q 6.4 2 1 3 4 3 5 5 5
Why don't you directly contact a ASME B16.9 SS Welded Pipe Fittings Supplier in Mumbai? A PED approved ASTM A403 Pipe Cap supplier in India

Stainless Steel Pipe Fittings Schedule Chart

Schedule 10S Schedule 40S
DN 45° Elbow 90° Elbow Equal tee Stub end type (B) End cap 45° Elbow 90° Elbow Equal tee End cap Stub end type (B)
20 0.03 0.07 0.13 0.09 .05 0.04 .08 0.17 0.07 .11
32 0.11 .23 0.49 0.22 0.10 0.17 0.26 0.59 0.18 .25
40 0.17 0.30 0.68 0.25 0.11 .23 0.40 0.86 0.20 .31
15 0.03 0.06 0.09 .07 .03 0.04 .08 0.10 0.04 0.08
50 0.25 0.50 0.85 0.43 0.13 0.40 0.70 1.28 0.23 0.61
65 0.48 0.85 1.41 0.57 0.19 0.77 1.40 2.19 0.27 0.80
80 0.63 1.25 1.77 0.72 0.25 1.08 2.20 3.31 0.42 1.13
100 1.08 2.10 3.46 1.09 0.68 1.47 4.47 5.27 1.14 1.87
25 0.08 0.14 0.28 0.16 0.08 0.11 .15 0.29 0.10 0.17
125 1.82 3.65 5.44 1.47 1.11 2.84 6.80 9.63 2.13 2.79
150 2.72 5.45 8.03 2.15 1.42 5.44 10.89 10.99 3.23 3.57
200 5.33 10.20 15.65 3.22 2.38 10.77 21.54 20.91 5.19 6.07
250 9.75 18.15 26.76 5.13 4.45 19.27 38.56 35.38 9.00 10.07
300 13.62 25.80 39.46 8.16 7.50 29.71 59.42 62.14 15.00 14.29
350 18.37 36.29 48.53 10.88 8.17 35.15 79.38 79.31 16.00 17.14
400 23.81 47.63 58.97 12.70 10.67 45.81 99.79 99.79 21.00 20.41
450 29.94 59.87 79.65 17.23 13.00 59.40 129.73 129.73 26.00 27.21
500 49.90 99.80 103.42 21.77 17.00 74.84 162.38 162.39 34.00 29.94
600 70.31 140.61 155.58 27.21 26.00 105.23 225.89 225.90 52.00 38.55

ASTM A403 SS Elbow Standard

ASTM A403 SS Elbow Standard

Stainless Steel Pipe Fittings Documentations

  • Heat Treatment Charts
  • Guarantee Letter
  • Quality Assurance Plan
  • Fumigation Certificates
  • Raw Material Test Reports
  • Commercial Invoice which includes HS Code
  • Fumigation Certificates
  • NABL approved Laboratory Test Reports
Pipe Fittings

SS ASTM A403 Pipe Fittings Dimensions

Why don't you directly contact a Stainless Steel Pipe Fittings manufacturers in India? We offer an extensive range of Stainless Steel Buttweld Manufacturer in Mumbai, get Industrial Butt Weld Fittings For Sale.

Pipe Fittings
Nominal size OD Elbows Reducer Caps Returns Stubs Ends
Short Long Long Short Long Short Radius of fillet Diam. of Lap
90 deg 90 deg 45 deg
DN NPS D A A B H E O K O K F F R G
20 ¾ 26.7 38 19 38 25 76 51 76 51 3 43
32 11/4 42.2 32 48 25 51 38 95 70 64 52 102 51 5 64
40 11/2 48.3 38 57 29 64 38 114 83 76 62 102 51 6 73
50 2 60.3 51 76 35 76 38 152 106 102 81 152 64 8 92
65 21/2 73.0 64 95 44 89 38 190 132 127 100 152 64 8 106
80 3 88.9 76 114 51 89 51 229 159 152 121 152 64 10 127
90 31/2 101.6 89 133 57 102 64 267 184 178 140 152 76 10 140
15 ½ 21.3 38 16 25 76 48 76 51 3 35
100 4 114.3 102 152 64 102 64 305 210 203 159 152 76 11 157
200 8 219.1 203 305 127 152 102 610 414 406 313 203 102 13 270
250 10 273.0 254 381 159 178 127 762 518 508 391 254 127 13 324
300 12 323.8 305 457 190 203 152 914 619 610 467 254 152 13 381
350 14 355.6 356 533 222 330 165 1067 711 711 533 305 152 13 413
125 5 141.3 127 190 79 127 76 381 262 254 197 203 76 11 185
400 16 406.4 406 610 254 356 178 1219 813 813 610 305 152 13 470
25 1 33.4 25 38 22 51 38 76 56 51 41 102 51 3 51
450 18 457 457 686 286 381 203 1372 914 914 686 305 152 13 533
500 20 508 508 762 318 508 229 1524 1016 1016 762 305 152 13 584
1050 42 1067 1600 660 610 305
550 22 559 559 838 343 508 254 1676 1118 1118 838 305 152 13 641
150 6 168.3 152 229 95 140 89 457 313 305 237 203 89 13 218
600 24 610 610 914 381 508 267 1829 1219 1219 914 305 152 13 692
650 26 660 991 405 610 267
700 28 711 1067 438 610 267
750 30 762 1143 470 610 267
1100 44 1118 1676 695 610 343
800 32 813 1219 502 610 267
850 34 864 1295 533 610 267
900 36 914 1372 565 610 267
950 38 965 1448 600 610 305
1200 48 1219 1829 759 711 343
1000 40 1016 1524 632 610 305
1150 46 1168 1753 727 711 343
Manufacturer of Stainless Steel Seamless Pipe Fittings in India according to ASME B16.9, Check Weight Chart and Dimensions of ASTM A403 SS Stub End

Stainless Steel Buttweld Fittings Weight Chart

Stainless Steel Buttweld Fittings
Stainless Steel Buttweld Fittings
Stainless Steel Buttweld Fittings
Stainless Steel Buttweld Fittings
Stainless Steel Buttweld Fittings
Stainless Steel Buttweld Fittings
Stainless Steel Buttweld Fittings
Stainless Steel Buttweld Fittings

Stainless Steel Buttweld Fittings

Stainless Steel Buttweld Fittings Weight Chart

Butt Weld Fittings Chemical Composition

Type Manganese Carbon Phosphorus Silicon Sulphur Chromium Molybdenum Nickel
309 2.00 0.20 0.045 1.00 0.030 22.00/24.00 12.00/15.00
302 2.00 0.15 0.045 1.00 0.030 17.00/19.00 8.00/10.00
304L* 2.00 0.03 0.045 1.00 0.030 18.00/20.00 8.00/12.00
309S 2.00 0.08 0.045 1.00 22.00/24.00
304* 2.00 0.08 0.045 1.00 0.030 18.00/20.00 8.00/10.50
317 2.00 0.08 0.045 1.00/1.00 0.030 18.00/20.00 3.00/4.00 11.00/15.00
316* 2.00 0.08 0.045 1.00 0.030 16.00/18.00 2.00/3.00 10.00/14.00
310s 2.00 0.08 0.045 1.5 0.030 24.00/26.00 19.00/22.00
310 2.00 0.25 0.045 1.5 0.030 24.00/26.00 19.00/22.00
347 2.00 0.08 0.040 0.5/1.00 0.030 17.00/19.00 0.5/0.75 9.00/12.00
316L* 2.00 0.03 0.045 1.00 0.030 16.00/18.00 2.00/3.00 10.00/14.00
317L 2.00 0.03 0.045 0.75 0.030 18.00/20.00 3.00/4.00 11.00/15.00
321 2.00 0.08 0.040 1.00 0.030 17.00/19.00 0.75/0.75 9.00/12.00

ASME SA403 Stainless Steel Buttweld Fittings Mechanical Properties

Type Hardness
(Rockwell B) max
Tensile
(ksi) min
UNS Yield
(ksi) min
Hardness
(Brinell) max
Elongation
min
347 88 75 S34700 30 183 40% in 2″
304* 88 75 S30400 30 183 40% in 2″
302 88 75 S30200 30 183 40% in 2″
304L* 88 70 S30403 30 183 40% in 2″
309S 95 75 S30908 30 217 40% in 2″
309 95 75 S30900 30 217 40% in 2″
310 95 75 S31000 30 217 40% in 2″
316* 95 75 S31600 30 217 40% in 2″
310s 95 75 S31008 30 217 40% in 2″
316L* 95 70 S31603 25 217 35% in 2″
317L 95 75 S31703 30 217 35% in 2″
317 95 75 S31700 30 217 35% in 2″
321 88 75 S32100 30 183 40% in 2″

Stainless Steel Pipe Fittings Equivalent

Why pay extra? Buying from Butt Weld Fittings Distributor saves your cost, wide selection of SS Pipe Fittings Manufacturers In India

STANDARD EN WERKSTOFF NR. JIS GOST BS UNS AFNOR
SS 304L X2CrNi18-9 / X2CrNi19-11 1.4306 / 1.4307 SUS 304L 03Х18Н11 3304S11 S30403 Z3CN18‐10
SS 304 X5CrNi18-10 1.4301 SUS 304 08Х18Н10 304S31 S30400 Z7CN18‐09
SS 304H 1.4301 S30409
SS 310s X8CrNi25-21 1.4845 SUS 310S 20Ch23N18 310S16 S31008
SS 310 X15CrNi25-20 1.4841 SUS 310 20Ch25N20S2 310S24 S31000
SS 310H S31009
SS 316L X2CrNiMo17-12-2 / X2CrNiMo18-14-3 1.4404 / 1.4435 SUS 316L 03Ch17N14M3 / 03Ch17N14M2 316S11 / 316S13 S31603 Z3CND17‐11‐02 / Z3CND18‐14‐03
SS 316 X5CrNiMo17-12-2 / X3CrNiMo17-13-3 1.4401 / 1.4436 SUS 316 316S31 / 316S33 S31600 Z7CND17‐11‐02
SS 316H 1.4401 S31609
SS 317 1.4449 SUS 317 S31700
SS 316Ti X6CrNiMoTi17-12-2 1.4571 SUS 316Ti 08Ch17N13M2T 320S31 S31635 Z6CNDT17‐123
SS 317L X2CrNiMo18-15-4 1.4438 SUS 317L S31703
SS 321h X12CrNiTi18-9 1.4878 SUS 321H S32109
SS 321 X6CrNiTi18-10 1.4541 SUS 321 S32100
SS 347 X6CrNiNb18-10 1.4550 SUS 347 08Ch18N12B S34700
SS 904L X1NiCrMoCu25-20-5 1.4539 SUS 904L STS 317J5L 904S13 N08904 Z2 NCDU 25-20
SS 347H X6CrNiNb18-12 1.4961 SUS 347H S34709

SS Buttweld Fittings Applications

  • Petrochemical Industries

  • Gas Processing Industries

  • Food Processing Industries

  • Power Generation Industries

  • Oil & Gas Industries

  • Chemical Industries

  • Sugar Industries

  • Fertilizers Industries

PMI test performed by SS Pipe Fittings manufacturers in India

PMI test performed by SS Pipe Fittings manufacturers in India
  • PMI test to ensure the material quality
  • Dimension controlling during fabricating and finished
  • 100% Visual and surface examination
  • Tensile test per heat
  • Intergranular Corrosion test on request
  • NDT test of PT, UT, RT

Check our material dispatch in the following countries

Origin Energy Limited Australia

Origin Energy Limited Australia

Air Liquide - France

Air Liquide - France

Millennium Water Treatment & Engineering Sdn. Bhd Malaysia

Millennium Water Treatment & Engineering Sdn. Bhd Malaysia

Suncor Energy - Canada

Suncor Energy - Canada

Pertamina - Indonesia

Pertamina - Indonesia

REPSOL Oil & Gas Malaysia Limited - Malaysia

REPSOL Oil & Gas Malaysia Limited - Malaysia
