What Is Stainless Steel 316H Pipe Fittings?

The stainless steel 316H pipe fittings is a wrought carbon grade that possesses excellent toughness and offers higher creep and stress rupture properties. The versatile ASTM A403 WP316H elbow components work well in high as well as in cryogenic temperatures. They possess resistance to pitting and crevice corrosion. SS 316H pipe fittings is very durable across acidic and chemical toxicants. The grade has a specific thermal capacity of 500 at 20°C J/kg K. The robust SS 316H pipe fittings module has a minimum tensile strength of 485mpa with a minimum yield strength of 170mpa and can be elongated by 40% in the system.

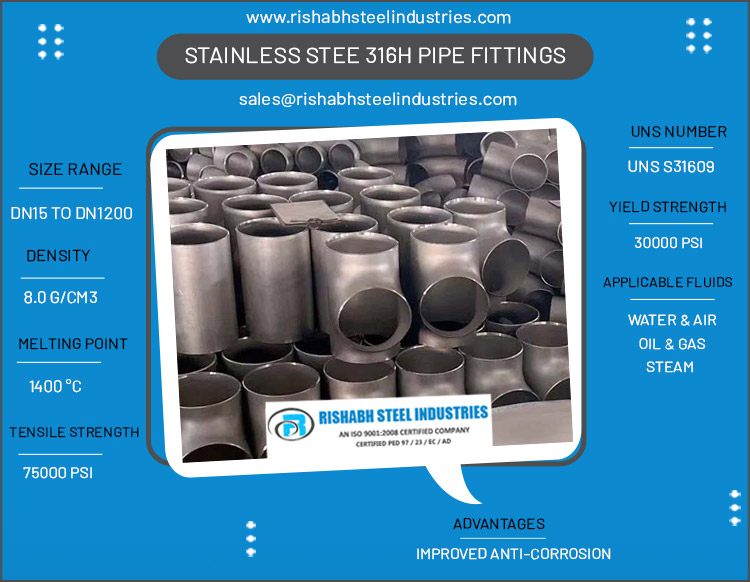

Stainless Steel 316H Pipe Fittings

Table of Content

Hardness

Material Life: 50 Year

Method : SMLS/ BW/ Weld

ASTM A403 WP316H 90 Deg Elbow Specification as per ASME B16.9

ASTM A403 WP316H Fittings Specification

Size In Ready Stock :

Size In Ready Stock :

  • Welded : 24" To 96"
  • Seamless : 1/2" To 24"
  • Buttweld : 1/2" To 36"
  • Contact stainless steel 316H pipe fittings manufacturer in India for above 48″
Available Machines :

Available Machines :

  • Conventional Machine
  • CNC
  • Beveling Machine
Documentation List :

Documentation List :

  • Material traceability records
  • Fumigation certificates
  • Raw material test reports
Available THK :

Available THK :

  • SCH 20 & 40
  • SCH : 80 To 120
  • SCH : 160 To 180
Manufacturing Standard :

Manufacturing Standard :

  • DIN/ JIS/ EN/ ISO
  • ASME B16.9
  • ASME B16.28
Packaging :

Packaging :

  • Wooden Pallet
  • Carton Box
  • Wooden Cases
Melting Point :

Melting Point :

  • 2550°F
Hardness :

Hardness :

  • HB: 217
Density :

Density :

  • 8.0 g/cm3
Applicable Fluids :

Applicable Fluids :

  • Oil and Gas
  • Water and Air
  • Steam
Forming Method :

Forming Method :

  • Cold formed
  • Hot formed
Finish :

Finish :

  • Polished
ISO Standard :

ISO Standard :

  • ISO 5251
Most Common Types :

Most Common Types :

  • Elbow/ Tee/ Reducer
  • End Cap/ Stub End
  • Pipe Bend/ Pipe Cross
Method :

Method :

  • Seamless (SMLS)
  • Buttweld (BW)
  • Welded (Weld)
Sour Service :

Sour Service :

  • NACE MR0103
  • NACE MR0175
  • NACE TM-0284
Thickness Tolerance :

Thickness Tolerance :

  • +/-12.5%
  • Custom
Marking Info :

Marking Info :

  • Size & Schedule
  • Grade & Material
  • Manufacturers Name
  • Standard & Heat No.
Life :

Life :

  • Stainless Steel = 45 To 50 Years
Manufacturing Process :

Manufacturing Process :

  • Heat Treated
  • Forged
  • Machined
Connection Method :

Connection Method :

  • Welding
Process :

Process :

  • Bending
  • Welding
  • Cutting
EN Certificates :

EN Certificates :

  • EN 10204 3.2
  • EN 10204 3.1
Ends :

Ends :

  • Bevelled
  • Plain Bevel
  • Compound Bevel
Installations :

Installations :

  • Power Generation
  • Pharmaceuticals
  • Chemical Equipment
  • Petrochemicals
  • Oil and Gas
Technique :

Technique :

  • Casting
  • Pushing
  • Butt Weld
  • Welding
  • Forged
Testing :

Testing :

  • Hyrdrostatic Test
  • Hardness Test
  • PMI Test
  • Mechanical Testing
  • Chemical Analysis
Radius Of Bend :

Radius Of Bend :

  • 1.5D/ 2D/ 3D
  • 4D/ 5D/ 6D
  • 8D/ 10D/ 22D
Angle Of Pipe Bend :

Angle Of Pipe Bend :

  • 15 Deg, 22.5 Deg, 30 Deg
  • 45 Deg, 60 Deg, 90 Deg
  • 135 Deg, 180 Deg
Bending Method :

Bending Method :

  • Hot induction bending
  • Roll bending
  • Rotary draw bending
Logistics :

Logistics :

  • By Sea
  • By Air
  • Uk = 30 day
  • Thailand = 7 days
  • UAE = 5 day
  • Poland = 45 day
  • Finland = 45 day
  • Vietnam = 10 days
Maximum Size :

Maximum Size :

  • 120 Inch
  • DN2000
Value Added Services :

Value Added Services :

  • Cutting
  • Minor Fabrication
  • Threading
  • Beveling End
  • Polishing

SS 316H Tee and Reducer Manufacturer and Supplier in India, See Melting Point

Melting Point of SS 316H Pipe Fittings

  • 1400°C

  • 2550°F

Know More About Advantages of Using UNS S31609 End Cap & Stub End in High Pressure

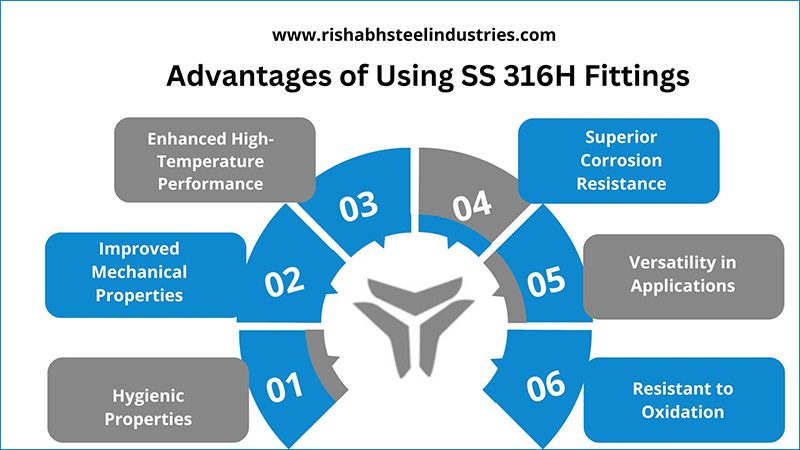

Advantages of Using SS 316H Fittings

Advantages of Using SS 316H Fittings
Buy 100% Tested Material ASME SA403 316H Pipe Bend for Oil & Gas Applications

UNS S31609 Buttweld Fittings Applications

UNS S31609 Buttweld Fittings Applications
Check 316H Stainless Steel Fittings Tensile Strength and Chemical Composition

Stainless Steel 316H Pipe Fittings Tensile Strength

  • 75000 PSI

  • 515 MPa

316H SS Pipe Fittings Equivalent Grade

UNS :

  • UNS S31609

Werkstoff No :

  • 1.4401

AISI :

  • 316H

ASTM A403 WP316H Chemical Composition

Carbon [C] :

Carbon [C] :

  • 0.10% max
Manganese [Mn] :

Manganese [Mn] :

  • 2.0% max
Phosphorus [P] :

Phosphorus [P] :

  • 0.045% max
Silicon [Si] :

Silicon [Si] :

  • 0.75% max
Chromium [Cr] :

Chromium [Cr] :

  • 16.00 To 18.00%
Nitrogen [N] :

Nitrogen [N] :

  • -
Nickel [Ni] :

Nickel [Ni] :

  • 10.00 To 14.00%
Iron:

Iron :

  • Balance
Sulphur (S) :

Sulphur (S) :

  • 0.030% max

WP316H Material Mechanical Properties

Density :

  • 8.0 g/cm3

Yield Strength :

  • 30000 PSI

Elongation :

  • 35%

Types Of Stainless Steel 316H Pipe Fittings

Stainless Steel 316H Elbow

Stainless Steel 316H Elbow

ASTM A403 WP316H Reducer

ASTM A403 WP316H Reducer

SS 316H Stub End

SS 316H Stub End

UNS s31703 Tee

UNS S31703 Tee

DIN 1.4401 End Cap

DIN 1.4401 End Cap

A403 Grade WP316H Pipe Bend

A403 Grade WP316H Pipe Bend
