Pipe fittings are used in a system to join multiple pieces of pipes, tubes, and other equipment to regulate the flow of media. The Stainless Steel 321 Pipe fittings are titanium stabilized austenitic alloys that possess good content of nickel and chromium. These fittings have a density of 7.920 /cm3 and have excellent tolerance to different corrosive media across harsh conditions. They are available in seamless and welded specifications. The 321 Stainless Steel Seamless Fittings are produced as a hot billet is pushed over steel to shape the material in different sizes. These fittings possess superior strength as they don’t have any seam allowing them to be seen in high-pressure applications. SS 321 Welded Fittings possess a seam that makes them cheaper than seamless fittings. These fittings are very reliable but may not be preferred in extreme conditions.
The ASTM A403 WP321 Elbow is employed to change the direction of flow commonly in 45, 90, 22.5, and 180 degrees. These elbows are available possessing a radius of curvature of long or short specifications. A Stainless Steel 321 Equal Tee is shaped in the form of a T. These tees possess one inlet with two outlets that are arranged at 90 degrees connecting it to the main line. The AISI 321 Reducer is a versatile grade that allows it to connect piping grades of dissimilar sizes. These reducers allow for the smooth flow of media and are available in concentric and eccentric types. UNS S32100 End Cap is a fitting whose primary function is to cut the flow of media. Most of these caps possess threads that allow for easy installation in the system. The 321 SS Stub End is a short piece that has one flared end on the outside with the other end welded to the bore of the pipe. These ends can be used as an alternative to a flanged connection.
ASTM A403/ ASME SA403
UNS NO. S32100
We are a specialist supplier & distributor of ASTM A403 WP321 Fittings and Stainless Steel 321 Fitting
Standard | ASTM / ASME A403/ SA403 |
---|---|
Grade | (UNS S32100) Stainless Steel 321 |
Size | From 1/2" to 48" |
Type | Elbow, Stubend, Tee, Cross, Reducer, Bend, Nipple, Pipe Cap |
Dimension | MSS-SP-43, ASME/ANSI B16.9, B16.28 |
Thickness | Schedule 5s to XXS. |
Buy Stainless Steel UNS S32100 Elbow and SS DIN 1.4541 Tee with beveled ends as per ASME B16.28, manufacturer of Stainless Steel 321 Buttweld Fitting and SS 321 Cross in India
Description | Price Per Kg In Singapore | Price Per Kg In UAE | Price Per Kg In USD | Price Per Kg In Malaysia |
---|---|---|---|---|
DN50, STAINLESS STEEL SA 403 GR WP321 SCH 160 90DEGREE ELBOW | SGD 12.17 | UAE Dirham 31.77 | US $8.79 | MYR 38.53 |
DN40,SCH 10S STAINLESS STEEL SA 403 GR WP321 EQUAL TEE | SGD 8.42 | UAE Dirham 22.00 | US $6.08 | MYR 26.68 |
DN50X25,SCH 160SX80S STAINLESS STEEL SA 403 GR WP321 UNEQUAL TEE | SGD 12.98 | UAE Dirham 33.89 | US $9.37 | MYR 41.10 |
6ND (152.4MM) X 5ND (127.00MM) SCH.40S AW A403 WPS321 CONC.REDUCER | SGD 45.86 | UAE Dirham 119.76 | US $33.12 | MYR 145.24 |
3/4 NPT X 3000# COUPLINGS ELBOWS SLEEVES OF IRON OR STEEL SS321 HEX CAP | SGD 11.41 | UAE Dirham 29.80 | US $8.24 | MYR 36.14 |
ASTM A403 WP321 Equal Tee
SUS 321 Cross Fitting

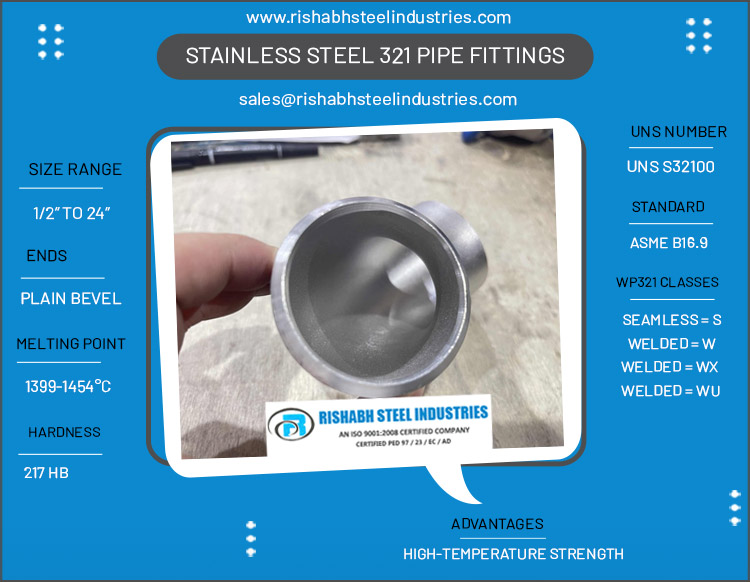

Stainless Steel 321 Pipe Fittings
ASME SA403 SS 321 Reducing Tee
321 Stainless Steel Weld Elbows
ANSI B16.9 SS 321 90 Degree Elbows
Stainless Steel 321 45 Degree Elbows
ASTM A403 WP321 180 Degree Elbows
A403 WP321 Laterals
ASTM A403 Gr WP321 Concentric Reducer
SA 403 WP 321 Cross Tee
SA403 WP321 Lap Joint Stub Ends
ASTM A 403 WP 321 Return Bends
SS 321 Elbow
321 Stainless Steel Reducer
321 SS Eccentric Reducer
A403 Gr WP321 End Cap
Stainless Steel 321 Stub End
Dimensions in mm | Nominal pipe size | Weight | Schedule | ||
---|---|---|---|---|---|
D | E | in.0 | kg/pce | t | |
609.06 | 266.07 | 24 | 34.0470 | 10s | 6.035 |
26.07 26.07 26.07 |
25.04 25.04 25.04 |
3/4 | 0.0050 0.0060 0.0060 |
10s 40s 80s |
2.011 2.087 3.091 |
21.03 21.03 21.03 |
25.04 25.04 25.04 |
1/2 | 0.0040 0.0050 0.0050 |
10s 40s 80s |
2.011 2.077 3.073 |
33.04 33.04 33.04 |
38.01 38.01 38.01 |
1 | 0.0090 0.0130 0.0130 |
10s 40s 80s |
2.077 3.038 4.055 |
48.03 48.03 48.03 |
38.01 38.01 38.01 |
1½ | 0.0140 0.0230 0.0240 |
10s 40s 80s |
2.077 3.068 5.008 |
42.02 42.02 42.02 |
38.01 38.01 38.01 |
1¼ | 0.0130 0.0170 0.0180 |
10s 40s 80s |
2.077 3.056 4.085 |
60.03 60.03 60.03 |
38.01 38.01 38.01 |
2 | 0.0170 0.0270 0.0340 |
10s 40s 80s |
2.077 3.091 5.054 |
88.09 88.09 88.09 |
50.08 50.08 50.08 |
3 | 0.0400 0.0710 0.0850 |
10s 40s 80s |
3.005 5.049 7.062 |
73.00 73.00 73.00 |
38.01 38.01 38.01 |
2½ | 0.0250 0.0450 0.0510 |
10s 40s 80s |
3.005 5.016 7.001 |
114.03 114.03 114.03 |
63.05 63.05 63.05 |
4 | 0.0650 1.0220 1.0610 |
10s 40s 80s |
3.005 6.002 8.056 |
168.03 168.03 168.03 |
88.09 88.09 88.09 |
6 | 1.0360 3.0230 4.0540 |
10s 40s 80s |
3.040 7.011 10.097 |
141.03 141.03 141.03 |
76.02 76.02 76.02 |
5 | 1.0020 1.0910 2.0550 |
10s 40s 80s |
3.040 6.055 9.053 |
219.01 219.01 |
101.06 101.06 |
8 | 2.0490 5.0670 |
10s 40s |
3.076 8.018 |
323.09 323.09 |
152.04 152.04 |
12 | 6.0530 13.0060 |
10s 40s |
4.057 9.053 |
273.01 273.01 |
127.00 127.00 |
10 | 4.0900 9.0210 |
10s 40s |
4.019 9.027 |
355.06 355.06 |
165.01 165.01 |
14 | 8.0160 15.0900 |
10s STD |
4.078 9.053 |
457.02 | 203.02 | 18 | 17.0960 | 10s | 4.078 |
406.04 406.04 |
177.08 177.08 |
16 | 14.0510 20.0000 |
10s STD |
4.078 9.053 |
508.00 | 228.06 | 20 | 27.0220 | 10s | 5.054 |
(µm/m/°C) Mean Co-eff of Thermal Expansion | (kg/m3) Density |
(J/kg.K) Specific Heat 0-100°C |
(GPa) Elastic Modulus |
(W/m.K)Thermal Conductivity |
(nΩ.m) Elec Resistivity |
|||
---|---|---|---|---|---|---|---|---|
0-100°C | 0-538°C | 0-315°C | At 500°C | At 100°C | ||||
16.6 | 18.6 | 17.2 | 8027 | 500 | 193 | 22.2 | 16.1 | 720 |
DN | Schedule 10S | Schedule 40S | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
45° Elbow | 90° Elbow | Equal tee | Stub end type (B) | End cap | 45° Elbow | 90° Elbow | Equal tee | End cap | Stub end type (B) | |
15 | 0.03 | 0.06 | 0.09 | 0.07 | 0.03 | 0.04 | 0.08 | 0.10 | 0.04 | 0.08 |
20 | 0.03 | 0.07 | 0.13 | 0.09 | 0.05 | 0.04 | 0.08 | 0.17 | 0.07 | 0.11 |
25 | 0.08 | 0.14 | 0.28 | 0.16 | 0.08 | 0.11 | 0.15 | 0.29 | 0.10 | 0.17 |
32 | 0.11 | 0.23 | 0.49 | 0.22 | 0.10 | 0.17 | 0.26 | 0.59 | 0.18 | 0.25 |
40 | 0.17 | 0.30 | 0.68 | 0.25 | 0.11 | 0.23 | 0.40 | 0.86 | 0.20 | 0.31 |
50 | 0.25 | 0.50 | 0.85 | 0.43 | 0.13 | 0.40 | 0.70 | 1.28 | 0.23 | 0.61 |
65 | 0.48 | 0.85 | 1.41 | 0.57 | 0.19 | 0.77 | 1.40 | 2.19 | 0.27 | 0.80 |
80 | 0.63 | 1.25 | 1.77 | 0.72 | 0.25 | 1.08 | 2.20 | 3.31 | 0.42 | 1.13 |
100 | 1.08 | 2.10 | 3.46 | 1.09 | 0.68 | 1.47 | 4.47 | 5.27 | 1.14 | 1.87 |
125 | 1.82 | 3.65 | 5.44 | 1.47 | 1.11 | 2.84 | 6.80 | 9.63 | 2.13 | 2.79 |
150 | 2.72 | 5.45 | 8.03 | 2.15 | 1.42 | 5.44 | 10.89 | 10.99 | 3.23 | 3.57 |
200 | 5.33 | 10.20 | 15.65 | 3.22 | 2.38 | 10.77 | 21.54 | 20.91 | 5.19 | 6.07 |
250 | 9.75 | 18.15 | 26.76 | 5.13 | 4.45 | 19.27 | 38.56 | 35.38 | 9.00 | 10.07 |
300 | 13.62 | 25.80 | 39.46 | 8.16 | 7.50 | 29.71 | 59.42 | 62.14 | 15.00 | 14.29 |
350 | 18.37 | 36.29 | 48.53 | 10.88 | 8.17 | 35.15 | 79.38 | 79.31 | 16.00 | 17.14 |
400 | 23.81 | 47.63 | 58.97 | 12.70 | 10.67 | 45.81 | 99.79 | 99.79 | 21.00 | 20.41 |
450 | 29.94 | 59.87 | 79.65 | 17.23 | 13.00 | 59.40 | 129.73 | 129.73 | 26.00 | 27.21 |
500 | 49.90 | 99.80 | 103.42 | 21.77 | 17.00 | 74.84 | 162.38 | 162.39 | 34.00 | 29.94 |
600 | 70.31 | 140.61 | 155.58 | 27.21 | 26.00 | 105.23 | 225.89 | 225.90 | 52.00 | 38.55 |
W.T. (in) (mm) |
Pipe SCH | Pipe Size (inches) |
Temperature (oF) (deg C) | O.D. (in) (mm) |
||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
100 | 200 | 300 | 400 | 500 | 600 | 650 | 700 | 750 | ||||
Allowable Stress (psi) (kPa) | ||||||||||||
16700 | 16700 | 16700 | 15500 | 14400 | 13500 | 13200 | 12900 | 12600 | ||||
0.145 | 40 | 1 1/2" | 1629 | 1629 | 1629 | 1512 | 1404 | 1317 | 1287 | 1258 | 1229 | 1.900 |
0.200 | 80 | 2303 | 2303 | 2303 | 2138 | 1986 | 1862 | 1821 | 1779 | 1738 | 1.900 | |
0.281 | 160 | 3362 | 3362 | 3362 | 3120 | 2899 | 2717 | 2657 | 2597 | 2536 | 1.900 | |
0.133 | 40 | 1" | 2205 | 2205 | 2205 | 2047 | 1902 | 1783 | 1743 | 1703 | 1664 | 1.315 |
0.179 | 80 | 3061 | 3061 | 3061 | 2841 | 2640 | 2475 | 2420 | 2365 | 2310 | 1.315 | |
0.250 | 160 | 4493 | 4493 | 4493 | 4170 | 3874 | 3632 | 3552 | 3471 | 3390 | 1.315 | |
0.154 | 40 | 2" | 1371 | 1371 | 1371 | 1272 | 1182 | 1108 | 1083 | 1059 | 1034 | 2.375 |
0.218 | 80 | 1985 | 1985 | 1985 | 1843 | 1712 | 1605 | 1569 | 1534 | 1498 | 2.375 | |
0.344 | 160 | 3283 | 3283 | 3283 | 3047 | 2831 | 2654 | 2595 | 2536 | 2477 | 2.375 | |
0.237 | 40 | 4" | 1102 | 1102 | 1102 | 1023 | 950 | 891 | 871 | 851 | 831 | 4.500 |
0.337 | 80 | 1596 | 1596 | 1596 | 1482 | 1377 | 1291 | 1262 | 1233 | 1204 | 4.500 | |
0.531 | 160 | 2611 | 2611 | 2611 | 2424 | 2552 | 2111 | 2064 | 2017 | 1970 | 4.500 | |
0.216 | 40 | 3" | 1301 | 1301 | 1301 | 1208 | 1122 | 1052 | 1028 | 1005 | 982 | 3.500 |
0.300 | 80 | 1844 | 1844 | 1844 | 1712 | 1590 | 1491 | 1458 | 1425 | 1391 | 3.500 | |
0.438 | 160 | 2787 | 2787 | 2787 | 2587 | 2403 | 2253 | 2203 | 2153 | 2103 | 3.500 | |
0.258 | 40 | 5" | 965 | 965 | 965 | 896 | 832 | 780 | 763 | 746 | 728 | 5.563 |
0.375 | 80 | 1428 | 1428 | 1428 | 1325 | 1231 | 1154 | 1129 | 1103 | 1077 | 5.563 | |
0.625 | 160 | 2474 | 2474 | 2474 | 2296 | 2133 | 2000 | 1955 | 1911 | 1866 | 5.563 | |
0.322 | 40 | 8" | 771 | 771 | 771 | 716 | 665 | 623 | 610 | 596 | 582 | 8.625 |
0.500 | 80 | 1218 | 1218 | 1218 | 1131 | 1050 | 985 | 963 | 941 | 919 | 8.625 | |
0.906 | 160 | 2298 | 2298 | 2298 | 2133 | 1982 | 1858 | 1817 | 1775 | 1734 | 8.625 | |
0.280 | 40 | 6" | 877 | 877 | 877 | 814 | 756 | 709 | 693 | 677 | 661 | 6.625 |
0.432 | 80 | 1379 | 1379 | 1379 | 1280 | 1189 | 1115 | 1090 | 1065 | 1040 | 6.625 | |
0.719 | 160 | 2382 | 2382 | 2382 | 2211 | 2054 | 1925 | 1883 | 1840 | 1797 | 6.625 | |
0.365 | 40 | 10" | 699 | 699 | 699 | 649 | 603 | 565 | 553 | 540 | 528 | 10.750 |
0.594 | 80 | 1159 | 1159 | 1159 | 1075 | 999 | 937 | 916 | 895 | 874 | 10.750 | |
1.125 | 160 | 2289 | 2289 | 2289 | 2124 | 1974 | 1850 | 1809 | 1768 | 1727 | 10.750 |
Si | N | P | S | Cr | Ni | C | Mn | TI | |
---|---|---|---|---|---|---|---|---|---|
Min | – | – | – | – | 17.0 | 9.00 | – | – | 5(C+N) |
max | 1.00 | 0.10 | 0.045 | 0.030 | 19.0 | 12.00 | 0.08 | 2.00 | 0.70 max |
(MPa) min, Yield Properties 0.2% Proof | (MPa) min, Tensile Properties | (% in 50mm) Elongation, min | Hardness | |
---|---|---|---|---|
Brinell (HB) max | Rockwell B (HR B) max | |||
205 | 515 | 40% | 217 | 95 |
UNS | WERKSTOFF NR. |
---|---|
S32100 | 1.4541 |
Pharmaceuticals
Gas Processing
Heat Exchangers
Off-Shore Oil Drilling Companies
Pulp and Paper Industry
Pharmaceutical Equipment
Petrochemicals
Power Generation
Sea Water Equipment
Chemical Equipment
Specialty Chemicals
Condensers
Buy from PED approved Stainlesss Steel 321 Pipe Fittings manufacturer for quality products & accurate dimensions
Nominal size | OD | Elbows | Reducer | Caps | Returns | Stubs Ends | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Short | Long | Long | Short | Long | Short | Radius of fillet | Diam. of Lap | ||||||||
90 deg | 90 deg | 45 deg | |||||||||||||
DN | NPS | D | A | A | B | H | E | O | K | O | K | F | F | R | G |
20 | ¾ | 26.7 | 38 | 19 | 38 | 25 | 76 | 51 | 76 | 51 | 3 | 43 | |||
32 | 11/4 | 42.2 | 32 | 48 | 25 | 51 | 38 | 95 | 70 | 64 | 52 | 102 | 51 | 5 | 64 |
40 | 11/2 | 48.3 | 38 | 57 | 29 | 64 | 38 | 114 | 83 | 76 | 62 | 102 | 51 | 6 | 73 |
50 | 2 | 60.3 | 51 | 76 | 35 | 76 | 38 | 152 | 106 | 102 | 81 | 152 | 64 | 8 | 92 |
65 | 21/2 | 73.0 | 64 | 95 | 44 | 89 | 38 | 190 | 132 | 127 | 100 | 152 | 64 | 8 | 106 |
80 | 3 | 88.9 | 76 | 114 | 51 | 89 | 51 | 229 | 159 | 152 | 121 | 152 | 64 | 10 | 127 |
90 | 31/2 | 101.6 | 89 | 133 | 57 | 102 | 64 | 267 | 184 | 178 | 140 | 152 | 76 | 10 | 140 |
15 | ½ | 21.3 | 38 | 16 | 25 | 76 | 48 | 76 | 51 | 3 | 35 | ||||
100 | 4 | 114.3 | 102 | 152 | 64 | 102 | 64 | 305 | 210 | 203 | 159 | 152 | 76 | 11 | 157 |
200 | 8 | 219.1 | 203 | 305 | 127 | 152 | 102 | 610 | 414 | 406 | 313 | 203 | 102 | 13 | 270 |
250 | 10 | 273.0 | 254 | 381 | 159 | 178 | 127 | 762 | 518 | 508 | 391 | 254 | 127 | 13 | 324 |
300 | 12 | 323.8 | 305 | 457 | 190 | 203 | 152 | 914 | 619 | 610 | 467 | 254 | 152 | 13 | 381 |
350 | 14 | 355.6 | 356 | 533 | 222 | 330 | 165 | 1067 | 711 | 711 | 533 | 305 | 152 | 13 | 413 |
125 | 5 | 141.3 | 127 | 190 | 79 | 127 | 76 | 381 | 262 | 254 | 197 | 203 | 76 | 11 | 185 |
400 | 16 | 406.4 | 406 | 610 | 254 | 356 | 178 | 1219 | 813 | 813 | 610 | 305 | 152 | 13 | 470 |
25 | 1 | 33.4 | 25 | 38 | 22 | 51 | 38 | 76 | 56 | 51 | 41 | 102 | 51 | 3 | 51 |
450 | 18 | 457 | 457 | 686 | 286 | 381 | 203 | 1372 | 914 | 914 | 686 | 305 | 152 | 13 | 533 |
500 | 20 | 508 | 508 | 762 | 318 | 508 | 229 | 1524 | 1016 | 1016 | 762 | 305 | 152 | 13 | 584 |
1050 | 42 | 1067 | 1600 | 660 | 610 | 305 | |||||||||
550 | 22 | 559 | 559 | 838 | 343 | 508 | 254 | 1676 | 1118 | 1118 | 838 | 305 | 152 | 13 | 641 |
150 | 6 | 168.3 | 152 | 229 | 95 | 140 | 89 | 457 | 313 | 305 | 237 | 203 | 89 | 13 | 218 |
600 | 24 | 610 | 610 | 914 | 381 | 508 | 267 | 1829 | 1219 | 1219 | 914 | 305 | 152 | 13 | 692 |
650 | 26 | 660 | 991 | 405 | 610 | 267 | |||||||||
700 | 28 | 711 | 1067 | 438 | 610 | 267 | |||||||||
750 | 30 | 762 | 1143 | 470 | 610 | 267 | |||||||||
1100 | 44 | 1118 | 1676 | 695 | 610 | 343 | |||||||||
800 | 32 | 813 | 1219 | 502 | 610 | 267 | |||||||||
850 | 34 | 864 | 1295 | 533 | 610 | 267 | |||||||||
900 | 36 | 914 | 1372 | 565 | 610 | 267 | |||||||||
950 | 38 | 965 | 1448 | 600 | 610 | 305 | |||||||||
1200 | 48 | 1219 | 1829 | 759 | 711 | 343 | |||||||||
1000 | 40 | 1016 | 1524 | 632 | 610 | 305 | |||||||||
1150 | 46 | 1168 | 1753 | 727 | 711 | 343 |
DN | Schedule 10S | Schedule 40S | ||||
---|---|---|---|---|---|---|
Ecc reducer | Con reducer | Reducing tee | Con reducer | Reducing tee | Ecc reducer | |
400x300 | 18.35 | 18.35 | 51.71 | 36.70 | 87.54 | 36.70 |
25x15 | 0.12 | 0.12 | 0.25 | 0.15 | 0.26 | 0.15 |
20x15 | 0.10 | 0.10 | 0.11 | 0.14 | 0.15 | 0.14 |
25x20 | 0.13 | 0.13 | 0.25 | 0.16 | 0.27 | 0.16 |
32x25 | 0.18 | 0.18 | 0.45 | 0.22 | 0.53 | 0.22 |
32x20 | 0.18 | 0.18 | 0.44 | 0.22 | 0.52 | 0.22 |
40x20 | 0.18 | 0.18 | 0.58 | 0.24 | 0.74 | 0.24 |
40x32 | 0.24 | 0.21 | 0.61 | 0.28 | 0.77 | 0.28 |
40x25 | 0.19 | 0.19 | 0.60 | 0.26 | 0.76 | 0.26 |
50x25 | 0.28 | 0.28 | 0.73 | 0.40 | 1.10 | 0.40 |
50x40 | 0.31 | 0.31 | 0.76 | 0.45 | 1.15 | 0.45 |
50x32 | 0.30 | 0.30 | 0.74 | 0.44 | 1.13 | 0.44 |
65x40 | 0.44 | 0.44 | 1.24 | 0.76 | 1.94 | 0.76 |
80x40 | 0.51 | 0.51 | 1.52 | 0.94 | 2.85 | 0.94 |
65x50 | 0.47 | 0.47 | 1.25 | 0.80 | 1.98 | 0.80 |
80x50 | 0.55 | 0.55 | 1.56 | 1.00 | 2.91 | 1.00 |
100x40 | 0.68 | 0.68 | 2.90 | 1.36 | 4.53 | 1.36 |
80x65 | 0.59 | 0.59 | 1.59 | 1.08 | 2.98 | 1.08 |
100x50 | 0.78 | 0.78 | 2.94 | 1.57 | 4.48 | 1.57 |
100x80 | 0.87 | 0.87 | 3.04 | 1.74 | 4.64 | 1.74 |
100x65 | 0.83 | 0.83 | 2.97 | 1.66 | 4.54 | 1.66 |
125x100 | 1.49 | 1.49 | 5.49 | 2.98 | 8.47 | 2.98 |
150x100 | 1.96 | 1.96 | 7.10 | 4.07 | 9.68 | 4.07 |
150x80 | 1.82 | 1.82 | 6.86 | 3.98 | 11.94 | 3.98 |
150x125 | 2.00 | 2.00 | 7.27 | 4.07 | 9.99 | 4.07 |
200x150 | 3.19 | 3.19 | 14.08 | 6.94 | 18.82 | 6.94 |
250x100 | 4.73 | 4.73 | 22.75 | 10.52 | 30.07 | 10.52 |
200x100 | 3.01 | 3.01 | 13.46 | 6.55 | 17.98 | 6.55 |
250x150 | 5.00 | 5.00 | 23.55 | 11.12 | 31.13 | 11.12 |
300x200 | 7.67 | 7.67 | 34.73 | 15.98 | 54.43 | 15.98 |
250x200 | 5.20 | 5.20 | 24.08 | 11.56 | 31.84 | 11.56 |
300x250 | 7.98 | 7.98 | 35.52 | 16.63 | 55.79 | 16.63 |
400x200 | 16.70 | 16.70 | 49.90 | 33.40 | 84.82 | 33.40 |
350x300 | 15.29 | 15.29 | 43.96 | 30.58 | 71.21 | 30.58 |
400x250 | 17.22 | 17.22 | 50.80 | 35.43 | 85.73 | 35.43 |
O.D. (mm) | Nominal Pipe Size | W.T. (mm) | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
Sch 5S | Sch 10S | Sch 40S | Sch 80S | |||||||
NPS | DN | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | |
10.3 | ⅛ | 6 | 0.28 | 1.24 | 0.37 | 1.73 | 0.47 | 2.41 | ||
13.7 | ¼ | 8 | 0.49 | 1.65 | 0.63 | 2.24 | 0.80 | 3.02 | ||
17.1 | ⅜ | 10 | 0.63 | 1.65 | 0.84 | 2.31 | 1.10 | 3.20 | ||
21.3 | ½ | 15 | 0.80 | 1.65 | 1.00 | 2.11 | 1.27 | 2.77 | 1.62 | 3.73 |
26.7 | ¾ | 20 | 1.02 | 1.65 | 1.28 | 2.11 | 1.69 | 2.87 | 2.20 | 3.91 |
33.4 | 1 | 25 | 1.29 | 1.65 | 2.09 | 2.77 | 2.50 | 3.38 | 3.24 | 4.55 |
42.2 | 1¼ | 32 | 1.65 | 1.65 | 2.69 | 2.77 | 3.39 | 3.56 | 4.47 | 4.85 |
48.3 | 1½ | 40 | 1.90 | 1.65 | 3.11 | 2.77 | 4.05 | 3.68 | 5.41 | 5.08 |
60.3 | 2 | 50 | 2.39 | 1.65 | 3.93 | 2.77 | 5.44 | 3.91 | 7.48 | 5.54 |
73.0 | 2½ | 65 | 3.69 | 2.11 | 5.26 | 3.05 | 8.63 | 5.16 | 11.41 | 7.01 |
88.9 | 3 | 80 | 4.52 | 2.11 | 6.46 | 3.05 | 11.29 | 5.49 | 15.27 | 7.62 |
101.6 | 3½ | 90 | 5.18 | 2.11 | 7.41 | 3.05 | 13.57 | 5.74 | 18.64 | 8.08 |
114.3 | 4 | 100 | 5.84 | 2.11 | 8.37 | 3.05 | 16.08 | 6.02 | 22.32 | 8.56 |
141.3 | 5 | 125 | 9.46 | 2.77 | 11.56 | 3.40 | 21.77 | 6.55 | 30.97 | 9.53 |
168.3 | 6 | 150 | 11.31 | 2.77 | 13.83 | 3.40 | 28.26 | 7.11 | 42.56 | 10.97 |
219.1 | 8 | 200 | 14.78 | 2.77 | 19.97 | 3.76 | 42.55 | 8.18 | 64.64 | 12.70 |
273.1 | 10 | 250 | 22.61 | 3.40 | 27.79 | 4.19 | 60.31 | 9.27 | 81.56 | 12.70 |
323.9 | 12 | 300 | 31.25 | 3.96 | 35.99 | 4.57 | 73.88 | 9.53 | 97.47 | 12.70 |
355.6 | 14 | 350 | 34.34 | 3.96 | 41.36 | 4.78 | 81.33 | 9.53 | 107.40 | 12.70 |
406.4 | 16 | 400 | 41.56 | 4.19 | 47.34 | 4.78 | 93.27 | 9.53 | 123.31 | 12.70 |
457 | 18 | 450 | 46.79 | 4.19 | 53.31 | 4.78 | 105.17 | 9.53 | 139.16 | 12.70 |
508 | 20 | 500 | 59.32 | 4.78 | 68.65 | 5.54 | 117.15 | 9.53 | 155.13 | 12.70 |
559 | 22 | 550 | 65.33 | 4.78 | 75.62 | 5.54 | ||||
610 | 24 | 600 | 82.58 | 5.54 | 94.53 | 6.35 | 141.12 | 9.53 | 187.07 | 12.70 |
660 | 26 | 650 | ||||||||
711 | 28 | 700 | ||||||||
762 | 30 | 750 | 118.34 | 6.35 | 147.29 | 7.92 |
Our capabilities as a one stop supplier for all of your ASTM A403 WP321 Fitting needs includes ASTM A403 WP321 Stub End, ASTM A403 SS 321 Buttweld Pipe, SS 321 Elbow
If you searching a supplier from these places check our supplies below
HABSHAN 5 IGD (GAS PROCESSING PLANT)-United Arab Emirates
Bass Strait Additional Oil Drilling Facilities Bass Strait, Australia
Driftwood Lng (Calcasieu Parish Lng Liquefaction Plant)-USA
Kuwait National Petroleum Company (KNPC)-Kuwait
ADMA-OPCO - Umm Shaif Gas Injection Facilities (USGIF) Abu Dhabi
Hormoz New Oil Refinery- Iran
