The 316L fittings belongs to low-carbon austenitic stainless steel grade. Stainless Steel 316L Pipe Fittings are versatile piping equipment that is employed to connect piping grades efficiently in different specifications. These fittings are nickel, chromium, and molybdenum grades that work well in harsh conditions. The 316L Stainless Steel Pipe Fittings play a critical role in influencing the characteristics of the fluid and gaseous flow in the system. These fittings have good corrosion resistance properties in harsh conditions. The low carbon in the SS 316L Pipe Fittings prevents post-weld graining and allows them to be easily welded following standard welding procedures. The Stainless Steel 316L Pipe Fittings / ASTM A403 WP316L possess a density of 8000 kg/m3 with an elastic modulus of 193GPa. These fittings have an electric resistivity of 740 nΩ.m.
The ASTM A403 WP316L grade is a wrought carbon grade that possesses excellent toughness and offers higher creep and stress rupture properties. The versatile ASTM A403 Gr WP316L components work well in high as well as in cryogenic temperatures. They possess resistance to pitting and crevice corrosion. ASTM A 403 WP 316L is very durable across acidic and chemical toxicants. The grade has a specific thermal capacity of 500 at 20°C J/kg K. The robust A403 WP316L module has a minimum tensile strength of 485mpa with a minimum yield strength of 170mpa and can be elongated by 40% in the system. The SA 403 WP 316L is a pressurized vessel grade that works well in extreme pressure and temperatures in stress-induced conditions. An SA403 WP316L grade can be annealed at temperatures between 1010 to 1120 degrees C, followed by a rapid cooling process. The SS316L Elbow is a key device of a pressurized piping system that helps in changing the direction of fluid and gaseous media. These elbows are designed in long or short radius configurations.
Stainless Steel 316L Pipe Fittings Specifications
Standards | ASME, ASTM |
---|---|
Designation | SA 403, A 403 |
Thickness | Schedule 5s, to Schedule XXS |
Grade | Stainless Steel 316L Buttweld Pipe Fittings, SS 316L Butt weld |
Two Joint / Two Halve Butt weld Fittings Size | 6" upto 48" |
Size | 1/2" upto 24" |
Type | Welded and Seamless |
Dimension Standard | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
Types of Butt weld Fittings | Bend, Swage Nipple, Cap, Short Stubend, 180 Deg Elbow, Eccentric Reducer, Piggable Bend, Long Stubend, 90 Deg Elbow, 1D Elbow, End Cap, Reducer, Barrel Nipple, Long Radius Elbow, Reducing Nipple, Nipple, Short Radius Elbow, Equal Tee, 5D Elbow, Tee, 3D Elbow, Long Radius Bend, Reducing Tee, Elbows, Stubend, 45 Deg Elbows, Concentric Reducer |
ASTM A403 WP316L Stainless Steel Buttweld Pipe Fittings Price List
10-12% price difference if you buy directly from ASTM A403 WP316L Pipe Fittings manufacturers
Description | Price Per Kg In Singapore | Price Per Kg In UAE | Price Per Kg In USD | Price Per Kg In Malaysia |
---|---|---|---|---|
NB 400 S40 PIPE FITTING WELDED TEE EQUAL BUTT WELD ASTM A 403 WP 316L FITTING | SGD 2642.54 | Dirham 6997.84 | US $ 1905.83 | MYR 8374.28 |
INCH 1 X 3/4 SCH. 40 SS 316L CONC. REDUCER | SGD 9.42 | Dirham 24.94 | US $ 6.79 | MYR 29.84 |
INCH 50 S10S X 25 S10S PIPE FITTING ECCENTRIC SEAMLESS REDUCER BUTT WELD ASTM A 403 WP 316L ANSI B 16.9 | SGD 194.70 | Dirham 515.60 | US $ 140.42 | MYR 617.02 |
INCH 50 S10S X 25 S104S PIPE FITTING CONCENTRIC SEAMLESS REDUCER BUTT WELD ASTM A 403 WP 316L ANSI B 16.9 | SGD 107.84 | Dirham 285.58 | US $ 77.78 | MYR 341.75 |
SCH 80 S10S R=1.5D BUTT WELD PIPE FITTING SEAMLESS ELBOW 90DLR, ASTM A 403 WP 316L FITTING | SGD 112.41 | Dirham 297.69 | US $ 81.07 | MYR 356.24 |
INCH 2 X SCH. 10 SS 316L TEE | SGD 23.55 | Dirham 62.37 | US $ 16.99 | MYR 74.64 |
450 S30 X 400 S40 PIPE FITTING WELDED REDUCER ECCENTRIC BUTT WELD ASTM A 403 WP 316L ANSI B 16.9 | SGD 1052.35 | Dirham 2786.78 | US $ 758.97 | MYR 3334.92 |
ASTM A403 WP316L Fittings Types

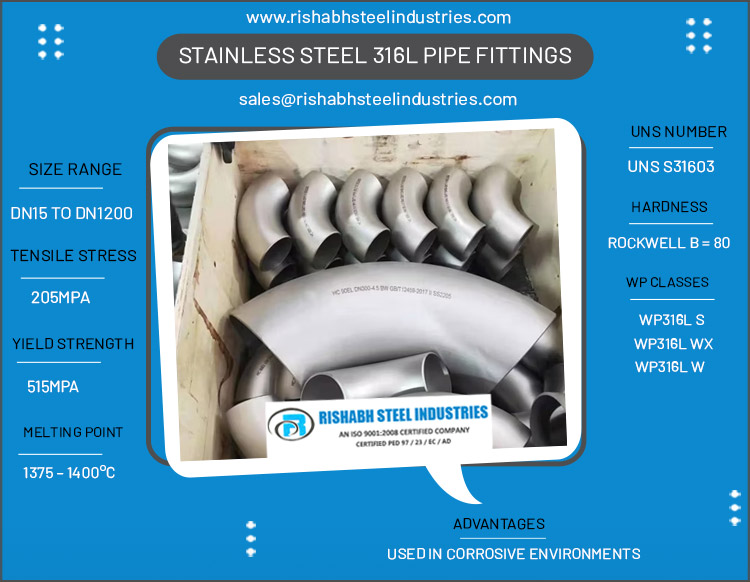

Stainless Steel 316L Pipe Fittings
A403 WP316L 180° Long Radius Elbow
SA403 WP316L 1D Elbow
A403 Grade WP316L Lap Joint Stub Ends
316L SS Long Stubend
ASTM A403 gr WP316L Seamless Buttwelding 45° and 90° Elbows
316L 90° Long Radius Elbow
Stainless Steel 316L Seamless Buttwelding 180° Returns
316L Stainless Steel 1.5D Elbow
ASTM A403 WP316L Straight Tees
SS 316L 45° Long Radius Elbow
ASTM A 403 WP 316L 3D Elbow
ASTM A403 WP316L Concentric Reducer
A403 WP316L Pipe Cap
SA403 WP316L 5D Elbow
A403 Grade WP316L Stub End
316L SS Reducing Cross
ASTM A403 gr WP316L Equal Tee
316L Reducing Outlet Tees
Stainless Steel 316L End Cap
316L Stainless Steel Eccentric Reducer
ASTM A403 WP316L Reducing Tee
SS 316L Short Stubend
ASTM A 403 WP 316L Equal Cross
ASTM A403 WP316L 180° Short Radius Elbow
Stainless Steel 316L 10D ELBOW
ASTM A403 WP316L 45° Short Radius Elbow
SS 316L Reducers
ASTM A403 WP316L 90° Short Radius Elbow
SA 403 WP 316L Welded Elbows
Stainless Steel 316L Pipe Fittings Size Chart
SA 403 WP 316l Fittings manufacturer in India, we use only high quality & tested material to produce Stainless Steel 316l Pipe Fittings
Nominal size | OD | Elbows | Reducer | Caps | Returns | Stubs Ends | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Short | Long | Long | Short | Long | Short | Radius of fillet | Diam. of Lap | ||||||||
90 deg | 90 deg | 45 deg | |||||||||||||
DN | NPS | D | A | A | B | H | E | O | K | O | K | F | F | R | G |
20 | ¾ | 26.7 | 38 | 19 | 38 | 25 | 76 | 51 | 76 | 51 | 3 | 43 | |||
32 | 11/4 | 42.2 | 32 | 48 | 25 | 51 | 38 | 95 | 70 | 64 | 52 | 102 | 51 | 5 | 64 |
40 | 11/2 | 48.3 | 38 | 57 | 29 | 64 | 38 | 114 | 83 | 76 | 62 | 102 | 51 | 6 | 73 |
50 | 2 | 60.3 | 51 | 76 | 35 | 76 | 38 | 152 | 106 | 102 | 81 | 152 | 64 | 8 | 92 |
65 | 21/2 | 73.0 | 64 | 95 | 44 | 89 | 38 | 190 | 132 | 127 | 100 | 152 | 64 | 8 | 106 |
80 | 3 | 88.9 | 76 | 114 | 51 | 89 | 51 | 229 | 159 | 152 | 121 | 152 | 64 | 10 | 127 |
90 | 31/2 | 101.6 | 89 | 133 | 57 | 102 | 64 | 267 | 184 | 178 | 140 | 152 | 76 | 10 | 140 |
15 | ½ | 21.3 | 38 | 16 | 25 | 76 | 48 | 76 | 51 | 3 | 35 | ||||
100 | 4 | 114.3 | 102 | 152 | 64 | 102 | 64 | 305 | 210 | 203 | 159 | 152 | 76 | 11 | 157 |
200 | 8 | 219.1 | 203 | 305 | 127 | 152 | 102 | 610 | 414 | 406 | 313 | 203 | 102 | 13 | 270 |
250 | 10 | 273.0 | 254 | 381 | 159 | 178 | 127 | 762 | 518 | 508 | 391 | 254 | 127 | 13 | 324 |
300 | 12 | 323.8 | 305 | 457 | 190 | 203 | 152 | 914 | 619 | 610 | 467 | 254 | 152 | 13 | 381 |
350 | 14 | 355.6 | 356 | 533 | 222 | 330 | 165 | 1067 | 711 | 711 | 533 | 305 | 152 | 13 | 413 |
125 | 5 | 141.3 | 127 | 190 | 79 | 127 | 76 | 381 | 262 | 254 | 197 | 203 | 76 | 11 | 185 |
400 | 16 | 406.4 | 406 | 610 | 254 | 356 | 178 | 1219 | 813 | 813 | 610 | 305 | 152 | 13 | 470 |
25 | 1 | 33.4 | 25 | 38 | 22 | 51 | 38 | 76 | 56 | 51 | 41 | 102 | 51 | 3 | 51 |
450 | 18 | 457 | 457 | 686 | 286 | 381 | 203 | 1372 | 914 | 914 | 686 | 305 | 152 | 13 | 533 |
500 | 20 | 508 | 508 | 762 | 318 | 508 | 229 | 1524 | 1016 | 1016 | 762 | 305 | 152 | 13 | 584 |
1050 | 42 | 1067 | 1600 | 660 | 610 | 305 | |||||||||
550 | 22 | 559 | 559 | 838 | 343 | 508 | 254 | 1676 | 1118 | 1118 | 838 | 305 | 152 | 13 | 641 |
150 | 6 | 168.3 | 152 | 229 | 95 | 140 | 89 | 457 | 313 | 305 | 237 | 203 | 89 | 13 | 218 |
600 | 24 | 610 | 610 | 914 | 381 | 508 | 267 | 1829 | 1219 | 1219 | 914 | 305 | 152 | 13 | 692 |
650 | 26 | 660 | 991 | 405 | 610 | 267 | |||||||||
700 | 28 | 711 | 1067 | 438 | 610 | 267 | |||||||||
750 | 30 | 762 | 1143 | 470 | 610 | 267 | |||||||||
1100 | 44 | 1118 | 1676 | 695 | 610 | 343 | |||||||||
800 | 32 | 813 | 1219 | 502 | 610 | 267 | |||||||||
850 | 34 | 864 | 1295 | 533 | 610 | 267 | |||||||||
900 | 36 | 914 | 1372 | 565 | 610 | 267 | |||||||||
950 | 38 | 965 | 1448 | 600 | 610 | 305 | |||||||||
1200 | 48 | 1219 | 1829 | 759 | 711 | 343 | |||||||||
1000 | 40 | 1016 | 1524 | 632 | 610 | 305 | |||||||||
1150 | 46 | 1168 | 1753 | 727 | 711 | 343 |
ASTM A403 WP316L Welded (ERW) Buttweld Fittings - WP316L-W
NOM. PIPE SIZE | GRADE | SCHEDULE |
---|---|---|
1/2″ – 24″ | WP316L-W | SCH 10S |
1/2″ – 12″ | SCH 40S |
ASTM/ASME | WP-S | CERTIFICATE EN 10204/3.1B | A403/SA403 WP316L | ANSI B16.9/MSS SP-43
ASTM A262E | NACE MR 01-75
ASTM A403 WP316L Stainless Steel Seamless Fittings
SCHEDULE | GRADE | NOM. PIPE SIZE |
---|---|---|
SCH 10S | WP316L-S | 1/2″ – 12″ |
SCH 40S | 1/2″ – 12″ | |
SCH 80S | 1/2″ – 12″ |
Stainless Steel 316L Butt weld Pipe Fittings Weight
DN | Schedule 10S | Schedule 40S | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
45° Elbow | 90° Elbow | Equal tee | Stub end type (B) | End cap | 45° Elbow | 90° Elbow | Equal tee | End cap | Stub end type (B) | |
15 | 0.03 | 0.06 | 0.09 | 0.07 | 0.03 | 0.04 | 0.08 | 0.10 | 0.04 | 0.08 |
20 | 0.03 | 0.07 | 0.13 | 0.09 | 0.05 | 0.04 | 0.08 | 0.17 | 0.07 | 0.11 |
25 | 0.08 | 0.14 | 0.28 | 0.16 | 0.08 | 0.11 | 0.15 | 0.29 | 0.10 | 0.17 |
32 | 0.11 | 0.23 | 0.49 | 0.22 | 0.10 | 0.17 | 0.26 | 0.59 | 0.18 | 0.25 |
40 | 0.17 | 0.30 | 0.68 | 0.25 | 0.11 | 0.23 | 0.40 | 0.86 | 0.20 | 0.31 |
50 | 0.25 | 0.50 | 0.85 | 0.43 | 0.13 | 0.40 | 0.70 | 1.28 | 0.23 | 0.61 |
65 | 0.48 | 0.85 | 1.41 | 0.57 | 0.19 | 0.77 | 1.40 | 2.19 | 0.27 | 0.80 |
80 | 0.63 | 1.25 | 1.77 | 0.72 | 0.25 | 1.08 | 2.20 | 3.31 | 0.42 | 1.13 |
100 | 1.08 | 2.10 | 3.46 | 1.09 | 0.68 | 1.47 | 4.47 | 5.27 | 1.14 | 1.87 |
125 | 1.82 | 3.65 | 5.44 | 1.47 | 1.11 | 2.84 | 6.80 | 9.63 | 2.13 | 2.79 |
150 | 2.72 | 5.45 | 8.03 | 2.15 | 1.42 | 5.44 | 10.89 | 10.99 | 3.23 | 3.57 |
200 | 5.33 | 10.20 | 15.65 | 3.22 | 2.38 | 10.77 | 21.54 | 20.91 | 5.19 | 6.07 |
250 | 9.75 | 18.15 | 26.76 | 5.13 | 4.45 | 19.27 | 38.56 | 35.38 | 9.00 | 10.07 |
300 | 13.62 | 25.80 | 39.46 | 8.16 | 7.50 | 29.71 | 59.42 | 62.14 | 15.00 | 14.29 |
350 | 18.37 | 36.29 | 48.53 | 10.88 | 8.17 | 35.15 | 79.38 | 79.31 | 16.00 | 17.14 |
400 | 23.81 | 47.63 | 58.97 | 12.70 | 10.67 | 45.81 | 99.79 | 99.79 | 21.00 | 20.41 |
450 | 29.94 | 59.87 | 79.65 | 17.23 | 13.00 | 59.40 | 129.73 | 129.73 | 26.00 | 27.21 |
500 | 49.90 | 99.80 | 103.42 | 21.77 | 17.00 | 74.84 | 162.38 | 162.39 | 34.00 | 29.94 |
600 | 70.31 | 140.61 | 155.58 | 27.21 | 26.00 | 105.23 | 225.89 | 225.90 | 52.00 | 38.55 |
ASTM A403 WP316L Elbow Dimensions
Quality assured PED & ISO approved 316l Stainless Steel Pipe Fittings supplier in India
PIPE NOMINAL SIZE | OUTSIDE DIAM. | 90° ELBOW | 45° ELBOW | 180° RETURNS | ||||
---|---|---|---|---|---|---|---|---|
(inches) | Short Radius | Long Radius | Long Radius | Long Radius | ||||
(mm) | (inches) | Center to Face (inches) |
Center to Face (inches) |
Radius (inches) |
Center to Face (inches) |
Back to face (inches) |
Center to Center (inches) |
|
3/4 | 26.7 | 1.050 | – | 1 1/8 | 7/16 | 1 11/16 | 2 1/4 | |
1/2 | 21.3 | 0.840 | – | 1 1/2 | 5/8 | 1 7/8 | 2 | |
1 | 33.4 | 1.315 | 1 | 1 1/2 | 7/8 | 2 3/16 | 3 | |
1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 3 | 1 1/8 | 3 1/4 | 4 1/2 |
1 1/4 | 42.2 | 1.660 | 1 1/4 | 1 7/8 | 1 | 2 3/4 | 3 3/4 | |
2 | 60.3 | 2.375 | 2 | 3 | 4 | 1 3/8 | 4 3/16 | 6 |
3 | 88.9 | 3.500 | 3 | 4 1/2 | 6 | 2 | 6 1/4 | 9 |
2 1/2 | 73.0 | 2.875 | 2 1/2 | 3 3/4 | 5 | 1 3/4 | 5 3/16 | 7 1/2 |
3 1/2 | 101.6 | 4.000 | 3 1/2 | 5 1/4 | 7 | 2 1/4 | 7 1/4 | 10 1/2 |
5 | 141.3 | 5.563 | 5 | 7 1/2 | 10 | 3 1/8 | 10 5/16 | 15 |
4 | 114.3 | 4.500 | 4 | 6 | 8 | 2 1/2 | 8 1/4 | 12 |
6 | 168.3 | 6.625 | 6 | 9 | 12 | 3 3/4 | 12 5/16 | 18 |
10 | 273.1 | 10.750 | 10 | 15 | 15 | 6 1/4 | 20 3/8 | 30 |
8 | 219.1 | 8.625 | 8 | 12 | 12 | 5 | 16 5/16 | 24 |
12 | 323.9 | 12.750 | 12 | 18 | 18 | 7 1/2 | 24 3/8 | 36 |
SS WP316L Pipe Fittings Capacity
Product | Wall Thickness | Size | Welded | Seamless |
---|---|---|---|---|
Tee | SCH10S~XXS | 1/2″-24″ | √ | √ |
SCH5S~80S/XS | 8″-104″ | √ | ||
Cap | SCH10S~SCH160 | 1/2″-80″ | √ | |
Elbow | SCH10S~XXS | 1/2″-24″ | √ | √ |
SCH5S~80S/XS | 8″-104″ | √ | ||
Reducer | SCH10S~XXS | 1/2″-24″ | √ | √ |
SCH5S~80S/XS | 8″-104″ | √ | ||
Lap Joint Stub End | SCH5S~80S/XS | 1/2″-24″ | √ | √ |
SCH5S~80S/XS | 8″-80″ | √ |
Stainless Steel ASTM A403 WP316L Fittings Wall Thickness
Why don't you directly contact a SS 316l Pipe Fittings manufacturer? Get a free sample before dispatch of complete order of Stainless Steel 316L Butt weld Pipe Fittings
O.D. (mm) | Nominal Pipe Size | W.T. (mm) | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
Sch 5S | Sch 10S | Sch 40S | Sch 80S | |||||||
NPS | DN | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | |
10.3 | ⅛ | 6 | 0.28 | 1.24 | 0.37 | 1.73 | 0.47 | 2.41 | ||
13.7 | ¼ | 8 | 0.49 | 1.65 | 0.63 | 2.24 | 0.80 | 3.02 | ||
17.1 | ⅜ | 10 | 0.63 | 1.65 | 0.84 | 2.31 | 1.10 | 3.20 | ||
21.3 | ½ | 15 | 0.80 | 1.65 | 1.00 | 2.11 | 1.27 | 2.77 | 1.62 | 3.73 |
26.7 | ¾ | 20 | 1.02 | 1.65 | 1.28 | 2.11 | 1.69 | 2.87 | 2.20 | 3.91 |
33.4 | 1 | 25 | 1.29 | 1.65 | 2.09 | 2.77 | 2.50 | 3.38 | 3.24 | 4.55 |
42.2 | 1¼ | 32 | 1.65 | 1.65 | 2.69 | 2.77 | 3.39 | 3.56 | 4.47 | 4.85 |
48.3 | 1½ | 40 | 1.90 | 1.65 | 3.11 | 2.77 | 4.05 | 3.68 | 5.41 | 5.08 |
60.3 | 2 | 50 | 2.39 | 1.65 | 3.93 | 2.77 | 5.44 | 3.91 | 7.48 | 5.54 |
73.0 | 2½ | 65 | 3.69 | 2.11 | 5.26 | 3.05 | 8.63 | 5.16 | 11.41 | 7.01 |
88.9 | 3 | 80 | 4.52 | 2.11 | 6.46 | 3.05 | 11.29 | 5.49 | 15.27 | 7.62 |
101.6 | 3½ | 90 | 5.18 | 2.11 | 7.41 | 3.05 | 13.57 | 5.74 | 18.64 | 8.08 |
114.3 | 4 | 100 | 5.84 | 2.11 | 8.37 | 3.05 | 16.08 | 6.02 | 22.32 | 8.56 |
141.3 | 5 | 125 | 9.46 | 2.77 | 11.56 | 3.40 | 21.77 | 6.55 | 30.97 | 9.53 |
168.3 | 6 | 150 | 11.31 | 2.77 | 13.83 | 3.40 | 28.26 | 7.11 | 42.56 | 10.97 |
219.1 | 8 | 200 | 14.78 | 2.77 | 19.97 | 3.76 | 42.55 | 8.18 | 64.64 | 12.70 |
273.1 | 10 | 250 | 22.61 | 3.40 | 27.79 | 4.19 | 60.31 | 9.27 | 81.56 | 12.70 |
323.9 | 12 | 300 | 31.25 | 3.96 | 35.99 | 4.57 | 73.88 | 9.53 | 97.47 | 12.70 |
355.6 | 14 | 350 | 34.34 | 3.96 | 41.36 | 4.78 | 81.33 | 9.53 | 107.40 | 12.70 |
406.4 | 16 | 400 | 41.56 | 4.19 | 47.34 | 4.78 | 93.27 | 9.53 | 123.31 | 12.70 |
457 | 18 | 450 | 46.79 | 4.19 | 53.31 | 4.78 | 105.17 | 9.53 | 139.16 | 12.70 |
508 | 20 | 500 | 59.32 | 4.78 | 68.65 | 5.54 | 117.15 | 9.53 | 155.13 | 12.70 |
559 | 22 | 550 | 65.33 | 4.78 | 75.62 | 5.54 | ||||
610 | 24 | 600 | 82.58 | 5.54 | 94.53 | 6.35 | 141.12 | 9.53 | 187.07 | 12.70 |
660 | 26 | 650 | ||||||||
711 | 28 | 700 | ||||||||
762 | 30 | 750 | 118.34 | 6.35 | 147.29 | 7.92 |
Stainless Steel 316L Pipe Fittings Equivalent
EN | UNS | WERKSTOFF NR. | JIS | GOST | BS | AFNOR |
---|---|---|---|---|---|---|
X2CrNiMo18-14-3/ X2CrNiMo17-12-2 | S31603 | 1.4435/ 1.4404 | SUS 316L | 03Ch17N14M2/ 03Ch17N14M3 | 316S13/ 316S11 | Z3CND18-14-03/ Z3CND17-11-02 |
ASME SA403M Stainless Steel WP 316L Fittings Chemical Composition
Fe | Mn | C | Si | S | P | Cr | Ni | Mo |
---|---|---|---|---|---|---|---|---|
68.89 min | 2.0 max | 0.035 max | 1.0 max | 0.030 max | 0.045 max | 16.00 - 18.00 | 10.00 - 14.00 | 2.00 - 3.00 |
Stainless Steel 316L Seamless Pipe Fittings Mechanical Properties
Elongational | Melting Point | Yield Properties (0.2%Offset) | Tensile Properties |
---|---|---|---|
35 % | (2550 °F) 1399 °C | MPa - 205, Psi - 30000 | MPa - 515, Psi - 75000 |
SA 403 WP 316L Elbow Pressure Rating
Why pay extra? Buying from ASTM A403 WP316L Elbow manufacturers saves your cost, wide selection of ASME SA403M WP 316L Pipe Cap in India
W.T. (in) (mm) |
Pipe SCH | Pipe Size (inches) |
Temperature (oF) (deg C) | O.D. (in) (mm) |
||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
100 | 200 | 300 | 400 | 500 | 600 | 650 | 700 | 750 | ||||
Allowable Stress (psi) (kPa) | ||||||||||||
16700 | 16700 | 16700 | 15500 | 14400 | 13500 | 13200 | 12900 | 12600 | ||||
0.145 | 40 | 1 1/2" | 1629 | 1629 | 1629 | 1512 | 1404 | 1317 | 1287 | 1258 | 1229 | 1.900 |
0.200 | 80 | 2303 | 2303 | 2303 | 2138 | 1986 | 1862 | 1821 | 1779 | 1738 | 1.900 | |
0.281 | 160 | 3362 | 3362 | 3362 | 3120 | 2899 | 2717 | 2657 | 2597 | 2536 | 1.900 | |
0.133 | 40 | 1" | 2205 | 2205 | 2205 | 2047 | 1902 | 1783 | 1743 | 1703 | 1664 | 1.315 |
0.179 | 80 | 3061 | 3061 | 3061 | 2841 | 2640 | 2475 | 2420 | 2365 | 2310 | 1.315 | |
0.250 | 160 | 4493 | 4493 | 4493 | 4170 | 3874 | 3632 | 3552 | 3471 | 3390 | 1.315 | |
0.154 | 40 | 2" | 1371 | 1371 | 1371 | 1272 | 1182 | 1108 | 1083 | 1059 | 1034 | 2.375 |
0.218 | 80 | 1985 | 1985 | 1985 | 1843 | 1712 | 1605 | 1569 | 1534 | 1498 | 2.375 | |
0.344 | 160 | 3283 | 3283 | 3283 | 3047 | 2831 | 2654 | 2595 | 2536 | 2477 | 2.375 | |
0.237 | 40 | 4" | 1102 | 1102 | 1102 | 1023 | 950 | 891 | 871 | 851 | 831 | 4.500 |
0.337 | 80 | 1596 | 1596 | 1596 | 1482 | 1377 | 1291 | 1262 | 1233 | 1204 | 4.500 | |
0.531 | 160 | 2611 | 2611 | 2611 | 2424 | 2552 | 2111 | 2064 | 2017 | 1970 | 4.500 | |
0.216 | 40 | 3" | 1301 | 1301 | 1301 | 1208 | 1122 | 1052 | 1028 | 1005 | 982 | 3.500 |
0.300 | 80 | 1844 | 1844 | 1844 | 1712 | 1590 | 1491 | 1458 | 1425 | 1391 | 3.500 | |
0.438 | 160 | 2787 | 2787 | 2787 | 2587 | 2403 | 2253 | 2203 | 2153 | 2103 | 3.500 | |
0.258 | 40 | 5" | 965 | 965 | 965 | 896 | 832 | 780 | 763 | 746 | 728 | 5.563 |
0.375 | 80 | 1428 | 1428 | 1428 | 1325 | 1231 | 1154 | 1129 | 1103 | 1077 | 5.563 | |
0.625 | 160 | 2474 | 2474 | 2474 | 2296 | 2133 | 2000 | 1955 | 1911 | 1866 | 5.563 | |
0.322 | 40 | 8" | 771 | 771 | 771 | 716 | 665 | 623 | 610 | 596 | 582 | 8.625 |
0.500 | 80 | 1218 | 1218 | 1218 | 1131 | 1050 | 985 | 963 | 941 | 919 | 8.625 | |
0.906 | 160 | 2298 | 2298 | 2298 | 2133 | 1982 | 1858 | 1817 | 1775 | 1734 | 8.625 | |
0.280 | 40 | 6" | 877 | 877 | 877 | 814 | 756 | 709 | 693 | 677 | 661 | 6.625 |
0.432 | 80 | 1379 | 1379 | 1379 | 1280 | 1189 | 1115 | 1090 | 1065 | 1040 | 6.625 | |
0.719 | 160 | 2382 | 2382 | 2382 | 2211 | 2054 | 1925 | 1883 | 1840 | 1797 | 6.625 | |
0.365 | 40 | 10" | 699 | 699 | 699 | 649 | 603 | 565 | 553 | 540 | 528 | 10.750 |
0.594 | 80 | 1159 | 1159 | 1159 | 1075 | 999 | 937 | 916 | 895 | 874 | 10.750 | |
1.125 | 160 | 2289 | 2289 | 2289 | 2124 | 1974 | 1850 | 1809 | 1768 | 1727 | 10.750 |
Stainless Steel 316L Pipe Fittings Applications
Petrochemical Industries
Gas Processing Industries
Food Processing Industries
Power Generation Industries
Oil & Gas Industries
Chemical Industries
Sugar Industries
Fertilizers Industries
316L Stainless Steel Pipe Fittings WP Grades
CR | Grade that resists corrosion. Classes from S through WU do not apply. |
---|---|
WP316L-S | Seamless |
WP316L-W | RT, Welded or UT all pipe starting material welds made with filler metal. Except as noted in A/SA403, all fitting manufacturer welds. If UT is substituted for RT, all materials welds must be 100% examined A/SA403 as required for their length |
WP316L-WX | RT all welds without or with filler metal. |
WP316L-WU | UT all welds without or with filler metal. |
WPgrade-grade-class | Insert grades (316) and class (W, WU, S, WX). Applies to fittings meeting all chemical and physical properties of both grades. |
20 years of Experience as a supplier of these materials in below mentioned locations
Al Bawani Water & Power (AWP)-Saudi Arabia
Al Zour Refinery Dubai
Ras Laffan - Qatargas - NFE-Abu Dhabi
Basra Gas Gathering Project-UAE
Neste Refinery Expansion-Singapore
Nigeria-Morocco Gas Pipeline South Africa
