Pipe fittings help in pipe routing that allows for directional change, size change, and branching grades of different connections. The Stainless Steel 310 Pipe fittings are medium carbon austenitic stainless steel. These fittings are nickel-chromium grades that are resistant to corrosion and oxidation up to 2000 degrees F. AISI 310 Welded Fittings are the most common fittings in this grade that allow them to join valves, tubes, pipes, and different piping equipment. These fittings help in the conveyance of fluids and gases in different conditions. The 310 Stainless Steel Buttweld Fittings possess enhanced strength and are suitable to work in stress-induced conditions. Our buttweld fittings offer a seamless flow in the system and can be availed at reasonable prices at all our outlets.
The ASTM A403 WP310 Elbow is utilized to change the flow of media between two piping equipment. These elbows are generally available in 45, 90, and 22.5 degree specifications. The elbows possess a short or long radius of curvature. A UNS S31000 Equal Tee allows for even flow across the two outlet sections. These tees are seen in commercial, industrial and domestic setups. The SS 310 Reducer is a device that connects piping equipment of dissimilar sizes. They allow for a smooth change of flow size from a larger radius to a small sized pipe. Stainless Steel 310 End Cap helps in closing the ends of the system. These caps protect the piping grades as they are stored or transported against damage or corrosive affluents. A 310 SS Stub End is a short piece that allows it to minimize the weight of high-grade material to save costs. These ends secure the joints of pressurized pipes utilizing a good fastener set.
ASTM A403/ ASME SA403
UNS NO. S31000/ S31008
More than 30 years experience as a Stainless Steel UNS S31000 Seamless Pipe Fitting manufacturer in India
Specifications | ASTM / ASME A403 / SA403 |
---|---|
Thickness | Schedule 5s upto XXS available with NACE MR 01-75 |
Standards |
MSS-SP-43, ASME/ANSI B16.9, B16.28 |
Size | From 1/8” NB upto 48” NB |
Type | Welded / Seamless / Fabricated |
Purchasing ASTM A403 Stainless Steel Welded Buttweld Fitting and ASTM A403 WP 310 Buttweld Elbow from the manufacturer directly saves your cost and time
Description | Price Per Kg In Singapore | Price Per Kg In UAE | Price Per Kg In USD | Price Per Kg In Malaysia |
---|---|---|---|---|
3 X2 COUPLING AND ELBOWS OF IRON OR STEEL ECCENTRIC REDUCER SCH 10 SS310 BW | SGD 6.57 | UAE Dirham 17.16 | US $4.75 | MYR 20.81 |
DN40X25 SCH 10S STAINLESS STEEL UNEQUAL TEE SA403 GR.WP310 | SGD 9.05 | UAE Dirham 23.64 | US $6.54 | MYR 28.67 |
DN65 STAINLESS STEEL EQUAL TEE SA403 GR.WP310 | SGD 7.85 | UAE Dirham 20.49 | US $5.67 | MYR 24.85 |
DN40X15 SCH 10S STAINLESS STEEL UNEQUAL TEE SA403 GR.WP310 | SGD 9.49 | UAE Dirham 24.77 | US $6.85 | MYR 30.04 |
1.1/4 NB X SCH-40 STAINLESS STEEL ELBOW 45 DEG LR 310 GR | SGD 2.43 | UAE Dirham 6.35 | US $1.76 | MYR 7.70 |
1 X 3M THD SS FULL COUPLING ASTM A182F 310 | SGD 23.63 | UAE Dirham 61.71 | US $17.07 | MYR 74.84 |
3 X SCH40 SS CAP ASTM A 403 WPS 310 | SGD 33.08 | UAE Dirham 86.39 | US $23.89 | MYR 104.77 |
3 X SCH40 SS PIPE SMLS SA312 310 | SGD 141.80 | UAE Dirham 370.27 | US $102.41 | MYR 449.05 |
NPT 1 X 1/2 STAINLESS STEEL HEX BUSHING ASTM A182F310 | SGD 22.75 | UAE Dirham 59.41 | US $16.43 | MYR 72.05 |
We are a specialist supplier & distributor of Welded Grade 310 Stainless Steel 90 degree Elbow and SAE 310 Stainless Steel Cross
310S Stainless Steel Reducing Tee
ASTM A403 WP310 Return Bends
Stainless Steel UNS S31000 Weld Elbows
Stainless Steel 310S Elbow
Stainless Steel 1.4841 90 Degree Elbows
WP310S SS Welded End Cap
Stainless Steel 310 180 Degree Elbows
ASTM A403 WP310S Cross Tee

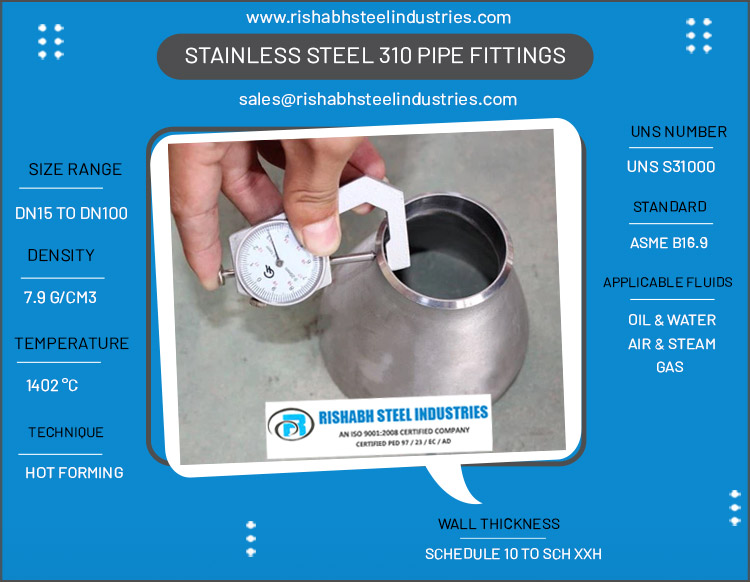

Stainless Steel 310 Pipe Fittings
ASTM A403 F310 Stub End
Stainless Steel UNS S31000 Equal Tee
ASTM A403 Stainless Steel 310S Lap Joint Stub Ends
Stainless Steel 310 Reducer
ASTM A403 WP 310 Buttweld Elbow Laterals
Welded Grade 310 Stainless Steel Concentric Reducer
SAE 310 Stainless Steel Cross Fitting
ASTM A403 WP310 Eccentric Reducer
Stainless Steel 310 45 Degree Elbows
Weight | Nominal pipe size | Schedule | Dimensions in mm | ||
---|---|---|---|---|---|
kg/pce | in.0 | t | D | C/M | |
0.0092 0.0115 0.0200 0.0300 |
3/4 | 10s 40s 80s 160 |
2.011 2.087 3.091 5.056 |
26.07 26.07 26.07 26.07 |
28.06 28.06 28.06 28.06 |
0.0065 0.0085 0.0140 0.0150 |
1/2 | 10s 40s 80s 160 |
2.011 2.077 3.073 4.078 |
21.03 21.03 21.03 21.03 |
25.04 25.04 25.04 25.04 |
0.0200 0.0245 0.0390 0.0470 |
1 | 10s 40s 80s 160 |
2.077 3.038 4.055 6.035 |
33.04 33.04 33.04 33.04 |
38.01 38.01 38.01 38.01 |
0.0460 0.0595 1.0020 1.0430 |
1½ | 10s 40s 80s 160 |
2.077 3.068 5.008 7.014 |
48.03 48.03 48.03 48.03 |
57.02 57.02 57.02 57.02 |
0.0330 0.0420 0.0548 0.0890 |
1¼ | 10s 40s 80s 160 |
2.077 3.056 4.085 6.035 |
42.02 42.02 42.02 42.02 |
47.06 47.06 47.06 47.06 |
0.0630 0.0872 1.0590 3.0180 |
2 | 10s 40s 80s 160 |
2.077 3.091 5.054 8.074 |
60.03 60.03 60.03 60.03 |
63.05 63.05 63.05 63.05 |
76.0660 | 18 | 10s | 4.078 | 457.02 | 342.09 |
1.0370 1.0900 4.0450 5.0870 |
3 | 10s 40s 80s 160 |
3.005 5.049 7.062 11.013 |
88.09 88.09 88.09 88.09 |
85.07 85.07 85.07 85.07 |
155.0580 | 24 | 10s | 6.035 | 609.06 | 431.08 |
1.0100 1.0700 3.0630 |
2½ | 10s 40s 160 |
3.005 5.016 9.052 |
73.00 73.00 73.00 |
76.02 76.02 76.02 |
1.0740 3.0190 |
3½ | 10s 40s |
3.005 5.074 |
101.06 101.06 |
95.03 95.03 |
3.0480 6.0550 11.0340 |
5 | 10s 40s 80s |
3.040 6.055 9.053 |
141.03 141.03 141.03 |
123.08 123.08 123.08 |
2.0150 4.0130 7.0710 9.0760 |
4 | 10s 40s 80s 160 |
3.005 6.002 8.056 13.049 |
114.03 114.03 114.03 114.03 |
104.08 104.08 104.08 104.08 |
4.0760 9.0730 13.0610 |
6 | 10s 40s 80s |
3.040 7.011 10.092 |
168.03 168.03 168.03 |
142.09 142.09 142.09 |
14.0200 30.0800 |
10 | 10s 40s |
4.019 9.027 |
273.01 273.01 |
215.09 215.09 |
8.0460 18.0000 |
8 | 10s 40s |
3.076 8.018 |
219.01 219.01 |
177.08 177.08 |
21.0600 44.0300 |
12 | 10s 40s |
4.057 9.053 |
323.09 323.09 |
254.00 254.00 |
58.0970 99.0790 |
16 | 10s STD |
4.078 9.053 |
406.04 406.04 |
304.08 304.08 |
48.0530 79.0380 |
14 | 10s STD |
4.078 9.053 |
355.06 355.06 |
279.04 279.04 |
103.0420 | 20 | 10s | 5.054 | 508.00 | 381.00 |
Nominal size | OD | Elbows | Reducer | Caps | Returns | Stubs Ends | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Short | Long | Long | Short | Long | Short | Radius of fillet | Diam. of Lap | ||||||||
90 deg | 90 deg | 45 deg | |||||||||||||
DN | NPS | D | A | A | B | H | E | O | K | O | K | F | F | R | G |
20 | ¾ | 26.7 | 38 | 19 | 38 | 25 | 76 | 51 | 76 | 51 | 3 | 43 | |||
32 | 11/4 | 42.2 | 32 | 48 | 25 | 51 | 38 | 95 | 70 | 64 | 52 | 102 | 51 | 5 | 64 |
40 | 11/2 | 48.3 | 38 | 57 | 29 | 64 | 38 | 114 | 83 | 76 | 62 | 102 | 51 | 6 | 73 |
50 | 2 | 60.3 | 51 | 76 | 35 | 76 | 38 | 152 | 106 | 102 | 81 | 152 | 64 | 8 | 92 |
65 | 21/2 | 73.0 | 64 | 95 | 44 | 89 | 38 | 190 | 132 | 127 | 100 | 152 | 64 | 8 | 106 |
80 | 3 | 88.9 | 76 | 114 | 51 | 89 | 51 | 229 | 159 | 152 | 121 | 152 | 64 | 10 | 127 |
90 | 31/2 | 101.6 | 89 | 133 | 57 | 102 | 64 | 267 | 184 | 178 | 140 | 152 | 76 | 10 | 140 |
15 | ½ | 21.3 | 38 | 16 | 25 | 76 | 48 | 76 | 51 | 3 | 35 | ||||
100 | 4 | 114.3 | 102 | 152 | 64 | 102 | 64 | 305 | 210 | 203 | 159 | 152 | 76 | 11 | 157 |
200 | 8 | 219.1 | 203 | 305 | 127 | 152 | 102 | 610 | 414 | 406 | 313 | 203 | 102 | 13 | 270 |
250 | 10 | 273.0 | 254 | 381 | 159 | 178 | 127 | 762 | 518 | 508 | 391 | 254 | 127 | 13 | 324 |
300 | 12 | 323.8 | 305 | 457 | 190 | 203 | 152 | 914 | 619 | 610 | 467 | 254 | 152 | 13 | 381 |
350 | 14 | 355.6 | 356 | 533 | 222 | 330 | 165 | 1067 | 711 | 711 | 533 | 305 | 152 | 13 | 413 |
125 | 5 | 141.3 | 127 | 190 | 79 | 127 | 76 | 381 | 262 | 254 | 197 | 203 | 76 | 11 | 185 |
400 | 16 | 406.4 | 406 | 610 | 254 | 356 | 178 | 1219 | 813 | 813 | 610 | 305 | 152 | 13 | 470 |
25 | 1 | 33.4 | 25 | 38 | 22 | 51 | 38 | 76 | 56 | 51 | 41 | 102 | 51 | 3 | 51 |
450 | 18 | 457 | 457 | 686 | 286 | 381 | 203 | 1372 | 914 | 914 | 686 | 305 | 152 | 13 | 533 |
500 | 20 | 508 | 508 | 762 | 318 | 508 | 229 | 1524 | 1016 | 1016 | 762 | 305 | 152 | 13 | 584 |
1050 | 42 | 1067 | 1600 | 660 | 610 | 305 | |||||||||
550 | 22 | 559 | 559 | 838 | 343 | 508 | 254 | 1676 | 1118 | 1118 | 838 | 305 | 152 | 13 | 641 |
150 | 6 | 168.3 | 152 | 229 | 95 | 140 | 89 | 457 | 313 | 305 | 237 | 203 | 89 | 13 | 218 |
600 | 24 | 610 | 610 | 914 | 381 | 508 | 267 | 1829 | 1219 | 1219 | 914 | 305 | 152 | 13 | 692 |
650 | 26 | 660 | 991 | 405 | 610 | 267 | |||||||||
700 | 28 | 711 | 1067 | 438 | 610 | 267 | |||||||||
750 | 30 | 762 | 1143 | 470 | 610 | 267 | |||||||||
1100 | 44 | 1118 | 1676 | 695 | 610 | 343 | |||||||||
800 | 32 | 813 | 1219 | 502 | 610 | 267 | |||||||||
850 | 34 | 864 | 1295 | 533 | 610 | 267 | |||||||||
900 | 36 | 914 | 1372 | 565 | 610 | 267 | |||||||||
950 | 38 | 965 | 1448 | 600 | 610 | 305 | |||||||||
1200 | 48 | 1219 | 1829 | 759 | 711 | 343 | |||||||||
1000 | 40 | 1016 | 1524 | 632 | 610 | 305 | |||||||||
1150 | 46 | 1168 | 1753 | 727 | 711 | 343 |
Compare our quality and price with other ASTM A403 WP310 Buttweld Elbow suppliers in India
O.D. (mm) | Nominal Pipe Size | W.T. (mm) | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
Sch 5S | Sch 10S | Sch 40S | Sch 80S | |||||||
NPS | DN | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | |
10.3 | ⅛ | 6 | 0.28 | 1.24 | 0.37 | 1.73 | 0.47 | 2.41 | ||
13.7 | ¼ | 8 | 0.49 | 1.65 | 0.63 | 2.24 | 0.80 | 3.02 | ||
17.1 | ⅜ | 10 | 0.63 | 1.65 | 0.84 | 2.31 | 1.10 | 3.20 | ||
21.3 | ½ | 15 | 0.80 | 1.65 | 1.00 | 2.11 | 1.27 | 2.77 | 1.62 | 3.73 |
26.7 | ¾ | 20 | 1.02 | 1.65 | 1.28 | 2.11 | 1.69 | 2.87 | 2.20 | 3.91 |
33.4 | 1 | 25 | 1.29 | 1.65 | 2.09 | 2.77 | 2.50 | 3.38 | 3.24 | 4.55 |
42.2 | 1¼ | 32 | 1.65 | 1.65 | 2.69 | 2.77 | 3.39 | 3.56 | 4.47 | 4.85 |
48.3 | 1½ | 40 | 1.90 | 1.65 | 3.11 | 2.77 | 4.05 | 3.68 | 5.41 | 5.08 |
60.3 | 2 | 50 | 2.39 | 1.65 | 3.93 | 2.77 | 5.44 | 3.91 | 7.48 | 5.54 |
73.0 | 2½ | 65 | 3.69 | 2.11 | 5.26 | 3.05 | 8.63 | 5.16 | 11.41 | 7.01 |
88.9 | 3 | 80 | 4.52 | 2.11 | 6.46 | 3.05 | 11.29 | 5.49 | 15.27 | 7.62 |
101.6 | 3½ | 90 | 5.18 | 2.11 | 7.41 | 3.05 | 13.57 | 5.74 | 18.64 | 8.08 |
114.3 | 4 | 100 | 5.84 | 2.11 | 8.37 | 3.05 | 16.08 | 6.02 | 22.32 | 8.56 |
141.3 | 5 | 125 | 9.46 | 2.77 | 11.56 | 3.40 | 21.77 | 6.55 | 30.97 | 9.53 |
168.3 | 6 | 150 | 11.31 | 2.77 | 13.83 | 3.40 | 28.26 | 7.11 | 42.56 | 10.97 |
219.1 | 8 | 200 | 14.78 | 2.77 | 19.97 | 3.76 | 42.55 | 8.18 | 64.64 | 12.70 |
273.1 | 10 | 250 | 22.61 | 3.40 | 27.79 | 4.19 | 60.31 | 9.27 | 81.56 | 12.70 |
323.9 | 12 | 300 | 31.25 | 3.96 | 35.99 | 4.57 | 73.88 | 9.53 | 97.47 | 12.70 |
355.6 | 14 | 350 | 34.34 | 3.96 | 41.36 | 4.78 | 81.33 | 9.53 | 107.40 | 12.70 |
406.4 | 16 | 400 | 41.56 | 4.19 | 47.34 | 4.78 | 93.27 | 9.53 | 123.31 | 12.70 |
457 | 18 | 450 | 46.79 | 4.19 | 53.31 | 4.78 | 105.17 | 9.53 | 139.16 | 12.70 |
508 | 20 | 500 | 59.32 | 4.78 | 68.65 | 5.54 | 117.15 | 9.53 | 155.13 | 12.70 |
559 | 22 | 550 | 65.33 | 4.78 | 75.62 | 5.54 | ||||
610 | 24 | 600 | 82.58 | 5.54 | 94.53 | 6.35 | 141.12 | 9.53 | 187.07 | 12.70 |
660 | 26 | 650 | ||||||||
711 | 28 | 700 | ||||||||
762 | 30 | 750 | 118.34 | 6.35 | 147.29 | 7.92 |
Grade | Mn | N | Si | S | P | C | Mo | Cr | Ni |
---|---|---|---|---|---|---|---|---|---|
SS 310 | 2 max | 54.7 min | 0.015 max | 0.015 max | 0.020 max | 0.015 max | 0.10 max | 24.00 – 26.00 | 19.00 – 21.00 |
Melting Point | (0.2%Offset) Yield Properties | Tensile Properties | Density | Elongation |
---|---|---|---|---|
1402 °C (2555 °F) | Psi – 30000 , MPa – 205 | Psi – 75000 , MPa – 515 | 7.9 g/cm3 | 40 % |
STANDARD | BS | UNS | EN | JIS | GOST | WERKSTOFF NR. | AFNOR |
---|---|---|---|---|---|---|---|
SS 310 | 310S24 | S31000 | X15CrNi25-20 | SUS 310 | 20Ch25N20S2 | 1.4841 | – |
Rolling
Minor Fabrication
Bending
Forging
Polish
Heat Treatment
Annealed
Pickling, Polish
PIPE NOMINAL SIZE | OUTSIDE DIAM. | 90° ELBOW | 45° ELBOW | 180° RETURNS | ||||
---|---|---|---|---|---|---|---|---|
(inches) | Short Radius | Long Radius | Long Radius | Long Radius | ||||
(mm) | (inches) | Center to Face (inches) |
Center to Face (inches) |
Radius (inches) |
Center to Face (inches) |
Back to face (inches) |
Center to Center (inches) |
|
3/4 | 26.7 | 1.050 | – | 1 1/8 | 7/16 | 1 11/16 | 2 1/4 | |
1/2 | 21.3 | 0.840 | – | 1 1/2 | 5/8 | 1 7/8 | 2 | |
1 | 33.4 | 1.315 | 1 | 1 1/2 | 7/8 | 2 3/16 | 3 | |
1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 3 | 1 1/8 | 3 1/4 | 4 1/2 |
1 1/4 | 42.2 | 1.660 | 1 1/4 | 1 7/8 | 1 | 2 3/4 | 3 3/4 | |
2 | 60.3 | 2.375 | 2 | 3 | 4 | 1 3/8 | 4 3/16 | 6 |
3 | 88.9 | 3.500 | 3 | 4 1/2 | 6 | 2 | 6 1/4 | 9 |
2 1/2 | 73.0 | 2.875 | 2 1/2 | 3 3/4 | 5 | 1 3/4 | 5 3/16 | 7 1/2 |
3 1/2 | 101.6 | 4.000 | 3 1/2 | 5 1/4 | 7 | 2 1/4 | 7 1/4 | 10 1/2 |
5 | 141.3 | 5.563 | 5 | 7 1/2 | 10 | 3 1/8 | 10 5/16 | 15 |
4 | 114.3 | 4.500 | 4 | 6 | 8 | 2 1/2 | 8 1/4 | 12 |
6 | 168.3 | 6.625 | 6 | 9 | 12 | 3 3/4 | 12 5/16 | 18 |
10 | 273.1 | 10.750 | 10 | 15 | 15 | 6 1/4 | 20 3/8 | 30 |
8 | 219.1 | 8.625 | 8 | 12 | 12 | 5 | 16 5/16 | 24 |
12 | 323.9 | 12.750 | 12 | 18 | 18 | 7 1/2 | 24 3/8 | 36 |
W.T. (in) (mm) |
Pipe SCH | Pipe Size (inches) |
Temperature (oF) (deg C) | O.D. (in) (mm) |
||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
100 | 200 | 300 | 400 | 500 | 600 | 650 | 700 | 750 | ||||
Allowable Stress (psi) (kPa) | ||||||||||||
16700 | 16700 | 16700 | 15500 | 14400 | 13500 | 13200 | 12900 | 12600 | ||||
0.145 | 40 | 1 1/2" | 1629 | 1629 | 1629 | 1512 | 1404 | 1317 | 1287 | 1258 | 1229 | 1.900 |
0.200 | 80 | 2303 | 2303 | 2303 | 2138 | 1986 | 1862 | 1821 | 1779 | 1738 | 1.900 | |
0.281 | 160 | 3362 | 3362 | 3362 | 3120 | 2899 | 2717 | 2657 | 2597 | 2536 | 1.900 | |
0.133 | 40 | 1" | 2205 | 2205 | 2205 | 2047 | 1902 | 1783 | 1743 | 1703 | 1664 | 1.315 |
0.179 | 80 | 3061 | 3061 | 3061 | 2841 | 2640 | 2475 | 2420 | 2365 | 2310 | 1.315 | |
0.250 | 160 | 4493 | 4493 | 4493 | 4170 | 3874 | 3632 | 3552 | 3471 | 3390 | 1.315 | |
0.154 | 40 | 2" | 1371 | 1371 | 1371 | 1272 | 1182 | 1108 | 1083 | 1059 | 1034 | 2.375 |
0.218 | 80 | 1985 | 1985 | 1985 | 1843 | 1712 | 1605 | 1569 | 1534 | 1498 | 2.375 | |
0.344 | 160 | 3283 | 3283 | 3283 | 3047 | 2831 | 2654 | 2595 | 2536 | 2477 | 2.375 | |
0.237 | 40 | 4" | 1102 | 1102 | 1102 | 1023 | 950 | 891 | 871 | 851 | 831 | 4.500 |
0.337 | 80 | 1596 | 1596 | 1596 | 1482 | 1377 | 1291 | 1262 | 1233 | 1204 | 4.500 | |
0.531 | 160 | 2611 | 2611 | 2611 | 2424 | 2552 | 2111 | 2064 | 2017 | 1970 | 4.500 | |
0.216 | 40 | 3" | 1301 | 1301 | 1301 | 1208 | 1122 | 1052 | 1028 | 1005 | 982 | 3.500 |
0.300 | 80 | 1844 | 1844 | 1844 | 1712 | 1590 | 1491 | 1458 | 1425 | 1391 | 3.500 | |
0.438 | 160 | 2787 | 2787 | 2787 | 2587 | 2403 | 2253 | 2203 | 2153 | 2103 | 3.500 | |
0.258 | 40 | 5" | 965 | 965 | 965 | 896 | 832 | 780 | 763 | 746 | 728 | 5.563 |
0.375 | 80 | 1428 | 1428 | 1428 | 1325 | 1231 | 1154 | 1129 | 1103 | 1077 | 5.563 | |
0.625 | 160 | 2474 | 2474 | 2474 | 2296 | 2133 | 2000 | 1955 | 1911 | 1866 | 5.563 | |
0.322 | 40 | 8" | 771 | 771 | 771 | 716 | 665 | 623 | 610 | 596 | 582 | 8.625 |
0.500 | 80 | 1218 | 1218 | 1218 | 1131 | 1050 | 985 | 963 | 941 | 919 | 8.625 | |
0.906 | 160 | 2298 | 2298 | 2298 | 2133 | 1982 | 1858 | 1817 | 1775 | 1734 | 8.625 | |
0.280 | 40 | 6" | 877 | 877 | 877 | 814 | 756 | 709 | 693 | 677 | 661 | 6.625 |
0.432 | 80 | 1379 | 1379 | 1379 | 1280 | 1189 | 1115 | 1090 | 1065 | 1040 | 6.625 | |
0.719 | 160 | 2382 | 2382 | 2382 | 2211 | 2054 | 1925 | 1883 | 1840 | 1797 | 6.625 | |
0.365 | 40 | 10" | 699 | 699 | 699 | 649 | 603 | 565 | 553 | 540 | 528 | 10.750 |
0.594 | 80 | 1159 | 1159 | 1159 | 1075 | 999 | 937 | 916 | 895 | 874 | 10.750 | |
1.125 | 160 | 2289 | 2289 | 2289 | 2124 | 1974 | 1850 | 1809 | 1768 | 1727 | 10.750 |
DN | Schedule 10S | Schedule 40S | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
45° Elbow | 90° Elbow | Equal tee | Stub end type (B) | End cap | 45° Elbow | 90° Elbow | Equal tee | End cap | Stub end type (B) | |
15 | 0.03 | 0.06 | 0.09 | 0.07 | 0.03 | 0.04 | 0.08 | 0.10 | 0.04 | 0.08 |
20 | 0.03 | 0.07 | 0.13 | 0.09 | 0.05 | 0.04 | 0.08 | 0.17 | 0.07 | 0.11 |
25 | 0.08 | 0.14 | 0.28 | 0.16 | 0.08 | 0.11 | 0.15 | 0.29 | 0.10 | 0.17 |
32 | 0.11 | 0.23 | 0.49 | 0.22 | 0.10 | 0.17 | 0.26 | 0.59 | 0.18 | 0.25 |
40 | 0.17 | 0.30 | 0.68 | 0.25 | 0.11 | 0.23 | 0.40 | 0.86 | 0.20 | 0.31 |
50 | 0.25 | 0.50 | 0.85 | 0.43 | 0.13 | 0.40 | 0.70 | 1.28 | 0.23 | 0.61 |
65 | 0.48 | 0.85 | 1.41 | 0.57 | 0.19 | 0.77 | 1.40 | 2.19 | 0.27 | 0.80 |
80 | 0.63 | 1.25 | 1.77 | 0.72 | 0.25 | 1.08 | 2.20 | 3.31 | 0.42 | 1.13 |
100 | 1.08 | 2.10 | 3.46 | 1.09 | 0.68 | 1.47 | 4.47 | 5.27 | 1.14 | 1.87 |
125 | 1.82 | 3.65 | 5.44 | 1.47 | 1.11 | 2.84 | 6.80 | 9.63 | 2.13 | 2.79 |
150 | 2.72 | 5.45 | 8.03 | 2.15 | 1.42 | 5.44 | 10.89 | 10.99 | 3.23 | 3.57 |
200 | 5.33 | 10.20 | 15.65 | 3.22 | 2.38 | 10.77 | 21.54 | 20.91 | 5.19 | 6.07 |
250 | 9.75 | 18.15 | 26.76 | 5.13 | 4.45 | 19.27 | 38.56 | 35.38 | 9.00 | 10.07 |
300 | 13.62 | 25.80 | 39.46 | 8.16 | 7.50 | 29.71 | 59.42 | 62.14 | 15.00 | 14.29 |
350 | 18.37 | 36.29 | 48.53 | 10.88 | 8.17 | 35.15 | 79.38 | 79.31 | 16.00 | 17.14 |
400 | 23.81 | 47.63 | 58.97 | 12.70 | 10.67 | 45.81 | 99.79 | 99.79 | 21.00 | 20.41 |
450 | 29.94 | 59.87 | 79.65 | 17.23 | 13.00 | 59.40 | 129.73 | 129.73 | 26.00 | 27.21 |
500 | 49.90 | 99.80 | 103.42 | 21.77 | 17.00 | 74.84 | 162.38 | 162.39 | 34.00 | 29.94 |
600 | 70.31 | 140.61 | 155.58 | 27.21 | 26.00 | 105.23 | 225.89 | 225.90 | 52.00 | 38.55 |
We offer an extensive range of great value and quality ASTM A403 WP310 Fitting and Stainless Steel 310 Pipe Fittings
Pharmaceuticals
Gas Processing
Heat Exchangers
Off-Shore Oil Drilling Companies
Pulp and Paper Industry
Pharmaceutical Equipment
Petrochemicals
Power Generation
Sea Water Equipment
Chemical Equipment
Specialty Chemicals
Condensers
20 years of Experience as a supplier of these materials in below mentioned locations
Adco Jebel Dhanna Crude Storage Tanks
Gorgon LNG Train 4-Australia
Bahrain Deep Gas Exploration Project Bahrain
ConocoPhillips Barossa Project-Australia
Singapore Lng Corporation Pte Ltd
Ruwais Refinery Complex - Third Grassroot Refinery United Arab Emirates
