Carbon Steel Forged Fittings

Forged carbon steel fittings are used in connecting different piping grades while influencing the characteristics of the flow in the system. The Carbon Steel Forged Fittings are designed with a higher content on carbon, allowing them to possess superior strength and load-bearing capacity. Carbon Steel NPT Fittings are tapered pipe threads that use a thread deformation to create a strong metal-to-metal seal with the connectors. These fittings have pointed peaks and valleys at an angle of 60 degrees. The Carbon Steel BSP Pipe Fittings are internationally adopted threaded fittings used in sealing piping equipment like the NPT fittings. However, these fittings possess rounded valleys and peaks with a 55-degree angle. We are the Carbon Steel Forged Fittings manufacturer in India who have a vast inventory of fittings of different specifications. These fittings can be customized by our renowned technicians to meet all customer satisfaction.

A Carbon Steel Forged Elbow is a versatile device that is employed to swiftly change the direction of the flow in the system. These elbows can be produced in 45, 90, and 22.5 degrees turn. The Carbon Steel Screwed Fittings are produced with female threads that allow them to weld on subsequent male threads. These fittings are seen in applications where stress on the piping grade is low. Carbon Steel Forged Union is a threaded fitting that allows the pipe to be replaced or separated from the line without causing any major damage to the pipe grade. The Carbon Steel Forged Coupling are adapter fittings used in connecting a pipe to another pipe or to a swedge. These couplings are used if the fittings exceed the length of the pipe.

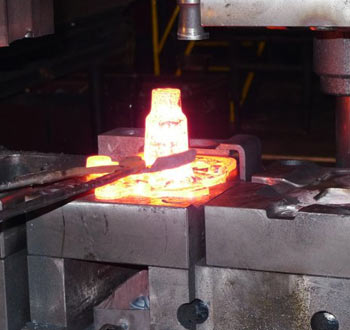

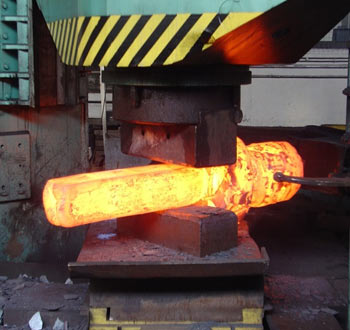

Carbon Steel Forged Fittings are Made of ?

Carbon Steel Forged Fittings

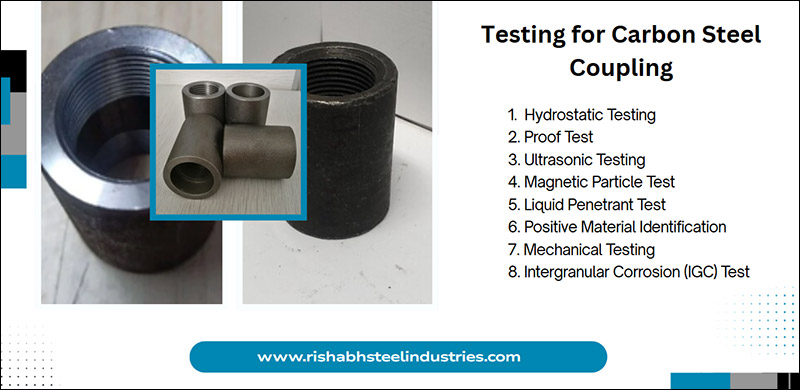

We Supply Carbon steel Threaded Tee/ Union/ Coupling/ Cap with MTC and NDT Test Certificates

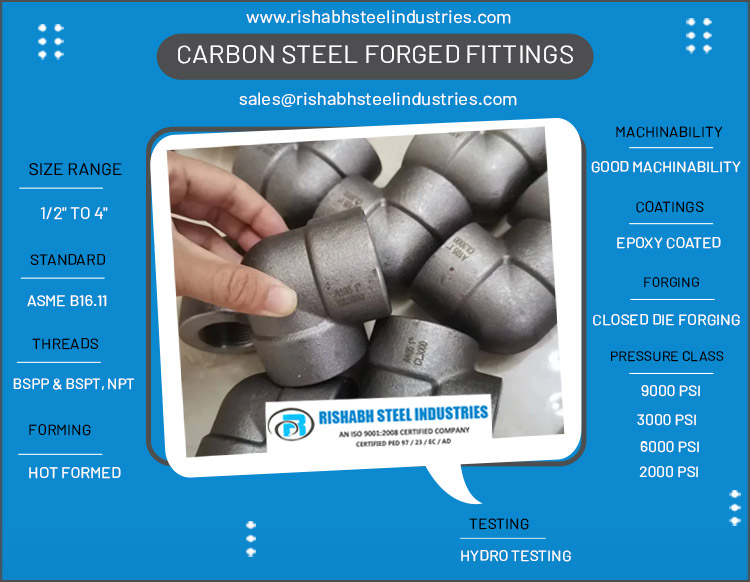

Carbon Steel Forged Fittings Specification

Specification ASTM/ ASME A105 / SA105
Class Threaded End- 3000/ 2000/ 6000lbs
Socket-weld End-6000/ 3000/ 9000lbs
Type Screwed-Threaded Fittings and Socketweld Fittings
Standard MSS SP-83, 79, 97, 95, ASME 16.11, BS 3799
Sizes From 1/8” NB to 4” NB

Price List of High Carbon Forged Fittings

Why to buy from stockist? Buy directly through ANSI B16.11 Carbon Steel Forged Fittings manufacturers and save cost

Description Price Per Kg In Singapore Price Per Kg In UAE Price Per Kg In USD Price Per Kg In Malaysia
2 X 16SCH 80/XS CARBON STEEL WELDOLET CS CL1 FORGED MSS SP-97/ASME B31.1/B31.3 SGD 30.82 UAE Dirham 80.46 US $22.26 MYR 97.58
1 X 2-3.1/2CLS 6000 FORGED PIPE FITTING CARBON STEEL THREADOLET CS CL1 FORGED SGD 7.29 UAE Dirham 19.04 US $5.27 MYR 23.09
1/2 CLS 3000 90 DEG FORGED FITTING CARBON STEEL ELBOW CS CL1 FORGED SW ASME B16.11 SGD 26.78 UAE Dirham 69.94 US $19.34 MYR 84.82
2 X 1/12 SCH160 X SCH160 FORGED PIPE FITTING CARBON STEEL CONCENTRIC SWAGE NIPPLE CS CL1 FORGED BLE SGD 49.43 UAE Dirham 129.06 US $35.70 MYR 156.52
3/4 X 1-36CLS 3000 FORGED FITTING CARBON STEEL THREADOLET CS FORGED MSS SP-97/ASME B31.1/B31.3 SGD 69.84 UAE Dirham 182.36 US $50.44 MYR 221.16
1/2 CLS 6000 FORGED PIPE FITTING CARBON STEEL ELBOW CS CL1 FORGED 90 DEG SW ASME B16.11 SGD 37.80 UAE Dirham 98.70 US $27.30 MYR 119.70

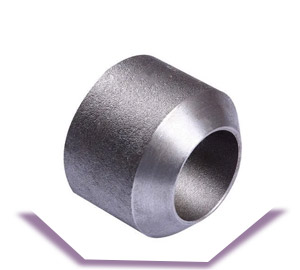

Carbon Forged Pipe Fittings Types

Carbon Steel Threaded / Screwed Street Elbow

Carbon Steel Threaded / Screwed Street Elbow

ASME SA350 Carbon Steel Threaded / Screwed Pipe Nipple

ASME SA350 Carbon Steel Threaded / Screwed Pipe Nipple

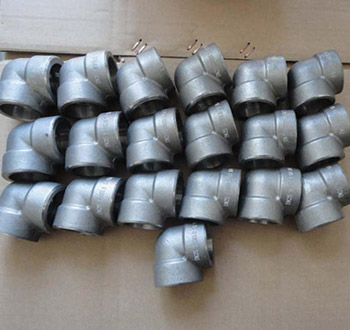

CS Socket Weld Cap

CS Socket Weld Cap

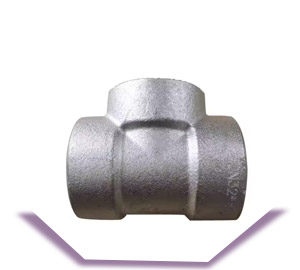

Black Carbon Steel Socket Weld Tee

Black Carbon Steel Socket Weld Tee

Fully Killed CS Forged 90 Degree Elbow

Fully Killed CS Forged 90 Degree Elbow

Carbon Steel Socket Weld Full Coupling

Carbon Steel Socket Weld Full Coupling

ANSI B16.11 Carbon Steel Socket Weld Half Coupling

ANSI B16.11 Carbon Steel Socket Weld Half Coupling

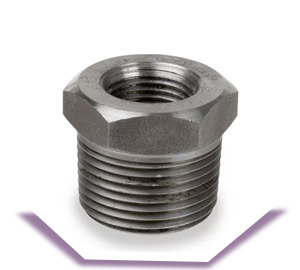

CS Threaded / Screwed Bushing

CS Threaded / Screwed Bushing

Low Carbon Steel Forged Pipe Elbow

Low Carbon Steel Forged Pipe Elbow

Galvanized Carbon Steel Forged 45 Degree Elbow

Galvanized Carbon Steel Forged 45 Degree Elbow

Low Temp Carbon Steel Socket Weld Reducing Tee

Low Temp Carbon Steel Socket Weld Reducing Tee

Normalized Carbon Steel Threaded / Screwed Union

Normalized Carbon Steel Threaded / Screwed Union

Carbon Steel Forged Fittings

Carbon Steel Forged Fittings

Quenching Low Carbon Steel Socket Weld Cross

Quenching Low Carbon Steel Socket Weld Cross

Nace Mr0175 Carbon Steel Threaded / Screwed Hex Plug

Nace Mr0175 Carbon Steel Threaded / Screwed Hex Plug

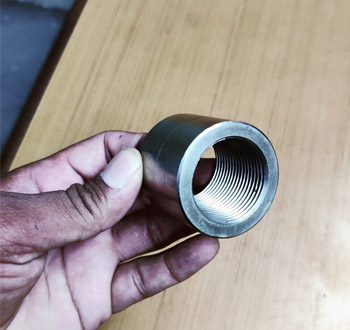

ASME SA350 Carbon Steel Threaded Coupling

Carbon Steel Socket Weld Fittings manufacturer in India, we use European/ German & Korean raw material to produce Carbon Socket Weld 90 deg Elbow

ASME SA350 Carbon Steel Threaded Coupling
Center to End Coupling
W

DN
Outside Diameter
D

Nom. Pipe Size
Center to End Cap
P
Length of Thread
Min. (1)
End Wall Thickness
G Min.
3000 & 6000 3000 6000 3000 6000 B L2 3000 6000
32 6 16 1/8” 19 6.4 6.7 4.8
35 8 19 25 1/4” 25 27 8.1 10.2 4.8 6.4
38 10 22 32 3/8” 25 27 9.1 10.4 4.8 6.4
48 15 28 38 1/2” 32 33 10.9 13.6 6.4 7.9
51 20 35 44 3/4” 37 38 12.7 13.9 6.4 7.9
60 25 44 57 1” 41 43 14.7 17.3 9.7 11.2
67 32 57 64 1-1/4” 44 46 17.0 18.0 9.7 11.2
79 40 64 76 1-1/2” 44 48 17.8 18.4 11.2 12.7
86 50 76 92 2” 48 51 19.0 19.2 12.7 15.7
92 65 92 108 2-1/2” 60 64 23.6 28.9 15.7 19.0
108 80 108 127 3” 65 68 25.9 30.5 19.0 22.4
121 100 140 159 4” 68 75 27.7 33.0 22.4 28.4

CS Unions Socket Weld Fittings

Purchasing Carbon Steel Coupling and ANSI B16.11 Carbon Steel Socket Weld Union from the manufacturer directly saves your time and cost

CS Unions Socket Weld Fittings
Socket Bore Dia.
B

Nom. Pipe Size
Laying Length
E
Thread s Per 25.4mm
H
Pipe End
(Min.) A
Length Assem . Nom.
L
Socket Wall
(Min.) C
Clear Assem. Nut
N
Water Way Bore
D
Bearing
(Min.) J
Male Flange
(Min.) F
Nut
(Min.) G
Depth of Socket
(Min.) K
11.18
10.67
1/8” 22.4
19.1
16 21.8 41.4 3.18 50.8 7.59
6.07
1.24 3.18 3.18 9.7
14.61 14.10 1/4” 22.4
19.1
16 21.8 41.4 3.30 50.8 10.01
8.48
1.24 3.18 3.18 9.7
18.03
17.53
3/8” 26.9
20.6
14 25.9 46.0 3.51 55.9 13.28
11.76
1.37 3.43 3.43 9.7
22.23
21.73
1/2” 26.9
20.6
14 31.2 49.0 4.09 58.4 16.56
15.04
1.50 3.68 3.68 9.7
27.56
27.05
3/4” 31.8
25.4
11 37.1 56.9 4.27 66.0 21.69
20.17
1.68 4.06 4.06 12.7
34.29
33.78
1” 34.3
26.2
11 45.5 62.0 4.98 78.7 27.41
25.88
1.85 4.57 4.45 12.7
43.05
42.55
1-1/4” 40.6
32.5
11 54.9 71.1 5.28 94.0 35.81
34.29
2.13 5.33 5.21 12.7
49.15
48.64
1-1/2” 42.2
34.0
10 61.5 76.5 5.54 111.8 41.66
40.13
2.31 5.84 5.59 12.7
61.62
61.11
2” 45.5
37.3
10 75.2 86.1 6.05 132.1 53.26
51.74
2.69 6.60 6.35 15.7
74.45
73.81
2-1/2” 61.7
52.1
8 91.7 102.4 7.67 149.9 64.24
61.19
3.07 7.49 7.11 15.7
90.42
89.79
3” 63.8
53.6
8 109.2 109.0 8.31 175.3 79.45
76.40
3.53 8.26 8.00 15.7

Top notch Stockist of Carbon Steel Screwed Fittings and Low CS Socket Weld Union in Mumbai

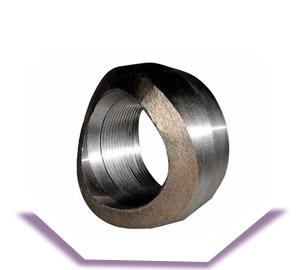

Black Carbon Steel Lateral Outlet Socket Weld Fittings

Black Carbon Steel Lateral Outlet Socket Weld Fittings

3000LB

A Outlet Pipe C D F J
DN Inch
40.5 8 1/4” 35.2 14.35 22.0 10.0
40.5 10 3/8” 35.2 17.80 25.9 10.0
40.5 15 1/2” 35.2 21.95 31.4 11.1
47.6 20 3/4” 43.6 27.30 37.1 12.7
55.6 25 1” 54.0 34.05 45.5 13.5
60.3 32 1-1/4” 67.5 42.80 57.0 15.1
66.7 40 1-1/2” 76.2 48.90 64.0 15.9
81.0 50 2” 104.8 61.35 76.0 17.5
82.6 65 2-1/2” 106.4 74.15 92.0 23.8
96.8 80 3” 125.4 90.10 109.2 28.6
114.3 100 4” 163.5 115.75 140.0 29.4

6000LB

D Outlet Pipe C A F J
DN Inch
14.35 8 1/4” 34.9 40.5 26.0 10.0
17.80 10 3/8” 34.9 40.5 33.0 10.0
21.95 15 1/2” 34.9 47.6 38.0 10.0
27.30 20 3/4” 43.6 55.6 44.0 14.3
34.05 25 1” 54.0 60.3 57.0 15.9
42.80 32 1-1/4” 67.5 66.7 64.0 20.6
48.90 40 1-1/2” 76.2 85.7 76.0 20.6

ASME SA350 Carbon Steel Forged Fittings Chemical Composition

Grade Cu Ni Cr Si S Mn C P
ASTM A350 LF2 min. - - - 0.17 - 0.6 - -
max. - 0.40 - 0.37 0.040 1.35 0.30 0.035
ASTM A105 min. - - - 0.17 - 0.5 0.5 -
max. 0.25 0.3 0.25 0.37 0.035 0.8 0.42 0.035

CS Forged Fittings Mechanical Properties

Why don't you directly contact a Black Carbon Steel Socket Weld Plug manufacturer in India? We offer an extensive range of Fully Killed CS Socket weld Half Coupling and Carbon Steel Threaded Street Elbow in Mumbai, free sample before dispatch of complete order.

Grade Yield Properties (ksi) min, 0.2% Proof Tensile Properties (ksi) min Hardness (% in 50mm) Elongational, min
ASTM A350 LF2 250 485 197 22
ASTM A105 355 600 229 40

ANSI B16.11 Carbon Steel Forged Fittings Equivalent

STANDARD WERKSTOFF NR. UNS
ASTM A105 - K03504
ASTM A350 LF2 1.0508 K03011
One of the biggest Manufacturer of Carbon Steel Forged Union in India, Check Weight Chart of CS Threaded Bushing

Carbon Steel Forged Fittings Applications

We are a specialist supplier & distributor of Carbon Steel Hex Bushing and Carbon steel threaded pipe fittings

  • Pulp & Paper Industry

  • Pharmaceuticals Industry

  • Aerospace Industry

  • Energy Industry

  • Power Plant Industry

  • Refining Industry

  • Chemical Industry

  • Oil and Gas Industry

  • Petrochemical Industry

  • Food Processing Industry

Fully Killed CS Hex Nipples Threaded Fittings

Fully Killed CS Hex Nipples Threaded Fittings
A
(Min)
Nominal Size b W
(Min)
E
(Min)
F
(Min)
C
(Min)
DN Inch 3000 6000
11 6 1/8” 5 2 26 10 - 6
15 8 1/4” 8 6 36 15 - 6
15 8 x 6 1/4”x1/8” 5 2 31 15 10 6
18 10 3/8” 11 8 40 16 - 8
18 10 x 8 3/8”x1/4” 8 6 39 16 15 8
22 15 1/2” 14 11 48 20 - 8
22 15 x 10 1/2”x3/8” 11 8 44 20 16 8
22 15 x 8 1/2”x1/4” 8 6 43 20 15 8
27 20 3/4” 19 13 52 21 - 10
27 20 x 15 3/4”x1/2” 14 11 50 21 20 9
27 20 x 10 3/4”x3/8” 11 8 46 21 16 9
35 25 1” 24 17 60 25 - 10
35 25 x 20 1”x3/4” 19 13 56 25 21 10
35 25 x 15 1”x1/2” 14 11 55 25 20 10
50 40 1-1/2” 38 30 68 26 - 16
50 40 x 25 1-1/2”x1” 24 17 67 26 25 16
50 40 x 20 1-1/2”x3/4” 19 13 63 26 21 16
50 40 x 15 1-1/2”x1/2” 14 11 62 26 20 16
62 50 2” 49 39 71 27 - 17
62 50 x 40 2”x1-1/2” 38 30 70 27 26 17
62 50 x 25 2”x1” 24 17 70 27 25 18
62 50 x 20 2”x3/4” 19 13 65 27 21 17
62 50 x 15 2”x1/2” 14 11 65 27 20 18
Fast Delivery and cost-effective rates for Carbon Steel BSP Pipe Fittings, Exporter and Distributor of CS Swage/ Pipe Nipple in ASME B16.11 Standard

CS Forged Fittings Weight Chart

Thread Fittings

Size Product 1/4” 1/2” 2” 3/4” 1/8” 4” 1” 1-1/2” 3/8” 1-1/4” 2-1/2” 3”

45 Elbow
2000 0.08 0.20 1.41 0.27 0.09 8.96 0.41 0.82 0.10 0.68 3.46 5.44
3000 0.12 0.34 2.23 0.56 0.09 8.96 0.94 2.05 0.24 1.03 3.71 5.97
6000 0.27 0.63 4.37 1.07 0.11 11.36 1.27 2.54 0.39 2.24 7.01 14.16

90 Elbow
2000 0.08 0.25 1.70 0.35 0.10 10.21 0.53 1.06 0.13 0.82 3.14 4.81
3000 0.14 0.43 2.92 0.69 0.10 14.85 1.14 2.63 0.29 1.42 5.99 8.88
6000 0.33 0.80 7.31 1.31 0.17 15.76 1.61 3.79 0.45 2.93 9.88 17.73

Tee
2000 0.12 0.31 2.16 0.43 0.13 14.74 0.69 1.39 0.17 1.07 4.11 6.12
3000 0.20 0.56 3.53 0.92 0.13 19.13 1.49 3.27 0.38 1.76 6.99 10.19
6000 0.45 0.98 7.88 1.65 0.20 18.53 2.17 4.71 0.63 3.74 13.11 21.70
Cross 2000 0.14 0.39 2.65 0.54 0.17 16.35 0.83 1.75 0.21 1.26 5.26 7.58
3000 0.26 0.72 4.27 1.06 0.17 21.93 1.79 3.93 0.44 2.13 8.51 12.45
Half Coupling 3000 0.02 0.06 0.70 0.10 0.02 3.11 0.23 0.54 0.03 0.34 1.13 1.68
6000 0.06 0.16 1.70 0.24 0.07 5.02 0.45 0.96 0.09 0.55 2.10 3.05
Round Head Plug 0.45 0.12 1.47 0.20 0.02 6.24 0.34 0.79 0.07 0.55 2.34 3.26
Red Coupling 3000 0.05 0.13 1.37 0.19 0.05 5.44 0.39 0.99 0.06 0.68 2.07 3.08
6000 0.06 0.31 3.40 0.41 0.08 10.04 0.85 1.81 0.18 1.05 4.20 6.10
Full Coupling 3000 0.04 0.13 1.40 0.19 0.05 6.28 0.45 1.07 0.06 0.81 2.29 3.38
6000 0.13 0.34 2.87 0.50 0.08 10.04 0.87 1.94 0.20 1.09 4.20 6.10
Cap 3000 0.04 0.11 1.09 0.18 0.02 4.84 0.37 0.72 0.05 0.62 2.22 3.50
6000 0.06 0.26 2.23 0.40 0.06 0.71 0.77 0.09 0.59
Street Elbow 3000 0.11 0.31 2.91 0.53 0.13 1.02 2.01 0.22 1.13
Union 3000 0.28 0.34 2.43 0.48 0.28 12.00 0.77 1.63 0.24 1.03 3.63 5.27
Square Head Plug 0.01 0.05 0.63 0.09 0.01 3.83 0.16 0.38 0.03 0.27 0.96 1.53
Hex. Nipple 3000 0.04 0.09 1.03 0.15 0.03 4.00 0.47 0.62 0.05 0.45 1.51 2.22
Hex. Head Plug 0.03 0.07 1.03 0.14 0.01 5.20 0.22 0.59 0.05 0.44 1.80 2.60
Hex. Head Bushing 0.01 0.03 0.45 0.05 3.20 0.09 0.34 0.01 0.25 0.60 1.16

Socket Weld Fittings

Size Product 2” 1/4” 3/8” 3/4” 1” 1/2” 1/8” 3” 1-1/4” 4” 1-1/2” 2-1/2”
Cap 3000 0.96 0.04 0.07 0.16 0.25 0.10 0.03 2.74 0.45 4.24 0.59 1.43
6000 1.41 0.08 0.10 0.23 0.36 0.16 0.05 0.64 0.94
90 Elbow 3000 1.68 0.08 0.12 0.33 0.53 0.22 0.09 5.38 0.84 10.95 1.08 3.20
6000 3.28 0.15 0.29 0.73 1.17 0.40 0.10 1.48 2.79
Tee 3000 2.04 0.09 0.15 0.42 0.65 0.29 0.13 5.90 1.04 13.92 1.35 3.98
6000 3.95 0.20 0.43 0.94 1.49 0.56 0.14 1.93 3.37
45 Elbow 3000 1.35 0.07 0.11 0.28 0.42 0.20 0.08 5.10 0.69 9.41 0.80 2.53
6000 2.09 0.14 0.26 0.57 0.92 0.36 0.09 1.11 2.01
Full Coupling 3000 0.86 0.05 0.07 0.17 0.29 0.13 0.04 1.78 0.45 2.85 0.59 1.40
6000 1.62 0.07 0.114 0.27 0.44 0.204 0.05 0.60 1.11
Cross 3000 2.25 0.13 0.20 0.47 0.73 0.35 0.16 6.69 1.12 14.58 1.58 4.37
6000 4.42 0.26 0.45 1.07 1.75 0.67 0.17 2.26 3.96
Half Coupling 3000 1.09 0.05 0.07 0.21 0.30 0.13 0.04 2.10 0.34 3.71 0.66 1.63
6000 1.92 0.09 0.12 0.31 0.51 0.21 0.06 0.75 1.25
Red Coupling 3000 0.97 0.05 0.07 0.19 0.27 0.13 0.04 1.88 0.49 3.31 0.59 1.42
6000 2.12 0.33 0.65 0.24 0.75 1.20
Union 3000 2.16 0.28 0.25 0.49 0.81 0.35 0.28 5.15 1.10 11.59 1.61 3.50

ANSI B16.11 Carbon Steel Threaded Fittings Dimensions

ANSI B16.11 Carbon Steel Threaded Fittings Dimensions
DN Center to End 45° Elbow C Nom. Pipe Size Center to End Elbow, Tee, Cross A Length of Thread Min. (1) Minimum Wall Thickness G Outside Diameter Of Band H
3000 2000 6000 3000 2000 6000 B L2 2000 6000 3000 2000 3000 6000
6 17 17 19 1/8” 21 21 25 6.4 6.7 3.18 6.35 3.18 22 22 25
8 19 17 22 1/4” 25 21 28 8.1 10.2 3.18 6.60 3.30 22 25 33
10 22 19 25 3/8” 28 25 33 9.1 10.4 3.18 6.98 3.51 25 33 38
15 25 22 28 1/2” 33 28 38 10.9 13.6 3.18 8.15 4.09 33 38 46
20 28 25 33 3/4” 38 33 44 12.7 13.9 3.18 8.53 4.32 38 46 56
25 33 28 35 1” 44 38 51 14.7 17.3 3.68 9.93 4.98 46 56 62
32 35 33 43 1-1/4” 51 44 60 17.0 18.0 3.89 10.59 5.28 56 62 75
40 43 35 44 1-1/2” 60 51 64 17.8 18.4 4.01 11.07 5.56 62 75 84
50 44 43 52 2” 64 60 83 19.0 19.2 4.27 12.09 7.14 75 84 102
65 52 52 64 2-1/2” 83 76 95 23.6 28.9 5.61 15.29 7.65 92 102 121
80 64 64 79 3” 95 86 106 25.9 30.5 5.99 16.64 8.84 109 121 146
100 79 79 79 4” 114 106 114 27.7 33.0 6.55 18.67 11.18 146 152 152

Check our material dispatch in the following countries

Block B Gas Project Vietnam

Block B Gas Project Vietnam

ADCO - Shah Field Compressor Unit-Dubai

ADCO - Shah Field Compressor Unit-Dubai

Gorgon LNG Train 4-Australia

Gorgon LNG Train 4-Australia

Bass Strait Additional Oil Drilling Facilities Bass Strait, Australia

Bass Strait Additional Oil Drilling Facilities Bass Strait, Australia

Binh Dai 1 - Phase 3-Vietnam

Binh Dai 1 - Phase 3-Vietnam

Petrovietnam Vietnam

Petrovietnam Vietnam
