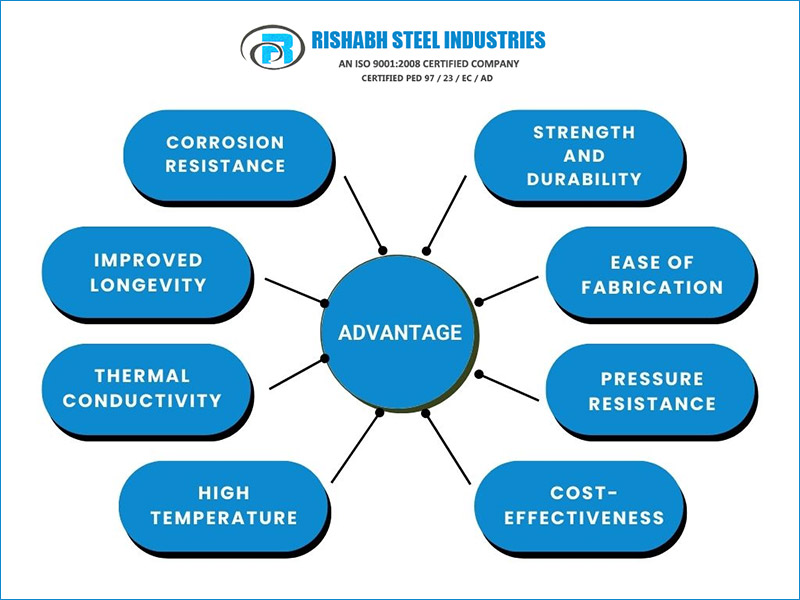

Copper nickel or cupronickel fittings are highly strengthened alloys. The 90/10 Copper Nickel Fittings are produced with 90% copper and 10% nickel content. These fittings also possess other strengthening alloys of iron and manganese. Copper Nickel Pipe Fittings are employed to connect piping equipment of different configuration. These fittings characterize the fluid and gaseous flow in the system. The versatile Cupro Nickel Pipe Fittings showcase good corrosion resistance properties. These fittings work well across elevated pressure and temperature setups. Cuni Fittings work well in marine setups. These fittings have enhanced resistance to stress-corrosion cracking and pitting by acids. The Cuni 90/10 Fittings possess enhanced toughness and have high ductility in the system. These fittings have good fabricability and are very reliable. Cunifer Pipe Fittings are highly electronegative and have good expansion characteristics. These fittings work well in cryogenic conditions. The robust Cuni Pipe Fittings possess a density of 8.9 g/cm3 and have good thermal and electrical conductivity in the system. These fittings have excellent mechanical properties. The versatile Cupro Nickel Fittings showcase superior tensile and yield strength while possessing superior elastic modulus. Our company is a Copper Nickel 90/10 Pipe Fittings/ Copper Nickel Pipe Fittings manufacturers in india who makes use of the latest technology and the best raw materials to produce the top-of-the-line components. We are the Copper Nickel Fittings Suppliers who supply products in different sizes and shapes to fulfill all customer requirements. Our institution is Copper Nickel Pipe Fittings Suppliers who can supply products at the most reasonable prices.
The DIN 86090 Copper Nickel Fittings have an accurate balance in their chemical content. These fittings can be designed in the form of elbows, tees, crosses, valves, pumps, etc. A Copper Nickel Elbow is utilized to change the direction of gaseous and fluid media. These elbows are produced in 45 and 90-degree specifications. The ASTM B466 UNS C70600 grade is manufactured in seamless and welding configurations. They possess good formability and have good strength. EEMUA 234 Fittings have excellent erosion resistance and can be availed in welded or threaded configuration to suit different conditions. We belong to the top echelons of Copper Nickel Fittings Manufacturers who can customize all our products in different sizes and shapes to suit different requirements. Our firm is Copper Nickel Pipe Fittings Manufacturers who comply with national and international standards to produce all our products.
Large diameter ASTM B171 Copper Nickel Buttweld Elbow manufacturer in India
Specification | ASTM B466, B171, B122, B467 |
---|---|
Type | Welded / Seamless / Fabricated |
Dimensions | ANSI/ASME B16.28, B16.9, MSS-SP-43. |
Grade | Cupro Nickel (Cu-Ni) 90/10 and Copper Nickel Alloy UNS C70600 |
Bending Radius | R= 8D, 1D, 3D, 5D, 2D, 10D, 6D |
Range | ½”NB upto 24”NB in Schedule 10s to XXS. |
10-12% price difference if you buy directly from Copper Nickel UNS C70600 Pipe Fittings manufacturers
Description | Price Per Kg In Singapore | Price Per Kg In UAE | Price Per Kg In USD | Price Per Kg In Malaysia |
---|---|---|---|---|
2 X 2 NB SCH 40 COPPER NICKEL PIPE FITTINGS EQUAL TEE ASME B16.9, UNS C70600 CU NI 90/10 | SGD 94.21 | UAE Dirham 246.00 | US $68.04 | MYR 298.34 |
2 NB SIZE, #300 COPPER NICKEL PIPE FITTINGS ANSI B16.5, UNS C70600 CU NI 90/10 | SGD 350.62 | UAE Dirham 915.51 | US $253.23 | MYR 1,110.30 |
2 X 2 NB SCH 40 COPPER NICKEL PIPE FITTINGS EQUAL TEE ASME B16.9, UNS C70600 CU NI 90/10 | SGD 94.55 | UAE Dirham 246.89 | US $68.29 | MYR 299.42 |
159 X 44.5MM X 3.0/2.0MM 90/10 COPPER NICKEL PIPE FITTINGS BW REDUCING TEE | SGD 39.22 | UAE Dirham 102.41 | US $28.33 | MYR 124.20 |
38/1.5 x 20/1.5 REDUCER CUNI 90/10 TUBE COPPER NICKEL PIPE FITTINGS | SGD 81.85 | UAE Dirham 213.71 | US $59.11 | MYR 259.18 |
DN100 X DN80 COPPER NICKEL PIPE FITTINGS CONCENTRIC REDUCER | SGD 318.04 | UAE Dirham 830.44 | US $229.70 | MYR 1,007.13 |
105MM X 2.5 MM COPPER NICKEL PIPE FITTINGS CU-NI SEMI FINISHED BEND | SGD 26.32 | UAE Dirham 68.71 | US $19.01 | MYR 83.33 |
Copper Nickel Lap Joint Stub Ends
ANSI B16.9 Cu-Ni 90/10 Reducing Tee
Cupro Nickel 90 / 10 Eccentric Reducer
90/10 Copper Nickel Return Bends
Cupro Nickel End Cap
Cu-Ni UNS C70600 Elbow
Copper Nickel Weld Elbows
Cu-Ni 90-10 Concentric Reducer
Copper Nickel 45 Degree Elbows
ANSI B16.9 Cu-Ni 90/10 Reducer
Copper Nickel 90/10 90 Degree Elbows
Cu Ni Cross Tee
Copper Nickel 90/10 Stub End
Copper Nickel Pipe Fittings
Cu-Ni 90-10 Equal Tee
ASTM B171 Copper Nickel 180 Degree Elbows
CU-NI 90/10 Laterals
Cupro Nickel 90/10 Cross Fitting
Copper Nickel Socket Weld Cross

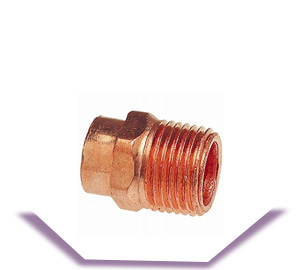

ANSI B16.9 Cu-Ni 90/10 Hexagon Plugs

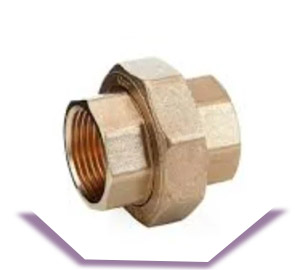

Cupro Nickel 90 / 10 Threaded Union
90/10 Copper Nickel Socket Weld Lateral Tee
Cupro Nickel Threaded Bends
Cu-Ni UNS C70600 Threaded Caps

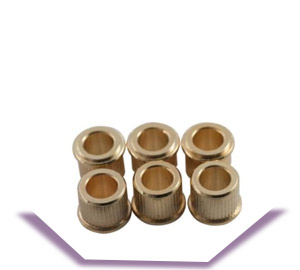

Copper Nickel Hexagon Bushing
Cu-Ni 90-10 Socket Weld Caps
Copper Nickel Socket Weld Elbow
ANSI B16.9 Cu-Ni 90/10 Square Plugs
Copper Nickel 90/10 Threaded Tee
Cu Ni Threaded Coupling
Copper Nickel 90/10 Socket Weld Tee
Cu-Ni 90-10 Socket Weld Union

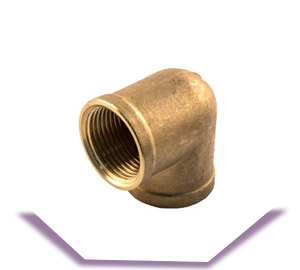

ASTM B171 Copper Nickel Threaded Elbow
CU-NI 90/10 Socket Weld Coupling
Cupro Nickel 90/10 Threaded Cross
Copper Nickel WERKSTOFF NR. 2.0872 Lateral Outlets
ASTM B122 Copper Nickel Socket Weld Outlets
Cupro Nickel Threaded Outlets
ANSI B16.9 Cu-Ni 90/10 Elbow Outlets
90/10 Copper Nickel Welding Outlets
Cu-Ni UNS C70600 Swept Outlets
Copper Nickel Nipple Outlets
MAXIMUM ALLOWABLE WORKING PRESSURE - bar | |||||||||
---|---|---|---|---|---|---|---|---|---|
Type of fitting | Size range | 16 bar rating | 20 bar rating | ||||||
38˚C | 50˚C | 75˚C | 100˚C | 50˚C | 38˚C | 100˚C | 75˚C | ||
Butt welding fittings | 1in/30mm to 4in/108mm | Use 20 bar | 19.7 | 20.0 | 17.3 | 18.6 | |||
6in/159mm to 36in/914mm | 16.0 | 16.0 | 16.0 | 15.7 | 19.7 | 20.0 | 17.3 | 18.6 | |
Capillary brazed fittings | ½in/16mm to 2in/57mm | Use 20 bar | 19.7 | 20.0 | 17.3 | 18.6 | |||
Socket weld fittings | ½in/16mm to 2in/57mm | 19.7 | 20.0 | 17.3 | 18.6 | ||||
Compression fittings | ½in/16mm to 2in/57mm | * | * | * | * |
We are a specialist supplier & distributor of Copper Nickel WERKSTOFF NR. 2.0872 Stubends and CU-NI 90/10 Elbow
Center to End Elbow, Tee, Cross A | DN | Band O.D. H | Center to End 45° Elbow C | Minimum W.T. G | Nom. Pipe Size | Thread Length Min. (1) | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | B | L2 | ||
21 | 21 | 25 | 6 | 22 | 22 | 25 | 17 | 17 | 19 | 3.18 | 3.18 | 6.35 | 1/8” | 6.4 | 6.7 |
21 | 25 | 28 | 8 | 22 | 25 | 33 | 17 | 19 | 22 | 3.18 | 3.30 | 6.60 | 1/4” | 8.1 | 10.2 |
25 | 28 | 33 | 10 | 25 | 33 | 38 | 19 | 22 | 25 | 3.18 | 3.51 | 6.98 | 3/8” | 9.1 | 10.4 |
28 | 33 | 38 | 15 | 33 | 38 | 46 | 22 | 25 | 28 | 3.18 | 4.09 | 8.15 | 1/2” | 10.9 | 13.6 |
33 | 38 | 44 | 20 | 38 | 46 | 56 | 25 | 28 | 33 | 3.18 | 4.32 | 8.53 | 3/4” | 12.7 | 13.9 |
38 | 44 | 51 | 25 | 46 | 56 | 62 | 28 | 33 | 35 | 3.68 | 4.98 | 9.93 | 1” | 14.7 | 17.3 |
44 | 51 | 60 | 32 | 56 | 62 | 75 | 33 | 35 | 43 | 3.89 | 5.28 | 10.59 | 1-1/4” | 17.0 | 18.0 |
51 | 60 | 64 | 40 | 62 | 75 | 84 | 35 | 43 | 44 | 4.01 | 5.56 | 11.07 | 1-1/2” | 17.8 | 18.4 |
60 | 64 | 83 | 50 | 75 | 84 | 102 | 43 | 44 | 52 | 4.27 | 7.14 | 12.09 | 2” | 19.0 | 19.2 |
76 | 83 | 95 | 65 | 92 | 102 | 121 | 52 | 52 | 64 | 5.61 | 7.65 | 15.29 | 2-1/2” | 23.6 | 28.9 |
86 | 95 | 106 | 80 | 109 | 121 | 146 | 64 | 64 | 79 | 5.99 | 8.84 | 16.64 | 3” | 25.9 | 30.5 |
106 | 114 | 114 | 100 | 146 | 152 | 152 | 79 | 79 | 79 | 6.55 | 11.18 | 18.67 | 4” | 27.7 | 33.0 |
Specified Wall Thickness t1 x t | Pipe Size | Approx Weight | Length H | ||||
---|---|---|---|---|---|---|---|
16 bar | 20 bar | 16 bar | 20 bar | nom | max | min | |
mm | mm | in | kg | kg | mm | mm | mm |
2.5 x 2.5 | 2.5 x 2.5 | 57 x 30 | 0.29 | 0.29 | 76 | 78 | 74 |
2.5 x 2.5 | 2.5 x 2.5 | 57 x 38 | 0.29 | 0.29 | 76 | 78 | 74 |
2.5 x 2.5 | 2.5 x 2.5 | 57 x 44.5 | 0.29 | 0.29 | 76 | 78 | 74 |
2.5 x 2.5 | 2.5 x 2.5 | 76.1 x 57 | 0.40 | 0.40 | 89 | 91 | 87 |
2.5 x 2.5 | 2.5 x 2.5 | 88.9 x 57 | 0.44 | 0.44 | 89 | 91 | 87 |
2.5 x 2.5 | 2.5 x 2.5 | 88.9 x 76.1 | 0.50 | 0.50 | 89 | 91 | 87 |
3.0 x 2.5 | 3.0 x 2.5 | 108 x 57 | 0.67 | 0.67 | 102 | 104 | 100 |
3.0 x 2.5 | 3.0 x 2.5 | 108 x 76.1 | 0.75 | 0.75 | 102 | 104 | 100 |
3.0 x 2.5 | 3.0 x 2.5 | 108 x 88.9 | 0.80 | 0.80 | 102 | 104 | 100 |
3.0 x 2.5 | 3.5 x 2.5 | 159 x 57 | 1.32 | 1.54 | 140 | 142 | 138 |
3.0 x 2.5 | 3.5 x 2.5 | 159 x 76.1 | 1.44 | 1.68 | 140 | 142 | 138 |
3.0 x 2.5 | 3.5 x 2.5 | 159 x 88.9 | 1.52 | 1.77 | 140 | 142 | 138 |
3.0 x 3.0 | 3.5 x 3.0 | 159 x 108 | 1.64 | 1.91 | 140 | 142 | 138 |
4.0 x 2.5 | 4.5 x 2.5 | 219.1 x 76.1 | 2.49 | 2.79 | 152 | 154 | 150 |
4.0 x 2.5 | 4.5 x 2.5 | 219.1 x 88.9 | 2.60 | 2.92 | 152 | 154 | 150 |
4.0 x 3.0 | 4.5 x 3.0 | 219.1 x 108 | 2.77 | 3.11 | 152 | 154 | 150 |
4.0 x 3.0 | 4.5 x 3.5 | 219.1 x 159 | 3.21 | 3.60 | 152 | 154 | 150 |
4.5 x 3.0 | 5.5 x 3.0 | 267 x 108 | 4.84 | 5.89 | 178 | 180 | 176 |
4.5 x 3.0 | 5.5 x 3.5 | 267 x 159 | 5.52 | 6.71 | 178 | 180 | 176 |
4.5 x 4.0 | 5.5 x 4.5 | 267 x 219.1 | 6.31 | 7.68 | 178 | 180 | 176 |
5.5 x 3.0 | 7.0 x 3.5 | 323.9 x 159 | 7.63 | 9.65 | 203 | 206 | 200 |
5.5 x 4.0 | 7.0 x 4.5 | 323.9 x 219.1 | 8.60 | 10.89 | 203 | 206 | 200 |
5.5 x 4.5 | 7.0 x 5.5 | 323.9 x 267 | 9.38 | 11.87 | 203 | 206 | 200 |
6.5 x 4.0 | 8.0 x 4.5 | 368 x 219.1 | 17.24 | 21.50 | 330 | 333 | 327 |
6.5 x 4.5 | 8.0 x 5.5 | 368 x 267 | 18.68 | 23.00 | 330 | 333 | 327 |
6.5 x 5.5 | 8.0 x 7.0 | 368 x 323.9 | 20.39 | 25.00 | 330 | 333 | 327 |
7.0 x 4.5 | 9.0 x 5.5 | 419 x 267 | 23.44 | 30.00 | 356 | 359 | 353 |
7.0 x 5.5 | 9.0 x 7.0 | 419 x 323.9 | 25.43 | 32.50 | 356 | 359 | 353 |
7.0 x 6.5 | 9.0 x 8.0 | 419 x 368 | 26.97 | 34.50 | 356 | 359 | 353 |
8.0 x 5.5 | 9.5 x 7.0 | 457.2 x 323.9 | 32.65 | 39.00 | 381 | 384 | 378 |
8.0 x 6.5 | 9.5 x 8.0 | 457.2 x 368 | 34.53 | 41.00 | 381 | 384 | 378 |
8.0 x 7.0 | 9.5 x 9.0 | 457.2 x 419 | 36.71 | 43.50 | 381 | 384 | 378 |
8.5 x 6.5 | 11.0 x 8.0 | 508 x 368 | 51.93 | 67.00 | 508 | 511 | 505 |
8.5 x 7.0 | 11.0 x 9.0 | 508 x 419 | 55.01 | 71.00 | 508 | 511 | 505 |
8.5 x 8.0 | 11.0 x 9.5 | 508 x 457.2 | 57.32 | 74.00 | 508 | 511 | 505 |
10.5 x 7.0 | 13.0 x 9.0 | 610 x 419 | 75.27 | 93.00 | 508 | 511 | 505 |
10.5 x 8.0 | 13.0 x 9.5 | 610 x 457.2 | 78.13 | 96.50 | 508 | 511 | 505 |
10.5 x 8.5 | 13.0 x 11.0 | 610 x 508 | 81.92 | 101.00 | 508 | 511 | 505 |
12.0 x 8.0 | - | 711 x 457.2 | 117.26 | - | 610 | 613 | 607 |
12.0 x 8.5 | - | 711 x 508 | 122.46 | - | 610 | 613 | 607 |
12.0 x 10.5 | - | 711 x 610 | 132.96 | - | 610 | 613 | 607 |
13.5 x 10.5 | - | 813 x 610 | 160.94 | - | 610 | 615 | 605 |
13.5 x 12.0 | - | 813 x 711 | 172.59 | - | 610 | 615 | 605 |
End W.T. G Min. | DN | Center to End Coupling W | Thread Length Min. (1) | Center to End Cap P | Nom. Pipe Size | O.D. D | ||||
---|---|---|---|---|---|---|---|---|---|---|
3000 | 6000 | 3000 & 6000 | B | L2 | 3000 | 6000 | 3000 | 6000 | ||
4.8 | 6 | 32 | 6.4 | 6.7 | 19 | 1/8” | 16 | |||
4.8 | 6.4 | 8 | 35 | 8.1 | 10.2 | 25 | 27 | 1/4” | 19 | 25 |
4.8 | 6.4 | 10 | 38 | 9.1 | 10.4 | 25 | 27 | 3/8” | 22 | 32 |
6.4 | 7.9 | 15 | 48 | 10.9 | 13.6 | 32 | 33 | 1/2” | 28 | 38 |
6.4 | 7.9 | 20 | 51 | 12.7 | 13.9 | 37 | 38 | 3/4” | 35 | 44 |
9.7 | 11.2 | 25 | 60 | 14.7 | 17.3 | 41 | 43 | 1” | 44 | 57 |
9.7 | 11.2 | 32 | 67 | 17.0 | 18.0 | 44 | 46 | 1-1/4” | 57 | 64 |
11.2 | 12.7 | 40 | 79 | 17.8 | 18.4 | 44 | 48 | 1-1/2” | 64 | 76 |
12.7 | 15.7 | 50 | 86 | 19.0 | 19.2 | 48 | 51 | 2” | 76 | 92 |
15.7 | 19.0 | 65 | 92 | 23.6 | 28.9 | 60 | 64 | 2-1/2” | 92 | 108 |
19.0 | 22.4 | 80 | 108 | 25.9 | 30.5 | 65 | 68 | 3” | 108 | 127 |
22.4 | 28.4 | 100 | 121 | 27.7 | 33.0 | 68 | 75 | 4” | 140 | 159 |
Why don't you directly contact a Copper Nickel Equal Cross manufacturer? We accept 1pc order to large quantity, a complete range of ASTM B122 Copper Nickel Pipes Fitting and Cupro Nickel 5d Pipe Bend supplier in India
Nominal size | OD | Elbows | Reducer | Caps | Returns | Stubs Ends | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Short | Long | Long | Short | Long | Short | Radius of fillet | Diam. of Lap | ||||||||
90 deg | 90 deg | 45 deg | |||||||||||||
DN | NPS | D | A | A | B | H | E | O | K | O | K | F | F | R | G |
20 | ¾ | 26.7 | 38 | 19 | 38 | 25 | 76 | 51 | 76 | 51 | 3 | 43 | |||
32 | 11/4 | 42.2 | 32 | 48 | 25 | 51 | 38 | 95 | 70 | 64 | 52 | 102 | 51 | 5 | 64 |
40 | 11/2 | 48.3 | 38 | 57 | 29 | 64 | 38 | 114 | 83 | 76 | 62 | 102 | 51 | 6 | 73 |
50 | 2 | 60.3 | 51 | 76 | 35 | 76 | 38 | 152 | 106 | 102 | 81 | 152 | 64 | 8 | 92 |
65 | 21/2 | 73.0 | 64 | 95 | 44 | 89 | 38 | 190 | 132 | 127 | 100 | 152 | 64 | 8 | 106 |
80 | 3 | 88.9 | 76 | 114 | 51 | 89 | 51 | 229 | 159 | 152 | 121 | 152 | 64 | 10 | 127 |
90 | 31/2 | 101.6 | 89 | 133 | 57 | 102 | 64 | 267 | 184 | 178 | 140 | 152 | 76 | 10 | 140 |
15 | ½ | 21.3 | 38 | 16 | 25 | 76 | 48 | 76 | 51 | 3 | 35 | ||||
100 | 4 | 114.3 | 102 | 152 | 64 | 102 | 64 | 305 | 210 | 203 | 159 | 152 | 76 | 11 | 157 |
200 | 8 | 219.1 | 203 | 305 | 127 | 152 | 102 | 610 | 414 | 406 | 313 | 203 | 102 | 13 | 270 |
250 | 10 | 273.0 | 254 | 381 | 159 | 178 | 127 | 762 | 518 | 508 | 391 | 254 | 127 | 13 | 324 |
300 | 12 | 323.8 | 305 | 457 | 190 | 203 | 152 | 914 | 619 | 610 | 467 | 254 | 152 | 13 | 381 |
350 | 14 | 355.6 | 356 | 533 | 222 | 330 | 165 | 1067 | 711 | 711 | 533 | 305 | 152 | 13 | 413 |
125 | 5 | 141.3 | 127 | 190 | 79 | 127 | 76 | 381 | 262 | 254 | 197 | 203 | 76 | 11 | 185 |
400 | 16 | 406.4 | 406 | 610 | 254 | 356 | 178 | 1219 | 813 | 813 | 610 | 305 | 152 | 13 | 470 |
25 | 1 | 33.4 | 25 | 38 | 22 | 51 | 38 | 76 | 56 | 51 | 41 | 102 | 51 | 3 | 51 |
450 | 18 | 457 | 457 | 686 | 286 | 381 | 203 | 1372 | 914 | 914 | 686 | 305 | 152 | 13 | 533 |
500 | 20 | 508 | 508 | 762 | 318 | 508 | 229 | 1524 | 1016 | 1016 | 762 | 305 | 152 | 13 | 584 |
1050 | 42 | 1067 | 1600 | 660 | 610 | 305 | |||||||||
550 | 22 | 559 | 559 | 838 | 343 | 508 | 254 | 1676 | 1118 | 1118 | 838 | 305 | 152 | 13 | 641 |
150 | 6 | 168.3 | 152 | 229 | 95 | 140 | 89 | 457 | 313 | 305 | 237 | 203 | 89 | 13 | 218 |
600 | 24 | 610 | 610 | 914 | 381 | 508 | 267 | 1829 | 1219 | 1219 | 914 | 305 | 152 | 13 | 692 |
650 | 26 | 660 | 991 | 405 | 610 | 267 | |||||||||
700 | 28 | 711 | 1067 | 438 | 610 | 267 | |||||||||
750 | 30 | 762 | 1143 | 470 | 610 | 267 | |||||||||
1100 | 44 | 1118 | 1676 | 695 | 610 | 343 | |||||||||
800 | 32 | 813 | 1219 | 502 | 610 | 267 | |||||||||
850 | 34 | 864 | 1295 | 533 | 610 | 267 | |||||||||
900 | 36 | 914 | 1372 | 565 | 610 | 267 | |||||||||
950 | 38 | 965 | 1448 | 600 | 610 | 305 | |||||||||
1200 | 48 | 1219 | 1829 | 759 | 711 | 343 | |||||||||
1000 | 40 | 1016 | 1524 | 632 | 610 | 305 | |||||||||
1150 | 46 | 1168 | 1753 | 727 | 711 | 343 |
Ni | Mn | Fe | Pb | Zn | Cu |
---|---|---|---|---|---|
9-11 max | 1.0 max | 1.8 max | .05 max | 1 max | 88.6 min |
(0.2%Offset) Yield Properties | Density | Elongation % | Melting Point | Tensile Properties |
---|---|---|---|---|
MPa - 241, Psi - 35,000 | 8.1 g/cm3 | 30 | (2430 °F)1443 °C | MPa -551, Psi -80,000 |
UNS | WERKSTOFF NR. |
---|---|
C70600 | 2.0872 |
W (Min) | F (Min) | E (Min) | Nominal Pipe Size | b | A (Min) | C (Min) | ||
---|---|---|---|---|---|---|---|---|
Inch | DN | 3000 | 6000 | |||||
26 | - | 10 | 1/8” | 6 | 5 | 2 | 11 | 6 |
36 | - | 15 | 1/4” | 8 | 8 | 6 | 15 | 6 |
31 | 10 | 15 | 1/4”x1/8” | 8 x 6 | 5 | 2 | 15 | 6 |
40 | - | 16 | 3/8” | 10 | 11 | 8 | 18 | 8 |
39 | 15 | 16 | 3/8”x1/4” | 10 x 8 | 8 | 6 | 18 | 8 |
48 | - | 20 | 1/2” | 15 | 14 | 11 | 22 | 8 |
44 | 16 | 20 | 1/2”x3/8” | 15 x 10 | 11 | 8 | 22 | 8 |
43 | 15 | 20 | 1/2”x1/4” | 15 x 8 | 8 | 6 | 22 | 8 |
52 | - | 21 | 3/4” | 20 | 19 | 13 | 27 | 10 |
50 | 20 | 21 | 3/4”x1/2” | 20 x 15 | 14 | 11 | 27 | 9 |
46 | 16 | 21 | 3/4”x3/8” | 20 x 10 | 11 | 8 | 27 | 9 |
60 | - | 25 | 1” | 25 | 24 | 17 | 35 | 10 |
56 | 21 | 25 | 1”x3/4” | 25 x 20 | 19 | 13 | 35 | 10 |
55 | 20 | 25 | 1”x1/2” | 25 x 15 | 14 | 11 | 35 | 10 |
68 | - | 26 | 1-1/2” | 40 | 38 | 30 | 50 | 16 |
67 | 25 | 26 | 1-1/2”x1” | 40 x 25 | 24 | 17 | 50 | 16 |
63 | 21 | 26 | 1-1/2”x3/4” | 40 x 20 | 19 | 13 | 50 | 16 |
62 | 20 | 26 | 1-1/2”x1/2” | 40 x 15 | 14 | 11 | 50 | 16 |
71 | - | 27 | 2” | 50 | 49 | 39 | 62 | 17 |
70 | 26 | 27 | 2”x1-1/2” | 50 x 40 | 38 | 30 | 62 | 17 |
70 | 25 | 27 | 2”x1” | 50 x 25 | 24 | 17 | 62 | 18 |
65 | 21 | 27 | 2”x3/4” | 50 x 20 | 19 | 13 | 62 | 17 |
65 | 20 | 27 | 2”x1/2” | 50 x 15 | 14 | 11 | 62 | 18 |
Body Wall Thickness G | DN | Depth of Socket Min. J | Center to Bottom of Socket-A | Socket Bore Dia. B | Bore Dia. Of Fitting D | Nom. Pipe Size | Socket Wall Thickness (2) C | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Class Designation | 90° Elbows Tees, Crosses | 45° Elbows | Class Designation | ||||||||||||||||||
6000 | 3000 | 9000 | Class Designation | Class Designation | Class Designation | 3000 | 6000 | 9000 | |||||||||||||
Min. | Min. | Min. | 6000 | 3000 | 9000 | 9000 | 3000 | 6000 | 3000 | 9000 | 6000 | Min | Ave. | Min | Ave. | Ave. | Min | ||||
3.15 | 2.41 | 6 | 9.5 | 11.0 | 11.0 | 8.0 | 8.0 | 10.8 | 6.9 | 4.0 | 1/8” | 3.18 | 3.18 | 3.43 | 3.96 | ||||||
3.68 | 3.02 | 8 | 9.5 | 13.5 | 11.0 | 8.0 | 8.0 | 14.2 | 9.3 | 6.4 | 1/4” | 3.30 | 3.78 | 4.01 | 4.60 | ||||||
4.01 | 3.20 | 10 | 9.5 | 15.5 | 13.5 | 8.0 | 11.0 | 17.6 | 12.6 | 9.2 | 3/8” | 3.50 | 4.01 | 4.37 | 5.03 | ||||||
4.78 | 3.73 | 7.47 | 15 | 9.5 | 19.0 | 15.5 | 25.5 | 15.5 | 11.0 | 12.5 | 21.8 | 15.8 | 6.4 | 11.8 | 1/2” | 4.09 | 4.67 | 5.18 | 5.97 | 9.35 | 8.18 |
5.56 | 3.91 | 7.82 | 20 | 12.5 | 22.5 | 19.0 | 28.5 | 19.0 | 13.0 | 14.0 | 27.2 | 21.0 | 11.1 | 15.6 | 3/4” | 4.27 | 4.90 | 6.04 | 6.96 | 9.78 | 8.56 |
6.35 | 4.55 | 9.09 | 25 | 12.5 | 27.0 | 22.5 | 32.0 | 20.5 | 14.0 | 17.5 | 33.9 | 26.7 | 15.2 | 20.7 | 1” | 4.98 | 5.69 | 6.93 | 7.92 | 11.38 | 9.96 |
6.35 | 4.85 | 9.70 | 32 | 12.5 | 32.0 | 27.0 | 35.0 | 22.5 | 17.5 | 20.5 | 42.7 | 35.1 | 22.8 | 29.5 | 1-1/4” | 5.28 | 6.07 | 6.93 | 7.92 | 12.14 | 10.62 |
7.14 | 5.08 | 10.15 | 40 | 12.5 | 38.0 | 32.0 | 38.0 | 25.5 | 20.5 | 25.5 | 48.8 | 40.9 | 28.0 | 34.0 | 1-1/2” | 5.54 | 6.35 | 7.80 | 8.92 | 12.70 | 11.12 |
8.74 | 5.54 | 11.07 | 50 | 16.0 | 41.0 | 38.0 | 54.0 | 28.5 | 25.5 | 28.5 | 61.2 | 52.5 | 38.2 | 42.9 | 2” | 6.04 | 6.93 | 9.50 | 10.92 | 13.84 | 12.12 |
7.01 | 65 | 16.0 | 41.0 | 28.5 | 73.9 | 62.7 | 2-1/2” | 7.67 | 8.76 | ||||||||||||
7.62 | 80 | 16.0 | 57.0 | 32.0 | 89.8 | 78.0 | 3” | 8.30 | 9.52 | ||||||||||||
8.56 | 100 | 19.0 | 66.5 | 41.0 | 115.2 | 102.3 | 4” | 9.35 | 10.69 |
PIPE NOMINAL SIZE | OUTSIDE DIAM. | 90° ELBOW | 45° ELBOW | 180° RETURNS | ||||
---|---|---|---|---|---|---|---|---|
(inches) | Short Radius | Long Radius | Long Radius | Long Radius | ||||
(mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Face (inches) | Back to face (inches) | Center to Center (inches) | |
3/4 | 26.7 | 1.050 | – | 1 1/8 | 7/16 | 1 11/16 | 2 1/4 | |
1/2 | 21.3 | 0.840 | – | 1 1/2 | 5/8 | 1 7/8 | 2 | |
1 | 33.4 | 1.315 | 1 | 1 1/2 | 7/8 | 2 3/16 | 3 | |
1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 3 | 1 1/8 | 3 1/4 | 4 1/2 |
1 1/4 | 42.2 | 1.660 | 1 1/4 | 1 7/8 | 1 | 2 3/4 | 3 3/4 | |
2 | 60.3 | 2.375 | 2 | 3 | 4 | 1 3/8 | 4 3/16 | 6 |
3 | 88.9 | 3.500 | 3 | 4 1/2 | 6 | 2 | 6 1/4 | 9 |
2 1/2 | 73.0 | 2.875 | 2 1/2 | 3 3/4 | 5 | 1 3/4 | 5 3/16 | 7 1/2 |
3 1/2 | 101.6 | 4.000 | 3 1/2 | 5 1/4 | 7 | 2 1/4 | 7 1/4 | 10 1/2 |
5 | 141.3 | 5.563 | 5 | 7 1/2 | 10 | 3 1/8 | 10 5/16 | 15 |
4 | 114.3 | 4.500 | 4 | 6 | 8 | 2 1/2 | 8 1/4 | 12 |
6 | 168.3 | 6.625 | 6 | 9 | 12 | 3 3/4 | 12 5/16 | 18 |
10 | 273.1 | 10.750 | 10 | 15 | 15 | 6 1/4 | 20 3/8 | 30 |
8 | 219.1 | 8.625 | 8 | 12 | 12 | 5 | 16 5/16 | 24 |
12 | 323.9 | 12.750 | 12 | 18 | 18 | 7 1/2 | 24 3/8 | 36 |
Buy Copper Nickel Forged Elbow and ANSI B16.11 Copper Nickel Threaded Union at wholesale rate directly from manufacturers in India
Threaded Fittings
Size Product | 3/4” | 1/4” | 1/8” | 3/8” | 1/2” | 1” | 2-1/2” | 1-1/2” | 3” | 1-1/4” | 2” | 4” | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
90 Elbow | 2000 | 0.35 | 0.08 | 0.10 | 0.13 | 0.25 | 0.53 | 3.14 | 1.06 | 4.81 | 0.82 | 1.70 | 10.21 |
3000 | 0.69 | 0.14 | 0.10 | 0.29 | 0.43 | 1.14 | 5.99 | 2.63 | 8.88 | 1.42 | 2.92 | 14.85 | |
6000 | 1.31 | 0.33 | 0.17 | 0.45 | 0.80 | 1.61 | 9.88 | 3.79 | 17.73 | 2.93 | 7.31 | 15.76 | |
45 Elbow | 2000 | 0.27 | 0.08 | 0.09 | 0.10 | 0.20 | 0.41 | 3.46 | 0.82 | 5.44 | 0.68 | 1.41 | 8.96 |
3000 | 0.56 | 0.12 | 0.09 | 0.24 | 0.34 | 0.94 | 3.71 | 2.05 | 5.97 | 1.03 | 2.23 | 8.96 | |
6000 | 1.07 | 0.27 | 0.11 | 0.39 | 0.63 | 1.27 | 7.01 | 2.54 | 14.16 | 2.24 | 4.37 | 11.36 | |
Tee | 2000 | 0.43 | 0.12 | 0.13 | 0.17 | 0.31 | 0.69 | 4.11 | 1.39 | 6.12 | 1.07 | 2.16 | 14.74 |
3000 | 0.92 | 0.20 | 0.13 | 0.38 | 0.56 | 1.49 | 6.99 | 3.27 | 10.19 | 1.76 | 3.53 | 19.13 | |
6000 | 1.65 | 0.45 | 0.20 | 0.63 | 0.98 | 2.17 | 13.11 | 4.71 | 21.70 | 3.74 | 7.88 | 18.53 | |
Cross | 2000 | 0.54 | 0.14 | 0.17 | 0.21 | 0.39 | 0.83 | 5.26 | 1.75 | 7.58 | 1.26 | 2.65 | 16.35 |
3000 | 1.06 | 0.26 | 0.17 | 0.44 | 0.72 | 1.79 | 8.51 | 3.93 | 12.45 | 2.13 | 4.27 | 21.93 | |
Full Coupling | 3000 | 0.19 | 0.04 | 0.05 | 0.06 | 0.13 | 0.45 | 2.29 | 1.07 | 3.38 | 0.81 | 1.40 | 6.28 |
6000 | 0.50 | 0.13 | 0.08 | 0.20 | 0.34 | 0.87 | 4.20 | 1.94 | 6.10 | 1.09 | 2.87 | 10.04 | |
Half Coupling | 3000 | 0.10 | 0.02 | 0.02 | 0.03 | 0.06 | 0.23 | 1.13 | 0.54 | 1.68 | 0.34 | 0.70 | 3.11 |
Socket Weld Fittings
Size Product | 1-1/2” | 3/8” | 1/4” | 1/2” | 3” | 1” | 2-1/2” | 1/8” | 1-1/4” | 2” | 3/4” | 4” | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
90 Elbow | 3000 | 1.08 | 0.12 | 0.08 | 0.22 | 5.38 | 0.53 | 3.20 | 0.09 | 0.84 | 1.68 | 0.33 | 10.95 |
6000 | 2.79 | 0.29 | 0.15 | 0.40 | 1.17 | 0.10 | 1.48 | 3.28 | 0.73 | ||||
45 Elbow | 3000 | 0.80 | 0.11 | 0.07 | 0.20 | 5.10 | 0.42 | 2.53 | 0.08 | 0.69 | 1.35 | 0.28 | 9.41 |
6000 | 2.01 | 0.26 | 0.14 | 0.36 | 0.92 | 0.09 | 1.11 | 2.09 | 0.57 | ||||
Tee | 3000 | 1.35 | 0.15 | 0.09 | 0.29 | 5.90 | 0.65 | 3.98 | 0.13 | 1.04 | 2.04 | 0.42 | 13.92 |
6000 | 3.37 | 0.43 | 0.20 | 0.56 | 1.49 | 0.14 | 1.93 | 3.95 | 0.94 | ||||
Cross | 3000 | 1.58 | 0.20 | 0.13 | 0.35 | 6.69 | 0.73 | 4.37 | 0.16 | 1.12 | 2.25 | 0.47 | 14.58 |
6000 | 3.96 | 0.45 | 0.26 | 0.67 | 1.75 | 0.17 | 2.26 | 4.42 | 1.07 | ||||
Full Coupling | 3000 | 0.59 | 0.07 | 0.05 | 0.13 | 1.78 | 0.29 | 1.40 | 0.04 | 0.45 | 0.86 | 0.17 | 2.85 |
6000 | 1.11 | 0.114 | 0.07 | 0.204 | 0.44 | 0.05 | 0.60 | 1.62 | 0.27 | ||||
Half Coupling | 3000 | 0.66 | 0.07 | 0.05 | 0.13 | 2.10 | 0.30 | 1.63 | 0.04 | 0.34 | 1.09 | 0.21 | 3.71 |
6000 | 1.25 | 0.12 | 0.09 | 0.21 | 0.51 | 0.06 | 0.75 | 1.92 | 0.31 | ||||
Red Coupling | 3000 | 0.59 | 0.07 | 0.05 | 0.13 | 1.88 | 0.27 | 1.42 | 0.04 | 0.49 | 0.97 | 0.19 | 3.31 |
6000 | 1.20 | 0.24 | 0.65 | 0.75 | 2.12 | 0.33 | |||||||
Cap | 3000 | 0.59 | 0.07 | 0.04 | 0.10 | 2.74 | 0.25 | 1.43 | 0.03 | 0.45 | 0.96 | 0.16 | 4.24 |
6000 | 0.94 | 0.10 | 0.08 | 0.16 | 0.36 | 0.05 | 0.64 | 1.41 | 0.23 | ||||
Union | 3000 | 1.61 | 0.25 | 0.28 | 0.35 | 5.15 | 0.81 | 3.50 | 0.28 | 1.10 | 2.16 | 0.49 | 11.59 |
Socket Wall (Min.) C | Pipe End (Min.) A | Water Way Bore D | Bearing (Min.) J | Male Flange (Min.) F | Nut (Min.) G | Thread s Per 25.4mm H | Laying Length E | Depth of Socket (Min.) K | Length Assem . Nom. L | Nom. Pipe Size | Socket Bore Dia. B | Clear Assem. Nut N |
---|---|---|---|---|---|---|---|---|---|---|---|---|
3.18 | 21.8 | 7.59 6.07 | 1.24 | 3.18 | 3.18 | 16 | 22.4 19.1 | 9.7 | 41.4 | 1/8” | 11.18 10.67 | 50.8 |
3.30 | 21.8 | 10.01 8.48 | 1.24 | 3.18 | 3.18 | 16 | 22.4 19.1 | 9.7 | 41.4 | 1/4” | 14.61 14.10 | 50.8 |
3.51 | 25.9 | 13.28 11.76 | 1.37 | 3.43 | 3.43 | 14 | 26.9 20.6 | 9.7 | 46.0 | 3/8” | 18.03 17.53 | 55.9 |
4.09 | 31.2 | 16.56 15.04 | 1.50 | 3.68 | 3.68 | 14 | 26.9 20.6 | 9.7 | 49.0 | 1/2” | 22.23 21.73 | 58.4 |
4.27 | 37.1 | 21.69 20.17 | 1.68 | 4.06 | 4.06 | 11 | 31.8 25.4 | 12.7 | 56.9 | 3/4” | 27.56 27.05 | 66.0 |
4.98 | 45.5 | 27.41 25.88 | 1.85 | 4.57 | 4.45 | 11 | 34.3 26.2 | 12.7 | 62.0 | 1” | 34.29 33.78 | 78.7 |
5.28 | 54.9 | 35.81 34.29 | 2.13 | 5.33 | 5.21 | 11 | 40.6 32.5 | 12.7 | 71.1 | 1-1/4” | 43.05 42.55 | 94.0 |
5.54 | 61.5 | 41.66 40.13 | 2.31 | 5.84 | 5.59 | 10 | 42.2 34.0 | 12.7 | 76.5 | 1-1/2” | 49.15 48.64 | 111.8 |
6.05 | 75.2 | 53.26 51.74 | 2.69 | 6.60 | 6.35 | 10 | 45.5 37.3 | 15.7 | 86.1 | 2” | 61.62 61.11 | 132.1 |
7.67 | 91.7 | 64.24 61.19 | 3.07 | 7.49 | 7.11 | 8 | 61.7 52.1 | 15.7 | 102.4 | 2-1/2” | 74.45 73.81 | 149.9 |
8.31 | 109.2 | 79.45 76.40 | 3.53 | 8.26 | 8.00 | 8 | 63.8 53.6 | 15.7 | 109.0 | 3” | 90.42 89.79 | 175.3 |
O.D. (mm) | Nominal Pipe Size | W.T. (mm) | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
Sch 5S | Sch 10S | Sch 40S | Sch 80S | |||||||
NPS | DN | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | |
10.3 | ⅛ | 6 | 0.28 | 1.24 | 0.37 | 1.73 | 0.47 | 2.41 | ||
13.7 | ¼ | 8 | 0.49 | 1.65 | 0.63 | 2.24 | 0.80 | 3.02 | ||
17.1 | ⅜ | 10 | 0.63 | 1.65 | 0.84 | 2.31 | 1.10 | 3.20 | ||
21.3 | ½ | 15 | 0.80 | 1.65 | 1.00 | 2.11 | 1.27 | 2.77 | 1.62 | 3.73 |
26.7 | ¾ | 20 | 1.02 | 1.65 | 1.28 | 2.11 | 1.69 | 2.87 | 2.20 | 3.91 |
33.4 | 1 | 25 | 1.29 | 1.65 | 2.09 | 2.77 | 2.50 | 3.38 | 3.24 | 4.55 |
42.2 | 1¼ | 32 | 1.65 | 1.65 | 2.69 | 2.77 | 3.39 | 3.56 | 4.47 | 4.85 |
48.3 | 1½ | 40 | 1.90 | 1.65 | 3.11 | 2.77 | 4.05 | 3.68 | 5.41 | 5.08 |
60.3 | 2 | 50 | 2.39 | 1.65 | 3.93 | 2.77 | 5.44 | 3.91 | 7.48 | 5.54 |
73.0 | 2½ | 65 | 3.69 | 2.11 | 5.26 | 3.05 | 8.63 | 5.16 | 11.41 | 7.01 |
88.9 | 3 | 80 | 4.52 | 2.11 | 6.46 | 3.05 | 11.29 | 5.49 | 15.27 | 7.62 |
101.6 | 3½ | 90 | 5.18 | 2.11 | 7.41 | 3.05 | 13.57 | 5.74 | 18.64 | 8.08 |
114.3 | 4 | 100 | 5.84 | 2.11 | 8.37 | 3.05 | 16.08 | 6.02 | 22.32 | 8.56 |
141.3 | 5 | 125 | 9.46 | 2.77 | 11.56 | 3.40 | 21.77 | 6.55 | 30.97 | 9.53 |
168.3 | 6 | 150 | 11.31 | 2.77 | 13.83 | 3.40 | 28.26 | 7.11 | 42.56 | 10.97 |
219.1 | 8 | 200 | 14.78 | 2.77 | 19.97 | 3.76 | 42.55 | 8.18 | 64.64 | 12.70 |
273.1 | 10 | 250 | 22.61 | 3.40 | 27.79 | 4.19 | 60.31 | 9.27 | 81.56 | 12.70 |
323.9 | 12 | 300 | 31.25 | 3.96 | 35.99 | 4.57 | 73.88 | 9.53 | 97.47 | 12.70 |
355.6 | 14 | 350 | 34.34 | 3.96 | 41.36 | 4.78 | 81.33 | 9.53 | 107.40 | 12.70 |
406.4 | 16 | 400 | 41.56 | 4.19 | 47.34 | 4.78 | 93.27 | 9.53 | 123.31 | 12.70 |
457 | 18 | 450 | 46.79 | 4.19 | 53.31 | 4.78 | 105.17 | 9.53 | 139.16 | 12.70 |
508 | 20 | 500 | 59.32 | 4.78 | 68.65 | 5.54 | 117.15 | 9.53 | 155.13 | 12.70 |
559 | 22 | 550 | 65.33 | 4.78 | 75.62 | 5.54 | ||||
610 | 24 | 600 | 82.58 | 5.54 | 94.53 | 6.35 | 141.12 | 9.53 | 187.07 | 12.70 |
660 | 26 | 650 | ||||||||
711 | 28 | 700 | ||||||||
762 | 30 | 750 | 118.34 | 6.35 | 147.29 | 7.92 |
Out-Let Pipe NPS | Reducing Way | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
C | D | F | J (Min) | E (Min) | ||||||
6000 | 3000 | 3000 | 6000 | 6000 | 3000 | 3000 | 6000 | 6000 | 3000 | |
1/8” | 13.7 | 10.8 | 22.0 | 9.7 | 10.4 | |||||
1/4” | 13.7 | 14.2 | 22.0 | 9.7 | 10.4 | |||||
3/8” | 19.1 | 17.6 | 25.9 | 9.7 | 12.7 | |||||
1/2” | 16.6 | 21.3 | 21.8 | 21.8 | 38.0 | 31.4 | 9.7 | 9.7 | 23.9 | 16.0 |
3/4” | 21.2 | 26.7 | 27.2 | 27.2 | 44.0 | 37.1 | 12.7 | 12.7 | 25.4 | 16.0 |
1” | 27.0 | 33.4 | 33.9 | 33.9 | 57.0 | 45.5 | 12.7 | 12.7 | 28.7 | 22.4 |
1-1/4” | 35.8 | 42.2 | 42.7 | 42.7 | 64.0 | 57.0 | 12.7 | 12.7 | 30.2 | 22.4 |
1-1/2” | 41.2 | 48.3 | 48.8 | 48.8 | 76.0 | 64.0 | 12.7 | 12.7 | 31.8 | 23.9 |
2” | 51.6 | 60.3 | 61.2 | 61.2 | 92.0 | 76.0 | 15.8 | 15.8 | 36.6 | 23.9 |
2-1/2” | 73.2 | 73.9 | 92.0 | 15.8 | 25.4 | |||||
3” | 88.9 | 89.8 | 109.2 | 15.8 | 30.2 | |||||
4” | 114.3 | 115.2 | 140.0 | 19.1 | 30.2 |
Out-Let Pipe NPS | Straight Way | ||||
---|---|---|---|---|---|
C | D | F | J (Min) | E (Min) | |
3000 | |||||
1/4” | 11.5 | 14.2 | 22.0 | 9.7 | 10.4 |
1/8” | |||||
3/8” | 14.5 | 17.6 | 25.9 | 9.7 | 12.7 |
3/4” | 21.5 | 27.2 | 37.1 | 12.7 | 16.0 |
1/2” | 16.5 | 21.8 | 31.4 | 9.7 | 16.0 |
1” | 27.2 | 33.9 | 45.5 | 12.7 | 22.4 |
1-1/2” | 42.0 | 48.8 | 64.0 | 12.7 | 23.9 |
1-1/4” | 36.0 | 42.7 | 57.0 | 12.7 | 22.4 |
2” | 53.0 | 61.2 | 76.0 | 15.8 | 23.9 |
3” | 80.0 | 89.8 | 109.2 | 15.8 | 30.2 |
2-1/2” | 65.0 | 73.9 | 92.0 | 15.8 | 25.4 |
4” | 104.0 | 115.2 | 140.0 | 19.1 | 30.2 |
We stock in India and supply in below countries
HABSHAN 5 IGD (GAS PROCESSING PLANT)-United Arab Emirates
Bass Strait Additional Oil Drilling Facilities Bass Strait, Australia
Driftwood Lng (Calcasieu Parish Lng Liquefaction Plant)-USA
Kuwait National Petroleum Company (KNPC)-Kuwait
ADMA-OPCO - Umm Shaif Gas Injection Facilities (USGIF) Abu Dhabi
Hormoz New Oil Refinery- Iran
