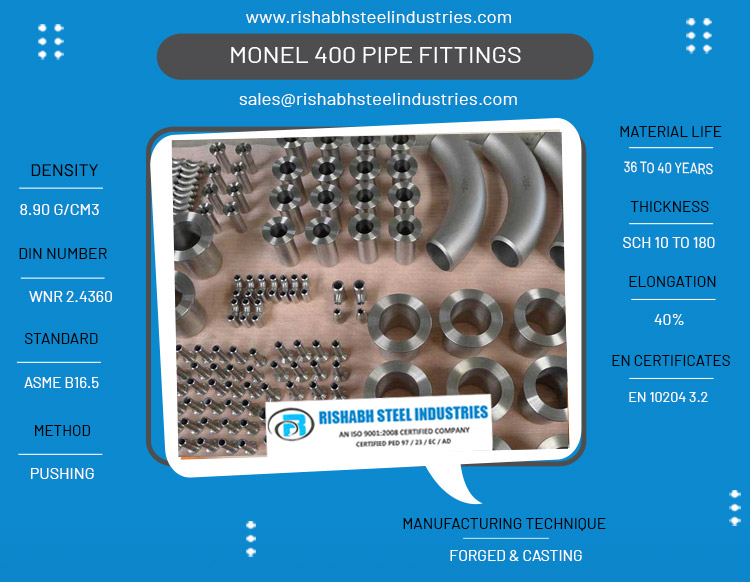

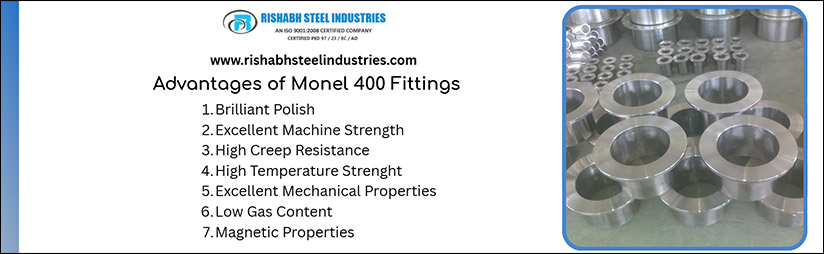

Pipe fittings are components that help in routing and directional changes to connect different branch connections effectively. The Monel 400 Pipe Fittings aresolution-strengthened superalloy grade that is designed with a chemical content of nickel, copper, iron manganese, silicon, carbon, and sulfur. Monel Pipe Fittings connect piping grades of different specifications and protect them against corrosive and toxic effluents across treacherous conditions. The versatile Monel Fittings have good resistance to stress-corrosion cracking and possess superior strength. These fittings are seen in several marine environments. The Monel 400 Fittings have enhanced performance in non-oxidizing solutions and can be readily welded following standard shop welding processes. Alloy 400 Fittings have a tensile strength between 517 to 620mpa and possess a yield strength between 172 to 345mpa. These fittings have a modulus of elasticity of 179GPA. The ASTM B366 UNS N04400 grade can be shaped in different sizes and shapes as per customer needs.
The UNS N04400 Elbow is a device that is a pressure piping system that is used to change the direction of the flow in the system. The elbows are available in different turns and are produced in long or short radius configurations. Monel Alloy 400 Long Radius Elbow has a radius of curvature that is 1.5 times its outer diameter. These elbows ensure that there is a lower pressure drop as media is transmitted from one grade to the other. The Monel K500 3D Bend has a radius of curvature that is 3 times the diameter of the pipe. The content of the K500 grade gives it better performance than the alloy 400 bends. The Nickel Alloy 400 Buttweld Cap is used to close the end of the pipeline. These caps allow the piping equipment to be moved or stored without worrying about damage incurred due to different affluents. A Nickel 400 Tee has 2 outlets at 90 degrees with one main line. These tees can be produced in different configurations. The DIN 2.4360 Concentric Reducer is a cone-shaped grade that is utilized to connect piping grades of dissimilar sizes.
Specification | ASTM B 366 / ASME SB 366 |
---|---|
Standard | JIS, DIN, NPT, EN, ISO |
Thickness Tolerance | Schedule 10S to XXS |
Manufacturer Of Fittings Dimension Type | MSS-SP-43 Type A, JIS B2313, ANSI B16.28, ANSI B16.9, JIS B2312, MSS-SP-43 Type B |
Types | End Cap, Stub End, Bend, Tee, Reducer, Cross, Adapter, 4 Wye, Elbow |
Length | Welded Butt Weld Fittings: 1/2" - 48" and Seamless Butt Weld Fittings: 1/2" - 10" |
Pressure Rating | 150# upto 2500#. |
If you purchase directly from Alloy 400 Fittings manufacturers you can save 10-12% cost
Description | Price Per Kg In Singapore | Price Per Kg In UAE | Price Per Kg In USD | Price Per Kg In Malaysia |
---|---|---|---|---|
DIA 4X LG 3 X THK 0.237 IN MONEL ALLOY FITTING FITTING TYPE LAPJOINT STUB END SIZE MATERIAL MONEL 400 ASTM B 366 | SGD 433.60 | UAE Dirham 1,132.18 | US $313.16 | MYR 1,373.07 |
3/4X75MM NIPOLET SCH XXS IN ASTM MONEL B165 UN4400 FITTINGS 400 | SGD 66.10 | UAE Dirham 172.58 | US $47.74 | MYR 209.30 |
1/2 NPT(F) X (F) 3000# -8NTTT FITTINGS MONEL 400 EQUAL TEE | SGD 36.81 | UAE Dirham 96.12 | US $26.59 | MYR 116.57 |
16STTB8S X 1/2 NBSW-3000# FITTINGS MONEL-400 REDUCING BRANCH TEE1 NB SW | SGD 77.81 | UAE Dirham 203.18 | US $56.20 | MYR 246.41 |
DN 50 X DN 25 X SCH 80S MONEL 400 SMLS REDUCING TEE TO ASTM B 366 GR. UNS NO. 4400 DIMN B 16.9 BW | SGD 556.88 | UAE Dirham 1,454.09 | US $402.19 | MYR 1,763.47 |
DN 25 X SCH 80S MONEL 400 SMLS EQUAL TEE TO ASTM B 366 GR. UNS NO. 4400 DIMN B 16.9 BW | SGD 277.88 | UAE Dirham 725.59 | US $200.69 | MYR 879.97 |

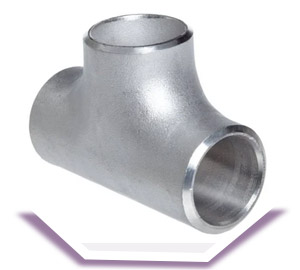

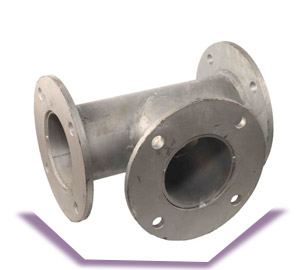

Monel Equal Tee
Alloy 400 Laterals
ASTM B366 UNS N04400 Eccentric Reducer
Nickel 400 Cross Fitting

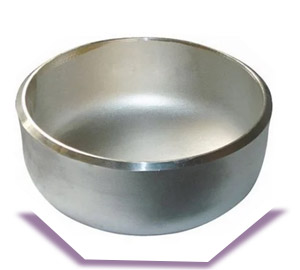

Nickel Alloy 400 End Cap
ASTM A366 Monel 400 Reducer
Monel Alloy 400 90 Degree Elbows
ASTM B366 400 Elbow
Grade 400 Alloy Weld Elbows
Monel 400 Concentric Reducer
Alloy 400 Lap Joint Stub Ends
ASTM B366 UNS N04400 Cross Tee
Monel Alloy Reducing Tee
ASME SB366 N04400 Stub End
Nickel Alloy 400 Return Bends
400 Monel 45 Degree Elbows
Monel DIN 2.4360 180 Degree Elbows
Monel 400 Pipe Fittings
Monel Alloy 400 Threaded Bends
Alloy 400 Socket Weld Cross
ASME SB366 N04400 Socket Weld Coupling
Grade 400 Alloy Socket Weld Lateral Tee
Monel Threaded Elbow
Alloy 400 Socket Weld Elbow
ASTM B366 UNS N04400 Socket Weld Caps
Nickel 400 Threaded Coupling
Nickel Alloy 400 Threaded Tee
ASTM A366 Monel 400 Hexagon Bushing
Monel Alloy 400 Threaded Union
ASTM B366 400 Threaded Cross
Grade 400 Alloy Threaded Caps
Monel 400 Socket Weld Union
Alloy 400 Hexagon Plugs
ASTM B366 UNS N04400 Square Plugs
Monel Alloy Socket Weld Tee
ASME SB366 N04400 Welding Outlets
Nickel Alloy 400 Lateral Outlets
400 Monel Socket Weld Outlets
Monel DIN 2.4360 Threaded Outlets
Monel Alloy 400 Swept Outlets
Alloy 400 Elbow Outlets
ASME SB366 N04400 Nipple Outlets
Threaded Fittings
Size Product | 3/4” | 1/4” | 1/8” | 3/8” | 1/2” | 1” | 2-1/2” | 1-1/2” | 3” | 1-1/4” | 2” | 4” | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
90 Elbow | 2000 | 0.35 | 0.08 | 0.10 | 0.13 | 0.25 | 0.53 | 3.14 | 1.06 | 4.81 | 0.82 | 1.70 | 10.21 |
3000 | 0.69 | 0.14 | 0.10 | 0.29 | 0.43 | 1.14 | 5.99 | 2.63 | 8.88 | 1.42 | 2.92 | 14.85 | |
6000 | 1.31 | 0.33 | 0.17 | 0.45 | 0.80 | 1.61 | 9.88 | 3.79 | 17.73 | 2.93 | 7.31 | 15.76 | |
45 Elbow | 2000 | 0.27 | 0.08 | 0.09 | 0.10 | 0.20 | 0.41 | 3.46 | 0.82 | 5.44 | 0.68 | 1.41 | 8.96 |
3000 | 0.56 | 0.12 | 0.09 | 0.24 | 0.34 | 0.94 | 3.71 | 2.05 | 5.97 | 1.03 | 2.23 | 8.96 | |
6000 | 1.07 | 0.27 | 0.11 | 0.39 | 0.63 | 1.27 | 7.01 | 2.54 | 14.16 | 2.24 | 4.37 | 11.36 | |
Tee | 2000 | 0.43 | 0.12 | 0.13 | 0.17 | 0.31 | 0.69 | 4.11 | 1.39 | 6.12 | 1.07 | 2.16 | 14.74 |
3000 | 0.92 | 0.20 | 0.13 | 0.38 | 0.56 | 1.49 | 6.99 | 3.27 | 10.19 | 1.76 | 3.53 | 19.13 | |
6000 | 1.65 | 0.45 | 0.20 | 0.63 | 0.98 | 2.17 | 13.11 | 4.71 | 21.70 | 3.74 | 7.88 | 18.53 | |
Cross | 2000 | 0.54 | 0.14 | 0.17 | 0.21 | 0.39 | 0.83 | 5.26 | 1.75 | 7.58 | 1.26 | 2.65 | 16.35 |
3000 | 1.06 | 0.26 | 0.17 | 0.44 | 0.72 | 1.79 | 8.51 | 3.93 | 12.45 | 2.13 | 4.27 | 21.93 | |
Full Coupling | 3000 | 0.19 | 0.04 | 0.05 | 0.06 | 0.13 | 0.45 | 2.29 | 1.07 | 3.38 | 0.81 | 1.40 | 6.28 |
6000 | 0.50 | 0.13 | 0.08 | 0.20 | 0.34 | 0.87 | 4.20 | 1.94 | 6.10 | 1.09 | 2.87 | 10.04 | |
Half Coupling | 3000 | 0.10 | 0.02 | 0.02 | 0.03 | 0.06 | 0.23 | 1.13 | 0.54 | 1.68 | 0.34 | 0.70 | 3.11 |
Socket Weld Fittings
Size Product | 1-1/2” | 3/8” | 1/4” | 1/2” | 3” | 1” | 2-1/2” | 1/8” | 1-1/4” | 2” | 3/4” | 4” | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
90 Elbow | 3000 | 1.08 | 0.12 | 0.08 | 0.22 | 5.38 | 0.53 | 3.20 | 0.09 | 0.84 | 1.68 | 0.33 | 10.95 |
6000 | 2.79 | 0.29 | 0.15 | 0.40 | 1.17 | 0.10 | 1.48 | 3.28 | 0.73 | ||||
45 Elbow | 3000 | 0.80 | 0.11 | 0.07 | 0.20 | 5.10 | 0.42 | 2.53 | 0.08 | 0.69 | 1.35 | 0.28 | 9.41 |
6000 | 2.01 | 0.26 | 0.14 | 0.36 | 0.92 | 0.09 | 1.11 | 2.09 | 0.57 | ||||
Tee | 3000 | 1.35 | 0.15 | 0.09 | 0.29 | 5.90 | 0.65 | 3.98 | 0.13 | 1.04 | 2.04 | 0.42 | 13.92 |
6000 | 3.37 | 0.43 | 0.20 | 0.56 | 1.49 | 0.14 | 1.93 | 3.95 | 0.94 | ||||
Cross | 3000 | 1.58 | 0.20 | 0.13 | 0.35 | 6.69 | 0.73 | 4.37 | 0.16 | 1.12 | 2.25 | 0.47 | 14.58 |
6000 | 3.96 | 0.45 | 0.26 | 0.67 | 1.75 | 0.17 | 2.26 | 4.42 | 1.07 | ||||
Full Coupling | 3000 | 0.59 | 0.07 | 0.05 | 0.13 | 1.78 | 0.29 | 1.40 | 0.04 | 0.45 | 0.86 | 0.17 | 2.85 |
6000 | 1.11 | 0.114 | 0.07 | 0.204 | 0.44 | 0.05 | 0.60 | 1.62 | 0.27 | ||||
Half Coupling | 3000 | 0.66 | 0.07 | 0.05 | 0.13 | 2.10 | 0.30 | 1.63 | 0.04 | 0.34 | 1.09 | 0.21 | 3.71 |
6000 | 1.25 | 0.12 | 0.09 | 0.21 | 0.51 | 0.06 | 0.75 | 1.92 | 0.31 | ||||
Red Coupling | 3000 | 0.59 | 0.07 | 0.05 | 0.13 | 1.88 | 0.27 | 1.42 | 0.04 | 0.49 | 0.97 | 0.19 | 3.31 |
6000 | 1.20 | 0.24 | 0.65 | 0.75 | 2.12 | 0.33 | |||||||
Cap | 3000 | 0.59 | 0.07 | 0.04 | 0.10 | 2.74 | 0.25 | 1.43 | 0.03 | 0.45 | 0.96 | 0.16 | 4.24 |
6000 | 0.94 | 0.10 | 0.08 | 0.16 | 0.36 | 0.05 | 0.64 | 1.41 | 0.23 | ||||
Union | 3000 | 1.61 | 0.25 | 0.28 | 0.35 | 5.15 | 0.81 | 3.50 | 0.28 | 1.10 | 2.16 | 0.49 | 11.59 |
Buy from PED approved Monel Tube Fittings manufacturer for quality products & accurate dimensions
S | Fe | Mn | Ti | Si | Al | C | Cu | Ni |
---|---|---|---|---|---|---|---|---|
0.02 max | 1.0 – 2.5 | 2.0 max | - | 0.5 max | 0.50 max | 0.3 max | 28.0 – 34.0 | 63.0 min |
Melting Point | Elongational % | Tensile Properties | Density | (0.2%Offset) Yield Properties |
---|---|---|---|---|
(2460 °F) 1350 °C | 40 | MPa – 550, Psi – 80000 | 8.8 g/cm3 | MPa – 240, Psi – 35000 |
Compare Monel 400 Pipe Fittings pipe suppliers and switch to a better Monel Fittings tube deal today.
AFNOR | UNS | EN | BS | WERKSTOFF NR. | GOST | JIS |
---|---|---|---|---|---|---|
NU-30M | N04400 | NiCu30Fe | NA 13 | 2.4360 | МНЖМц 28-2,5-1,5 | NW 4400 |
Center to End Elbow, Tee, Cross A | DN | Band O.D. H |
Center to End 45° Elbow C |
Minimum W.T. G |
Nom. Pipe Size | Thread Length Min. (1) | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | B | L2 | ||
21 | 21 | 25 | 6 | 22 | 22 | 25 | 17 | 17 | 19 | 3.18 | 3.18 | 6.35 | 1/8” | 6.4 | 6.7 |
21 | 25 | 28 | 8 | 22 | 25 | 33 | 17 | 19 | 22 | 3.18 | 3.30 | 6.60 | 1/4” | 8.1 | 10.2 |
25 | 28 | 33 | 10 | 25 | 33 | 38 | 19 | 22 | 25 | 3.18 | 3.51 | 6.98 | 3/8” | 9.1 | 10.4 |
28 | 33 | 38 | 15 | 33 | 38 | 46 | 22 | 25 | 28 | 3.18 | 4.09 | 8.15 | 1/2” | 10.9 | 13.6 |
33 | 38 | 44 | 20 | 38 | 46 | 56 | 25 | 28 | 33 | 3.18 | 4.32 | 8.53 | 3/4” | 12.7 | 13.9 |
38 | 44 | 51 | 25 | 46 | 56 | 62 | 28 | 33 | 35 | 3.68 | 4.98 | 9.93 | 1” | 14.7 | 17.3 |
44 | 51 | 60 | 32 | 56 | 62 | 75 | 33 | 35 | 43 | 3.89 | 5.28 | 10.59 | 1-1/4” | 17.0 | 18.0 |
51 | 60 | 64 | 40 | 62 | 75 | 84 | 35 | 43 | 44 | 4.01 | 5.56 | 11.07 | 1-1/2” | 17.8 | 18.4 |
60 | 64 | 83 | 50 | 75 | 84 | 102 | 43 | 44 | 52 | 4.27 | 7.14 | 12.09 | 2” | 19.0 | 19.2 |
76 | 83 | 95 | 65 | 92 | 102 | 121 | 52 | 52 | 64 | 5.61 | 7.65 | 15.29 | 2-1/2” | 23.6 | 28.9 |
86 | 95 | 106 | 80 | 109 | 121 | 146 | 64 | 64 | 79 | 5.99 | 8.84 | 16.64 | 3” | 25.9 | 30.5 |
106 | 114 | 114 | 100 | 146 | 152 | 152 | 79 | 79 | 79 | 6.55 | 11.18 | 18.67 | 4” | 27.7 | 33.0 |
We are a specialist distributor & supplier of ASTM B366 UNS N04400 Elbow and Alloy 400 Tee Fittings
Sea Water Equipment
Specialty Chemicals
Off-Shore Oil Drilling Companies
Pulp and Paper Industry
Chemical Equipment
Pharmaceuticals
Gas Processing
Heat Exchangers
Power Generation
Pharmaceutical Equipment
Condensers
Petrochemicals
O.D. (mm) | Nominal Pipe Size | W.T. (mm) | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
Sch 5S | Sch 10S | Sch 40S | Sch 80S | |||||||
NPS | DN | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | |
10.3 | ⅛ | 6 | 0.28 | 1.24 | 0.37 | 1.73 | 0.47 | 2.41 | ||
13.7 | ¼ | 8 | 0.49 | 1.65 | 0.63 | 2.24 | 0.80 | 3.02 | ||
17.1 | ⅜ | 10 | 0.63 | 1.65 | 0.84 | 2.31 | 1.10 | 3.20 | ||
21.3 | ½ | 15 | 0.80 | 1.65 | 1.00 | 2.11 | 1.27 | 2.77 | 1.62 | 3.73 |
26.7 | ¾ | 20 | 1.02 | 1.65 | 1.28 | 2.11 | 1.69 | 2.87 | 2.20 | 3.91 |
33.4 | 1 | 25 | 1.29 | 1.65 | 2.09 | 2.77 | 2.50 | 3.38 | 3.24 | 4.55 |
42.2 | 1¼ | 32 | 1.65 | 1.65 | 2.69 | 2.77 | 3.39 | 3.56 | 4.47 | 4.85 |
48.3 | 1½ | 40 | 1.90 | 1.65 | 3.11 | 2.77 | 4.05 | 3.68 | 5.41 | 5.08 |
60.3 | 2 | 50 | 2.39 | 1.65 | 3.93 | 2.77 | 5.44 | 3.91 | 7.48 | 5.54 |
73.0 | 2½ | 65 | 3.69 | 2.11 | 5.26 | 3.05 | 8.63 | 5.16 | 11.41 | 7.01 |
88.9 | 3 | 80 | 4.52 | 2.11 | 6.46 | 3.05 | 11.29 | 5.49 | 15.27 | 7.62 |
101.6 | 3½ | 90 | 5.18 | 2.11 | 7.41 | 3.05 | 13.57 | 5.74 | 18.64 | 8.08 |
114.3 | 4 | 100 | 5.84 | 2.11 | 8.37 | 3.05 | 16.08 | 6.02 | 22.32 | 8.56 |
141.3 | 5 | 125 | 9.46 | 2.77 | 11.56 | 3.40 | 21.77 | 6.55 | 30.97 | 9.53 |
168.3 | 6 | 150 | 11.31 | 2.77 | 13.83 | 3.40 | 28.26 | 7.11 | 42.56 | 10.97 |
219.1 | 8 | 200 | 14.78 | 2.77 | 19.97 | 3.76 | 42.55 | 8.18 | 64.64 | 12.70 |
273.1 | 10 | 250 | 22.61 | 3.40 | 27.79 | 4.19 | 60.31 | 9.27 | 81.56 | 12.70 |
323.9 | 12 | 300 | 31.25 | 3.96 | 35.99 | 4.57 | 73.88 | 9.53 | 97.47 | 12.70 |
355.6 | 14 | 350 | 34.34 | 3.96 | 41.36 | 4.78 | 81.33 | 9.53 | 107.40 | 12.70 |
406.4 | 16 | 400 | 41.56 | 4.19 | 47.34 | 4.78 | 93.27 | 9.53 | 123.31 | 12.70 |
457 | 18 | 450 | 46.79 | 4.19 | 53.31 | 4.78 | 105.17 | 9.53 | 139.16 | 12.70 |
508 | 20 | 500 | 59.32 | 4.78 | 68.65 | 5.54 | 117.15 | 9.53 | 155.13 | 12.70 |
559 | 22 | 550 | 65.33 | 4.78 | 75.62 | 5.54 | ||||
610 | 24 | 600 | 82.58 | 5.54 | 94.53 | 6.35 | 141.12 | 9.53 | 187.07 | 12.70 |
660 | 26 | 650 | ||||||||
711 | 28 | 700 | ||||||||
762 | 30 | 750 | 118.34 | 6.35 | 147.29 | 7.92 |
Finding the right ASTM B366 Monel 400 Buttweld Fitting manufacturers to meet your project needs? Rishabh Steel can produce Monel Buttweld Fitting and Monel 400 Forged Fittings as per customer's choice and drawing
Body Wall Thickness G | DN | Depth of Socket Min. J |
Center to Bottom of Socket-A | Socket Bore Dia. B | Bore Dia. Of Fitting D | Nom. Pipe Size | Socket Wall Thickness (2) C | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Class Designation | 90° Elbows Tees, Crosses | 45° Elbows | Class Designation | ||||||||||||||||||
6000 | 3000 | 9000 | Class Designation | Class Designation | Class Designation | 3000 | 6000 | 9000 | |||||||||||||
Min. | Min. | Min. | 6000 | 3000 | 9000 | 9000 | 3000 | 6000 | 3000 | 9000 | 6000 | Min | Ave. | Min | Ave. | Ave. | Min | ||||
3.15 | 2.41 | 6 | 9.5 | 11.0 | 11.0 | 8.0 | 8.0 | 10.8 | 6.9 | 4.0 | 1/8” | 3.18 | 3.18 | 3.43 | 3.96 | ||||||
3.68 | 3.02 | 8 | 9.5 | 13.5 | 11.0 | 8.0 | 8.0 | 14.2 | 9.3 | 6.4 | 1/4” | 3.30 | 3.78 | 4.01 | 4.60 | ||||||
4.01 | 3.20 | 10 | 9.5 | 15.5 | 13.5 | 8.0 | 11.0 | 17.6 | 12.6 | 9.2 | 3/8” | 3.50 | 4.01 | 4.37 | 5.03 | ||||||
4.78 | 3.73 | 7.47 | 15 | 9.5 | 19.0 | 15.5 | 25.5 | 15.5 | 11.0 | 12.5 | 21.8 | 15.8 | 6.4 | 11.8 | 1/2” | 4.09 | 4.67 | 5.18 | 5.97 | 9.35 | 8.18 |
5.56 | 3.91 | 7.82 | 20 | 12.5 | 22.5 | 19.0 | 28.5 | 19.0 | 13.0 | 14.0 | 27.2 | 21.0 | 11.1 | 15.6 | 3/4” | 4.27 | 4.90 | 6.04 | 6.96 | 9.78 | 8.56 |
6.35 | 4.55 | 9.09 | 25 | 12.5 | 27.0 | 22.5 | 32.0 | 20.5 | 14.0 | 17.5 | 33.9 | 26.7 | 15.2 | 20.7 | 1” | 4.98 | 5.69 | 6.93 | 7.92 | 11.38 | 9.96 |
6.35 | 4.85 | 9.70 | 32 | 12.5 | 32.0 | 27.0 | 35.0 | 22.5 | 17.5 | 20.5 | 42.7 | 35.1 | 22.8 | 29.5 | 1-1/4” | 5.28 | 6.07 | 6.93 | 7.92 | 12.14 | 10.62 |
7.14 | 5.08 | 10.15 | 40 | 12.5 | 38.0 | 32.0 | 38.0 | 25.5 | 20.5 | 25.5 | 48.8 | 40.9 | 28.0 | 34.0 | 1-1/2” | 5.54 | 6.35 | 7.80 | 8.92 | 12.70 | 11.12 |
8.74 | 5.54 | 11.07 | 50 | 16.0 | 41.0 | 38.0 | 54.0 | 28.5 | 25.5 | 28.5 | 61.2 | 52.5 | 38.2 | 42.9 | 2” | 6.04 | 6.93 | 9.50 | 10.92 | 13.84 | 12.12 |
7.01 | 65 | 16.0 | 41.0 | 28.5 | 73.9 | 62.7 | 2-1/2” | 7.67 | 8.76 | ||||||||||||
7.62 | 80 | 16.0 | 57.0 | 32.0 | 89.8 | 78.0 | 3” | 8.30 | 9.52 | ||||||||||||
8.56 | 100 | 19.0 | 66.5 | 41.0 | 115.2 | 102.3 | 4” | 9.35 | 10.69 |
Temperature Ratings | Pressure Class | ||||
---|---|---|---|---|---|
150 | 300 | ||||
1 1/4 - 2 Inches | 1/4 - 1 Inches | 2 1/2 - 3 Inches | |||
(oC) | (oF) | ||||
-29 to 66 | -20 to 150 | 300 | 1500 | 2000 | 1000 |
93 | 200 | 265 | 1350 | 1785 | 910 |
121 | 250 | 225 | 1200 | 1575 | 825 |
149 | 300 | 185 | 1050 | 1360 | 735 |
177 | 350 | 150 | 900 | 1150 | 650 |
204 | 400 | - | 750 | 935 | 560 |
232 | 450 | - | 600 | 725 | 475 |
260 | 500 | - | 450 | 510 | 385 |
288 | 550 | - | 300 | 300 | 300 |
Out-Let Pipe NPS | Reducing Way | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
C | D | F | J (Min) |
E (Min) |
||||||
6000 | 3000 | 3000 | 6000 | 6000 | 3000 | 3000 | 6000 | 6000 | 3000 | |
1/8” | 13.7 | 10.8 | 22.0 | 9.7 | 10.4 | |||||
1/4” | 13.7 | 14.2 | 22.0 | 9.7 | 10.4 | |||||
3/8” | 19.1 | 17.6 | 25.9 | 9.7 | 12.7 | |||||
1/2” | 16.6 | 21.3 | 21.8 | 21.8 | 38.0 | 31.4 | 9.7 | 9.7 | 23.9 | 16.0 |
3/4” | 21.2 | 26.7 | 27.2 | 27.2 | 44.0 | 37.1 | 12.7 | 12.7 | 25.4 | 16.0 |
1” | 27.0 | 33.4 | 33.9 | 33.9 | 57.0 | 45.5 | 12.7 | 12.7 | 28.7 | 22.4 |
1-1/4” | 35.8 | 42.2 | 42.7 | 42.7 | 64.0 | 57.0 | 12.7 | 12.7 | 30.2 | 22.4 |
1-1/2” | 41.2 | 48.3 | 48.8 | 48.8 | 76.0 | 64.0 | 12.7 | 12.7 | 31.8 | 23.9 |
2” | 51.6 | 60.3 | 61.2 | 61.2 | 92.0 | 76.0 | 15.8 | 15.8 | 36.6 | 23.9 |
2-1/2” | 73.2 | 73.9 | 92.0 | 15.8 | 25.4 | |||||
3” | 88.9 | 89.8 | 109.2 | 15.8 | 30.2 | |||||
4” | 114.3 | 115.2 | 140.0 | 19.1 | 30.2 |
DN | Schedule 10S | Schedule 40S | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
45° Elbow | 90° Elbow | Equal tee | Stub end type (B) | End cap | 45° Elbow | 90° Elbow | Equal tee | End cap | Stub end type (B) | |
15 | 0.03 | 0.06 | 0.09 | 0.07 | 0.03 | 0.04 | 0.08 | 0.10 | 0.04 | 0.08 |
20 | 0.03 | 0.07 | 0.13 | 0.09 | 0.05 | 0.04 | 0.08 | 0.17 | 0.07 | 0.11 |
25 | 0.08 | 0.14 | 0.28 | 0.16 | 0.08 | 0.11 | 0.15 | 0.29 | 0.10 | 0.17 |
32 | 0.11 | 0.23 | 0.49 | 0.22 | 0.10 | 0.17 | 0.26 | 0.59 | 0.18 | 0.25 |
40 | 0.17 | 0.30 | 0.68 | 0.25 | 0.11 | 0.23 | 0.40 | 0.86 | 0.20 | 0.31 |
50 | 0.25 | 0.50 | 0.85 | 0.43 | 0.13 | 0.40 | 0.70 | 1.28 | 0.23 | 0.61 |
65 | 0.48 | 0.85 | 1.41 | 0.57 | 0.19 | 0.77 | 1.40 | 2.19 | 0.27 | 0.80 |
80 | 0.63 | 1.25 | 1.77 | 0.72 | 0.25 | 1.08 | 2.20 | 3.31 | 0.42 | 1.13 |
100 | 1.08 | 2.10 | 3.46 | 1.09 | 0.68 | 1.47 | 4.47 | 5.27 | 1.14 | 1.87 |
125 | 1.82 | 3.65 | 5.44 | 1.47 | 1.11 | 2.84 | 6.80 | 9.63 | 2.13 | 2.79 |
150 | 2.72 | 5.45 | 8.03 | 2.15 | 1.42 | 5.44 | 10.89 | 10.99 | 3.23 | 3.57 |
200 | 5.33 | 10.20 | 15.65 | 3.22 | 2.38 | 10.77 | 21.54 | 20.91 | 5.19 | 6.07 |
250 | 9.75 | 18.15 | 26.76 | 5.13 | 4.45 | 19.27 | 38.56 | 35.38 | 9.00 | 10.07 |
300 | 13.62 | 25.80 | 39.46 | 8.16 | 7.50 | 29.71 | 59.42 | 62.14 | 15.00 | 14.29 |
350 | 18.37 | 36.29 | 48.53 | 10.88 | 8.17 | 35.15 | 79.38 | 79.31 | 16.00 | 17.14 |
400 | 23.81 | 47.63 | 58.97 | 12.70 | 10.67 | 45.81 | 99.79 | 99.79 | 21.00 | 20.41 |
450 | 29.94 | 59.87 | 79.65 | 17.23 | 13.00 | 59.40 | 129.73 | 129.73 | 26.00 | 27.21 |
500 | 49.90 | 99.80 | 103.42 | 21.77 | 17.00 | 74.84 | 162.38 | 162.39 | 34.00 | 29.94 |
600 | 70.31 | 140.61 | 155.58 | 27.21 | 26.00 | 105.23 | 225.89 | 225.90 | 52.00 | 38.55 |
Nominal size | OD | Elbows | Reducer | Caps | Returns | Stubs Ends | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Short | Long | Long | Short | Long | Short | Radius of fillet | Diam. of Lap | ||||||||
90 deg | 90 deg | 45 deg | |||||||||||||
DN | NPS | D | A | A | B | H | E | O | K | O | K | F | F | R | G |
20 | ¾ | 26.7 | 38 | 19 | 38 | 25 | 76 | 51 | 76 | 51 | 3 | 43 | |||
32 | 11/4 | 42.2 | 32 | 48 | 25 | 51 | 38 | 95 | 70 | 64 | 52 | 102 | 51 | 5 | 64 |
40 | 11/2 | 48.3 | 38 | 57 | 29 | 64 | 38 | 114 | 83 | 76 | 62 | 102 | 51 | 6 | 73 |
50 | 2 | 60.3 | 51 | 76 | 35 | 76 | 38 | 152 | 106 | 102 | 81 | 152 | 64 | 8 | 92 |
65 | 21/2 | 73.0 | 64 | 95 | 44 | 89 | 38 | 190 | 132 | 127 | 100 | 152 | 64 | 8 | 106 |
80 | 3 | 88.9 | 76 | 114 | 51 | 89 | 51 | 229 | 159 | 152 | 121 | 152 | 64 | 10 | 127 |
90 | 31/2 | 101.6 | 89 | 133 | 57 | 102 | 64 | 267 | 184 | 178 | 140 | 152 | 76 | 10 | 140 |
15 | ½ | 21.3 | 38 | 16 | 25 | 76 | 48 | 76 | 51 | 3 | 35 | ||||
100 | 4 | 114.3 | 102 | 152 | 64 | 102 | 64 | 305 | 210 | 203 | 159 | 152 | 76 | 11 | 157 |
200 | 8 | 219.1 | 203 | 305 | 127 | 152 | 102 | 610 | 414 | 406 | 313 | 203 | 102 | 13 | 270 |
250 | 10 | 273.0 | 254 | 381 | 159 | 178 | 127 | 762 | 518 | 508 | 391 | 254 | 127 | 13 | 324 |
300 | 12 | 323.8 | 305 | 457 | 190 | 203 | 152 | 914 | 619 | 610 | 467 | 254 | 152 | 13 | 381 |
350 | 14 | 355.6 | 356 | 533 | 222 | 330 | 165 | 1067 | 711 | 711 | 533 | 305 | 152 | 13 | 413 |
125 | 5 | 141.3 | 127 | 190 | 79 | 127 | 76 | 381 | 262 | 254 | 197 | 203 | 76 | 11 | 185 |
400 | 16 | 406.4 | 406 | 610 | 254 | 356 | 178 | 1219 | 813 | 813 | 610 | 305 | 152 | 13 | 470 |
25 | 1 | 33.4 | 25 | 38 | 22 | 51 | 38 | 76 | 56 | 51 | 41 | 102 | 51 | 3 | 51 |
450 | 18 | 457 | 457 | 686 | 286 | 381 | 203 | 1372 | 914 | 914 | 686 | 305 | 152 | 13 | 533 |
500 | 20 | 508 | 508 | 762 | 318 | 508 | 229 | 1524 | 1016 | 1016 | 762 | 305 | 152 | 13 | 584 |
1050 | 42 | 1067 | 1600 | 660 | 610 | 305 | |||||||||
550 | 22 | 559 | 559 | 838 | 343 | 508 | 254 | 1676 | 1118 | 1118 | 838 | 305 | 152 | 13 | 641 |
150 | 6 | 168.3 | 152 | 229 | 95 | 140 | 89 | 457 | 313 | 305 | 237 | 203 | 89 | 13 | 218 |
600 | 24 | 610 | 610 | 914 | 381 | 508 | 267 | 1829 | 1219 | 1219 | 914 | 305 | 152 | 13 | 692 |
650 | 26 | 660 | 991 | 405 | 610 | 267 | |||||||||
700 | 28 | 711 | 1067 | 438 | 610 | 267 | |||||||||
750 | 30 | 762 | 1143 | 470 | 610 | 267 | |||||||||
1100 | 44 | 1118 | 1676 | 695 | 610 | 343 | |||||||||
800 | 32 | 813 | 1219 | 502 | 610 | 267 | |||||||||
850 | 34 | 864 | 1295 | 533 | 610 | 267 | |||||||||
900 | 36 | 914 | 1372 | 565 | 610 | 267 | |||||||||
950 | 38 | 965 | 1448 | 600 | 610 | 305 | |||||||||
1200 | 48 | 1219 | 1829 | 759 | 711 | 343 | |||||||||
1000 | 40 | 1016 | 1524 | 632 | 610 | 305 | |||||||||
1150 | 46 | 1168 | 1753 | 727 | 711 | 343 |
Contact directly a Monel 400 Fittings and Monel Pipe Fittings Manufacturers In India for factory price and custom sizes
PIPE NOMINAL SIZE | OUTSIDE DIAM. | 90° ELBOW | 45° ELBOW | 180° RETURNS | ||||
---|---|---|---|---|---|---|---|---|
(inches) | Short Radius | Long Radius | Long Radius | Long Radius | ||||
(mm) | (inches) | Face Center (inches) |
Face Center (inches) |
Radius (inches) |
Face Center (inches) |
Face Back (inches) |
Center to Center (inches) |
|
3/4 | 26.7 | 1.050 | – | 1 1/8 | 7/16 | 1 11/16 | 2 1/4 | |
1/2 | 21.3 | 0.840 | – | 1 1/2 | 5/8 | 1 7/8 | 2 | |
1 | 33.4 | 1.315 | 1 | 1 1/2 | 7/8 | 2 3/16 | 3 | |
1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 3 | 1 1/8 | 3 1/4 | 4 1/2 |
1 1/4 | 42.2 | 1.660 | 1 1/4 | 1 7/8 | 1 | 2 3/4 | 3 3/4 | |
2 | 60.3 | 2.375 | 2 | 3 | 4 | 1 3/8 | 4 3/16 | 6 |
3 | 88.9 | 3.500 | 3 | 4 1/2 | 6 | 2 | 6 1/4 | 9 |
2 1/2 | 73.0 | 2.875 | 2 1/2 | 3 3/4 | 5 | 1 3/4 | 5 3/16 | 7 1/2 |
3 1/2 | 101.6 | 4.000 | 3 1/2 | 5 1/4 | 7 | 2 1/4 | 7 1/4 | 10 1/2 |
5 | 141.3 | 5.563 | 5 | 7 1/2 | 10 | 3 1/8 | 10 5/16 | 15 |
4 | 114.3 | 4.500 | 4 | 6 | 8 | 2 1/2 | 8 1/4 | 12 |
6 | 168.3 | 6.625 | 6 | 9 | 12 | 3 3/4 | 12 5/16 | 18 |
10 | 273.1 | 10.750 | 10 | 15 | 15 | 6 1/4 | 20 3/8 | 30 |
8 | 219.1 | 8.625 | 8 | 12 | 12 | 5 | 16 5/16 | 24 |
12 | 323.9 | 12.750 | 12 | 18 | 18 | 7 1/2 | 24 3/8 | 36 |
We are looking for importers in these locations
Union Carbide And Petronas Petrochemical Facility - Engineering Malaysia
Al Sunaynah Dairy Processing Plant Project Oman, Azaibah
Doha South Sewage Treatment Works-Qatar
Tanzania LNG Liquefaction Plant-South Africa
Markmore Energy (Labuan) Ltd-Malaysia
Petrovietnam Vietnam
