Top notch ASTM B466 UNS C71500 Elbow Manufacturer in India, Ask for latest price list of Cu-Ni 70/30 Tee

Copper Nickel 70/30 Pipe Fittings

Copper Nickel 70/30 fittings are designed with 70% copper and 30% nickel with small alloys of iron and manganese acting as strengthening agents. The Copper Nickel 70/30 Pipe Fittings are employed to influence the characteristics of the flow in the system. These fittings have good resistance to corrosion and erosion. They have enhanced strength across harsh environments. 70/30 Copper Nickel Buttweld Fittings are common weld fittings that are very strong. These fittings are quality-assured and work well across high as well as low pressures and temperatures.

The UNS C71500 Elbow is a versatile grade fitting that is designed to change the flow of fluid and gaseous media. These elbows allow for swift change of media and are generally produced in 45 and 90 degrees. An ASTM B466 UNS C71500 Tee has three openings having 2 outlets at an angle of 90 degrees with a singular connection line. These tees are designed in equal and unequal sizes. The versatile 70/30 Cu-Ni Equal Tee has all three equal openings allowing an even flow of media across these channels. The fluid turn in tees is considerably harsh when compared to elbows. A Cu-Ni 70/30 Reducer is a fitting that is employed in connecting dissimilar piping grades. The reducer is available in concentric and eccentric configurations. The DIN 2.0882 Stub End is a short piece of pipe that has a flared end on one side with a square cut on the other. These components are used as a replacement for standard flange types. They can be customized in different specifications to fullfill customer needs.

Worldwide supplier of UNS C71500 Concentric Reducer at factory price, Leading stockist of Copper Nickel 70/30 End Cap

Copper Nickel 70/30 Pipe Fittings Specification

Huge inventory of UNS C71500 Elbow in Mumbai

Specification ASTM B122, B171, B466, B467
Dimension ASME/ ANSI B16.28, B16.9, MSS-SP 43.
Type Fabricated / Seamless / Welded
Radius 3D, 8D, 6D, 10D, 2D, 5D, 1D
Grade Cupro Nickel (Cu-Ni) 70/30 and Copper Nickel UNS C7150
Ranges From ½”NB upto 24”NB in Schedule 10s to XXS.

Cu-Ni 70/30 Buttweld Fittings Price List

Compare our price with other ASTM B466 Copper Nickel 70/30 Short Stub End manufacturers and suppliers in India

Description Price Per Kg In Singapore Price Per Kg In UAE Price Per Kg In USD Price Per Kg In Malaysia
1CL3000 SEMIFINISHED NIPPIE 70/30 CU NI THRD FNPT 70/30 COPPER NICKEL PIPE FITTINGS SGD 18.74 UAE Dirham 48.93 US $13.53 MYR 59.34
SCH 40,CL300, NPS 2 70/30 COPPER NICKEL PIPE FITTING SWFF 70/30 C71500 SGD 339.80 UAE Dirham 887.27 US $245.41 MYR 1,076.05
2 X 2 NB SCH 40 COPPER NICKEL PIPE FITTINGS EQUAL TEE, ASME B16.9, 70/30 UNS C71500 SGD 94.21 UAE Dirham 246.00 US $68.04 MYR 298.34
11/2 X 90 DEGREE ELBOW COPPER NICKEL PIPE FITTINGS 70/30 CUNI PIPE ELBOW SGD 12.44 UAE Dirham 32.48 US $8.98 MYR 39.39
21/2 X 21 COPPER NICKEL PIPE FITTINGS 70/30 CUNI PIPE REDUCER & JOINTS SGD 22.61 UAE Dirham 59.03 US $16.33 MYR 71.59
1-1/2NB X SCH 40 COPPER NICKEL PIPE, 70/30 PIPE FITTINGS SGD 99.47 UAE Dirham 259.72 US $71.84 MYR 314.98
1-1/2X 3.81MM THK COPPER NICKEL FITTINGS PIPE NIPPLE SGD 24.66 UAE Dirham 64.39 US $17.81 MYR 78.09

Different Types of Copper Nickel 70/30 Pipe Fittings

Copper Nickel 70/30 Concentric Reducer

Copper Nickel 70/30 Concentric Reducer

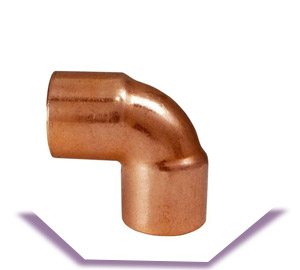

Cu-Ni 70/30 Elbow

Cu-Ni 70/30 Elbow

70/30 Copper Nickel Eccentric Reducer

70/30 Copper Nickel Eccentric Reducer

Cu-Ni 70/30 90 Degree Elbows

Cu-Ni 70/30 90 Degree Elbows

ANSI B16.9 Cupro Nickel 70 / 30 Reducing Tee

ANSI B16.9 Cupro Nickel 70 / 30 Reducing Tee

Cu-Ni C71500 Pipe 45 Degree Elbows

Cu-Ni C71500 Pipe 45 Degree Elbows

Copper Nickel 70/30 Pipe Lap Joint Stub Ends

Copper Nickel 70/30 Pipe Lap Joint Stub Ends

ASME SB466 Cu-Ni 70/30 Stub End

ASME SB466 Cu-Ni 70/30 Stub End

CuNi 70/30 Cross Fitting

CuNi 70/30 Cross Fitting

Copper Nickel UNS C71500 Reducer

Copper Nickel UNS C71500 Reducer

Cu-Ni 70-30 Weld Elbows

Cu-Ni 70-30 Weld Elbows

Cupro Nickel 70/30 Return Bends

Cupro Nickel 70/30 Return Bends

ASTM B467 Copper Nickel Alloy 70-30 Laterals

ASTM B467 Copper Nickel Alloy 70-30 Laterals

Copper Nickel 70/30 Cross Tee

Copper Nickel 70/30 Cross Tee

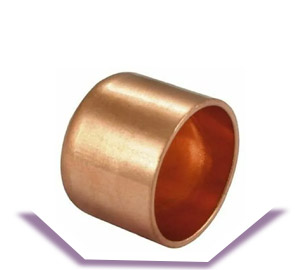

ASTM B467 Cupro Nickel 70/30 End Cap

ASTM B467 Cupro Nickel 70/30 End Cap

Copper Nickel 70/30 180 Degree Elbows

Copper Nickel 70/30 180 Degree Elbows

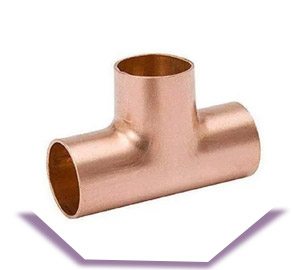

Cu-Ni Alloy 70-30 Equal Tee

Cu-Ni Alloy 70-30 Equal Tee

Copper Nickel 70/30 Pipe Fittings

Copper Nickel 70/30 Pipe Fittings

Copper Nickel 70/30 Forged Fittings Types

DIN 2.0882 Threaded Union

DIN 2.0882 Threaded Union

ASME SB467 Cu-Ni Alloy 70/30 Socket Weld Cross

ASME SB467 Cu-Ni Alloy 70/30 Socket Weld Cross

Cupro Nickel 70/30 Pipe Socket Weld Tee

Cupro Nickel 70/30 Pipe Socket Weld Tee

Cu-Ni 70/30 Threaded Coupling

Cu-Ni 70/30 Threaded Coupling

Copper Nickel 70/30 Socket Weld Lateral Tee

Copper Nickel 70/30 Socket Weld Lateral Tee

Cu-Ni 70/30 Threaded Tee

Cu-Ni 70/30 Threaded Tee

70/30 Copper Nickel Threaded Cross

70/30 Copper Nickel Threaded Cross

Cu-Ni 70/30 Socket Weld Caps

Cu-Ni 70/30 Socket Weld Caps

ANSI B16.9 Cupro Nickel 70 / 30 Threaded Elbow

ANSI B16.9 Cupro Nickel 70 / 30 Threaded Elbow

Cu-Ni C71500 Pipe Socket Weld Elbow

Cu-Ni C71500 Pipe Socket Weld Elbow

Copper Nickel 70/30 Pipe Square Plugs

Copper Nickel 70/30 Pipe Square Plugs

ASME SB466 Cu-Ni 70/30 Threaded Bends

ASME SB466 Cu-Ni 70/30 Threaded Bends

CuNi 70/30 Threaded Caps

CuNi 70/30 Threaded Caps

Copper Nickel UNS C71500 Socket Weld Union

Copper Nickel UNS C71500 Socket Weld Union

Cu-Ni 70-30 Hexagon Plugs

Cu-Ni 70-30 Hexagon Plugs

Cupro Nickel 70/30 Socket Weld Coupling

Cupro Nickel 70/30 Socket Weld Coupling

ASTM B467 Copper Nickel Alloy 70-30 Hexagon Bushing

ASTM B467 Copper Nickel Alloy 70-30 Hexagon Bushing

Cu-Ni 70/30 Outlets Types

Copper Nickel 70/30 Swept Outlets

Copper Nickel 70/30 Swept Outlets

ASTM B467 Cupro Nickel 70/30 Socket Weld Outlets

ASTM B467 Cupro Nickel 70/30 Socket Weld Outlets

Copper Nickel 70/30 Nipple Outlets

Copper Nickel 70/30 Nipple Outlets

Cu-Ni Alloy 70-30 Lateral Outlets

Cu-Ni Alloy 70-30 Lateral Outlets

DIN 2.0882 Welding Outlets

DIN 2.0882 Welding Outlets

ASME SB467 Cu-Ni Alloy 70/30 Threaded Outlets

ASME SB467 Cu-Ni Alloy 70/30 Threaded Outlets

Cupro Nickel 70/30 Pipe Elbow Outlets

Cupro Nickel 70/30 Pipe Elbow Outlets

70/30 Copper Nickel Bosses Socket Weld Fittings

70/30 Copper Nickel Bosses Socket Weld Fittings
C
(Min)
Nom. Pipe SizeDB
(Min)
J
(Min)
DNF
3000lb6000lb3000lb6000lb3000lb6000lb3000lb6000lb
3.21/8”6.810.710.0628.0
3.31/4”9.214.110.0832.0
3.53/8”12.517.611.01034.0
4.15.21/2”15.511.821.813.013.01538.038.0
4.36.13/4”21.015.527.413.013.02038.038.0
5.07.01”26.620.734.116.016.02535.035.0
5.67.81-1/2”40.534.049.019.019.04032.032.0
6.19.52”52.043.061.022.022.05029.029.0
7.710.42-1/2”62.054.073.822.022.06529.029.0
8.312.23”78.066.089.722.022.08029.029.0

ANSI B16.9 Cupro Nickel 70 / 30 Forged Fittings Weight Chart

Threaded Fittings

Size Product3/4”1/4”1/8”3/8”1/2”1”2-1/2”1-1/2”3”1-1/4”2”4”
90 Elbow20000.350.080.100.130.250.533.141.064.810.821.7010.21
30000.690.140.100.290.431.145.992.638.881.422.9214.85
60001.310.330.170.450.801.619.883.7917.732.937.3115.76
45 Elbow20000.270.080.090.100.200.413.460.825.440.681.418.96
30000.560.120.090.240.340.943.712.055.971.032.238.96
60001.070.270.110.390.631.277.012.5414.162.244.3711.36
Tee20000.430.120.130.170.310.694.111.396.121.072.1614.74
30000.920.200.130.380.561.496.993.2710.191.763.5319.13
60001.650.450.200.630.982.1713.114.7121.703.747.8818.53
Cross20000.540.140.170.210.390.835.261.757.581.262.6516.35
30001.060.260.170.440.721.798.513.9312.452.134.2721.93
Full Coupling30000.190.040.050.060.130.452.291.073.380.811.406.28
60000.500.130.080.200.340.874.201.946.101.092.8710.04
Half Coupling30000.100.020.020.030.060.231.130.541.680.340.703.11

Socket Weld Fittings

Size Product1-1/2”3/8”1/4”1/2”3”1”2-1/2”1/8”1-1/4”2”3/4”4”
90 Elbow30001.080.120.080.225.380.533.200.090.841.680.3310.95
60002.790.290.150.401.170.101.483.280.73
45 Elbow30000.800.110.070.205.100.422.530.080.691.350.289.41
60002.010.260.140.360.920.091.112.090.57
Tee30001.350.150.090.295.900.653.980.131.042.040.4213.92
60003.370.430.200.561.490.141.933.950.94
Cross30001.580.200.130.356.690.734.370.161.122.250.4714.58
60003.960.450.260.671.750.172.264.421.07
Full Coupling30000.590.070.050.131.780.291.400.040.450.860.172.85
60001.110.1140.070.2040.440.050.601.620.27
Half Coupling30000.660.070.050.132.100.301.630.040.341.090.213.71
60001.250.120.090.210.510.060.751.920.31
Red Coupling30000.590.070.050.131.880.271.420.040.490.970.193.31
60001.200.240.650.752.120.33
Cap30000.590.070.040.102.740.251.430.030.450.960.164.24
60000.940.100.080.160.360.050.641.410.23
Union30001.610.250.280.355.150.813.500.281.102.160.4911.59

Cu-Ni C71500 Thread Fittings Dimensions

Buy Copper Nickel 70/30 Reducer from trusted manufacturers, ADNOC certified supplier of ASTM B466 70-30 Cu-Ni Pipe Elbow

Cu-Ni C71500 Thread Fittings Dimensions
Center to End Elbow, Tee, Cross ADNBand O.D.
H
Center to End 45° Elbow
C
Minimum W.T.
G
Nom. Pipe SizeThread Length Min. (1)
200030006000200030006000200030006000200030006000BL2
21212562222251717193.183.186.351/8”6.46.7
21252882225331719223.183.306.601/4”8.110.2
252833102533381922253.183.516.983/8”9.110.4
283338153338462225283.184.098.151/2”10.913.6
333844203846562528333.184.328.533/4”12.713.9
384451254656622833353.684.989.931”14.717.3
445160325662753335433.895.2810.591-1/4”17.018.0
516064406275843543444.015.5611.071-1/2”17.818.4
6064835075841024344524.277.1412.092”19.019.2
76839565921021215252645.617.6515.292-1/2”23.628.9
8695106801091211466464795.998.8416.643”25.930.5
1061141141001461521527979796.5511.1818.674”27.733.0

Contact us if you want to buy Cupro Nickel 70/30 Pipe Cap and 70/30 Copper Nickel Buttweld Fittings End at factory price

Cu-Ni 70-30 Threaded Plug

Cu-Ni 70-30 Threaded Plug
Length (Min.) AHex. Head Plug & BushingDNSquare Head PlugNom. Pipe SizeRound Head Plug
Width Flat (Nom.) FHex. Height (Min.)Width Flat (Min.) CHeight of Square (Min.) BNominal Diam. of Head (Nom)
E
Length (Min.) D
Plug HBushing G
1066761/8”1035
11166381061/4”1441
131884101183/8”1841
1422851514101/2”2144
16271062016113/4”2744
19361062521131”3351
21461473224141-1/4”4351
21501684028161-1/2”4851
22651895032182”6064
277519106536192-1/2”7370
289021108041213”8970
32115251310065254”11476

ANSI B16.9 Cupro Nickel 70 / 30 Butt weld Fittings Chemical Composition

Fe Ni Mn Pb Cu Zn
0.4-1.0 29 - 33 1.0 max .05 max 65.0 min 1 max

CuNi 70/30 Seamless Pipe Fitting Mechanical Properties

(0.2%Offset) Yield Properties Melting Point Density Tensile Properties Elongation %
20000 psi 2260 F 0.323 lb/in3 at 68 F 50000 psi 30

Equivalent of Copper Nickel UNS C71500 Welded Pipe Fittings

UNS WERKSTOFF NR.
C71500 2.0882
Purchase DIN 2.0882 Stub End at discounted Price, We keep ready stock of Cu-Ni 70/30 Pipe Fittings in various sizes.

Copper Nickel 70/30 Forged Fittings Wall Thickness

O.D. (mm)Nominal Pipe SizeW.T. (mm)
Sch 5SSch 10SSch 40SSch 80S
NPSDNWeight (kg/m)WT (mm)Weight (kg/m)WT (mm)Weight (kg/m)WT (mm)Weight (kg/m)WT (mm)
10.360.281.240.371.730.472.41
13.7¼80.491.650.632.240.803.02
17.1100.631.650.842.311.103.20
21.3½150.801.651.002.111.272.771.623.73
26.7¾201.021.651.282.111.692.872.203.91
33.41251.291.652.092.772.503.383.244.55
42.2321.651.652.692.773.393.564.474.85
48.3401.901.653.112.774.053.685.415.08
60.32502.391.653.932.775.443.917.485.54
73.0653.692.115.263.058.635.1611.417.01
88.93804.522.116.463.0511.295.4915.277.62
101.6905.182.117.413.0513.575.7418.648.08
114.341005.842.118.373.0516.086.0222.328.56
141.351259.462.7711.563.4021.776.5530.979.53
168.3615011.312.7713.833.4028.267.1142.5610.97
219.1820014.782.7719.973.7642.558.1864.6412.70
273.11025022.613.4027.794.1960.319.2781.5612.70
323.91230031.253.9635.994.5773.889.5397.4712.70
355.61435034.343.9641.364.7881.339.53107.4012.70
406.41640041.564.1947.344.7893.279.53123.3112.70
4571845046.794.1953.314.78105.179.53139.1612.70
5082050059.324.7868.655.54117.159.53155.1312.70
5592255065.334.7875.625.54
6102460082.585.5494.536.35141.129.53187.0712.70
66026650
71128700
76230750118.346.35147.297.92

Cupro Nickel 70/30 Swaged Nipples

Cupro Nickel 70/30 Swaged Nipples
End To End “A”O.D.Nominal Pipe Size (NPS)W.T.
Small End D2Large End D1T1T2
Schedule 80 (XS)Schedule 40 (Sth)XXSSchedule 160Schedule 80 (XS)Schedule 40 (Sth)XXSSchedule 160
5710.313.71/4”x1/8”3.02.26.13.72.41.7
6410.317.13/8”x1/8”3.22.36.44.02.41.7
6413.717.13/8”x1/4”3.22.36.44.03.02.2
7010.321.31/2”x1/8”3.72.87.54.82.41.7
7013.721.31/2”x1/4”3.72.87.54.83.02.2
7017.121.31/2”x3/8”3.72.87.54.83.22.3
7610.326.73/4”x1/8”3.92.97.85.62.41.7
7613.726.73/4’x1/4”3.92.97.85.63.02.2
7617.126.73/4”x3/8”3.92.97.85.63.22.3
7621.326.73/4”x1/2”3.92.97.85.63.72.87.54.8
8910.333.41”x1/8”4.53.49.16.42.41.7
8913.733.41”x1/4”4.53.49.16.43.02.2
8917.133.41”x3/8”4.53.49.16.43.22.3
8921.333.41”x1/2”4.53.49.16.43.72.87.54.8
8926.733.41”x3/4”4.53.49.16.43.92.97.85.6
10210.342.21-1/4”x1/8”4.93.69.76.42.41.7
10213.742.21-1/4”x1/4”4.93.69.76.43.02.2
10217.142.21-1/4”x3/8”4.93.69.76.43.22.3
10221.342.21-1/4”x1/2”4.93.69.76.43.72.87.54.8
10226.742.21-1/4”x3/4”4.93.69.76.43.92.97.85.6
10233.442.21-1/4”x1”4.93.69.76.44.53.49.16.4
11410.348.31-1/2”x1/8”5.13.710.27.12.41.7
11413.748.31-1/2”x1/4”5.13.710.27.13.02.2
11417.148.31-1/2”x3/8”5.13.710.27.13.22.3
11421.348.31-1/2”x1/2”5.13.710.27.13.72.87.54.8
11426.748.31-1/2”x3/4”5.13.710.27.13.92.97.85.6
11433.448.31-1/2”x1”5.13.710.27.14.53.49.16.4
11442.248.31-1/2”x1-1/4”5.13.710.27.14.93.69.76.4
16510.360.32”x1/8”5.53.911.18.72.41.7
16513.760.32”x1/4”5.53.911.18.73.02.2
16517.160.32”x3/8”5.53.911.18.73.22.3
16521.360.32”x1/2”5.53.911.18.73.72.87.54.8

Dimensional Tolerance of Swaged Nipple

W.T. (prior to threading or grooving)Overall Length (mm)O.D. at endNominal Pipe Size (inch)
Square Cut Ends (mm)Other End Connection (mm)
Not less than 87.5% of nominal wall thickness± 1.5+ 0.40± 0.801/8” to 3/8”
- 0.80
± 1.5+ 0.40+ 1.501/2” to 1-1/2”
- 0.80- 0.80
± 3.0± 0.80+ 1.502” to 2-1/2”
- 0.80
± 3.0± 0.80± 1.503” to 4”

Copper Nickel 70/30 Pipe Fittings Dimensions

Buttweld Fittings
Nominal sizeODReducerCapsReturnsElbowsStubs Ends
LongShortShortLongLongShortRadius of filletDiam. of Lap
90 deg90 deg45 deg
NPSDNDHEOKOKAABFFRG
369009146102671372565
¾2026.73825765138197651343
11/43242.251389570645232482510251564
11/24048.3643811483766238572910251673
25060.376381521061028151763515264892
21/26573.08938190132127100649544152648106
38088.9895122915915212176114511526410127
31/290101.61026426718417814089133571527610140
½1521.325764838167651335
348508646102671295533
4100114.310264305210203159102152641527611157
8200219.0115210261041440631320330512720310213270
10250273.017812776251850839125438115925412713324
12300323.820315291461961046730545719025415213381
5125141.312776381262254197127190792037611185
16400406.4356178121981381361040661025430515213470
12533.451387656514125382210251351
18450457381203137291491468645768628630515213533
2050050850822915241016101676250876231830515213584
26650660610267991405
14350355.6330165106771171153335653322230515213413
42105010676103051600660
2255055950825416761118111883855983834330515213641
6150168.314089457313305237152229952038913218
2460061050826718291219121991461091438130515213692
307507626102671143470
44110011186103431676695
328008136102671219502
48120012197113431829759
40100010166103051524632
287007116102671067438
389509656103051448600
46115011687113431753727

CuNi 70/30 Socket Weld Fittings Size Chart

CuNi 70/30 Socket Weld Fittings Size Chart
Body Wall Thickness GDNDepth of Socket Min.
J
Center to Bottom of Socket-ASocket Bore Dia. BBore Dia. Of Fitting DNom. Pipe SizeSocket Wall Thickness (2) C
Class Designation90° Elbows Tees, Crosses45° ElbowsClass Designation
600030009000Class DesignationClass DesignationClass Designation300060009000
Min.Min.Min.600030009000900030006000300090006000MinAve.MinAve.Ave.Min
3.152.4169.511.011.08.08.010.86.94.01/8”3.183.183.433.96
3.683.0289.513.511.08.08.014.29.36.41/4”3.303.784.014.60
4.013.20109.515.513.58.011.017.612.69.23/8”3.504.014.375.03
4.783.737.47159.519.015.525.515.511.012.521.815.86.411.81/2”4.094.675.185.979.358.18
5.563.917.822012.522.519.028.519.013.014.027.221.011.115.63/4”4.274.906.046.969.788.56
6.354.559.092512.527.022.532.020.514.017.533.926.715.220.71”4.985.696.937.9211.389.96
6.354.859.703212.532.027.035.022.517.520.542.735.122.829.51-1/4”5.286.076.937.9212.1410.62
7.145.0810.154012.538.032.038.025.520.525.548.840.928.034.01-1/2”5.546.357.808.9212.7011.12
8.745.5411.075016.041.038.054.028.525.528.561.252.538.242.92”6.046.939.5010.9213.8412.12
7.016516.041.028.573.962.72-1/2”7.678.76
7.628016.057.032.089.878.03”8.309.52
8.5610019.066.541.0115.2102.34”9.3510.69

Size Chart of ASTM B467 Copper Nickel Alloy 70-30 Elbow

Why don't you directly contact a Cupro Nickel 2.0882 Buttweld Elbow manufacturer in Mumbai? We offer Non chinese Cupro Nickel 70/30 Cross and Cupro Nickel UNS C71500 Cross in India

Elbow Pipe Fittings
Approx. WeightElbow SizeSpecified Pipe Thickness TE-Centre to Face
45˚90˚
45˚ 20 bar45˚ 16 bar90˚ 20 bar90˚ 16 bar
20 bar16 barnommaxminnommaxmin
mmmmkgkgmmmmmmmmmmmmmmmmmm
0.150.150.300.3044.52.52.5293127575955
0.250.250.520.52572.52.5353733767874
0.450.450.900.9076.12.52.5444642959793
0.650.651.251.2588.92.52.5515349114116112
1.01.02.102.101083.03.0646662152154150
2.72.35.504.701593.53.0959793229231227
6.56.01312219.14.54.0127129125305307303
121024202675.54.5159161157381383379
23174535323.97.05.5190193187457460454
342767553688.06.5222225219533536530
503899774199.07.0254257251610613607
6454128109457.29.58.0286289283686689683
927118414250811.08.5318321315762765759
15612631225261013.010.5381384378914917911
24519749039471115.012.0438441435106710701064
36228972557981317.013.5502507497121912241214
513420102684191419.015.5565570560137213771367
Top totch manufacturer of Copper Nickel 70/30 Seamless Fittings in India, Distributor of 70/30 Cu-Ni Equal Tee

ASTM B467 Copper Nickel Alloy 70-30 Fittings Schedule Chart

Pipe Fittings
DNSchedule 10SSchedule 40S
45° Elbow90° ElbowEqual teeStub end type (B)End cap45° Elbow90° ElbowEqual teeEnd capStub end type (B)
150.030.060.090.070.030.040.080.100.040.08
200.030.070.130.090.050.040.080.170.070.11
250.080.140.280.160.080.110.150.290.100.17
320.110.230.490.220.100.170.260.590.180.25
400.170.300.680.250.110.230.400.860.200.31
500.250.500.850.430.130.400.701.280.230.61
650.480.851.410.570.190.771.402.190.270.80
800.631.251.770.720.251.082.203.310.421.13
1001.082.103.461.090.681.474.475.271.141.87
1251.823.655.441.471.112.846.809.632.132.79
1502.725.458.032.151.425.4410.8910.993.233.57
2005.3310.2015.653.222.3810.7721.5420.915.196.07
2509.7518.1526.765.134.4519.2738.5635.389.0010.07
30013.6225.8039.468.167.5029.7159.4262.1415.0014.29
35018.3736.2948.5310.888.1735.1579.3879.3116.0017.14
40023.8147.6358.9712.7010.6745.8199.7999.7921.0020.41
45029.9459.8779.6517.2313.0059.40129.73129.7326.0027.21
50049.9099.80103.4221.7717.0074.84162.38162.3934.0029.94
60070.31140.61155.5827.2126.00105.23225.89225.9052.0038.55

Cu-Ni Alloy 70-30 Socket coupling

Cu-Ni Alloy 70-30 Socket coupling
Socket Wall Thickness (2) CDepth of Socket Min.
J
DNEnd Wall Thickness K Min.Nom. Pipe SizeBore Dia. Of Fitting DLaying LengthsSocket Bore Dia. B
Class DesignationCoupling EHalf Coupling F
300060009000Class DesignationClass Designation
Ave.MinAve.MinAve.Min300060009000300060009000
3.183.183.963.439.564.86.41/8”6.94.06.516.010.8
3.783.304.604.019.584.86.41/4”9.36.46.516.014.2
4.013.505.034.379.5104.86.43/8”12.69.26.517.517.6
4.674.095.975.189.358.189.5156.47.911.21/2”15.811.86.49.522.521.8
4.904.276.966.049.788.5612.5206.47.912.73/4”21.015.611.19.524.027.2
5.694.987.926.9311.389.9612.5259.611.214.21”26.720.715.212.528.533.9
6.075.287.926.9312.1410.6212.5329.611.214.21-1/4”35.129.522.812.530.042.7
6.355.548.927.8012.7011.1212.54011.212.715.71-1/2”40.934.028.012.532.048.8
6.936.0410.929.5013.8412.1216.05012.715.719.02”52.542.938.219.041.061.2
8.767.6716.06515.719.02-1/2”62.719.043.073.9
9.528.3016.08019.022.43”78.019.044.589.8
10.699.3519.010022.428.44”102.319.048.0115.2

ASTM B467 Cupro Nickel 70/30 Socket Weld Fittings Pressure Rating

MAXIMUM ALLOWABLE WORKING PRESSURE - bar
Type of fittingSize range16 bar rating20 bar rating
38˚C50˚C75˚C100˚C50˚C38˚C100˚C75˚C
Butt welding fittings1in/30mm to 4in/108mmUse 20 bar19.720.017.318.6
6in/159mm to 36in/914mm16.016.016.015.719.720.017.318.6
Capillary brazed fittings½in/16mm to 2in/57mmUse 20 bar19.720.017.318.6
Socket weld fittings½in/16mm to 2in/57mm19.720.017.318.6
Compression fittings½in/16mm to 2in/57mm****

ASME SB467 Cu-Ni Alloy 70/30 ButtWeld Reducing Tee Weight Chart

Pipe Fittings
Pipe Wall Thickness (t)SizeCentre-to-end (mm)
Run aOutlet b
mm x mm x mmmm x mm x mmNomMaxMinNomMaxMin
2.52.02.5302530384036384036
2.52.52.5383038485046485046
2.52.02.5382538485046485046
2.52.52.544.53844.5575955575955
2.52.52.544.53044.5575955575955
2.52.02.544.52544.5575955575955
2.52.52.55744.557646662606258
2.52.52.5573857646662575955
2.52.52.5573057646662515349
2.52.52.576.15776.1767874707268
2.52.52.576.144.576.1767874676965
2.52.52.576.13876.1767874646662
2.52.52.588.976.188.9868884838581
2.52.52.588.95788.9868884767874
2.52.52.588.944.588.9868884737571
3.02.53.010888.91081051071039810096
3.02.53.010876.1108105107103959793
3.02.53.010857108105107103899187
3.03.03.0159108159143145141130132128
3.02.53.015988.9159143145141124126122
3.02.53.015976.1159143145141121123119
4.03.04.0219.1159219.1178180176168170166
4.03.04.0219.1108219.1178180176156158154
4.02.54.0219.188.9219.1178180176152154150
4.54.04.5267219.1267216218214203205201
4.53.04.5267159267216218214194196192
4.53.04.5267108267216218214184186182
5.54.55.5323.9267323.9254257251241244238
5.54.05.5323.9219.1323.9254257251229232226
5.53.05.5323.9159323.9254257251219222216

Check our material dispatch in the following countries

Buy ASTM B467 Copper Nickel 70/30 Forged Tee and Copper Nickel Alloy 70/30 Socket Weld Equal Tee at factory rate directly from manufacturers

Rumaila Oil Field-UAE

Rumaila Oil Field-UAE

Fadhili Gas Plant, Jubail, Saudi Arabia

Fadhili Gas Plant, Jubail, Saudi Arabia

RasGas RL(3) Common Offplot Projects Ras Laffan, Qatar

RasGas RL(3) Common Offplot Projects Ras Laffan, Qatar

Sriracha Refinery Expansion-Thailand

Sriracha Refinery Expansion-Thailand

Weatherford - Cielo Abu Dhabi

Weatherford - Cielo Abu Dhabi

Adco Jebel Dhanna Crude Storage Tanks

Adco Jebel Dhanna Crude Storage Tanks
