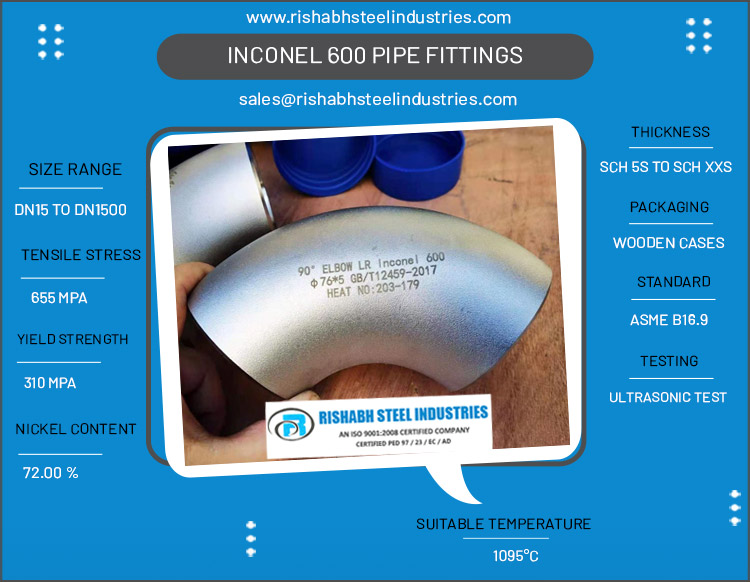

Inconel 600 is a standard nickel-chromium alloy grade of fittings that help in routing, branching and changing the direction of media. The Inconel 600 Pipe Fittings are utilized in applications where corrosion and reducing media are of the highest degree. The Alloy 600 Fittings work well in service temperatures in the range of 2000 degrees F. The non-magnetic grade has excellent resistance to alkaline solutions. Inconel Pipe Fittings connect piping grades of different specifications. These fittings have superior strength coupled with enhanced mechanical properties. Inco 600 Buttweld Fittings are one of the most common and strongest types of weld fittings in the industry. These fittings ensure an end-to-end metal sealing of the piping grade. Inconel Fittings play an influential role in characterizing the fluids and gaseous flow in the system. We are the Inconel 600 Fittings manufacturer in India who supply quality-assured products across all our outlets at the most reasonable prices. The versatile Inconel 600 Pipe Fittings / Inconel Pipe Fittings are produced using the best technology and top-notch raw materials by our esteemed staff.
A Nickel Alloy 600 Elbow is a robust piping grade that is utilized in changing the direction of the flow in the system. These elbows are available in 45 or 90 bends and can be produced in long or short radiuses. ASTM B366 UNS N06600 Short Radius Elbow is one of the less common types of the elbow that has a radius of curvature that is equal to the outer diameter of the pipe grade. The ASME SB 366 UNS N06600 Pipe Bend is similar to an elbow, but it possesses a larger radius of curvature than a standard elbow. These bends are easy to implement within different processing system as it is readily welded in place using standard processes. Inconel 2.4816 Cap helps terminate the flow in the system. These caps protect piping components against damage and corrosion during storage and movement. An Inconel 600 Buttweld Tee is a grade designed in the shape of a T. These tees have outlets at an angle of 90 degrees with one simple connection point. The Alloy 600 reducer is utilized in joining components of dissimilar sizes and shapes. They are available in concentric and eccentric types. Inconel Alloy 600 Stub End is a short piece of pipe that possess a flared end.
Here are many benefits if you buy from Inconel Fittings manufacturers, like high quality, best price and wide range of Inconel 600 Pipe Fittings
Specification | ASTM B366/ SB 366, ASME B564/ SB564 |
---|---|
Type | Fabricated/ Seamless/ Welded |
Grade | Inconel 601 (Alloy 601, UNS N06601, 2.4851), Inconel 600 (Alloy 600, UNS N06600, 2.4816), Inconel 718 (UNS N07718, Alloy 718, 2.4668) |
Bending Radius | R= 3D, 8D, 6D, 10D, 5D, 1D, 2D |
Dimensions | MSS-SP-43, ANSI/ASME B16.28, B16.9. |
Range | ½” upto 24″NB in Schedule 10s to XXS. |
More than 30 years experience as a ASME B16.9 Inconel Pipe Fittings manufacturer in India
Description | Price Per Kg In Singapore | Price Per Kg In UAE | Price Per Kg In USD | Price Per Kg In Malaysia |
---|---|---|---|---|
14 SCH.10 PIPE FITTINGS COUPLINGS, ELBOW, SLEEVES ELBOW 90DEG, INCONEL 600 | SGD 3,442.32 | UAE Dirham 8,988.28 | US $2,486.12 | MYR 10,900.68 |
3/4 NB X 150# NICKEL ALLOY FITTINGS- ASTM B366 UNS NO660 ANNEALED INCONEL 600 FITTINGS | SGD 52.52 | UAE Dirham 137.15 | US $37.93 | MYR 166.33 |
2 x 1.5 PIPE FITTINGS - REDUCER - ECCENTRIC, BUTTWELD, INCONEL 600 PER ASTM B366 | SGD 139.09 | UAE Dirham 363.17 | US $100.45 | MYR 440.44 |
6 NB x SCH 40S INCONEL 600 WELDED LR ELBOW 90 DEG TO ASTM B 366 GR. WPNCI-WX UNS NO. 6600 BW | SGD 1,176.05 | UAE Dirham 3,070.79 | US $849.37 | MYR 3,724.15 |
3/4 X SCH 40 INCONEL 90 DEG ELBOW FITTINGS | SGD 7.09 | UAE Dirham 18.52 | US $5.12 | MYR 22.46 |
1/2 X SCH 40 INCONEL EQUAL TEE FITTINGS | SGD 14.20 | UAE Dirham 37.08 | US $10.26 | MYR 44.97 |
DN 25X DN 25 X 3000# INCONEL 600 EQUAL TEE TO ASTM B 564 GR.UNS NO. 6600 DIMN B 16.11 SW | SGD 183.96 | UAE Dirham 480.34 | US $132.86 | MYR 582.54 |
ASTM B366 Inconel 600 Reducing Tee
Nickel Alloy 600 Return Bends
Inconel Pipe Fittings
Alloy 601 180 Degree Elbows
Inconel 600 Pipe Fittinga
Inco 600 90 Degree Elbows
Inconel Alloy 600 Eccentric Reducer
ASME SB 366 UNS N06600 Cross Tee
Nickel Alloy Inconel 600 45 Degree Elbows
Inconel UNS N06600 Lap Joint Stub Ends
ASTM B366 UNS N06600 Equal Tee
Alloy UNS N06600 Laterals
UNS N06600 Inconel 600 Reducer
Inconel 600 Stub End
ANSI B16.9 Inconel 718 Concentric Reducer

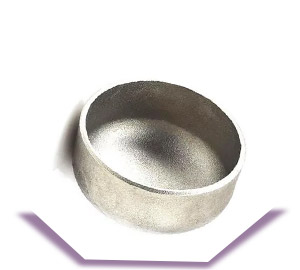

ASME B16.9 Inconel 601 End Cap
ANSI B16.9 Inconel 600 Cross Fitting
Inconel 718 Weld Elbows
In-house manufacturing facilities to produce Inconel 600 Fittings, manufacturer of Inconel 600 Pipe Manufacturers since 2001
Inconel UNS N06600 Hexagon Plugs
ASME SB564 Inconel Alloy Socket Weld Elbow
ASME SB564 Inconel Socket Weld Coupling
ASTM B366 Inconel 600 Socket Weld Caps
Nickel Alloy 600 Threaded Cross
Inconel 600 Threaded Union
Alloy 601 Socket Weld Tee
Inconel 2.4816 Threaded Elbow
Inco 600 Socket Weld Lateral Tee
Inconel Alloy 600 Hexagon Bushing
ASME SB 366 UNS N06600 Threaded Coupling
Nickel Alloy Inconel 600 Socket Weld Union
Inconel UNS N06600 Socket Weld Cross
ASTM B366 UNS N06600 Threaded Tee
Alloy UNS N06600 Threaded Caps
UNS N06600 Inconel 600 Square Plugs
Inconel 600 Threaded Bends
ANSI B16.9 Inconel 718 Threaded Outlets
ASME B16.9 Inconel 601 Swept Outlets
ANSI B16.9 Inconel 600 Nipple Outlets
Inconel 718 Elbow Outlets
Inconel UNS N06600 Lateral Outlets
ASME SB564 Inconel Alloy Welding Outlets
ASME SB564 Inconel Socket Weld Outlets
PIPE NOMINAL SIZE | OUTSIDE DIAM. | 90° ELBOW | 45° ELBOW | 180° RETURNS | ||||
---|---|---|---|---|---|---|---|---|
(inches) | Short Radius | Long Radius | Long Radius | Long Radius | ||||
(mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Face (inches) | Back to face (inches) | Center to Center (inches) | |
3/4 | 26.7 | 1.050 | – | 1 1/8 | 7/16 | 1 11/16 | 2 1/4 | |
1/2 | 21.3 | 0.840 | – | 1 1/2 | 5/8 | 1 7/8 | 2 | |
1 | 33.4 | 1.315 | 1 | 1 1/2 | 7/8 | 2 3/16 | 3 | |
1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 3 | 1 1/8 | 3 1/4 | 4 1/2 |
1 1/4 | 42.2 | 1.660 | 1 1/4 | 1 7/8 | 1 | 2 3/4 | 3 3/4 | |
2 | 60.3 | 2.375 | 2 | 3 | 4 | 1 3/8 | 4 3/16 | 6 |
3 | 88.9 | 3.500 | 3 | 4 1/2 | 6 | 2 | 6 1/4 | 9 |
2 1/2 | 73.0 | 2.875 | 2 1/2 | 3 3/4 | 5 | 1 3/4 | 5 3/16 | 7 1/2 |
3 1/2 | 101.6 | 4.000 | 3 1/2 | 5 1/4 | 7 | 2 1/4 | 7 1/4 | 10 1/2 |
5 | 141.3 | 5.563 | 5 | 7 1/2 | 10 | 3 1/8 | 10 5/16 | 15 |
4 | 114.3 | 4.500 | 4 | 6 | 8 | 2 1/2 | 8 1/4 | 12 |
6 | 168.3 | 6.625 | 6 | 9 | 12 | 3 3/4 | 12 5/16 | 18 |
10 | 273.1 | 10.750 | 10 | 15 | 15 | 6 1/4 | 20 3/8 | 30 |
8 | 219.1 | 8.625 | 8 | 12 | 12 | 5 | 16 5/16 | 24 |
12 | 323.9 | 12.750 | 12 | 18 | 18 | 7 1/2 | 24 3/8 | 36 |
Clear Assem. Nut | Nut | Nom. Pipe Size | Wall | Length Assem. Nom. | Water Way Bore | Pipe End | Male Flange | Threads Per 25.4mm | Bearing |
---|---|---|---|---|---|---|---|---|---|
N | Min. G | Min. C | L | D | Min. A | Min. F | Max. H | Min. J | |
50.8 | 3.18 | 1/8” | 2.41 | 41.4 | 8.43 6.43 | 14.7 | 3.18 | 16 | 1.24 |
50.8 | 3.18 | 1/4” | 3.02 | 41.4 | 11.13 9.45 | 19.0 | 3.18 | 16 | 1.24 |
55.9 | 3.43 | 3/8” | 3.20 | 46.0 | 14.27 13.51 | 22.9 | 3.43 | 14 | 1.37 |
58.4 | 3.68 | 1/2” | 3.73 | 49.0 | 17.86 17.07 | 27.7 | 3.68 | 14 | 1.50 |
66.0 | 4.06 | 3/4” | 3.91 | 56.9 | 23.01 21.39 | 33.5 | 4.06 | 11 | 1.68 |
78.7 | 4.45 | 1” | 4.55 | 62.0 | 28.98 27.74 | 41.4 | 4.57 | 11 | 1.85 |
94.0 | 5.21 | 1-1/4” | 4.85 | 71.1 | 37.69 35.36 | 50.5 | 5.33 | 11 | 2.13 |
111.8 | 5.59 | 1-1/2” | 5.08 | 76.5 | 43.54 41.20 | 57.2 | 5.84 | 10 | 2.31 |
132.1 | 6.35 | 2” | 5.54 | 86.1 | 55.58 52.12 | 70.1 | 6.60 | 10 | 2.69 |
149.9 | 7.11 | 2-1/2” | 7.01 | 102.4 | 66.27 64.31 | 85.3 | 7.49 | 8 | 3.07 |
175.3 | 8.00 | 3” | 7.62 | 109.0 | 88.25 77.27 | 102.4 | 8.26 | 8 | 3.53 |
We are a specialist supplier & distributor of Inconel 600 Pipe Suppliers and Inconel 601 Tube Fittings
Nominal size | OD | Elbows | Reducer | Caps | Returns | Stubs Ends | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Short | Long | Long | Short | Long | Short | Radius of fillet | Diam. of Lap | ||||||||
90 deg | 90 deg | 45 deg | |||||||||||||
DN | NPS | D | A | A | B | H | E | O | K | O | K | F | F | R | G |
20 | ¾ | 26.7 | 38 | 19 | 38 | 25 | 76 | 51 | 76 | 51 | 3 | 43 | |||
32 | 11/4 | 42.2 | 32 | 48 | 25 | 51 | 38 | 95 | 70 | 64 | 52 | 102 | 51 | 5 | 64 |
40 | 11/2 | 48.3 | 38 | 57 | 29 | 64 | 38 | 114 | 83 | 76 | 62 | 102 | 51 | 6 | 73 |
50 | 2 | 60.3 | 51 | 76 | 35 | 76 | 38 | 152 | 106 | 102 | 81 | 152 | 64 | 8 | 92 |
65 | 21/2 | 73.0 | 64 | 95 | 44 | 89 | 38 | 190 | 132 | 127 | 100 | 152 | 64 | 8 | 106 |
80 | 3 | 88.9 | 76 | 114 | 51 | 89 | 51 | 229 | 159 | 152 | 121 | 152 | 64 | 10 | 127 |
90 | 31/2 | 101.6 | 89 | 133 | 57 | 102 | 64 | 267 | 184 | 178 | 140 | 152 | 76 | 10 | 140 |
15 | ½ | 21.3 | 38 | 16 | 25 | 76 | 48 | 76 | 51 | 3 | 35 | ||||
100 | 4 | 114.3 | 102 | 152 | 64 | 102 | 64 | 305 | 210 | 203 | 159 | 152 | 76 | 11 | 157 |
200 | 8 | 219.1 | 203 | 305 | 127 | 152 | 102 | 610 | 414 | 406 | 313 | 203 | 102 | 13 | 270 |
250 | 10 | 273.0 | 254 | 381 | 159 | 178 | 127 | 762 | 518 | 508 | 391 | 254 | 127 | 13 | 324 |
300 | 12 | 323.8 | 305 | 457 | 190 | 203 | 152 | 914 | 619 | 610 | 467 | 254 | 152 | 13 | 381 |
350 | 14 | 355.6 | 356 | 533 | 222 | 330 | 165 | 1067 | 711 | 711 | 533 | 305 | 152 | 13 | 413 |
125 | 5 | 141.3 | 127 | 190 | 79 | 127 | 76 | 381 | 262 | 254 | 197 | 203 | 76 | 11 | 185 |
400 | 16 | 406.4 | 406 | 610 | 254 | 356 | 178 | 1219 | 813 | 813 | 610 | 305 | 152 | 13 | 470 |
25 | 1 | 33.4 | 25 | 38 | 22 | 51 | 38 | 76 | 56 | 51 | 41 | 102 | 51 | 3 | 51 |
450 | 18 | 457 | 457 | 686 | 286 | 381 | 203 | 1372 | 914 | 914 | 686 | 305 | 152 | 13 | 533 |
500 | 20 | 508 | 508 | 762 | 318 | 508 | 229 | 1524 | 1016 | 1016 | 762 | 305 | 152 | 13 | 584 |
1050 | 42 | 1067 | 1600 | 660 | 610 | 305 | |||||||||
550 | 22 | 559 | 559 | 838 | 343 | 508 | 254 | 1676 | 1118 | 1118 | 838 | 305 | 152 | 13 | 641 |
150 | 6 | 168.3 | 152 | 229 | 95 | 140 | 89 | 457 | 313 | 305 | 237 | 203 | 89 | 13 | 218 |
600 | 24 | 610 | 610 | 914 | 381 | 508 | 267 | 1829 | 1219 | 1219 | 914 | 305 | 152 | 13 | 692 |
650 | 26 | 660 | 991 | 405 | 610 | 267 | |||||||||
700 | 28 | 711 | 1067 | 438 | 610 | 267 | |||||||||
750 | 30 | 762 | 1143 | 470 | 610 | 267 | |||||||||
1100 | 44 | 1118 | 1676 | 695 | 610 | 343 | |||||||||
800 | 32 | 813 | 1219 | 502 | 610 | 267 | |||||||||
850 | 34 | 864 | 1295 | 533 | 610 | 267 | |||||||||
900 | 36 | 914 | 1372 | 565 | 610 | 267 | |||||||||
950 | 38 | 965 | 1448 | 600 | 610 | 305 | |||||||||
1200 | 48 | 1219 | 1829 | 759 | 711 | 343 | |||||||||
1000 | 40 | 1016 | 1524 | 632 | 610 | 305 | |||||||||
1150 | 46 | 1168 | 1753 | 727 | 711 | 343 |
DN | Schedule 10S | Schedule 40S | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
45° Elbow | 90° Elbow | Equal tee | Stub end type (B) | End cap | 45° Elbow | 90° Elbow | Equal tee | End cap | Stub end type (B) | |
15 | 0.03 | 0.06 | 0.09 | 0.07 | 0.03 | 0.04 | 0.08 | 0.10 | 0.04 | 0.08 |
20 | 0.03 | 0.07 | 0.13 | 0.09 | 0.05 | 0.04 | 0.08 | 0.17 | 0.07 | 0.11 |
25 | 0.08 | 0.14 | 0.28 | 0.16 | 0.08 | 0.11 | 0.15 | 0.29 | 0.10 | 0.17 |
32 | 0.11 | 0.23 | 0.49 | 0.22 | 0.10 | 0.17 | 0.26 | 0.59 | 0.18 | 0.25 |
40 | 0.17 | 0.30 | 0.68 | 0.25 | 0.11 | 0.23 | 0.40 | 0.86 | 0.20 | 0.31 |
50 | 0.25 | 0.50 | 0.85 | 0.43 | 0.13 | 0.40 | 0.70 | 1.28 | 0.23 | 0.61 |
65 | 0.48 | 0.85 | 1.41 | 0.57 | 0.19 | 0.77 | 1.40 | 2.19 | 0.27 | 0.80 |
80 | 0.63 | 1.25 | 1.77 | 0.72 | 0.25 | 1.08 | 2.20 | 3.31 | 0.42 | 1.13 |
100 | 1.08 | 2.10 | 3.46 | 1.09 | 0.68 | 1.47 | 4.47 | 5.27 | 1.14 | 1.87 |
125 | 1.82 | 3.65 | 5.44 | 1.47 | 1.11 | 2.84 | 6.80 | 9.63 | 2.13 | 2.79 |
150 | 2.72 | 5.45 | 8.03 | 2.15 | 1.42 | 5.44 | 10.89 | 10.99 | 3.23 | 3.57 |
200 | 5.33 | 10.20 | 15.65 | 3.22 | 2.38 | 10.77 | 21.54 | 20.91 | 5.19 | 6.07 |
250 | 9.75 | 18.15 | 26.76 | 5.13 | 4.45 | 19.27 | 38.56 | 35.38 | 9.00 | 10.07 |
300 | 13.62 | 25.80 | 39.46 | 8.16 | 7.50 | 29.71 | 59.42 | 62.14 | 15.00 | 14.29 |
350 | 18.37 | 36.29 | 48.53 | 10.88 | 8.17 | 35.15 | 79.38 | 79.31 | 16.00 | 17.14 |
400 | 23.81 | 47.63 | 58.97 | 12.70 | 10.67 | 45.81 | 99.79 | 99.79 | 21.00 | 20.41 |
450 | 29.94 | 59.87 | 79.65 | 17.23 | 13.00 | 59.40 | 129.73 | 129.73 | 26.00 | 27.21 |
500 | 49.90 | 99.80 | 103.42 | 21.77 | 17.00 | 74.84 | 162.38 | 162.39 | 34.00 | 29.94 |
600 | 70.31 | 140.61 | 155.58 | 27.21 | 26.00 | 105.23 | 225.89 | 225.90 | 52.00 | 38.55 |
Length (Min.) A | Hex. Head Plug & Bushing | DN | Square Head Plug | Nom. Pipe Size | Round Head Plug | ||||
---|---|---|---|---|---|---|---|---|---|
Width Flat (Nom.) F | Hex. Height (Min.) | Width Flat (Min.) C | Height of Square (Min.) B | Nominal Diam. of Head (Nom) E | Length (Min.) D | ||||
Plug H | Bushing G | ||||||||
10 | 6 | 6 | 7 | 6 | 1/8” | 10 | 35 | ||
11 | 16 | 6 | 3 | 8 | 10 | 6 | 1/4” | 14 | 41 |
13 | 18 | 8 | 4 | 10 | 11 | 8 | 3/8” | 18 | 41 |
14 | 22 | 8 | 5 | 15 | 14 | 10 | 1/2” | 21 | 44 |
16 | 27 | 10 | 6 | 20 | 16 | 11 | 3/4” | 27 | 44 |
19 | 36 | 10 | 6 | 25 | 21 | 13 | 1” | 33 | 51 |
21 | 46 | 14 | 7 | 32 | 24 | 14 | 1-1/4” | 43 | 51 |
21 | 50 | 16 | 8 | 40 | 28 | 16 | 1-1/2” | 48 | 51 |
22 | 65 | 18 | 9 | 50 | 32 | 18 | 2” | 60 | 64 |
27 | 75 | 19 | 10 | 65 | 36 | 19 | 2-1/2” | 73 | 70 |
28 | 90 | 21 | 10 | 80 | 41 | 21 | 3” | 89 | 70 |
32 | 115 | 25 | 13 | 100 | 65 | 25 | 4” | 114 | 76 |
C (Min) | Nom. Pipe Size | D | B (Min) | J (Min) | DN | F | ||||
---|---|---|---|---|---|---|---|---|---|---|
3000lb | 6000lb | 3000lb | 6000lb | 3000lb | 6000lb | 3000lb | 6000lb | |||
3.2 | 1/8” | 6.8 | 10.7 | 10.0 | 6 | 28.0 | ||||
3.3 | 1/4” | 9.2 | 14.1 | 10.0 | 8 | 32.0 | ||||
3.5 | 3/8” | 12.5 | 17.6 | 11.0 | 10 | 34.0 | ||||
4.1 | 5.2 | 1/2” | 15.5 | 11.8 | 21.8 | 13.0 | 13.0 | 15 | 38.0 | 38.0 |
4.3 | 6.1 | 3/4” | 21.0 | 15.5 | 27.4 | 13.0 | 13.0 | 20 | 38.0 | 38.0 |
5.0 | 7.0 | 1” | 26.6 | 20.7 | 34.1 | 16.0 | 16.0 | 25 | 35.0 | 35.0 |
5.6 | 7.8 | 1-1/2” | 40.5 | 34.0 | 49.0 | 19.0 | 19.0 | 40 | 32.0 | 32.0 |
6.1 | 9.5 | 2” | 52.0 | 43.0 | 61.0 | 22.0 | 22.0 | 50 | 29.0 | 29.0 |
7.7 | 10.4 | 2-1/2” | 62.0 | 54.0 | 73.8 | 22.0 | 22.0 | 65 | 29.0 | 29.0 |
8.3 | 12.2 | 3” | 78.0 | 66.0 | 89.7 | 22.0 | 22.0 | 80 | 29.0 | 29.0 |
Grade | Fe | Cu | Cr | Mn | S | Si | C | Ni |
---|---|---|---|---|---|---|---|---|
Inconel 601 | Balance | 1.0 max | 21.0 – 25.0 | 1.0 max | 0.015 max | 0.5 max | 0.10 max | 58.0 – 63.0 |
Inconel 600 | 6.00 – 10.00 | 0.50 max | 14.00 – 17.00 | 1.00 max | 0.015max | 0.50 max | 0.15 max | 72.00 min |
Inconel 718 | - | 0.30 max | 17.00 - 21.00 | 0.35 max | 0.015 max | 0.35 max | 0.08 max | 50.00 - 55.00 |
Inco 600 Socket Weld Pipe Fittings
ASTM B366 UNS N06600 Pipe Fittings
Why don't you directly contact a Alloy 600 Fittings manufacturer in India? We offer an extensive range of ASTM B366 Inconel 600 Fittings in Mumbai, free sample before dispatch of complete order.
Element | Tensile Properties | Elongation % | Melting Point | Density | (0.2%Offset) Yield Properties |
---|---|---|---|---|---|
Inconel 600 | MPa – 655, Psi – 95,000 | 40 | (2580 °F)1413 °C | 8.47 g/cm3 | MPa – 310, Psi – 45,000 |
Inconel 601 | MPa – 550, Psi – 80,000 | 30 | (2571 °F)1411 °C | 8.1 g/cm3 | MPa – 205, Psi – 30,000 |
Inconel 718 | MPa – 930, Psi – 1,35,000 | 45 | (2460 °F)1350 °C | 8.2 g/cm3 | MPa – 482, Psi – 75,000 |
Center to End Elbow, Tee, Cross A | DN | Band O.D. H |
Center to End 45° Elbow C |
Minimum W.T. G |
Nom. Pipe Size | Thread Length Min. (1) | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | B | L2 | ||
21 | 21 | 25 | 6 | 22 | 22 | 25 | 17 | 17 | 19 | 3.18 | 3.18 | 6.35 | 1/8” | 6.4 | 6.7 |
21 | 25 | 28 | 8 | 22 | 25 | 33 | 17 | 19 | 22 | 3.18 | 3.30 | 6.60 | 1/4” | 8.1 | 10.2 |
25 | 28 | 33 | 10 | 25 | 33 | 38 | 19 | 22 | 25 | 3.18 | 3.51 | 6.98 | 3/8” | 9.1 | 10.4 |
28 | 33 | 38 | 15 | 33 | 38 | 46 | 22 | 25 | 28 | 3.18 | 4.09 | 8.15 | 1/2” | 10.9 | 13.6 |
33 | 38 | 44 | 20 | 38 | 46 | 56 | 25 | 28 | 33 | 3.18 | 4.32 | 8.53 | 3/4” | 12.7 | 13.9 |
38 | 44 | 51 | 25 | 46 | 56 | 62 | 28 | 33 | 35 | 3.68 | 4.98 | 9.93 | 1” | 14.7 | 17.3 |
44 | 51 | 60 | 32 | 56 | 62 | 75 | 33 | 35 | 43 | 3.89 | 5.28 | 10.59 | 1-1/4” | 17.0 | 18.0 |
51 | 60 | 64 | 40 | 62 | 75 | 84 | 35 | 43 | 44 | 4.01 | 5.56 | 11.07 | 1-1/2” | 17.8 | 18.4 |
60 | 64 | 83 | 50 | 75 | 84 | 102 | 43 | 44 | 52 | 4.27 | 7.14 | 12.09 | 2” | 19.0 | 19.2 |
76 | 83 | 95 | 65 | 92 | 102 | 121 | 52 | 52 | 64 | 5.61 | 7.65 | 15.29 | 2-1/2” | 23.6 | 28.9 |
86 | 95 | 106 | 80 | 109 | 121 | 146 | 64 | 64 | 79 | 5.99 | 8.84 | 16.64 | 3” | 25.9 | 30.5 |
106 | 114 | 114 | 100 | 146 | 152 | 152 | 79 | 79 | 79 | 6.55 | 11.18 | 18.67 | 4” | 27.7 | 33.0 |
Body Wall Thickness G | DN | Depth of Socket Min. J |
Center to Bottom of Socket-A | Socket Bore Dia. B | Bore Dia. Of Fitting D | Nom. Pipe Size | Socket Wall Thickness (2) C | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Class Designation | 90° Elbows Tees, Crosses | 45° Elbows | Class Designation | ||||||||||||||||||
6000 | 3000 | 9000 | Class Designation | Class Designation | Class Designation | 3000 | 6000 | 9000 | |||||||||||||
Min. | Min. | Min. | 6000 | 3000 | 9000 | 9000 | 3000 | 6000 | 3000 | 9000 | 6000 | Min | Ave. | Min | Ave. | Ave. | Min | ||||
3.15 | 2.41 | 6 | 9.5 | 11.0 | 11.0 | 8.0 | 8.0 | 10.8 | 6.9 | 4.0 | 1/8” | 3.18 | 3.18 | 3.43 | 3.96 | ||||||
3.68 | 3.02 | 8 | 9.5 | 13.5 | 11.0 | 8.0 | 8.0 | 14.2 | 9.3 | 6.4 | 1/4” | 3.30 | 3.78 | 4.01 | 4.60 | ||||||
4.01 | 3.20 | 10 | 9.5 | 15.5 | 13.5 | 8.0 | 11.0 | 17.6 | 12.6 | 9.2 | 3/8” | 3.50 | 4.01 | 4.37 | 5.03 | ||||||
4.78 | 3.73 | 7.47 | 15 | 9.5 | 19.0 | 15.5 | 25.5 | 15.5 | 11.0 | 12.5 | 21.8 | 15.8 | 6.4 | 11.8 | 1/2” | 4.09 | 4.67 | 5.18 | 5.97 | 9.35 | 8.18 |
5.56 | 3.91 | 7.82 | 20 | 12.5 | 22.5 | 19.0 | 28.5 | 19.0 | 13.0 | 14.0 | 27.2 | 21.0 | 11.1 | 15.6 | 3/4” | 4.27 | 4.90 | 6.04 | 6.96 | 9.78 | 8.56 |
6.35 | 4.55 | 9.09 | 25 | 12.5 | 27.0 | 22.5 | 32.0 | 20.5 | 14.0 | 17.5 | 33.9 | 26.7 | 15.2 | 20.7 | 1” | 4.98 | 5.69 | 6.93 | 7.92 | 11.38 | 9.96 |
6.35 | 4.85 | 9.70 | 32 | 12.5 | 32.0 | 27.0 | 35.0 | 22.5 | 17.5 | 20.5 | 42.7 | 35.1 | 22.8 | 29.5 | 1-1/4” | 5.28 | 6.07 | 6.93 | 7.92 | 12.14 | 10.62 |
7.14 | 5.08 | 10.15 | 40 | 12.5 | 38.0 | 32.0 | 38.0 | 25.5 | 20.5 | 25.5 | 48.8 | 40.9 | 28.0 | 34.0 | 1-1/2” | 5.54 | 6.35 | 7.80 | 8.92 | 12.70 | 11.12 |
8.74 | 5.54 | 11.07 | 50 | 16.0 | 41.0 | 38.0 | 54.0 | 28.5 | 25.5 | 28.5 | 61.2 | 52.5 | 38.2 | 42.9 | 2” | 6.04 | 6.93 | 9.50 | 10.92 | 13.84 | 12.12 |
7.01 | 65 | 16.0 | 41.0 | 28.5 | 73.9 | 62.7 | 2-1/2” | 7.67 | 8.76 | ||||||||||||
7.62 | 80 | 16.0 | 57.0 | 32.0 | 89.8 | 78.0 | 3” | 8.30 | 9.52 | ||||||||||||
8.56 | 100 | 19.0 | 66.5 | 41.0 | 115.2 | 102.3 | 4” | 9.35 | 10.69 |
STANDARD | GOST | EN | JIS | WERKSTOFF NR. | BS | AFNOR | UNS |
---|---|---|---|---|---|---|---|
Inconel 601 | XH60BT | NiCr23Fe | NCF 601 | 2.4851 | NA 49 | NC23FeA | N06601 |
Inconel 600 | МНЖМц 28-2,5-1,5 | NiCr15Fe | NCF 600 | 2.4816 | NA 13 | NC15FE11M | N06600 |
Inconel 718 | - | - | - | 2.4668 | - | - | N07718 |
Buy Alloy 601 Pipe Fittings and ASTM B366 UNS N06601 Fittings at wholesale rate directly from manufacturers in India
G2 (1) (Min) |
H | L2 (2) (Min) |
A | DN | J | B (2) (Min) |
Nom. Pipe Size |
G1 (Min.) |
L (Min) | |||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3000 | 6000 | 6000 | 3000 | 3000 | 6000 | 6000 | 3000 | 6000 | 3000 | |||||
2.74 | 4.22 | 25 | 19 | 6.7 | 19 | 22 | 6 | 32 | 25 | 6.4 | 1/8” | 5.08 | 3.18 | 10.0 |
3.22 | 5.28 | 32 | 25 | 10.2 | 22 | 25 | 8 | 38 | 32 | 8.1 | 1/4” | 5.66 | 3.30 | 11.0 |
3.50 | 5.59 | 38 | 32 | 10.4 | 25 | 28 | 10 | 41 | 38 | 9.1 | 3/8” | 6.98 | 3.50 | 13.0 |
4.16 | 6.53 | 44 | 38 | 13.6 | 28 | 35 | 15 | 48 | 41 | 10.9 | 1/2 | 8.15 | 4.09 | 14.0 |
4.88 | 6.86 | 51 | 44 | 13.9 | 35 | 44 | 20 | 57 | 48 | 12.7 | 3/4 | 8.53 | 4.32 | 16.0 |
5.56 | 7.95 | 62 | 51 | 17.3 | 44 | 51 | 25 | 66 | 57 | 14.7 | 1 | 9.93 | 4.98 | 19.0 |
5.56 | 8.48 | 70 | 62 | 18.0 | 51 | 54 | 32 | 71 | 66 | 17.0 | 1-1/4 | 10.59 | 5.28 | 21.0 |
6.25 | 8.89 | 84 | 70 | 18.4 | 54 | 64 | 40 | 84 | 71 | 17.8 | 1-1/2 | 11.07 | 5.56 | 21.0 |
7.64 | 9.70 | 102 | 84 | 19.0 | 64 | 83 | 50 | 105 | 84 | 19.0 | 2 | 12.09 | 7.14 | 22.0 |
Weight | Nominal pipe size | Schedule | Dimensions in mm | ||
---|---|---|---|---|---|
kg/pce | in.0 | t | D | C/M | |
0.0092 0.0115 0.0200 0.0300 |
3/4 | 10s 40s 80s 160 |
2.011 2.087 3.091 5.056 |
26.07 26.07 26.07 26.07 |
28.06 28.06 28.06 28.06 |
0.0065 0.0085 0.0140 0.0150 |
1/2 | 10s 40s 80s 160 |
2.011 2.077 3.073 4.078 |
21.03 21.03 21.03 21.03 |
25.04 25.04 25.04 25.04 |
0.0200 0.0245 0.0390 0.0470 |
1 | 10s 40s 80s 160 |
2.077 3.038 4.055 6.035 |
33.04 33.04 33.04 33.04 |
38.01 38.01 38.01 38.01 |
0.0460 0.0595 1.0020 1.0430 |
1½ | 10s 40s 80s 160 |
2.077 3.068 5.008 7.014 |
48.03 48.03 48.03 48.03 |
57.02 57.02 57.02 57.02 |
0.0330 0.0420 0.0548 0.0890 |
1¼ | 10s 40s 80s 160 |
2.077 3.056 4.085 6.035 |
42.02 42.02 42.02 42.02 |
47.06 47.06 47.06 47.06 |
0.0630 0.0872 1.0590 3.0180 |
2 | 10s 40s 80s 160 |
2.077 3.091 5.054 8.074 |
60.03 60.03 60.03 60.03 |
63.05 63.05 63.05 63.05 |
76.0660 | 18 | 10s | 4.078 | 457.02 | 342.09 |
1.0370 1.0900 4.0450 5.0870 |
3 | 10s 40s 80s 160 |
3.005 5.049 7.062 11.013 |
88.09 88.09 88.09 88.09 |
85.07 85.07 85.07 85.07 |
155.0580 | 24 | 10s | 6.035 | 609.06 | 431.08 |
1.0100 1.0700 3.0630 |
2½ | 10s 40s 160 |
3.005 5.016 9.052 |
73.00 73.00 73.00 |
76.02 76.02 76.02 |
1.0740 3.0190 |
3½ | 10s 40s |
3.005 5.074 |
101.06 101.06 |
95.03 95.03 |
3.0480 6.0550 11.0340 |
5 | 10s 40s 80s |
3.040 6.055 9.053 |
141.03 141.03 141.03 |
123.08 123.08 123.08 |
2.0150 4.0130 7.0710 9.0760 |
4 | 10s 40s 80s 160 |
3.005 6.002 8.056 13.049 |
114.03 114.03 114.03 114.03 |
104.08 104.08 104.08 104.08 |
4.0760 9.0730 13.0610 |
6 | 10s 40s 80s |
3.040 7.011 10.092 |
168.03 168.03 168.03 |
142.09 142.09 142.09 |
14.0200 30.0800 |
10 | 10s 40s |
4.019 9.027 |
273.01 273.01 |
215.09 215.09 |
8.0460 18.0000 |
8 | 10s 40s |
3.076 8.018 |
219.01 219.01 |
177.08 177.08 |
21.0600 44.0300 |
12 | 10s 40s |
4.057 9.053 |
323.09 323.09 |
254.00 254.00 |
58.0970 99.0790 |
16 | 10s STD |
4.078 9.053 |
406.04 406.04 |
304.08 304.08 |
48.0530 79.0380 |
14 | 10s STD |
4.078 9.053 |
355.06 355.06 |
279.04 279.04 |
103.0420 | 20 | 10s | 5.054 | 508.00 | 381.00 |
Out-Let Pipe NPS | Reducing Way | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
C | D | F | J (Min) |
E (Min) |
||||||
6000 | 3000 | 3000 | 6000 | 6000 | 3000 | 3000 | 6000 | 6000 | 3000 | |
1/8” | 13.7 | 10.8 | 22.0 | 9.7 | 10.4 | |||||
1/4” | 13.7 | 14.2 | 22.0 | 9.7 | 10.4 | |||||
3/8” | 19.1 | 17.6 | 25.9 | 9.7 | 12.7 | |||||
1/2” | 16.6 | 21.3 | 21.8 | 21.8 | 38.0 | 31.4 | 9.7 | 9.7 | 23.9 | 16.0 |
3/4” | 21.2 | 26.7 | 27.2 | 27.2 | 44.0 | 37.1 | 12.7 | 12.7 | 25.4 | 16.0 |
1” | 27.0 | 33.4 | 33.9 | 33.9 | 57.0 | 45.5 | 12.7 | 12.7 | 28.7 | 22.4 |
1-1/4” | 35.8 | 42.2 | 42.7 | 42.7 | 64.0 | 57.0 | 12.7 | 12.7 | 30.2 | 22.4 |
1-1/2” | 41.2 | 48.3 | 48.8 | 48.8 | 76.0 | 64.0 | 12.7 | 12.7 | 31.8 | 23.9 |
2” | 51.6 | 60.3 | 61.2 | 61.2 | 92.0 | 76.0 | 15.8 | 15.8 | 36.6 | 23.9 |
2-1/2” | 73.2 | 73.9 | 92.0 | 15.8 | 25.4 | |||||
3” | 88.9 | 89.8 | 109.2 | 15.8 | 30.2 | |||||
4” | 114.3 | 115.2 | 140.0 | 19.1 | 30.2 |
Out-Let Pipe NPS | Straight Way | ||||
---|---|---|---|---|---|
C | D | F | J (Min) |
E (Min) |
|
3000 | |||||
1/4” | 11.5 | 14.2 | 22.0 | 9.7 | 10.4 |
1/8” | |||||
3/8” | 14.5 | 17.6 | 25.9 | 9.7 | 12.7 |
3/4” | 21.5 | 27.2 | 37.1 | 12.7 | 16.0 |
1/2” | 16.5 | 21.8 | 31.4 | 9.7 | 16.0 |
1” | 27.2 | 33.9 | 45.5 | 12.7 | 22.4 |
1-1/2” | 42.0 | 48.8 | 64.0 | 12.7 | 23.9 |
1-1/4” | 36.0 | 42.7 | 57.0 | 12.7 | 22.4 |
2” | 53.0 | 61.2 | 76.0 | 15.8 | 23.9 |
3” | 80.0 | 89.8 | 109.2 | 15.8 | 30.2 |
2-1/2” | 65.0 | 73.9 | 92.0 | 15.8 | 25.4 |
4” | 104.0 | 115.2 | 140.0 | 19.1 | 30.2 |
Why pay extra? Buying from Inconel 718 Forged Fittings manufacturers saves your cost, wide selection of Inconel Forged Fittings and aaaaaaa in India
O.D. (mm) | Nominal Pipe Size | W.T. (mm) | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
Sch 5S | Sch 10S | Sch 40S | Sch 80S | |||||||
NPS | DN | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | Weight (kg/m) | WT (mm) | |
10.3 | ⅛ | 6 | 0.28 | 1.24 | 0.37 | 1.73 | 0.47 | 2.41 | ||
13.7 | ¼ | 8 | 0.49 | 1.65 | 0.63 | 2.24 | 0.80 | 3.02 | ||
17.1 | ⅜ | 10 | 0.63 | 1.65 | 0.84 | 2.31 | 1.10 | 3.20 | ||
21.3 | ½ | 15 | 0.80 | 1.65 | 1.00 | 2.11 | 1.27 | 2.77 | 1.62 | 3.73 |
26.7 | ¾ | 20 | 1.02 | 1.65 | 1.28 | 2.11 | 1.69 | 2.87 | 2.20 | 3.91 |
33.4 | 1 | 25 | 1.29 | 1.65 | 2.09 | 2.77 | 2.50 | 3.38 | 3.24 | 4.55 |
42.2 | 1¼ | 32 | 1.65 | 1.65 | 2.69 | 2.77 | 3.39 | 3.56 | 4.47 | 4.85 |
48.3 | 1½ | 40 | 1.90 | 1.65 | 3.11 | 2.77 | 4.05 | 3.68 | 5.41 | 5.08 |
60.3 | 2 | 50 | 2.39 | 1.65 | 3.93 | 2.77 | 5.44 | 3.91 | 7.48 | 5.54 |
73.0 | 2½ | 65 | 3.69 | 2.11 | 5.26 | 3.05 | 8.63 | 5.16 | 11.41 | 7.01 |
88.9 | 3 | 80 | 4.52 | 2.11 | 6.46 | 3.05 | 11.29 | 5.49 | 15.27 | 7.62 |
101.6 | 3½ | 90 | 5.18 | 2.11 | 7.41 | 3.05 | 13.57 | 5.74 | 18.64 | 8.08 |
114.3 | 4 | 100 | 5.84 | 2.11 | 8.37 | 3.05 | 16.08 | 6.02 | 22.32 | 8.56 |
141.3 | 5 | 125 | 9.46 | 2.77 | 11.56 | 3.40 | 21.77 | 6.55 | 30.97 | 9.53 |
168.3 | 6 | 150 | 11.31 | 2.77 | 13.83 | 3.40 | 28.26 | 7.11 | 42.56 | 10.97 |
219.1 | 8 | 200 | 14.78 | 2.77 | 19.97 | 3.76 | 42.55 | 8.18 | 64.64 | 12.70 |
273.1 | 10 | 250 | 22.61 | 3.40 | 27.79 | 4.19 | 60.31 | 9.27 | 81.56 | 12.70 |
323.9 | 12 | 300 | 31.25 | 3.96 | 35.99 | 4.57 | 73.88 | 9.53 | 97.47 | 12.70 |
355.6 | 14 | 350 | 34.34 | 3.96 | 41.36 | 4.78 | 81.33 | 9.53 | 107.40 | 12.70 |
406.4 | 16 | 400 | 41.56 | 4.19 | 47.34 | 4.78 | 93.27 | 9.53 | 123.31 | 12.70 |
457 | 18 | 450 | 46.79 | 4.19 | 53.31 | 4.78 | 105.17 | 9.53 | 139.16 | 12.70 |
508 | 20 | 500 | 59.32 | 4.78 | 68.65 | 5.54 | 117.15 | 9.53 | 155.13 | 12.70 |
559 | 22 | 550 | 65.33 | 4.78 | 75.62 | 5.54 | ||||
610 | 24 | 600 | 82.58 | 5.54 | 94.53 | 6.35 | 141.12 | 9.53 | 187.07 | 12.70 |
660 | 26 | 650 | ||||||||
711 | 28 | 700 | ||||||||
762 | 30 | 750 | 118.34 | 6.35 | 147.29 | 7.92 |
Temperature Ratings | Pressure Class | ||||
---|---|---|---|---|---|
150 | 300 | ||||
1 1/4 - 2 Inches | 1/4 - 1 Inches | 2 1/2 - 3 Inches | |||
(oC) | (oF) | ||||
-29 to 66 | -20 to 150 | 300 | 1500 | 2000 | 1000 |
93 | 200 | 265 | 1350 | 1785 | 910 |
121 | 250 | 225 | 1200 | 1575 | 825 |
149 | 300 | 185 | 1050 | 1360 | 735 |
177 | 350 | 150 | 900 | 1150 | 650 |
204 | 400 | - | 750 | 935 | 560 |
232 | 450 | - | 600 | 725 | 475 |
260 | 500 | - | 450 | 510 | 385 |
288 | 550 | - | 300 | 300 | 300 |
20 years of Experience as a supplier of these materials in below mentioned locations
HABSHAN 5 IGD (GAS PROCESSING PLANT)-United Arab Emirates
Bass Strait Additional Oil Drilling Facilities Bass Strait, Australia
Driftwood Lng (Calcasieu Parish Lng Liquefaction Plant)-USA
Kuwait National Petroleum Company (KNPC)-Kuwait
ADMA-OPCO - Umm Shaif Gas Injection Facilities (USGIF) Abu Dhabi
Hormoz New Oil Refinery- Iran
