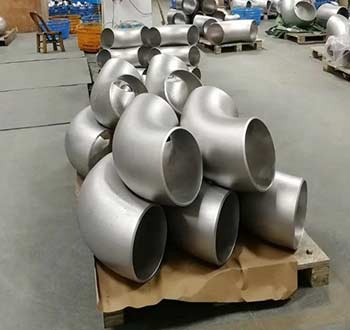

Fittings are piping devices that are used to influence the flow of media in different pipelines. Abuttweld fitting is a common type of fitting in the industry that is produced with different specifications. The Stainless Steel Buttweld Fittings are the most sought-after fittings in this grade. These fittings showcase superior corrosion resistance properties and are seen across high-temperature applications. Carbon Steel Buttweld Fittings are the most common fittings that are available at reasonable prices. These fittings have a higher content of carbon, as their name suggests, and possess moderate strength and tolerances. The ASME B16.9 Fittings are wrought butt-weld fittings that are designed in standard sizes of NPS ½ through NPS 48. These fittings are seen in commercial and industrial applications. ASME B16.9 BW Fittings are designed in schedules between SCH 10 to SCH 160 and XXS. These fittings have beveled ends allowing them to create a fully penetrable weld in the fitting. Our company is one of the top Buttweld Fittings Manufacturer In India who follow all international and national standards while producing quality-assured products. Test certificates can be produced on request.

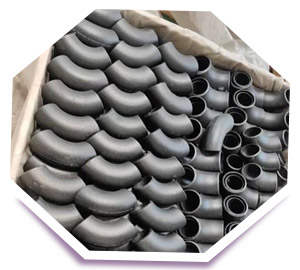

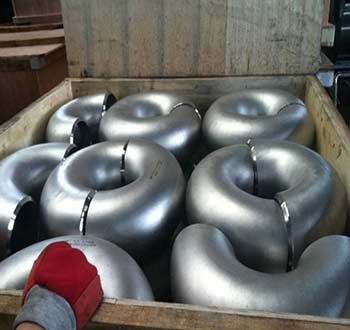

A Seamless Pipe Elbow is employed to change the direction of gaseous or liquid flow in the system. These elbow are designed with a single piece of metal that is produced by passing hot steel billets to create an efficient device without any welds or seams. This allows for an even flow of media through them. We are the Pipe Fittings Manufacturer In India who make use of the latest technology and best raw materials. Our connections with different logistical chains allow us to transport the fittings to your house in a short period.
Here are many benefits if you buy from Buttweld Fittings manufacturers, like high quality, best price and wide range of ASME B16.9 Fittings
Standard | Grade and Specification |
---|---|
ASME B16.28 | Wrought Steel Short Radius Elbows and Buttwelding Returns |
DIN | DIN2615, DIN2605, DIN2616, DIN28011, DIN2617 |
ASME | MSS-SP-43, ANSI B16.9, ANSI B16.28 |
EN | EN10253-2 and EN10253-1 |
ASME B16.9 | Factory-Made Wrought Fittings Buttwelding |
ASTM / ASME A403 / SA403 | Standards Specification for Wrought Stainless Steel Piping Fittings |
ASME B16.25 | Buttwelding Ends |
MSS SP-43 | Corrosion Resistant Applications, Fabricated and Wrought Butt-Welding Fittings for Low Pressure |

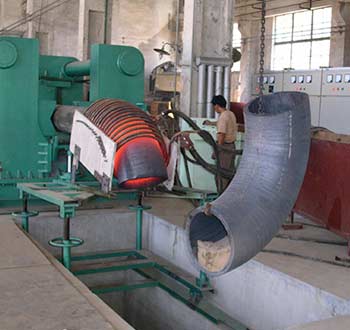

In-house manufacturing facilities to produce ASME B16.9 Seamless BW Fitting, manufacturer of Seamless Pipe Fitting since 2001
Description | Price Per Kg In Singapore | Price Per Kg In UAE | Price Per Kg In USD | Price Per Kg In Malaysia |
---|---|---|---|---|
3 X 11/2 STD BUTTWELDED STEEL PIPE FITTINGS NON ALLOY STEEL SEAMLESS PIPES OF GRADE A106 GR B ASTM.A.234 | SGD 2.65 | UAE Dirham 6.91 | US $1.91 | MYR 8.38 |
2 X 2 X 1-1/2 NB SCH40 REDUCING TEE STEEL BUTTWELD FITTINGS | SGD 6.61 | UAE Dirham 17.25 | US $4.77 | MYR 20.92 |
1-1/2 NB SCH 80 90 DEG SR STEEL BUTTWELD FITTINGS | SGD 6.57 | UAE Dirham 17.16 | US $4.75 | MYR 20.81 |
6X3 STD BUTTWELDED STEEL PIPE FITTINGS ALLOY STEEL SEAMLESS PIPES REDUCER | SGD 2.93 | UAE Dirham 7.66 | US $2.12 | MYR 9.29 |

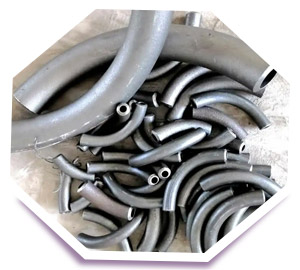

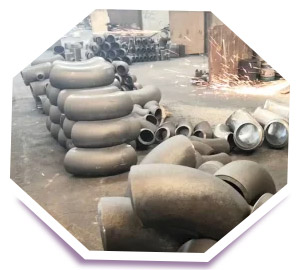

Pipe Bends
U bends

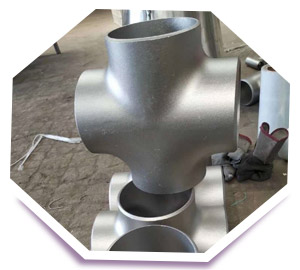

Reducing Cross

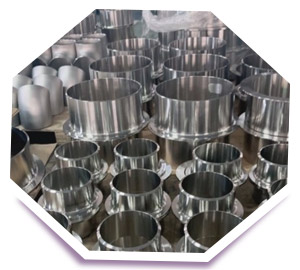

Short Pattern Stub Ends
Eccentric Reducer

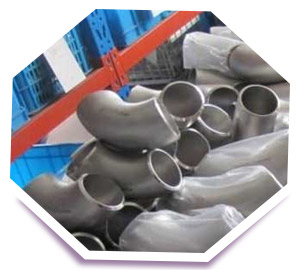

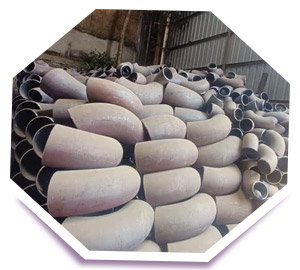

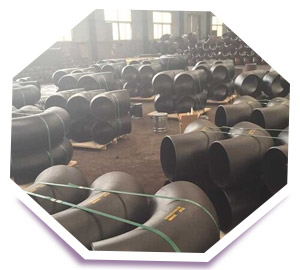

90° Elbow
45° Elbow

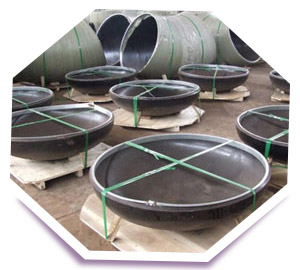

Ball Caps
180° Elbow

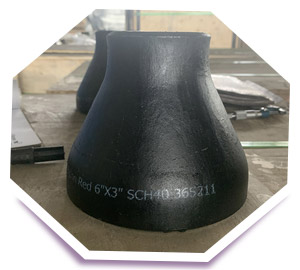

Concentric Reducer
Oval Caps
Long Pattern Stub Ends

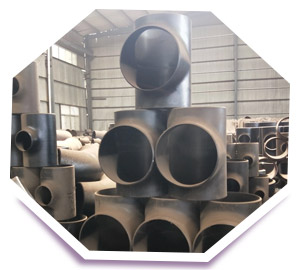

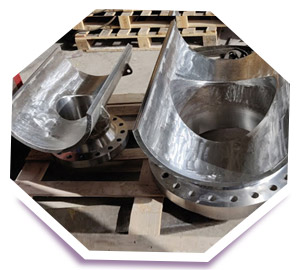

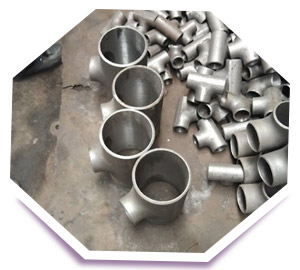

Straight Tee
Reducing Tee

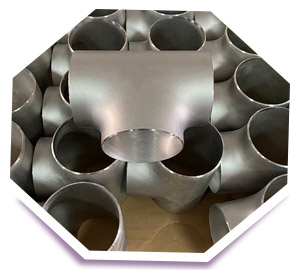

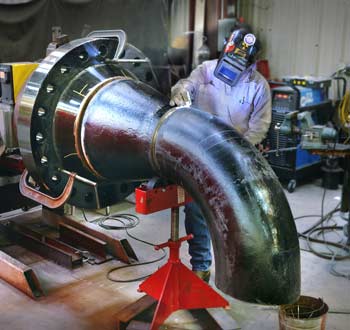

A leading supplier of industrial Welded Pipe Fittings, we offer a wide range of cost effective MSS SP-75 Buttweld Fitting
Material | Grade |
---|---|
Nickel Alloys | Alloy 200, 20, 201, 600, 400, HAST-X, 625, 825, 800H/HT, 254SMO, C276, C22, AL6XN, B3 |
Chrome Moly | WP9, WP5, WP11, WP22, WP12 |
Stainless Steel | 316/316L, 304/304L, 304H, 347/347H, 309, 310S, 317L, 316H, DUPLEX 2205 / SUPER DUPLEX 2507, 321/321H, 904L |
Carbon Steel | WPC, WPB, WPL6 |
Standard Materials | Stainless, Carbon, Chrome Moly, Low Temperature, High Yield, Aluminum |
High Yield Carbon Steel | WPHY52, WPHY42, WPHY65 |
Types | Tees, Elbows, Reducers, Stub Ends, Caps, Crosses, Olets, Laterals, Return Bends |
Wall Sizes | Schedule 20 upto XXH |
Sizes | From 1/2″upto 48" |
Specialty Items | Galvanizing, From 3D & 5D Bends, 100% X-ray Testing |
REDUCERS | ALL FITTINGS | NOMINAL PIPE SIZE | 180 DEG RETURN BENDS | ALL FITTINGS | CAPS | 180 DEG RETURN BENDS | ALL FITTINGS | ELBOWS AND TEES | 180 DEG RETURN BENDS |
---|---|---|---|---|---|---|---|---|---|
Overall Length H | Wall Thickness (3) | NPS | Centre-to-Centre O | O.D. at Bevel (1), (2) | Overall Length E | Alignment of Ends U | I.D. at End (1), (3), (4) |
Centre-to-End Dimension A,B,C,M | Back-to-Face K |
0.06 | Not less than 87.5% of nominal thickness | ½ to 2½ | 0.25 | 0.06 -0.03 |
0.12 | 0.03 | 0.03 | 0.06 | 0.25 |
0.06 | Not less than 87.5% of nominal thickness | 3 to 3 ½ | 0.25 | 0.06 | 0.12 | 0.03 | 0.06 | 0.06 | 0.25 |
0.06 | Not less than 87.5% of nominal thickness | 4 | 0.25 | 0.06 | 0.12 | 0.03 | 0.06 | 0.06 | 0.25 |
0.06 | Not less than 87.5% of nominal thickness | 5 to 8 | 0.25 | 0.09 -0.06 |
0.25 | 0.03 | 0.06 | 0.06 | 0.25 |
0.09 | Not less than 87.5% of nominal thickness | 10 to 18 | 0.38 | 0.16 -0.12 |
0.25 | 0.06 | 0.12 | 0.09 | 0.25 |
0.09 | Not less than 87.5% of nominal thickness | 20 to 24 | 0.38 | 0.25 -0.19 |
0.25 | 0.06 | 0.19 | 0.09 | 0.25 |
0.19 | Not less than 87.5% of nominal thickness | 26 to 30 | … | 0.25 -0.19 |
0.38 | … | 0.19 | 0.12 | … |
0.19 | Not less than 87.5% of nominal thickness | 32 to 48 | … | 0.25 -0.19 |
0.38 | … | 0.19 | 0.19 | … |
Compare our price with other ASME B16. 9 Buttweld Pipe Fittings manufacturers and suppliers in India
NPS1 | NPS2 | OD1 | OD2 | C | M |
---|---|---|---|---|---|
1/2 | 3/8 | 21.3 | 17.3 | 25 | 25 |
1/2 | 1/4 | 21.3 | 13.7 | 25 | 25 |
3/4 | 1/2 | 26.7 | 21.3 | 29 | 29 |
3/4 | 3/8 | 26.7 | 17.3 | 29 | 29 |
1 | 3/4 | 33.4 | 26.7 | 38 | 38 |
1 | 1/2 | 33.4 | 21.3 | 38 | 38 |
1-1/4 | 1 | 42.2 | 33.4 | 48 | 48 |
1-1/4 | 3/4 | 42.2 | 26.7 | 48 | 48 |
1-1/4 | 1/2 | 42.2 | 21.3 | 48 | 48 |
1-1/2 | 1-1/4 | 48.3 | 42.2 | 57 | 57 |
1-1/2 | 1 | 48.3 | 33.4 | 57 | 57 |
1-1/2 | 3/4 | 48.3 | 26.7 | 57 | 57 |
1-1/2 | 1/2 | 48.3 | 21.3 | 57 | 57 |
2 | 1-1/2 | 60.3 | 48.3 | 64 | 60 |
2 | 1-1/4 | 60.3 | 42.2 | 64 | 57 |
Schedule 40S | DN | Schedule 10S | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
90° Elbow | End cap | 45° Elbow | Stub end type B | Equal tee | Stub end type B | 90° Elbow | End cap | 45° Elbow | Equal tee | |
0.08 | 0.04 | 0.04 | 0.08 | 0.10 | 15 | 0.07 | 0.06 | 0.03 | 0.03 | 0.09 |
0.08 | 0.07 | 0.04 | 0.11 | 0.17 | 20 | 0.09 | 0.07 | 0.05 | 0.03 | 0.13 |
0.15 | 0.10 | 0.11 | 0.17 | 0.29 | 25 | 0.16 | 0.14 | 0.08 | 0.08 | 0.28 |
0.26 | 0.18 | 0.17 | 0.25 | 0.59 | 32 | 0.22 | 0.23 | 0.10 | 0.11 | 0.49 |
0.40 | 0.20 | 0.23 | 0.31 | 0.86 | 40 | 0.25 | 0.30 | 0.11 | 0.17 | 0.68 |
0.70 | 0.23 | 0.40 | 0.61 | 1.28 | 50 | 0.43 | 0.50 | 0.13 | 0.25 | 0.85 |
1.40 | 0.27 | 0.77 | 0.80 | 2.19 | 65 | 0.57 | 0.85 | 0.19 | 0.48 | 1.41 |
2.20 | 0.42 | 1.08 | 1.13 | 3.31 | 80 | 0.72 | 1.25 | 0.25 | 0.63 | 1.77 |
4.47 | 1.14 | 1.47 | 1.87 | 5.27 | 100 | 1.09 | 2.10 | 0.68 | 1.08 | 3.46 |
6.80 | 2.13 | 2.84 | 2.79 | 9.63 | 125 | 1.47 | 3.65 | 1.11 | 1.82 | 5.44 |
10.89 | 3.23 | 5.44 | 3.57 | 10.99 | 150 | 2.15 | 5.45 | 1.42 | 2.72 | 8.03 |
21.54 | 5.19 | 10.77 | 6.07 | 20.91 | 200 | 3.22 | 10.20 | 2.38 | 5.33 | 15.65 |
38.56 | 9.00 | 19.27 | 10.07 | 35.38 | 250 | 5.13 | 18.15 | 4.45 | 9.75 | 26.76 |
59.42 | 15.00 | 29.71 | 14.29 | 62.14 | 300 | 8.16 | 25.80 | 7.50 | 13.62 | 39.46 |
79.38 | 16.00 | 35.15 | 17.14 | 79.31 | 350 | 10.88 | 36.29 | 8.17 | 18.37 | 48.53 |
99.79 | 21.00 | 45.81 | 20.41 | 99.79 | 400 | 12.70 | 47.63 | 10.67 | 23.81 | 58.97 |
129.73 | 26.00 | 59.40 | 27.21 | 129.73 | 450 | 17.23 | 59.87 | 13.00 | 29.94 | 79.65 |
162.38 | 34.00 | 74.84 | 29.94 | 162.39 | 500 | 21.77 | 99.80 | 17.00 | 49.90 | 103.42 |
225.89 | 52.00 | 105.23 | 38.55 | 225.90 | 600 | 27.21 | 140.61 | 26.00 | 70.31 | 155.58 |
Oil & Gas
Alternative Energy
Construction
Petrochemical
Mechanical
Subsea Drilling
Why don't you directly contact a Buttweld Pipe Fitting manufacturer in India? We offer an extensive range of ASME B16.9 Buttweld Fittings and ASME B16.9 Welded Fittings in Mumbai, free sample before dispatch of complete order.

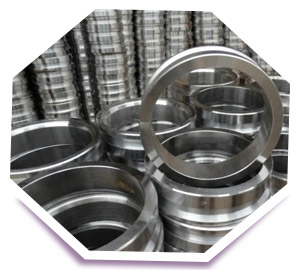

Schedule 40S | DN | Schedule 10S | Schedule 80S | ||||||
---|---|---|---|---|---|---|---|---|---|
90° Elbow | 45° Elbow | Equal tee | 45° Elbow | 90° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | |
0.03 | 0.02 | 0.06 | 8 | 0.01 | 0.02 | 0.03 | 0.04 | 0.03 | 0.07 |
0.03 | 0.02 | 0.03 | 10 | 0.02 | 0.03 | 0.05 | 0.06 | 0.04 | 0.09 |
0.08 | 0.04 | 0.10 | 15 | 0.03 | 0.06 | 0.09 | 0.10 | 0.05 | 0.14 |
0.08 | 0.04 | 0.17 | 20 | 0.03 | 0.07 | 0.13 | 0.11 | 0.05 | 0.20 |
0.15 | 0.11 | 0.29 | 25 | 0.08 | 0.14 | 0.28 | 0.22 | 0.14 | 0.38 |
0.26 | 0.17 | 0.59 | 32 | 0.11 | 0.23 | 0.49 | 0.40 | 0.23 | 0.68 |
0.40 | 0.23 | 0.86 | 40 | 0.17 | 0.30 | 0.68 | 0.51 | 0.29 | 1.02 |
0.70 | 0.4 | 1.28 | 50 | 0.25 | 0.50 | 0.85 | 0.91 | 0.59 | 1.59 |
1.40 | 0.77 | 2.19 | 65 | 0.48 | 0.85 | 1.41 | 1.81 | 0.99 | 3.13 |
2.20 | 1.08 | 3.31 | 80 | 0.63 | 1.25 | 1.77 | 2.97 | 1.50 | 4.45 |
2.83 | 1.42 | 4.08 | 90 | 0.75 | 1.70 | 2.67 | 4.00 | 2.00 | 5.44 |
4.47 | 2.09 | 5.27 | 100 | 1.08 | 2.10 | 3.46 | 6.18 | 2.81 | 7.71 |
10.89 | 5.44 | 10.99 | 150 | 2.72 | 5.45 | 8.07 | 16.32 | 8.16 | 13.61 |
21.54 | 10.77 | 20.91 | 200 | 5.33 | 10.20 | 15.65 | 33.11 | 16.56 | 28.12 |
38.56 | 19.27 | 35.38 | 250 | 9.75 | 18.15 | 26.46 | 51.71 | 25.86 | 49.90 |
59.42 | 29.71 | 62.14 | 300 | 13.62 | 25.80 | 39.46 | 79.38 | 39.69 | 83.91 |
COLLARS for ANSI 150 flanges | |||||
---|---|---|---|---|---|
inches | ND | mm | Height | Diameter of lap |
Radius of fillet |
D | h | G | R | ||
1/2 | 15 | 21,34 | 5 | 34,92 | 3 |
3/4 | 20 | 26,67 | 6 | 42,86 | 3 |
1 | 25 | 33,40 | 8 | 50,80 | 3 |
1 1/4 | 32 | 42,16 | 8 | 63,50 | 5 |
1 1/2 | 40 | 48,26 | 10 | 73,00 | 6 |
2 | 50 | 60,32 | 10 | 92,10 | 8 |
2 1/2 | 65 | 73,02 | 12 | 104,80 | 8 |
3 | 80 | 88,90 | 12 | 127,00 | 9 |
3 1/2 | 90 | 101,60 | 12 | 139,70 | 9 |
4 | 100 | 114,30 | 14 | 157,20 | 11 |
5 | 125 | 141,30 | 16 | 185,70 | 11 |
6 | 150 | 168,27 | 16 | 215,90 | 12 |
8 | 200 | 219,07 | 18 | 269,80 | 12 |
10 | 250 | 273,05 | 20 | 323,80 | 12 |
12 | 300 | 323,85 | 20 | 381,00 | 12 |
14 | 350 | 355,60 | 25 | 412,70 | 12 |
16 | 400 | 406,40 | 25 | 469,90 | 12 |
18 | 450 | 457,20 | 25 | 533,40 | 12 |
20 | 500 | 508,00 | 25 | 584,20 | 12 |
22 | 550 | 558,80 | 25 | 641,30 | 12 |
24 | 600 | 609,60 | 25 | 692,10 | 12 |
Dimension in mm. | |||||
The values of radius "R" and height "h" are indicative |
900/600/450/300 ELBOWS & TEES | ALL FITTINGS | REDUCERS | 1800 RETURNS | CAPS | ANGULARITY TOLERANCE + 1/6" (1.6mm) | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Centre to End | Inside Dia meter | Nominal Pipe Size Inch/mm | Outside Diameter at Level | W all Thickness at End | Overall Length Dimensions | Centre to End | Back to Face Dimensions | Alignment of End Dimensions | Overall length | Off Plane | Nominal Pipe Size | Off Angle Inch/mm | |||||||||
A,B,C,M | D | T | H | O | K | U | E | P | Q | ||||||||||||
B16.9 | MSS SP43 | (2) B16.9 | (1) B16.9 | MSS SP43 | B16.9 | MSS SP43 | B16.9 | MSS SP43 | B16.9 | MSS SP43 | MSS SP43 | B16.9 | MSS SP43 | B16.9 | B16.9 | MSS SP43 | B16.9 | B16.9 | MSS SP43 | ||
FROM 1/2"TO10" 15TO250 | FROM 3/4" | ±0.8 | 1/2" TO 2 1/2" 15 TO 65 |
±1.0 | FROM 1/2"TO10" 15TO250 |
FROM 1/2"TO8" 15TO200 |
±4 | ±3.17 | 1 | 1/2" TO 4" 15 TO 100 |
1 | ||||||||||
3"TO 3 1/2" 80 TO 90 |
±0.79 | 4 | 5" TO 8" 125 TO 200 |
2 | |||||||||||||||||
±2 | ±1.59 | ±1.6 | 4" 100 | +2 -1 |
±2 | ±1.59 | ±7 | ±6.35 | ±6.35 | ±7 | ±0.79 | ±1.0 | 5 | 10" TO 12" 250 TO 300 |
3 | ||||||
5" TO 6" 125 TO 150 |
+3 -1 | +1.59 | ±7 | ±6.35 | 7 | 14"TO16" 350TO 400 |
3 | 16"TO 24" | |||||||||||||
8" 200 |
±2 | -0.79 | Not Less Than | Not Less Than | 10 | 18"TO 24" 450 TO 600 |
4 | 400 TO
600 1.6 |
|||||||||||||
FROM 12"TO30" ±3 |
±2.38 | ±3.2 | 10" TO 18" 250 TO 450 |
+4 -3 |
+2.38 -0.79 |
87.5% Nominal Thk. |
87.5% Nominal Thk. |
FROM
12"TO30" ±3 |
10"TO24" +2.38 |
10 | 26"TO 30" 650 TO 750 | 5 | 26"TO
6 36" O 50 T |
||||||||
300 TO 750 | 20" TO 24" 500 TO 600 | +6 -5 |
3.17 0.79 |
300 TO 750 | 250 TO 600 | ±10" | ±9.53 | ±1.59 | ±2.0" | 13 | 32"TO 42" 800 TO1050 |
5 | 900 2.4 |
||||||||
±4.8 | 26" TO 30" 650 TO 750 | +7 -5 |
±10 | 20 | 44" TO 48" 1100 TO1200 |
5 | 38"TO 48" | ||||||||||||||
±5 | 32" TO 48" 800 TO 1200 |
+7 -5 |
±20 | 42" TO 48" 1050 TO1200 | ±5 | 950 TO
1200 3.2 |
The benefit of purchasing ANSI B16.9 Buttweld Fittings and ASME B16.9 Buttweld Welded Fittings directly from manufacturers is the reduced cost and wide selection which save your time
COLLARS for UNI and DIN flanges | |||||||
---|---|---|---|---|---|---|---|
inches | ND | mm | Diameter of lap G |
Height | Radius of fillet |
||
D | PN 10 |
PN 2,5-6 |
PN 16 |
h | R | ||
1/2 | 15 | 21,34 | 45 | 40 | 45 | 5 | 2 |
3/4 | 20 | 26,67 | 58 | 50 | 58 | 8 | 2 |
1 | 25 | 33,40 | 68 | 60 | 68 | 8 | 3 |
1 1/4 | 32 | 42,16 | 78 | 70 | 78 | 8 | 3 |
1 1/2 | 40 | 48,26 | 88 | 80 | 88 | 10 | 3 |
2 | 50 | 60,32 | 102 | 90 | 102 | 10 | 4 |
2 1/2 | 65 | 73,02 | 122 | 110 | 122 | 12 | 4 |
3 | 80 | 88,90 | 138 | 128 | 138 | 12 | 5 |
4 | 100 | 114,30 | 158 | 148 | 158 | 14 | 5 |
5 | 125 | 141,30 | 188 | 178 | 188 | 14 | 5 |
5 | 125 | 141,30 | 188 | 178 | 188 | 14 | 5 |
6 | 150 | 168,27 | 212 | 202 | 212 | 16 | 6 |
8 | 200 | 219,07 | 268 | 258 | 268 | 18 | 6 |
10 | 250 | 273,05 | 320 | 312 | 320 | 20 | 6 |
12 | 300 | 323,85 | 370 | 365 | 378 | 20 | 6 |
14 | 350 | 355,60 | 430 | 415 | 438 | 25 | 8 |
16 | 400 | 406,40 | 482 | 465 | 490 | 25 | 8 |
18 | 450 | 457,20 | 532 | 520 | 550 | 25 | 8 |
20 | 500 | 508,00 | 585 | 570 | 610 | 25 | 8 |
Dimension in mm. | |||||||
The values of radius "R" and height "h" are indicative |
NPS | OD | C | M |
---|---|---|---|
1/2 | 21.3 | 25 | 25 |
3/4 | 26.7 | 29 | 29 |
1 | 33.4 | 38 | 38 |
1-1/4 | 42.2 | 48 | 48 |
1-1/2 | 48.3 | 57 | 57 |
2 | 60.3 | 64 | 64 |
2-1/2 | 73.0 | 76 | 76 |
3 | 88.9 | 86 | 86 |
3-1/2 | 101.6 | 95 | 95 |
4 | 114.3 | 105 | 105 |
5 | 141.3 | 124 | 124 |
6 | 168.3 | 143 | 143 |
8 | 219.1 | 178 | 178 |
10 | 273.0 | 216 | 216 |
12 | 323.8 | 254 | 254 |
NPS | OD | C | M |
14 | 355.6 | 279 | 279 |
16 | 406.4 | 305 | 305 |
18 | 457.0 | 343 | 343 |
20 | 508.0 | 381 | 381 |
22 | 559.0 | 419 | 419 |
24 | 610.0 | 432 | 432 |
26 | 660.0 | 495 | 495 |
28 | 711.0 | 521 | 521 |
30 | 762.0 | 559 | 559 |
32 | 813.0 | 597 | 597 |
34 | 864.0 | 635 | 635 |
36 | 914.0 | 673 | 673 |
38 | 965.0 | 711 | 711 |
40 | 1016.0 | 749 | 749 |
42 | 1067.0 | 762 | 711 |
NPS | OD | C | M |
44 | 1118.0 | 813 | 762 |
46 | 1168.0 | 851 | 800 |
48 | 1219.0 | 889 | 838 |
80% repeat orders from below countries
Block B Gas Project Vietnam
ADCO - Shah Field Compressor Unit-Dubai
Gorgon LNG Train 4-Australia
Bass Strait Additional Oil Drilling Facilities Bass Strait, Australia
Binh Dai 1 - Phase 3-Vietnam
Petrovietnam Vietnam
