We are SA 234 WP12 Elbow Manufacturer in India, Check Weight Chart and Dimensions of Alloy Steel WP12 Reducer

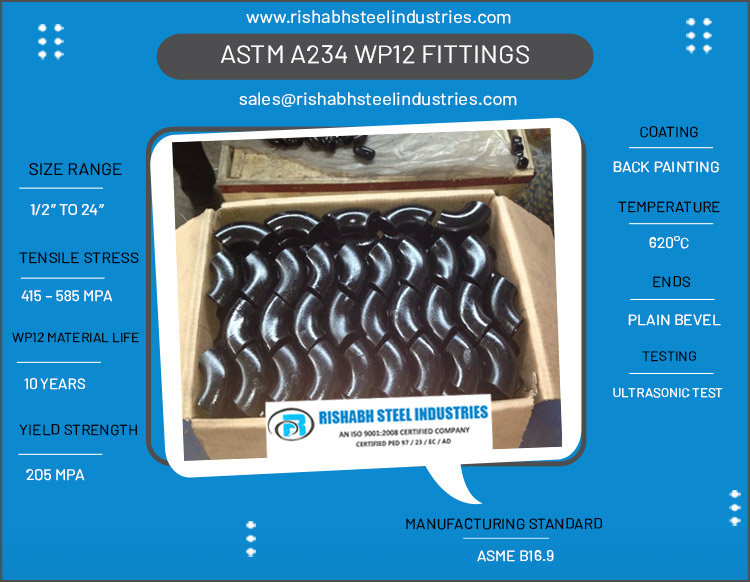

ASTM A234 WP12 Fittings

Piping fittings connect pipes, tubes, valves, and other equipment and help in characterizing the flow of media in the system. The ASTM A234 WP12 Fittings help in routing, changing the direction, and branching pipes of different sizes. These fittings are designed in seamless and welded configurations. The ASTM A234 WP12 grade is produced with a chemical composition of carbon, manganese, silicon, sulfur, phosphorous, chromium, and molybdenum. It allows them to work well in high pressures and temperatures and showcase excellent corrosion resistance properties. The WP12 Fittings have a tensile strength between 415 to 585mpa with a minimum yield strength of 205mpa. These fittings can be easily elongated by 20% in the system. ASTM A234 Grade WP12 Buttweld Fittings are one of the common fittings in the oil and gas industry. These fittings possess superior strength and have excellent toughness. They can be readily welded and ensure a leakage-proof sealing.

The A234 Gr WP12 Elbow is a versatile grade that is utilized to change the direction of the flow of fluids and gases. These elbows allow for easy movement of the flow and are seen in long and short radius specifications. A234 WP12 Long Radius Bend is seen in the transportation of fluid that requires piggins. These bends have very low-pressure drop and allow for a smooth flow of media. They are designed in 3D and 5D configurations. The SA 234 WP12 Tee is shaped in the form of a tee. These tees have three branch connections, allowing for an even flow of media across the three channels. Alloy Steel WP12 End cap helps in closing the ends of a dead-end pipe. These caps provide support and protect the piping grade as they are transported or stored. The ASTM A234 Gr WP12 Reducer is utilized to connect piping components of dissimilar diameters. The reducer makes a gradual change in the diameter the piping grade.

Ask for latest Price list of ASTM A234 Grade WP12 Buttweld Fittings, Top notch SA 234 WP12 Equal/ Reducing Tee Supplier in Middle East Countries

Alloy Steel A234 WP12 Pipe Fittings Specification

More than 30 years experience as a Alloy Steel A234 WP12 Buttweld Fittings manufacturer in India

Standards ASTM, ASME A234, SA234
Grade Alloy Steel ASTM A234 WP12 Fittings
Dimension MSS-SP-43, ASME/ANSI B16.28, B16.9
Type Welded and Seamless
Size 1/2" upto 24"
Types of Fittings Reducing Tee, Cap, Reducer, Reducing Nipple, 3D Elbow, Nipple, Bend, Long Stubend, Barrel Nipple, Swage Nipple, Equal Tee, 1D Elbow, Eccentric Reducer, Concentric Reducer, Short Stubend, Stubend, Elbows, 180 Deg Elbow, End Cap, Long Radius Elbow, 5D Elbow, Short Radius Elbow, 45 Deg Elbows, Tee, 90 Deg Elbow, Piggable Bend, Long Radius Bend
Size of Two Joint / Halve ASTM A234 WP12 Fittings 6" upto 48"
Thickness Schedule 5s upto Schedule XXS

Alloy Steel WP12 Fittings Price List

Buy from PED approved Alloy Steel ASTM A234 Gr. WP12 Butt Weld Fittings manufacturer for quality products & Alloy Steel 5Cr-1/2Mo Welded Fittings accurate dimensions

Description Price Per Kg In Singapore Price Per Kg In UAE Price Per Kg In USD Price Per Kg In Malaysia
32 THK 27.75MM ASME B16.9 SEAMLESS PIPE FITTINGS-90 DEG LR ELBOW ASTM A234 GR WP12 BEVELLED END SGD 7.79 UAE Dirham 20.35 US $5.63 MYR 24.68
32 24 THK 28.74MM X SCH 60 ASME B16.9 SMLS ECCENTRIC REDUCER ASTM A234 GR WP12 BEVELLED END SGD 7.81 UAE Dirham 20.40 US $5.64 MYR 24.74
SIZE 1.1/4 SCH40 CARBON STEEL SEAMLESS PIPE FITTING ASTM A234 WP12 B16.9 SMLS 90 ELBOW SGD 0.63 UAE Dirham 1.65 US $0.46 MYR 2.00
28 THK 25.14MM ASME B16.9 SEAMLESS PIPE FITTINGS-90 DEG LR ELBOW ASTM A234 GR WP12 BEVELLED END SGD 8.86 UAE Dirham 23.12 US $6.40 MYR 28.04
26 THK 23.34 MM ASME B16.9 SEAMLESS 45 DEG LR ELBOW ASTM A234 GR WP12 BEVELLED END SGD 7.87 UAE Dirham 20.54 US $5.68 MYR 24.91
38 36 THK 32.95MM X THK 31.21MM ASME B16.9 SMLS ECCENTRIC REDUCER ASTM A234 GR WP12 BEVELLED END SGD 8.60 UAE Dirham 22.47 US $6.21 MYR 27.25
SIZE 2X1 SCH80 ASTM A234 WP12 B16.9SMLS CARBON STEEL SEAMLESS PIPE FITTING TEE SGD 0.79 UAE Dirham 2.07 US $0.57 MYR 2.51

ASTM A234 WP12 Fittings Types

A234 Gr WP12 Eccentric Reducer

A234 Gr WP12 Eccentric Reducer

CrMo ASTM A234 WP12 Stub End

CrMo ASTM A234 WP12 Stub End

ASTM A234 WP12 Lap Joint Stub Ends

ASTM A234 WP12 Lap Joint Stub Ends

ASME SA 234 WP12 Reducing Tee

ASME SA 234 WP12 Reducing Tee

A234 Gr WP12 Equal Tee

A234 Gr WP12 Equal Tee

A234 Gr WP12 45 Degree Elbows

A234 Gr WP12 45 Degree Elbows

ASTM A234 WP12 Fittings

ASTM A234 WP12 Fittings

Alloy Steel A234 WP12 Laterals

Alloy Steel A234 WP12 Laterals

ASTM A234 Gr WP12 Cross Tee

ASTM A234 Gr WP12 Cross Tee

ASTM A234 Gr WP12 90 Degree Elbows

ASTM A234 Gr WP12 90 Degree Elbows

CrMo ASTM A234 WP12 Cross Fitting

CrMo ASTM A234 WP12 Cross Fitting

Alloy Steel A234 WP12 End Cap

Alloy Steel A234 WP12 End Cap

A234 WP12 Concentric Reducer

A234 WP12 Concentric Reducer

WP12 Fittings Reducer

WP12 Fittings Reducer

A234 WP12 Elbow

A234 WP12 Elbow

ASME SA 234 WP12 Return Bends

ASME SA 234 WP12 Return Bends

Alloy Steel A234 WP12 180 Degree Elbows

Alloy Steel A234 WP12 180 Degree Elbows

ASTM A234 WP12 Weld Elbows

ASTM A234 WP12 Weld Elbows

Alloy Steel A234 Grade WP12 Butt Weld Pipe Fittings Schedule Chart

Buttweld Fittings
DN Schedule 10S Schedule 40S
45° Elbow 90° Elbow Equal tee Stub end type (B) End cap 45° Elbow 90° Elbow Equal tee End cap Stub end type (B)
15 0.03 0.06 0.09 0.07 0.03 0.04 0.08 0.10 0.04 0.08
20 0.03 0.07 0.13 0.09 0.05 0.04 0.08 0.17 0.07 0.11
25 0.08 0.14 0.28 0.16 0.08 0.11 0.15 0.29 0.10 0.17
32 0.11 0.23 0.49 0.22 0.10 0.17 0.26 0.59 0.18 0.25
40 0.17 0.30 0.68 0.25 0.11 0.23 0.40 0.86 0.20 0.31
50 0.25 0.50 0.85 0.43 0.13 0.40 0.70 1.28 0.23 0.61
65 0.48 0.85 1.41 0.57 0.19 0.77 1.40 2.19 0.27 0.80
80 0.63 1.25 1.77 0.72 0.25 1.08 2.20 3.31 0.42 1.13
100 1.08 2.10 3.46 1.09 0.68 1.47 4.47 5.27 1.14 1.87
125 1.82 3.65 5.44 1.47 1.11 2.84 6.80 9.63 2.13 2.79
150 2.72 5.45 8.03 2.15 1.42 5.44 10.89 10.99 3.23 3.57
200 5.33 10.20 15.65 3.22 2.38 10.77 21.54 20.91 5.19 6.07
250 9.75 18.15 26.76 5.13 4.45 19.27 38.56 35.38 9.00 10.07
300 13.62 25.80 39.46 8.16 7.50 29.71 59.42 62.14 15.00 14.29
350 18.37 36.29 48.53 10.88 8.17 35.15 79.38 79.31 16.00 17.14
400 23.81 47.63 58.97 12.70 10.67 45.81 99.79 99.79 21.00 20.41
450 29.94 59.87 79.65 17.23 13.00 59.40 129.73 129.73 26.00 27.21
500 49.90 99.80 103.42 21.77 17.00 74.84 162.38 162.39 34.00 29.94
600 70.31 140.61 155.58 27.21 26.00 105.23 225.89 225.90 52.00 38.55

ASTM A234 WP12 Pipe Fittings Dimensions

We offer an extensive range of great value and quality Chrome Moly Alloy Steel Grade WP12 Seamless Pipe Fitting and ASME SA234M Alloy Steel WP12 Pipe Fitting

AS 45 Deg Elbows AS 90 Deg Elbows NPS AS 180 Deg Return Long Radius
Long Radius 3R Long Radius Short Radius 3R XS STD
STD XS XS STD STD SCH. 160 XS XXS XS STD STD XS
.09 .19 * * .18 * .25 * * * * * ½ * .35
.09 .19 * * .19 * .25 * * * * * ¾ .65 .40
0.25 .31 * * .40 .60 .50 .75 * .25 * * 1 1.00 .75
0.38 .50 * * .60 1.00 .90 1.38 * .4 * * 1.75 1.25
.40 .69 * * .90 1.80 1.15 1.50 .75 .56 * * 2.39 1.88
.81 1.19 2.1 1.5 1.60 3.25 2.20 3.50 1.50 1.00 3.00 4.00 2 4.40 3.23
1.75 2.13 4.00 3.00 3.25 5.13 4.00 7.00 2.80 2.13 6.00 8.00 8.00 6.50
2.63 3.50 7.00 5.00 5.00 8.50 6.50 11.0 4.25 3.00 10.0 13.0 3 13.00 10.25
3.50 4.50 9.00 7.00 6.75 * 8.35 16.0 6.00 4.50 13.0 18.0 16.75 13.00
4.50 6.10 13.0 9.00 9.00 18.0 13.5 20.0 8.50 6.25 18.0 25.0 4 25.0 18.5
7.50 10.7 22.0 15.0 15.0 32.0 22.0 36.0 14.0 9.60 29.0 43.0 5 44.0 30.0
12.0 17.5 35.0 23.0 24.5 57.0 35.0 65.0 23.0 18.0 45.0 70.0 6 70.0 50.0
23.0 35.0 70.0 45.0 50.0 120 71.0 118 47.5 34.0 90.0 140 8 142 95.0
43.0 53.0 109 80.0 88.0 260 107 * 70.0 58.0 159 218 10 215 117
62.0 84.0 155 117 125 450 160 * 104 80.0 233 310 12 320 230
80.0 100 200 149 160 572 205 * 140 105 298 400 14 400 325
100 135 260 195 206 * 276 * 174 132 390 520 16 550 412
126 167 330 248 260 * 340 * 219 167 495 660 18 690 510
160 206 405 305 320 * 420 * 275 210 610 810 20 830 640
197 260 490 368 394 * 520 * * * 735 980 22 1040 787
238 300 585 438 460 * 600 * 392 298 875 1170 24 1200 890
275 365 685 515 550 * 729 1030 1370 26
367 488 915 685 734 975 1370 1830 30
531 706 1315 985 1062 1412 1970 2630 36

ASME SA234 WP12 Pipe Bend/ Return Bends and A234 Grade WP11 LR/ SR Elbow supplier in India offer custom marking, stamping & Pre-shipment Inspection

Alloy Steel A234 WP12 Elbow Weight

Elbow Pipe Fittings
PIPE NOMINAL SIZE OUTSIDE DIAM. 90° ELBOW 45° ELBOW 180° RETURNS
(inches) Short Radius Long Radius Long Radius Long Radius
(mm) (inches) Center to Face
(inches)
Center to Face
(inches)
Radius
(inches)
Center to Face
(inches)
Back to face
(inches)
Center to Center
(inches)
3/4 26.7 1.050 1 1/8 7/16 1 11/16 2 1/4
1/2 21.3 0.840 1 1/2 5/8 1 7/8 2
1 33.4 1.315 1 1 1/2 7/8 2 3/16 3
1 1/2 48.3 1.900 1 1/2 2 1/4 3 1 1/8 3 1/4 4 1/2
1 1/4 42.2 1.660 1 1/4 1 7/8 1 2 3/4 3 3/4
2 60.3 2.375 2 3 4 1 3/8 4 3/16 6
3 88.9 3.500 3 4 1/2 6 2 6 1/4 9
2 1/2 73.0 2.875 2 1/2 3 3/4 5 1 3/4 5 3/16 7 1/2
3 1/2 101.6 4.000 3 1/2 5 1/4 7 2 1/4 7 1/4 10 1/2
5 141.3 5.563 5 7 1/2 10 3 1/8 10 5/16 15
4 114.3 4.500 4 6 8 2 1/2 8 1/4 12
6 168.3 6.625 6 9 12 3 3/4 12 5/16 18
10 273.1 10.750 10 15 15 6 1/4 20 3/8 30
8 219.1 8.625 8 12 12 5 16 5/16 24
12 323.9 12.750 12 18 18 7 1/2 24 3/8 36

Alloy Steel A234 WP12 Pipe Fittings Chemical Composition

Compare our price with other Alloy Steel A234 WP12 Pipe Fittings manufacturers and suppliers in India

Si Mn Cr S Mo C P
0.60 max 0.30–0.80 0.80–1.25 0.045 0.44–0.65 0.05–0.20 0.045

ASTM A234 WP12 Fittings Mechanical Properties

0.2% Proof (MPa) Yield Properties, min (MPa) Tensile Properties, min (% in 50mm) Elongation, min
≥205 415 - 585 ≥20
Manufacturer of Alloy Steel WP12 Weld Fittings, We Supply A234 Gr WP12 Concentric/ Eccentric Reducer with Penetration Testing Certificate

ASTM A234 WP12 Butt Weld Fittings Applications

  • Petrochemicals

  • Pulp and Paper Industry

  • Heat Exchangers

  • Pharmaceuticals

  • Sea Water Equipment

  • Power Generation

  • Off-Shore Oil Drilling Companies

  • Pharmaceutical Equipment

  • Condensers

  • Chemical Equipment

  • Gas Processing

  • Specialty Chemicals

AS ASTM A234 WP12 Seamless Fittings Wall Thickness

O.D. (mm) Nominal Pipe Size W.T. (mm)
Sch 5S Sch 10S Sch 40S Sch 80S
NPS DN Weight (kg/m) WT (mm) Weight (kg/m) WT (mm) Weight (kg/m) WT (mm) Weight (kg/m) WT (mm)
10.3 6 0.28 1.24 0.37 1.73 0.47 2.41
13.7 ¼ 8 0.49 1.65 0.63 2.24 0.80 3.02
17.1 10 0.63 1.65 0.84 2.31 1.10 3.20
21.3 ½ 15 0.80 1.65 1.00 2.11 1.27 2.77 1.62 3.73
26.7 ¾ 20 1.02 1.65 1.28 2.11 1.69 2.87 2.20 3.91
33.4 1 25 1.29 1.65 2.09 2.77 2.50 3.38 3.24 4.55
42.2 32 1.65 1.65 2.69 2.77 3.39 3.56 4.47 4.85
48.3 40 1.90 1.65 3.11 2.77 4.05 3.68 5.41 5.08
60.3 2 50 2.39 1.65 3.93 2.77 5.44 3.91 7.48 5.54
73.0 65 3.69 2.11 5.26 3.05 8.63 5.16 11.41 7.01
88.9 3 80 4.52 2.11 6.46 3.05 11.29 5.49 15.27 7.62
101.6 90 5.18 2.11 7.41 3.05 13.57 5.74 18.64 8.08
114.3 4 100 5.84 2.11 8.37 3.05 16.08 6.02 22.32 8.56
141.3 5 125 9.46 2.77 11.56 3.40 21.77 6.55 30.97 9.53
168.3 6 150 11.31 2.77 13.83 3.40 28.26 7.11 42.56 10.97
219.1 8 200 14.78 2.77 19.97 3.76 42.55 8.18 64.64 12.70
273.1 10 250 22.61 3.40 27.79 4.19 60.31 9.27 81.56 12.70
323.9 12 300 31.25 3.96 35.99 4.57 73.88 9.53 97.47 12.70
355.6 14 350 34.34 3.96 41.36 4.78 81.33 9.53 107.40 12.70
406.4 16 400 41.56 4.19 47.34 4.78 93.27 9.53 123.31 12.70
457 18 450 46.79 4.19 53.31 4.78 105.17 9.53 139.16 12.70
508 20 500 59.32 4.78 68.65 5.54 117.15 9.53 155.13 12.70
559 22 550 65.33 4.78 75.62 5.54
610 24 600 82.58 5.54 94.53 6.35 141.12 9.53 187.07 12.70
660 26 650
711 28 700
762 30 750 118.34 6.35 147.29 7.92

A234M Cr-Mo WP12 Butt Weld Pipe Fittings Pressure Rating

The benefit of purchasing A234M Cr-Mo Alloy Steel WP12 Butt weld Pipe Fittings and Alloy Steel A234 Grade WP12 Butt weld Pipe Fittings directly from manufacturers is the reduced cost and wide selection which save your time

Temperature Ratings Pressure Class
150 300
1 1/4 - 2 Inches 1/4 - 1 Inches 2 1/2 - 3 Inches
(oC) (oF)
-29 to 66 -20 to 150 300 1500 2000 1000
93 200 265 1350 1785 910
121 250 225 1200 1575 825
149 300 185 1050 1360 735
177 350 150 900 1150 650
204 400 - 750 935 560
232 450 - 600 725 475
260 500 - 450 510 385
288 550 - 300 300 300
Free Sample Can be provided for large scale orders of ASTM A234 Grade WP12 Buttweld Fittings and SA 234 WP12 End Cap

ASME SA 234 WP12 Stub Ends Size Chart

Stub End Pipe Fittings
Schedule Nominal pipe size Weight Dimensions in mm
in.0 kg/pce D G t F R.0 max.0
10s
40s
3/4 0.0100 0.0120 26.07
26.07
42.09
42.09
2.011
2.087
50.08
50.08
3.018
3.018
10s
40s
1/2 0.0070 0.0090 21.03
21.03
34.09
34.09
2.011
2.077
50.08
50.08
3.018
3.018
10s
40s
1 0.0160 0.0170 33.04
33.04
50.08
50.08
2.077
3.038
50.08
50.08
3.018
3.018
10s
40s
1 ½ 0.0250 0.0310 48.03
48.03
73.00
73.00
2.077
3.068
50.08
50.08
6.035
6.035
10s
40s
1 ¼ 0.0220 0.0250 42.02
42.02
63.05
63.05
2.077
3.056
50.08
50.08
4.076
4.076
10s
40s
2 0.0430 0.0610 60.03
60.03
92.01
92.01
2.077
3.091
63.05
63.05
7.094
7.094
10s
40s
3 0.0730 1.0130 88.09
88.09
127.00
127.00
3.005
5.049
63.05
63.05
9.053
9.053
10s
40s
2 ½ 0.0570 0.0800 73.00
73.00
104.08
104.08
3.005
5.016
63.05
63.05
7.094
7.094
10s
40s
4 1.0090 1.0870 114.03
114.03
157.02
157.02
3.005
6.002
76.02
76.02
11.011
11.011
10s
40s
6 2.0150 3.0570 168.03
168.03
215.09
215.09
3.040
7.011
88.09
88.09
12.070
12.070
10s
40s
5 1.0470 2.0280 141.03
141.03
185.07
185.07
3.040
6.055
76.02
76.02
11.011
11.011
10s
40s
8 3.0220 6.0070 219.01
219.01
269.09
269.09
3.076
8.018
101.06
101.06
12.070
12.070

Alloy Steel ASTM A234 WP12 Fittings Standard

  • ASME B16.9
  • P235GH
  • ASME B16.28
  • ASME B16.11
  • DIN 2353
  • DIN 2617
  • EN 10253
  • DIN 2605-1

Best Material supplied in following projects

Hormoz New Oil Refinery- Iran

Hormoz New Oil Refinery- Iran

Corpus Christi Lng Liquefaction Plant Usa

Corpus Christi Lng Liquefaction Plant Usa

Bateel International- UAE

Bateel International- UAE

Al Zour Refinery- Kuwait

Al Zour Refinery- Kuwait

Glaxosmithkline South Africa (Pty) Ltd Bryanston, Gauteng, South Africa

Glaxosmithkline South Africa (Pty) Ltd Bryanston, Gauteng, South Africa

Rumaila Oil Field-UAE

Rumaila Oil Field-UAE
