Leading ASTM B366 UNS N08020 Elbow Manufacturer in India, Check Dimensions of Nickel Alloy 20 Olets

Alloy 20 Pipe Fittings

A pipe fitting helps in routing the pipe, changing its direction, connecting dissimilar equipment, and branching connections. The Alloy 20 Pipe Fittings are low carbon austenitic grade that is stabilized by niobium. The nickel, chromium, and molybdenum content gives these fittings enhanced resistance to reducing and corrosive media. ASTM B366 UNS N08020 Forged Fittings are produced at extreme temperatures and have enhanced surface porosity while exhibiting superior strength. The Carpenter 20 Threaded Pipe Fittings have threads that allow them to connect easily with subsequent threads without requiring any welding procedure. Alloy 20cb3 Socket Weld Fittings are seen in small pipe diameters in sizes of NPS 2 or smaller and are welded using a single fillet weld.

The Alloy 20 Elbow is utilized to change the direction of the run pipe. These elbows are generally available in 22.5, 45, and 90-degree specifications. They are seen in a short or long radius of curvature. Alloy 20 Pipe Bends have a similar function to an elbow, but it has a larger radius than a pipe elbow. These bends reduce pressure drops as the material is routed across complex piping equipment. The UNS N08020 Tee is shaped in the form of a T. It has one inlet with two outlets arranged to the main line at 90 degrees. They can be availed in equal and reducing sizes. A DIN 2.4660 Reducer is primarily used to connect piping equipment of dissimilar sizes. They are available in concentric and eccentric type configurations. The Cn7m Alloy 20 End Cap is an adapter that helps cut the flow at the ends in the system. They are usually threaded and protect the pipe against damage and corrosive media. Nickel Alloy 20 Olets is a branch fitting that allows it to connect easily with the main line without any reinforcement. The most common olets are weldolet, thredolet, sockolet, etc.

Supplier of ASTM B366 UNS N08020 Forged Fittings in Mumbai, Refer Price list of Cn7m Alloy 20 End Cap

ASTM B366 Alloy 20 Pipe Fittings Specification

Here are many benefits if you buy from Alloy 20 Pipe Fittings Supplier, like high quality, best price and wide range of Alloy 20 Fittings

Specification ASTM B366/ B564, ASME SB564/ SB 366
Range ½” to 24”NB in Schedule 10s to XXS.
Type Welded / Seamless / Fabricated
Grade Incoloy Alloy 20, UNS N08020, Carpenter 20, 2.4660, Alloy 20
Bending Radius R=1D, 8D, 6D, 3D, 5D, 2D, 10D
Dimensions MSS-SP-43, ANSI/ASME B16.28, B16.9

Price List of Alloy 20 Fittings

Description Price Per Kg In Singapore Price Per Kg In UAE Price Per Kg In USD Price Per Kg In Malaysia
SCH 40, CARPENTER 20 FITTINGS ELBOW 90 DEG,20 SHORT RADIUS SGD 461.57 UAE Dirham 1,205.22 US $333.36 MYR 1,461.65
50x25 CARPENTER 20 Fitting Reducing insert, SW SGD 57.60 UAE Dirham 150.40 US $41.60 MYR 182.40
DN 250X100, SCH.20X40, UNEQUAL TEE, PIPE FITTING CARPENTER 20 FITTINGS SGD 5.49 UAE Dirham 14.34 US $3.97 MYR 17.39
500NB / 20 CARPENTER 20 FITTINGS NON ALLOY STEEL ELBOW 45DEG, A366 SGD 242.15 UAE Dirham 632.29 US $174.89 MYR 766.82
SCH 80X80 DN 32X20 CARPENTER 20 PIPE FITTINGS ALLOY STEEL, UNEQUAL TEE SGD 7.24 UAE Dirham 18.89 US $5.23 MYR 22.91

Alloy 20 Pipe Fittings Types

Alloy 20 Pipe Fittings manufacturer in India, we use European/ German & Korean raw material to produce Carpenter 20 Pipe Fittings

ASTM B366 Alloy 20 90 Degree Elbows

ASTM B366 Alloy 20 90 Degree Elbows

Alloy 20 Cross Fitting

Alloy 20 Cross Fitting

ANSI B16.9 Alloy 20 Lap Joint Stub Ends

ANSI B16.9 Alloy 20 Lap Joint Stub Ends

ASME SB462M Alloy UNS N08020 Elbow

ASME SB462M Alloy UNS N08020 Elbow

20 Alloy Stub End

20 Alloy Stub End

ASTM B366 Alloy 20 Reducer

ASTM B366 Alloy 20 Reducer

ANSI B16.9 Alloy 20 Laterals

ANSI B16.9 Alloy 20 Laterals

Alloy 20 Pipe Fittings

Alloy 20 Pipe Fittings

ASME SB462M Alloy 20 Eccentric Reducer

ASME SB462M Alloy 20 Eccentric Reducer

Carpenter® 20 180 Degree Elbows

Carpenter® 20 180 Degree Elbows

Alloy UNS N08020 Concentric Reducer

Alloy UNS N08020 Concentric Reducer

Werkstoff Nr. 2.4660 Return Bends

Werkstoff Nr. 2.4660 Return Bends

ANSI B16.11 Alloy 20 Cross Tee

ANSI B16.11 Alloy 20 Cross Tee

Alloy DIN 2.4660 Reducing Tee

Alloy DIN 2.4660 Reducing Tee

MSS SP-79 20 Alloy Weld Elbows

MSS SP-79 20 Alloy Weld Elbows

Carpenter 20 45 Degree Elbows

Carpenter 20 45 Degree Elbows

ASTM B366 Alloy 20 End Cap

ASTM B366 Alloy 20 End Cap

Alloy 20 Equal Tee

Alloy 20 Equal Tee

ASTM B366 Alloy 20 Forged Fittings Types

ANSI B16.9 Alloy 20 Socket Weld Cross

ANSI B16.9 Alloy 20 Socket Weld Cross

ASME SB462M Alloy UNS N08020 Threaded Elbow

ASME SB462M Alloy UNS N08020 Threaded Elbow

20 Alloy Socket Weld Lateral Tee

20 Alloy Socket Weld Lateral Tee

ASTM B366 Alloy 20 Hexagon Bushing

ASTM B366 Alloy 20 Hexagon Bushing

ANSI B16.9 Alloy 20 Socket Weld Union

ANSI B16.9 Alloy 20 Socket Weld Union

ASME SB462M Alloy 20 Socket Weld Tee

ASME SB462M Alloy 20 Socket Weld Tee

Carpenter® 20 Socket Weld Elbow

Carpenter® 20 Socket Weld Elbow

Alloy UNS N08020 Hexagon Plugs

Alloy UNS N08020 Hexagon Plugs

Werkstoff Nr. 2.4660 Square Plugs

Werkstoff Nr. 2.4660 Square Plugs

Alloy 20 Threaded Tee

Alloy 20 Threaded Tee

ANSI B16.11 Alloy 20 Threaded Caps

ANSI B16.11 Alloy 20 Threaded Caps

Alloy DIN 2.4660 Threaded Cross

Alloy DIN 2.4660 Threaded Cross

MSS SP-79 20 Alloy Socket Weld Caps

MSS SP-79 20 Alloy Socket Weld Caps

Carpenter 20 Threaded Bends

Carpenter 20 Threaded Bends

20 Alloy Socket Weld Coupling

20 Alloy Socket Weld Coupling

ASTM B366 Alloy 20 Threaded Coupling

ASTM B366 Alloy 20 Threaded Coupling

ANSI B16.9 Alloy 20 Threaded Union

ANSI B16.9 Alloy 20 Threaded Union

ANSI B16.9 Alloy 20 Outlets Types

ASME SB462M Alloy 20 Welding Outlets

ASME SB462M Alloy 20 Welding Outlets

Carpenter® 20 Threaded Outlets

Carpenter® 20 Threaded Outlets

MSS SP-79 20 Alloy Swept Outlets

MSS SP-79 20 Alloy Swept Outlets

Carpenter 20 Socket Weld Outlets

Carpenter 20 Socket Weld Outlets

ASME SB462M Alloy UNS N08020 Lateral Outlets

ASME SB462M Alloy UNS N08020 Lateral Outlets

Alloy 20 Elbow Outlets

Alloy 20 Elbow Outlets

Carpenter 20 Nipple Outlets

Carpenter 20 Nipple Outlets

Alloy UNS N08020 Socket Weld Fittings Chart

Alloy UNS N08020 Socket Weld Fittings Chart
Body Wall Thickness G DN Depth of Socket Min.
J
Center to Bottom of Socket-A Socket Bore Dia. B Bore Dia. Of Fitting D Nom. Pipe Size Socket Wall Thickness (2) C
Class Designation 90° Elbows Tees, Crosses 45° Elbows Class Designation
6000 3000 9000 Class Designation Class Designation Class Designation 3000 6000 9000
Min. Min. Min. 6000 3000 9000 9000 3000 6000 3000 9000 6000 Min Ave. Min Ave. Ave. Min
3.15 2.41 6 9.5 11.0 11.0 8.0 8.0 10.8 6.9 4.0 1/8” 3.18 3.18 3.43 3.96
3.68 3.02 8 9.5 13.5 11.0 8.0 8.0 14.2 9.3 6.4 1/4” 3.30 3.78 4.01 4.60
4.01 3.20 10 9.5 15.5 13.5 8.0 11.0 17.6 12.6 9.2 3/8” 3.50 4.01 4.37 5.03
4.78 3.73 7.47 15 9.5 19.0 15.5 25.5 15.5 11.0 12.5 21.8 15.8 6.4 11.8 1/2” 4.09 4.67 5.18 5.97 9.35 8.18
5.56 3.91 7.82 20 12.5 22.5 19.0 28.5 19.0 13.0 14.0 27.2 21.0 11.1 15.6 3/4” 4.27 4.90 6.04 6.96 9.78 8.56
6.35 4.55 9.09 25 12.5 27.0 22.5 32.0 20.5 14.0 17.5 33.9 26.7 15.2 20.7 1” 4.98 5.69 6.93 7.92 11.38 9.96
6.35 4.85 9.70 32 12.5 32.0 27.0 35.0 22.5 17.5 20.5 42.7 35.1 22.8 29.5 1-1/4” 5.28 6.07 6.93 7.92 12.14 10.62
7.14 5.08 10.15 40 12.5 38.0 32.0 38.0 25.5 20.5 25.5 48.8 40.9 28.0 34.0 1-1/2” 5.54 6.35 7.80 8.92 12.70 11.12
8.74 5.54 11.07 50 16.0 41.0 38.0 54.0 28.5 25.5 28.5 61.2 52.5 38.2 42.9 2” 6.04 6.93 9.50 10.92 13.84 12.12
7.01 65 16.0 41.0 28.5 73.9 62.7 2-1/2” 7.67 8.76
7.62 80 16.0 57.0 32.0 89.8 78.0 3” 8.30 9.52
8.56 100 19.0 66.5 41.0 115.2 102.3 4” 9.35 10.69

ANSI B16.9 Alloy 20 Butt Weld Fittings Schedule Chart

We are a specialist supplier & distributor of Alloy 20 Pipe Fittings

DN Schedule 10S Schedule 40S
45° Elbow 90° Elbow Equal tee Stub end type (B) End cap 45° Elbow 90° Elbow Equal tee End cap Stub end type (B)
15 0.03 0.06 0.09 0.07 0.03 0.04 0.08 0.10 0.04 0.08
20 0.03 0.07 0.13 0.09 0.05 0.04 0.08 0.17 0.07 0.11
25 0.08 0.14 0.28 0.16 0.08 0.11 0.15 0.29 0.10 0.17
32 0.11 0.23 0.49 0.22 0.10 0.17 0.26 0.59 0.18 0.25
40 0.17 0.30 0.68 0.25 0.11 0.23 0.40 0.86 0.20 0.31
50 0.25 0.50 0.85 0.43 0.13 0.40 0.70 1.28 0.23 0.61
65 0.48 0.85 1.41 0.57 0.19 0.77 1.40 2.19 0.27 0.80
80 0.63 1.25 1.77 0.72 0.25 1.08 2.20 3.31 0.42 1.13
100 1.08 2.10 3.46 1.09 0.68 1.47 4.47 5.27 1.14 1.87
125 1.82 3.65 5.44 1.47 1.11 2.84 6.80 9.63 2.13 2.79
150 2.72 5.45 8.03 2.15 1.42 5.44 10.89 10.99 3.23 3.57
200 5.33 10.20 15.65 3.22 2.38 10.77 21.54 20.91 5.19 6.07
250 9.75 18.15 26.76 5.13 4.45 19.27 38.56 35.38 9.00 10.07
300 13.62 25.80 39.46 8.16 7.50 29.71 59.42 62.14 15.00 14.29
350 18.37 36.29 48.53 10.88 8.17 35.15 79.38 79.31 16.00 17.14
400 23.81 47.63 58.97 12.70 10.67 45.81 99.79 99.79 21.00 20.41
450 29.94 59.87 79.65 17.23 13.00 59.40 129.73 129.73 26.00 27.21
500 49.90 99.80 103.42 21.77 17.00 74.84 162.38 162.39 34.00 29.94
600 70.31 140.61 155.58 27.21 26.00 105.23 225.89 225.90 52.00 38.55

ASME SB462M Alloy UNS N08020 Buttweld Fittings Pressure Rating

Buttweld Fittings
Temperature Ratings Pressure Class
150 300
1 1/4 - 2 Inches 1/4 - 1 Inches 2 1/2 - 3 Inches
(oC) (oF)
-29 to 66 -20 to 150 300 1500 2000 1000
93 200 265 1350 1785 910
121 250 225 1200 1575 825
149 300 185 1050 1360 735
177 350 150 900 1150 650
204 400 - 750 935 560
232 450 - 600 725 475
260 500 - 450 510 385
288 550 - 300 300 300

Size Chart of Alloy 20 Buttweld Elbow

Elbow Pipe Fittings
45°
Long Radius
Center to End
B
90°
Long Radius
Center to End
A
NPS 45°
3D
Center to End
B
90°
3D
Center to End
A
O.D.
D
57 133 3.1/2 111 267 101.6
64 152 4 127 305 114.3
79 190 5 157 381 141.3
95 229 6 189 457 168.3
127 305 8 252 610 219.1
16 38 1/2 21.3
19 38 3/4 24 57 26.7
22 38 1 31 76 33.4
25 48 1.1/4 39 95 42.2
29 57 1.1/2 47 114 48.3
35 76 2 63 152 60.3
44 95 2.1/2 79 190 73
51 114 3 95 229 88.9
159 381 10 316 762 273
190 457 12 378 914 323.8
222 533 14 441 1067 355.6
254 610 16 505 1219 406.4

Contact us if you are looking for Alloy 20 Pipe Fittings Manufacturer in India, Leading Stockist of Nickel Alloy 20 Olets

Alloy 20 Buttweld Pipe Fittings Chemical Composition

Buy Alloy UNS N08020 Pipe Fittings and Incoloy Alloy 20 Buttweld Fittings with beveled ends as per ASME B16.25, manufacturer of Alloy 20 Butt Weld Fittings in India

Cu Fe C Ni Mn P Cr Mo Si S Nb
3 - 4 Bal 0.02 max 32 - 38 1 - 2 0.02 max> 19 - 21 2 - 3 0.7 max 0.005 max 0.1 - 0.3

ASTM B366 Alloy 20 Pipe Fittings Mechanical Properties

(0.2%Offset) Yield Properties Melting Point Density Tensile Properties Elongational %
MPa - 241, Psi - 35,000 (2430 °F) 1443 °C 8.1 g/cm3 MPa -551, Psi -80,000 30

Alloy 20 Welded Pipe Fittings Equivalent

AFNOR UNS WERKSTOFF NR. EN
Z2NCUD31-20AZ N08020 2.4660 NiCr20CuMo

ASTM B366 Alloy 20 Branch Outlet Socket Weld Chart

ASTM B366 Alloy 20 Branch Outlet Socket Weld Chart
Out-Let Pipe NPS Reducing Way
C D F J
(Min)
E
(Min)
6000 3000 3000 6000 6000 3000 3000 6000 6000 3000
1/8” 13.7 10.8 22.0 9.7 10.4
1/4” 13.7 14.2 22.0 9.7 10.4
3/8” 19.1 17.6 25.9 9.7 12.7
1/2” 16.6 21.3 21.8 21.8 38.0 31.4 9.7 9.7 23.9 16.0
3/4” 21.2 26.7 27.2 27.2 44.0 37.1 12.7 12.7 25.4 16.0
1” 27.0 33.4 33.9 33.9 57.0 45.5 12.7 12.7 28.7 22.4
1-1/4” 35.8 42.2 42.7 42.7 64.0 57.0 12.7 12.7 30.2 22.4
1-1/2” 41.2 48.3 48.8 48.8 76.0 64.0 12.7 12.7 31.8 23.9
2” 51.6 60.3 61.2 61.2 92.0 76.0 15.8 15.8 36.6 23.9
2-1/2” 73.2 73.9 92.0 15.8 25.4
3” 88.9 89.8 109.2 15.8 30.2
4” 114.3 115.2 140.0 19.1 30.2

ANSI B16.9 Alloy 2 Unions Threaded Dimensions

ANSI B16.9 Alloy 2 Unions Threaded Dimensions
Clear Assem. Nut Nut Nom. Pipe Size Wall Length Assem. Nom. Water Way Bore Pipe End Male Flange Threads Per 25.4mm Bearing
N Min. G Min. C L D Min. A Min. F Max. H Min. J
50.8 3.18 1/8” 2.41 41.4 8.43
6.43
14.7 3.18 16 1.24
50.8 3.18 1/4” 3.02 41.4 11.13
9.45
19.0 3.18 16 1.24
55.9 3.43 3/8” 3.20 46.0 14.27
13.51
22.9 3.43 14 1.37
58.4 3.68 1/2” 3.73 49.0 17.86
17.07
27.7 3.68 14 1.50
66.0 4.06 3/4” 3.91 56.9 23.01
21.39
33.5 4.06 11 1.68
78.7 4.45 1” 4.55 62.0 28.98
27.74
41.4 4.57 11 1.85
94.0 5.21 1-1/4” 4.85 71.1 37.69
35.36
50.5 5.33 11 2.13
111.8 5.59 1-1/2” 5.08 76.5 43.54
41.20
57.2 5.84 10 2.31
132.1 6.35 2” 5.54 86.1 55.58
52.12
70.1 6.60 10 2.69
149.9 7.11 2-1/2” 7.01 102.4 66.27
64.31
85.3 7.49 8 3.07
175.3 8.00 3” 7.62 109.0 88.25
77.27
102.4 8.26 8 3.53

ASME SB462M Alloy 20 Pipe Fittings Dimensions

Contact directly a Alloy 20 Seamless Butt Weld Fittings and Alloy 20 Pipe Fittings Exporter in India for high quality material and MTC

Forms of Pipe Fttings Size Range Dimension Standards Schedules of Butt weld fittings
Seamless Pipe Fittings Welded Pipe Fittings
Elbows 1/8” NBt to 24" NB Upto 42" NB ANSI B16.9, ANSI B16.28, ASME B16.9, ASME B16.28, ANSI B16.25 Sch 5s, Sch 10, Sch 80s, Sch 100, Sch XXS, Sch 20, Sch 10s, Sch 40, Sch STD, Sch 40s, Sch 30, Sch XS, Sch 120, Sch 5, Sch 60, Sch 160, upto 50mm in case of welded fittings
Reducers 1/8” NB to 24" NB Upto 42" NB
Tees 1/8” NBt to 24" NB Upto 42" NB
End Caps 1/8” NBt to 24" NB Upto 42" NB
Swage Nipple 1/8” NB to 8" NB
Cross 1/8” NB to 8" NB
Return Bends 1/8” NB to 8" NB
Customized Pipe Fittings As Per Client Requirements
Check Sizes and Weight chart of Carpenter 20 Threaded Pipe Fittings and Alloy 20 Elbow online!

ANSI B16.9 Alloy 20 Buttweld Fittings Applications

  • Sea Water Equipment

  • Specialty Chemicals

  • Off-Shore Oil Drilling Companies

  • Pulp and Paper Industry

  • Chemical Equipment

  • Pharmaceuticals

  • Gas Processing

  • Heat Exchangers

  • Power Generation

  • Pharmaceutical Equipment

  • Condensers

  • Petrochemicals

Alloy 20 Nipple Branch Outlet Butt Weld Fittings Chart

Alloy 20 Nipple Branch Outlet Butt Weld Fittings Chart
F Outlet Pipe C
Sch160 - XXS STD - XS
21.3 1/2” 13.8 23.8
26.7 3/4” 18.9 30.2
33.4 1” 24.3 36.5
42.2 1-1/4” 32.5 44.5
48.3 1-1/2” 38.1 50.8
60.3 2” 49.2 65.1

Wall Thickness of Alloy 20 Seamless Pipe Fittings

Why pay extra? Buying from ASTM A366 Welded Pipe Fittings manufacturers saves your cost, wide selection of Alloy 20 Pipe Fittings in India

O.D. (mm) Nominal Pipe Size W.T. (mm)
Sch 5S Sch 10S Sch 40S Sch 80S
NPS DN Weight (kg/m) WT (mm) Weight (kg/m) WT (mm) Weight (kg/m) WT (mm) Weight (kg/m) WT (mm)
10.3 6 0.28 1.24 0.37 1.73 0.47 2.41
13.7 ¼ 8 0.49 1.65 0.63 2.24 0.80 3.02
17.1 10 0.63 1.65 0.84 2.31 1.10 3.20
21.3 ½ 15 0.80 1.65 1.00 2.11 1.27 2.77 1.62 3.73
26.7 ¾ 20 1.02 1.65 1.28 2.11 1.69 2.87 2.20 3.91
33.4 1 25 1.29 1.65 2.09 2.77 2.50 3.38 3.24 4.55
42.2 32 1.65 1.65 2.69 2.77 3.39 3.56 4.47 4.85
48.3 40 1.90 1.65 3.11 2.77 4.05 3.68 5.41 5.08
60.3 2 50 2.39 1.65 3.93 2.77 5.44 3.91 7.48 5.54
73.0 65 3.69 2.11 5.26 3.05 8.63 5.16 11.41 7.01
88.9 3 80 4.52 2.11 6.46 3.05 11.29 5.49 15.27 7.62
101.6 90 5.18 2.11 7.41 3.05 13.57 5.74 18.64 8.08
114.3 4 100 5.84 2.11 8.37 3.05 16.08 6.02 22.32 8.56
141.3 5 125 9.46 2.77 11.56 3.40 21.77 6.55 30.97 9.53
168.3 6 150 11.31 2.77 13.83 3.40 28.26 7.11 42.56 10.97
219.1 8 200 14.78 2.77 19.97 3.76 42.55 8.18 64.64 12.70
273.1 10 250 22.61 3.40 27.79 4.19 60.31 9.27 81.56 12.70
323.9 12 300 31.25 3.96 35.99 4.57 73.88 9.53 97.47 12.70
355.6 14 350 34.34 3.96 41.36 4.78 81.33 9.53 107.40 12.70
406.4 16 400 41.56 4.19 47.34 4.78 93.27 9.53 123.31 12.70
457 18 450 46.79 4.19 53.31 4.78 105.17 9.53 139.16 12.70
508 20 500 59.32 4.78 68.65 5.54 117.15 9.53 155.13 12.70
559 22 550 65.33 4.78 75.62 5.54
610 24 600 82.58 5.54 94.53 6.35 141.12 9.53 187.07 12.70
660 26 650
711 28 700
762 30 750 118.34 6.35 147.29 7.92

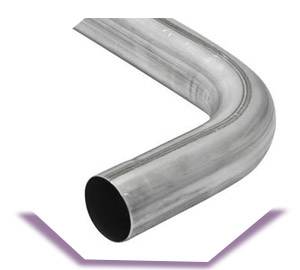

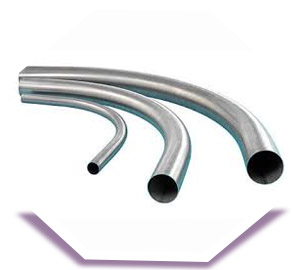

We keep ready stock of UNS N08020 Tee and Alloy 20 Pipe Bends in wide range of sizes and thickness

ASTM B366 Alloy 20 Forged Fittings Weight Chart

Threaded Fittings

Size Product 3/4” 1/4” 1/8” 3/8” 1/2” 1” 2-1/2” 1-1/2” 3” 1-1/4” 2” 4”
90 Elbow 2000 0.35 0.08 0.10 0.13 0.25 0.53 3.14 1.06 4.81 0.82 1.70 10.21
3000 0.69 0.14 0.10 0.29 0.43 1.14 5.99 2.63 8.88 1.42 2.92 14.85
6000 1.31 0.33 0.17 0.45 0.80 1.61 9.88 3.79 17.73 2.93 7.31 15.76
45 Elbow 2000 0.27 0.08 0.09 0.10 0.20 0.41 3.46 0.82 5.44 0.68 1.41 8.96
3000 0.56 0.12 0.09 0.24 0.34 0.94 3.71 2.05 5.97 1.03 2.23 8.96
6000 1.07 0.27 0.11 0.39 0.63 1.27 7.01 2.54 14.16 2.24 4.37 11.36
Tee 2000 0.43 0.12 0.13 0.17 0.31 0.69 4.11 1.39 6.12 1.07 2.16 14.74
3000 0.92 0.20 0.13 0.38 0.56 1.49 6.99 3.27 10.19 1.76 3.53 19.13
6000 1.65 0.45 0.20 0.63 0.98 2.17 13.11 4.71 21.70 3.74 7.88 18.53
Cross 2000 0.54 0.14 0.17 0.21 0.39 0.83 5.26 1.75 7.58 1.26 2.65 16.35
3000 1.06 0.26 0.17 0.44 0.72 1.79 8.51 3.93 12.45 2.13 4.27 21.93
Full Coupling 3000 0.19 0.04 0.05 0.06 0.13 0.45 2.29 1.07 3.38 0.81 1.40 6.28
6000 0.50 0.13 0.08 0.20 0.34 0.87 4.20 1.94 6.10 1.09 2.87 10.04
Half Coupling 3000 0.10 0.02 0.02 0.03 0.06 0.23 1.13 0.54 1.68 0.34 0.70 3.11

Socket Weld Fittings

Size Product 1-1/2” 3/8” 1/4” 1/2” 3” 1” 2-1/2” 1/8” 1-1/4” 2” 3/4” 4”
90 Elbow 3000 1.08 0.12 0.08 0.22 5.38 0.53 3.20 0.09 0.84 1.68 0.33 10.95
6000 2.79 0.29 0.15 0.40 1.17 0.10 1.48 3.28 0.73
45 Elbow 3000 0.80 0.11 0.07 0.20 5.10 0.42 2.53 0.08 0.69 1.35 0.28 9.41
6000 2.01 0.26 0.14 0.36 0.92 0.09 1.11 2.09 0.57
Tee 3000 1.35 0.15 0.09 0.29 5.90 0.65 3.98 0.13 1.04 2.04 0.42 13.92
6000 3.37 0.43 0.20 0.56 1.49 0.14 1.93 3.95 0.94
Cross 3000 1.58 0.20 0.13 0.35 6.69 0.73 4.37 0.16 1.12 2.25 0.47 14.58
6000 3.96 0.45 0.26 0.67 1.75 0.17 2.26 4.42 1.07
Full Coupling 3000 0.59 0.07 0.05 0.13 1.78 0.29 1.40 0.04 0.45 0.86 0.17 2.85
6000 1.11 0.114 0.07 0.204 0.44 0.05 0.60 1.62 0.27
Half Coupling 3000 0.66 0.07 0.05 0.13 2.10 0.30 1.63 0.04 0.34 1.09 0.21 3.71
6000 1.25 0.12 0.09 0.21 0.51 0.06 0.75 1.92 0.31
Red Coupling 3000 0.59 0.07 0.05 0.13 1.88 0.27 1.42 0.04 0.49 0.97 0.19 3.31
6000 1.20 0.24 0.65 0.75 2.12 0.33
Cap 3000 0.59 0.07 0.04 0.10 2.74 0.25 1.43 0.03 0.45 0.96 0.16 4.24
6000 0.94 0.10 0.08 0.16 0.36 0.05 0.64 1.41 0.23
Union 3000 1.61 0.25 0.28 0.35 5.15 0.81 3.50 0.28 1.10 2.16 0.49 11.59

We stock in India and supply in below countries

Adco Jebel Dhanna Crude Storage Tanks

Adco Jebel Dhanna Crude Storage Tanks

Gorgon LNG Train 4-Australia

Gorgon LNG Train 4-Australia

Bahrain Deep Gas Exploration Project Bahrain

Bahrain Deep Gas Exploration Project Bahrain

ConocoPhillips Barossa Project-Australia

ConocoPhillips Barossa Project-Australia

Singapore Lng Corporation Pte Ltd

Singapore Lng Corporation Pte Ltd

Ruwais Refinery Complex - Third Grassroot Refinery United Arab Emirates

Ruwais Refinery Complex - Third Grassroot Refinery United Arab Emirates
