Incoloy 800 Pipe Fittings

We are manufacturer of ASTM B366 UNS N08800 Tee in India, Refer Dimensions and Price list of Alloy 800 Elbow

Pipe fittings are devices that help in connecting piping grades that allow it to route, directional change, and branch the connections. The Incoloy 800 Pipe Fittings/ Incoloy Pipe Fittings play a critical role in influencing the characteristics of media across treacherous conditions. The versatile Incoloy 800 Pipe Fittings are designed with a chemical content of nickel, chromium, ferrous, carbon, aluminum, and titanium. These unique fittings have excellent corrosion resistance properties across harsh conditions. The Incoloy Pipe Fittings work well in high-temperature setups and possess higher creep-rupture strength allowing them to be a good choice in the oil and gas industry. Alloy 800 Fittings are tolerant to carburization and are resistant to several sulfur-containing atmospheres. These fittings can be developed in the shape of tees, reducers, elbows, crosses, etc. The ASTM B366 UNS N08800 grade can be hot or cold worked. These components can be annealed at temperatures of 982 degrees C and subsequently air-cooled.

The UNS N08800 Elbow is employed to change the angle of the flow in the pipe run. These elbows are commonly designed in 90, and 45 degrees turns to meet the requirements of the oil and gas industry. Incoloy Alloy 800 Tee is shaped in the form of a T having two outlets that are at a 90-degree angle, with one end having a singular connection line. These tees are available in equal and reducing configurations. The WNR 1.4876 Reducer is utilized to join pipes of different diameters. These reducers act as an adapter that makes a gradual change in flow. They are seen in concentric and eccentric configurations.

Supplier and Exporter of Incoloy 800 Semaless Fittings, We Provide Material test certificates for Nickel Alloy 800H End Cap

More than 30 years experience as a Alloy 800 Fittings manufacturer in India

Dimensions	ASME/ANSI BS4504, B16.9, BS10, ASME B16.28, MSS-SP-43, BS4504, BS1560,
Connection	Welding
Thickness	Schedule 10 to XXS
Elbows	Angle : 2.5D, 3D, 6D, 2.0D, 4D, 1.0D, 90deg, 22.5deg, 30deg, 1.5D, 5D, 45deg, 180deg, 7D-40D . Standard: ISO, ASME B16.9/ B16.28/ B16.25, GB, BS, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313
Manufacturing process	Cast, Push, Press, Forge
Size	Seamless Fittings: From 1/2″ upto 10″ Welded Fittings: From 1/2″ upto 48″
Specialized manufacturer of	Pipe Cap, Tees, 45º Elbows, Crosses, 90º Elbows, Stub End, Reducers, Pipe Bend
Type	DN15 upto DN1200
Bending Radius	R=2D, 8D, 3D, 5D, 6D, 10D, 1D

ASTM B366 WPNIC Fittings manufacturer in India offers Free Sample and Bulk Discounts

Description	Price Per Kg In Singapore	Price Per Kg In UAE	Price Per Kg In USD	Price Per Kg In Malaysia
1 X SCH 80X 45 DEG INCONEL PIPE FITTINGS BW ELBOW UNS N08800 FITTINGS	SGD 13.23	UAE Dirham 34.55	US $9.56	MYR 41.90
1 SCH 80 3000# FITTINGS SOCKOLET INCONEL 800 FITTINGS	SGD 115.74	UAE Dirham 302.21	US $83.59	MYR 366.51
NPTM 3/4 IN 3000-6000 NICKEL ALLOY FITTINGS:PLUG HEX HEAD INCONEL 800 ANSI B16.11 FITTINGS	SGD 26.64	UAE Dirham 69.56	US $19.24	MYR 84.36
8 NB X 6 NB SCH 80 INCONEL ALLOY 800 SEAMLESS BW FITTING ASTM B366 GRADE 2 UNS N08800 ANSI B16.9 NACE MR0103, CONCENTR FITTINGS	SGD 3,494.00	UAE Dirham 9,123.22	US $2,523.44	MYR 11,064.33
33.4 MM OD X 3 MM THK INCONEL 800 SMLS LR ELBOW 90 DEG TO ASTM B 366 GR. UNS NO. 8800 GR 2, DIMN B 16.9 BW FITTINGS	SGD 130.19	UAE Dirham 339.95	US $94.03	MYR 412.28
6 X 4 SCH-120 PIPE FITTINGS TEE, CON.REDUCER, SEAMLESS INCONEL 800 FITTINGS	SGD 1,132.88	UAE Dirham 2,958.09	US $818.19	MYR 3,587.47
NPT3/4IN 3000 NICKEL ALLOY FITTINGS HALF COUPLING INCONEL 800 ANSI B 16.11	SGD 50.62	UAE Dirham 132.16	US $36.56	MYR 160.28

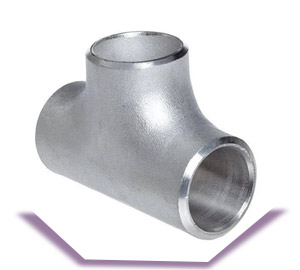

Incoloy 800 Equal Tee

ASME SB366 800 Incoloy Laterals

Alloy 800 90 Degree Elbows

Incoloy 800H Return Bends

UNS N08810 Stub End

Incoloy 800H 45 Degree Elbows

Incoloy Alloy 800HT Lap Joint Stub Ends

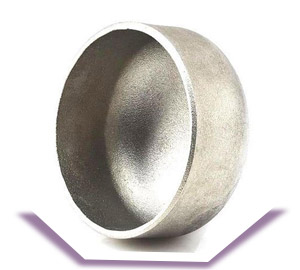

Inconel 800 End Cap

Alloy 800 Eccentric Reducer

Incoloy 800H Cross Tee

ASTM B564 Incoloy 800 Pipe Fittings

800 Incoloy 180 Degree Elbows

Nickel Alloy 800HT Elbow

ASTM B564 Incoloy 800 Reducer

UNS N08810 Reducing Tee

Nickel Alloy 800 Cross Fitting

Incoloy 800 Concentric Reducer

Incoloy® Alloy 800 Weld Elbows

ANSI B16.11 Incoloy Alloy 800 Socket Weld Elbow

ASTM B564 Incoloy 800 Threaded Bends

Incoloy 800 Threaded Caps

Incoloy 800 Socket Weld Coupling

ASME SB366 800 Incoloy Hexagon Bushing

Alloy 800 Socket Weld Caps

Incoloy 800H Threaded Tee

UNS N08810 Threaded Union

Incoloy 800H Threaded Coupling

Incoloy Alloy 800HT Threaded Cross

Inconel 800 Socket Weld Lateral Tee

Alloy 800 Socket Weld Tee

Incoloy 800H Socket Weld Cross

ASTM B564 Incoloy Alloy 800HT Square Plugs

800 Incoloy Hexagon Plugs

Nickel Alloy 800HT Threaded Elbow

ASTM B564 Incoloy 800 Socket Weld Union

UNS N08810 Threaded Outlets

Nickel Alloy 800 Swept Outlets

Incoloy 800 Nipple Outlets

Incoloy® Alloy 800 Socket Weld Outlets

ANSI B16.11 Incoloy Alloy 800 Welding Outlets

ASTM B564 Incoloy 800 Lateral Outlets

Incoloy 800 Elbow Outlets

Compare our price with other Incoloy 800 Pipe Fittings manufacturers and suppliers in India

O.D. (mm)	Nominal Pipe Size		W.T. (mm)
			Sch 5S		Sch 10S		Sch 40S		Sch 80S
	NPS	DN	Weight (kg/m)	WT (mm)	Weight (kg/m)	WT (mm)	Weight (kg/m)	WT (mm)	Weight (kg/m)	WT (mm)
10.3	⅛	6			0.28	1.24	0.37	1.73	0.47	2.41
13.7	¼	8			0.49	1.65	0.63	2.24	0.80	3.02
17.1	⅜	10			0.63	1.65	0.84	2.31	1.10	3.20
21.3	½	15	0.80	1.65	1.00	2.11	1.27	2.77	1.62	3.73
26.7	¾	20	1.02	1.65	1.28	2.11	1.69	2.87	2.20	3.91
33.4	1	25	1.29	1.65	2.09	2.77	2.50	3.38	3.24	4.55
42.2	1¼	32	1.65	1.65	2.69	2.77	3.39	3.56	4.47	4.85
48.3	1½	40	1.90	1.65	3.11	2.77	4.05	3.68	5.41	5.08
60.3	2	50	2.39	1.65	3.93	2.77	5.44	3.91	7.48	5.54
73.0	2½	65	3.69	2.11	5.26	3.05	8.63	5.16	11.41	7.01
88.9	3	80	4.52	2.11	6.46	3.05	11.29	5.49	15.27	7.62
101.6	3½	90	5.18	2.11	7.41	3.05	13.57	5.74	18.64	8.08
114.3	4	100	5.84	2.11	8.37	3.05	16.08	6.02	22.32	8.56
141.3	5	125	9.46	2.77	11.56	3.40	21.77	6.55	30.97	9.53
168.3	6	150	11.31	2.77	13.83	3.40	28.26	7.11	42.56	10.97
219.1	8	200	14.78	2.77	19.97	3.76	42.55	8.18	64.64	12.70
273.1	10	250	22.61	3.40	27.79	4.19	60.31	9.27	81.56	12.70
323.9	12	300	31.25	3.96	35.99	4.57	73.88	9.53	97.47	12.70
355.6	14	350	34.34	3.96	41.36	4.78	81.33	9.53	107.40	12.70
406.4	16	400	41.56	4.19	47.34	4.78	93.27	9.53	123.31	12.70
457	18	450	46.79	4.19	53.31	4.78	105.17	9.53	139.16	12.70
508	20	500	59.32	4.78	68.65	5.54	117.15	9.53	155.13	12.70
559	22	550	65.33	4.78	75.62	5.54
610	24	600	82.58	5.54	94.53	6.35	141.12	9.53	187.07	12.70
660	26	650
711	28	700
762	30	750	118.34	6.35	147.29	7.92

End To End “A”	O.D.		Nominal Pipe Size (NPS)	W.T.
	Small End D2	Large End D1		T1				T2
				Schedule 80 (XS)	Schedule 40 (Sth)	XXS	Schedule 160	Schedule 80 (XS)	Schedule 40 (Sth)	XXS	Schedule 160
57	10.3	13.7	1/4"x1/8"	3.0	2.2	6.1	3.7	2.4	1.7
64	10.3	17.1	3/8"x1/8"	3.2	2.3	6.4	4.0	2.4	1.7
64	13.7	17.1	3/8"x1/4"	3.2	2.3	6.4	4.0	3.0	2.2
70	10.3	21.3	1/2"x1/8"	3.7	2.8	7.5	4.8	2.4	1.7
70	13.7	21.3	1/2"x1/4"	3.7	2.8	7.5	4.8	3.0	2.2
70	17.1	21.3	1/2"x3/8"	3.7	2.8	7.5	4.8	3.2	2.3
76	10.3	26.7	3/4"x1/8"	3.9	2.9	7.8	5.6	2.4	1.7
76	13.7	26.7	3/4’x1/4"	3.9	2.9	7.8	5.6	3.0	2.2
76	17.1	26.7	3/4"x3/8"	3.9	2.9	7.8	5.6	3.2	2.3
76	21.3	26.7	3/4"x1/2"	3.9	2.9	7.8	5.6	3.7	2.8	7.5	4.8
89	10.3	33.4	1"x1/8"	4.5	3.4	9.1	6.4	2.4	1.7
89	13.7	33.4	1"x1/4"	4.5	3.4	9.1	6.4	3.0	2.2
89	17.1	33.4	1"x3/8"	4.5	3.4	9.1	6.4	3.2	2.3
89	21.3	33.4	1"x1/2"	4.5	3.4	9.1	6.4	3.7	2.8	7.5	4.8
89	26.7	33.4	1"x3/4"	4.5	3.4	9.1	6.4	3.9	2.9	7.8	5.6
102	10.3	42.2	1-1/4"x1/8"	4.9	3.6	9.7	6.4	2.4	1.7
102	13.7	42.2	1-1/4"x1/4"	4.9	3.6	9.7	6.4	3.0	2.2
102	17.1	42.2	1-1/4"x3/8"	4.9	3.6	9.7	6.4	3.2	2.3
102	21.3	42.2	1-1/4"x1/2"	4.9	3.6	9.7	6.4	3.7	2.8	7.5	4.8
102	26.7	42.2	1-1/4"x3/4"	4.9	3.6	9.7	6.4	3.9	2.9	7.8	5.6
102	33.4	42.2	1-1/4"x1"	4.9	3.6	9.7	6.4	4.5	3.4	9.1	6.4
114	10.3	48.3	1-1/2"x1/8"	5.1	3.7	10.2	7.1	2.4	1.7
114	13.7	48.3	1-1/2"x1/4"	5.1	3.7	10.2	7.1	3.0	2.2
114	17.1	48.3	1-1/2"x3/8"	5.1	3.7	10.2	7.1	3.2	2.3
114	21.3	48.3	1-1/2"x1/2"	5.1	3.7	10.2	7.1	3.7	2.8	7.5	4.8
114	26.7	48.3	1-1/2"x3/4"	5.1	3.7	10.2	7.1	3.9	2.9	7.8	5.6
114	33.4	48.3	1-1/2"x1"	5.1	3.7	10.2	7.1	4.5	3.4	9.1	6.4
114	42.2	48.3	1-1/2"x1-1/4"	5.1	3.7	10.2	7.1	4.9	3.6	9.7	6.4
165	10.3	60.3	2"x1/8"	5.5	3.9	11.1	8.7	2.4	1.7
165	13.7	60.3	2"x1/4"	5.5	3.9	11.1	8.7	3.0	2.2
165	17.1	60.3	2"x3/8"	5.5	3.9	11.1	8.7	3.2	2.3
165	21.3	60.3	2"x1/2"	5.5	3.9	11.1	8.7	3.7	2.8	7.5	4.8

W.T. (prior to threading or grooving)	Overall Length (mm)	O.D. at end		Nominal Pipe Size (inch)
		Square Cut Ends (mm)	Other End Connection (mm)
Not less than 87.5% of nominal wall thickness	± 1.5	+ 0.40	± 0.80	1/8" to 3/8"
		- 0.80
	± 1.5	+ 0.40	+ 1.50	1/2" to 1-1/2"
		- 0.80	- 0.80
	± 3.0	± 0.80	+ 1.50	2" to 2-1/2"
			- 0.80
	± 3.0	± 0.80	± 1.50	3" to 4"

3000LB

A	G (2) (Min)	Nom. Pipe Size	DN	B (2)		D (1)	B (2)	E	J (2) (Min)
				(Min)	(Avg)
35	3.75	1/2”	15	4.09	4.67	15.8	21.8	9	9.5
41	3.95	3/4”	20	4.27	4.90	21.0	27.2	9	12.5
51	4.55	1”	25	4.98	5.69	26.7	33.9	12	12.5
59	4.85	1-1/4”	32	5.28	6.07	35.1	42.7	17	12.5
68	5.10	1-1/2”	40	5.54	6.35	40.9	48.8	21	12.5
95	5.55	2”	50	6.04	6.93	52.5	61.2	24	16.0
118	7.05	2-1/2”	65	7.67	8.76	62.7	73.9	38	16.0

6000LB

G (2) (Min)	Nom. Pipe Size	E	B (2)		D (2)	A	DN	B (2)	J (2) (Min)
			(Avg)	(Min)
4.78	1/2”	9	5.97	5.18	11.8	41	15	21.8	9.5
5.56	3/4”	12	6.96	6.04	15.6	51	20	27.2	12.5
6.35	1”	17	7.92	6.93	20.7	59	25	33.9	12.5
6.35	1-1/4”	21	7.92	6.93	29.5	68	32	42.7	12.5
7.14	1-1/2”	24	8.92	7.80	34.0	95	40	48.8	12.5
8.74	2”	31	10.92	9.50	42.9	106	50	61.2	16.0

Manufacturer of Incoloy 800 Butt Weld Pipe Fittings and Alloy 800 Pipe Fittings in Mumbai, browse our range of Incoloy 800H Pipe Fittings and ASTM B366 GR.WPNIC Fittings online

DN	Schedule 10S					Schedule 40S
	45° Elbow	90° Elbow	Equal tee	Stub end type (B)	End cap	45° Elbow	90° Elbow	Equal tee	End cap	Stub end type (B)
15	0.03	0.06	0.09	0.07	0.03	0.04	0.08	0.10	0.04	0.08
20	0.03	0.07	0.13	0.09	0.05	0.04	0.08	0.17	0.07	0.11
25	0.08	0.14	0.28	0.16	0.08	0.11	0.15	0.29	0.10	0.17
32	0.11	0.23	0.49	0.22	0.10	0.17	0.26	0.59	0.18	0.25
40	0.17	0.30	0.68	0.25	0.11	0.23	0.40	0.86	0.20	0.31
50	0.25	0.50	0.85	0.43	0.13	0.40	0.70	1.28	0.23	0.61
65	0.48	0.85	1.41	0.57	0.19	0.77	1.40	2.19	0.27	0.80
80	0.63	1.25	1.77	0.72	0.25	1.08	2.20	3.31	0.42	1.13
100	1.08	2.10	3.46	1.09	0.68	1.47	4.47	5.27	1.14	1.87
125	1.82	3.65	5.44	1.47	1.11	2.84	6.80	9.63	2.13	2.79
150	2.72	5.45	8.03	2.15	1.42	5.44	10.89	10.99	3.23	3.57
200	5.33	10.20	15.65	3.22	2.38	10.77	21.54	20.91	5.19	6.07
250	9.75	18.15	26.76	5.13	4.45	19.27	38.56	35.38	9.00	10.07
300	13.62	25.80	39.46	8.16	7.50	29.71	59.42	62.14	15.00	14.29
350	18.37	36.29	48.53	10.88	8.17	35.15	79.38	79.31	16.00	17.14
400	23.81	47.63	58.97	12.70	10.67	45.81	99.79	99.79	21.00	20.41
450	29.94	59.87	79.65	17.23	13.00	59.40	129.73	129.73	26.00	27.21
500	49.90	99.80	103.42	21.77	17.00	74.84	162.38	162.39	34.00	29.94
600	70.31	140.61	155.58	27.21	26.00	105.23	225.89	225.90	52.00	38.55

Incoloy Pipe Fittings and ASTM B366 UNS N08800 Equal/ Reducing Tee manufacturer in Mumbai

Fe	Ti	Si	C	Al	Cu	S	Ni	Mn	Cr
39.50 min	0.15 – 0.60	1.00 max	0.10 max	0.15 – 0.60	0.75 max	0.015 max	30.00 – 35.00	1.50 max	19.00 – 23.00

Density	Elongation	Melting Point	(0.2%Offset) Yield Properties	Tensile Properties
MPa – 205, Psi – 30,000	30 %	(2525 °F) 1385 °C	7.94 g/cm3	MPa – 520, Psi – 75,000

Why don't you directly contact a ASTM B366 Grade WPNIC Fittings manufacturer? Get a free sample before dispatch of complete order of Incoloy Alloy 800H Fittings

UNS	WERKSTOFF NR.	JIS	GOST	EN	OR	BS	AFNOR
N08800	1.4876	NCF 800	ЭИ670	X10NiCrAlTi32-20	XH32T	NA 15	Z8NC32-21

We offer maximum schedule and large size WNR 1.4876 Concentric/ Eccentric Reducer in Mumbai, call us for our factory tour to check manufacturing process of Incoloy Alloy 800 Pipe Cap

Threaded Fittings

Size Product		3/4”	1/4”	1/8”	3/8”	1/2”	1”	2-1/2”	1-1/2”	3”	1-1/4”	2”	4”
90 Elbow	2000	0.35	0.08	0.10	0.13	0.25	0.53	3.14	1.06	4.81	0.82	1.70	10.21
	3000	0.69	0.14	0.10	0.29	0.43	1.14	5.99	2.63	8.88	1.42	2.92	14.85
	6000	1.31	0.33	0.17	0.45	0.80	1.61	9.88	3.79	17.73	2.93	7.31	15.76
45 Elbow	2000	0.27	0.08	0.09	0.10	0.20	0.41	3.46	0.82	5.44	0.68	1.41	8.96
	3000	0.56	0.12	0.09	0.24	0.34	0.94	3.71	2.05	5.97	1.03	2.23	8.96
	6000	1.07	0.27	0.11	0.39	0.63	1.27	7.01	2.54	14.16	2.24	4.37	11.36
Tee	2000	0.43	0.12	0.13	0.17	0.31	0.69	4.11	1.39	6.12	1.07	2.16	14.74
	3000	0.92	0.20	0.13	0.38	0.56	1.49	6.99	3.27	10.19	1.76	3.53	19.13
	6000	1.65	0.45	0.20	0.63	0.98	2.17	13.11	4.71	21.70	3.74	7.88	18.53
Cross	2000	0.54	0.14	0.17	0.21	0.39	0.83	5.26	1.75	7.58	1.26	2.65	16.35
	3000	1.06	0.26	0.17	0.44	0.72	1.79	8.51	3.93	12.45	2.13	4.27	21.93
Full Coupling	3000	0.19	0.04	0.05	0.06	0.13	0.45	2.29	1.07	3.38	0.81	1.40	6.28
	6000	0.50	0.13	0.08	0.20	0.34	0.87	4.20	1.94	6.10	1.09	2.87	10.04
Half Coupling	3000	0.10	0.02	0.02	0.03	0.06	0.23	1.13	0.54	1.68	0.34	0.70	3.11

Socket Weld Fittings

Size Product		1-1/2”	3/8”	1/4”	1/2”	3”	1”	2-1/2”	1/8”	1-1/4”	2”	3/4”	4”
90 Elbow	3000	1.08	0.12	0.08	0.22	5.38	0.53	3.20	0.09	0.84	1.68	0.33	10.95
	6000	2.79	0.29	0.15	0.40		1.17		0.10	1.48	3.28	0.73
45 Elbow	3000	0.80	0.11	0.07	0.20	5.10	0.42	2.53	0.08	0.69	1.35	0.28	9.41
	6000	2.01	0.26	0.14	0.36		0.92		0.09	1.11	2.09	0.57
Tee	3000	1.35	0.15	0.09	0.29	5.90	0.65	3.98	0.13	1.04	2.04	0.42	13.92
	6000	3.37	0.43	0.20	0.56		1.49		0.14	1.93	3.95	0.94
Cross	3000	1.58	0.20	0.13	0.35	6.69	0.73	4.37	0.16	1.12	2.25	0.47	14.58
	6000	3.96	0.45	0.26	0.67		1.75		0.17	2.26	4.42	1.07
Full Coupling	3000	0.59	0.07	0.05	0.13	1.78	0.29	1.40	0.04	0.45	0.86	0.17	2.85
	6000	1.11	0.114	0.07	0.204		0.44		0.05	0.60	1.62	0.27
Half Coupling	3000	0.66	0.07	0.05	0.13	2.10	0.30	1.63	0.04	0.34	1.09	0.21	3.71
	6000	1.25	0.12	0.09	0.21		0.51		0.06	0.75	1.92	0.31
Red Coupling	3000	0.59	0.07	0.05	0.13	1.88	0.27	1.42	0.04	0.49	0.97	0.19	3.31
	6000	1.20			0.24		0.65			0.75	2.12	0.33
Cap	3000	0.59	0.07	0.04	0.10	2.74	0.25	1.43	0.03	0.45	0.96	0.16	4.24
	6000	0.94	0.10	0.08	0.16		0.36		0.05	0.64	1.41	0.23
Union	3000	1.61	0.25	0.28	0.35	5.15	0.81	3.50	0.28	1.10	2.16	0.49	11.59

PIPE NOMINAL SIZE	OUTSIDE DIAM.		90° ELBOW		45° ELBOW		180° RETURNS
(inches)			Short Radius	Long Radius	Long Radius		Long Radius
	(mm)	(inches)	Center to Face (inches)	Center to Face (inches)	Radius (inches)	Center to Face (inches)	Back to face (inches)	Center to Center (inches)
3/4	26.7	1.050	–	1 1/8		7/16	1 11/16	2 1/4
1/2	21.3	0.840	–	1 1/2		5/8	1 7/8	2
1	33.4	1.315	1	1 1/2		7/8	2 3/16	3
1 1/2	48.3	1.900	1 1/2	2 1/4	3	1 1/8	3 1/4	4 1/2
1 1/4	42.2	1.660	1 1/4	1 7/8		1	2 3/4	3 3/4
2	60.3	2.375	2	3	4	1 3/8	4 3/16	6
3	88.9	3.500	3	4 1/2	6	2	6 1/4	9
2 1/2	73.0	2.875	2 1/2	3 3/4	5	1 3/4	5 3/16	7 1/2
3 1/2	101.6	4.000	3 1/2	5 1/4	7	2 1/4	7 1/4	10 1/2
5	141.3	5.563	5	7 1/2	10	3 1/8	10 5/16	15
4	114.3	4.500	4	6	8	2 1/2	8 1/4	12
6	168.3	6.625	6	9	12	3 3/4	12 5/16	18
10	273.1	10.750	10	15	15	6 1/4	20 3/8	30
8	219.1	8.625	8	12	12	5	16 5/16	24
12	323.9	12.750	12	18	18	7 1/2	24 3/8	36

Center to End Elbow, Tee, Cross A			DN	Band O.D. H			Center to End 45° Elbow C			Minimum W.T. G			Nom. Pipe Size	Thread Length Min. (1)
2000	3000	6000		2000	3000	6000	2000	3000	6000	2000	3000	6000		B	L2
21	21	25	6	22	22	25	17	17	19	3.18	3.18	6.35	1/8”	6.4	6.7
21	25	28	8	22	25	33	17	19	22	3.18	3.30	6.60	1/4”	8.1	10.2
25	28	33	10	25	33	38	19	22	25	3.18	3.51	6.98	3/8”	9.1	10.4
28	33	38	15	33	38	46	22	25	28	3.18	4.09	8.15	1/2”	10.9	13.6
33	38	44	20	38	46	56	25	28	33	3.18	4.32	8.53	3/4”	12.7	13.9
38	44	51	25	46	56	62	28	33	35	3.68	4.98	9.93	1”	14.7	17.3
44	51	60	32	56	62	75	33	35	43	3.89	5.28	10.59	1-1/4”	17.0	18.0
51	60	64	40	62	75	84	35	43	44	4.01	5.56	11.07	1-1/2”	17.8	18.4
60	64	83	50	75	84	102	43	44	52	4.27	7.14	12.09	2”	19.0	19.2
76	83	95	65	92	102	121	52	52	64	5.61	7.65	15.29	2-1/2”	23.6	28.9
86	95	106	80	109	121	146	64	64	79	5.99	8.84	16.64	3”	25.9	30.5
106	114	114	100	146	152	152	79	79	79	6.55	11.18	18.67	4”	27.7	33.0

Call now for custom sizes of Alloy 800 Fittings in ASME B16.9 Standards, check complete Nickel 800 Long/ Short Radius Elbow Price List

Weight	Nominal pipe size	Schedule	Dimensions in mm
kg/pce	in.0		t	D	C/M
0.0092 0.0115 0.0200 0.0300	3/4	10s 40s 80s 160	2.011 2.087 3.091 5.056	26.07 26.07 26.07 26.07	28.06 28.06 28.06 28.06
0.0065 0.0085 0.0140 0.0150	1/2	10s 40s 80s 160	2.011 2.077 3.073 4.078	21.03 21.03 21.03 21.03	25.04 25.04 25.04 25.04
0.0200 0.0245 0.0390 0.0470	1	10s 40s 80s 160	2.077 3.038 4.055 6.035	33.04 33.04 33.04 33.04	38.01 38.01 38.01 38.01
0.0460 0.0595 1.0020 1.0430	1½	10s 40s 80s 160	2.077 3.068 5.008 7.014	48.03 48.03 48.03 48.03	57.02 57.02 57.02 57.02
0.0330 0.0420 0.0548 0.0890	1¼	10s 40s 80s 160	2.077 3.056 4.085 6.035	42.02 42.02 42.02 42.02	47.06 47.06 47.06 47.06
0.0630 0.0872 1.0590 3.0180	2	10s 40s 80s 160	2.077 3.091 5.054 8.074	60.03 60.03 60.03 60.03	63.05 63.05 63.05 63.05
76.0660	18	10s	4.078	457.02	342.09
1.0370 1.0900 4.0450 5.0870	3	10s 40s 80s 160	3.005 5.049 7.062 11.013	88.09 88.09 88.09 88.09	85.07 85.07 85.07 85.07
155.0580	24	10s	6.035	609.06	431.08
1.0100 1.0700 3.0630	2½	10s 40s 160	3.005 5.016 9.052	73.00 73.00 73.00	76.02 76.02 76.02
1.0740 3.0190	3½	10s 40s	3.005 5.074	101.06 101.06	95.03 95.03
3.0480 6.0550 11.0340	5	10s 40s 80s	3.040 6.055 9.053	141.03 141.03 141.03	123.08 123.08 123.08
2.0150 4.0130 7.0710 9.0760	4	10s 40s 80s 160	3.005 6.002 8.056 13.049	114.03 114.03 114.03 114.03	104.08 104.08 104.08 104.08
4.0760 9.0730 13.0610	6	10s 40s 80s	3.040 7.011 10.092	168.03 168.03 168.03	142.09 142.09 142.09
14.0200 30.0800	10	10s 40s	4.019 9.027	273.01 273.01	215.09 215.09
8.0460 18.0000	8	10s 40s	3.076 8.018	219.01 219.01	177.08 177.08
21.0600 44.0300	12	10s 40s	4.057 9.053	323.09 323.09	254.00 254.00
58.0970 99.0790	16	10s STD	4.078 9.053	406.04 406.04	304.08 304.08
48.0530 79.0380	14	10s STD	4.078 9.053	355.06 355.06	279.04 279.04
103.0420	20	10s	5.054	508.00	381.00

Nominal size		OD	Elbows			Reducer	Caps	Returns				Stubs Ends
			Short	Long				Long		Short		Long	Short	Radius of fillet	Diam. of Lap
			90 deg	90 deg	45 deg
DN	NPS	D	A	A	B	H	E	O	K	O	K	F	F	R	G
20	¾	26.7		38	19	38	25	76	51			76	51	3	43
32	11/4	42.2	32	48	25	51	38	95	70	64	52	102	51	5	64
40	11/2	48.3	38	57	29	64	38	114	83	76	62	102	51	6	73
50	2	60.3	51	76	35	76	38	152	106	102	81	152	64	8	92
65	21/2	73.0	64	95	44	89	38	190	132	127	100	152	64	8	106
80	3	88.9	76	114	51	89	51	229	159	152	121	152	64	10	127
90	31/2	101.6	89	133	57	102	64	267	184	178	140	152	76	10	140
15	½	21.3		38	16		25	76	48			76	51	3	35
100	4	114.3	102	152	64	102	64	305	210	203	159	152	76	11	157
200	8	219.1	203	305	127	152	102	610	414	406	313	203	102	13	270
250	10	273.0	254	381	159	178	127	762	518	508	391	254	127	13	324
300	12	323.8	305	457	190	203	152	914	619	610	467	254	152	13	381
350	14	355.6	356	533	222	330	165	1067	711	711	533	305	152	13	413
125	5	141.3	127	190	79	127	76	381	262	254	197	203	76	11	185
400	16	406.4	406	610	254	356	178	1219	813	813	610	305	152	13	470
25	1	33.4	25	38	22	51	38	76	56	51	41	102	51	3	51
450	18	457	457	686	286	381	203	1372	914	914	686	305	152	13	533
500	20	508	508	762	318	508	229	1524	1016	1016	762	305	152	13	584
1050	42	1067		1600	660	610	305
550	22	559	559	838	343	508	254	1676	1118	1118	838	305	152	13	641
150	6	168.3	152	229	95	140	89	457	313	305	237	203	89	13	218
600	24	610	610	914	381	508	267	1829	1219	1219	914	305	152	13	692
650	26	660		991	405	610	267
700	28	711		1067	438	610	267
750	30	762		1143	470	610	267
1100	44	1118		1676	695	610	343
800	32	813		1219	502	610	267
850	34	864		1295	533	610	267
900	36	914		1372	565	610	267
950	38	965		1448	600	610	305
1200	48	1219		1829	759	711	343
1000	40	1016		1524	632	610	305
1150	46	1168		1753	727	711	343

W (Min)	F (Min)	E (Min)	Nominal Pipe Size		b		A (Min)	C (Min)
			Inch	DN	3000	6000
26	-	10	1/8”	6	5	2	11	6
36	-	15	1/4”	8	8	6	15	6
31	10	15	1/4”x1/8”	8 x 6	5	2	15	6
40	-	16	3/8”	10	11	8	18	8
39	15	16	3/8”x1/4”	10 x 8	8	6	18	8
48	-	20	1/2”	15	14	11	22	8
44	16	20	1/2”x3/8”	15 x 10	11	8	22	8
43	15	20	1/2”x1/4”	15 x 8	8	6	22	8
52	-	21	3/4”	20	19	13	27	10
50	20	21	3/4”x1/2”	20 x 15	14	11	27	9
46	16	21	3/4”x3/8”	20 x 10	11	8	27	9
60	-	25	1”	25	24	17	35	10
56	21	25	1”x3/4”	25 x 20	19	13	35	10
55	20	25	1”x1/2”	25 x 15	14	11	35	10
68	-	26	1-1/2”	40	38	30	50	16
67	25	26	1-1/2”x1”	40 x 25	24	17	50	16
63	21	26	1-1/2”x3/4”	40 x 20	19	13	50	16
62	20	26	1-1/2”x1/2”	40 x 15	14	11	50	16
71	-	27	2”	50	49	39	62	17
70	26	27	2”x1-1/2”	50 x 40	38	30	62	17
70	25	27	2”x1”	50 x 25	24	17	62	18
65	21	27	2”x3/4”	50 x 20	19	13	62	17
65	20	27	2”x1/2”	50 x 15	14	11	62	18

The advantage of purchasing Incoloy 800 Buttweld Pipe Fittings and Incoloy 800 Forged Fitting directly from manufacturers is the reduced cost and wide selection which saves your time

Temperature Ratings		Pressure Class
		150	300
			1 1/4 - 2 Inches	1/4 - 1 Inches	2 1/2 - 3 Inches
(oC)	(oF)
-29 to 66	-20 to 150	300	1500	2000	1000
93	200	265	1350	1785	910
121	250	225	1200	1575	825
149	300	185	1050	1360	735
177	350	150	900	1150	650
204	400	-	750	935	560
232	450	-	600	725	475
260	500	-	450	510	385
288	550	-	300	300	300

ADCO - Shah Field Compressor Unit-Dubai

Driftwood LNG (Calcasieu Parish LNG Liquefaction Plant)- USA

Petroliam Nasional Berhad (PETRONAS)-Malaysia

Dominion Virginia Greensville County Power Station Greensville County, VA, U.S.

Singapore LNG Terminal Ancillary Products And Services (TAPS) Facility Jurong Island, Singapore

Sandoz South Africa (Pty) Ltd -Gauteng, Gauteng,South Africa
