Our stainless steel fittings weight calculator is designed to quickly and accurately determine the weight of pipe fittings. It's user-friendly and doesn't require complex calculations. The pipe elbow Weight calculator allows you to determine the approximate weight of your bend based on specific product dimensions.
Table of Content
- Stainless Steel Fittings Weight Chart
- How Does The Weight Of An 45 Degree Elbow Impact The Overall Cost?
- 90 Degree Elbow Weight Calculator
- Factors Affecting Buttweld Fittings Weight Chart
- Stainless Steel Fittings Size Wise Weight
- Pipe Tee Weight Calculator
- Pipe Reducer Weight Calculator
- Pipe Cap Weight Calculator
- Stub End Weight Calculator
Check Pipe Elbow Weight Calculator as per ASME B16.9
W=0.387 * S*(D – S) * R / 1000
-
D = Diameter
-
R = Bend Radius (SR=1D & LR=1.5D)
-
S = Wall Thickness
-
W = Weight
Size :
- DIN15 To DN1500
- Welded : 24" To 96"
- Seamless : 1/2" To 24"
- Buttweld : 1/2" To 36"
Wall Thickness :
- SCH 20 & 40
- SCH : 80 To 120
- SCH : 160 To 180
Manufacturing Standard :
- ASME B16.9
Forming Process :
- Hot Forming
- Cold Forming
Method :
- Welded (Weld)
- Seamless (SMLS)
- Buttweld (BW)
Manufacturing Raw Material :
- Round Bar
- Seamless Pipe
- Welded Pipe
Thickness Tolerance :
- +/-12.5%
- Custom
Manufacturing Process :
- Heat Treated
- Forged
- Machined
Certificates :
- EN 10204 3.1
- EN 10204 3.2
Radius Of Pipe Bend :
- 1.5D/ 2D/ 3D
- 4D/ 5D/ 6D
- 8D/ 10D/ 22D
Angle Of Pipe Bend :
- 15 Deg, 22.5 Deg, 30 Deg
- 45 Deg, 60 Deg, 90 Deg
- 135 Deg, 180 Deg
Maximum Size :
- 120 Inch
View Stainless Steel Pipe Fittings Weight Wise Price

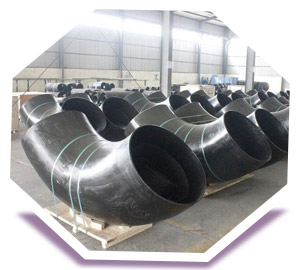

1/2" Pipe Elbow Weight
- Schedule & Type = SCH 40/ 90 Deg
- Price = US $1.12
- Material = A234 WPB
- Weight = 0.04 KG
1” Pipe Elbow Weight
- Schedule & Type = SCH 40/ 90 Deg
- Price = US $2.15
- Material = A234 WPB
- Weight = 0.12 KG
1.1/2” Pipe Elbow Weight
- Schedule & Type = SCH 40/ 90 Deg
- Price = US $3.65
- Material = A234 WPB
- Weight = 0.22 KG

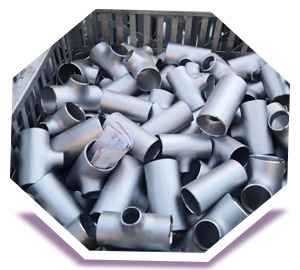

2.1/2” Pipe Tee Weight
- Schedule & Type = SCH 80S & Reducing
- Price & Type = US $103.41
- Material = SS 904L
- Weight = 3.1 KG

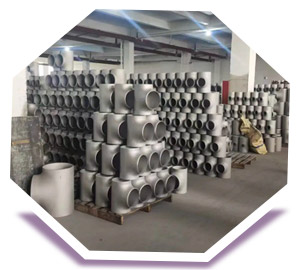

3” Pipe Tee Weight
- Schedule & Type = SCH 80S & Reducing
- Price = US $150.98
- Material = SS 904L
- Weight = 4.4 KG

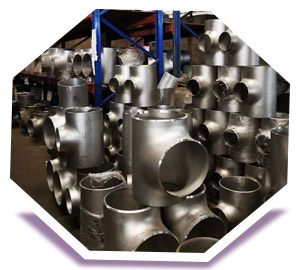

4" Pipe Tee Weight
- Schedule & Type = SCH 80S & Reducing
- Price = US $241.71
- Material = SS 904L
- Weight = 7.7 KG
1-1/4 x 3/4” Pipe Reducer Weight
- Schedule & Type = SCH 40/ Con
- Price = US$0.56
- Material = A420 WPL6
- Weight = 0.21 KG
3 x 1-1/4” Pipe Reducer Weight
- Schedule & Type = SCH 40/ Con
- Price = US$2.28
- Material = A420 WPL6
- Weight = 0.85 KG
2 x 1/2” Pipe Reducer Weight
- Schedule & Type = SCH 40/ Con
- Price = US$0.97
- Material = A420 WPL6
- Weight = 0.36 KG

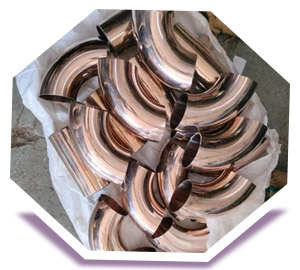

DN15 X Pipe Bend Weight
- Schedule = SCH 10S
- Price = US $21.95
- Material = CU NI 90/10
- Weight = 0.12 KG

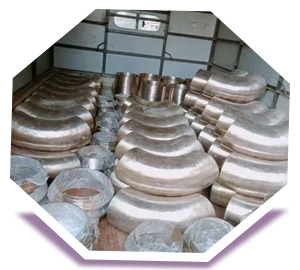

DN25 X Pipe Bend Weight
- Schedule = SCH 40S
- Price = US $64.02
- Material = CU NI 90/10
- Weight = 0.35 KG
DN80 X Pipe Cap Weight
- Schedule = SCH 80S
- Price = US $707.32
- Material = CU NI 90/10
- Weight = 5.8 KG
Also Check Our Updated Buttweld Fittings Weight in KG
| DN | Schedule 10S | Schedule 40S | Schedule 80S |
|---|---|---|---|
| - | Equal Tee (KG) | Equal Tee (KG) | Equal Tee (KG) |
| DN8 | 0.03 | 0.06 | 0.07 |
| DN10 | 0.05 | 0.03 | 0.09 |
| DN15 | 0.09 | 0.10 | 0.14 |
| DN20 | 0.13 | 0.17 | 0.20 |
| DN25 | 0.28 | 0.29 | 0.38 |
| DN32 | 0.49 | 0.59 | 0.68 |
| DN40 | 0.68 | 0.86 | 1.02 |
| DN50 | 0.85 | 1.28 | 1.59 |
| DN65 | 1.41 | 2.19 | 3.13 |
| DN80 | 1.77 | 3.31 | 4.45 |
| DN90 | 2.67 | 4.08 | 5.44 |
| DN100 | 3.46 | 5.27 | 7.71 |
| DN150 | 8.07 | 10.99 | 13.61 |
| DN200 | 15.65 | 20.91 | 28.12 |
| DN250 | 26.46 | 35.38 | 49.90 |
| DN300 | 39.46 | 62.14 | 83.91 |
| DN | Schedule 10S | Schedule 40S |
|---|---|---|
| - | Reducing Tee (KG) | Reducing Tee (KG) |
| DN20x15 | 0.11 | 0.15 |
| DN25x15 | 0.25 | 0.26 |
| DN25x20 | 0.25 | 0.27 |
| DN32x20 | 0.44 | 0.52 |
| DN32x25 | 0.45 | 0.53 |
| DN40x20 | 0.58 | 0.74 |
| DN40x25 | 0.60 | 0.76 |
| DN40x32 | 0.61 | 0.77 |
| DN50x25 | 0.73 | 1.10 |
| DN50x32 | 0.74 | 1.13 |
| DN50x40 | 0.76 | 1.15 |
| DN65x40 | 1.24 | 1.94 |
| DN65x50 | 1.25 | 1.98 |
| DN80x40 | 1.52 | 2.85 |
| DN80x50 | 1.56 | 2.91 |
| DN80x65 | 1.59 | 2.98 |
| DN100x40 | 2.90 | 4.53 |
| DN100x50 | 2.94 | 4.48 |
| DN100x65 | 2.97 | 4.54 |
| DN100x80 | 3.04 | 4.64 |
| DN125x100 | 5.49 | 8.47 |
| DN150x80 | 6.86 | 11.94 |
| DN150x100 | 7.10 | 9.68 |
| DN150x125 | 7.27 | 9.99 |
| DN200x100 | 13.46 | 17.98 |
| DN200x150 | 14.08 | 18.82 |
| DN250x100 | 22.75 | 30.07 |
| DN250x150 | 23.55 | 31.13 |
| DN250x200 | 24.08 | 31.84 |
| DN300x200 | 34.73 | 54.43 |
| DN300x250 | 35.52 | 55.79 |
| DN350x300 | 43.96 | 71.21 |
| DN400x200 | 49.90 | 84.82 |
| DN400x250 | 50.80 | 85.73 |
| DN400x300 | 51.71 | 87.54 |
| Size | Schedule 10S | Schedule 10S | Schedule 40S | Schedule 40S |
|---|---|---|---|---|
| - | Ecc Reducer | Con Reducer | Ecc Reducer | Con Reducer |
| DN25x15 | 0.12 | 0.12 | 0.15 | 0.15 |
| DN25x20 | 0.13 | 0.13 | 0.16 | 0.16 |
| DN32x20 | 0.18 | 0.18 | 0.22 | 0.22 |
| DN32x25 | 0.18 | 0.18 | 0.22 | 0.22 |
| DN40x20 | 0.18 | 0.18 | 0.24 | 0.24 |
| DN40x25 | 0.19 | 0.19 | 0.26 | 0.26 |
| DN40x32 | 0.24 | 0.21 | 0.28 | 0.28 |
| DN50x25 | 0.28 | 0.28 | 0.40 | 0.40 |
| DN50x32 | 0.30 | 0.30 | 0.44 | 0.44 |
| DN50x40 | 0.31 | 0.31 | 0.45 | 0.45 |
| DN65x40 | 0.44 | 0.44 | 0.76 | 0.76 |
| DN65x50 | 0.47 | 0.47 | 0.80 | 0.80 |
| DN80x40 | 0.51 | 0.51 | 0.94 | 0.94 |
| DN80x50 | 0.55 | 0.55 | 1.00 | 1.00 |
| DN80x65 | 0.59 | 0.59 | 1.08 | 1.08 |
| DN100x40 | 0.68 | 0.68 | 1.36 | 1.36 |
| DN100x50 | 0.78 | 0.78 | 1.57 | 1.57 |
| DN100x65 | 0.83 | 0.83 | 1.66 | 1.66 |
| DN100x80 | 0.87 | 0.87 | 1.74 | 1.74 |
| DN125x100 | 1.49 | 1.49 | 2.98 | 2.98 |
| DN150x80 | 1.82 | 1.82 | 3.98 | 3.98 |
| DN150x100 | 1.96 | 1.96 | 4.07 | 4.07 |
| DN150x125 | 2.00 | 2.00 | 4.07 | 4.07 |
| DN200x100 | 3.01 | 3.01 | 6.55 | 6.55 |
| DN200x150 | 3.19 | 3.19 | 6.94 | 6.94 |
| DN250x100 | 4.73 | 4.73 | 10.52 | 10.52 |
| DN250x150 | 5.00 | 5.00 | 11.12 | 11.12 |
| DN250x200 | 5.20 | 5.20 | 11.56 | 11.56 |
| DN300x200 | 7.67 | 7.67 | 15.98 | 15.98 |
| DN300x250 | 7.98 | 7.98 | 16.63 | 16.63 |
| DN350x300 | 15.29 | 15.29 | 30.58 | 30.58 |
| DN400x200 | 16.70 | 16.70 | 33.40 | 33.40 |
| DN400x250 | 17.22 | 17.22 | 35.43 | 35.43 |
| DN400x300 | 18.35 | 18.35 | 36.70 | 36.70 |
| Size | Schedule 10S | Schedule 40S |
|---|---|---|
| DN20 | 0.05 | 0.07 |
| DN25 | 0.08 | 0.10 |
| DN32 | 0.10 | 0.18 |
| DN40 | 0.11 | 0.20 |
| DN50 | 0.13 | 0.23 |
| DN65 | 0.19 | 0.27 |
| DN80 | 0.25 | 0.42 |
| DN100 | 0.68 | 1.14 |
| DN125 | 1.11 | 2.13 |
| DN150 | 1.42 | 3.23 |
| DN200 | 2.38 | 5.19 |
| DN250 | 4.45 | 9.00 |
| DN300 | 7.50 | 15.00 |
| DN350 | 8.17 | 16.00 |
| DN400 | 10.67 | 21.00 |
| DN450 | 13.00 | 26.00 |
| DN500 | 17.00 | 34.00 |
| DN600 | 26.00 | 52.00 |
| Size | Schedule 10S | Schedule 40S |
|---|---|---|
| - | Stub End Type B (KG) | ub End Type B (KG) |
| DN15 | 0.07 | 0.08 |
| DN20 | 0.09 | 0.11 |
| DN25 | 0.16 | 0.17 |
| DN32 | 0.22 | 0.25 |
| DN40 | 0.25 | 0.31 |
| DN50 | 0.43 | 0.61 |
| DN65 | 0.57 | 0.80 |
| DN80 | 0.72 | 1.13 |
| DN100 | 1.09 | 1.87 |
| DN125 | 1.47 | 2.79 |
| DN150 | 2.15 | 3.57 |
| DN200 | 3.22 | 6.07 |
| DN250 | 5.13 | 10.07 |
| DN300 | 8.16 | 14.29 |
| DN350 | 10.88 | 17.14 |
| DN400 | 12.70 | 20.41 |
| DN450 | 17.23 | 27.21 |
| DN500 | 21.77 | 29.94 |
| DN600 | 27.21 | 38.55 |
