Stainless Steel Socket Weld Fittings in Manufacturer

Leading Supplier of SS Socket Weld Tee in Mumbai, Check Weight Chart and Dimensions of ASTM A182 SS SW Elbow

Fittings are devices that influence the direction change, branch piping grades, and connect dissimilar size components. The Stainless Steel Socket weld Fittings are pipe attachment detail that has a recessed area allowing it to be fitted with a singular butt-weld. These SS Socket Weld Fittings are utilized in small pipes that are designed in nominal diameters between NPS 2 or smaller. These fittings have good creep-rupture properties in treacherous conditions. They are available in different pressure classes. The 150 Lb Socket Weld Fittings regulate the low pressure of fluid or gases in the oil and gas industry. These fittings are low-cost and are seen in non-critical applications. The Stainless Steel Socket Weld Pipe Fittings possess good strength and showcase excellent corrosion resistance properties in reducing conditions. These fittings work well in different pressure and temperature conditions. We are the Stainless Steel Socket weld Fittings manufacturer in India who have a vast stock of inventory of fittings of different sizes and shapes to meet all the requirements in the industry.

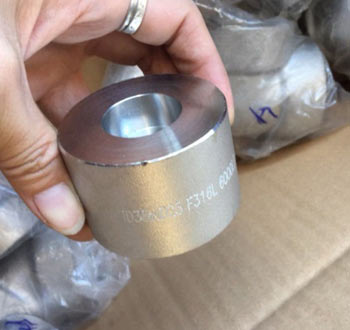

The SS Hex Nipple is a short piece of pipe that is designed with a six-sided grade. The nipple acts as an adapter allowing it to create a watertight sealing when connecting different piping components. A Stainless Steel Coupling is a device that is employed to connect piping sections to create strong integrity of pipes in the system. These couplings are seen in different application in petrochemical gas industries. The Stainless Steel Full Coupling is employed to connect pipes of small bore sizes. The coupling can easily connect a pipe to a swage or a nipple. They are usually threaded or socket welded. A Stainless Steel Half Coupling is seen in small bore branching from a vessel to a larger bore pipe. These couplings can possess a threaded or socket welded or have both on each of the ends. The Stainless Steel Union connects two pipes like couplings, but they allow for future disconnection for maintenance and repair in the system. A Stainless Steel Bushing is threaded on the interior or the exterior, allowing the fitting to join two pipes of dissimilar sizes.

We Stock wide range of Stainless Steel Full coupling, Check 150 Lb Socket Weld Fittings price list ex Mumbai

Here are many benefits if you buy from Stainless Steel Socket Weld Fittings manufacturers, like high quality, best price and wide range of ASTM A182 SS Socket Weld Fittings

Specifications	ASTM/ ASME A182 SA182
Standards	MSS SP-79, 83, 95, 97, ASME 16.11, BS 3799
Sizes	1/8” NB upto 4” NB
Class	3000 LBS, 9000 LBS, 2000 LBS, 6000 LBS
Type	Socketweld Fittings

Save 10-12% if you buy directly from ASME B16.11 Stainless Steel Socket Weld Fittings manufacturers

Description	Price Per Kg In Singapore	Price Per Kg In UAE	Price Per Kg In USD	Price Per Kg In Malaysia
EN 10 STAINLESS STEEL FITTINGS SS 316L BS NIPPLES NPT FEMALE SOCKET TO BE WELDED	SGD 14.24	UAE Dirham 37.18	US $10.28	MYR 45.09
1 NPS SS, 90 DEG STAINLESS STEEL FITTING GRADE 304/316- ELBOW SOCKET WELD, ASTMA182 GR F 304L	SGD 6.86	UAE Dirham 17.91	US $4.95	MYR 21.72
1 INCH NOMINAL PIPE SIZE,150 ELBOW, PIPE, 45 DEGREE,SOCKET WELD END 316 STAINLESS STEEL MATERIAL	SGD 11.34	UAE Dirham 29.61	US $8.19	MYR 35.91
2000# SIZE 4X 3- 12 KGS REDUCER STAINLESS STEEL CONCENTRIC ASTM A182/A 182M TYPE 304 ASME B 16.11 SOCKET WELDED	SGD 63.25	UAE Dirham 165.16	US $45.68	MYR 200.30
40 X 32NB STAINLESS STEEL PIPE FITTINGS A182 F 304L REDUCING TEE PLAIN SCH40ANSI B16.11 RATING #3000 SOCKET WELD	SGD 13.79	UAE Dirham 36.00	US $9.96	MYR 43.66
25 X 20NB STAINLESS STEEL PIPE FITTINGS A182 F 304L REDUCING SOCKETS PLAIN SCH40ANSI B16.11 RATING #3000 SOCKET WELD	SGD 2.43	UAE Dirham 6.35	US $1.76	MYR 7.70

Stainless Steel Socket Weld Fittings

Stainless Steel Socket Weld Full Coupling

ASTM A182 F321 Socket Weld Unequal Tee

ASTM A182 F304L Socket Weld Reducers

SS Socket Weld Equal Cross

Steel Socket Weld Adapters

MSS SP-83 Socket Weld Nipples

ASTM A182 F347 Socket Weld Union

ASTM A182 F317 Socket Weld 45° Elbow

ASTM A182 F316L Socket Weld Equal Tee

ASTM A182 SS Socket Weld Unequal Cross

ASME B16.11 Stainless Steel Socket Weld Reducer Insert

ASTM A182 F310 Socket Weld Eccentric Reducer

ASTM A182 F304 Socket Weld Boss

ASTM A182 F316 Socket Weld 90° Elbow

ASTM A182 SS Socket Weld Concentric Reducer

ASME B16.11 SS Socket Weld Half Coupling

ASTM A182 F321H Socket Weld Cap

All Fittings		Nominal Diameter		90° 45° Elbow Tee Cross Lateral	Half Coupling Reducing insert	Coupling	Union (Socket)
Socket Bore	Water Way Bore			Center To Bottom of Socket	Laying Lengths	Laying Lengths	Length Assem Nominal
d1	d2	DN	NPS	A H	F	E	L
–	–	6-8	1/8-1/4	±0.8	±0.8	±1.5	±1.5
+0.3/0	±0.4	10-20	3/8-3/4	±1.5	±1.5	±3	±1.5
–	–	25-50	1-2	±2	±2	±4	±1.5
+0.4/0	±0.8	65-100	2 1/2-4	±2.5	±2.5	±5	±1.5

most trusted and reliable SS Socket Weld Fittings stockholders and suppliers in India

Depth of	Nominal Size		Socket	Socket	Water	Laying	Male	Nut	Pipe	THRD Per	Bearing
Socket			Wall	Bore Dia.	Way Bore	Length	Flange		End	Inch
K min	DN	NPS	C min	B	D	E	Fmin	G min	A min	H	J min
9.7	6	1/8	3.2	10.9	6.1	20.7	3.2	3.2	21.8	16	1.2
9.7	8	1/4	3.3	14.3	8.5	20.7	3.2	3.2	21.8	16	1.2
9.7	10	3/8	3.5	17.7	11.8	23.8	3.4	3.4	25.9	14	1.4
9.7	15	1/2	4.1	21.9	15	23.8	3.7	3.7	31.2	14	1.5
12.7	20	3/4	4.3	27.3	20.2	28.6	4.1	4.1	37.1	11	1.7
12.7	25	1	5	34	25.9	30.2	4.6	4.4	45.5	11	1.9
12.7	32	1 1/4	5.3	42.8	34.3	36.6	5.3	5.2	54.9	10	2.1
12.7	40	1 1/2	5.5	48.9	40.1	38.1	5.8	5.6	61.5	10	2.3
15.7	50	2	6	61.2	51.7	41.4	6.6	6.4	75.2	10	2.7
15.7	65	2 1/2	7.7	73.9	61.2	56.9	7.5	7.1	91.7	8	3.1
15.7	80	3	8.3	89.9	76.4	58.7	8.3	8	109.2	8	3.5

NPS	DN	3000#
1/8	6	0.06
1/4	8	0.06
3/8	10	0.08
1/2	15	0.14
3/4	20	0.2
1	25	0.28
1 1/4	32	0.48
1 1/2	40	0.52
2	50	1
2 1/2	65	1.6
3	80	1.8

Stainless Steel Socket Weld Cap are produced as per ASTM A182/ ASME B16.11 specification, Supplier and Exporter of SS Hex Nipple

We are a specialist distributor & supplier of ASME B16.11 SS Socket Weld Fittings

Nominal Size		Approximate Weight/kg
NPS	DN	6000 LB	3000 LB	9000 LB
1/8	6	0.22	0.13
1/4	8	0.22	0.13
3/8	10	0.45	0.16
1/2	15	0.55	0.35	1.15
3/4	20	0.9	0.4	1.8
1	25	1.46	0.66	2.25
1 1/4	32	1.9	1	3.95
1 1/2	40	3.4	1.4	4.87
2	50	3.7	2.2	8.89
2 1/2	65	7.2	4
3	80	10.7	6.15
4	100		14.3

NOM BORE	PIPE O.D.	3000 LBS.									COMMON FACTORS				6000 LBS.
		A max.	B max.	K	J	L	M	N	P	Q	C min.	D min.	O min.	O max.	A	B	M	K	N
1/8"	10.3	22	18.5	26	16	40	17.3	32	15	10	10.7	10	5	8	22	22	20	25	46
1/4"	13.7	22	22	26	18	43	21.2	32	15	10	14.1	10	5	8	27	25	24	25	51
3/8"	17.2	25	25	26	19	48	25.4	36	16.5	10	17.6	10	3	9	27	28	28	26	60
1/2"	21.3	27	32	30	21	51	31	41	16.5	10	21.7	10	6	13	31	34	34	31	72
3/4"	26.7	34	38	36	24	57	37	50	19.5	13	27	13	6	13	37	42	41	35	80
1"	33.4	37	46	40	25	64	45.2	60	22.5	13	33.8	13	9	17	42	50	50	40	94
1 1/4"	42.2	42	56	40	29	70	55	70	22.5	13	42.6	13	9	17	47	59	58	41	100
1 1/2"	48.3	47	62	40	30	79	61.4	78	24	13	48.7	13	9	17	53	67	66	43	122
2"	60.3	56	75	52	37	89	75	95	29	13	61.2	16	15	23	59	84	83	55
2 1/2"	73.02	60	92	52	48	114	91.3	125	32	16	73.8	16	14	24		102		56
3"	89.00	76	110	52	51	127	108.8	140	35	16	89.8	16	14	24		121		58
4"	114.50	88	137	58		150	136.9		42	19	115.5	19	14	24		152		64

Exporter of Stainless Steel Bushing in Wide range of Sizes, Check Weight Chart and Dimensions of ASTM A182 SS Socket Weld Tee

Why don't you directly contact a Socket Weld Fittings manufacturer in India? We offer an extensive range of Steel Socket Wled Fittings in Mumbai, free sample before dispatch of complete order.

• Specialty Chemicals

• Petrochemicals

• Power Generation

• Condensers

• Off-Shore Oil Drilling Companies

• Gas Processing

• Chemical Equipment

• Heat Exchangers

• Pharmaceutical Equipment

• Sea Water Equipment

• Pharmaceuticals

• Pulp and Paper Industry

Socket Bore Dia.	Nominal Size		Bore Dia. of Fittings			Socket Wall Thickness						Depth of Socket	Body Wall			Center to Bottom of Socket
			D			C						Jmin	Gmin			A
B	DN	NPS	3000	9000	6000	3000		6000		9000			6000	3000	9000	6000	3000	9000
						ave	min	ave	min	ave	min
10.9	6	1/8	6.1	–	3.2	3.18	3.18	3.96	3.43	–	–	9.5	3.15	2.41	–	11	11	–
14.3	8	1/4	8.5	–	5.6	3.78	3.3	4.6	4.01	–	–	9.5	3.68	3.02	–	13.5	11	–
17.7	10	3/8	11.8	–	8.4	4.01	3.5	5.03	4.37	–	–	9.5	4.01	3.2	–	15.5	13.5	–
21.9	15	1/2	15	5.6	11	4.67	4.09	5.97	5.18	9.53	8.18	9.5	4.78	3.73	7.47	19	15.5	25.5
27.3	20	3/4	20.2	10.3	14.8	4.9	4.27	6.96	6.04	9.78	8.56	12.5	5.56	3.91	7.82	22.5	19	28.5
34	25	1	25.9	14.4	19.9	5.69	4.98	7.92	6.93	11.38	9.96	12.5	6.35	4.55	9.09	27	22.5	32
42.8	32	1 1/4	34.3	22	28.7	6.07	5.28	7.92	6.93	12.14	10.62	12.5	6.35	4.85	9.7	32	27	35
48.9	40	1 1/2	40.1	27.2	33.2	6.35	5.54	8.92	7.8	12.7	11.12	12.5	7.14	5.08	10.15	38	32	38
61.2	50	2	51.7	37.4	42.1	6.93	6.04	10.92	9.5	13.84	12.12	16	8.74	5.54	11.07	41	38	54
73.9	65	2 1/2	61.2	–	–	8.76	7.62	–	–	–	–	16	–	7.01	–	–	41	–
89.9	80	3	76.4	–	–	9.52	8.3	–	–	–	–	16	–	7.62	–	–	57	–
115.5	100	4	100.7	–	–	10.69	9.35	–	–	–	–	19	–	8.56	–	–	66.5	–

Manufacturer of Stainless Steel Union, We sale SS Socket Weld Fittings in wide range of thickness

Why pay extra? Buying from MSS SP-83 Socket Weld Fittings manufacturers saves your cost, wide selection of ASTM A182 SS Socket Weld Fittings in India

Socket Wall Thickness						Nominal Size		Bore Dia of Fittings			Socket Bore Dia	Center to Bottom of Socket						Body Wall			Depth of Socket
C						DN	NPS	D			B	A						G			J
3000		6000		9000				3000	6000	9000		90°Elbow Tee Cross			45°Elbow			3000	6000	9000
ave	min	ave	min	ave	min							3000	6000	9000	3000	6000	9000
3.18	3.18	3.96	3.43	–	–	6	1/8	6.1	3.2	–	10.9	11	11	–	8	8	–	2.41	3.15	–	9.5
3.78	3.3	4.6	4.01	–	–	8	1/4	8.5	5.6	–	14.3	11	13.5	–	8	8	–	3.02	3.68	–	9.5
4.01	3.5	5.03	4.37	–	–	10	3/8	11.8	8.4	–	17.7	13.5	15.5	–	8	11	–	3.2	4.01	–	9.5
4.67	4.09	5.97	5.18	9.53	8.18	15	1/2	15	11	5.6	21.9	15.5	19	25.5	11	12.5	15.5	3.73	4.78	7.47	9.5
4.9	4.27	6.96	6.04	9.78	8.56	20	3/4	20.2	14.8	10.3	27.3	19	22.5	28.5	13	14	19	3.91	5.56	7.82	12.5
5.69	4.98	7.92	6.93	11.38	9.96	25	1	25.9	19.9	14.4	34	22.5	27	32	14	17.5	20.5	4.55	6.35	9.09	12.5
6.07	5.28	7.92	6.93	12.14	10.62	32	1 1/4	34.3	28.7	22	42.8	27	32	35	17.5	20.5	22.5	4.85	6.35	9.7	12.5
6.35	5.54	8.92	7.8	12.7	11.12	40	1 1/2	40.1	33.2	27.2	48.9	32	38	38	20.5	25.5	25.5	5.08	7.14	10.15	12.5
6.93	6.04	10.92	9.5	13.84	12.12	50	2	51.7	42.1	37.4	61.2	38	41	54	25.5	28.5	28.5	5.54	8.74	11.07	16
8.76	7.62	–	–	–	–	65	2 1/2	61.2	–	–	73.9	41	–	–	28.5	–	–	7.01	–	–	16
9.52	8.3	–	–	–	–	80	3	76.4	–	–	89.9	57	–	–	32	–	–	7.62	–	–	16
10.69	9.35	–	–	–	–	100	4	100.7	–	–	115.5	66.5	–	–	41	–	–	8.56	–	–	19

Socket Wall Thickness						Nominal Size		Depth of Socket	Socket Bore Dia.	Laying lengths	Bore Dia. of fittings			Laying Lengths
C						DN	NPS	Jmin	B	F	D			E
3000		6000		9000							3000	6000	9000
ave	min	ave	min	ave	min
3.18	3.18	3.96	3.43	/	/	6	1/8	9.5	10.9	16.0	6.1	3.2	/	6.5
3.78	3.30	4.60	4.01	/	/	8	1/4	9.5	14.3	16.0	8.5	5.6	/	6.5
4.01	3.50	5.03	4.37	/	/	10	3/8	9.5	17.7	17.5	11.8	8.4	/	6.5
4.67	4.09	5.97	5.18	9.53	8.18	15	1/2	9.5	21.9	22.5	15.0	11.0	5.6	9.5
4.90	4.27	6.96	6.04	9.78	8.56	20	3/4	12.5	27.3	24.0	20.2	14.8	10.3	9.5
5.69	4.98	7.92	6.93	11.38	9.96	25	1	12.5	34.0	28.5	25.9	19.9	14.4	12.5
6.07	5.28	7.92	6.93	12.14	10.62	32	1 1/4	12.5	42.8	30.0	34.3	28.7	22.0	12.5
6.35	5.54	8.92	7.80	12.70	11.12	40	1 1/2	12.5	48.9	32.0	40.1	33.2	27.2	12.5
6.93	6.04	10.92	9.50	13.84	12.12	50	2	16.0	61.2	41.0	51.7	42.1	37.4	19.0
8.76	7.62	/	/	/	/	65	2 1/2	16.0	73.9	43.0	61.2	/	/	19.0
9.52	8.30	/	/	/	/	80	3	16.0	89.9	44.5	76.4	/	/	19.0
10.69	9.35	/	/	/	/	100	4	19.0	115.5	48.0	100.7	/	/	19.0
