We are supplier of Chromoly Elbow and AS Buttweld Reducer at factory price in more than 30 contries

Alloy Steel Pipe Fittings manufacturer in India

Alloy steel fittings that are alloyed with 1 to 50% of alloys, giving it good performance in oil and gas applications. Alloy Steel Fittings are adapters that are used to connect straight sections of pipes or tubes. These fittings are used in the conveyance of fluids and gases. The versatile Alloy Steel Pipe Fittings are utilized to connect pipes of different specifications. These fittings help change, terminate the flow of media. The versatile AS Fittings also help in joining components of dissimilar sizes. These fittings have excellent corrosion resistance properties. Alloy Steel Buttweld Fittings are common weld fittings in the industry. These fittings are produced as metal is welded over the other. They are available in different sizes and shapes to suit different requirements. The Chrome Moly Fittings work well in environments that are susceptible to oxidative and reducing media. These fittings possess higher tensile strength and have good wear resistance. Chrome Moly Pipe Fittings work well in high temperatures and possess enhanced hardenability. These fittings have good ease of fabrication. The Chromoly Weld Fittings are low-alloy steel that have excellent durability and possess outstanding allowable stress at different temperatures. IBR Alloy Steel Pipe Fittings are seen in boilers and pressure vessel grades. These fittings are generally designed in seamless configurations. We are the Alloy Steel Pipe Fittings manufacturer in India who subject our products through rigorous screening to eliminate any defects in them before they are dispatched.

The Alloy Steel Elbow ensures a smooth flow of media as they help in changing the direction of fluid or gaseous flow in the system. These elbows are designed in 45 and 90-degree bends. The AS Elbow 90 changes the directional flow by 90 degrees. These elbows are lightweight and can be easily installed ensuring a flexible connection. Alloy Steel Tee is designed with two outlets, each at an angle of 90 degrees with the main connection line. These tees are utilized in industrial and commercial applications.

A PED approved AS Equal/ Reducing Tee manufacturers in India, Check Chrome Moly Pipe Cap Updated Price list

ASME B16.9 Alloy Steel Fittings Specification

More than 30 years experience as a Alloy Steel Buttweld Fittings manufacturer in India

Alloy Pipe Fittings Grades Chrome Moly Grades P5, P91, P1, P9, P22, P11
Alloy Steel Buttweld Pipe Fittings Type Welded / Forged / Fabricated / Seamless
Specification A/SA182 F11, F5, F1, F9, F91, F22 | A/SA234 WP5, WP1, WP9, WP22, WP11, WP91
Bending Radius R=8D, 2D, 6D, 5D, 3D, 1D, 10D
Dimensions of Alloy Steel Pipe Fittings Manufacturers In India ANSI/ASME B16.28, B16.9, MSS-SP
Range ½” up to 48" NB in Schedule 10s to XXS Alloy Steel Pipe Fittings Manufacturer In India

Low Alloy Steel Buttweld Fittings Price List

Buy from PED approved Alloy Steel Pipe Fittings manufacturer for quality products & accurate dimensions

Description Price Per Kg In Singapore Price Per Kg In UAE Price Per Kg In USD Price Per Kg In Malaysia
SCH60, ALLOY STEEL PIPE FITTINGS DN400, SA234 90 DEGREE ELBOW (LR) SGD 3.35 UAE Dirham 8.74 US $2.42 MYR 10.60
SCH 60, ALLOY STEEL PIPE FITTINGS DN 400, SA234 EQUAL TEE SGD 7.76 UAE Dirham 20.26 US $5.60 MYR 24.57
SCH 120, ALLOY STEEL PIPE FITTINGS DN 150, SA234 90 DEGREE ELBOW (LR) SGD 9.59 UAE Dirham 25.05 US $6.93 MYR 30.38
SCH XS/80, ALLOY STEEL PIPE FITTINGS DN 100, SA234 EQUAL TEE SGD 3.89 UAE Dirham 10.15 US $2.81 MYR 12.31
SCH XS, ALLOY STEEL PIPE FITTINGS DN 250, SA234 EQUAL TEE SGD 7.15 UAE Dirham 18.66 US $5.16 MYR 22.63
SCH 40/STD, ALLOY STEEL PIPE FITTINGS DN 100, SA234 END CAP SGD 19.60 UAE Dirham 51.18 US $14.16 MYR 62.07
6X4 STD ASTM A234 REDUCER BUTTWELDED STEEL PIPE FITTINGS NON ALLOY STEEL SEAMLESS PIPES FITTINGS SGD 2.05 UAE Dirham 5.36 US $1.48 MYR 6.50

Alloy Steel Pipe Fittings Types

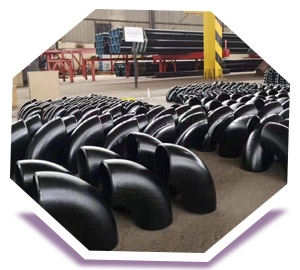

ANSI B16.9 AS 90 Degree Elbows

ANSI B16.9 AS 90 Degree Elbows

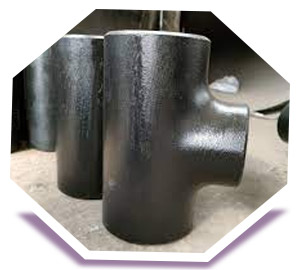

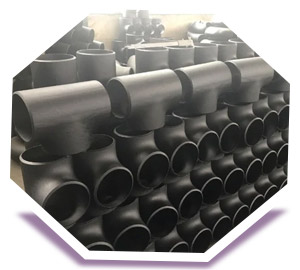

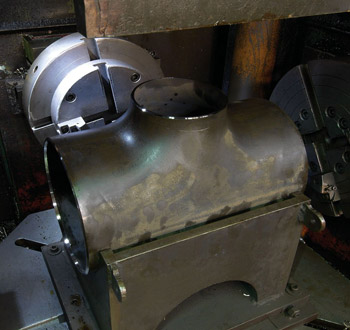

Alloy Steel Equal Tee

Alloy Steel Equal Tee

A234 Steel Cross Tee

A234 Steel Cross Tee

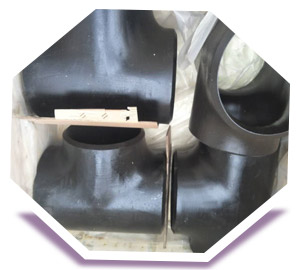

ANSI B16.9 AS Reducing Tee

ANSI B16.9 AS Reducing Tee

ASME B16.9 Alloy Steel Pipe Fittings

ASME B16.9 Alloy Steel Pipe Fittings

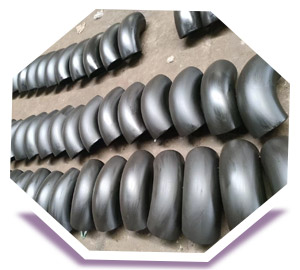

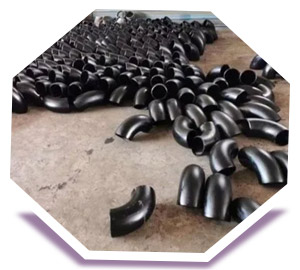

Chromoly 45 Degree Elbows

Chromoly 45 Degree Elbows

Low Alloy Steel Lap Joint Stub Ends

Low Alloy Steel Lap Joint Stub Ends

Chrome Moly Weld Elbows

Chrome Moly Weld Elbows

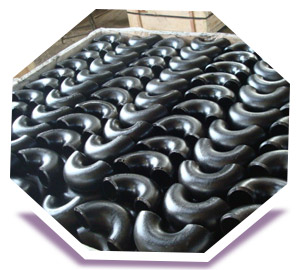

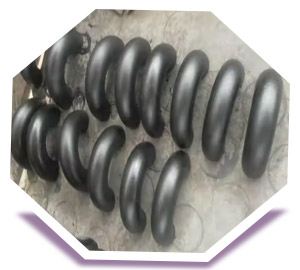

Chromoly 180 Degree Elbows

Chromoly 180 Degree Elbows

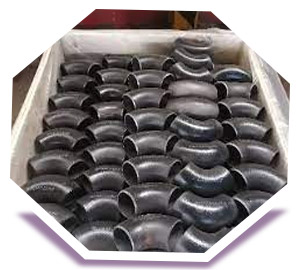

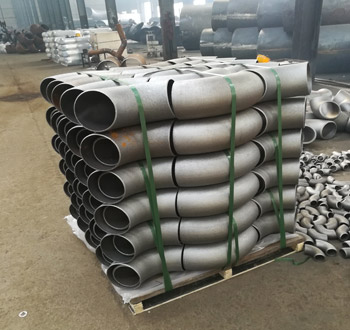

ASME B16.9 Alloy Steel Elbow

ASME B16.9 Alloy Steel Elbow

AS Reducer

AS Reducer

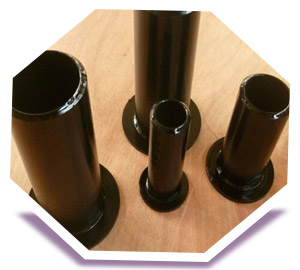

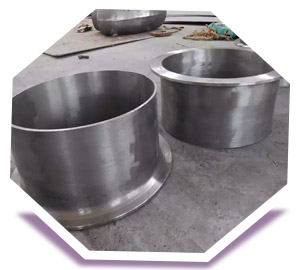

Alloy Steel Stub End

Alloy Steel Stub End

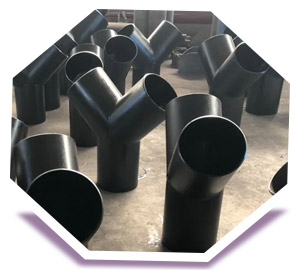

AS Laterals

AS Laterals

AS Cross Fitting

AS Cross Fitting

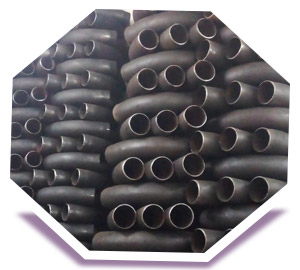

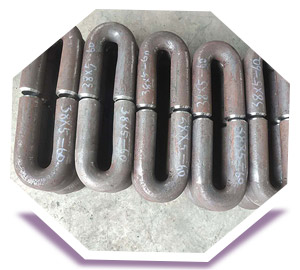

Chrome Moly Return Bends

Chrome Moly Return Bends

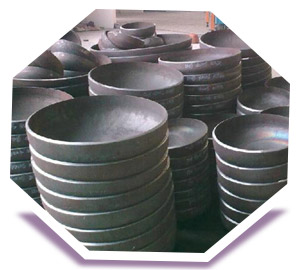

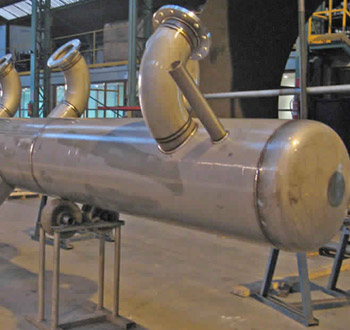

A234 Steel End Cap

A234 Steel End Cap

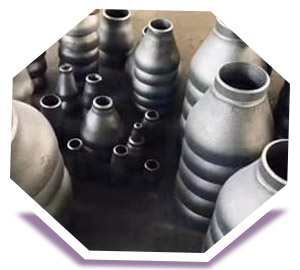

Alloy Steel Eccentric Reducer

Alloy Steel Eccentric Reducer

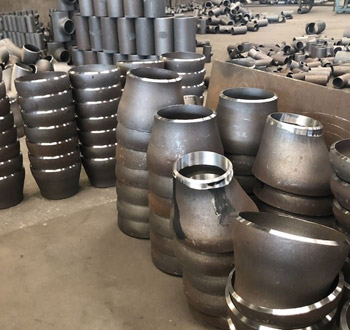

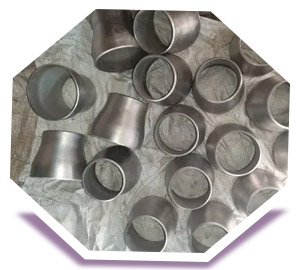

High Alloy Steel Concentric Reducer

High Alloy Steel Concentric Reducer

Alloy Steel Buttweld Fittings Heat Treatment


  • Simulations - post welded heat treatment (PWHT)

  • Solution annealing

  • Quenching and tempering

  • Stress relieving

  • Normalizing

  • Isothermal annealing




A234 Steel Reducer Size Chart

We are a specialist distributor & supplier of Alloy Steel Fittings and ANSI A234 Alloy Steel Buttweld Fittings

Reducer Fittings
DN Schedule 10S Schedule 40S
Ecc reducer Con reducer Reducing tee Con reducer Reducing tee Ecc reducer
400x300 18.35 18.35 51.71 36.70 87.54 36.70
25x15 0.12 0.12 0.25 0.15 0.26 0.15
20x15 0.10 0.10 0.11 0.14 0.15 0.14
25x20 0.13 0.13 0.25 0.16 0.27 0.16
32x25 0.18 0.18 0.45 0.22 0.53 0.22
32x20 0.18 0.18 0.44 0.22 0.52 0.22
40x20 0.18 0.18 0.58 0.24 0.74 0.24
40x32 0.24 0.21 0.61 0.28 0.77 0.28
40x25 0.19 0.19 0.60 0.26 0.76 0.26
50x25 0.28 0.28 0.73 0.40 1.10 0.40
50x40 0.31 0.31 0.76 0.45 1.15 0.45
50x32 0.30 0.30 0.74 0.44 1.13 0.44
65x40 0.44 0.44 1.24 0.76 1.94 0.76
80x40 0.51 0.51 1.52 0.94 2.85 0.94
65x50 0.47 0.47 1.25 0.80 1.98 0.80
80x50 0.55 0.55 1.56 1.00 2.91 1.00
100x40 0.68 0.68 2.90 1.36 4.53 1.36
80x65 0.59 0.59 1.59 1.08 2.98 1.08
100x50 0.78 0.78 2.94 1.57 4.48 1.57
100x80 0.87 0.87 3.04 1.74 4.64 1.74
100x65 0.83 0.83 2.97 1.66 4.54 1.66
125x100 1.49 1.49 5.49 2.98 8.47 2.98
150x100 1.96 1.96 7.10 4.07 9.68 4.07
150x80 1.82 1.82 6.86 3.98 11.94 3.98
150x125 2.00 2.00 7.27 4.07 9.99 4.07
200x150 3.19 3.19 14.08 6.94 18.82 6.94
250x100 4.73 4.73 22.75 10.52 30.07 10.52
200x100 3.01 3.01 13.46 6.55 17.98 6.55
250x150 5.00 5.00 23.55 11.12 31.13 11.12
300x200 7.67 7.67 34.73 15.98 54.43 15.98
250x200 5.20 5.20 24.08 11.56 31.84 11.56
300x250 7.98 7.98 35.52 16.63 55.79 16.63
400x200 16.70 16.70 49.90 33.40 84.82 33.40
350x300 15.29 15.29 43.96 30.58 71.21 30.58
400x250 17.22 17.22 50.80 35.43 85.73 35.43

Chrome Moly Fittings Schedule Chart

Pipe Fittings
DN Schedule 10S Schedule 40S
45° Elbow 90° Elbow Equal tee Stub end type (B) End cap 45° Elbow 90° Elbow Equal tee End cap Stub end type (B)
15 0.03 0.06 0.09 0.07 0.03 0.04 0.08 0.10 0.04 0.08
20 0.03 0.07 0.13 0.09 0.05 0.04 0.08 0.17 0.07 0.11
25 0.08 0.14 0.28 0.16 0.08 0.11 0.15 0.29 0.10 0.17
32 0.11 0.23 0.49 0.22 0.10 0.17 0.26 0.59 0.18 0.25
40 0.17 0.30 0.68 0.25 0.11 0.23 0.40 0.86 0.20 0.31
50 0.25 0.50 0.85 0.43 0.13 0.40 0.70 1.28 0.23 0.61
65 0.48 0.85 1.41 0.57 0.19 0.77 1.40 2.19 0.27 0.80
80 0.63 1.25 1.77 0.72 0.25 1.08 2.20 3.31 0.42 1.13
100 1.08 2.10 3.46 1.09 0.68 1.47 4.47 5.27 1.14 1.87
125 1.82 3.65 5.44 1.47 1.11 2.84 6.80 9.63 2.13 2.79
150 2.72 5.45 8.03 2.15 1.42 5.44 10.89 10.99 3.23 3.57
200 5.33 10.20 15.65 3.22 2.38 10.77 21.54 20.91 5.19 6.07
250 9.75 18.15 26.76 5.13 4.45 19.27 38.56 35.38 9.00 10.07
300 13.62 25.80 39.46 8.16 7.50 29.71 59.42 62.14 15.00 14.29
350 18.37 36.29 48.53 10.88 8.17 35.15 79.38 79.31 16.00 17.14
400 23.81 47.63 58.97 12.70 10.67 45.81 99.79 99.79 21.00 20.41
450 29.94 59.87 79.65 17.23 13.00 59.40 129.73 129.73 26.00 27.21
500 49.90 99.80 103.42 21.77 17.00 74.84 162.38 162.39 34.00 29.94
600 70.31 140.61 155.58 27.21 26.00 105.23 225.89 225.90 52.00 38.55

Find the Best Chrome Moly Pipe Fittings suppliers in Mumbai, Top notch Exporter of Alloy Steel Concentric/ Eccentric Reducer

ASTM A234 Fittings

Alloy Steel Seamless Pipe Fittings Value Added Servicese

  • Sand Blasting
  • Hot Dipped Galvanizing

ANSI B16.9 Chromoly AS Pipe Fittings Weight Chart

Why don't you directly contact a AS ASTM A234 WPB Elbow manufacturer? Extensive range and lowest price for Alloy Steel ASTM A234 Fittings and Alloy Steel ASTM A234 wpb Seamless Fittings in India

Products Size
Chromoly Alloy Elbow From 1/2" NB to 14" NB
Annealed Alloy Steel Cups From 1/2" NB to 14" NB
4140 Low Alloy Steel Couplings Upto 4" NB
Normalized Alloy Stub Ends From 1/2" NB to 14" NB
4142 Chromoly AS Nipples Upto 4" NB
Scm420 Chromoly Alloy Steel Socket Weld Upto 2" NB

IBR Alloy Steel Pipe Fittings Chemical Composition


WPB B,C,D,E,
WP5 CL3 WP11 CL3 WP11 CL1 WPC C,D,E, WP11 CL2, WP22 CL3 WP22 CL1 WP5 CL1,
Carbon 0.15 0.05–0.20 0.35 0.15 0.3 0.05–0.15 0.05–0.15 0.05–0.20 0.05–0.15
Manganese 0.30–0.60 0.30–0.80 0.29–1.06 0.30–0.60 0.29–1.06 0.30–0.60 0.30–0.60 0.30–0.80 0.30–0.60
Phosporus 0.04 0.04 0.05 0.04 0.05 0.03 0.04 0.04 0.04
Sulfur 0.03 0.04 0.058 0.03 0.058 0.03 0.04 0.04 0.04
Silicon 0.5 0.50–1.00 0.10 min 0.5 0.10 min 0.50–1.00 0.5 0.50–1.00 0.5
Chromium 4.0–6.0 1.00–1.50 0.4 4.0–6.0 0.4 1.00–1.50 1.90–2.60 1.00–1.50 1.90–2.60
Molybdenum 0.44–0.65 0.44–0.65 0.15 max 0.44–0.65 0.15 max 0.44–0.65 0.87–1.13 0.44–0.65 0.87–1.13
Nickel 0.4 0.4
Copper 0.4 0.4
Others Vanadium 0.08 Vanadium 0.08

Alloy Steel Weld Fittings Mechanical Properties

Yield Properties, ksi[MPa] , min Gr. Tensile Properties, ksi[MPa], min. Elongation, min. %
Transverse Longitudinal
30[205] WP1 55-80[380-550] 13 20
32[220] WP12 CL1 60[415] 14 22
40[275] WP12 CL2 70[485] 14 22
30[205] WP11 CL1 60[415] 14 22
40[275] WP11 CL2 70[485] 14 22
45[310] WP11 CL3 75[520] 14 22
30[205] WP22 CL1 60[415] 14 22
45[310] WP22 CL3 75[520] 14 22
60[415] WP24 85[585] - 20
30[205] WP5 CL1 60[415] 14 22
45[310] WP5 CL3 75[520] 14 22
30[205] WP9 CL1 60[415] 14 22
45[310] WP9 CL3 75[520] 14 22
46[315] WPR 63-99[435-605] - 20
60[415] WP91 90[620] 13 20
64[440] WP911 90-120[620-840] 13 20
64[440] WP92 90-120[620-840] 13 20
Get free quote now of Alloy Steel Stub End from stockist in India, Distributor of Chromoly Weld Fittings

SA234 Material Corrosion Allowance

Chrome-Molybdenum Alloy Steel Pipe Fittings Applications

Contact directly a Alloy Steel ASTM A234 Pipe Cap and Alloy Steel Buttweld Fittings Manufacturers in India for custom sizes and factory price

  • Sugar Industries

  • Gas Processing Industries

  • Petrochemical Industries

  • Food Processing Industries

  • Chemical Industries

  • Power Generation Industries

  • Fertilizers Industries

  • Oil & Gas Industries

Alloy Steel Pipe Fittings Dimensions

AS 45 Deg Elbows AS 90 Deg Elbows NPS AS 180 Deg Return Long Radius
Long Radius 3R Long Radius Short Radius 3R XS STD
STD XS XS STD STD SCH. 160 XS XXS XS STD STD XS
.09 .19 * * .18 * .25 * * * * * ½ * .35
.09 .19 * * .19 * .25 * * * * * ¾ .65 .40
0.25 .31 * * .40 .60 .50 .75 * .25 * * 1 1.00 .75
0.38 .50 * * .60 1.00 .90 1.38 * .4 * * 1.75 1.25
.40 .69 * * .90 1.80 1.15 1.50 .75 .56 * * 2.39 1.88
.81 1.19 2.1 1.5 1.60 3.25 2.20 3.50 1.50 1.00 3.00 4.00 2 4.40 3.23
1.75 2.13 4.00 3.00 3.25 5.13 4.00 7.00 2.80 2.13 6.00 8.00 8.00 6.50
2.63 3.50 7.00 5.00 5.00 8.50 6.50 11.0 4.25 3.00 10.0 13.0 3 13.00 10.25
3.50 4.50 9.00 7.00 6.75 * 8.35 16.0 6.00 4.50 13.0 18.0 16.75 13.00
4.50 6.10 13.0 9.00 9.00 18.0 13.5 20.0 8.50 6.25 18.0 25.0 4 25.0 18.5
7.50 10.7 22.0 15.0 15.0 32.0 22.0 36.0 14.0 9.60 29.0 43.0 5 44.0 30.0
12.0 17.5 35.0 23.0 24.5 57.0 35.0 65.0 23.0 18.0 45.0 70.0 6 70.0 50.0
23.0 35.0 70.0 45.0 50.0 120 71.0 118 47.5 34.0 90.0 140 8 142 95.0
43.0 53.0 109 80.0 88.0 260 107 * 70.0 58.0 159 218 10 215 117
62.0 84.0 155 117 125 450 160 * 104 80.0 233 310 12 320 230
80.0 100 200 149 160 572 205 * 140 105 298 400 14 400 325
100 135 260 195 206 * 276 * 174 132 390 520 16 550 412
126 167 330 248 260 * 340 * 219 167 495 660 18 690 510
160 206 405 305 320 * 420 * 275 210 610 810 20 830 640
197 260 490 368 394 * 520 * * * 735 980 22 1040 787
238 300 585 438 460 * 600 * 392 298 875 1170 24 1200 890
275 365 685 515 550 * 729 1030 1370 26
367 488 915 685 734 975 1370 1830 30
531 706 1315 985 1062 1412 1970 2630 36

Chromoly AS Pipe Fittings Pressure Rating

Temperature Ratings Pressure Class
150 300
1 1/4 - 2 Inches 1/4 - 1 Inches 2 1/2 - 3 Inches
(oC) (oF)
-29 to 66 -20 to 150 300 1500 2000 1000
93 200 265 1350 1785 910
121 250 225 1200 1575 825
149 300 185 1050 1360 735
177 350 150 900 1150 650
204 400 - 750 935 560
232 450 - 600 725 475
260 500 - 450 510 385
288 550 - 300 300 300

IBR Alloy Steel Pipe Fittings Standards

Standard Specification for steel pipe fittings includes alloy steel materials for moderate and high temperature services. It includes both welded and seamless steel fittings.

Standards

  • P235GH
  • ASME B16.28
  • EN 10253
  • DIN 2353
  • ASME B16.9
  • DIN 2617
  • DIN 2605-1
Manufacturer of Low Alloy Steel Fittings in India, View Chromoly Long/ Short Radius Elbow Weight & Dimensions Chart online

Advantages and disadvantages of 90 degree Alloy Steel elbow

90 Degree Elbow

90-degree elbows are putting the execution of your pipeline at risk: they make slowing everything down, and friction misfortune. A 90-degree elbow that doesn’t have any radius. They form a hard-internal end corner. From the point of view of putting in a necessary turn, they show up to be efficient. 90-degree corner results in a colossal amount of drive hitting the corner.

This at that point does four things:

  • It moderates down at the bend
  • It makes a catch-point, which can get to be a blockage
  • It confines the flow rate, making your pipeline less efficient.
  • You get a sedimentary construct up driving to point 2 above.

If you’re considering approximately taking a toll, a long bend elbow might well be the cheapest alternative. The issue is that it’s as if it was cheap initially. The elective is to put in a 1D/ 1.5D clear twist. Typically planning to deliver you a much longer life-span in a high-wear situation, and will decrease your maintenance necessities, altogether reduce weight drop and increase flow.

Call us to get Chromoly Pipe Fittings Free Sample

Check our reference of material in these countries

Sandoz South Africa (Pty) Ltd -Gauteng, Gauteng,South Africa

Sandoz South Africa (Pty) Ltd -Gauteng, Gauteng,South Africa

Origin Energy Limited Australia

Origin Energy Limited Australia

Block B Gas Project Vietnam

Block B Gas Project Vietnam

Malampaya Project Phase 3 Luzon, Philippines

Malampaya Project Phase 3 Luzon, Philippines

Optimal Chemicals Sdn-Malaysia

Optimal Chemicals Sdn-Malaysia

Tumut Greenfield Pulp & Paper Mill-Houston Tx

Tumut Greenfield Pulp & Paper Mill-Houston Tx
