Biggest Manufacturer of SA182 F9 Weld Neck Flange in India, Check Dimensions and Weight Chart of Alloy Steel F9 Slip on Flanges

ASTM A182 F9 Flanges

The ASTM A182 F9 are forged flange that are used toefficiently connect pipes, tubes, pumps and other equipment. ASTM A182 F9 Flanges are designed with an outstanding chemical composition of nickel, chromium, and molybdenum with other constituting alloys. The flange are seen in the application where corrosion and oxidation resistance properties are required to operate normally. The ASTM A182 F9 Flanges possess excellent surface porosity and have a finer grain structure. These flange showcase outstanding strength and are designed in flat or raised faces. ASTM A182 F9 Flat Face Flange doesn’t have an even surface that is fitted with a gasket to ensure a leak-proof sealing. These flange are seen in moderate to low-pressure setups. The ASTM A182 F9 Class 300 Flange is constructed with good metal allowing it to withhold extreme pressures.

The SA182 F9 Slip On Flange is a common flange used by engineers as they are easily slid on the piping grade and welded using a fillet weld. These flange ensure a smooth flow of media and are preferred in applications where low-pressure applications. A182 Gr F9 Weld Neck Flange is designed with a protruded lip that provides support to the pipe as there is a movement of pressurized media seen in the oil and gasindustry. The F9 Alloy Steel Socket Weld Flange is seen in smaller piping grades designed in the range of ½ to 24 NB. These flange are inserted into a socket end, applying a fillet weld on top of the grade. A SA 182 F9 Blind Flange is utilized to terminate the flow of media in the system. These flange don’t possess any face type and allow room for inspection and repairs. The SA 182 Gr F9 Spectacle Blinds are similar to blind flange, but they have an open end with a closed-end. These blinds are seen in repair and maintenance applications. A182 F9 Plate Flange is quality-assured and can be customized to meet all your project requirements.

We supply ASTM A182 F9 Class 300 Flange with NDT Test Certificates, Stockist of SA 182 Gr F9 Blind Flanges in Wide range of sizes

Alloy Steel F9 Flanges Specification

Here are many benefits if you buy from ASTM A182 F9 Blind Flange manufacturers, like high quality, best price and wide range of ASTM A182 F9 Loose Flanges

ASTM Specifications ASTM/ ASME A182/ SA182
Standard Flanges ANSI, EN, DIN, BS, ASME

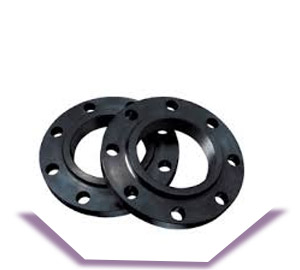

Type of Flange Face Raised Face, Flate, Ring Type Joint
Size inch From 1/2" to 36"
Dimensions BS 10, BS4504, ASME/ ANSI B16.5, EN-1092, B 16.47 Series A/B, B16.48, DIN
Class / Pressure Rating PN10, PN40, 300#, PN16, 900#, PN6, 600#, 1500#, PN64, 2500#, PN25, 150#

ASME SA182M Alloy Steel F9 Pipe Flange Price List

If you purchase directly from Sa182 F9 Reducing Flanges and ASTM A182 F9 WNRF Flanges manufacturers you can save 10-12% cost

Description Price Per Kg In Singapore Price Per Kg In UAE Price Per Kg In USD Price Per Kg In Malaysia
3/4 SCH 80 X 300# FLANGE A 182 F9 SGD 54.36 UAE Dirham 141.94 US $39.26 MYR 172.14
NPS 2 (DN 50) X 19.5 MM THK X CLASS 600 FLANGE LWNRF SA182 GR. F9 ASME B16.5 HUB OD 84 MM X ID 45 SGD 320.42 UAE Dirham 836.65 US $231.41 MYR 1,014.66
8 X 300# X SCH 40 ALLOY STEEL BLND FLANGE TO ASTM A182 F9, DIMN B16.5. SGD 310.79 UAE Dirham 811.50 US $224.46 MYR 984.16
12 X 300# X SCH STD ALLOY STEEL WNRF FLANGE TO ASTM A182 F9, DIMN B16.5. SGD 856.44 UAE Dirham 2,236.26 US $618.54 MYR 2,712.06
1 1/2-600 RF SCH 80 FLANGE WELD NECK ASME SA182 F9 SGD 68.29 UAE Dirham 178.32 US $49.32 MYR 216.26
3-300 RF SCH 40 ALLOY STEEL FLANGE, WELD NECK SA182 F9 SGD 81.00 UAE Dirham 211.50 US $58.50 MYR 256.50

ASTM A182 F9 Flanges Types

Alloy Steel F9 Male & Female Flange

Alloy Steel F9 Male & Female Flange

Sa182 F9 Forged Flanges

Sa182 F9 Forged Flanges

ASME SA182M Alloy Steel F9 Slip On Flange (SORF)

ASME SA182M Alloy Steel F9 Slip On Flange (SORF)

Alloy Steel ASTM A182 F9 Threaded / Screwed Flange

Alloy Steel ASTM A182 F9 Threaded / Screwed Flange

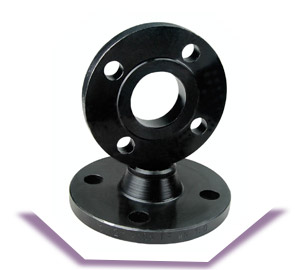

Alloy Steel Grade F9 Reducing Flanges

Alloy Steel Grade F9 Reducing Flanges

ASTM A182 F9 Alloy Steel Raised Face Flange

ASTM A182 F9 Alloy Steel Raised Face Flange

ANSI B16.5 Alloy F9 Bleed Ring Flange

ANSI B16.5 Alloy F9 Bleed Ring Flange

F9 Alloy Steel Ring Type Joint Flanges (RTJ)

F9 Alloy Steel Ring Type Joint Flanges (RTJ)

Alloy Steel 9Cr-1Mo Long Weld Neck Flanges

Alloy Steel 9Cr-1Mo Long Weld Neck Flanges

GR F9 Alloy Steel Spectacle Blind Flanges

GR F9 Alloy Steel Spectacle Blind Flanges

ASTM A182 Alloy Steel Spade Flange

ASTM A182 Alloy Steel Spade Flange

A182 F9 Alloy Steel Tongue & Groove Flanges

A182 F9 Alloy Steel Tongue & Groove Flanges

F9 A182 Square Flanges

F9 A182 Square Flanges

A182 F9 Cl2 Nipo flange

A182 F9 Cl2 Nipo flange

A182 F9 Class 2 Puddle Flanges

A182 F9 Class 2 Puddle Flanges

ASTM A182 Gr F9 Weldo Flange

ASTM A182 Gr F9 Weldo Flange

ASTM A182 Grade F9 Orifice Flanges

ASTM A182 Grade F9 Orifice Flanges

A182 Gr F9 Plate Flanges

A182 Gr F9 Plate Flanges

A182 Grade F9 High Hub Blind Flanges

A182 Grade F9 High Hub Blind Flanges

SA 182 Gr F9 Lap Joint Flanges

SA 182 Gr F9 Lap Joint Flanges

ASME SA 182 Gr F9 Weld Neck Flanges (WNRF)

ASME SA 182 Gr F9 Weld Neck Flanges (WNRF)

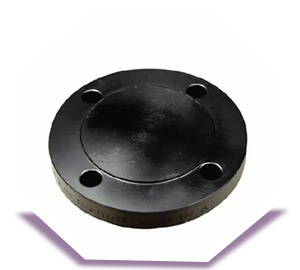

SA182 F9 Cl1 Blind Flanges (BLRF)

SA182 F9 Cl1 Blind Flanges (BLRF)

A182 F9 Cl.2 Ring Spacer

A182 F9 Cl.2 Ring Spacer

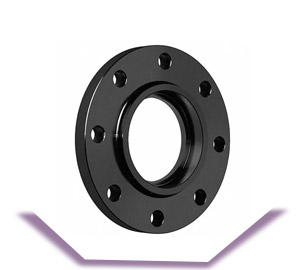

ASTM A182 F9 Cl.2 Socket Weld Flanges (SWRF)

ASTM A182 F9 Cl.2 Socket Weld Flanges (SWRF)

Alloy Steel ASTM A182 F9 Flanges Pressure Rating

Temperature °F 900# 300# 1500# 400# 150# 2500# 600#
-20 to 100 2160 720 3600 960 275 6000 1440
200 00 600 3000 800 230 5000 1200
300 1620 540 2700 720 205 4500 1080
400 1490 495 2485 660 190 4140 995
500 1395 465 2330 620 170 3880 930
600 1310 435 25 580 140 3640 875
650 1290 430 2150 575 125 3580 860
700 1275 425 2125 565 110 3540 850
750 1245 415 2075 555 95 3460 830
800 1210 405 2015 540 80 3360 805
850 1190 395 1980 530 65 3300 790
900 1165 390 1945 520 50 3240 780
950 1145 380 1910 510 35 30 765
1000 965 320 1605 430 20 2675 640
1050 925 310 1545 410 20 2570 615
1100 770 255 1285 345 20 2145 515
1150 595 200 995 265 20 1655 400
1200 465 155 770 205 20 1285 310
1250 340 115 565 150 20 945 225
1300 255 85 430 115 20 715 170
1350 5 60 310 80 20 515 125
1400 145 50 240 65 20 400 95
1450 105 35 170 45 15 285 70
1500 80 25 135 35 10 230 55

GR F9 Alloy Steel Flanges Dimensions

A leading supplier of industrial Alloy Steel F9 Industrial Flange, Alloy Steel F9 RTJ Flange we offer a wide range of cost effective Alloy Steel Grade F9 Flat Flange

Standard Bolt Size Dia. of Bolt Hole Class Dia. Bolt Circle Dia. No. of Bolts
ISO 7005 (DIN) Flange M10 11 PN6 Flange 80 55 4
M12 14 PN10 Flange 95 65 4
M12 14 PN16 Flange 95 65 4
M14 16 PN20 Flange 90 60.5 4
M12 14 PN25 Flange 95 65 4
M12 14 PN40 Flange 95 65 4
Alloy 2129 Flange 13 14 Table C Flange 95 67 4
13 14 Table D Flange 95 67 4
13 14 Table E Flange 95 67 4
13 14 Table F Flange 95 67 4
16 17 Table H Flange 114 83 4
16 17 Table J Flange 114 83 4
Alloy 4087 Flange M12 14 PN14 Flange 95 67 4
ANSI B16.5 Flange 13 16 ANSI 150 Flange 89 60 4
13 16 ANSI 300 Flange 95 67 4
13 16 ANSI 600 Flange 95 67 4
19 22 ANSI 900 Flange 121 83 4
19 22 ANSI 1500 Flange 121 83 4

Best Quality A182 F9 Plate Flange Stockholder, Ready to dispatch stock of Alloy Steel F9 Socket Weld Flange

ASME SA182M Alloy Steel F9 Flange Chemical Composition

Mn Cr Si C S P Mo
0.3-0.6 8-10 0.5-1.0 0.15 max 0.03 0.03 0.9-1.1

Alloy Steel Grade F9 Flange Mechanical Properties

Elongation Yield Properties Tensile Properties
20 % 585 380

ASTM A182 F9 Alloy Steel Pipe Flanges Equivalent

We are a specialist supplier & distributor of Alloy Steel F9 Slip On Flanges and ANSI B16.5 Alloy F9 Orifice Flange

DIN WERKSTOFF NR. UNS DIN
1.7386 K90941 X 12 CrMo 91

ANSI B16.5 Alloy F9 Flanges Wall Thickness

S 120 Outer Diam. S 20 Sizes of Normal Pipe S 10 S 30 S 40 STD Wall XX Hvy S 100 S 60 S 140 EXT Hvy S 80 S 160
0.84 mm ½ inch 0.083 0.109 0.109 0.294 0.147 0.147 0.188
1.05 mm ¾ inch 0.083 0.113 0.113 0.308 0.154 0.154 0.219
1.315 mm 1 inch 0.109 0.133 0.133 0.358 0.179 0.179 0.25
1.66 mm 1 ¼ inch 0.109 0.14 0.14 0.382 0.191 0.191 0.25
1.9 mm 1 ½ inch 0.109 0.145 0.145 0.4 0.2 0.2 0.281
2.375 mm 2 inch 0.109 0.154 0.154 0.436 0.218 0.218 0.344
2.875 mm 2 ½ inch 0.12 0.203 0.203 0.552 0.276 0.276 0.375
3.5 mm 3 inch 0.12 0.216 0.216 0.6 0.3 0.3 0.438
4 mm 3 ½ inch 0.12 0.226 0.226 0.636 0.318 0.318
0.438 4.5 mm 4 inch 0.12 0.237 0.237 0.674 0.337 0.337 0.531
0.5 5.563 mm 5 inch 0.134 0.258 0.258 0.75 0.375 0.375 0.625
0.562 6.625 mm 6 inch 0.134 0.28 0.28 0.864 0.432 0.432 0.719
0.719 8.625 mm 0.25 8 inch 0.148 0.277 0.322 0.322 0.875 0.594 0.406 0.812 0.5 0.5 0.906
0.844 10.75 mm 0.25 10 inch 0.165 0.307 0.365 0.365 1 0.719 0.5 1 0.5 0.594 1.125
1 12.75 mm 0.25 12 inch 0.18 0.33 0.406 0.375 1 0.844 0.562 1.125 0.5 0.688 1.312
1.094 14 mm 0.312 14 inch 0.25 0.375 0.438 0.375 0.938 0.594 1.25 0.5 0.75 1.406
1.219 16 mm 0.312 16 inch 0.25 0.375 0.5 0.375 1.031 0.656 1.438 0.5 0.844 1.594
1.375 18 mm 0.312 18 inch 0.25 0.438 0.562 0.375 1.156 0.75 1.562 0.5 0.938 1.781
1.5 20 mm 0.375 20 inch 0.25 0.5 0.594 0.375 1.281 0.812 1.75 0.5 1.031 1.969
22 mm 22 inch 0.25 0.375 0.5
1.812 24 mm 0.375 24 inch 0.25 0.562 0.688 0.375 1.531 0.969 2.062 0.5 1.219 2.344
26 mm 26 inch 0.375 0.5
30 mm 0.5 30 inch 0.312 0.625 0.375 0.5
36 mm 0.5 36 inch 0.312 0.625 0.75 0.375 0.5
40 mm 40 inch 0.375 0.5
42 mm 42 inch 0.375 0.5
48 mm 48 inch 0.375 0.5
We stock a range of ASTM A182 Gr F9 Forged Flange in different sizes, Ask for free sample of SA182 F9 Threaded Flange

ASME SA 182 Gr F9 Blind Flanges Weight Chart

Blind FLanges

Class 150 LB

Raised Face
Thickness (T)
Outside
Diameter
No. of
Bolt Holes
Bolt Circle (BC) FLANGE
NPS
Raised Face (R) Flat Face
Thickness (T2)
Raised Face (RF) Bolt Hole (B)
.44″ 3.50″ 4 2.38″ 1/2″ 1.38″ .38″ .063″ .62″
.50″ 3.88″ 4 2.75″ 3/4″ 1.69″ .44″ .063″ .62″
.56″ 4.25″ 4 3.12″ 1″ 2.00″ .50″ .063″ .62″
.62″ 4.62″ 4 3.50″ 1-1/4″ 2.50″ .56″ .063″ .62″
.68″ 5.00″ 4 3.88″ 1-1/2″ 2.88″ .62″ .063″ .62″
.75″ 6.00″ 4 4.75″ 2″ 3.62″ .69″ .063″ .75″
.88″ 7.00″ 4 5.50″ 2-1/2″ 4.12″ .82″ .063″ .75″
.94″ 7.50″ 4 6.00″ 3″ 5.00″ .88″ .063″ .75″
.94″ 8.50″ 8 7.00″ 3-1/2″ 5.50″ .88″ .063″ .75″
.94″ 9.00″ 8 7.50″ 4″ 6.19″ .88″ .063″ .75″
.94″ 10.00″ 8 8.50″ 5″ 7.31″ .88″ .063″ .88″
1.00″ 11.00″ 8 9.50″ 6″ 8.50″ .94″ .063″ .88″
1.12″ 13.50″ 8 11.75″ 8″ 10.62″ 1.06″ .063″ .88″
1.19″ 16.00″ 12 14.25″ 10″ 12.75″ 1.13″ .063″ 1.00″
1.25″ 19.00″ 12 17.00″ 12″ 15.00″ 1.19″ .063″ 1.00″
1.38″ 21.00″ 12 18.75″ 14″ 16.25″ 1.32″ .063″ 1.12″
1.44″ 23.50″ 16 21.25″ 16″ 18.50″ 1.38″ .063″ 1.12″
1.56″ 25.00″ 16 22.75″ 18″ 21.00″ 1.50″ .063″ 1.25″
1.69″ 27.50″ 20 25.00″ 20″ 23.00″ 1.63″ .063″ 1.25″
1.81″ 29.50″ 20 27.25″ 22″ 25.25″ 1.75″ .063″ 1.38″
1.88″ 32.00″ 20 29.50″ 24″ 27.25″ 1.82″ .063″ 1.38″

ASTM A182 F9 Flanges Applications

Manufacturer of F9 Alloy Steel Lapped joint Flange and Alloy Steel ASTM A182 F9 Threaded Flanges in Mumbai, browse our range of Alloy Steel 9Cr-1Mo Socket Weld Flanges and ASTM A182 F9 Spectacle Blind Flange online

  • Gas Processing

  • Power Generation

  • Petrochemicals

  • Pulp and Paper Industry

  • Off-Shore Oil Drilling Companies

  • Sea Water Equipment

  • Specialty Chemicals

  • Chemical Equipment

  • Pharmaceuticals

  • Heat Exchangers

  • Pharmaceutical Equipment

  • Condensers

Call us to Check Availability of SA 182 Gr F9 Spectacle Blind Flange, We are 20 years old A182 Gr F9 Lap Joint Flange Manufacturer

A182 F9 Alloy Steel Flanges Slip On Flanges Sizes

Slip On FLanges

CLass 150 LB

Pipe Flange Data Face Weight Hub Drilling Data
OutsideDiameter Nominal Pipe A C B D G H F I J
Overall Diameter Flange Thickness min Inside Diameter Overall Length Face Diameter Number of Holes Hub Diameter Bolt Hole Diameter Diameter
of Circle of Holes
in
mm
Size in
mm
in
mm
in
mm
in
mm
in
mm
kg/ piece in
mm
in
mm
in
mm
0.840 2 3.500 0.440 0.880 0.620 1.380 0.39 4 1.190 0.620 2.380
21.30 88.90 11.20 22.40 15.70 35.10 30.20 15.70 60.45
1.050 w 3.880 0.500 1.090 0.620 1.690 0.56 4 1.500 0.620 2.750
26.70 98.60 12.70 27.70 15.70 42.90 38.10 15.70 69.85
1.315 1 4.250 0.560 1.360 0.690 2.000 0.78 4 1.940 0.620 3.120
33.40 108.0 14.20 34.50 17.50 50.80 49.30 15.70 79.25
1.660 14 4.620 0.620 1.700 0.810 2.500 1.03 4 2.310 0.620 3.500
42.20 117.3 15.70 43.20 20.60 63.50 58.70 15.70 88.90
1.900 12 5.000 0.690 1.950 0.880 2.880 1.32 4 2.560 0.620 3.880
48.30 127.0 17.50 49.50 22.40 73.15 65.00 15.70 98.60
2.375 2 6.000 0.750 2.440 1.000 3.620 2.06 4 3.060 0.750 4.750
60.30 152.4 19.10 62.00 25.40 91.90 77.70 19.10 120.7
2.875 22 7.000 0.880 2.940 1.120 4.120 3.28 4 3.560 0.750 5.500
73.00 177.8 22.40 74.70 28.40 104.6 90.40 19.10 139.7
3.500 3 7.500 0.940 3.570 1.190 5.000 3.85 4 4.250 0.750 6.000
88.90 190.5 23.90 90.70 30.20 127.0 108.0 19.10 152.4
4.000 32 8.500 0.940 4.070 1.250 5.500 4.81 8 4.810 0.750 7.000
101.6 215.9 23.90 103.4 31.75 139.7 122.2 19.10 177.8
4.500 4 9.000 0.940 4.570 1.310 6.190 5.30 8 5.310 0.750 7.500
114.3 228.6 23.90 116.1 33.30 157.2 134.9 19.10 190.5
5.563 5 10.00 0.940 5.660 1.440 7.310 6.07 8 6.440 0.880 8.500
141.3 254.0 23.90 143.8 36.60 5.7 163.6 22.40 215.9
6.625 11.00 1.000 6.720 1.560 8.500 7.560 0.880 9.500
6 7.45 8
168.3 279.4 25.40 170.7 39.60 215.9 192.0 22.40 241.3
8.625 8 13.50 1.120 8.720 1.750 10.62 12.1 8 9.690 0.880 11.75
219.1 342.9 28.40 221.5 44.50 269.7 246.1 22.40 298.5
10.75 10 16.00 1.190 10.88 1.940 12.75 16.5 12 12.00 1.000 14.25
273.0 406.4 30.20 276.3 49.30 323.9 304.8 25.40 362.0
12.75 12 19.00 1.250 12.88 2.190 15.00 26.2 12 14.38 1.000 17.00
323.8 482.6 31.75 327.1 55.60 381.0 365.3 25.40 431.8
14.00 14 21.00 1.380 14.14 2.250 16.25 34.6 12 15.75 1.120 .75
355.6 533.4 35.10 359.1 57.15 412.8 400.1 28.40 476.3
16.00 16 23.50 1.440 16.16 2.500 .50 44.8 16 .00 1.120 21.25
406.4 596.9 36.60 410.5 63.50 469.9 457.2 28.40 539.8
12.00 18 25.00 1.560 41.24 2.690 21.00 48.9 16 19.88 1.250 22.75
457.2 635.0 39.60 461.8 68.30 533.4 505.0 31.75 577.9
20.00 20 27.50 1.690 20.20 2.880 23.00 61.9 20 22.00 1.250 25.00
508.0 698.5 42.90 513.1 73.15 584.2 558.8 31.75 635.0
24.00 24 32.00 1.880 24.25 3.250 27.25 86.9 20 26.12 1.380 29.50
609.6 812.8 47.80 616.0 82.60 692.2 663.4 35.10 749.3

80% repeat orders from below countries

Weatherford - Cielo Abu Dhabi

Weatherford - Cielo Abu Dhabi

Adco Jebel Dhanna Crude Storage Tanks

Adco Jebel Dhanna Crude Storage Tanks

Gorgon LNG Train 4-Australia

Gorgon LNG Train 4-Australia

Bahrain Deep Gas Exploration Project Bahrain

Bahrain Deep Gas Exploration Project Bahrain

ConocoPhillips Barossa Project-Australia

ConocoPhillips Barossa Project-Australia

Singapore Lng Corporation Pte Ltd

Singapore Lng Corporation Pte Ltd
