Copper Nickel Pipe Fittings Manufacturer in India

Table of Content

CU-NI 90/10 Elbow Specifications as per ASME B16.9

Copper Nickel Pipe Fittings Specifications

Popular Size :

Popular Size :

  • Welded : 24" To 96"
  • Seamless : 1/2" To 24"
  • Buttweld : 1/2" To 36"
  • Contact copper nickel pipe fittings manufacturer in India for above 48″
Machines :

Machines :

  • CNC
  • Beveling Machine
  • Conventional Machine
Documentation List :

Documentation List :

  • Raw material test reports
  • Material traceability records
  • Fumigation certificates
Available THK :

Available THK :

  • Schedule 20 & 40
  • Schedule : 80 To 120
  • Schedule : 160 To 180
ASME Standard :

ASME Standard :

  • ASME B16.9
  • ASME SB466
  • ASTM B466
  • DIN/ JIS/ EN/ ISO
Packaging Types :

Packaging Types :

  • Carton Box
  • Wooden Pallet
  • Wooden Cases
Advantages :

Advantages :

  • Resistance to Corrosion in Seawater
Density :

Density :

  • 8900 kg/m3
Raw Material :

Raw Material :

  • Seamless Pipe
  • Welded Pipe
  • Round Bar
Applicable Fluids Types :

Applicable Fluids Types :

  • Steam
  • Oil and Gas
  • Water and Air
Forming Method :

Forming Method :

  • Cold formed
  • Hot formed
Annealing Temperature :

Annealing Temperature :

  • 760°C To 800°C
ISO Standard :

ISO Standard :

  • ISO 5251
Heat Treatment :

Heat Treatment :

  • Normalizing
  • Tempering
Method :

Method :

  • Welded (Weld)
  • Seamless (SMLS)
  • Buttweld (BW)
UNS Number :

UNS Number :

  • UNS C70600
Thickness Tolerance :

Thickness Tolerance :

  • +/-12.5%
  • Custom
Marking :

Marking :

  • Grade & Material
  • Size & Schedule
  • Manufacturers Name
  • Standard & Heat No.
Material Life :

Material Life :

  • 50 Years
Manufacturing Way :

Manufacturing Way :

  • Machined
  • Heat Treated
  • Forged
End Connection :

End Connection :

  • Bevelled
  • Plain Bevel
  • Butt Welding
Process :

Process :

  • Welding
  • Cutting
  • Bending
Test Certificates :

Test Certificates :

  • EN 10204 3.1
  • EN 10204 3.2
Type Of Surface Treatment :

Type Of Surface Treatment :

  • Sand Blasting
  • Sand Rolling
Application :

Application :

  • Pharmaceuticals
  • Chemical Equipment
  • Power Generation
  • Petrochemicals
  • Oil and Gas
Method:

Method:

  • Casting
  • Forged
  • Pushing
  • Butt Weld
  • Welding
Testing :

Testing :

  • Chemical Analysis
  • PMI Test
  • Hardness Test
  • Mechanical Testing
  • Hyrdrostatic Test
Bend Radius Types :

Bend Radius Types :

  • 1.5D/ 2D/ 3D
  • 4D/ 5D/ 6D
  • 8D/ 10D/ 22D
Common Pipe Bend Angle :

Common Pipe Bend Angle :

  • 15 Deg, 22.5 Deg, 30 Deg
  • 45 Deg, 60 Deg, 90 Deg
  • 135 Deg, 180 Deg
Bending Method :

Bending Method :

  • Roll bending
  • Hot induction bending
  • Rotary draw bending
Logistics :

Logistics :

  • By Air
  • By Sea
  • Netherland = 30 days
  • Belgium = 40 day
  • UAE = 5 day
  • Qatar = 6 To 7 day
  • Uk = 30 day
  • Saudi Arabia = 8 day
  • Bahrain = 21 days
  • Malaysia = 10 Day
  • Philippines = 14
Tensile Stress :

Tensile Stress :

  • 54000 PSI To 75000 PSI
Grade :

Grade :

  • Copper Nickel 90/10 Pipe Fittings

Check Cupro Nickel Tee Price List for Gas Distribution Systems


Copper Nickel Elbow Price List

  • Types = 45 Degree Elbow

  • Grade = CU NI 90/10

  • Radius = Short Radius

  • SCH = 40

Size Price List in Dollar (US) Price List in Dirham (UAE)
1/2” US $6.32 AED 23.21
¾” US $10.80 AED 39.67
1” US $18.95 AED 69.60
1.1/4” US $38.24 AED 140.46
1.1/2” US $53.02 AED 194.74
2” US $70.83 AED 260.16
2.1/2” US $85.46 AED 313.89
3” US $118.05 AED 433.60
4” US $236.10 AED 867.20

Copper Nickel Tee Price List

  • Types = Equal Tee

  • Grade = CU NI 90/10

  • Method = Seamless

  • SCH = 40

Size Price List in Dollar (US) Price in South African Rand (South Africa)
¾” US $27.10 ZAR 99.54
1” US $44.88 ZAR 164.84
1.1/4” US $95.76 ZAR 351.73
1.1/2” US $119.76 ZAR 439.88
2” US $138.54 ZAR 508.86
2.1/2” US $248.29 ZAR 911.97
3” US $372.44 ZAR 1367.97
4” US $566.34 ZAR 2080.17
6” US $1,241.46 ZAR 4559.88
8” US $2,360.98 ZAR 8671.88
10” US $4,290.24 ZAR 15758.05
12” US $7,160.98 ZAR 26302.28
14” US $9,234.15 ZAR 33917.03

Copper Nickel Reducer Price List

  • Types = Concentric Reducer

  • Grade = CU NI 90/10

  • Method = Seamless

  • Packaging = Wooden Cases

Size Price List in Dollar (US) Price in Malaysian Ringgit (Malaysia)
3/4 x 1/2" X SCH 40 US $18.12 MYR 81.50
1 x 1/2” X SCH 40 US $27.27 MYR 122.65
1.1/4” X SCH 40 US $35.41 MYR 159.27
1-1/4 x 1/2" X SCH 40 US $35.41 MYR 159.27
1-1/4 x 3/4” X SCH 40 US $35.41 MYR 159.27
2.1/2” X SCH 40 US $72.05 MYR 324.07
1-1/4 x 1” X SCH 80 US $24.83 MYR 111.68
1-1/2 x 1/2” X SCH 80 US $28.71 MYR 129.13
1-1/2 x 3/4” X SCH 80 US $30.27 MYR 136.15
1-1/2 x 1-1/4” X SCH 80 US $34.15 MYR 153.60
2 x 1/2” X SCH 80 US $40.90 MYR 183.96
2 x 1-1/4” X SCH 80 US $49.44 MYR 222.37
3 x 1-1/4” X SCH 80 US $96.66 MYR 434.77
3 x 1-1/2” X SCH 80 US $106.63 MYR 479.62
3 x 2-1/2” X SCH 80 US $124.15 MYR 558.42
3-1/2 x 1-1/2” X SCH 80 US $158.05 MYR 710.90

Copper Nickel End Cap Price List

  • Types = Pipe Cap

  • Grade = CU NI 90/10

  • Method = Seamless

  • Finish = Polish

Size Price List in Dollar (US) Price in Australian Dollar (Australia)
1/2" X SCH 40S US $8.15 AUD 13.08
¾” X SCH 40S US $9.98 AUD 16.02
1” X SCH 40S US $22.78 AUD 36.56
1.1/4" X SCH 40S US $30.10 AUD 48.31
1.1/2” X SCH 80S US $38.07 AUD 61.10
2” X SCH 40S US $30.93 AUD 49.64
2.1/2” X SCH 80S US $47.88 AUD 76.84
3” X SCH 40S US $82.37 AUD 132.19
4” X SCH 80S US $126.34 AUD 202.75
6” X SCH 40S US $340.24 AUD 546.03
8” X SCH 40S US $665.12 AUD 1067.40
10” X SCH 80S US $921.95 AUD 1479.57
12 X SCH 80S US $1,285.37 AUD 2062.79

Leading ASTM B466 UNS C70600 Reducer Supplier in Mumbai, View Advantages & Heat Treatment


Advantages Of Copper Nickel 90/10 Fittings

Advantages Of Copper Nickel 90/10 Fittings

CUNI Fittings Heat Treatment

Heat Treatment Temperature
Annealing 600°C to 700°C
Stress Relieving 300°C to 400°C
Solution Annealing 650°C to 850°C

Cupro Nickel Fittings Tensile Strength

  • 360 MPa to 510 MPa

  • 52,200 PSI to 74,000 PSI

DIN Standards for ASTM B466 UNS C70600 Tee

DIN 2615 Tee
DIN 2605 Elbow
DIN 2616 Reducer
DIN 2618 Saddle
DIN 2617 Caps
DIN 28011 Torispherical Heads

Refer Copper Nickel Fittings Temperature Range and DIN Standards for 90/10 CU Ni End Cap

Copper Nickel Fittings Temperature Range

Operating Temperature Range -100°C to 250°C
Continuous Service Temperature (Maximum) 300°C

CU-NI 90/10 Elbow Weight Chart

Size Weight
DN15 0.40
DN20 0.50
DN25 0.60
DN32 0.90
DN40 1.00
DN50 1.20
DN65 1.80
DN80 2.20
DN100 3.20
DN125 4.50
DN150 5.90
DN200 9.40
DN250 13.50

Hardness for Cuni Pipe Fittings

Brinell Hardness Rockwell Hardness
70 to 95 BHN 50 to 60 HRB

90/10 Copper Nickel Fittings Equivalent

UNS :

  • C70600

Werkstoff Nr. :

  • WNR 2.0872

BS EN :

  • CW352H
Copper Nickel 90/10 Pipe Bend Stockist in India, Learn About The CUNI Fittings Chemical Composition

CU Ni 90/10 Weld Fittings Chemical Composition

Copper [CU] :

Copper [CU] :

  • 89%
Iron [Fe] :

Iron [Fe] :

  • 1.0 To 1.8%
Nickel (Ni) :

Nickel (Ni) :

  • 9.0 To 11.0%

Copper Nickel 90/10 Buttweld Fittings Mechanical Properties

Tensile Strength :

  • >310 MPa

Elongation :

  • >35%

Modulus of Elasticity :

  • 110 GPa

Shear Modulus :

  • 41 GPa

Yield Strength :

  • 170 MPa to 300 MPa

Types Of Copper Nickel Pipe Fittings

Copper Nickel Elbow

Copper Nickel Elbow

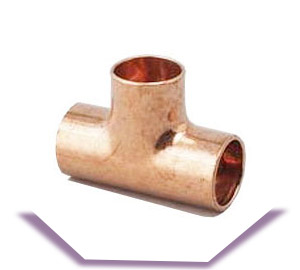

CU Ni Tee

CU Ni Tee

Cupro Nickel Reducer

Cupro Nickel Reducer

Copper Nickel 90/10 End Cap

Copper Nickel 90/10 End Cap

UNS C70600 Stub End

UNS C70600 Stub End

90/10 Copper Nickel Pipe Bend

90/10 Copper Nickel Pipe Bend
