Are you serching for AISI 4130 Elbow Manufacturer in India, Check Sizes and Weight Chart of SAE 4130 Reducer

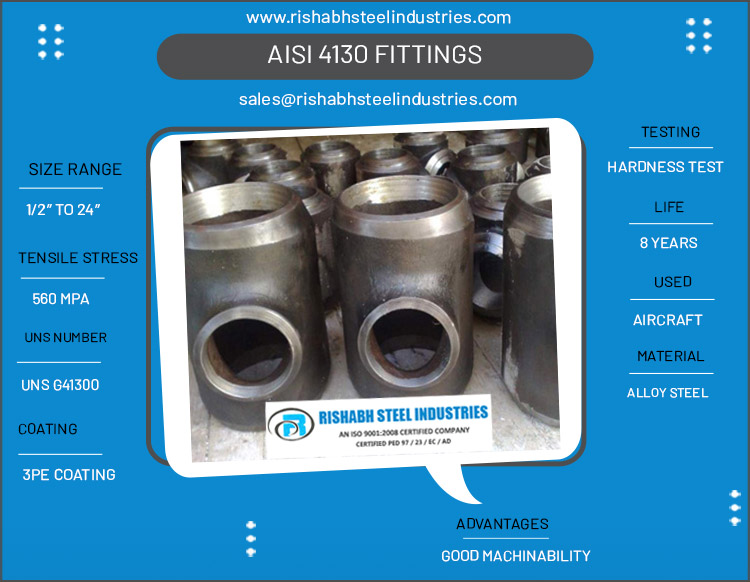

AISI 4130 Fittings

Fitting are defined as piping equipment that helps it in pipe routing allowing for direction change, size change, and branch connection. The AISI 4130 Fitting are low carbon chromium and molybdenum alloys with other strengthening agents. These fitting possess a density of 7.85 g/cm3 and have enhanced corrosion resistance properties. They are generally designed in seamless and welded grades. Alloy 4130 Seamless Pipe Fittings are designed without any seam or welds as they are produced via an extrusion process. The seamless fitting have excellent strength and can handle pressurized fluids and gases. The DIN 1.7218 Welded Fittingare manufactured with bending and welding operation. These fitting can be produced having continuous lengths and are comparatively cheaper compared to seamless fitting.

The AISI 4130 Elbow is a key part of a pressure piping system that allows it to change the direction of gaseous and fluid media. The elbows can connect pipes of equal or unequal diameters. They are available in 45 and 90 degree types. A UNS G41300 Equal Tee is a three-sided fitting that is shaped in the form of a T. These tees allow for an equal flow of media in industrial, commercial, and domestic systems. The AISI 4130 Pipe End Cap helps close the end of hydraulic systems. These end caps protect the end of the pipe and other fitting. They are available in either larger or smaller size configurations. SAE 4130 Reducer is a versatile fitting that allows it to connect piping equipment of different sizes. These reducers ensure a smooth flow of media from large to small diameter sections. They can be produced in the concentric and eccentric specifications. The Alloy Steel 4130 Stub End is a small length of a pipe that is flared on the outside. These ends can be used as an alternative to standard flanges and are lightweight in their mechanism.

Exporter & supplier of Alloy 4130 Seamless Pipe Fittings in India, Check UNS G41300 Equal Tee Sizes and Price List

AISI 4130 Pipe Fittings Specification

Here are many benefits if you buy from Alloy Steel AISI 4130 Seamless Pipe Fittings manufacturers, like high quality, best price and wide range of AISI 4130 Buttweld Pipe Fittings

Specification AISI 4130 Pipe Fittings
Schedule Schedule 5 upto Schedule XXS
Type Seamless Fitting, Butt Weld Fitting, Welded Fitting
Thickness Schedule 5S upto XXS
Standard ISO, NPT, DIN, EN, JIS
Size Normal Pipe Size 1⁄₂ to 48”
Type Of Dimension MSS-SP-43 Type B Fitting, EN 10253 - 4 Fitting, MSS-SP-43 Type A Fitting, BS1640 Fitting, DIN 2605 Fitting, ANSI B16.9 Fitting, ANSI B16.28 Fitting, JIS B2312 Fitting, MSS SP-75 Fitting, JIS B2313 Fitting
Type Stub End, Elbow, Bend, Reducer, Tee, Cap, Wye, Adapter, Cross,
Connection Type End Bell / Threaded/ Weld/ Clamp End / Flange
Pressure-Temperature Class 300LB, 2500LB, 600LB, 150LB, 1500LB.

SAE 4130 Alloy Steel Fittings Price List

Save 10-12% if you buy directly from AISI 4130 Pipe Fittings manufacturers

Description Price Per Kg In Singapore Price Per Kg In UAE Price Per Kg In USD Price Per Kg In Malaysia
9-5/8 OD PIPE FITTING PLUG, MATERIAL AISI 4130, DULY HOT DIP GALVANIZED SGD 5,365.33 UAE Dirham 14,009.48 US $3,874.96 MYR 16,990.22
3-1/16 X 100000 PSI PIPE FITTING CROSS OVER SPOOL (RTJ) BX-154 STUDDEDEND CONNECTION, MATERIAL AISI 4130 SGD 4,705.47 UAE Dirham 12,286.51 US $3,398.40 MYR 14,900.66
3 EQ.TEE 160 FITTING FOR PIPES AISI 4130 SGD 135.31 UAE Dirham 353.30 US $97.72 MYR 428.47
3-1/16 x 10000 PSI (RTJ) Bx-154, Material AISI 4130 SGD 5,745.94 UAE Dirham 15,003.29 US $4,149.85 MYR 18,195.48
5 X 3 FITTING FOR TUBES RED TEE 160 AISI 4130 SGD 194.92 UAE Dirham 508.96 US $140.78 MYR 617.25

AISI 4130 Fittings Types

AISI 4130 Cross Tee

AISI 4130 Cross Tee

SAE AISI 4130 Fittings

SAE AISI 4130 Fittings

AISI 4130 Elbow

AISI 4130 Elbow

Alloy Steel 1.7218 End Cap

Alloy Steel 1.7218 End Cap

AISI 4130 Concentric Reducer

AISI 4130 Concentric Reducer

SAE 4130 Reducer

SAE 4130 Reducer

4130 Lap Joint Stub Ends

4130 Lap Joint Stub Ends

Alloy Steel 4130 Cross Fitting

Alloy Steel 4130 Cross Fitting

ASME B16.9 AISI 4130 90 Degree Elbows

ASME B16.9 AISI 4130 90 Degree Elbows

SAE-AISI 4130 Equal Tee

SAE-AISI 4130 Equal Tee

AISI UNS G41300 Return Bends

AISI UNS G41300 Return Bends

Alloy Steel AISI 4130 Eccentric Reducer

Alloy Steel AISI 4130 Eccentric Reducer

AISI DIN 1.7218 180 Degree Elbows

AISI DIN 1.7218 180 Degree Elbows

SAE 4130 Stub End

SAE 4130 Stub End

Alloy Steel 1.7218 Weld Elbows

Alloy Steel 1.7218 Weld Elbows

SAE 4130 45 Degree Elbows

SAE 4130 45 Degree Elbows

Alloy Steel AISI 4130 Reducing Tee

Alloy Steel AISI 4130 Reducing Tee

Steel AISI 4130 Laterals

Steel AISI 4130 Laterals

AISI 4130 Buttweld Fittings Pressure Rating

We are a specialist supplier & distributor of AISI 4130 Alloy Steel Pipe Fittings and Alloy Steel 4130 Pipe Fittings

Temperature Ratings Pressure Class
150 300
1 1/4 - 2 Inches 1/4 - 1 Inches 2 1/2 - 3 Inches
(oC) (oF)
-29 to 66 -20 to 150 300 1500 2000 1000
93 200 265 1350 1785 910
121 250 225 1200 1575 825
149 300 185 1050 1360 735
177 350 150 900 1150 650
204 400 - 750 935 560
232 450 - 600 725 475
260 500 - 450 510 385
288 550 - 300 300 300

Check latest AISI 4130 Pipe End Cap price list online, Supplier of SAE 4130 Chromoly 90 Degree Elbow as per ASME B16.9

Alloy Steel 1.7218 Fittings Chemical Composition

Mo Mn Si Fe C S Ni P Cr
 0.15-0.25  0.40-0.60  0.15-0.35  97.3-98.22  0.28-0.33 0.025 maximum 0.50 maximum 0.035 maximum 0.80-1.10

AISI 4130 Seamless Pipe Fittings Mechanical Properties

Why don't you directly contact a SAE 4130 Pipe Fittings suppliers? Extensive range and lowest price for AISI 4130 Pipe Fittings and AISI 4130 Seamless Pipe Fittings in India

Melting Point Elongation (0.2% Offset) Yield Properties Density Tensile Properties
2580 20 % 460 MPa 0.28 560 MPa

SAE 4130 Fittings Equivalent

AFNOR WERKSTOFF NR. UNS EN BS JIS GOST
1.7218 G41300 25CrMo4 BS 970 JIS G4105
Our 4130 Alloy Steel Elbow are used for petrochemical industry, We Stock DIN 1.7218 Welded Fittings in all size range

AISI 4130 Buttweld Pipe Fittings Wall Thickness

O.D. (mm) Nominal Pipe Size W.T. (mm)
Sch 5S Sch 10S Sch 40S Sch 80S
NPS DN Weight (kg/m) WT (mm) Weight (kg/m) WT (mm) Weight (kg/m) WT (mm) Weight (kg/m) WT (mm)
10.3 6 0.28 1.24 0.37 1.73 0.47 2.41
13.7 ¼ 8 0.49 1.65 0.63 2.24 0.80 3.02
17.1 10 0.63 1.65 0.84 2.31 1.10 3.20
21.3 ½ 15 0.80 1.65 1.00 2.11 1.27 2.77 1.62 3.73
26.7 ¾ 20 1.02 1.65 1.28 2.11 1.69 2.87 2.20 3.91
33.4 1 25 1.29 1.65 2.09 2.77 2.50 3.38 3.24 4.55
42.2 32 1.65 1.65 2.69 2.77 3.39 3.56 4.47 4.85
48.3 40 1.90 1.65 3.11 2.77 4.05 3.68 5.41 5.08
60.3 2 50 2.39 1.65 3.93 2.77 5.44 3.91 7.48 5.54
73.0 65 3.69 2.11 5.26 3.05 8.63 5.16 11.41 7.01
88.9 3 80 4.52 2.11 6.46 3.05 11.29 5.49 15.27 7.62
101.6 90 5.18 2.11 7.41 3.05 13.57 5.74 18.64 8.08
114.3 4 100 5.84 2.11 8.37 3.05 16.08 6.02 22.32 8.56
141.3 5 125 9.46 2.77 11.56 3.40 21.77 6.55 30.97 9.53
168.3 6 150 11.31 2.77 13.83 3.40 28.26 7.11 42.56 10.97
219.1 8 200 14.78 2.77 19.97 3.76 42.55 8.18 64.64 12.70
273.1 10 250 22.61 3.40 27.79 4.19 60.31 9.27 81.56 12.70
323.9 12 300 31.25 3.96 35.99 4.57 73.88 9.53 97.47 12.70
355.6 14 350 34.34 3.96 41.36 4.78 81.33 9.53 107.40 12.70
406.4 16 400 41.56 4.19 47.34 4.78 93.27 9.53 123.31 12.70
457 18 450 46.79 4.19 53.31 4.78 105.17 9.53 139.16 12.70
508 20 500 59.32 4.78 68.65 5.54 117.15 9.53 155.13 12.70
559 22 550 65.33 4.78 75.62 5.54
610 24 600 82.58 5.54 94.53 6.35 141.12 9.53 187.07 12.70
660 26 650
711 28 700
762 30 750 118.34 6.35 147.29 7.92

AISI 4130 Fittings Physical Properties

Contact directly a AISI 4130 Industrial Seamless Pipe Fittings and Crome Moly AISI 4130 Seamless Tee manufacturer in India for factory price and custom sizes

Properties Imperial Metric
Density 0.284 lb/in³ 7.85 g/cm3
Melting point 2610°F 1432°C

Alloy Steel 4130 Fittings Dimensions

Forms of Pipe Fttings Size Range Dimension Standards Schedules of Butt weld fittings
Seamless Pipe Fittings Welded Pipe Fittings
Elbows 1/8” NBt to 24" NB Upto 42" NB ANSI B16.9, ANSI B16.28, ASME B16.9, ASME B16.28, ANSI B16.25 Sch 5s, Sch 10, Sch 80s, Sch 100, Sch XXS, Sch 20, Sch 10s, Sch 40, Sch STD, Sch 40s, Sch 30, Sch XS, Sch 120, Sch 5, Sch 60, Sch 160, upto 50mm in case of welded fittings
Reducers 1/8” NB to 24" NB Upto 42" NB
Tees 1/8” NBt to 24" NB Upto 42" NB
End Caps 1/8” NBt to 24" NB Upto 42" NB
Swage Nipple 1/8” NB to 8" NB
Cross 1/8” NB to 8" NB
Return Bends 1/8” NB to 8" NB
Customized Pipe Fittings As Per Client Requirements
We are leading AISI 4130 Fittings Manufacturer in India, Check ready stock of Alloy Steel 4130 Stub End

SAE-AISI 4130 Stub End Sizes

Stub End Pipe Fittings
Schedule Nominal pipe size Weight Dimensions in mm
in.0 kg/pce D G t F R.0 max.0
10s
40s
3/4 0.0100 0.0120 26.07
26.07
42.09
42.09
2.011
2.087
50.08
50.08
3.018
3.018
10s
40s
1/2 0.0070 0.0090 21.03
21.03
34.09
34.09
2.011
2.077
50.08
50.08
3.018
3.018
10s
40s
1 0.0160 0.0170 33.04
33.04
50.08
50.08
2.077
3.038
50.08
50.08
3.018
3.018
10s
40s
1 ½ 0.0250 0.0310 48.03
48.03
73.00
73.00
2.077
3.068
50.08
50.08
6.035
6.035
10s
40s
1 ¼ 0.0220 0.0250 42.02
42.02
63.05
63.05
2.077
3.056
50.08
50.08
4.076
4.076
10s
40s
2 0.0430 0.0610 60.03
60.03
92.01
92.01
2.077
3.091
63.05
63.05
7.094
7.094
10s
40s
3 0.0730 1.0130 88.09
88.09
127.00
127.00
3.005
5.049
63.05
63.05
9.053
9.053
10s
40s
2 ½ 0.0570 0.0800 73.00
73.00
104.08
104.08
3.005
5.016
63.05
63.05
7.094
7.094
10s
40s
4 1.0090 1.0870 114.03
114.03
157.02
157.02
3.005
6.002
76.02
76.02
11.011
11.011
10s
40s
6 2.0150 3.0570 168.03
168.03
215.09
215.09
3.040
7.011
88.09
88.09
12.070
12.070
10s
40s
5 1.0470 2.0280 141.03
141.03
185.07
185.07
3.040
6.055
76.02
76.02
11.011
11.011
10s
40s
8 3.0220 6.0070 219.01
219.01
269.09
269.09
3.076
8.018
101.06
101.06
12.070
12.070

ASME B16.9 AISI 4130 Fittings Schedule Chart

Why pay extra? Buying from ANSI B16.9 4130 Pipe Fittings manufacturers saves your cost, wide selection of AISI 4130 Pipe Fittings and SAE 4130 Pipe Fittings in India

Buttweld Fittings
DN Schedule 10S Schedule 40S
45° Elbow 90° Elbow Equal tee Stub end type (B) End cap 45° Elbow 90° Elbow Equal tee End cap Stub end type (B)
15 0.03 0.06 0.09 0.07 0.03 0.04 0.08 0.10 0.04 0.08
20 0.03 0.07 0.13 0.09 0.05 0.04 0.08 0.17 0.07 0.11
25 0.08 0.14 0.28 0.16 0.08 0.11 0.15 0.29 0.10 0.17
32 0.11 0.23 0.49 0.22 0.10 0.17 0.26 0.59 0.18 0.25
40 0.17 0.30 0.68 0.25 0.11 0.23 0.40 0.86 0.20 0.31
50 0.25 0.50 0.85 0.43 0.13 0.40 0.70 1.28 0.23 0.61
65 0.48 0.85 1.41 0.57 0.19 0.77 1.40 2.19 0.27 0.80
80 0.63 1.25 1.77 0.72 0.25 1.08 2.20 3.31 0.42 1.13
100 1.08 2.10 3.46 1.09 0.68 1.47 4.47 5.27 1.14 1.87
125 1.82 3.65 5.44 1.47 1.11 2.84 6.80 9.63 2.13 2.79
150 2.72 5.45 8.03 2.15 1.42 5.44 10.89 10.99 3.23 3.57
200 5.33 10.20 15.65 3.22 2.38 10.77 21.54 20.91 5.19 6.07
250 9.75 18.15 26.76 5.13 4.45 19.27 38.56 35.38 9.00 10.07
300 13.62 25.80 39.46 8.16 7.50 29.71 59.42 62.14 15.00 14.29
350 18.37 36.29 48.53 10.88 8.17 35.15 79.38 79.31 16.00 17.14
400 23.81 47.63 58.97 12.70 10.67 45.81 99.79 99.79 21.00 20.41
450 29.94 59.87 79.65 17.23 13.00 59.40 129.73 129.73 26.00 27.21
500 49.90 99.80 103.42 21.77 17.00 74.84 162.38 162.39 34.00 29.94
600 70.31 140.61 155.58 27.21 26.00 105.23 225.89 225.90 52.00 38.55
