Leading Alloy 2205 Slip on Flange Manufacturer in India, Call us to get exclusive offer of UNS S31803 Weld Neck Flanges

Duplex Flanges

A flange is a channel that helps in connecting and transporting steam and fluids in the gas and refineries to different places. The Duplex Flanges are designed with dual-certified austenitic and ferritic microstructure. These flange have a good composition of chromium, nickel, molybdenum, and nitrogen, allowing them to possess enhanced resistance to reducing and corrosive media. Duplex Stainless Steel Flanges have excellent strength with good impact toughness. These flange provide stability to different pipes during the movement of the flow in the system. The Duplex Steel Flanges are easy to install and can be readily modified and inspected. The flange can be readily bolted and welded following standard procedures. A UNS S32205 Flange has a density of 7800 kg/m3 and has enhanced mechanical properties. These flange possess a hardness of 293 max HB Brinell. The ASTM A182 F51 Flange covers forged or rolled alloy that has good resistance to pitting, stress, and crevice corrosion across harsh environments.

The Alloy 2205 Slip on Flange is a common flange in the industry as they are slid on the pipe and welded using one or more fillet welds. These flange are seen in applications where stress on the system is low. A DIN 1.4462 Socket Weld Flange has a similar strength to a slip on flange and is connected using a single fillet weld. These flange are seen in small bore-size pipes and are not preferred in certain applications where corrosion is high. The UNS S31803 Weld Neck Flanges have a long protruded hub that allows them to work in high-pressure conditions. These flange are recommended in applications where repeated bending is taking place in the system. ASTM A 182 Gr F51 RTJ Flange has grooves cut on its face, allowing them to be sealed with bolts and gaskets. They are seen in higher temperature conditions up to 800 degrees F.

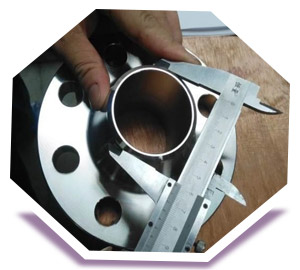

Worldwide supplier of ASTM A182 F51 Flange at factory price, Leading stockist of Duplex Stainless Steel Flanges

Duplex Flange Specification

Here are many benefits if you buy from Duplex Flange manufacturers, like high quality, best price and wide range of Duplex Steel 2205 Industrial Flanges

Specifications ASTM / ASME A182 / SA182
Size From 1/8" NB upto 24" NB
Flange Face Type Raised Face, Flate Face, Ring Type Joint
Dimensions BS4504, ANSI/ASME B16.48, B16.5, B 16.47 Series A & B, BS 10, DIN, EN-1092
Grades S31803 / S32205
Class / Pressures PN64, PN16, PN25, PN40, 900#, 300#, PN6, 150#, 1500#, 600#, 2500#, PN10

ASME SA182M Duplex Steel S32205 Flange Price List

Save 10-12% if you buy directly from Duplex Steel S31803 RTJ Flange manufacturers

Description Price Per Kg In Singapore Price Per Kg In UAE Price Per Kg In USD Price Per Kg In Malaysia
NPS 2 DN 50 X 19.5 MM THK X CLASS 600, DUPLEX SS FLANGE LWNRF SA182 GR. F51 OD 84 MM X ID 45 UNSS31803 ASME B16.5 HUB SGD 320.42 UAE Dirham 836.65 US $231.41 MYR 1,014.66
4 IN CLASS 900 WELDNECK G ASME B16.5 RAISED FACE A/SA182 F51 STAINLESS STEEL DUPLEX FLANGE SGD 39.58 UAE Dirham 103.35 US $28.59 MYR 125.34
2 300# DUPLEX UNS 32205 F60 BLRF FLANGE SGD 94.59 UAE Dirham 246.99 US $68.32 MYR 299.54
4 RF, CLASS 150-SPECTICLE BLIND DUPLEX-SS UNS31803 FLANGE SGD 73.71 UAE Dirham 192.47 US $53.24 MYR 233.42
4 #600 SORF WITH HUB DUPLEX 2205 FLANGE SGD 247.28 UAE Dirham 645.69 US $178.59 MYR 783.07

Duplex Steel Flanges Types

A182 gr F51 Tongue & Groove Flanges

A182 gr F51 Tongue & Groove Flanges

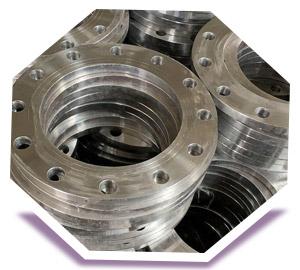

Duplex Plate Flanges

Duplex Plate Flanges

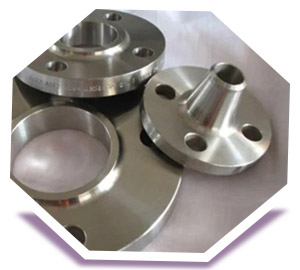

Duplex Stainless Steel Reducing Flanges

Duplex Stainless Steel Reducing Flanges

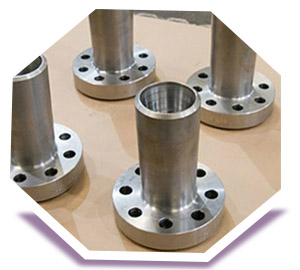

ASTM A182 F51 UNS S31803 Long Weld Neck Flanges

ASTM A182 F51 UNS S31803 Long Weld Neck Flanges

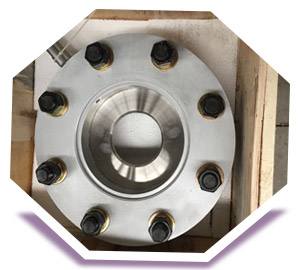

UNS S31803 F51 Orifice Flanges

UNS S31803 F51 Orifice Flanges

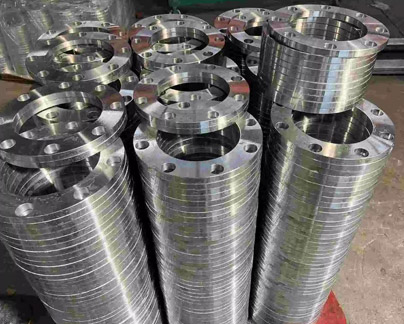

Duplex 2205 Slip On Flanges (SORF)

Duplex 2205 Slip On Flanges (SORF)

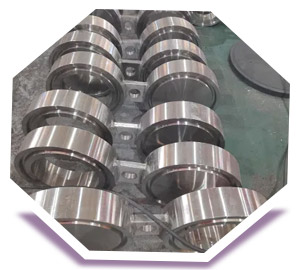

A182 F51 UNS S31803 Spectacle Blind Flanges

A182 F51 UNS S31803 Spectacle Blind Flanges

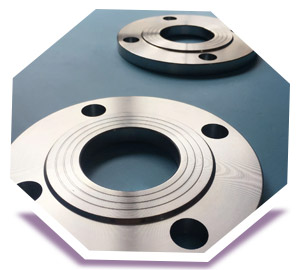

ASTM A 182 GR F51 Raised Face Flanges

ASTM A 182 GR F51 Raised Face Flanges

F51 Duplex Stainless Steel Ring Spacer

F51 Duplex Stainless Steel Ring Spacer

Duplex Steel Male & Female Flanges

Duplex Steel Male & Female Flanges

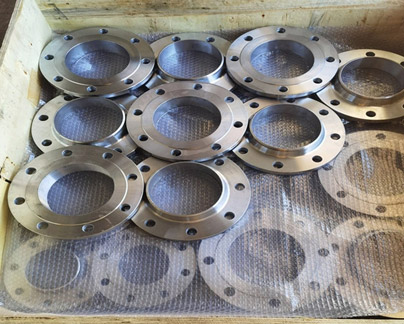

ASTM A182 Grade F51 Weld Neck Flanges (WNRF)

ASTM A182 Grade F51 Weld Neck Flanges (WNRF)

A182 gr F51 High Hub Blind Flanges

A182 gr F51 High Hub Blind Flanges

SA 182 F51 UNS S31803 Bleed Ring Flange

SA 182 F51 UNS S31803 Bleed Ring Flange

A182 F51 Duplex Threaded / Screwed Flanges

A182 F51 Duplex Threaded / Screwed Flanges

DIN 1.4462 Square Flanges

DIN 1.4462 Square Flanges

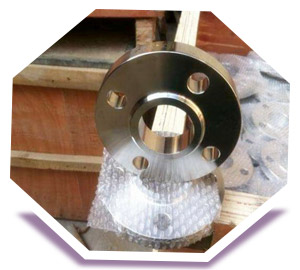

F51 Duplex Lap Joint Flanges

F51 Duplex Lap Joint Flanges

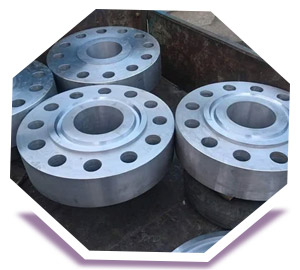

UNS S31803 Ring Type Joint Flanges (RTJ)

UNS S31803 Ring Type Joint Flanges (RTJ)

F51 Duplex Steel Nipo flange

F51 Duplex Steel Nipo flange

SA182 F51 Spade Flange

SA182 F51 Spade Flange

Alloy 2205 Puddle Flanges

Alloy 2205 Puddle Flanges

ASTM A182 F51 Weldo Flange

ASTM A182 F51 Weldo Flange

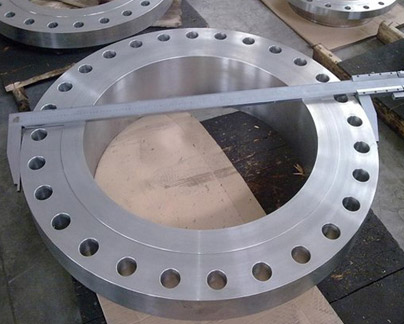

A182 F51 Socket Weld Flanges (SWRF)

A182 F51 Socket Weld Flanges (SWRF)

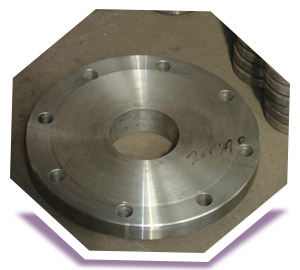

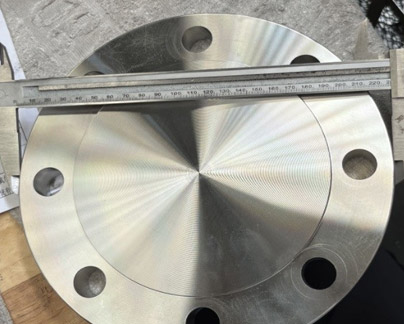

F51 Duplex Steel Blind Flanges (BLRF)

F51 Duplex Steel Blind Flanges (BLRF)

UNS S32205 Forged Flanges

UNS S32205 Forged Flanges

Weight Chart of Duplex Steel 2205 Flanges

Standard No. of Bolts Dia. Class Bolt Circle Dia. vvBolt Size Dia. of Bolt Hole
ANSI B16.5 Flange 4 89 ANSI 150 Flange 60 13 16
4 95 ANSI 300 Flange 67 13 16
4 95 ANSI 600 Flange 67 13 16
4 121 ANSI 900 Flange 83 19 22
4 121 ANSI 1500 Flange 83 19 22
AS4087 Flange 4 95 PN14 Flange 67 M12 14
AS 2129 Flange 4 95 Table C Flange 67 13 14
4 95 Table D Flange 67 13 14
4 95 Table E Flange 67 13 14
4 95 Table F Flange 67 13 14
4 114 Table H Flange 83 16 17
4 114 Table J Flange 83 16 17
ISO 7005 (DIN) Flange 4 80 PN6 Flange 55 M10 11
4 95 PN10 Flange 65 M12 14
4 95 PN16 Flange 65 M12 14
4 90 PN20 Flange 60.5 M14 16
4 95 PN25 Flange 65 M12 14
4 95 PN40 Flange 65 M12 14

Duplex Steel S31803 Flange Advantages

Compare our quality and price with other ASME SA182M Duplex Steel S32205 Class 300 Flange suppliers in India

Duplex Steel S31803 Flanges Advantages

Contact us if you want to buy Duplex 2205 Flanges and DIN 1.4462 Socket Weld Flange at factory price

Dimensions of Duplex Steel Gr. F52 S32205 Flanges

Dimensions of Duplex Steel Gr. F52 S32205 Flanges
Class Nominal Pipe Size Weld Neck Threaded Slip On Socket Weld Blind Lap Joint
150 lb ½ 2 1 1 2 2 1
¾ 2 2 2 2 2 2
1 3 2 2 2 2 2
3 3 3 3 3 3
4 3 3 3 4 3
2 6 5 5 5 5 5
10 8 8 8 7 8
3 11.5 9 9 9 9 9
12 12 11 11 13 11
4 16.5 13 13 13 17 13
5 21 15 15 15 20 15
6 26 19 19 19 27 19
8 42 30 30 30 47 30
10 54 43 43 43 70 43
12 88 64 64 64 123 64
14 114 90 90 90 140 105
16 140 98 106 98 180 140
18 165 130 130 130 220 160
20 197 165 165 165 285 195
22 225 185 185 185 355 245
24 268 220 220 220 430 275
2500 lb ½ 8 7 …. …. 7 7
¾ 9 9 …. …. 10 8
1 13 12 …. …. 12 12
20 18 …. …. 18 17
28 25 …. …. 25 24
2 42 38 …. …. 39 37
52 55 …. …. 56 53
3 94 83 …. …. 86 80
4 146 127 …. …. 133 122
5 244 210 …. …. 223 204
6 378 323 …. …. 345 314
8 576 485 …. …. 533 471
10 1068 925 …. …. 1025 897
12 1608 1300 …. …. 1464 1262
300 lb ½ 2 2 2 3 2 2
¾ 3 3 3 3 3 3
1 4 3 3 3 4 3
5 4.5 4.5 4 6 4.5
7 6.5 6.5 6 7 6.5
2 9 7 7 7 8 7
12 10 10 10 12 10
3 18 14 13 13 16 14.5
20 17 17 17 21 17
4 26.5 24 23.5 22 28 24
5 36 31 29 28 37 28
6 45 39 39 39 50 39
8 69 58 58 58 81 58
10 100 81 81 81 124 91
12 142 115 115 115 185 140
14 206 165 165 165 250 190
16 250 220 210 190 315 234
18 320 280 253 250 414 305
20 400 325 315 315 515 375
22 465 370 370 370 640 435
24 580 490 490 475 800 550
600 lb ½ 3 2 2 2 3 2
¾ 4 3 3 3 4 3
1 4 4 4 4 4 4
6 5 5 5 6 5
8 7 7 7 8 7
2 12 9 9 9 10 9
18 13 13 13 15 12
3 23 16 16 16 20 15
26 21 21 21 29 20
4 42 37 37 37 41 36
5 68 63 63 63 68 63
6 81 80 80 80 86 78
8 120 115 115 115 140 112
10 190 177 177 177 231 195
12 226 215 215 215 295 240
14 347 259 259 259 378 290
16 481 366 366 366 527 400
18 555 476 476 476 665 469
20 690 612 612 612 855 604
22 720 590 590 590 1000 670
24 977 876 876 876 1250 866
400 lb ½ 3 2 2 2 2 2
¾ 3.5 3 3 3 3 3
1 4 3.5 3.5 3.5 4 3.5
4.5 4.5 4.5 4.5 6 4.5
8 6.5 6.5 6.5 8 6.5
2 10 8 8 8 10 8
14 12 12 12 15 11
3 18 15 15 15 20 14
26 21 21 21 29 20
4 35 26 26 26 33 25
5 43 31 31 31 44 29
6 57 44 44 44 61 42
8 89 67 67 67 100 64
10 125 91 91 91 155 110
12 175 130 130 130 226 152
14 233 191 191 191 310 210
16 295 253 253 253 398 280
18 360 310 310 310 502 345
20 445 378 378 378 621 420
22 505 405 405 405 720 455
24 640 539 539 539 936 615
900 lb ½ 7 6 6 6 4 6
¾ 7 6 6 6 6 6
1 8.5 7.5 7.5 7.5 9 7.5
10 10 10 10 10 10
14 14 14 14 14 14
2 24 22 22 22 25 21
31 31 31 31 32 25
3 36 36 36 36 35 29
4 53 53 53 53 54 51
5 86 83 83 83 87 81
6 110 110 110 110 115 105
8 187 172 172 172 200 190
10 268 245 245 245 290 277
12 372 326 326 326 415 371
14 562 400 400 400 520 415
16 685 459 459 459 619 488
18 924 647 647 647 880 670
20 1164 792 792 792 1107 868
24 2107 1480 1480 1480 2099 1659
1500 lb ½ 7 6 6 6 4 6
¾ 7 6 6 6 6 6
1 9 8 8 8 9 8
10 10 10 10 10 10
14 14 14 14 14 14
2 25 25 25 25 25 25
36 36 36 36 35 35
3 48 48 48 48 48 47
4 73 73 73 73 73 75
5 132 132 132 132 140 140
6 165 165 165 165 160 170
8 275 260 260 260 302 286
10 455 436 436 436 510 485
12 690 667 667 667 775 749
14 940 940 940 940 975 890
16 1250 1250 1250 1250 1300 1250
18 1625 1625 1625 1625 1750 1475
20 2050 2050 2050 2050 2225 1775
24 3325 2825 2825 2825 3625 2825

Duplex Steel Flanges Chemical Composition

Why don't you directly contact a Duplex Flat Flange manufacturer in India? We offer an extensive range of Duplex Steel UNS S31803 F51 Pipe Flanges and Duplex Steel Gr. F52 S32205 Slip On Flanges in Mumbai, free sample before dispatch of complete order.

Grade Ni Mn Fe Si C P N Cr S Mo
S31803 4.50 – 6.50 2.00 max 63.72 min 1.00 max 0.030 max 0.030 max 0.14 – 0.20 22.0 – 23.0 0.020 max 3.0 – 3.5
S32205 4.50 – 6.50 2.00 max 63.54 min 1.00 max 0.030 max 0.030 max 0.8 – 0.20 21.0 – 23.0 0.020 max 2.50 - 3.50

ANSI B16.5 Duplex Steel F60 Flanges Mechanical Properties

Melting Point (°C) Density (g/cm 3) Melting Point (°F) Density (lb/in 3)
1420 – 1465 7.805 2588 – 2669 0.285

Duplex Flanges Equivalent

UNS WERKSTOFF NR.
S31803 / S32205 1.4462
Top totch manufacturer of Duplex Flanges in India, Distributor of UNS S32205 Flange

2205 Duplex Flanges Size Chart

Buy Duplex Steel Blind Flanges and Duplex Steel Grade F56 Weld Neck Flange at wholesale price directly from manufacturers in India

Normal Pipe Size DN
3/4 20
4 100
3 80
2 50
2 1/2 65
1/2 15
1 1/2 40
1 1/4 32
1 25

Duplex Steel ASTM A182 Flanges Wall Thickness

S 120 Outer Diam. S 20 Sizes of Normal Pipe S 10 S 30 S 40 STD Wall XX Hvy S 100 S 60 S 140 EXT Hvy S 80 S 160
0.84 ½ inch 0.083 0.109 0.109 0.294 0.147 0.147 0.188
1.05 ¾ inch 0.083 0.113 0.113 0.308 0.154 0.154 0.219
1.315 1 inch 0.109 0.133 0.133 0.358 0.179 0.179 0.25
1.66 1 ¼ inch 0.109 0.14 0.14 0.382 0.191 0.191 0.25
1.9 1 ½ inch 0.109 0.145 0.145 0.4 0.2 0.2 0.281
2.375 2 inch 0.109 0.154 0.154 0.436 0.218 0.218 0.344
2.875 2 ½ inch 0.12 0.203 0.203 0.552 0.276 0.276 0.375
3.5 3 inch 0.12 0.216 0.216 0.6 0.3 0.3 0.438
4 3 ½ inch 0.12 0.226 0.226 0.636 0.318 0.318
0.438 4.5 4 inch 0.12 0.237 0.237 0.674 0.337 0.337 0.531
0.5 5.563 5 inch 0.134 0.258 0.258 0.75 0.375 0.375 0.625
0.562 6.625 6 inch 0.134 0.28 0.28 0.864 0.432 0.432 0.719
0.719 8.625 0.25 8 inch 0.148 0.277 0.322 0.322 0.875 0.594 0.406 0.812 0.5 0.5 0.906
0.844 10.75 0.25 10 inch 0.165 0.307 0.365 0.365 1 0.719 0.5 1 0.5 0.594 1.125
1 12.75 0.25 12 inch 0.18 0.33 0.406 0.375 1 0.844 0.562 1.125 0.5 0.688 1.312
1.094 14 0.312 14 inch 0.25 0.375 0.438 0.375 0.938 0.594 1.25 0.5 0.75 1.406
1.219 16 0.312 16 inch 0.25 0.375 0.5 0.375 1.031 0.656 1.438 0.5 0.844 1.594
1.375 18 0.312 18 inch 0.25 0.438 0.562 0.375 1.156 0.75 1.562 0.5 0.938 1.781
1.5 20 0.375 20 inch 0.25 0.5 0.594 0.375 1.281 0.812 1.75 0.5 1.031 1.969
22 22 inch 0.25 0.375 0.5
1.812 24 0.375 24 inch 0.25 0.562 0.688 0.375 1.531 0.969 2.062 0.5 1.219 2.344
26 26 inch 0.375 0.5
30 0.5 30 inch 0.312 0.625 0.375 0.5
36 0.5 36 inch 0.312 0.625 0.75 0.375 0.5
40 40 inch 0.375 0.5
42 42 inch 0.375 0.5
48 48 inch 0.375 0.5

Werkstoff No 1.4462 Flanges Applications

  • Aerospace Industry

  • Industry

  • Food Processing Industry

  • Pharmaceuticals Industry

  • Pulp & Paper Indusry

  • Petrochemical Industry

  • Oil and Gas Industry

  • Energy Industry

  • Refining Industry

  • Power Plant

Purchase ASTM A 182 Gr F51 RTJ Flange at discounted Price, We keep ready stock of Duplex Steel Flanges in various types and sizes.

ASTM A182 Duplex 2205 Flange Benefits

Duplex Flanges Benefits



  • High energy absorption
  • Good weldability and workability
  • Low thermal expansion
  • High strength and good fatigue resistance
  • Good general corrosion resistance
  • Good sulfide stress corrosion resistance
  • High resistance to chloride stress corrosion cracking, as well as pitting and crevice corrosion

Duplex Steel Flanges Pressure Rating

The benefit of purchasing ANSI B16.5 Duplex Steel F60 Orifice Flanges and Duplex Flanges directly from manufacturers is the low cost and large selection of 2205 Duplex WNRF Flanges which save your time

Temperature °F Class 2500 Class 300 Class 150 Class 900 Class 400 Class 600 Class 1500
-20 to 100 6000 720 275 2160 960 1440 3600
200 5000 600 230 1800 800 1200 3000
300 4500 540 205 1620 720 1080 2700
400 4140 495 190 1490 660 995 2485
500 3880 465 170 1395 620 930 2330
600 3640 435 140 1310 580 875 2185
650 3580 430 125 1290 575 860 2150
700 3540 425 110 1275 565 850 2125
750 3460 415 95 1245 555 830 2075
800 3360 405 80 1210 540 805 2015
850 3300 395 65 1190 530 790 1980
900 3240 390 50 1165 520 780 1945
950 3180 380 35 1145 510 765 1910
1000 2675 320 20 965 430 640 1605
1050 2570 310 20 925 410 615 1545
1100 2145 255 20 770 345 515 1285
1150 1655 200 20 595 265 400 995
1200 1285 155 20 465 205 310 770
1250 945 115 20 340 150 225 565
1300 715 85 20 255 115 170 430
1350 515 60 20 185 80 125 310
1400 400 50 20 145 65 95 240
1450 285 35 15 105 45 70 170
1500 230 25 10 80 35 55 135

Check our reference of material in these countries

Block B Gas Project Vietnam

Block B Gas Project Vietnam

Malampaya Project Phase 3 Luzon, Philippines

Malampaya Project Phase 3 Luzon, Philippines

Optimal Chemicals Sdn-Malaysia

Optimal Chemicals Sdn-Malaysia

Tumut Greenfield Pulp & Paper Mill-Houston Tx

Tumut Greenfield Pulp & Paper Mill-Houston Tx

Abengoa Agua-Saudi Arabia

Abengoa Agua-Saudi Arabia

Aspen Sa Manufacturing Operations (Pty) Ltd-EasternCape, EasternCape, South Africa

Aspen Sa Manufacturing Operations (Pty) Ltd-EasternCape, EasternCape, South Africa
