What Is ASTM A182 F51 Material?
These ASTM A182 F51 flange have a good composition of chromium, nickel, molybdenum, and nitrogen, allowing them to possess enhanced resistance to reducing and corrosive media. UNS S31803 Flanges have excellent strength with good impact toughness.
Table of Content
- ASTM A182 F51 Blind Flange Price List
- A182 F51 Material Specification
- A182 F51 Temperature Range
- Application of ASTM A182 F51 Flange
- ASTM A182 Gr F51 Chemical Composition
- Impact Test for ASTM A182 UNS S31803 Pipe Flanges
- A182 F51 Material Equivalent
- Hardness for Duplex F51 Slip On Flanges
- Density for F51 Duplex Stainless Steel Flanges
- F51 Duplex Steel Weld Flanges Yield Strength
- ASME SA182 Grade F51 Forged Flanges Heat Treatment
- Chromium Content of ASTM A182 Grade F51 Blind Flanges
- ASTM A182 F51 Mechanical Properties
- Types Of ASTM A182 F51 Flange
Carry Stock of UNS S31803 Blind Flanges in DN15 To DN1200 Sizes
-
Face = Raised Face
-
Class = 150#
-
Standard = ASME B16.5
-
SCH = SCH 40
| Size | Price in US (Dollar) | Price in Dirham (UAE) | Price in Malaysian Ringgit (Malaysia) | Price in Thai Baht (Thailand) |
|---|---|---|---|---|
| DN15 | US $7.27 | AED 26.70 | MYR 32.52 | THB 247.76 |
| DN25 | US $9.34 | AED 34.31 | MYR 41.78 | THB 318.31 |
| DN32 | US $13.49 | AED 49.55 | MYR 60.35 | THB 459.74 |
| DN40 | US $18.23 | AED 66.96 | MYR 81.56 | THB 621.28 |
| DN50 | US $23.04 | AED 84.63 | MYR 103.08 | THB 785.20 |
| DN80 | US $38.92 | AED 142.95 | MYR 174.12 | THB 1326.39 |
| DN90 | US $56.64 | AED 208.04 | MYR 253.40 | THB 1930.29 |
| DN100 | US $72.30 | AED 265.56 | MYR 323.46 | THB 2463.98 |
| DN125 | US $121.35 | AED 445.72 | MYR 542.91 | THB 4135.61 |
| DN150 | US $174.39 | AED 640.53 | MYR 780.21 | THB 5943.21 |
| DN200 | US $250.70 | AED 920.82 | MYR 1,121.62 | THB 8543.85 |
Size Range :
- DN15 To DN1500
- PN2.5 To PN400
- NPS: ½" to 24"
- Contact ASTM A182 F51 flange manufacturer in India for above 48 Inch
Pressure Class :
- Class 150 and 300
- Class 600 and 900
- Class 1500 and 2500
Maximum Size :
- 26" To 60" As Per ASME B16.47
Manufacturing Process :
- Plate
- Forged
- Cast
Number of Bolts Hole :
- 4 To 48
A182 F51 Forging Temperature :
- -60°F
Advantages :
- Corrosion Resistance
Surface :
- Mirror finish
- Stock finish
- Polished finish
Service Temperature (Max) :
- 300°C
Face Types :
- RF Face
- FF Face
- Tongue & Groove Face
- RTJ Face
- Male & Female Face
Threads :
- BSPT Threads
- MPT & MNPT Threads
- NPT Threads
- BSP Threads
- FPT Threads
Thickness :
- SCH 10/ 20/ 40
- SCH 60/ 80/ 100
- SCH 120/ 140/ 180
Uses :
- Power Generation
- Nuclear Energy
- Oil & gas plants
- Petrochemicals
Testing :
- Impact test
- Material inspection
- Hardness test
- PMI test
- Tensile test
Melting Point
- 2588°F To 2669°F
End Method :
- Threaded
- Welding
Marking Method :
- Standard & Heat No.
- Grade & Material
- Manufacturers Name
- Size & Schedule
UNS :
- UNS S31803
DIN Standards :
- DIN 2527
- DIN 2501
- DIN 2576
- DIN 2561
- DIN 2632
- DIN 2633
EN Standards :
- EN 1092-1
- EN 1092-2
- EN 1092-1 TYPE 01
- EN 1092-1 TYPE 02
- EN 1092-1 TYPE 05
- EN 1092-1 TYPE 11
- EN 1092-1 TYPE 13
JIS Standard :
- JIS B2220
AWWA Standard :
- AWWA c207
BS Standard :
- BS4504
Value Added Services :
- Minor Fabrication
- Polishing
- Beveling end
- Casting
- Threading
Logistics :
- By Sea
- By Air
- Kuwait = 10 day
- Singapore = 8 days
- Malaysia = 10 day
- Philippines = 14 day
- UAE = 5 day
- Indonesia = 9 days
- Oman = 5 days
- Bahrain = 9 day
Packaging :
- Wooden Pallet
- Carton Box
- Wooden Cases
Duplex F51 Slip On Flanges Manufacturer in India, See Temperature Range
| Temperature Range | Allowable Stress |
|---|---|
| 100°F | 30.0 KSI |
| 200°F | 30.0 KSI |
| 300°F | 28.9 KSI |
| 400°F | 27.8 KSI |
| 500°F | 27.2 KSI |
| 600°F | 26.9 KSI |
Trusted Source Of A182 F51 Duplex Weld Neck Flange Which is Required for Gas Processing
Check ASTM A182 F51 Material Chemical Composition and Impact Test
![Carbon [C] :](imginfo/carbon.jpg "Carbon [C] :")
Carbon [C] :
- 0 To 0.03%
![Manganese [Mn] :](imginfo/manganese.jpg "Manganese [Mn] :")
Manganese [Mn] :
- ≤2.00%
![Phosphorus [P] :](imginfo/phosphorus.jpg "Phosphorus [P] :")
Phosphorus [P] :
- 0 To 0.03%
![Sulfur [S] :](imginfo/sulfur.jpg "Sulfur [S] :")
Sulfur [S] :
- 0 To 0.02%
![Silicon [Si] :](imginfo/silicon.jpg "Silicon [Si] :")
Silicon [Si] :
- ≤1.00%
![Chromium [Cr] :](imginfo/chromium.jpg "Chromium [Cr] :")
Chromium [Cr] :
- 21.00 To 23.00%
![Molybdenum [Mo] :](imginfo/molybdenum.jpg "Molybdenum [Mo] :")
Molybdenum [Mo] :
- 2.50 To 3.50%
![Nickel [Ni] :](imginfo/nickel.jpg "Nickel [Ni] :")
Nickel [Ni] :
- 4.50 To 6.50%
![Nitrogen [N] :](imginfo/nitrogen.jpg "Nitrogen [N] :")
Nitrogen [N] :
- 0.08 To 0.20%
-
Impact test temperature = -60°F [-51°C]
Also View ASME SA182 Grade F51 Forged Flanges Equivalent Casting and Yield Strength
Grade :
- ASTM A182 F51 Flange
UNS :
- UNS 31803
WNR :
- 1.4462
SUS :
- SUS 329J3L
Equivalent Casting :
- A890 Grade 4A
| Brinell Hardness | Rockwell B Hardness |
|---|---|
| 250 To 300 HB | 90 To 98 HRB |
-
Density = 7.8 g/cm 3
-
460 MPa
-
67 KSI
| Heat Treatment | Temperature |
|---|---|
| Solution Annealing | 1020 To 1100°C |
| Stress Relieving | 650 To 750°C |
| Quenching Cool | Below 500°F |
| Minimum | Maximum |
|---|---|
| 21% | 23% |
Tensile Strength :
- 620 Mpa
Specific Heat Capacity :
- 1375°C
Thermal Conductivity :
- 440 J/(kg·K)
ASTM A182 UNS S31803 Slip On Flange

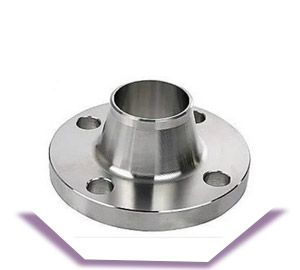

ASTM A182 S31803 Weld Neck Flange

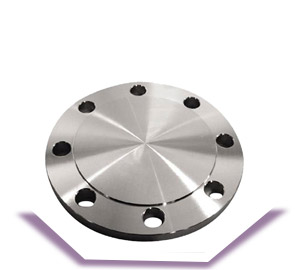

F51 Duplex Steel Blind Flange
A182 F51 Plate Flange
A182 Gr F51 Spectacle Blind Flanges
ASME SA182 F51 Threaded Flange
A182 F51 Duplex Socket Weld Flange

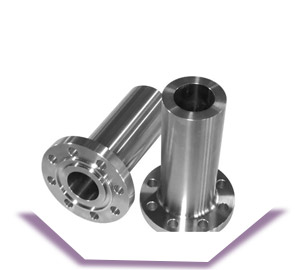

ASTM A182 Grade F51 Long Weld Neck Flange
F51 Duplex Lap Joint Flange

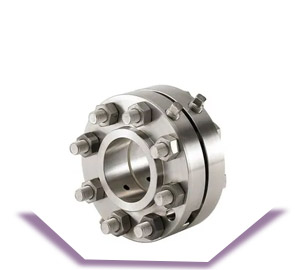

ASTM A182 F51 UNS S31803 Orifice Flanges
