Titanium Grade 2 Flanges

Titanium is a commercially pure alloyed workhorse grade. The Titanium Grade 2 Flanges help in connecting piping equipment efficiently in oil and gas industry. These flange are non-magnetic in nature and have excellent design capability. Titanium Flanges support different components and provide stability to different piping grades. These flange are lightweight and possess superior strength. The ASTM B381 Grade F2 has enhanced hardness and is designed in seamless and welded configurations. The grade is a common in the industry and is seen in different applications. B381 Gr F2 works well in high-pressure and temperature setups and possesses enhanced ductility and surface finish. The versatile B381 F2 Material has a minimum tensile strength of 485mpa with a minimum yield strength of 345mpa. They can be easily elongated at the break by 28% in the system. The ASTM B381 Gr F2 has a hardness of 160 to 200 HV and possesses an elastic modulus between 105 to 120pa. The grade can be readily welded following standard welding procedures. A B381 Gr F2 grade can be rough forged at temperatures of 899 degrees C and completed at 843 degrees C. They have excellent ductility and can be easily tempered. The SB 381 Gr F2 works well in sour service systems and possesses excellent forming capacity. Our institution is Titanium Grade 2 Flanges/ Titanium Flanges manufacturers in India who have some of the best technicians to produce the best products in the market at reasonable prices. We are amongst a few Titanium flanges suppliers who can supply products of different sizes and specifications as per customer requirements.

The Titanium Blind Flanges are designed without any boring hub or a face as they help in terminating the flow of media. These flange are usually bolted, allowing room for cleaning and maintenance. A titanium exhaust flange possesses excellent strength and can withstand high pressure and temperature discharge of gases in harsh conditions. Our company is a Titanium Flanges Manufacturer in India who can customize all our products, and they are available at reasonable prices.

Get Ti Gr 2 Slip on Flange Suppliers for specific design, We offer custom size of Titanium Blind Flanges for leak-free connections.

Titanium Gr-2 Flange Specification

Here are many benefits if you buy from Titanium Grade 2 Flanges, Titanium Gr2 Slip-On Flanges manufacturers, like high quality, best price and wide range of Gr2 Titanium Blind Flanges

Specifications ASTM / ASME B564, B363 / SB564, SB363
Dimensions ANSI/ASME B16.48, B16.5, BS4504, EN-1092, BS 10, DIN
Standards ASTM, ASME Flange, ANSI Flange, DIN Flange, EN Flange, BS Flange
Pressure Ratings PN6, PN16, 2500#, 150#, PN10, 1500#, PN40, PN25, 900#, 300#, PN64, 600#
Sizes From 1/2" upto 18"

ASTM B564 Titanium Flanges Price List

Titanium Grade 2 Socket Weld Flanges, ASTM B564 Titanium Gr-2 Threaded Flanges manufacturer in India, we use European/ German & Korean raw material to produce Titanium Gr-2 Orifice Flanges

Description Price Per Kg In Singapore Price Per Kg In UAE Price Per Kg In USD Price Per Kg In Malaysia
1/2 NPT 1NPS X 150# TITANIUM GRADE 2 BLIND RF FLANGE SGD 80.01 UAE Dirham 208.92 US $57.79 MYR 253.37
OD 700 X ID 385 X 25MM THICK TITANIUM BOTTOM GR2 FLANGE SGD 57.58 UAE Dirham 150.35 US $41.59 MYR 182.34
737 MM OD X 511MM ID X 6MM THK TITANIUM GR2 CIRCULAR FLANGE SGD 23.76 UAE Dirham 62.04 US $17.16 MYR 75.24
50 NB X 150# TITANIUM FLANGES Grade 2 FLANGE SGD 59.45 UAE Dirham 155.24 US $42.94 MYR 188.27

Titanium Grade 2 Flanges Types

Titanium Gr-2 Orifice Flange

Titanium Gr-2 Orifice Flange

ASTM B564 Titanium Male & Female Flanges

ASTM B564 Titanium Male & Female Flanges

Titanium Grade 2 Raised Face Flange

Titanium Grade 2 Raised Face Flange

ANSI B16.36 Titanium Ring Type Joint Flange (RTJ)

ANSI B16.36 Titanium Ring Type Joint Flange (RTJ)

Titanium Gr2 Spade Flange

Titanium Gr2 Spade Flange

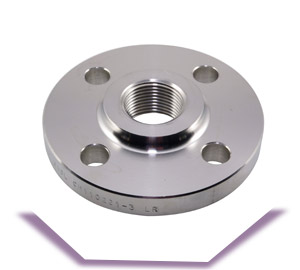

ASME SB363 Titanium Alloy Threaded / Screwed Flange

ASME SB363 Titanium Alloy Threaded / Screwed Flange

Titanium Grade 2 Bleed Ring Flange

Titanium Grade 2 Bleed Ring Flange

ASTM B363 Titanium Alloy Grade 2 Lap Joint Flange

ASTM B363 Titanium Alloy Grade 2 Lap Joint Flange

Titanium Gr-2 Spectacle Blind Flange

Titanium Gr-2 Spectacle Blind Flange

UNS R50400 Square Flange

UNS R50400 Square Flange

DIN 3.7035 Titanium Forged Flanges

DIN 3.7035 Titanium Forged Flanges

Titanium Gr2 Ring Spacer

Titanium Gr2 Ring Spacer

Ti Nipo flange

Ti Nipo flange

Titanium Grade 2 Weldo Flange

Titanium Grade 2 Weldo Flange

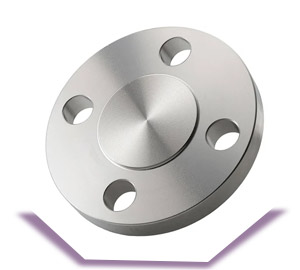

Gr2 Titanium Blind Flange (BLRF)

Gr2 Titanium Blind Flange (BLRF)

Titanium Alloy Gr-2 Tongue & Groove Flanges

Titanium Alloy Gr-2 Tongue & Groove Flanges

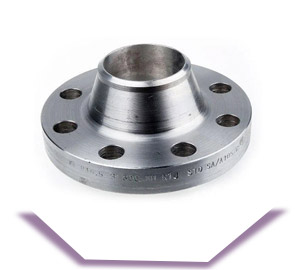

ASTM B564 Titanium Gr-2 Reducing Flange

ASTM B564 Titanium Gr-2 Reducing Flange

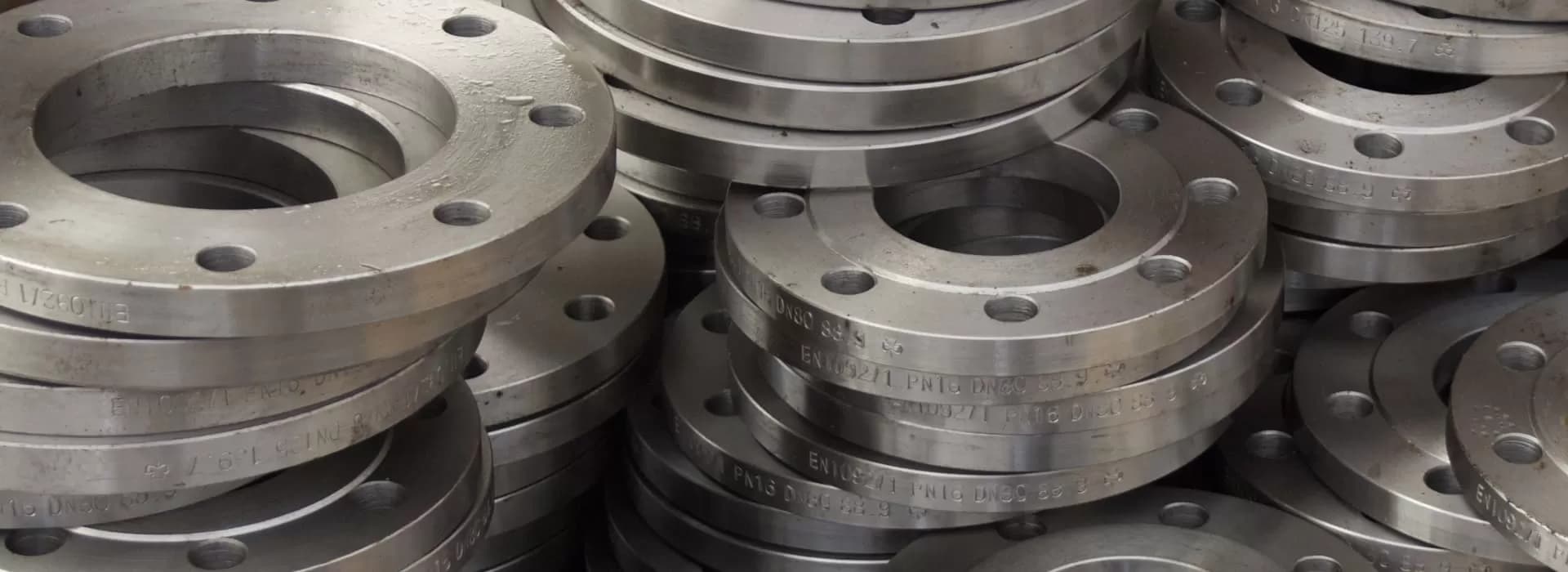

Titanium Grade 2 Slip On Flanges (SORF)

Titanium Grade 2 Slip On Flanges (SORF)

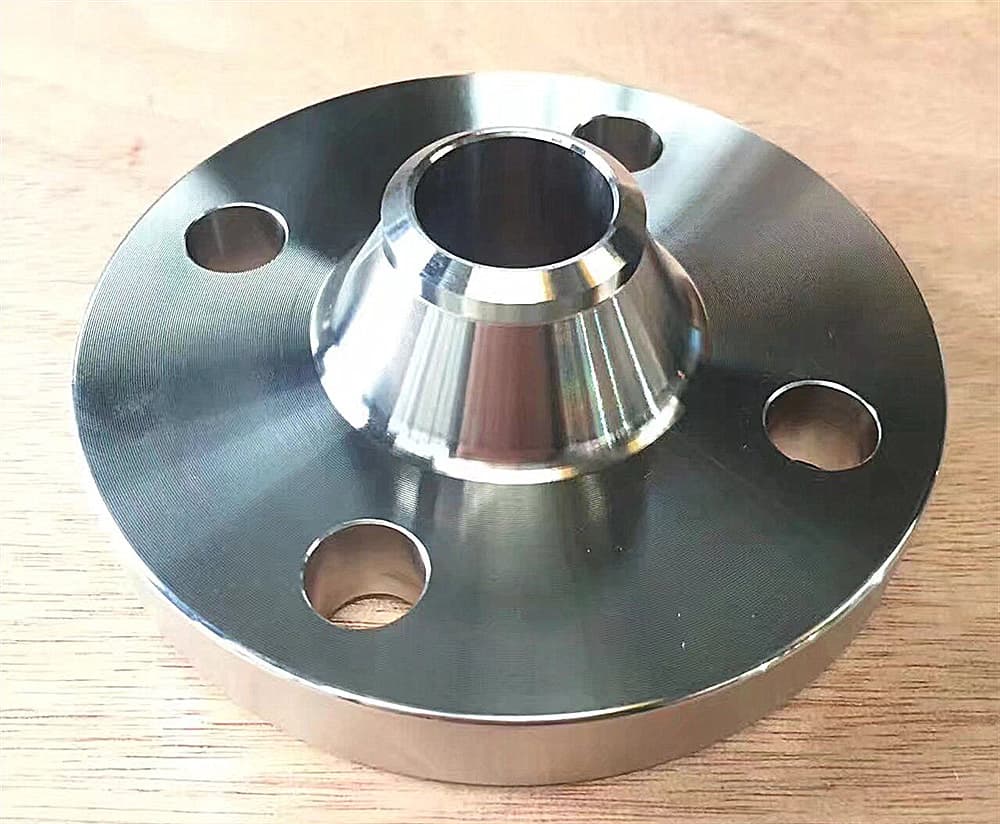

ASTM B564 Titanium GR.2 Socket Weld Flange (SWRF)

ASTM B564 Titanium GR.2 Socket Weld Flange (SWRF)

Grade 2 Ti High Hub Blind Flange

Grade 2 Ti High Hub Blind Flange

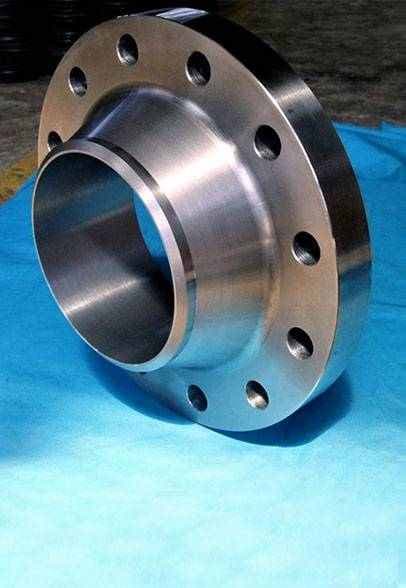

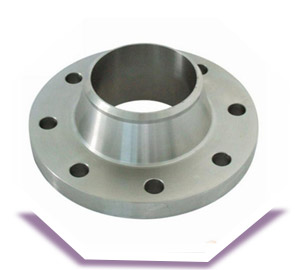

Titanium Gr2 Weld Neck Flange (WNRF)

Titanium Gr2 Weld Neck Flange (WNRF)

UNS R50400 Plate Flange

UNS R50400 Plate Flange

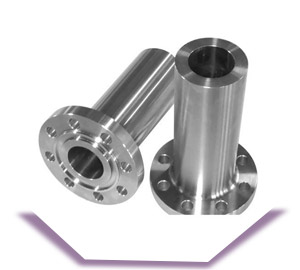

Titanium Grade 2 Long Weld Neck Flange

Titanium Grade 2 Long Weld Neck Flange

Ti Gr 2 RTJ Puddle Flange

Ti Gr 2 RTJ Puddle Flange

ANSI B16.36 Titanium Flanges Pressure Ratings

We are a specialist supplier & distributor of Titanium Alloy Gr-2 Spectacle Flanges and Titanium Gr2 Weld-Neck Flanges

Temperature °F 900# 300# 1500# 400# 150# 2500# 600#
-20 to 100 2160 720 3600 960 275 6000 1440
200 00 600 3000 800 230 5000 1200
300 1620 540 2700 720 205 4500 1080
400 1490 495 2485 660 190 4140 995
500 1395 465 2330 620 170 3880 930
600 1310 435 25 580 140 3640 875
650 1290 430 2150 575 125 3580 860
700 1275 425 2125 565 110 3540 850
750 1245 415 2075 555 95 3460 830
800 1210 405 2015 540 80 3360 805
850 1190 395 1980 530 65 3300 790
900 1165 390 1945 520 50 3240 780
950 1145 380 1910 510 35 30 765
1000 965 320 1605 430 20 2675 640
1050 925 310 1545 410 20 2570 615
1100 770 255 1285 345 20 2145 515
1150 595 200 995 265 20 1655 400
1200 465 155 770 205 20 1285 310
1250 340 115 565 150 20 945 225
1300 255 85 430 115 20 715 170
1350 5 60 310 80 20 515 125
1400 145 50 240 65 20 400 95
1450 105 35 170 45 15 285 70
1500 80 25 135 35 10 230 55

Gr2 Titanium Flanges Weight Chart

Titanium Flanges
Outside Diameter
(OD)
Nominal Size Min. Thickness
(T)
Diameter of Holes No. of Bolt Holes Bolt Circle
(BC)
Dia. of Hub Top
(HT)
SO Bore ID
(SB)
WN LTH
(WL)
RF Dia.
(R)
WN Bore ID
(WB)
Dia. Hub Base
(HB)
SO LTH
(SL)
3.50 1⁄2 0.38 0.62 4 2.38 0.84 0.88 1.81 1.38 0.62 1.19 0.56
3.88 3⁄4 0.44 0.62 4 2.75 1.05 1.09 2.00 1.69 0.82 1.50 0.56
4.25 1 0.50 0.62 4 3.12 1.32 1.36 2.12 2.00 1.05 1.94 0.62
4.62 11⁄4 0.56 0.62 4 3.50 1.66 1.70 2.19 2.50 1.38 2.31 0.75
5.00 11⁄2 0.62 0.62 4 3.88 1.90 1.95 2.38 2.88 1.61 2.56 0.81
6.00 2 0.69 0.75 4 4.75 2.38 2.44 2.44 3.62 2.07 3.06 0.94
7.00 21⁄2 0.81 0.75 4 5.50 2.88 2.94 2.69 4.12 2.47 3.56 1.06
7.50 3 0.88 0.75 4 6.00 3.50 3.57 2.69 5.00 3.07 4.25 1.12
8.50 31⁄2 0.88 0.75 8 7.00 4.00 4.07 2.75 5.50 3.55 4.81 1.19
9.00 4 0.88 0.75 8 7.50 4.50 4.57 2.94 6.19 4.03 5.31 1.25
10.00 5 0.88 0.88 8 8.50 5.56 5.66 3.44 7.31 5.05 6.44 1.38
11.00 6 0.94 0.88 8 9.50 6.63 6.72 3.44 8.50 6.07 7.56 1.50
13.50 8 1.06 0.88 8 11.75 8.63 8.72 3.94 10.62 7.98 9.69 1.69
16.00 10 1.12 1.00 12 14.25 10.75 10.88 3.94 12.75 10.02 12.00 1.88
19.00 12 1.19 1.00 12 17.00 12.75 12.88 4.44 15.00 12.00 14.38 2.12
21.00 14 1.31 1.12 12 18.75 14.00 14.14 4.94 16.25 13.25 15.75 2.19
23.50 16 1.38 1.12 16 21.25 16.00 16.16 4.94 18.50 15.25 18.00 2.44
25.00 18 1.50 1.25 16 22.75 18.00 18.18 5.44 21.00 17.25 19.88 2.62
27.50 20 1.62 1.25 20 25.00 20.00 20.20 5.62 23.00 19.25 22.00 2.81
29.50 22 1.75 1.38 20 27.25 22.00 22.22 5.82 25.25 21.25 24.25 3.07
32.00 24 1.81 1.38 20 29.50 24.00 24.25 5.94 27.25 23.25 26.12 3.19

Check ASME Sb 381 F2 Forged Flange and Titanium Grade 2 Threaded Flanges Material Pressure Class & Dimensions

UNS R50400 Flanges Dimensions

Diameter Nominal Pipe Size Bore Bolt Diameter Bolt Holes Flange Thickness Bolt Circle Diameter Weight in lbs./kg.
Slip-On Blind
mm in in mm mm in in mm # mm in in mm lb kg kg lb
88.90 3.50 1/2″ 15 22.35 0.88 0.50 12.70 4 9.53 0.38 2.38 60.33 0.48 0.22 0.23 0.51
98.43 3.88 3/4″ 20 27.69 1.09 0.50 12.70 4 9.53 0.38 2.75 69.85 0.59 0.27 0.29 0.65
107.95 4.25 1″ 25 34.54 1.36 0.50 12.70 4 9.53 0.38 3.13 79.38 0.70 0.32 0.36 0.79
117.48 4.63 1-1/4″ 32 43.18 1.70 0.50 12.70 4 9.53 0.38 3.50 88.90 0.81 0.37 0.43 0.95
127.00 5.00 1-1/2″ 40 49.53 1.95 0.50 12.70 4 9.53 0.38 3.88 98.43 0.94 0.43 0.51 1.12
152.40 6.00 2″ 50 61.98 2.44 0.63 15.88 4 9.53 0.38 4.75 120.65 1.33 0.60 0.73 1.62
177.80 7.00 2-1/2″ 65 74.68 2.94 0.63 15.88 4 12.70 0.50 5.50 139.70 2.44 1.11 1.36 2.99
190.50 7.50 3″ 80 90.68 3.57 0.63 15.88 4 12.70 0.50 6.00 152.40 2.64 1.20 1.57 3.46
228.60 9.00 3-1/2″ 90 116.08 4.57 0.63 15.88 8 12.70 0.50 7.50 190.50 3.70 1.68 2.22 4.90
254.00 10.00 4″ 100 143.76 5.66 0.75 19.05 8 15.88 0.63 8.50 215.90 4.95 2.24 3.40 7.50
279.40 11.00 5″ 125 170.69 6.72 0.75 19.05 8 15.88 0.63 9.50 241.30 5.58 2.53 4.17 9.20
342.90 13.50 6″ 150 221.49 8.72 0.75 19.05 8 15.88 0.63 11.75 298.45 8.01 3.63 6.35 14.00
406.40 16.00 8″ 200 276.35 10.88 0.88 22.23 12 19.05 0.75 14.25 361.95 12.00 5.44 11.11 24.50
482.60 19.00 10″ 250 327.15 12.88 0.88 22.23 12 19.05 0.75 17.00 431.80 17.50 7.94 15.19 33.50

DIN 3.7035 Titanium Flanges Chemical Composition

Why don't you directly contact a ASTM B564 Titanium GR.2 Blind Flanges manufacturer? Rishabh Steel accept 1pc order to large quantity, a complete range of Grade 2 Ti SWRF Flanges and UNS R50400 Orifice Flanges in India

N Ti O C H Fe
0.03 max Bal 0.25 max 0.10 max 0.015 max 0.30 max

ASTM B363 Titanium Alloy Grade 2 Flanges Mechanical Properties

Min.Yield Properties, (KSI) Min.Tensile Properties, (KSI) Poisson's Ratio Hardness Tensile Modulus
40 50 0.34-0.10 14.9 103 GPa

Ti Flanges Equivalent

UNS BS JIS EN GOST WERKSTOFF NR. AFNOR
R50400 - - - - 3.7035 -
We supply Ti Alloy Grade 2 Orifice Flange with mechanical performance testing, Buy B381 F2 Material at affortable price in India

Titanium Grade 2 Flanges Applications

  • Specialty Chemicals

  • Off-Shore Oil Drilling Companies

  • Sea Water Equipment

  • Pharmaceutical Equipment

  • Pharmaceuticals

  • Chemical Equipment

  • Power Generation

  • Pulp and Paper Industry

  • Heat Exchangers

  • Gas Processing

  • Petrochemicals

  • Condensers

ASME SB363 Titanium Alloy Flanges Wall Thickness

Contact directly a Titanium Grade 2 Weld Neck Flanges and Ti Gr 2 RTJ Flanges manufacturer in India for custom sizes and factory price

S 120 Outer Diam. S 20 Sizes of Normal Pipe S 10 S 30 S 40 STD Wall XX Hvy S 100 S 60 S 140 EXT Hvy S 80 S 160
0.84 ½ inch 0.083 0.109 0.109 0.294 0.147 0.147 0.188
1.05 ¾ inch 0.083 0.113 0.113 0.308 0.154 0.154 0.219
1.315 1 inch 0.109 0.133 0.133 0.358 0.179 0.179 0.25
1.66 1 ¼ inch 0.109 0.14 0.14 0.382 0.191 0.191 0.25
1.9 1 ½ inch 0.109 0.145 0.145 0.4 0.2 0.2 0.281
2.375 2 inch 0.109 0.154 0.154 0.436 0.218 0.218 0.344
2.875 2 ½ inch 0.12 0.203 0.203 0.552 0.276 0.276 0.375
3.5 3 inch 0.12 0.216 0.216 0.6 0.3 0.3 0.438
4 3 ½ inch 0.12 0.226 0.226 0.636 0.318 0.318
0.438 4.5 4 inch 0.12 0.237 0.237 0.674 0.337 0.337 0.531
0.5 5.563 5 inch 0.134 0.258 0.258 0.75 0.375 0.375 0.625
0.562 6.625 6 inch 0.134 0.28 0.28 0.864 0.432 0.432 0.719
0.719 8.625 0.25 8 inch 0.148 0.277 0.322 0.322 0.875 0.594 0.406 0.812 0.5 0.5 0.906
0.844 10.75 0.25 10 inch 0.165 0.307 0.365 0.365 1 0.719 0.5 1 0.5 0.594 1.125
1 12.75 0.25 12 inch 0.18 0.33 0.406 0.375 1 0.844 0.562 1.125 0.5 0.688 1.312
1.094 14 0.312 14 inch 0.25 0.375 0.438 0.375 0.938 0.594 1.25 0.5 0.75 1.406
1.219 16 0.312 16 inch 0.25 0.375 0.5 0.375 1.031 0.656 1.438 0.5 0.844 1.594
1.375 18 0.312 18 inch 0.25 0.438 0.562 0.375 1.156 0.75 1.562 0.5 0.938 1.781
1.5 20 0.375 20 inch 0.25 0.5 0.594 0.375 1.281 0.812 1.75 0.5 1.031 1.969
22 22 inch 0.25 0.375 0.5
1.812 24 0.375 24 inch 0.25 0.562 0.688 0.375 1.531 0.969 2.062 0.5 1.219 2.344
26 26 inch 0.375 0.5
30 0.5 30 inch 0.312 0.625 0.375 0.5
36 0.5 36 inch 0.312 0.625 0.75 0.375 0.5
40 40 inch 0.375 0.5
42 42 inch 0.375 0.5
48 48 inch 0.375 0.5
Finding the right Titanium Exhaust Flange manufacturers to meet your project needs? Rishabh Steel Industries can produce ASTM B381 Gr.F2 Socket Weld Flanges as per customer's choice and drawing

Titanium Gr-2 Blind Flanges Sizes

Blind FLanges

Class 150 LB

Weight Pipe Flange Data Face Drilling Data
Nominal Outside C A G H J I
Diameter Flange Overall Face Number Diameter Bolt Hole
Pipe Thickness min Diameter Diameter of Holes of Circle
of Holes
Diameter
kg/ piece Size in
mm
in
mm
in
mm
in
mm
in
mm
in
mm
0.42 2 0.840 0.440 3.500 1.380 4 2.380 0.620
21.30 11.20 88.90 35.10 60.45 15.70
0.61 w 1.050 0.500 3.880 1.690 4 2.750 0.620
26.70 12.70 98.60 42.90 69.85 15.70
0.86 1 1.315 0.560 4.250 2.000 4 3.120 0.620
33.40 14.20 108.0 50.80 79.25 15.70
1.17 14 1.660 0.620 4.620 2.500 4 3.500 0.620
42.20 15.70 117.3 63.50 88.90 15.70
1.53 12 1.900 0.690 5.000 2.880 4 3.880 0.620
48.30 17.50 127.0 73.15 98.60 15.70
2.375 0.750 6.000 3.620 4.750 0.750
2.42 2 4
60.30 19.10 152.4 91.90 120.7 19.10
3.94 22 2.875 0.880 7.000 4.120 4 5.500 0.750
73.00 22.40 177.8 104.6 139.7 19.10
4.93 3 3.500 0.940 7.500 5.000 4 6.000 0.750
88.90 23.90 190.5 127.0 152.4 19.10
6.17 32 4.000 0.940 8.500 5.500 7.000 0.750
101.6 23.90 215.9 139.7 8 177.8 19.10
7.00 4 4.500 0.940 9.000 6.190 8 7.500 0.750
114.3 23.90 228.6 157.2 190.5 19.10
8.63 5 5.563 0.940 10.00 7.310 8 8.500 0.880
141.3 23.90 254.0 5.7 215.9 22.40
11.3 6 6.625 1.000 11.00 8.500 8 9.500 0.880
168.3 25.40 279.4 215.9 241.3 22.40
19.6 8 8.625 1.120 13.50 10.62 8 11.75 0.880
219.1 28.40 342.9 269.7 298.5 22.40
28.8 10 10.75 1.190 16.00 12.75 12 14.25 1.000
273.0 30.20 406.4 323.9 362.0 25.40
43.2 12 12.75 1.250 19.00 15.00 12 17.00 1.000
58.1 14 14.00 1.380 21.00 16.25 12 .75 1.120
355.6 35.10 533.4 412.8 476.3 28.40
76.0 16 16.00 1.440 23.50 .50 16 21.25 1.120
406.4 36.60 596.9 469.9 539.8 28.40
93.7 18 12.00 1.560 25.00 21.00 16 22.75 1.250
457.2 39.60 635.0 533.4 577.9 31.75
122 20 20.00 1.690 27.50 23.00 20 25.00 1.250
508.0 42.90 698.5 584.2 635.0 31.75
5 24 24.00 1.880 32.00 27.25 20 29.50 1.380
609.6 47.80 812.8 692.2 749.3 35.10

80% repeat orders from below countries

Corpus Christi Lng Liquefaction Plant Usa

Corpus Christi Lng Liquefaction Plant Usa

Al Zour Refinery- Kuwait

Al Zour Refinery- Kuwait

Glaxosmithkline South Africa (Pty) Ltd Bryanston, Gauteng, South Africa

Glaxosmithkline South Africa (Pty) Ltd Bryanston, Gauteng, South Africa

Rumaila Oil Field-UAE

Rumaila Oil Field-UAE

Fadhili Gas Plant, Jubail, Saudi Arabia

Fadhili Gas Plant, Jubail, Saudi Arabia

RasGas RL(3) Common Offplot Projects Ras Laffan, Qatar

RasGas RL(3) Common Offplot Projects Ras Laffan, Qatar
