We are one of the biggest SA 694 F60 Weld Neck Flange Manufacturer in India, Check Sizes and Price list of Steel F60 Slip on Flange

ASTM A694 F60 Flanges

A flange is a device that connects pipes, valves, tubes, and other machinery to create a strong piping structure. The ASTM A694 F60 Flanges cover carbon and alloy steel configurations that are used in high-pressure liquid transmission. The flange can be easily installed and maintained due to their versatile design geometry. They are available in standard raised, flat, and rtj face types. ASTM A694 Steel Grade F60 Ring type Joint Flange consists of a metallic ring that has grooves on its surface allowing them to work in pressurized applications in the oil and gas industry.

An SA 694 F60 Weld Neck Flange is designed with a long tapered hub or face that is well suited to repeated bending applications. These flange possess superior strength and reduce the stress from the equipment. The A694 F60 Blind Flange doesn’t possess a bore whose main purpose is to blank the ends of hydraulic systems. These flange help terminating pressurized media across harsh conditions. A Steel Grade F60 Slip on Flange is designed with a low-profile head that is available at reasonable prices. The flange are favored in the oil and gas industry as they are easily slid on the pipe and welded using one or more fillet welds. The A694 F60 Steel Socket Weld Flange has static strength similar to a slip on flange. The socket weld flange are used in low pressure and temperature settings. A socket weld flange is seen in pipes of small bores and is avoided in certain applications due to its lower corrosion resistance properties. A High Yield CS A694 Grade F60 Threaded Flange is bored with threads that match the tapered threads on subsequent piping equipment. They are used in highly explosive applications where welding is not possible.

If you choose us as your Steel Grade F60 Slip on Flange and A694 F60 Steel Socket Weld Flange Supplier you will have advantage of short lead times and high- quality products

A694 F60 Carbon Steel Flanges Specification

More than 30 years experience as a ASTM A694 F60 Flanges manufacturer in India

Specifications ASTM/ ASME A694/ SA694
Standards EN Flange, ASME Flange, BS Flange, ANSI Flange, ASTM Flange, DIN Flange
Sizes 1/2″NB upto 48 “NB
Classes 150 LBS to 2500 LBS snd DIN Standard ND6 to 40
Face Type Raised Face, Flate Face, Ring Type Joint

ASME SA694 F60 Flanges Price List

A leading supplier of industrial A694 F60 Carbon Steel Flanges, we offer a wide range of cost effective A694 F60 High Yield Pipe Flanges

Description Price Per Kg In Singapore Price Per Kg In UAE Price Per Kg In USD Price Per Kg In Malaysia
8.0 in x 150 x WNRF x STD WELD NECK CARBON STEEL F60 FLANGE B 16.5 SGD 32.92 UAE Dirham 85.96 US $23.78 MYR 104.25
150 X 25.40 X 340 CARBON STEEL F60 LWNRTJ FLANGE CONF SGD 23.65 UAE Dirham 61.76 US $17.08 MYR 74.90
SW RF, 300#, CL1 XS FLANGE CARBON STEEL F60 SGD 0.63 UAE Dirham 1.65 US $0.46 MYR 2.00
8.0 in x 1500 x WNRTJ x SCH 160 BLIND CARBON STEEL F60 FLANGE B 16.5 SGD 182.68 UAE Dirham 477.00 US $131.94 MYR 578.49
3 INCH X 150 # SPACTACLE BLIND FLANGE FORGES CARBON STEEL F60 ASME B 16.5 SGD 6.89 UAE Dirham 18.00 US $4.98 MYR 21.83
10NB X 150# CARBON STEEL F60 SLIP-ON FLAT FACE FLANGE B 16.5 SGD 236.05 UAE Dirham 616.36 US $170.48 MYR 747.50
10 INCH X 300 LB SPACTACLE BLIND FLANGE FORGES CARBON STEEL F60 SGD 156.13 UAE Dirham 407.68 US $112.76 MYR 494.42

ASTM A694 F60 Flanges Types

ASTM A694 F60 Socket Weld Flange (SWRF)

ASTM A694 F60 Socket Weld Flange (SWRF)

ASME SA694 F60 Reducing Flange

ASME SA694 F60 Reducing Flange

A694 Grade F60 Spade Flange

A694 Grade F60 Spade Flange

ASTM A694 Carbon Steel F60 Square Flange

ASTM A694 Carbon Steel F60 Square Flange

ASTM A694 Gr F60 Lap Joint Flanges

ASTM A694 Gr F60 Lap Joint Flanges

SA 694 F60 Bleed Ring Flange

SA 694 F60 Bleed Ring Flange

ASME SA 694 F60 Raised Face Flange

ASME SA 694 F60 Raised Face Flange

ASTM A694 F60 Steel Plate Flanges

ASTM A694 F60 Steel Plate Flanges

ASTM A694 F60 Carbon Steel Forged Flange

ASTM A694 F60 Carbon Steel Forged Flange

Carbon Steel A694 Grade F60 High Hub Blind Flanges

Carbon Steel A694 Grade F60 High Hub Blind Flanges

A694 Carbon Steel Gr F60 Ring Spacer

A694 Carbon Steel Gr F60 Ring Spacer

High Yield Carbon Steel F60 Long Weld Neck Flange

High Yield Carbon Steel F60 Long Weld Neck Flange

High Yield CS A694 Gr F60 Slip On Flanges (SORF)

High Yield CS A694 Gr F60 Slip On Flanges (SORF)

Steel Grade F60 Blind Flange (BLRF)

Steel Grade F60 Blind Flange (BLRF)

ASTM A694 Grade F60 Puddle Flange

ASTM A694 Grade F60 Puddle Flange

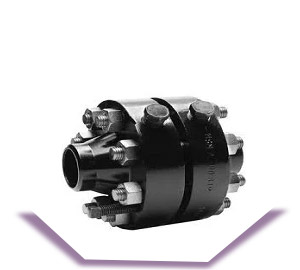

Grade F60 Steel Orifice Flanges

Grade F60 Steel Orifice Flanges

ASTM A694 Steel Grade F60 Weldo Flange

ASTM A694 Steel Grade F60 Weldo Flange

High Yield CS A694 Grade F60 Male & Female Flange

High Yield CS A694 Grade F60 Male & Female Flange

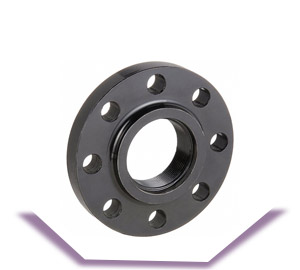

Carbon Steel ASTM A694 Grade F60 Threaded / Screwed Flanges

Carbon Steel ASTM A694 Grade F60 Threaded / Screwed Flanges

Grade F60 Carbon Steel Nipo flange

Grade F60 Carbon Steel Nipo flange

Carbon Steel ASME SA694 F60 Tongue & Groove Flanges

Carbon Steel ASME SA694 F60 Tongue & Groove Flanges

Carbon Steel Grade F60 Ring Type Joint Flange (RTJ)

Carbon Steel Grade F60 Ring Type Joint Flange (RTJ)

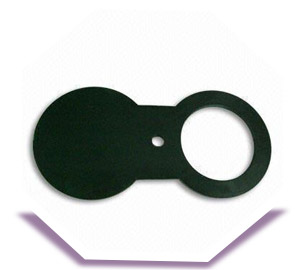

A694 CS Gr F60 Spectacle Blind Flanges

A694 CS Gr F60 Spectacle Blind Flanges

Carbon Steel A694 F60 Weld Neck Flange (WNRF)

Carbon Steel A694 F60 Weld Neck Flange (WNRF)

A694 F60 High Yield Pipe Flanges Wall Thickness

S 120 Outer Diam. S 20 Sizes of Normal Pipe S 10 S 30 S 40 STD Wall XX Hvy S 100 S 60 S 140 EXT Hvy S 80 S 160
0.84 ½ inch 0.083 0.109 0.109 0.294 0.147 0.147 0.188
1.05 ¾ inch 0.083 0.113 0.113 0.308 0.154 0.154 0.219
1.315 1 inch 0.109 0.133 0.133 0.358 0.179 0.179 0.25
1.66 1 ¼ inch 0.109 0.14 0.14 0.382 0.191 0.191 0.25
1.9 1 ½ inch 0.109 0.145 0.145 0.4 0.2 0.2 0.281
2.375 2 inch 0.109 0.154 0.154 0.436 0.218 0.218 0.344
2.875 2 ½ inch 0.12 0.203 0.203 0.552 0.276 0.276 0.375
3.5 3 inch 0.12 0.216 0.216 0.6 0.3 0.3 0.438
4 3 ½ inch 0.12 0.226 0.226 0.636 0.318 0.318
0.438 4.5 4 inch 0.12 0.237 0.237 0.674 0.337 0.337 0.531
0.5 5.563 5 inch 0.134 0.258 0.258 0.75 0.375 0.375 0.625
0.562 6.625 6 inch 0.134 0.28 0.28 0.864 0.432 0.432 0.719
0.719 8.625 0.25 8 inch 0.148 0.277 0.322 0.322 0.875 0.594 0.406 0.812 0.5 0.5 0.906
0.844 10.75 0.25 10 inch 0.165 0.307 0.365 0.365 1 0.719 0.5 1 0.5 0.594 1.125
1 12.75 0.25 12 inch 0.18 0.33 0.406 0.375 1 0.844 0.562 1.125 0.5 0.688 1.312
1.094 14 0.312 14 inch 0.25 0.375 0.438 0.375 0.938 0.594 1.25 0.5 0.75 1.406
1.219 16 0.312 16 inch 0.25 0.375 0.5 0.375 1.031 0.656 1.438 0.5 0.844 1.594
1.375 18 0.312 18 inch 0.25 0.438 0.562 0.375 1.156 0.75 1.562 0.5 0.938 1.781
1.5 20 0.375 20 inch 0.25 0.5 0.594 0.375 1.281 0.812 1.75 0.5 1.031 1.969
22 22 inch 0.25 0.375 0.5
1.812 24 0.375 24 inch 0.25 0.562 0.688 0.375 1.531 0.969 2.062 0.5 1.219 2.344
26 26 inch 0.375 0.5
30 0.5 30 inch 0.312 0.625 0.375 0.5
36 0.5 36 inch 0.312 0.625 0.75 0.375 0.5
40 40 inch 0.375 0.5
42 42 inch 0.375 0.5
48 48 inch 0.375 0.5

Carbon Steel A694 Gr F60 Flanges Magnetic Properties

Manufacturer of ASTM A694 Carbon Steel Slip On Flanges and A694 CS Paddle Spacer Flanges in Mumbai, browse our range of F60 Carbon Steel Weld Neck Flanges and CS F60 AWWA Flanges online

770 °C at 20 °C Curie temperature Typical for Low Carbon Steel

Are you looking for ASTM A694 F60 Flanges Manufacturer in India, View Dimensions and Pressure Rating of High Yield CS A694 Grade F60 Threaded Flange

ASTM A694 Gr F60 Slip On Flanges Weight Chart

Slip On FLanges

Class 150 LB

Pipe Flange Data Face Weight Hub Drilling Data
OutsideDiameter Nominal Pipe A C B D G H F I J
Overall Diameter Flange Thickness min Inside Diameter Overall Length Face Diameter Number of Holes Hub Diameter Bolt Hole Diameter Diameter
of Circle of Holes
in
mm
Size in
mm
in
mm
in
mm
in
mm
in
mm
kg/ piece in
mm
in
mm
in
mm
0.840 2 3.500 0.440 0.880 0.620 1.380 0.39 4 1.190 0.620 2.380
21.30 88.90 11.20 22.40 15.70 35.10 30.20 15.70 60.45
1.050 w 3.880 0.500 1.090 0.620 1.690 0.56 4 1.500 0.620 2.750
26.70 98.60 12.70 27.70 15.70 42.90 38.10 15.70 69.85
1.315 1 4.250 0.560 1.360 0.690 2.000 0.78 4 1.940 0.620 3.120
33.40 108.0 14.20 34.50 17.50 50.80 49.30 15.70 79.25
1.660 14 4.620 0.620 1.700 0.810 2.500 1.03 4 2.310 0.620 3.500
42.20 117.3 15.70 43.20 20.60 63.50 58.70 15.70 88.90
1.900 12 5.000 0.690 1.950 0.880 2.880 1.32 4 2.560 0.620 3.880
48.30 127.0 17.50 49.50 22.40 73.15 65.00 15.70 98.60
2.375 2 6.000 0.750 2.440 1.000 3.620 2.06 4 3.060 0.750 4.750
60.30 152.4 19.10 62.00 25.40 91.90 77.70 19.10 120.7
2.875 22 7.000 0.880 2.940 1.120 4.120 3.28 4 3.560 0.750 5.500
73.00 177.8 22.40 74.70 28.40 104.6 90.40 19.10 139.7
3.500 3 7.500 0.940 3.570 1.190 5.000 3.85 4 4.250 0.750 6.000
88.90 190.5 23.90 90.70 30.20 127.0 108.0 19.10 152.4
4.000 32 8.500 0.940 4.070 1.250 5.500 4.81 8 4.810 0.750 7.000
101.6 215.9 23.90 103.4 31.75 139.7 122.2 19.10 177.8
4.500 4 9.000 0.940 4.570 1.310 6.190 5.30 8 5.310 0.750 7.500
114.3 228.6 23.90 116.1 33.30 157.2 134.9 19.10 190.5
5.563 5 10.00 0.940 5.660 1.440 7.310 6.07 8 6.440 0.880 8.500
141.3 254.0 23.90 143.8 36.60 5.7 163.6 22.40 215.9
6.625 11.00 1.000 6.720 1.560 8.500 7.560 0.880 9.500
6 7.45 8
168.3 279.4 25.40 170.7 39.60 215.9 192.0 22.40 241.3
8.625 8 13.50 1.120 8.720 1.750 10.62 12.1 8 9.690 0.880 11.75
219.1 342.9 28.40 221.5 44.50 269.7 246.1 22.40 298.5
10.75 10 16.00 1.190 10.88 1.940 12.75 16.5 12 12.00 1.000 14.25
273.0 406.4 30.20 276.3 49.30 323.9 304.8 25.40 362.0
12.75 12 19.00 1.250 12.88 2.190 15.00 26.2 12 14.38 1.000 17.00
323.8 482.6 31.75 327.1 55.60 381.0 365.3 25.40 431.8
14.00 14 21.00 1.380 14.14 2.250 16.25 34.6 12 15.75 1.120 .75
355.6 533.4 35.10 359.1 57.15 412.8 400.1 28.40 476.3
16.00 16 23.50 1.440 16.16 2.500 .50 44.8 16 .00 1.120 21.25
406.4 596.9 36.60 410.5 63.50 469.9 457.2 28.40 539.8
12.00 18 25.00 1.560 41.24 2.690 21.00 48.9 16 19.88 1.250 22.75
457.2 635.0 39.60 461.8 68.30 533.4 505.0 31.75 577.9
20.00 20 27.50 1.690 20.20 2.880 23.00 61.9 20 22.00 1.250 25.00
508.0 698.5 42.90 513.1 73.15 584.2 558.8 31.75 635.0
24.00 24 32.00 1.880 24.25 3.250 27.25 86.9 20 26.12 1.380 29.50
609.6 812.8 47.80 616.0 82.60 692.2 663.4 35.10 749.3

Chemical Composition of ASTM A694 F60 Flanges

Contact directly a ASTM A694 Carbon Steel F60 Body Flanges and Carbon Steel F60 Blind Flanges manufacturer in India for high quality material and MTC

Mn Si P C S
1.60-1.64 0.15-0.35 0.025-0.030 0.26-0.265 0.025-0.030

CS Gr F60 Flanges Mechanical Properties

Elongation Tensile Properties (0.2% Offset) Yield Properties
20 % 515 415
We are Stockist and Distributor of A694 F60 Blind Flange in Mumbai, Contact us now to get latest stock report of SA 694 F60 Spectacle Blind Flanges

Steel Grade F60 Plate Flanges Dimensions

Plate FLanges
PN DN B A C
mm mm mm
10&16 10 14 90 .0
10&16 15 14 95 22.0
10&16 20 16 105 27.5
10&16 25 16 115 34.5
10&16 32 140 43.5
10&16 40 150 49.5
10&16 50 20 165 61.5
10&16 65 20 5 77.5
10&16 80 20 200 90.5
10&16 100 22 220 116.0
10&16 125 22 250 141.5
10&16 150 24 285 170.5
10&16 200 24 340 221.5
10 250 26 395 276.5
16 29 405

A694 Grade F60 Flanges Applications

The benefit of purchasing F60 Carbon Steel Threaded Flanges and Gr F60 Threaded Fittings directly from manufacturers is the reduced cost and wide selection which save your time

  • Specialty Chemicals

  • Heat Exchangers

  • Sea Water Equipment

  • Power Generation

  • Pharmaceuticals

  • Condensers

  • Gas Processing

  • Pulp and Paper Industry

  • Off-Shore Oil Drilling Companies

  • Pharmaceutical Equipment

  • Chemical Equipment

  • Petrochemicals

Carbon Steel F60 Flanges Thermal Properties

Max service temperature Typical for CS 500 °C
Coefficient of thermal expansion Typical for Low CS 1.32E-5 - 1.38E-5 1/K at 20 °C
Melting point Typical for Low CS 1480 - 1526 °C
Rishabh industries is an ISO 9001:2015 certified Company and is one of the world's leading exporter of ASTM A694 Steel Grade F60 Ring type Joint Flange and Carbon Steel F60 Orifice Flanges

ASTM A694 F60 Carbon Steel Flanges Pressure Ratings

ANSI B16.47 Flange Type ASME B16.47 ANSI B16.5 BS EN 1092/
Series A Series B
MSS SP-44 API 605 (BS4504)
lbs* lbs* lbs Bar
150-900 Weld Neck 150-300 150-2500 2.5-40
300-900 Weld Neck Ring Type Joint 150-300 300-2500 N/A
- Slip On - 150-1500 2.5-40
- Slip On Ring Type Joint - 300-1500 N/A
- Threaded - 150-2500 6-40
- Lap Joint - 150-2500 6-40
- Blind - 150-2500 2.5-40
- Socket Weld - 150-1500 N/A
