ASTM A694 F52 Flanges

A flange is a crucial channel that helps in connecting piping equipment to transport fluid and steam in refineries and factories. The ASTM A694 F52 Flanges cover standard specifications for carbon and alloy steel that helps in the high transmission of media across stress-induced conditions. The A694 Grade F52 Threaded Flange is seen in applications where there is a need for quick fixes allowing for an easy installation procedure. The threaded screwed flange has threads that don’t require any welding process. They are best suited for low-pressure and temperature environments.

The F52 Carbon Steel Slip on Flange possesses a higher content of carbon and is seen in lower pressure applications. These flange are easy to install and are cheaper in comparison to other flange that are seen in the oil and gas industry. A Grade F52 Socket Weld Flange is seen in lower temperature setups and is seen in pipes of sizes NPS 2 or lower. These flange are welded using a single fillet weld and are recommended for low pressure and temperature setups. A Carbon Steel F52 Weld Neck Flange is manufactured with a long tapered hub that helps reduce the stress and concentrate excess pressure on the hub. These flange are butt-welded and are seen in high-pressure and temperature setups. A High Yield CS A694 Gr F52 Blind Flange possesses superior strength and helps blank the ends of the piping equipment. These flange don’t possess a bore to the center that allows them to terminate the flow of pressurized media. The ASME SA 694 F52 Orifice Flanges possess a small hole with two top holes that are drilled in each of the flange. They are built to measure the flow rate in the system. The flange are available in raised, flat, or ring-type joint face.

Best price of F52 Carbon Steel Slip on Flangein Mumbai, check Carbon Steel A350 LF3 Flange pressure class rating

ASTM A694 F52 Flanges Specification

10-12% price difference if you buy directly from ASTM A694 F52 Flanges manufacturers

Specifications ASTM/ ASME A694/ SA694
Class 150 LBS to 2500 LBS DIN Standard ND 6 to 40
Flange Face Type Raised Face, Flate Face, Ring Type Joint
Standards DIN Flange, ASTM FLange, EN Flange, ANSI Flange, ASME Flange, BS Flange
Size 1/2″NB upto 48“NB

Norma A694 F52 Pipe Flanges Price List

Buy from PED approved ASME SA694 F52 Flanges manufacturer for quality products & accurate dimensions

Description Price Per Kg In Singapore Price Per Kg In UAE Price Per Kg In USD Price Per Kg In Malaysia
SW RF, 300#, CL1 XS FLANGE CARBON STEEL F52 SGD 0.63 UAE Dirham 1.65 US $0.46 MYR 2.00
10NB X 150# CARBON STEEL F52 SLIP-ON FLAT FACE FLANGE B 16.5 SGD 236.05 UAE Dirham 616.36 US $170.48 MYR 747.50
150 X 25.40 X 340 CARBON STEEL F52 LWNRTJ FLANGE CONF SGD 23.65 UAE Dirham 61.76 US $17.08 MYR 74.90
8.0 in x 150 x WNRF x STD WELD NECK CARBON STEEL F52 FLANGE B 16.5 SGD 32.92 UAE Dirham 85.96 US $23.78 MYR 104.25
8.0 in x 1500 x WNRTJ x SCH 160 BLIND CARBON STEEL F52 FLANGE B 16.5 SGD 182.68 UAE Dirham 477.00 US $131.94 MYR 578.49
10 INCH X 300 LB SPACTACLE BLIND FLANGE FORGES CARBON STEEL F52 SGD 156.13 UAE Dirham 407.68 US $112.76 MYR 494.42
3 INCH X 150 # SPACTACLE BLIND FLANGE FORGES CARBON STEEL F52 ASME B 16.5 SGD 6.89 UAE Dirham 18.00 US $4.98 MYR 21.83

CS ASTM A694 F52 Flanges Types

ASTM A694 F52 Plate Flange

ASTM A694 F52 Plate Flange

ASME SA694 F52 Spade Flange

ASME SA694 F52 Spade Flange

A694 Grade F52 Ring Spacer

A694 Grade F52 Ring Spacer

ASTM A694 Grade F52 Ring Type Joint Flange (RTJ)

ASTM A694 Grade F52 Ring Type Joint Flange (RTJ)

ASTM A694 Gr F52 Orifice Flange

ASTM A694 Gr F52 Orifice Flange

CS ASTM A694 Gr F52 Weldo Flange

CS ASTM A694 Gr F52 Weldo Flange

ASTM A694 Gr F52 Square Flanges

ASTM A694 Gr F52 Square Flanges

Norma A694 F52 Lap Joint Flange

Norma A694 F52 Lap Joint Flange

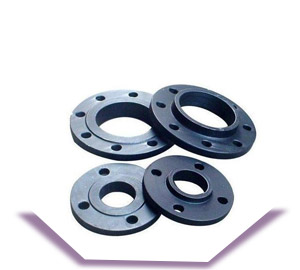

A694 F52 Carbon Steel Raised Face Flange

A694 F52 Carbon Steel Raised Face Flange

ASTM A694 F52 Tongue & Groove Flanges

ASTM A694 F52 Tongue & Groove Flanges

Carbon Steel ASTM A694 F52 Male & Female Flanges

Carbon Steel ASTM A694 F52 Male & Female Flanges

CS ASTM A694 F52 Bleed Ring Flange

CS ASTM A694 F52 Bleed Ring Flange

A694 CS Gr F52 High Hub Blind Flange

A694 CS Gr F52 High Hub Blind Flange

A694 Carbon Steel F52 Threaded / Screwed Flanges

A694 Carbon Steel F52 Threaded / Screwed Flanges

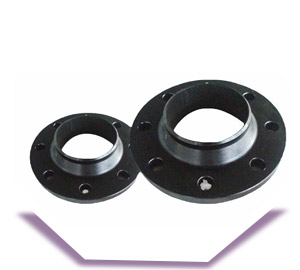

SA 694 F52 Weld Neck Flanges (WNRF)

SA 694 F52 Weld Neck Flanges (WNRF)

Carbon Steel A694 Grade F52 Long Weld Neck Flanges

Carbon Steel A694 Grade F52 Long Weld Neck Flanges

High Yield Carbon Steel F52 Reducing Flanges

High Yield Carbon Steel F52 Reducing Flanges

SA 694 F52 Puddle Flanges

SA 694 F52 Puddle Flanges

A694 F52 High Yield Blind Flanges (BLRF)

A694 F52 High Yield Blind Flanges (BLRF)

High Yield CS A694 Gr F52 Socket Weld Flanges (SWRF)

High Yield CS A694 Gr F52 Socket Weld Flanges (SWRF)

Grade F52 Slip On Flanges (SORF)

Grade F52 Slip On Flanges (SORF)

Carbon Steel ASME SA694 F52 Forged Flanges

Carbon Steel ASME SA694 F52 Forged Flanges

A694 CS Gr F52 Nipo flange

A694 CS Gr F52 Nipo flange

ASTM A694 Gr F52 Spectacle Blind Flanges

ASTM A694 Gr F52 Spectacle Blind Flanges

A694 F52 Carbon Steel Flanges Pressure Ratings

ANSI B16.47 Flange Type ASME B16.47 ANSI B16.5 BS EN 1092/
Series A Series B
MSS SP-44 API 605 (BS4504)
lbs* lbs* lbs Bar
150-900 Weld Neck 150-300 150-2500 2.5-40
300-900 Weld Neck Ring Type Joint 150-300 300-2500 N/A
- Slip On - 150-1500 2.5-40
- Slip On Ring Type Joint - 300-1500 N/A
- Threaded - 150-2500 6-40
- Lap Joint - 150-2500 6-40
- Blind - 150-2500 2.5-40
- Socket Weld - 150-1500 N/A

ASTM A694 Gr F52 Weld Neck Flanges Weight Chart

Wled Neck FLanges

Class 150 LB

Pipe Weight Flange Data Hub Data Face Drilling Data
C B D F E G I H J
Outside Diameter Nominal Pipe Flange Thickness min Inside Diameter Overall Length Hub Diameter Diameter at Weld Bevel Face Diameter Bolt Hole Diameter Number of Holes Diameter of Circle of Holes
in
mm
Size kg/ piece in
mm
in
mm
in
mm
in
mm
in
mm
in
mm
in
mm
in
mm
0.840 2 0.48 0.440 0.620 1.880 1.190 0.840 1.380 0.620 4 2.380
21.30 11.20 15.70 47.80 30.20 21.30 35.00 15.70 60.45
1.050 w 0.71 0.500 0.820 2.060 1.500 1.050 1.690 0.620 4 2.750
26.70 12.70 20.80 52.30 38.10 26.70 42.90 15.70 69.85
1.315 1 1.01 0.560 1.050 2.190 1.940 1.320 2.000 0.620 4 3.120
33.40 14.20 26.70 55.60 49.30 33.50 50.80 15.70 79.25
1.660 14 1.33 0.620 1.380 2.250 2.310 1.660 2.500 0.620 4 3.500
42.20 15.70 35.10 57.15 58.70 42.20 63.50 15.70 88.90
1.900 12 1.72 0.690 1.610 2.440 2.560 1.900 2.880 0.620 4 3.880
48.30 17.50 40.90 62.00 65.00 48.30 73.15 15.70 98.60
2.375 2 2.58 0.750 2.070 2.500 3.060 2.380 3.620 0.750 4 4.750
60.30 19.10 52.60 63.50 77.70 60.45 91.90 19.10 120.7
2.875 22 4.11 0.880 2.470 2.750 3.560 2.880 4.120 0.750 4 5.500
3.500 3 4.92 0.940 3.070 2.750 4.250 3.500 5.000 0.750 4 6.000
88.90 23.90 78.00 69.85 108.0 88.90 127.0 19.10 152.4
4.000 32 6.08 0.940 3.550 2.810 4.810 4.000 5.500 0.750 8 7.000
101.6 23.90 90.20 71.40 122.2 101.6 139.7 19.10 177.8
4.500 4 6.84 0.940 4.030 3.000 5.310 4.500 6.190 0.750 8 7.500
114.3 23.90 102.4 76.20 134.9 114.3 157.2 19.10 190.5
5.563 5 8.56 0.940 5.050 3.500 6.440 5.560 7.310 0.880 8 8.500
141.3 23.90 128.3 88.90 163.6 141.2 5.7 22.40 215.9
6.625 6 10.6 1.000 6.070 3.500 7.560 6.630 8.500 0.880 8 9.500
168.3 25.40 154.2 88.90 192.0 168.4 215.9 22.40 241.3
8.625 1.120 7.980 4.000 9.690 8.630 10.62 0.880 11.75
8 17.6 8
219.1 28.40 202.7 101.6 246.1 219.2 269.7 22.40 298.5
10.75 10 24.0 1.190 10.02 4.000 12.00 10.75 12.75 1.000 12 14.25
273.0 30.20 254.5 101.6 304.8 273.0 323.8 25.40 362.0
12.75 12 36.5 1.250 12.00 4.500 14.38 12.75 15.00 1.000 12 17.00
323.8 31.75 304.8 114.3 365.3 323.8 381.0 25.40 431.8
14.00 14 48.4 1.380 To be specified by Purchaser 5.000 15.75 14.00 16.25 1.120 12 .75
355.6 35.10 127.0 400.1 355.6 412.7 28.40 476.3
16.00 16 60.6 1.440 5.000 .00 16.00 .50 1.120 16 21.25
406.4 36.60 127.0 475.2 406.4 469.9 28.40 539.8
.00 18 68.3 1.560 5.500 19.88 14.00 21.00 1.250 16 22.75
457.2 39.60 139.7 505.0 457.2 533.4 31.75 577.9
20.00 20 84.5 1.690 5.690 22.00 20.00 23.00 1.250 20 25.00
508.0 42.90 144.5 558.8 508.0 584.2 31.75 635.0
24.00 24 115 1.880 6.000 26.12 24.00 27.25 1.380 20 29.50
609.6 47.80 152.4 663.4 609.6 692.1 35.10 749.3

We are one of the prominent ASME SA 694 F52 RTJ Flanges Supplier, A694 Grade F52 Threaded Flange have a strong connectivity to pipes and have a long life in the refining industry

CS ASTM A694 Gr F52 Flanges Dimensions

We are a specialist distributor & supplier of ASTM A694 Grade F52 Blind Flanges and ASTM A694 Gr F52 SORF Flange

Standard Diameter Bolt Size Class Number of Bolts Bolt Circle Diameter Diameter of Bolt Hole
AS 2129 Flange 95 13 Table C 4 67 14
95 13 Table E 4 67 14
95 13 Table D 4 67 14
114 16 Table H 4 83 17
95 13 Table F 4 67 14
114 16 Table J 4 83 17
ANSI B16.5 89 13 ANSI 150 4 60 16
95 13 ANSI 600 4 67 16
95 13 ANSI 300 4 67 16
121 19 ANSI 1500 4 83 22
121 19 ANSI 900 4 83 22
AS4087 95 M12 PN14 4 67 14
ISO 7005 (DIN) Flange 80 M10 PN6 4 55 11
95 M12 PN16 4 65 14
95 M12 PN10 4 65 14
90 M14 PN20 4 60.5 16
95 M12 PN40 4 65 14
95 M12 PN25 4 65 14

ASME SA694 F52 Flanges Chemical Composition

Manganese [Mn] ≤1.60
Carbon [C] ≤0.30
Phosphorus [P] ≤0.025
Silicon [Si] 0.15-0.35
Sulfur [S] ≤0.025

ASTM A694 F52 Carbon Steel Flanges Mechanical Properties

Why don't you directly contact a ASTM A694 F52 Blind Flanges manufacturer? Get a free sample before dispatch of complete order of Carbon Steel ASTM A694 F52 Threaded Flanges

(0.2% Offset) Yield Properties Tensile Properties Elongation
315 415 20 %
Looking for ASTM A694 F52 Flanges manufacturers in India? Buy Grade F52 Socket Weld Flange at factory price in Mumbai

A694 Grade F52 Flanges Physical Properties

Yield Properties min. Elongation min. Tensile Properties min.
ksi MPa % MPa ksi
52 360 20 455 66

SA 694 F52 Blind Flanges Sizes

Blind FLanges

Class 150 LB

Raised Face
Thickness (T)
Outside
Diameter
No. of
Bolt Holes
Bolt Circle (BC) FLANGE
NPS
Raised Face (R) Flat Face
Thickness (T2)
Raised Face (RF) Bolt Hole (B)
.44″ 3.50″ 4 2.38″ 1/2″ 1.38″ .38″ .063″ .62″
.50″ 3.88″ 4 2.75″ 3/4″ 1.69″ .44″ .063″ .62″
.56″ 4.25″ 4 3.12″ 1″ 2.00″ .50″ .063″ .62″
.62″ 4.62″ 4 3.50″ 1-1/4″ 2.50″ .56″ .063″ .62″
.68″ 5.00″ 4 3.88″ 1-1/2″ 2.88″ .62″ .063″ .62″
.75″ 6.00″ 4 4.75″ 2″ 3.62″ .69″ .063″ .75″
.88″ 7.00″ 4 5.50″ 2-1/2″ 4.12″ .82″ .063″ .75″
.94″ 7.50″ 4 6.00″ 3″ 5.00″ .88″ .063″ .75″
.94″ 8.50″ 8 7.00″ 3-1/2″ 5.50″ .88″ .063″ .75″
.94″ 9.00″ 8 7.50″ 4″ 6.19″ .88″ .063″ .75″
.94″ 10.00″ 8 8.50″ 5″ 7.31″ .88″ .063″ .88″
1.00″ 11.00″ 8 9.50″ 6″ 8.50″ .94″ .063″ .88″
1.12″ 13.50″ 8 11.75″ 8″ 10.62″ 1.06″ .063″ .88″
1.19″ 16.00″ 12 14.25″ 10″ 12.75″ 1.13″ .063″ 1.00″
1.25″ 19.00″ 12 17.00″ 12″ 15.00″ 1.19″ .063″ 1.00″
1.38″ 21.00″ 12 18.75″ 14″ 16.25″ 1.32″ .063″ 1.12″
1.44″ 23.50″ 16 21.25″ 16″ 18.50″ 1.38″ .063″ 1.12″
1.56″ 25.00″ 16 22.75″ 18″ 21.00″ 1.50″ .063″ 1.25″
1.69″ 27.50″ 20 25.00″ 20″ 23.00″ 1.63″ .063″ 1.25″
1.81″ 29.50″ 20 27.25″ 22″ 25.25″ 1.75″ .063″ 1.38″
1.88″ 32.00″ 20 29.50″ 24″ 27.25″ 1.82″ .063″ 1.38″
Designed to associate different sections of a pipeline ASME SA 694 F52 Orifice Flanges and F52 Carbon Steel Forged Flange enable easy access to the network for maintenance

ASTM A694 Grade F52 Flanges Applications

Contact directly a CS ASTM A694 F52 Weld Neck Flanges and Carbon Steel A694 Grade F52 BLRF Flanges manufacturer in India for lowest price and fast delivery

  • Sea Water Equipment

  • Power Generation

  • Gas Processing

  • Off-Shore Oil Drilling Companies

  • Petrochemicals

  • Pharmaceuticals

  • Heat Exchangers

  • Condensers

  • Pulp and Paper Industry

  • Chemical Equipment

  • Specialty Chemicals

  • Pharmaceutical Equipment
